Interior / Exterior / Audio Talk about interior and exterior mods including audio.

FD door handles + 3M DiNoc carbon fiber wrap/film

Thread Tools

Search this Thread

Old 07-03-10, 08:27 PM
  #1
Does not drive a WRX!!!

Thread Starter
iTrader: (6)

wReX's Avatar

Join Date: Oct 2001
Location: San Antonio
Posts: 1,253
Likes: 0
Received 1 Like on 1 Post
FD door handles + 3M DiNoc carbon fiber wrap/film

This is the first time I've ever played with this stuff and it's really quite impressive. I have seen some regular old CF vinyl before and it's pretty much what you'd expect, a sticker which fades/tears/peels up over time. This DiNoc stuff however is textured and has a nice dry CF look to it plus it's very easy to work with. Supposed to hold up fine to rain/sun/whatever and is washable. 3M seems to make some pretty good stuff so I'm confident it'll hold up fine. Overall for less than $10-20 in materials I'm happy; I don't generally cheap out on my car but this is definitely a winner for those who want to freshen up the look of a part and don't wanna shell out hundreds of $$$ for Feed/CF covers or real CF wrapping.

All you really need is a heat gun and good pair of scissors. I'd also recommend cleaning off the part before hand with alcohol or something to remove any dirt/grease.

The 3M Di-Noc stuff can be purchased here... http://www.carbonfiberfilm.com/ ...but I found some cheaper on ebay(beware of knock offs though!).



Old 07-03-10, 08:29 PM
  #2
Does not drive a WRX!!!

Thread Starter
iTrader: (6)

wReX's Avatar

Join Date: Oct 2001
Location: San Antonio
Posts: 1,253
Likes: 0
Received 1 Like on 1 Post
I know the pics look like they have some smudges or bubbles but that's the fault of my ~9yr old digital camera, the wrap goes on smooth and looks great in person.

I'm debating using the 3M stuff to wrap the FD's interior panels, may just get them repainted, dunno yet. Anyone tried DiNoc on the interior panels? Pics?

I used Neffy wrap for the panels in my daily driver/beater and it turned out great, it's more of a cloth material so not sure it'd work for some of the small/complex corners around the A/C controls and such. NeffyWrap... http://www.wrex-racing.com/bin/wp/?page_id=99
Old 07-04-10, 03:03 PM
  #3
Still got it.

iTrader: (2)

Prometheus's Avatar

Join Date: Jan 2007
Location: Seattle, Washington
Posts: 1,687
Received 3 Likes on 3 Posts
A buddy of mine wrapped the whole roof of his wife's volvo station waggon.

This stuff is amazing in person.

Both look & feel.

It's still cheating, but damn it sure looks good!
Old 07-18-10, 03:35 AM
  #4
Snowboarding Whistler!

iTrader: (24)

Fortune_Seven's Avatar

Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,285
Likes: 0
Received 0 Likes on 0 Posts
Cool, looks good!
Old 07-18-10, 03:07 PM
  #5
Derek

iTrader: (2)

DMoneyRX-7's Avatar

Join Date: Sep 2005
Location: Treasure Coast, FL
Posts: 2,011
Likes: 0
Received 5 Likes on 4 Posts
Could you put a layer of clear coat over this stuff?
Old 07-19-10, 11:34 AM
  #6
R.I.P. Icemark

iTrader: (2)

staticguitar313's Avatar

Join Date: Sep 2004
Location: gilbert, arizona
Posts: 4,229
Likes: 0
Received 1 Like on 1 Post
not could but should, site says it won't last more than 4 years outside
Old 07-21-10, 09:10 PM
  #7
Full Member

2jzTank's Avatar

Join Date: Jun 2010
Location: wiesbaden, Germany
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Thank you Thank you Thank you, you just answered my interior questions that was racking my brain.
Old 07-21-10, 09:22 PM
  #8
Senior Member

iTrader: (3)

Callsign_Vega's Avatar

Join Date: Jan 2007
Location: Fort Rucker, Alabama
Posts: 323
Likes: 0
Received 0 Likes on 0 Posts
Looks great for interior applications. I am also interested in exterior applications, but they say horizontal applications aren't good if it's going to see sun at all. That's not very reassuring.
Old 07-21-10, 10:17 PM
  #9
Full Member

iTrader: (5)

cuhrupt's Avatar

Join Date: Sep 2004
Location: south cali
Posts: 164
Likes: 0
Received 0 Likes on 0 Posts

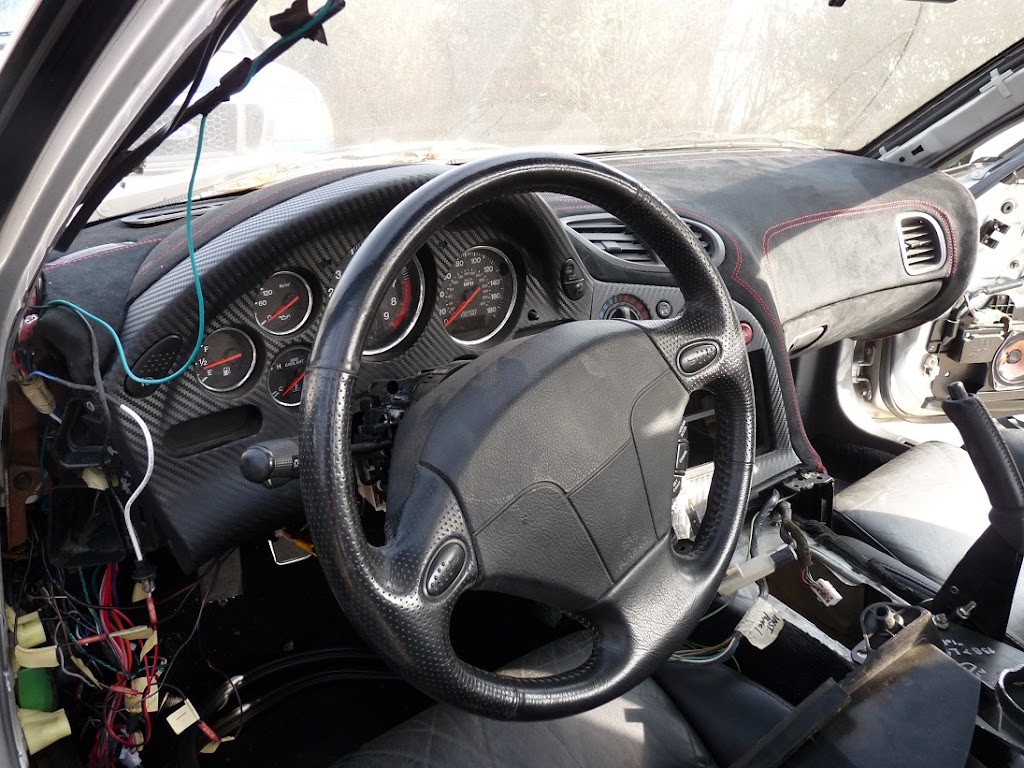

i did my interior pc's in it.


Old 07-21-10, 10:59 PM
  #10
Rotor Head Extreme

iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,719
Likes: 0
Received 26 Likes on 17 Posts
^ That looks nice. I'm curious as to how the film side looks. Could you post a pic of a scrap piece for me? Does it look the same as the dry side with just a tacky touch or completely different.
Old 07-22-10, 03:02 AM
  #11
Senior Member

iTrader: (29)

efinimazda's Avatar

Join Date: Feb 2005
Location: southern cali
Posts: 324
Likes: 0
Received 0 Likes on 0 Posts

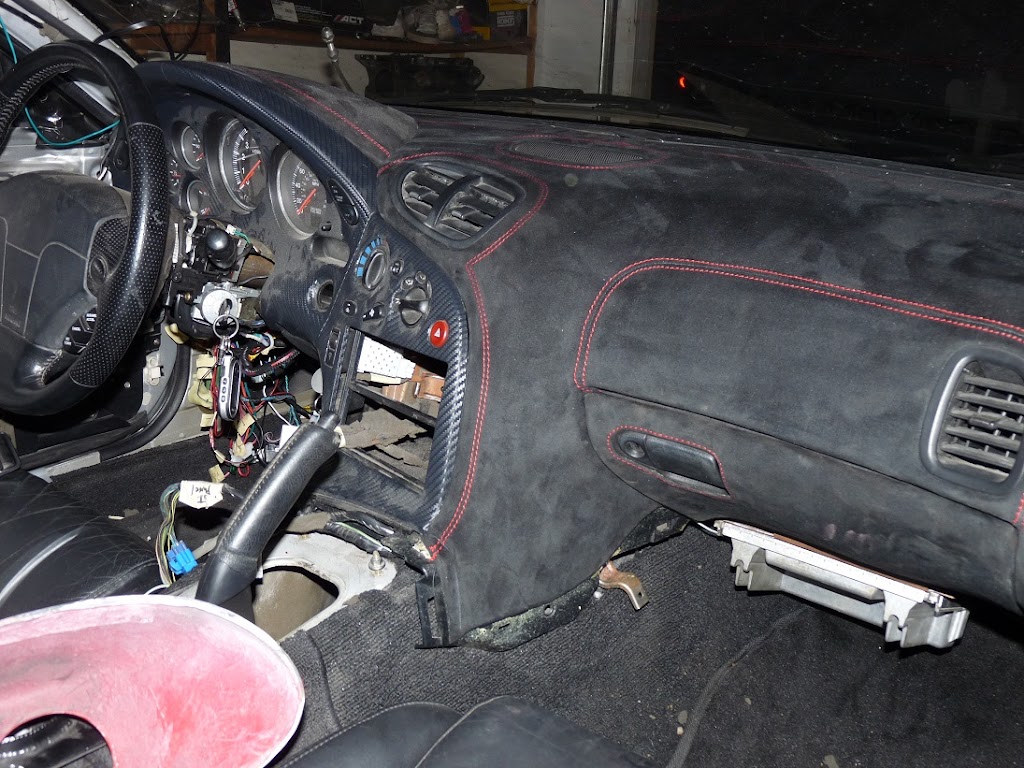

the dash looks nice with red stitching
Old 07-22-10, 05:29 PM
  #12
Does not drive a WRX!!!

Thread Starter
iTrader: (6)

wReX's Avatar

Join Date: Oct 2001
Location: San Antonio
Posts: 1,253
Likes: 0
Received 1 Like on 1 Post
cuhrupt, thanks for the pics, just what I was looking for... looks good. The dash cover/stitching looks great too.
Old 07-22-10, 05:36 PM
  #13
Does not drive a WRX!!!

Thread Starter
iTrader: (6)

wReX's Avatar

Join Date: Oct 2001
Location: San Antonio
Posts: 1,253
Likes: 0
Received 1 Like on 1 Post
Originally Posted by t-von
^ That looks nice. I'm curious as to how the film side looks. Could you post a pic of a scrap piece for me? Does it look the same as the dry side with just a tacky touch or completely different.
The back side looks different... black w/ small lines/squares(small air channels to help get out any bubbles). What's great about the stuff too is if you mess up you can pull it off and reapply the same piece again, back of the film stays pretty tacky, glue actually sets when you go over it with the heat gun.
Old 07-22-10, 10:16 PM
  #14
Snowboarding Whistler!

iTrader: (24)

Fortune_Seven's Avatar

Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,285
Likes: 0
Received 0 Likes on 0 Posts
Yeah your dash looks great Cuhrupt! how much did it set you back? and how long did it take them? Stitching is sweet!
Old 07-23-10, 01:12 AM
  #15
Space cadet

iTrader: (78)

Battle Cat's Avatar

Join Date: Nov 2007
Location: LOS ANGELES
Posts: 10,308
Likes: 0
Received 3 Likes on 3 Posts
awesome
Old 07-26-10, 10:03 PM
  #16
Full Member

iTrader: (5)

cuhrupt's Avatar

Join Date: Sep 2004
Location: south cali
Posts: 164
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Fortune_Seven
Yeah your dash looks great Cuhrupt! how much did it set you back? and how long did it take them? Stitching is sweet!
i purchased the Alcantara separately..labor alone was like a grand and that includes custom wrap/red stitch to the....dash, all pillars, headliner, sun visors, kick panels, door panels, center console, etc...
