TinMan09

iTrader: (9)

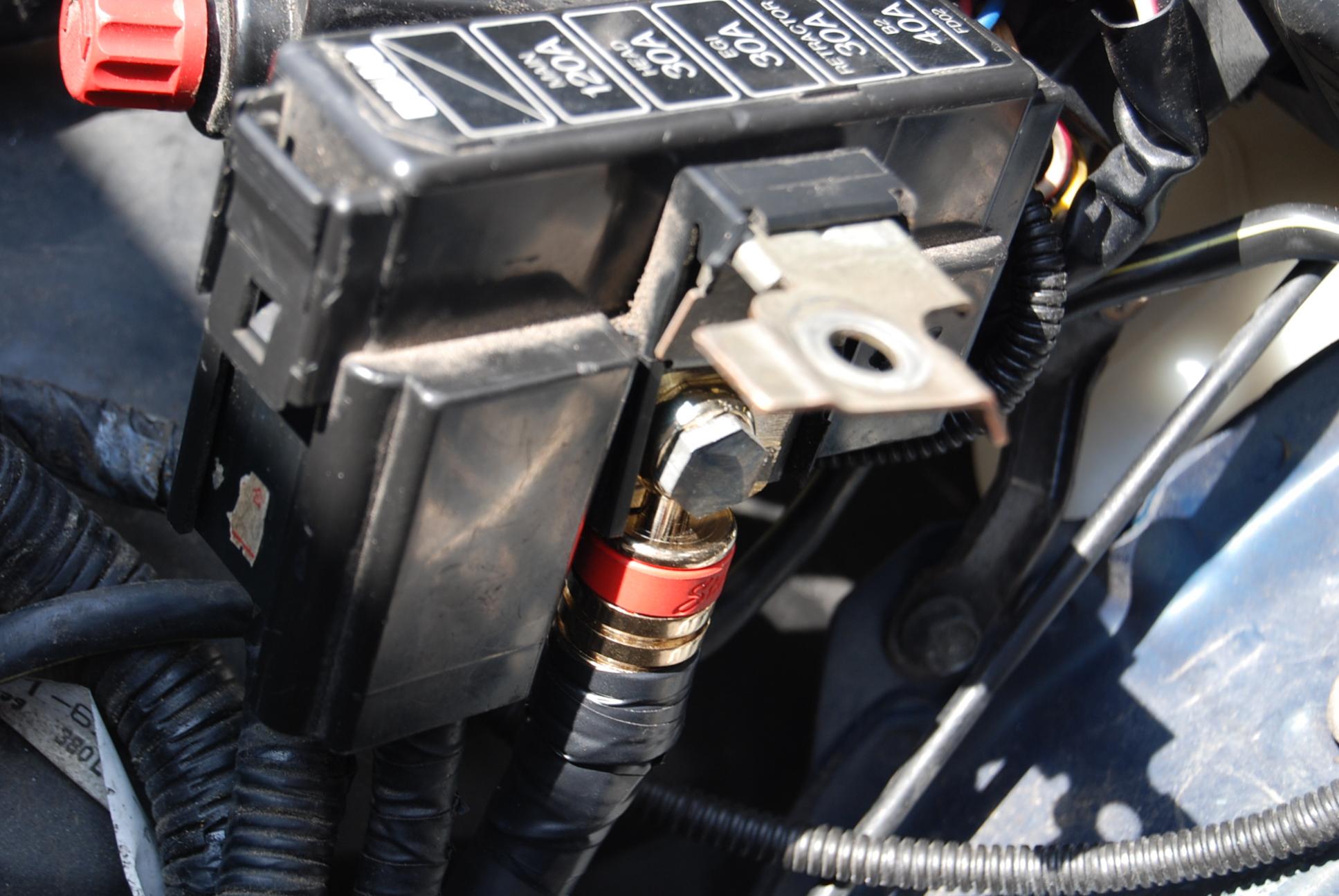

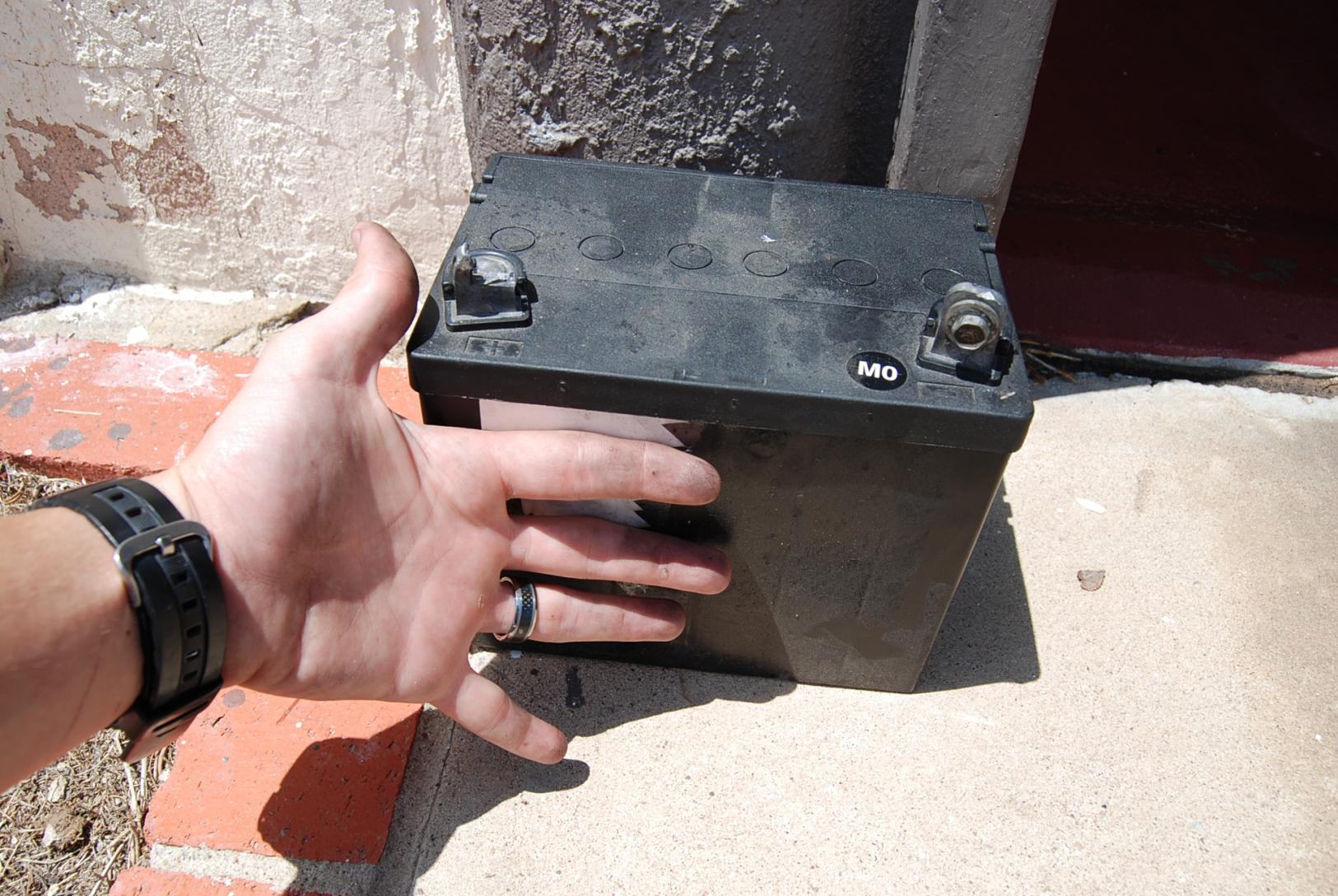

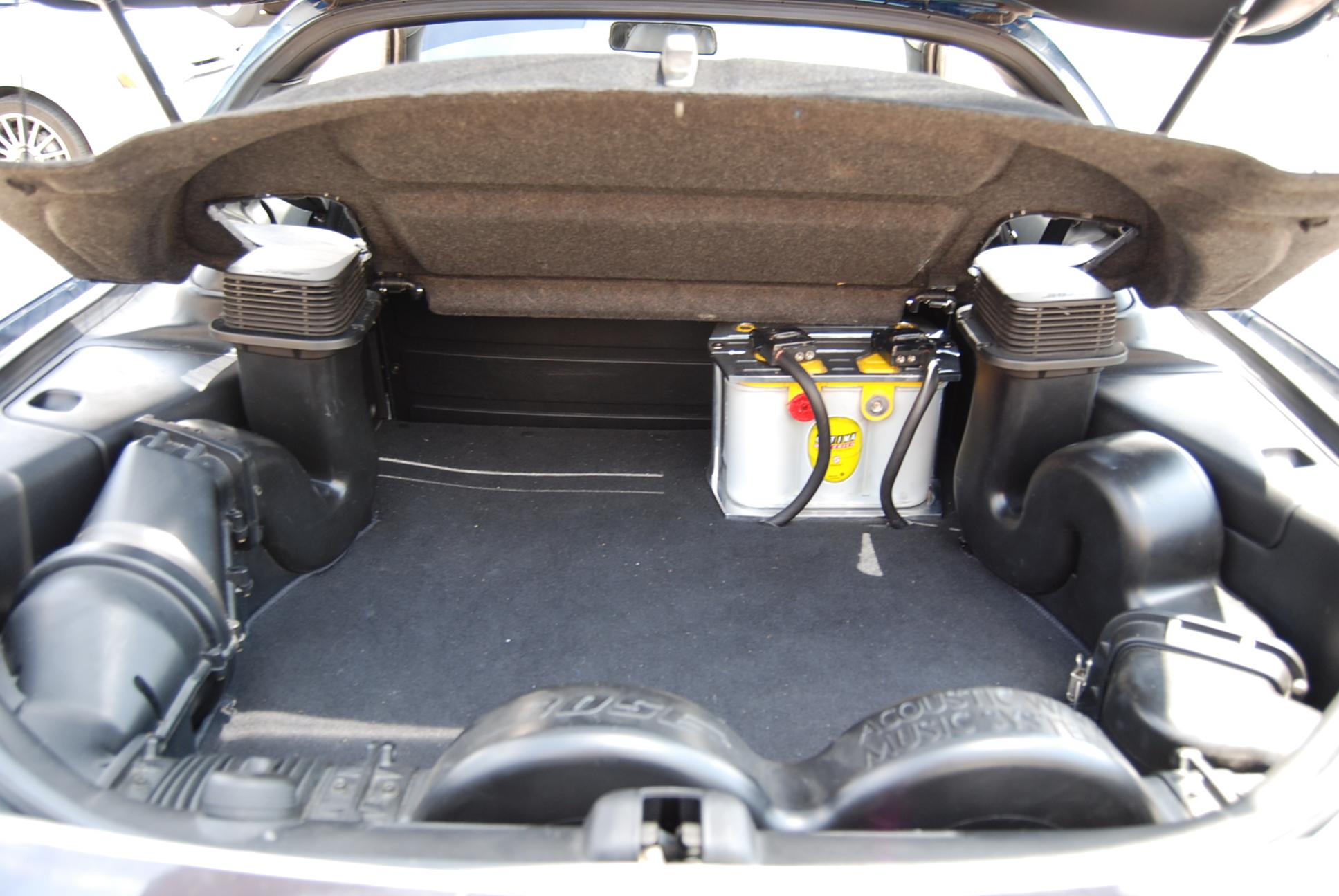

Figured i'd show it off. I like the way it turned out. Went to take the original battery out and the post broke off as you can tell by the pic. So i went ahead and relocated the battery and swapped to an Optima. Hand is in the pic for size reference. Its a lawn mower battery quite literally. Car fires up like a beast with the optima and its been sitting for months lol.

Gringo Grande

iTrader: (97)

No circuit breaker? Best part of my relocation kit is being able to turn off power with the press of a button if I'm working on electrical items. =)

Nice job!

TinMan09

iTrader: (9)

I thought about that after i installed it, but with the original battery breaking on me i did it like this for now. I'll probably end up putting it on a breaker and in a different box at some point so its track safe.

TinMan09

iTrader: (9)

I'll be putting an amp in the car at some point, was thinking of putting it beside the battery and enclosing the whole section under the strut brace in a nice looking mdf box of some sort. Anybody know if that would make it track legal since it technically is enclosed?

Gringo Grande

iTrader: (97)

If you bolt it to the inside of the box you should be fine imho. I'd suggest the Stinger 150AM circuit breaker...it is like $30 on Ebay.

TinMan09

iTrader: (9)

well this box is currently bolted with grade 8 bolts through the floor board and nutted on the underside. Im pretty sure you will rip the sheet metal before you get the battery out.

shmacklepap

iTrader: (15)

+1
I got mine on Amazon for about $25 shipped and mounted it in the rear bin with the battery.


It's really handy to simply press a button to cut power when working on something electrical

Gringo Grande

iTrader: (97)

I get a hard on when people do things nice (grommets...bolted down). Nice job!
