Wiring E11 flying loom to existing harness
I was wondering how you guys wired the E11 flying loom to existing FD wiring. How difficult is it getting to the wiring under the dash? I had it easy with Apexi FC plug and play.. Did you guys have remove the wiring under dash? Just wanted to see what I'm getting in to. Did you guys use any of the OEM connectors from the existing wiring? Any pics or info welcomed. One more question. Do you use any part of the existing engine harness?
Thanks
Aldo
Thanks
Aldo
#2
EFI Tech Wannabe
iTrader: (1)
Join Date: Sep 2003
Location: D.R., USA, the world...
Posts: 2,405
Likes: 0
Received 4 Likes
on
4 Posts

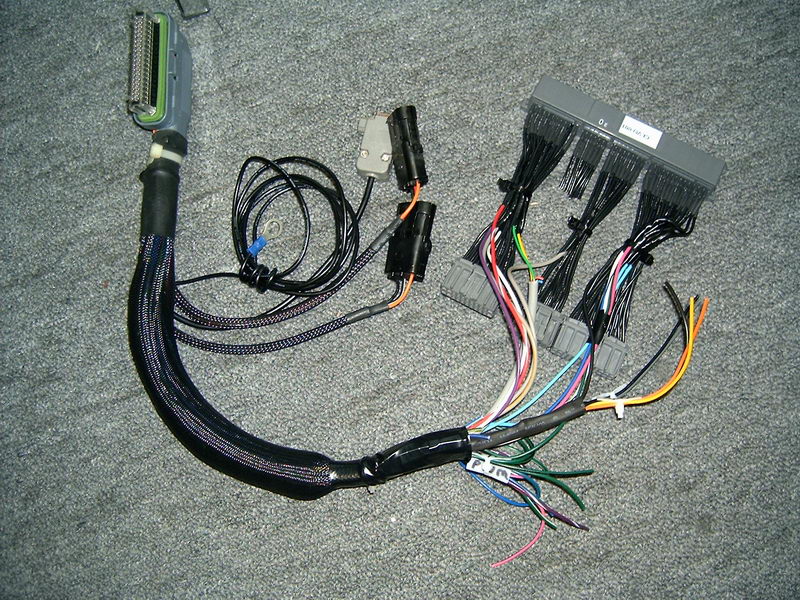

You could do something like this, where you leave the stock ECU handling things like the AC, the wires that come to and from the rest of the car, the dash, etc.

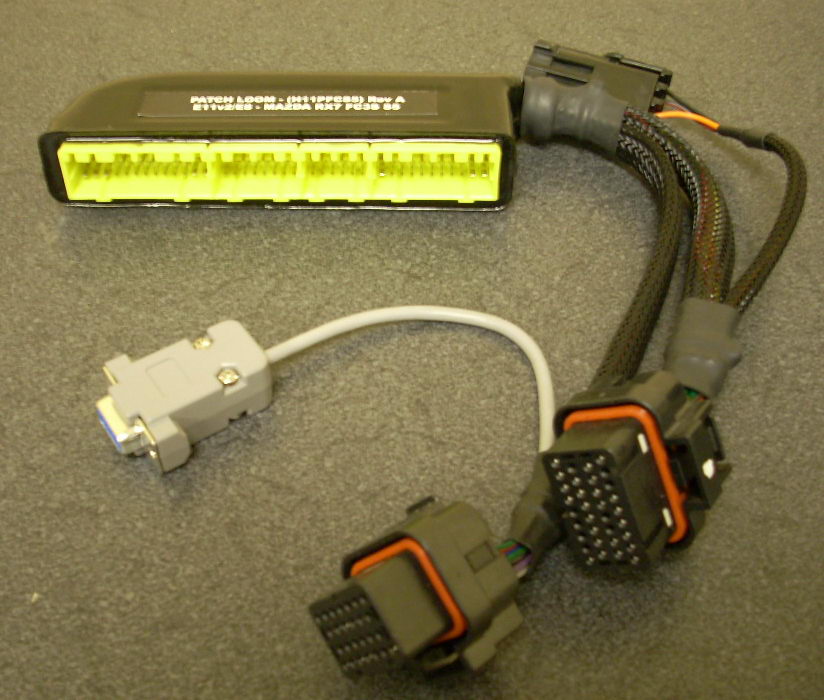

Or you could do a plug in loom where you can take out the stock ECU. Please not, the one on the right is the FC3S S5 plug in, the S6 is not available yet. But i can probably build you a custom one i have the connectors.
Or you could do a plug in loom where you can take out the stock ECU. Please not, the one on the right is the FC3S S5 plug in, the S6 is not available yet. But i can probably build you a custom one i have the connectors.
Last edited by Claudio RX-7; 11-04-07 at 05:19 PM.
#3
Racerxrx7
Thread Starter
Join Date: Mar 2002
Location: Orlando, FL
Posts: 427
Likes: 0
Received 0 Likes
on
0 Posts
Wiring E11 wiring loom to existing wiring
Hi Claudio,
How do people normally wire these? If there is not a wiring loom available for the FD, how do you normally wire this. Do you use both computers? the stock for the car stuff and piggy back the E11 for the engine? I would be interested in the wiring loom dependent on the price. Really appreciate the feedback.
Aldo
How do people normally wire these? If there is not a wiring loom available for the FD, how do you normally wire this. Do you use both computers? the stock for the car stuff and piggy back the E11 for the engine? I would be interested in the wiring loom dependent on the price. Really appreciate the feedback.
Aldo
