I bought some AEM-IGN-1A coils off of Chris Ludwig (www.lms-efi.com .Plug for ya Chris!)
I didn't want to mount them at the stock location and it made me think of somewhere that would be Close to the engine.

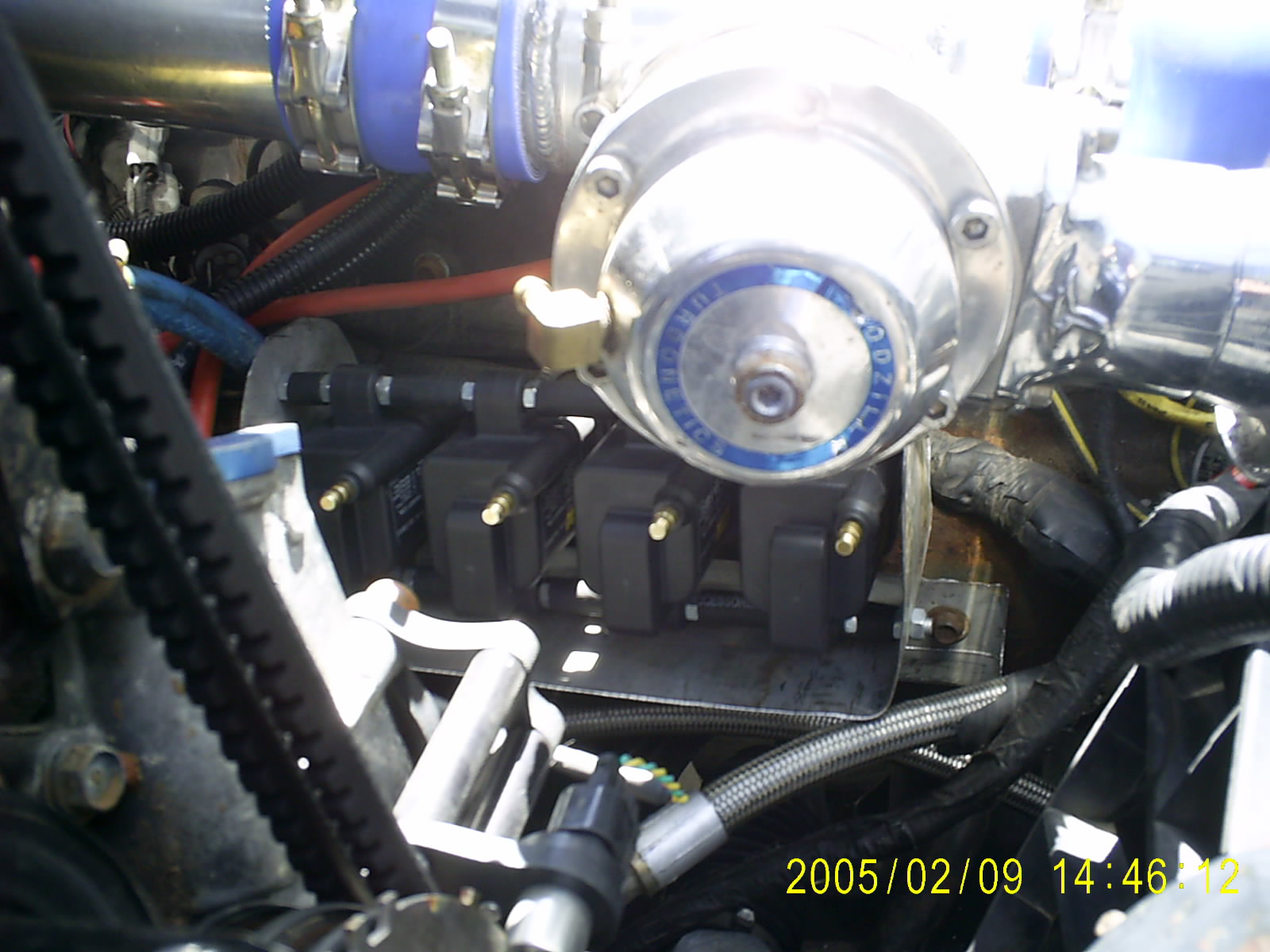

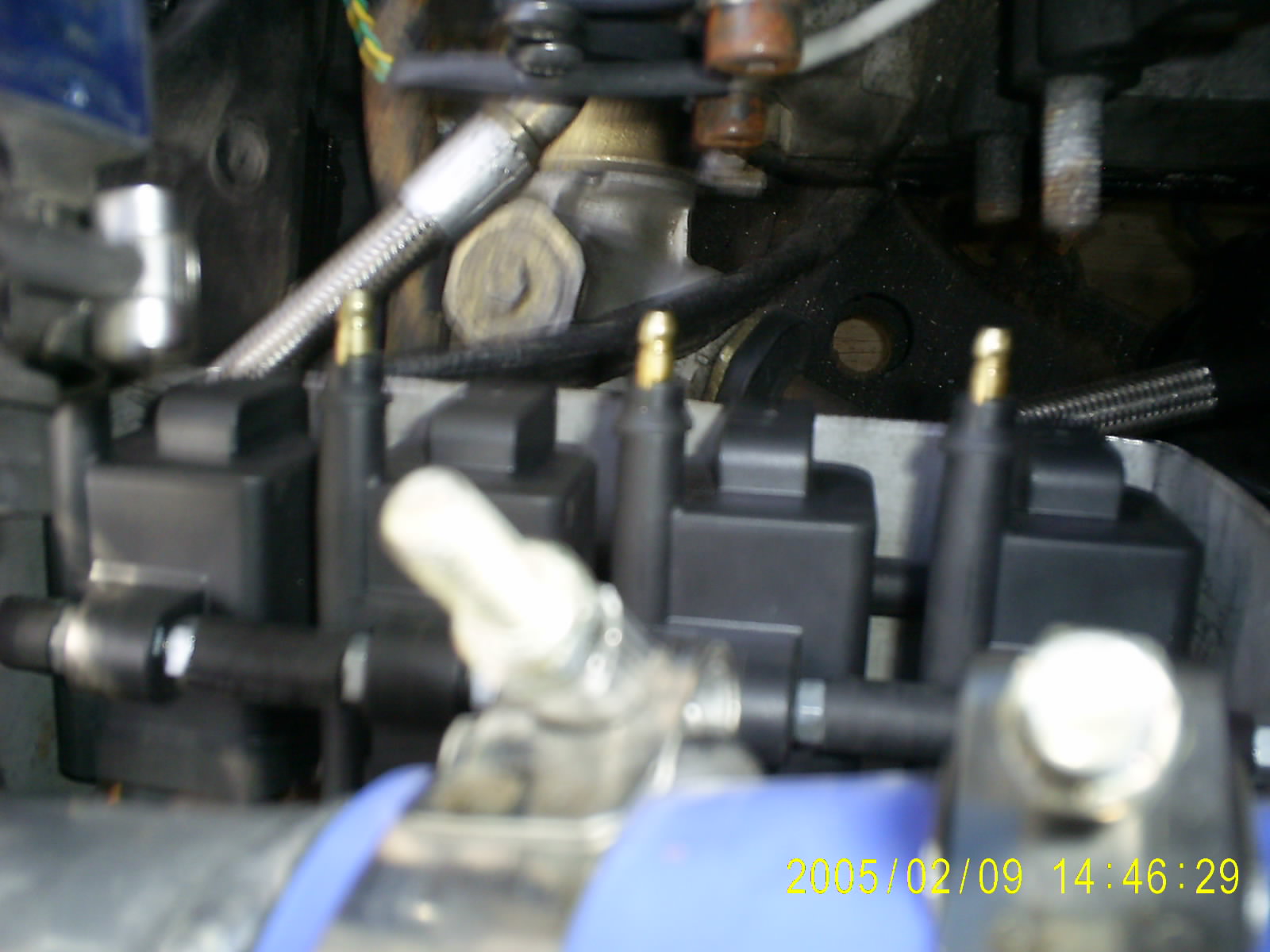

I came up with this setup,on the driver's side frame rail under my FMIC piping( and my huge BOV!)
I just have to wire it up and get some Plug wires.(the run from coil to plug is about 14 inches.Yay.Spark..Zap!)

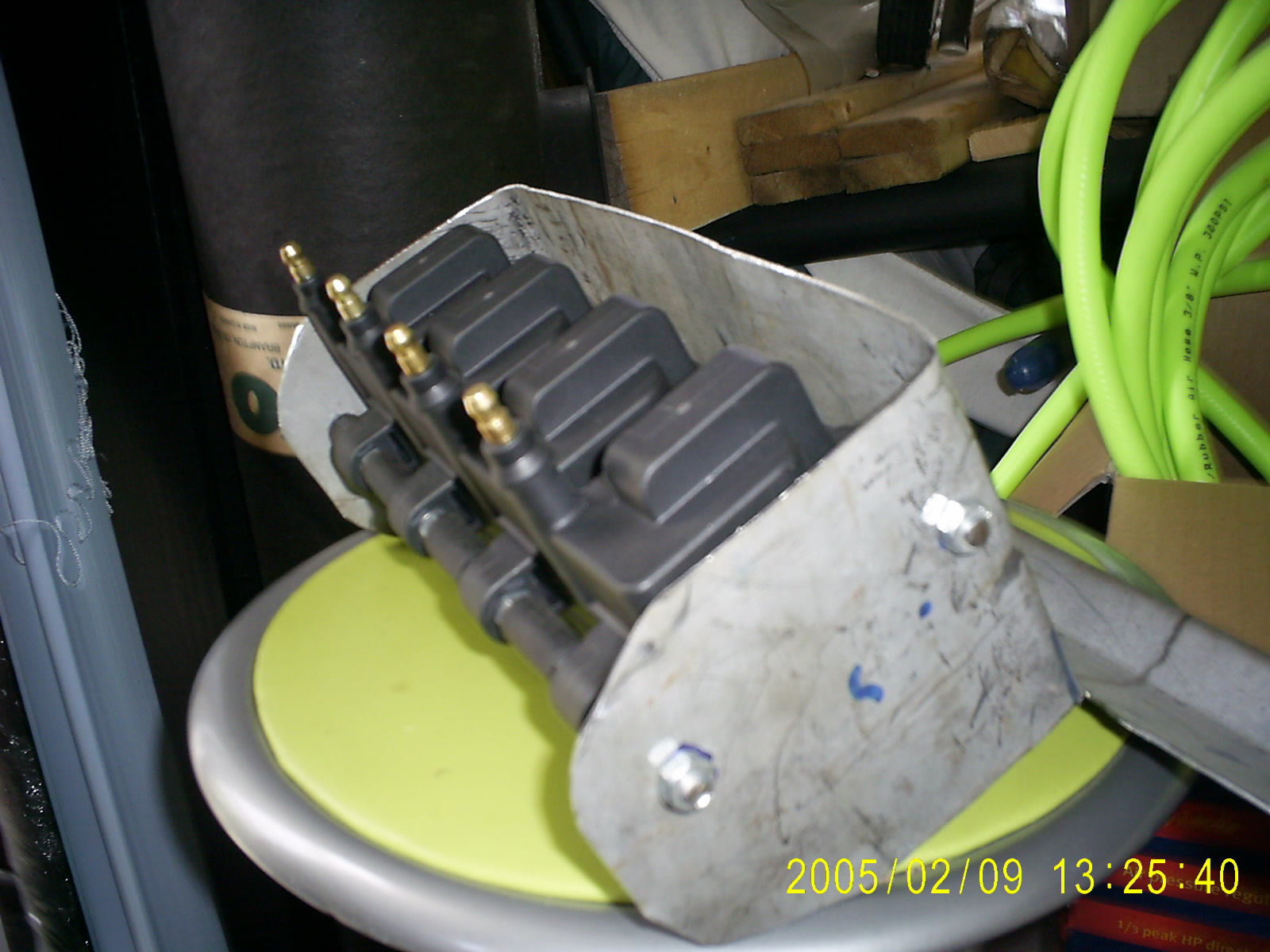

The bracket is made of body steel with threaded rod,nuts and fuel line to hold the coils in place.
It was mounted on the frame using existing factory holes.
Comments?



Thumbs up! Looks good!



very nice, I was wondering how I was gonna mount my Ls1 coils. Now I know! where did you get the threaded rod?



you can buy the stuff at a Parts store.
I got mine from NAPA..Get the cheapest fuel hose possible and it covers the threaded rod and makes it look all fancy!.
I used M6 rod and 1/4 hose.I could have went a little bigger,but I was buying the stuff on the fly!
