I have a second gen 13b with a single t04 60-1. It has a Haltech F9 computer. The map is wonderful but I don't know what it is. I have never played with it. I bought the car a year ago and have been afraid to mess with it cause it runs so good. I am afraid to lose it and have to start over. Can anyone tell me how to get the tune or map and save it so I can start making a few adjustments? I would gladly share it with the forum. It is an awesome map by Redline Performance in anahiem. I have been there recently and they still build and tune 13b and 20b engines but no longer tune Haltech. Only Motech!

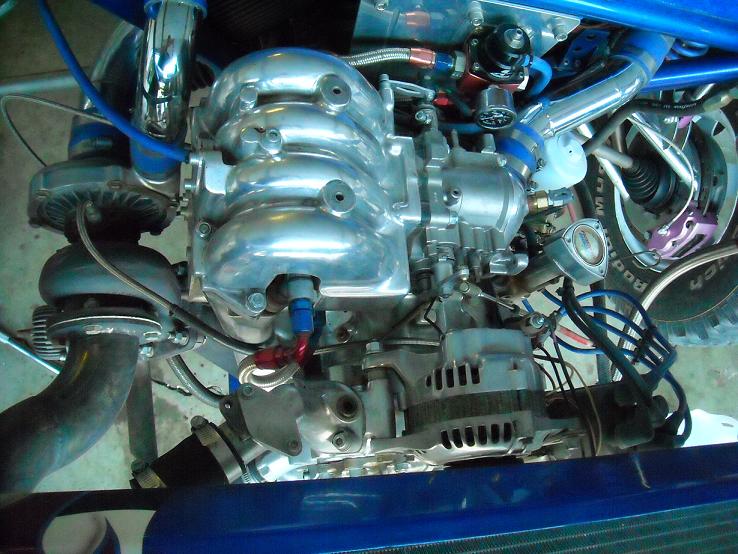

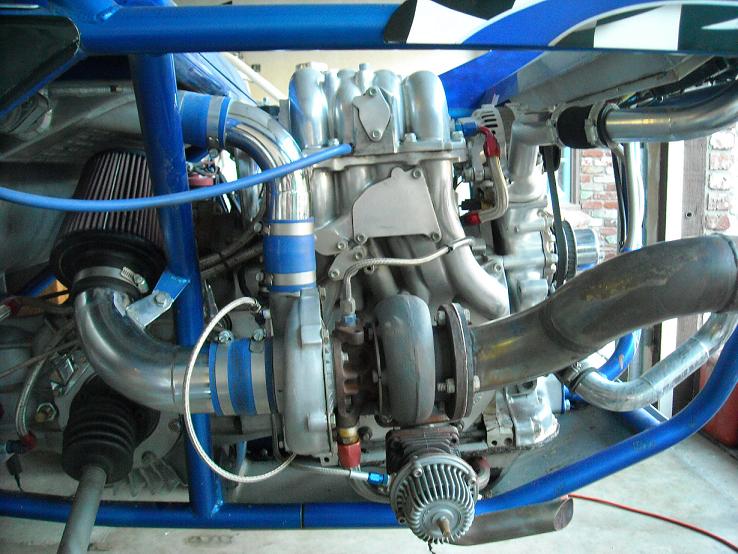

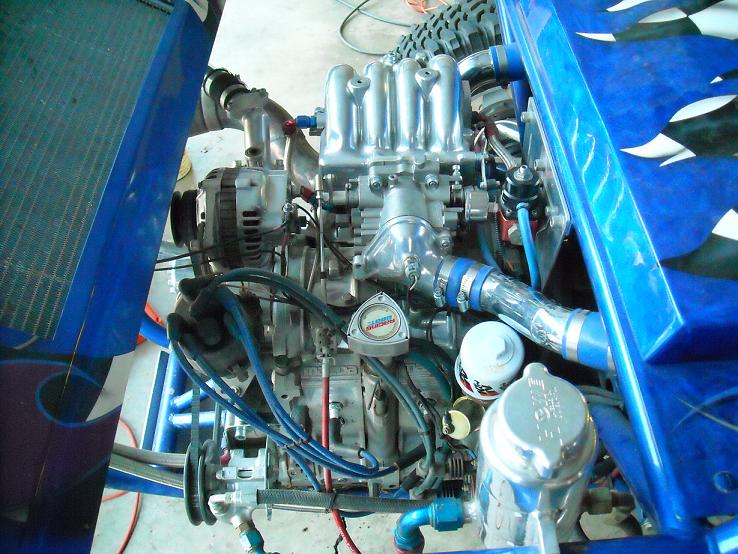

Here are some pictures of my engine. I want to start making adjustments to my map and get used to tuning the haltech. First and foremost reason is I am somehow fouling or burning my spark plugs very quick. I need to look at my AFR and maybe some other things. This is the Haltech F9 which is a fuel only computer so I don't think I can change the spark advance but I could be wrong. The distributor does not have any sort of vacuum advance so I am confused on how it doesn't detonate. Especially since there is a 20lb boost spring in the HKS wastegate currently. There are three wires running to it.??

The other reason is I really want to purchase and install and fabricate a Water Methanol injection on this engine! I am really tired of paying over 8 dollars a gallon for race gas! VP 110 or C12! It is a rip off! COME ON pump gas is less than 2 dollars know WTF!



you need a laptop that is compatible with Halwin software. The software can be downloaded from the Haltech website

Haltech Halwin software is not compatible with 64bit VISTA

using the link cable you can access the maps via the halwin GUI... it is simple as file -> save map



I demand more info on this build. Looks awesome. I was like... um turbo backwards? motor mounts on front cover! please share.

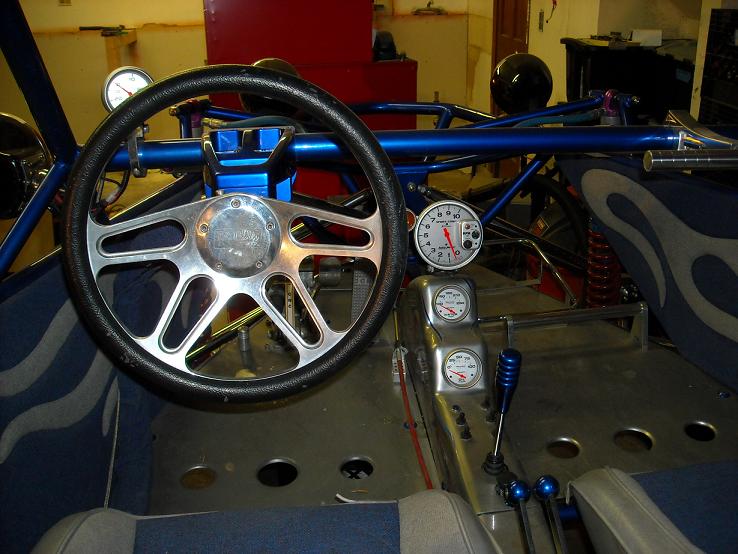

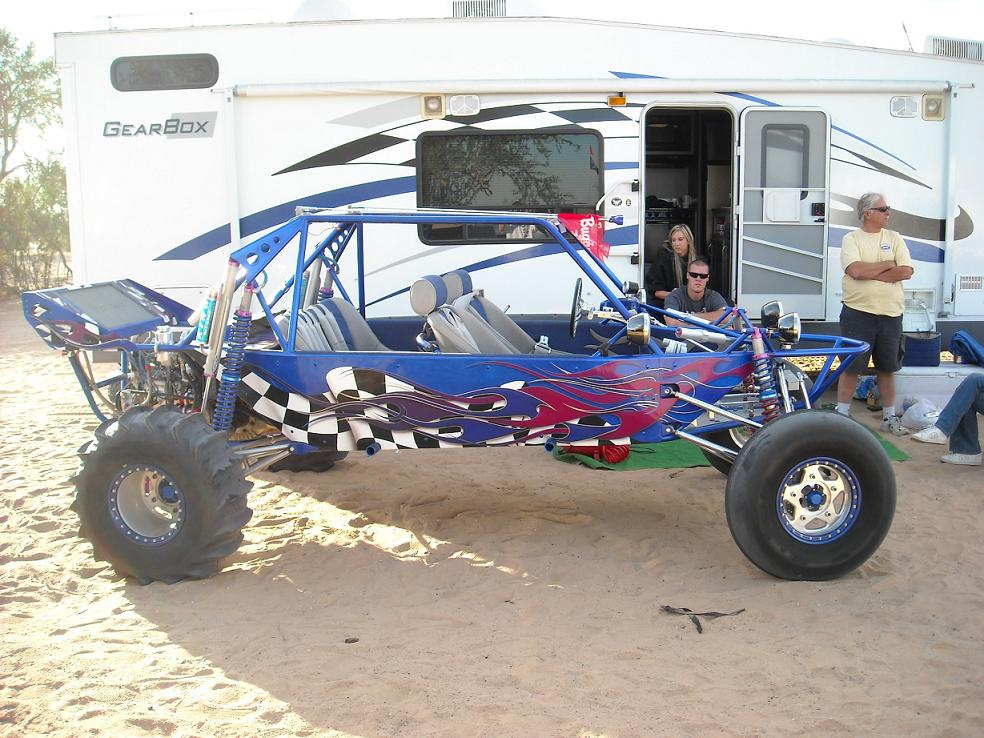

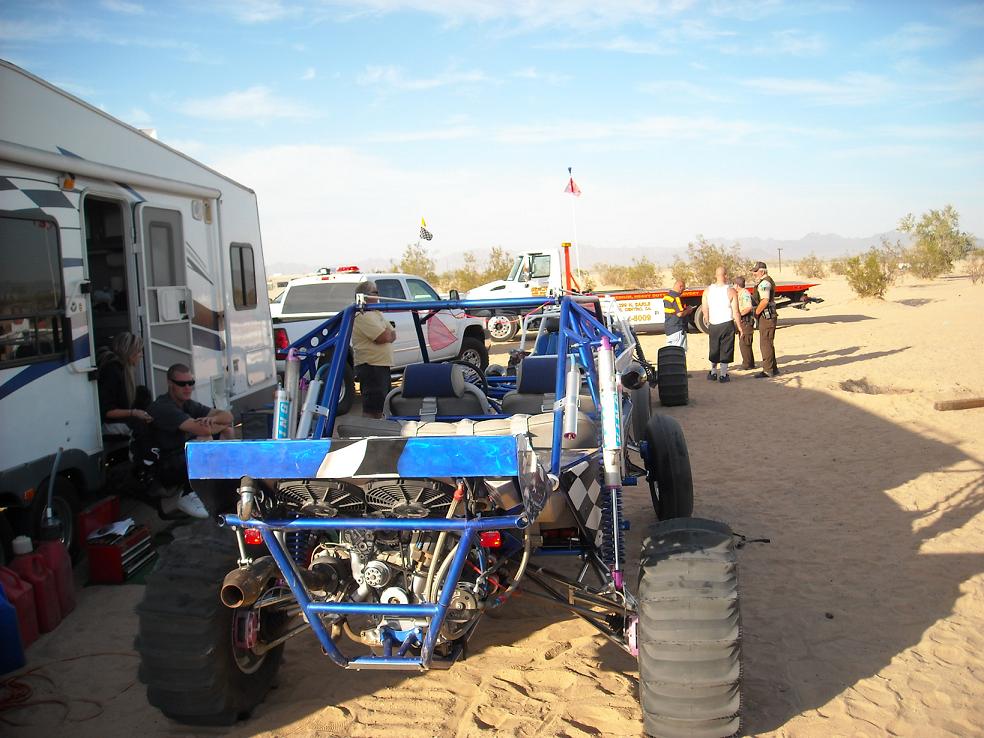

Here are more pics so you can see the car as a whole. It has the lighter rotors. Not sure on the compression ratio. It has a street port. After market larger intercooler. Walbro fuel pump -6 an lines aero motive boost referenced regulator set at 60lbs and goes up on boost. 850cc primary injectors and 1300cc secoundarys on the stock fuel rails. HKS blow off valve mounted on the intercooler. Garrett T04 60-1 turbo P trim exhaust on center .69 AR undivided hotside. I am being told that is too small for a rotary. 3inch intake and exhaust. Haltech F9 fuel only computer. Not sure what distributor it is but has 2 MSD 6AL boxes and Blaster coils. This car is putting an honest 500hp to the wheels. It weighs just over 1600 lbs and with just two people it does nice wheelies!



Here are more pics so you can see the car as a whole. It has the lighter rotors. Not sure on the compression ratio. It has a street port. After market larger intercooler. Walbro fuel pump -6 an lines aero motive boost referenced regulator set at 60lbs and goes up on boost. 850cc primary injectors and 1300cc secoundarys on the stock fuel rails. HKS blow off valve mounted on the intercooler. Garrett T04 60-1 turbo P trim exhaust on center .69 AR undivided hotside. I am being told that is too small for a rotary. 3inch intake and exhaust. Haltech F9 fuel only computer. Not sure what distributor it is but has 2 MSD 6AL boxes and Blaster coils. This car is putting an honest 500hp to the wheels. It weighs just over 1600 lbs and with just two people it does nice wheelies!
