I was going to update this during the week but you beat me to it. I've been busting my *** to get the car on the road and I'm only near it on weekends. Now since the car is roadworthy I started back up on my other projects.

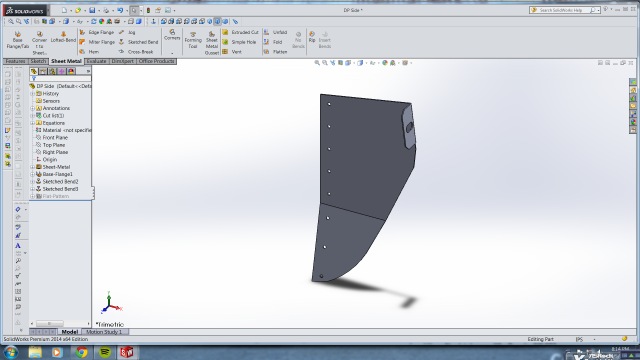

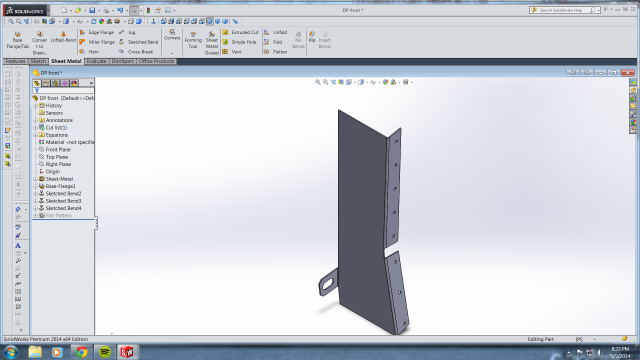

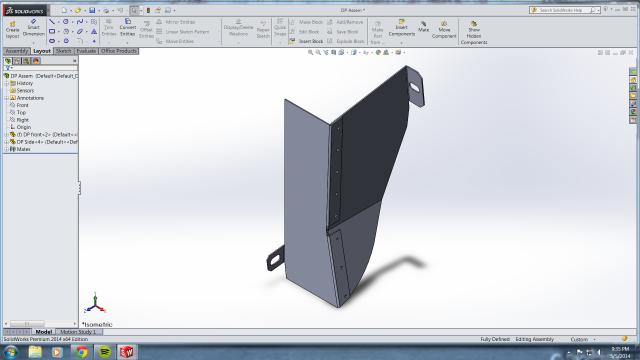

This one is first and I've started modeling it in SolidWorks. I have to figure out a mounting point for the upper left corner as I can't just brace it on the firewall like the OEM piece. I also have to add some gussets to the backside but SolidWorks makes that easy. Should have an updated model early next weekend with an estimated location of the third mount, holes/embosses, and gussets. Enjoy,



Thanks for the update. Good stuff!



I'd be interested in this since mine broke some years back.



Great, looking forward to it.



No pictures this week but I am working on this. I had to modify it from a full sheet metal replacement due to lack of mounting points. I'm currently having an issue sourcing some M6x1.0 hex standoffs so if anyone can find me a link for them I would very much appreciate it.

I am also working on a fire extinguisher mount for my personal car and if I feel confident in its fit and function then I'll throw that out there for people to critique.



Anymore progress on this?
