What hose connects to my intake?
01-11-14, 07:57 PM
#1
What hose connects to my intake?

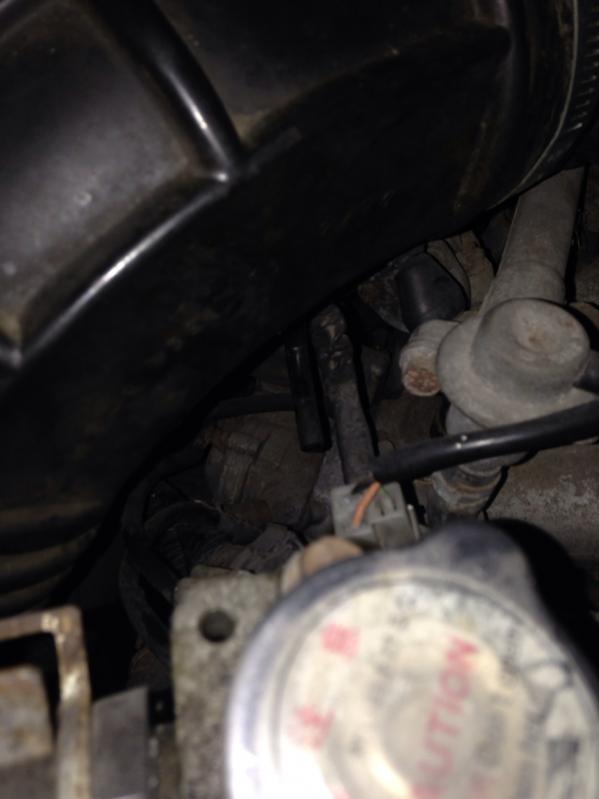

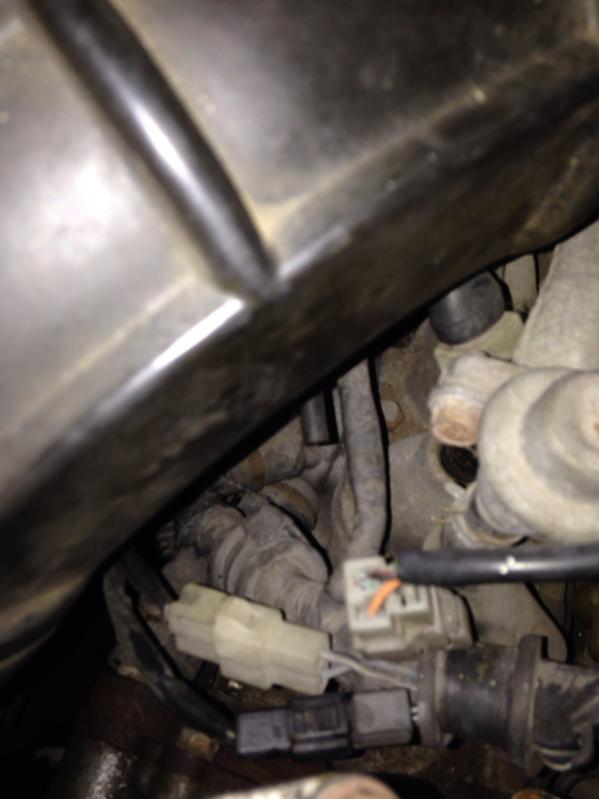

I can't find what hose connects to this. It comes off the bottom of my intake arm. I've looked at diagrams but they just don't really seem to have what I'm looking for or can't find it.
Sorry for the bad pictures but it's dark and the strut bar is in the way. Any help is appreciated.
Sorry for the bad pictures but it's dark and the strut bar is in the way. Any help is appreciated.
01-14-14, 11:36 PM
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
If it is an N/a and it is a small metal 90 degree elbow on that intake,then NOTHING goes there..it is capped.
There is a big *** hose I believe that supplies the PCV though.The hose runs off the Intake hose and goes onto a metal pipe at the back of the engine,(in between firewall and Throttle body).It is about 3/4 or so in diameter..roughly.
There is a big *** hose I believe that supplies the PCV though.The hose runs off the Intake hose and goes onto a metal pipe at the back of the engine,(in between firewall and Throttle body).It is about 3/4 or so in diameter..roughly.
