stripped exhaust stud

Reply


Old 04-03-17, 03:06 PM
  #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: SoCal
Posts: 43
stripped exhaust stud

so i was taking out the pipe that connects to the exhaust manifold (fc) and the nut started to seize onto the stud! thankfully, i was able to get it out verrrry slowly but the threads on the stud are done.

is there a way to fix the stud or replace it?

edit: rented a tap and die set, didnt work. is the best solution to cut and drill it out, then replace it with a through bolt and nut?



thanks.

Last edited by BOOGS!; 04-03-17 at 08:40 PM.
BOOGS! is offline
Reply With Quote
Old 04-03-17, 08:50 PM
  #2
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,138
you can find the die to fix it but it is an oddball size, iirc it is a 14mmX1.5. somewhere like fastenal would have a die most likely.

you probably will never get the stud out, so repairing it is your best bet. those studs are still inconel, and even a little damaged they can handle a bit of torque.
RotaryEvolution is offline
Reply With Quote
Old 04-03-17, 09:07 PM
  #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: SoCal
Posts: 43
14x1.5 eh? i tried a 12x1.5 i rented from autozone maybe thats why it didnt work haha.

however it did clean up the first couple threads, then it was way too difficult to turn (didnt want to be out $100 for a loaner). I threaded on the nut that wasnt stripped and it went on?

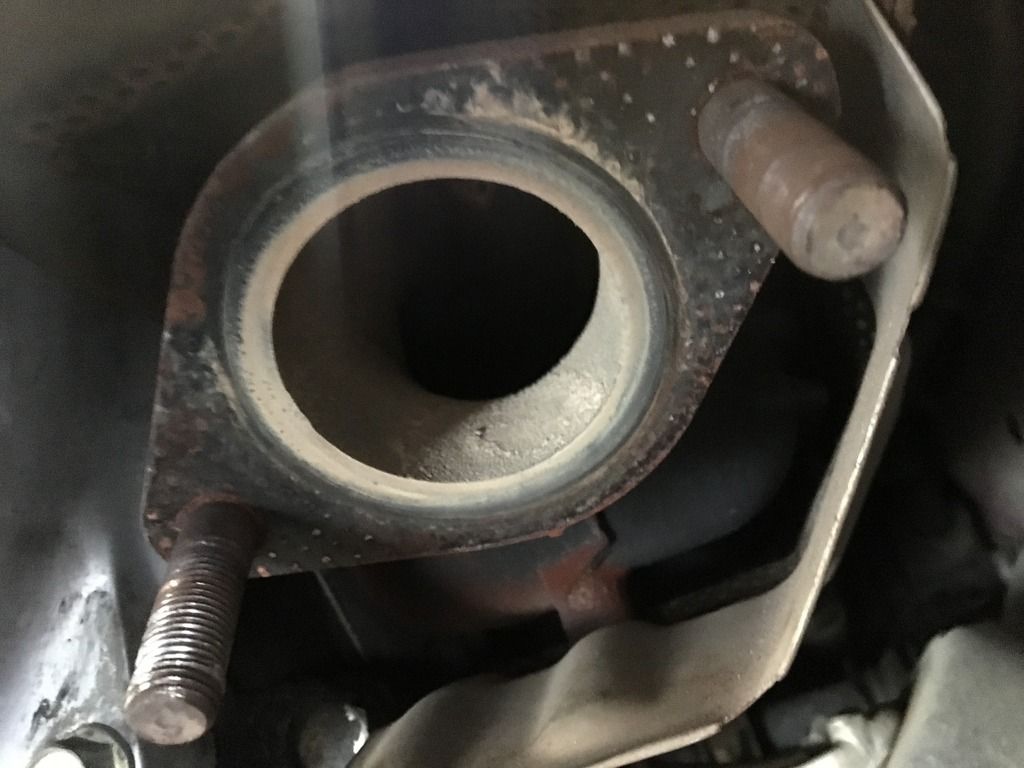

you cant see it in the pic, but theres a spot where its pretty flat with no visible thread. so worst case scenario, I cant cut it off and drill through it?
BOOGS! is offline
Reply With Quote
Old 04-03-17, 09:14 PM
  #4
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,138
if the nut goes on, just put some anti seize on it and run it.

might be a 12mm, i never have actually needed to repair any downstream studs, luckily.
RotaryEvolution is offline
Reply With Quote
Old 04-03-17, 09:16 PM
  #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: SoCal
Posts: 43
sorry, wasnt clear. itll only go on the first couple threads that the die went through until it stopped
BOOGS! is offline
Reply With Quote
Old 04-03-17, 09:22 PM
  #6
Out In the Barn
iTrader: (6)

KansasCityREPU's Avatar

Join Date: Mar 2005
Location: Liberty, Missouri
Posts: 3,067
You wont get it out. Just think about what you would do it you cut it off and drilled it out and it didn't work.

If it were mine, I'd buy the correct size die and give that a go. Even if you had to go one size smaller, like 14x1.25mm. Validate the correct size using a good nut and get the correct size die.

Last edited by KansasCityREPU; 04-04-17 at 09:59 AM.
KansasCityREPU is online now
Reply With Quote
Old 04-03-17, 09:25 PM
  #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: SoCal
Posts: 43
alright, thanks guys!
BOOGS! is offline
Reply With Quote
Old 04-04-17, 03:57 AM
  #8
Full Member

Join Date: Mar 2013
Location: Western Australia
Posts: 124
The right die is the only way to fix it.
Take the good nut with you and get the die.
Changing the thread pitch is not a good idea stick with the original size.
rx3sum is offline
Reply With Quote
Old 04-04-17, 12:44 PM
  #9
It Just Feels Right
iTrader: (10)

TomU's Avatar

Join Date: Feb 2014
Location: Arlington, VA
Posts: 1,123
Have you tried a stud remover. These worked for me (after using a lot of penetrant)

https://asttool.com/detail_page.php?...nd%20Extractor
TomU is offline
Reply With Quote
Old 04-04-17, 04:09 PM
  #10
Full Member
iTrader: (6)

Join Date: Jun 2012
Location: New Mexico
Posts: 161
IMO, I would be patient and use the right die to re-thread it if you can. I had one break on me and I thought I could just drill it out....HA, HA, HA, HA. HA! No friggen way. I bet I went through 10 or so bits of various sizes trying to get that damn thing to drill and all I did was ruin bits. I finally took it to a machine shop that had the expensive carbon bits you need to drill these things and 35 bucks later, it was out. I put a new stud in and finished the job, but yeah, re-thread if you can. If not, penetrating oil and stud remover. If that fails, machine shop. Good luck.
bpdchief is online now
Reply With Quote
Old 04-04-17, 08:18 PM
  #11
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,138
i mentioned they are inconel? not very easy to drill, extract or remove.

if it winds up coming to that, a good used n/a manifold is only about 40 bucks.
RotaryEvolution is offline
Reply With Quote
Old 04-05-17, 12:46 AM
  #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: SoCal
Posts: 43
yes. i ended up rethreading it, rotaryevolution. i guess the loaner from autozone was more of a chaser than an actual cutting die that i ended up buying from sears.

thanks again.
BOOGS! is offline
Reply With Quote
Old 04-05-17, 05:26 PM
  #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: SoCal
Posts: 43
for future reference:

the exhaust manifold downstream studs are 12x1.25
BOOGS! is offline
Reply With Quote
Old 04-05-17, 11:11 PM
  #14
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,138
oops, guess i was a ways off. lol
RotaryEvolution is offline
Reply With Quote
Old 04-08-17, 02:28 AM
  #15
*MODERATOR*
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 24,939
I've done the "cut stud and drill a hole,then bolt it" method before..
Worked for me.

(I'm dying to try out my NEW "Fantfriggintabulous" drill bits..heh..they drill through >>>Drill bits!!..seriously!)
misterstyx69 is offline
Reply With Quote
Old 04-08-17, 10:14 AM
  #16
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,483
A bit late but I'm not sure why people are saying you can't get them out. I've had a 100% success rate in doing so with penetrating oil and a GOOD set of Vice Grips. It helps too if you can weld a nut onto the stud not to use to remove it, but to heat shock it.
Aaron Cake is offline
Reply With Quote
Old 04-19-17, 11:16 PM
  #17
Junior Member

Join Date: Jun 2016
Location: THE HIGH LIFE
Posts: 11
Penetrating oil and heat..then weld a 1/2 inch side nut or 10mm ..take your time and be patient it will come out
