is this rotor usable?
01-28-13, 10:44 AM
#1
Senior Member
Thread Starter
is this rotor usable?

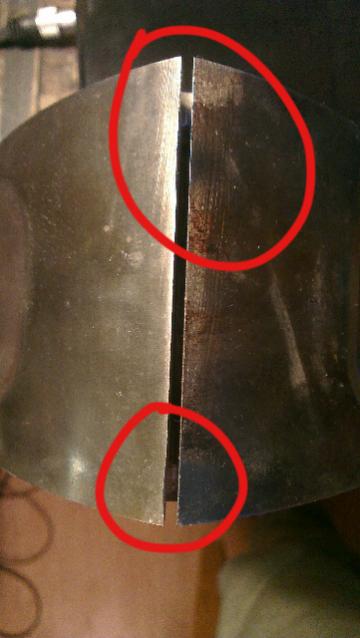

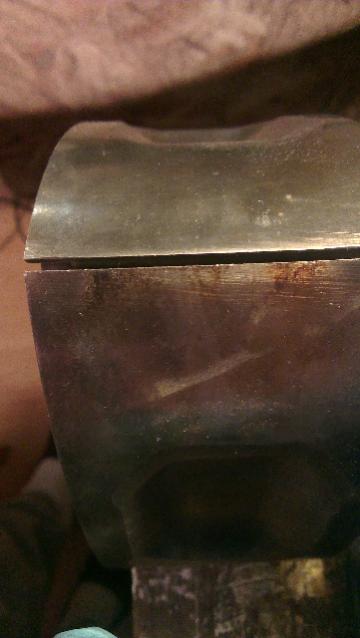

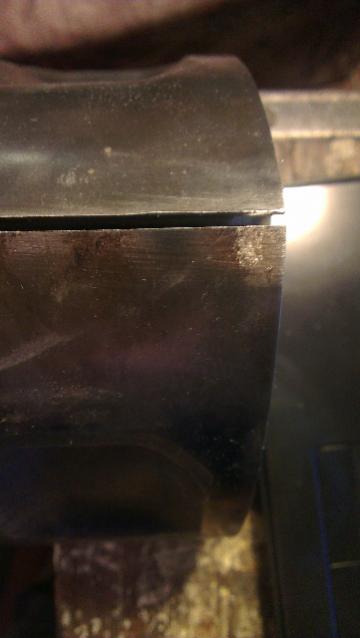

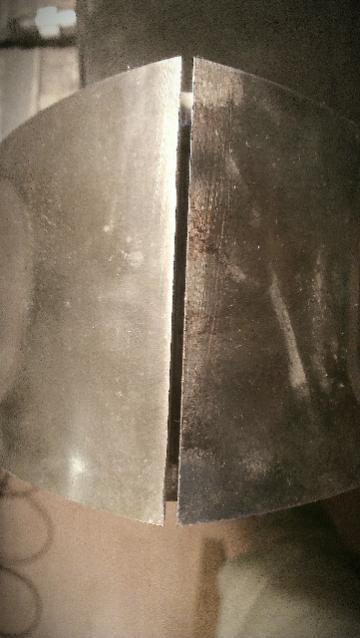

Only one tip of the rotor is like that, have'nt measured it yet because my tools and half of the engine is in another garage..
But the apeax seal slot should be straight anyway, am i right?
Btw i got it from atkins rotary
But the apeax seal slot should be straight anyway, am i right?
Btw i got it from atkins rotary
02-01-13, 08:57 AM
#3
Racing Rotary Since 1983
iTrader: (6)
insert a 2 mm apex seal and measure the clearance along the length of the groove.
Goopy makes a .004 over 2 mm seal that may be the fix for you.
use the following precision file
4.0 Double Cut Equalling Swiss Precision File Coarse Cut 0 MariTool
about $20.... do get the coarse cut which is a "0"
howard
Goopy makes a .004 over 2 mm seal that may be the fix for you.
use the following precision file
4.0 Double Cut Equalling Swiss Precision File Coarse Cut 0 MariTool
about $20.... do get the coarse cut which is a "0"
howard
02-01-13, 10:38 AM
#4
Senior Member
Thread Starter
im in europe so no goopy here.
the apex seal slot is straight, i looked it over the non straight part is about 1,5mm deep down to the slot
if the other part of the apex slot is in tolerance then it would be usable?
i can measure it tomorrow with new atkins apex seal
the apex seal slot is straight, i looked it over the non straight part is about 1,5mm deep down to the slot
if the other part of the apex slot is in tolerance then it would be usable?
i can measure it tomorrow with new atkins apex seal
Last edited by psyaddict; 02-01-13 at 10:42 AM.
