Rotor Coating
#1
Banned. I got OWNED!!!
Thread Starter
iTrader: (10)
Join Date: Aug 2005
Location: Castle Combe UK
Posts: 230
Likes: 0
Received 0 Likes
on
0 Posts
Rotor Coating
Hiya guys,

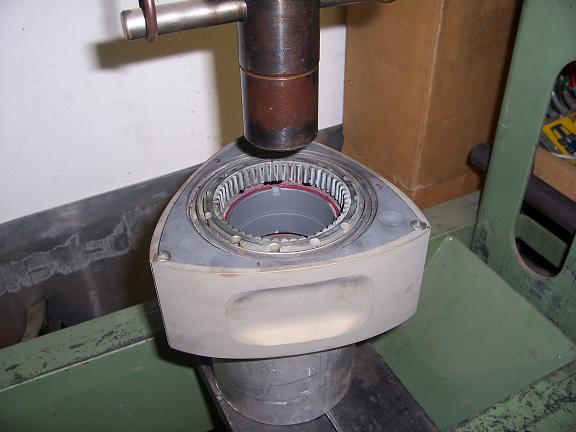

According to the manual the rotors come with a "Soft coating" around the outer edge of each side of the rotor. Is this something that can be put back on?
Cheers
Jon
According to the manual the rotors come with a "Soft coating" around the outer edge of each side of the rotor. Is this something that can be put back on?
Cheers
Jon
#2
Banned. I got OWNED!!!
iTrader: (4)
Join Date: Oct 2009
Location: az
Posts: 1,110
Likes: 0
Received 0 Likes
on
0 Posts
the coating is a gold color and its on the side faces of the rotor. i wouldnt worry too much about it...just get your rotating assembly clearanced and balanced and you will be good to go
#3
Rotary Enthusiast
the coating on outer side of rotors was like a bearing material, so when in hi boost &rpm the Eshaft would bend and let rotors touch side plates, the coating was for rubbing without digging into plate.
most of the time its half worn away anyway, polished off or machined off, so dont worry about it. nobody else seems to care.
and nothing is ever perfect!
most of the time its half worn away anyway, polished off or machined off, so dont worry about it. nobody else seems to care.
and nothing is ever perfect!
#7
The only benefits that I've come across are lower oil temps (that one is obvious) and lower knock readings.
https://www.rx7club.com/showthread.p...light=coatings
https://www.rx7club.com/showthread.p...light=coatings
Trending Topics
#8
Mr. Links
iTrader: (1)
The only benefits that I've come across are lower oil temps (that one is obvious) and lower knock readings.
https://www.rx7club.com/showthread.p...light=coatings
https://www.rx7club.com/showthread.p...light=coatings
I never got a chance to really use mine, but the "idea" is around the heat which is absorbed by the rotors. The idea is that the less heat the rotors are absorbing, the more heat can be used in the combustion cycle for a better burn... However, others theorize that the engine is designed with the rotors retaining that heat and thus requires it for maximum performance.... It's still basically unproven which is why it's not a common practice.
#9
Hey now, I'm working with what I can find!
That thread is one of the few that I could recall any evidence being presented aside from hearsay. I didn't call it proof but, it is something.
I've read the views both for and against and understand what they're getting at. I believe its not a matter of who's right but rather who's MORE right. While its not the most cost effective, I think the rotor coats are more of a pro than a con.
That thread is one of the few that I could recall any evidence being presented aside from hearsay. I didn't call it proof but, it is something.
I've read the views both for and against and understand what they're getting at. I believe its not a matter of who's right but rather who's MORE right. While its not the most cost effective, I think the rotor coats are more of a pro than a con.
#11
Rotary Enthusiast
and a lot more heat into the cooling jackets== overheat and possbly chance of the great DETONate,
but im sure an unusual tune &water could make it work. lot of torque while it lasted bout 1/2 hr.
i did it back in 1998, factory tune FC, blew the engine into the next county
but im sure an unusual tune &water could make it work. lot of torque while it lasted bout 1/2 hr.
i did it back in 1998, factory tune FC, blew the engine into the next county
#12
Metal Refinisher
iTrader: (1)
Join Date: Jan 2005
Location: Texas
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
I’ve actually coated several rotors over the years and no one has ever blown a motor. The general benefits are lower oil temps and a safety margin if your assembly becomes unbalanced and the rotor strikes the irons.
The sides are generally done with a Dry lube which impregnates into the metal a few mills and makes the surface slicker when friction is applied, for the protection aspect.
The faces are coated with a ceramic coating same as used on piston tops which help reduce heat soak into the rotor lowering oil temps.
Several racers do this and say it helps reduce fuel consumption and helps in maintaining a constant engine temp in respect to thermal dynamics.
Unfortunately with the rotary motors design some of the benefits the piston guys see don’t occur such a Peristaltic ballast reduction.
The sides are generally done with a Dry lube which impregnates into the metal a few mills and makes the surface slicker when friction is applied, for the protection aspect.
The faces are coated with a ceramic coating same as used on piston tops which help reduce heat soak into the rotor lowering oil temps.
Several racers do this and say it helps reduce fuel consumption and helps in maintaining a constant engine temp in respect to thermal dynamics.
Unfortunately with the rotary motors design some of the benefits the piston guys see don’t occur such a Peristaltic ballast reduction.
#13
FC since 99
iTrader: (2)
I’ve actually coated several rotors over the years and no one has ever blown a motor. The general benefits are lower oil temps and a safety margin if your assembly becomes unbalanced and the rotor strikes the irons.
The sides are generally done with a Dry lube which impregnates into the metal a few mills and makes the surface slicker when friction is applied, for the protection aspect.
The faces are coated with a ceramic coating same as used on piston tops which help reduce heat soak into the rotor lowering oil temps.
Several racers do this and say it helps reduce fuel consumption and helps in maintaining a constant engine temp in respect to thermal dynamics.
Unfortunately with the rotary motors design some of the benefits the piston guys see don’t occur such a Peristaltic ballast reduction.
The sides are generally done with a Dry lube which impregnates into the metal a few mills and makes the surface slicker when friction is applied, for the protection aspect.
The faces are coated with a ceramic coating same as used on piston tops which help reduce heat soak into the rotor lowering oil temps.
Several racers do this and say it helps reduce fuel consumption and helps in maintaining a constant engine temp in respect to thermal dynamics.
Unfortunately with the rotary motors design some of the benefits the piston guys see don’t occur such a Peristaltic ballast reduction.
My rotors were coated by turblown; I have been running 20psi on pump gas for a while without problems. My oil temps are very low compared to other FCs I have seen.
