Odd Tension Bolt Layout?


Old 08-12-17, 09:14 PM
Can Post Only in New Member Section
Thread Starter
Join Date: Aug 2017
Location: Australia
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Odd Tension Bolt Layout?

Hello there,

I am fairly new to engine rebuilds and I have a question involving my old 12a motor.

I am to the stage where I loosen and remove the tension bolts. I am watching lots of videos and reading the rx7 manuals but my tension bolts are set out differently.

Not sure of the order now.

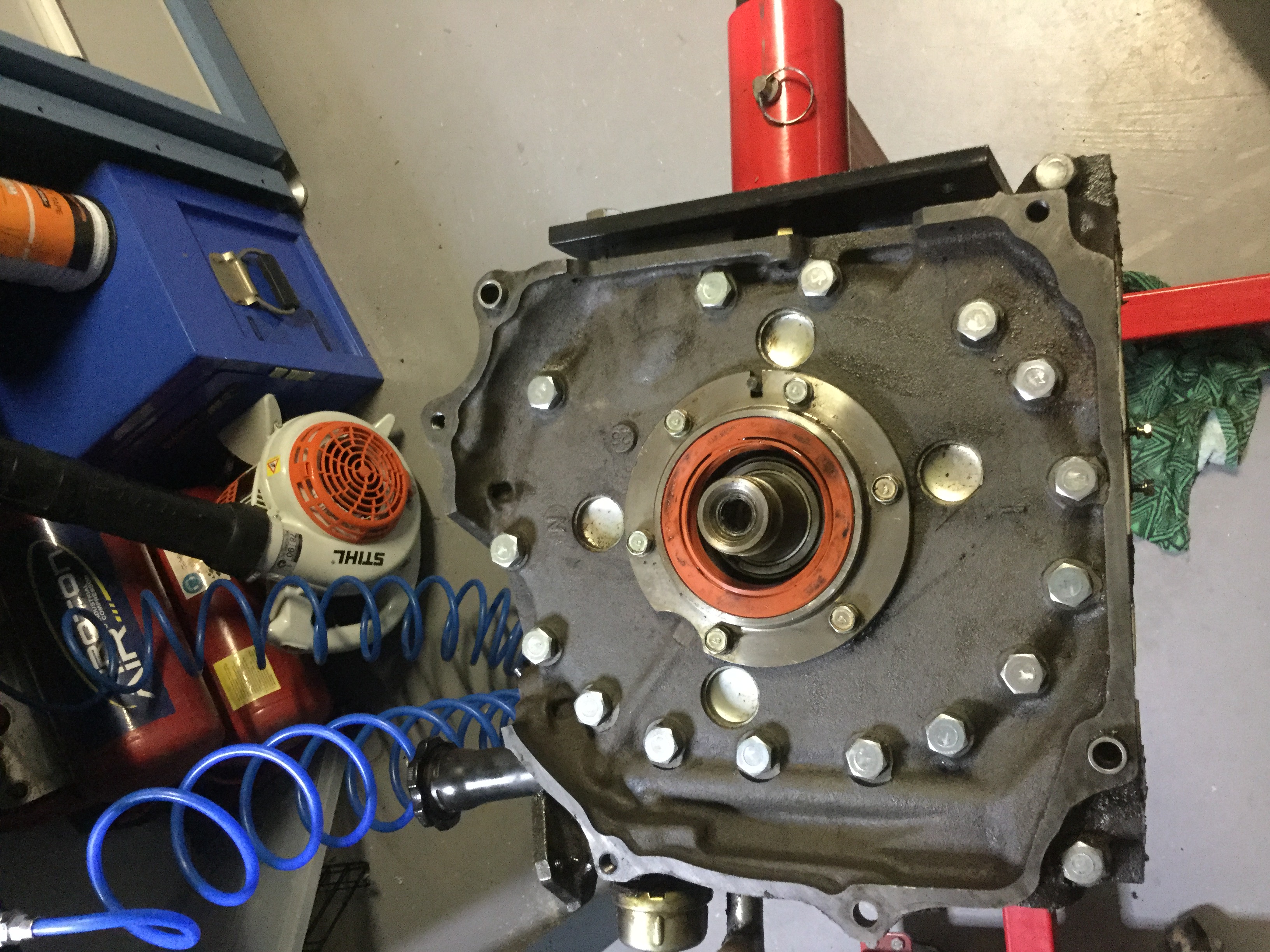

Please help and is possible annotate the pic I have attached with the order.

Odd Tension Bolt Layout?-img_0250.jpg
(The pic is 90 degrees to the left)

Thanks in Advance,
DeclanG is offline
Reply With Quote
Old 08-13-17, 06:07 AM
Death to Infinite Scroll
peejay's Avatar
Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,437
Thanks: 0
Thanked 17 Times in 15 Posts
All '74-up tension bolts have the same layout, there's just one or two that sometimes are there and sometimes aren't in the intake port area.

I've never loosened them in any kind of order, world hasn't ended. I do crack them all a half turn or so loose before going back and removing them entirely.
