FD Throttle body shaft seal leak

Hey Gang,

Has anyone renewed the seals on the FD throttle body shaft? Is it a servicable part?

No info on a search, not an orderable part from mazda.

Thanks
Old 06-06-10, 12:07 PM
  #2
Banned. I got OWNED!!!
iTrader: (256)

Japan2LA's Avatar

Join Date: Mar 2005
Location: Los Angeles CA.
Posts: 11,092
Likes: 0
Received 2 Likes on 1 Post
Why not just get another lower mileage TB?
Old 06-06-10, 12:40 PM
  #3
Senior Member

Thread Starter
iTrader: (3)

SHPNOUT's Avatar

Join Date: May 2001
Location: BENICIA, CA
Posts: 482
Received 7 Likes on 7 Posts
OK, I'll bite.........do you have one? How much?
Old 06-15-10, 09:03 AM
  #4
Senior Member

Thread Starter
iTrader: (3)

SHPNOUT's Avatar

Join Date: May 2001
Location: BENICIA, CA
Posts: 482
Received 7 Likes on 7 Posts
Anyone re seal theirs?
Old 06-15-10, 10:12 AM
  #5
Lift Off in T-Minus...

iTrader: (6)

afgmoto1978's Avatar

Join Date: Jul 2005
Location: Kingman, AZ
Posts: 2,911
Likes: 0
Received 4 Likes on 4 Posts
You can order replacement piece parts through a Mazda Motorsports account.
Old 06-15-10, 12:24 PM
  #6
Registered User
iTrader: (2)

Rotary-Works.com's Avatar

Join Date: Dec 2009
Location: LA
Posts: 122
Likes: 0
Received 0 Likes on 0 Posts

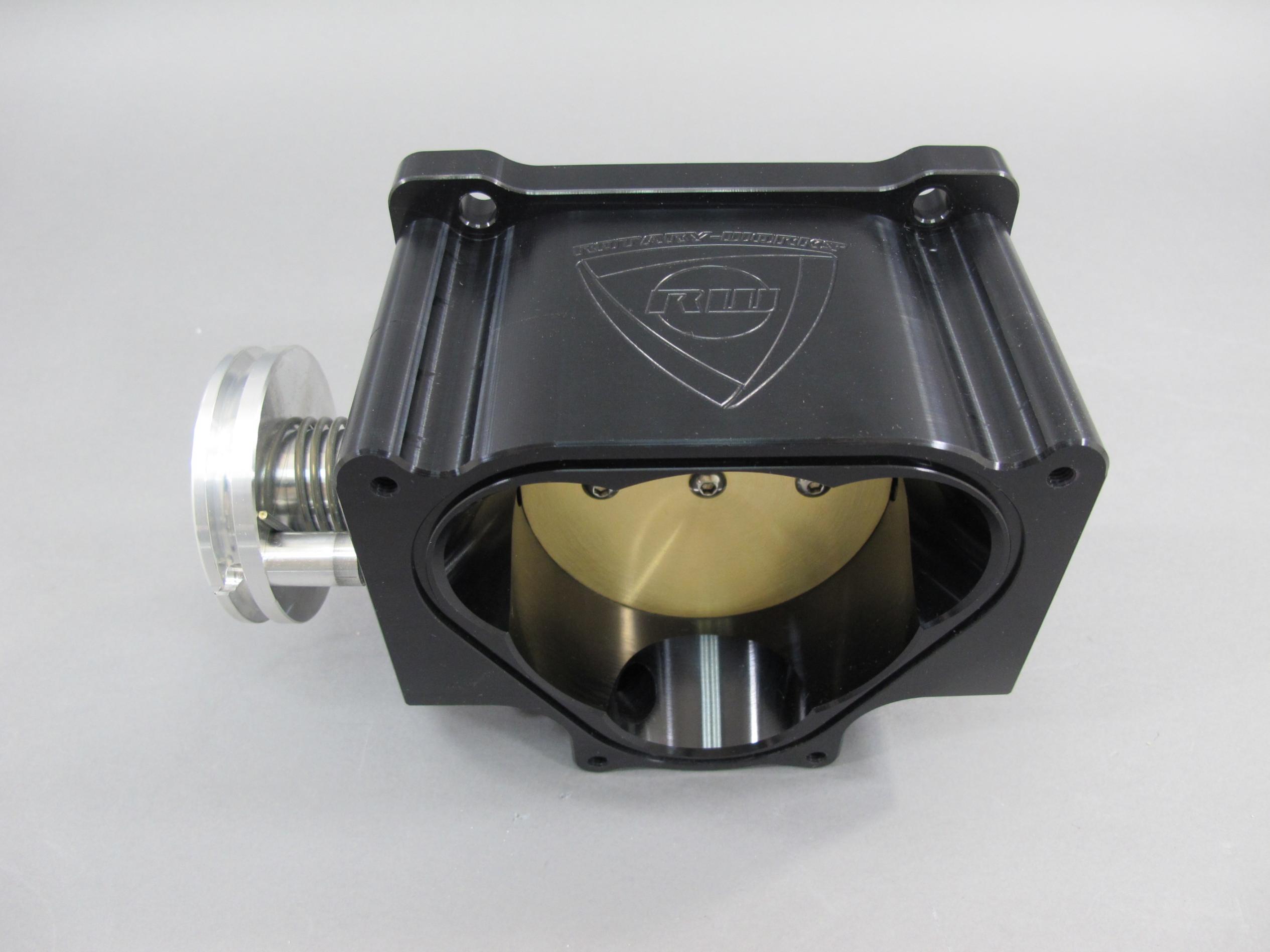

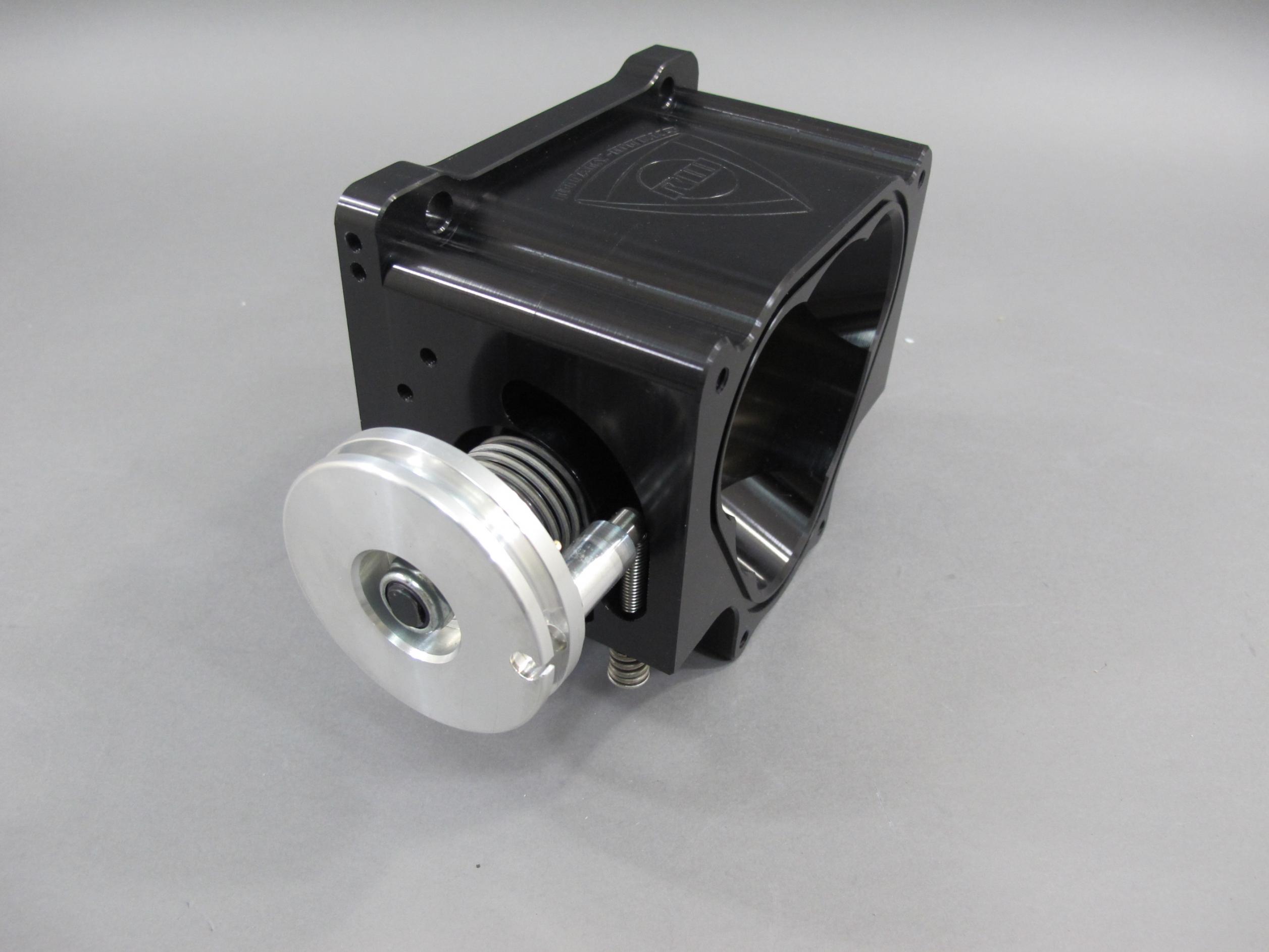

this is another option .....sealed roller bearing shaft, CNC billet housing bolt on.

http://www.rotary-works.com/mm5/merc...gory_Code=THBD
Attached Thumbnails FD Throttle body shaft seal leak-img_3823.jpg   FD Throttle body shaft seal leak-img_3824.jpg
Old 06-16-10, 10:46 PM
  #7
Senior Member

Thread Starter
iTrader: (3)

SHPNOUT's Avatar

Join Date: May 2001
Location: BENICIA, CA
Posts: 482
Received 7 Likes on 7 Posts
hmmm......

Originally Posted by Rotary-Works.com
this is another option .....sealed roller bearing shaft, CNC billet housing bolt on.

http://www.rotary-works.com/mm5/merc...gory_Code=THBD

Hows the partial throttle control with that big single butterfly?.......I was thinking that was more of a drag race part....
Old 06-22-10, 12:12 AM
  #8
Senior Member

Thread Starter
iTrader: (3)

SHPNOUT's Avatar

Join Date: May 2001
Location: BENICIA, CA
Posts: 482
Received 7 Likes on 7 Posts
Got one apart. Not difficult. The seals are a "quad ring" metric size, 10mm ID x2.5mm cross, 15mm OD. Now trying to find a supplier.
Old 07-20-10, 09:20 PM
  #9
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
Originally Posted by Rotary-Works.com
this is another option .....sealed roller bearing shaft, CNC billet housing bolt on.

http://www.rotary-works.com/mm5/merc...gory_Code=THBD
I'll let ya know about that setup soon.
I am gonna purchase one.I am actually setting up the buy tomorrow.
Old 07-21-10, 04:28 PM
  #10
Full Member

latin.pitbull's Avatar

Join Date: Apr 2010
Location: RI
Posts: 74
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by SHPNOUT
Got one apart. Not difficult. The seals are a "quad ring" metric size, 10mm ID x2.5mm cross, 15mm OD. Now trying to find a supplier.
Those are the right #S
I did one a few weeks ago here is the link were I got my qaud rings.
Metic Seals,Inc.
http://www.metric-seals.com/catalog/...ge=&FromPage=1

Last edited by latin.pitbull; 07-21-10 at 04:30 PM.
