Coolant Seal Groove Corrosion

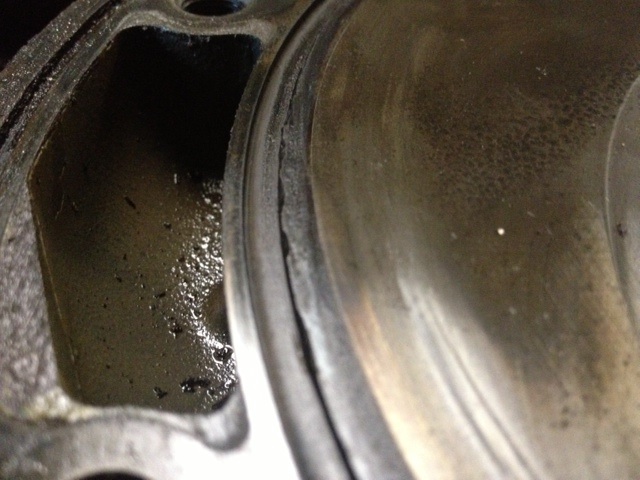

Is this S4 6 port front plate useable? I saw a couple other threads with chips like this only much smaller. They mentioned being very generous with the Hylomar upon reassembly. I can't make up my mind, so I'd appreciate your advice. This engine burnt coolant upon startup, so I wonder if grooves like these are the culprit.
Thanks!
Thanks!
#2
Sharp Claws
iTrader: (30)
it's fine. and hylomar only really holds the seals in place, it doesn't do **** to help the seals actually seal, so i'm not sure why these other builders really think it does. pitting in the channel is fine, some small pitting on the rotor housing seal face is also fine. major pitting in the rotor housing seal face is going to possibly cause issues though.
#3
Isaiah 53.7
Thread Starter
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, makes sense. Why would there be large chips like this on the top inside edge of the groove in the first place? Is it corrosion from coolant leaking past bad seals?
#6
Isaiah 53.7
Thread Starter
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
All right. I'm quickly learning that S4s aren't ideal rebuild platforms.
#7
Sharp Claws
iTrader: (30)
they usually have to most imperfections but the irons aren't the problem on the S4 but more the wear that the rotor housings take. these are just blemishes that really won't hurt the integrity of the engine.
that dark stripe just to the inside of those small chips are where the rotor housing abuts against the irons, so you can see how little this makes a difference in the grand scheme of things.
that dark stripe just to the inside of those small chips are where the rotor housing abuts against the irons, so you can see how little this makes a difference in the grand scheme of things.
