Sorry Tony for not answering before, but I must have overseen your reply.
I only bought the apex seals at RotaryAviation, only took a week to get here
O-rings and other stuff I took uhh got at work
Rest of the seals and FD cornersprings I bought at my local Mazda stealership.
Next time(my current motor) I will buy all the seals and stuff at R.A. as its cheaper.
Kim
I only bought the apex seals at RotaryAviation, only took a week to get here
O-rings and other stuff I took uhh got at workRest of the seals and FD cornersprings I bought at my local Mazda stealership.
Next time(my current motor) I will buy all the seals and stuff at R.A. as its cheaper.
Kim
03-27-04, 03:46 PM
#52
OBEY YOUR MAZDA
Thread Starter
So today Oliver(OC94Rx7) and I rebuild my motor.
It was easier than I thought, but some parts were hard to remember because its like four months since I took it apart.
Only real serious problem was fitting one of the Apexseal springs on the rear rotor, it ended up falling into one of the watercanals, but with a little physical ingeenuity involving a long *** screwdriver and a magnet we got it out
And after looking for a lost thrustwasher for half an hour and going through the garbage, it turned out to be located on the back of the front counterweight

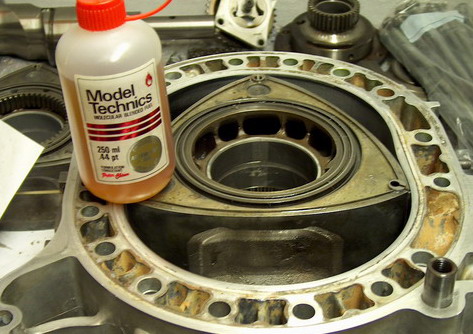

Anyways here are a few pictures.
I used After run oil as used in R/C Nitro motors for the lubeing of internal parts.
It was easier than I thought, but some parts were hard to remember because its like four months since I took it apart.
Only real serious problem was fitting one of the Apexseal springs on the rear rotor, it ended up falling into one of the watercanals, but with a little physical ingeenuity involving a long *** screwdriver and a magnet we got it out
And after looking for a lost thrustwasher for half an hour and going through the garbage, it turned out to be located on the back of the front counterweight
Anyways here are a few pictures.
I used After run oil as used in R/C Nitro motors for the lubeing of internal parts.
Last edited by Kim; 03-27-04 at 03:49 PM.
03-27-04, 06:44 PM
#56
OBEY YOUR MAZDA
Thread Starter
Originally posted by Magnus Berglund
And there were no parts left??
//magnus
And there were no parts left??
//magnus
03-28-04, 04:18 AM
#58
_________________________
Originally posted by Multiplex
Looks good kim!!
Hope that baby will fire up without problems...
Looks good kim!!
Hope that baby will fire up without problems...
It's gonna smoke....thats for sure!
I was just there to give a helping hand. Make sure Kim had some good music playing, eat right (not just candy bars) and add some comic relief.
It was fun Kim bigthumb:
03-28-04, 05:54 AM
#60
HEAVY METAL THUNDER
Join Date: Oct 2002
Location: Elsenborn, Belgian Eifel
Posts: 3,864
Likes: 0
Received 0 Likes
on
0 Posts
Nice job, Kim!
Did you do any porting or so while she was open?
I'd like to know how the rebuild went, and how well the engine runs afterwards, as I'd love to rebuild an engine too, just to learn from it. Since I have a very useable 12A core here, a bridge ported 12A is within reach
Any problems during rebuild? Any really special tools needed?
Did you do any porting or so while she was open?
I'd like to know how the rebuild went, and how well the engine runs afterwards, as I'd love to rebuild an engine too, just to learn from it. Since I have a very useable 12A core here, a bridge ported 12A is within reach
Any problems during rebuild? Any really special tools needed?
03-28-04, 10:14 AM
#61
OBEY YOUR MAZDA
Thread Starter
Thanks boys
The Irons has been ported as pictured earlier in this thread, Primarys are kindda mild but with more duration, secondarys are medium/big and 5/6th ports are big/large.
I have finally learned to TIG weld so I will make some custom cold air intake.
As mentioned before, it was easier than I thought, just make sure you have the rebuild kit required before attempting because some of the parts were kindda hard to remember. I got the rebuild video and watched it a few times and proceeded on by memory
I dont know about the flywheelnut on 12A´s but its a 54mm on 13B´s and requires an air-impact gun to get it loose
I took it to a local mechanic and gave him a handfull of beers to do it, works every time
Other than that you need the usual Mazda sized tools(10,12,17 & 19mm sockets) and a torque wrench or two.
The Irons has been ported as pictured earlier in this thread, Primarys are kindda mild but with more duration, secondarys are medium/big and 5/6th ports are big/large.
I have finally learned to TIG weld so I will make some custom cold air intake.
As mentioned before, it was easier than I thought, just make sure you have the rebuild kit required before attempting because some of the parts were kindda hard to remember. I got the rebuild video and watched it a few times and proceeded on by memory
I dont know about the flywheelnut on 12A´s but its a 54mm on 13B´s and requires an air-impact gun to get it loose
I took it to a local mechanic and gave him a handfull of beers to do it, works every timeOther than that you need the usual Mazda sized tools(10,12,17 & 19mm sockets) and a torque wrench or two.
Last edited by Kim; 03-28-04 at 10:28 AM.
03-28-04, 12:51 PM
#62
_________________________
Originally posted by Multiplex
Oliver,
Did Kim survive the depeche mode anslaught of last night then??
I wonder how good that model oil stuff is gonne work
Oliver,
Did Kim survive the depeche mode anslaught of last night then??
I wonder how good that model oil stuff is gonne work
No depeche mode. I played some Korn for Kim. Good rebuild rotary music!! Also because the bass and drums kinda sound like a rotary motor turning!
Maybe, thats just me thinking that?
03-28-04, 02:04 PM
#64
HEAVY METAL THUNDER
Join Date: Oct 2002
Location: Elsenborn, Belgian Eifel
Posts: 3,864
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Kim
I dont know about the flywheelnut on 12A´s but its a 54mm on 13B´s and requires an air-impact gun to get it loose I took it to a local mechanic and gave him a handfull of beers to do it, works every time
Other than that you need the usual Mazda sized tools(10,12,17 & 19mm sockets) and a torque wrench or two.
I dont know about the flywheelnut on 12A´s but its a 54mm on 13B´s and requires an air-impact gun to get it loose
I took it to a local mechanic and gave him a handfull of beers to do it, works every timeOther than that you need the usual Mazda sized tools(10,12,17 & 19mm sockets) and a torque wrench or two.
Your are right about the beer: it always works
Oliver
04-12-04, 04:27 PM
#68
OBEY YOUR MAZDA
Thread Starter
Tadaaaaaaa My motor is running again.
After priming the fuel system and five seconds of cranking it jumped to life for the first time after the rebuild
After a few minor adjustments it idles at 800 rpms

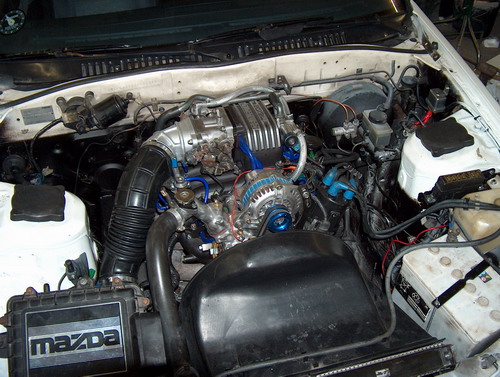

Here is the motor allmost ready to go
After priming the fuel system and five seconds of cranking it jumped to life for the first time after the rebuild
After a few minor adjustments it idles at 800 rpms
Here is the motor allmost ready to go
04-12-04, 05:06 PM
#70
OBEY YOUR MAZDA
Thread Starter
Motor is done, the install took all easter, including beerbreaks and stuff.
Once again thanks to Oliver (OC94Rx7) for helping me out
Once again thanks to Oliver (OC94Rx7) for helping me out
Last edited by Kim; 04-12-04 at 05:09 PM.
04-13-04, 04:44 PM
#73
OBEY YOUR MAZDA
Thread Starter
Originally posted by Mireck 12A
Kim,
Did you find out what's up with the oilpressure?
Shouldn't go higher as 6 Bar :-/
Kim,
Did you find out what's up with the oilpressure?
Shouldn't go higher as 6 Bar :-/
