A Serious Engine build
I just finished up a very serious race engine for a customer and a forum member (Redshift) from Halifax today.
As far as I know there is no other engine like this one, which means I spent ALOT of time trying different things and designing the ports. I also wrecked a set of S5 T2 irons in the process trying my port design lol. Oh well!!
Heres a list of parts that went into the engine build:
S5 Turbo 4 port irons - Custom Full Bridge Port
S5 Turbo Housings - Water Jacket mod
RX8 Rotors - EDM wire cut apex seal grooves to accept pre-Renesis apex seals
RX8 Eccentric Shaft - new
RX8 Stationary Gears - new
RB Race 2mm Carbon Apex Seals + Springs
RB Race Rotor Bearings
RB Thermal Oil Pellet for Eccentric Shaft
Atkins Oil jets for Eccentric Shaft
Pineapple Racing Aluminum Oil Pan
Turbo Oil Pump
RB Adjustable Oil Pressure Regulator
RB Oil Pressure/Temp Sender Adapter
RB Stainless Steel Oil Cooler Lines
Pineapple Racing OMP and Air pump Block off plates
Lightened Fidanza Aluminum Flywheel, Auto Counterweight and Race clutch
12A ignition
51IDA Weber Downdraft Carb w/ RB Intake Manifold
As far as I know there is no other engine like this one, which means I spent ALOT of time trying different things and designing the ports. I also wrecked a set of S5 T2 irons in the process trying my port design lol. Oh well!!
Heres a list of parts that went into the engine build:
S5 Turbo 4 port irons - Custom Full Bridge Port
S5 Turbo Housings - Water Jacket mod
RX8 Rotors - EDM wire cut apex seal grooves to accept pre-Renesis apex seals
RX8 Eccentric Shaft - new
RX8 Stationary Gears - new
RB Race 2mm Carbon Apex Seals + Springs
RB Race Rotor Bearings
RB Thermal Oil Pellet for Eccentric Shaft
Atkins Oil jets for Eccentric Shaft
Pineapple Racing Aluminum Oil Pan
Turbo Oil Pump
RB Adjustable Oil Pressure Regulator
RB Oil Pressure/Temp Sender Adapter
RB Stainless Steel Oil Cooler Lines
Pineapple Racing OMP and Air pump Block off plates
Lightened Fidanza Aluminum Flywheel, Auto Counterweight and Race clutch
12A ignition
51IDA Weber Downdraft Carb w/ RB Intake Manifold
#2
Likes to swear....alot
Thread Starter
iTrader: (3)
Join Date: Dec 2002
Location: Kitchener Ontario Canada
Posts: 3,791
Likes: 0
Received 3 Likes
on
3 Posts

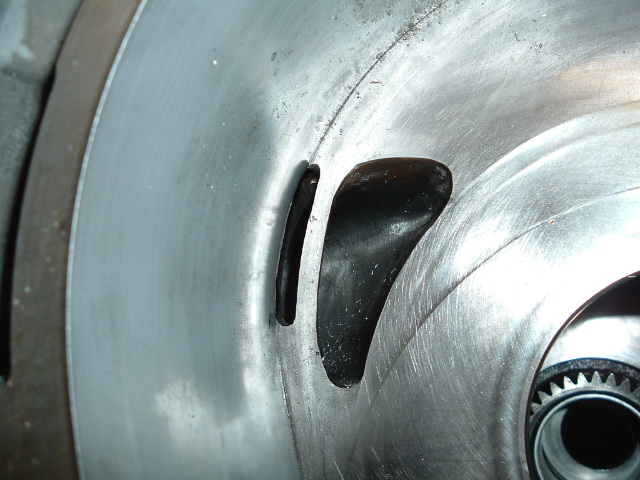

The porting took a very long time and alot of measuring to get right because we used RX-8 rotors the side seals are in a different location than the older rotors so the bridge port had to open really early to keep the sideseals from dropping into the intake port.
Like I said before I wrecked a set of S5 T2 irons trying something a little different and ended up porting right through the iron into the water jacket. But hey...I learned something
I'm getting the engine setup on an engine dyno over the weekend and should have some video of this thing BRAP BRAP BRAPing next week.
