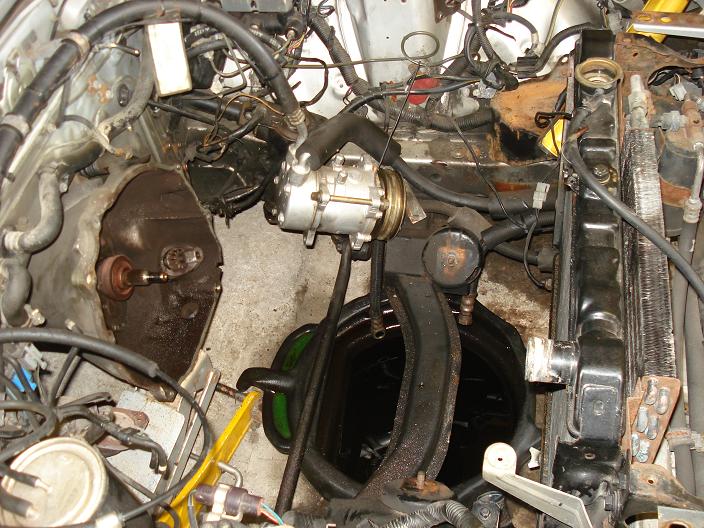

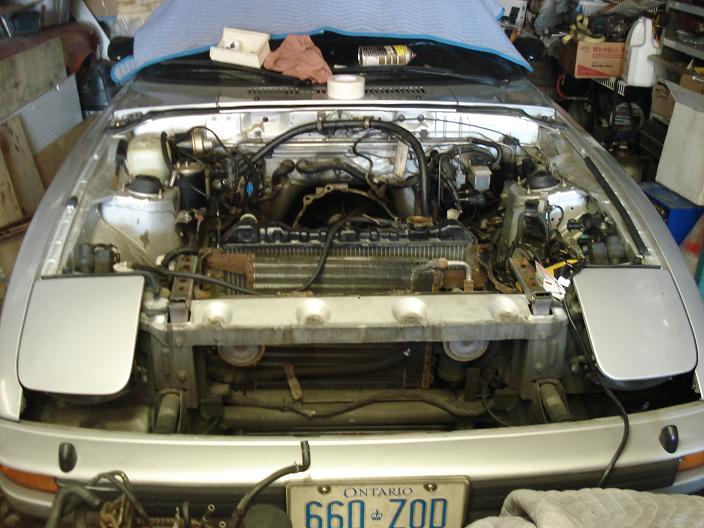

Pulled my baby out of storage on the weekend & pulled the motor out today getting ready for a turbo swap. Progress would be slow because I work 5 to 6 days a week. Will keep you guys posted.

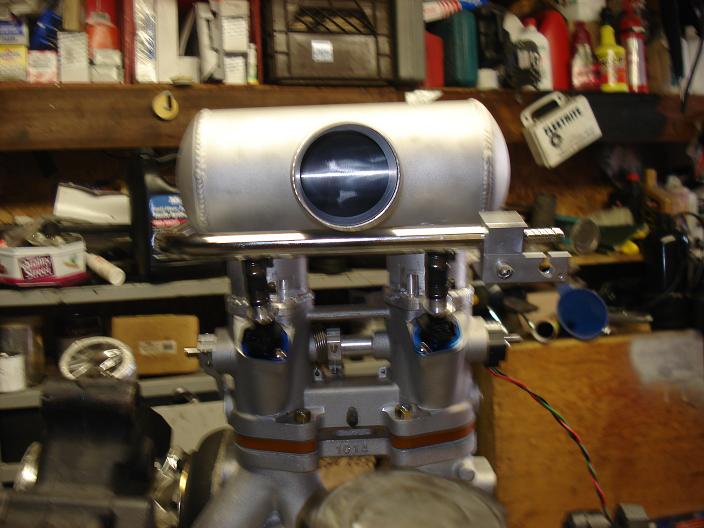

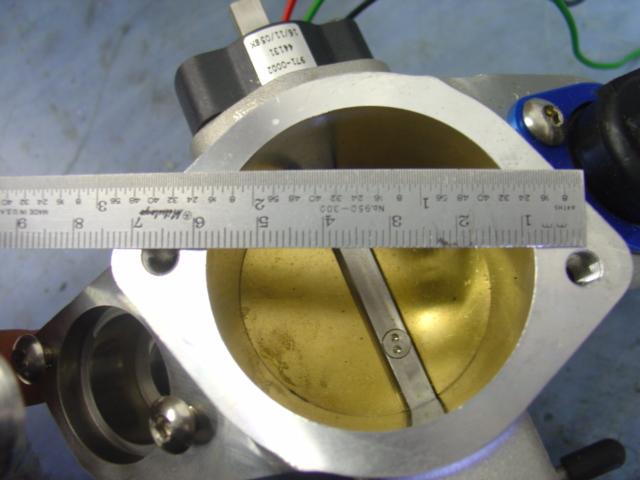

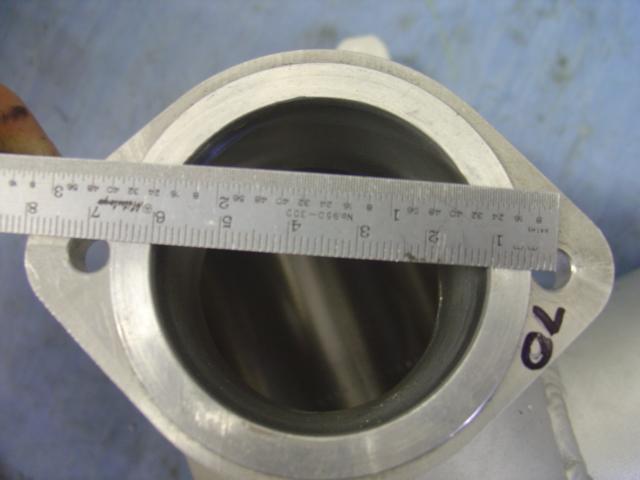

Got my blowthrough plenum from www.tweakit.net & was doing some measurements & found the holes don't line up. If you look at the picture, the plenum measures 70mm across. Now the IDA throttle body measures at 65mm. Very well pissed off about this & I waited 6 weeks for this part. Anyway gotta get it fixed myself. Don't wanna wait another 6 weeks. For those of you that order from Tweakit.net, be aware.



What kinda fuel injection are you running?


If I recall, tweakit offers a whole bunch of sizes for those.



what engine are you swapping in? a 13bt?

you said blow through, so it will be carbed?
any reason you want to go carbed vs. EFI if you are just using a 13bt?



I am running a Perfection Injection 50mm throttle body & Microtech LTX-8s.
I specified exactly the size throttle body I had & they size made a mistake. Oh well.



I bought a ported motor from a fellow member from Florida. If you search Andre Sinclair, all the specs on the motor are there. But it is streetported on the intake & raceported on the exhaust. He dynoed at 396 to the wheels. I am looking for 400 hp to the wheels although he used a slightly bigger turbo than mine. The motor is an older 4 port 13B.

I am going EFI not carbed.



ah, ok.

man 400whp would be ridiculous in an FB, i can only imagine. good luck and keep us posted.



Your car looks mint!!



Problems I've found with only 250HP is traction and chassis flex. 400HP would require alot more attention methinks.



What are you going to do to your drivetrain to keep your car in one piece( diff /trans / shaft / etc.). Cool project but I hope you are ready for the extra costs comming your way.



I donno what hes doing but alls Im doing right now is beefing up the rear axle.



Keeping it stock for now. Just concentrating on the engine right now & getting it running. Keep in mind this is NOT a daily driver but thanks.



Info on the motor:

13B 4-Port (Old School Plates - Resurfaced) Street Ported Intake
GSL-SE Rotors 9:4 Compression (Lightened), 3mm RA - Super Apex Seal
GSL-SE Rotor Housings (New) 5mm Overlap Race Exhaust Ported
Harden / Modified Stationary Gears (Front-Rear)
Three-Window Bearings (Front-Rear)
Oil Pressure Regulator Modification (Front-Rear)
Thermal Pellet Modification
Racing Beat Under Drive Aluminum Pulleys (Alternator / Main Crank)
Internal Springs Cryogenic Treated

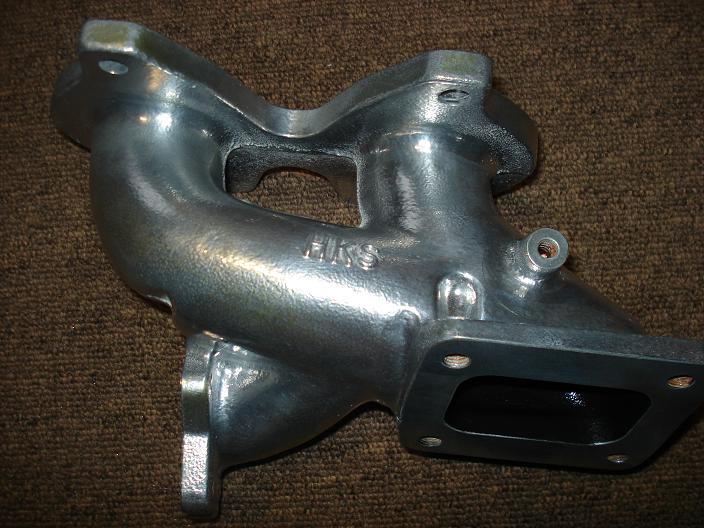

Got my manifold back today from being Ceramic Coated.

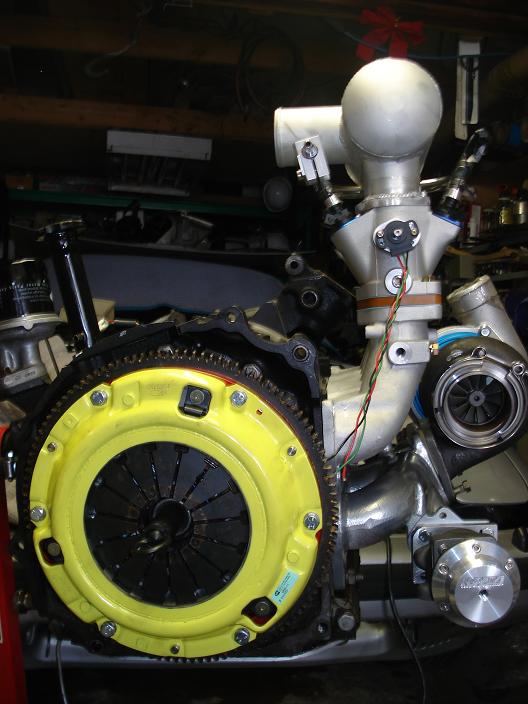

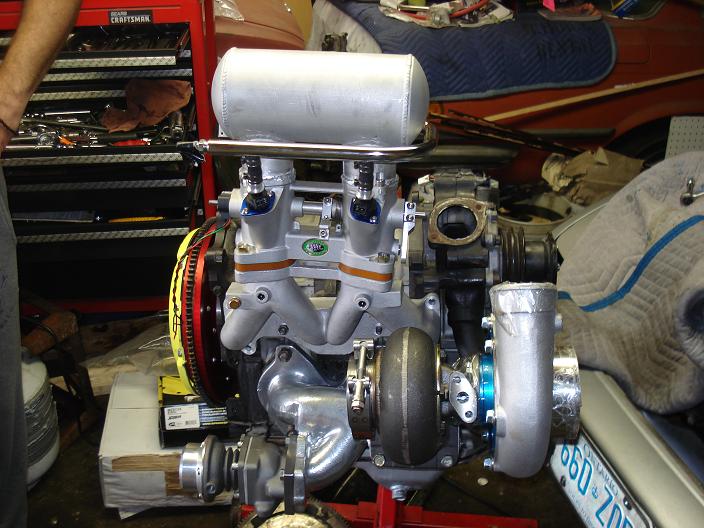

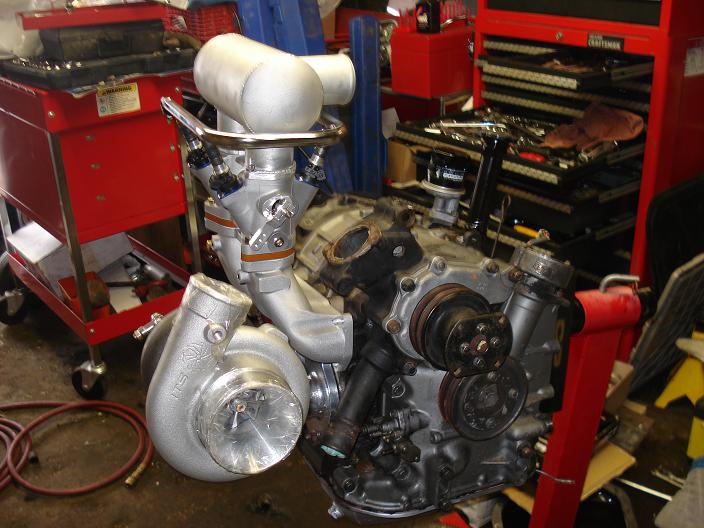

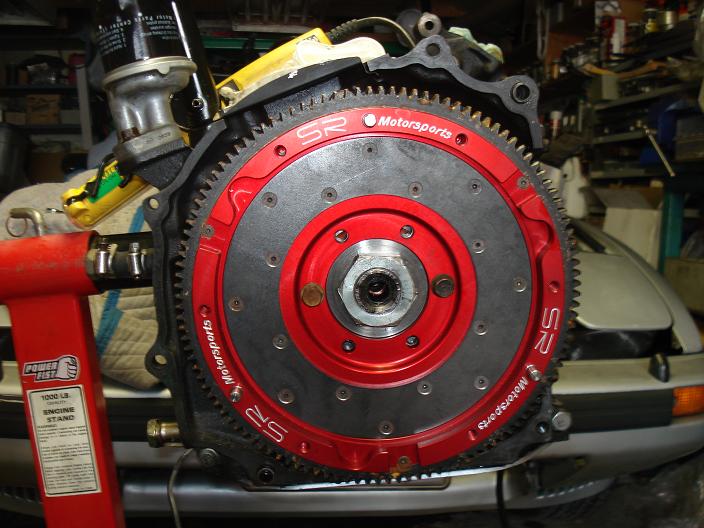

Some more pics.



R.P.M. Motorsports did the intercooler mounting,piping & 3" exhaust. Great job. Highly recommended for fabrication work. Thanks again guys.



I wish i had a garage and the money to that. Maybe someday. Good Luck dude!



I have buying parts for this car for over 1 year now & the car is my mom's house. It's been on hold long enough (got married last year).

Thanks mom. lol



Very nice work! That's a very nice plenum.

Once concern though. I think you have going to have a hard time making the car perfectly drivable with that intake setup and the LT-8s. It's taken a long time to get my car with the big throttle body to drive nicely off of idle. However your throttle bodies are below the plenum and thus the vacuum signal is going to be very, very erratic and will shoot to atmospheric when the throttle is cracked. This won't leave you with very much resolution if tuned in speed density mode. You'll likely find yourself switching to Alpha-N (TPS referenced). In that case, the throttles need to be set up with a full range TPS (which presumably, they are).



Thanks Aaron Cake for the advice! I'll remember when tuning time comes.

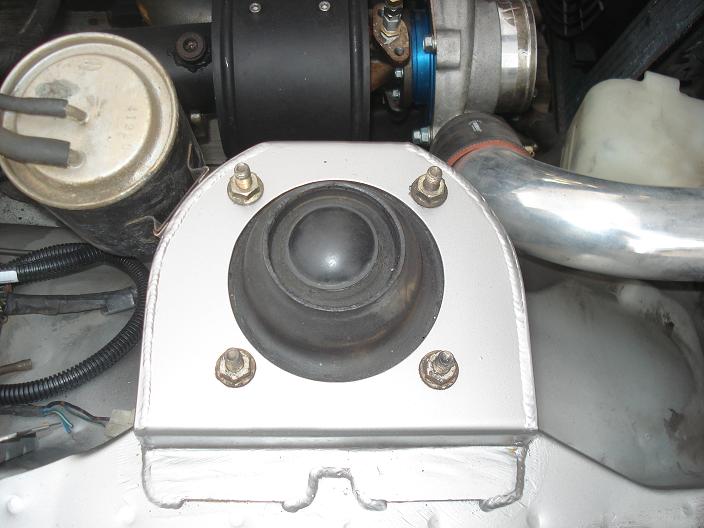

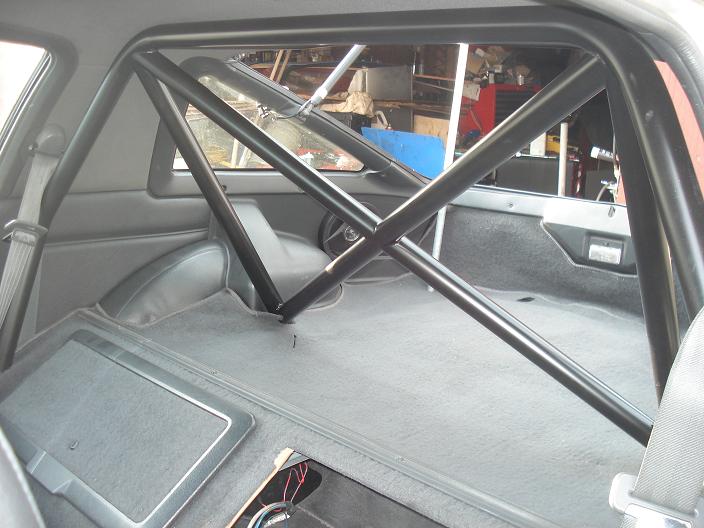

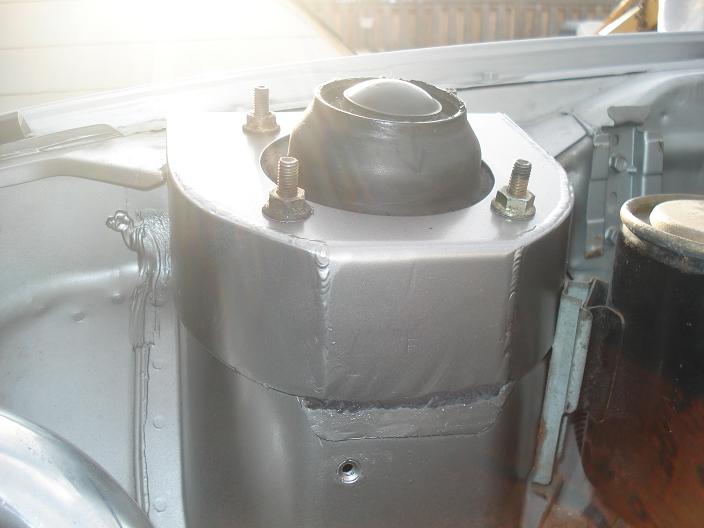

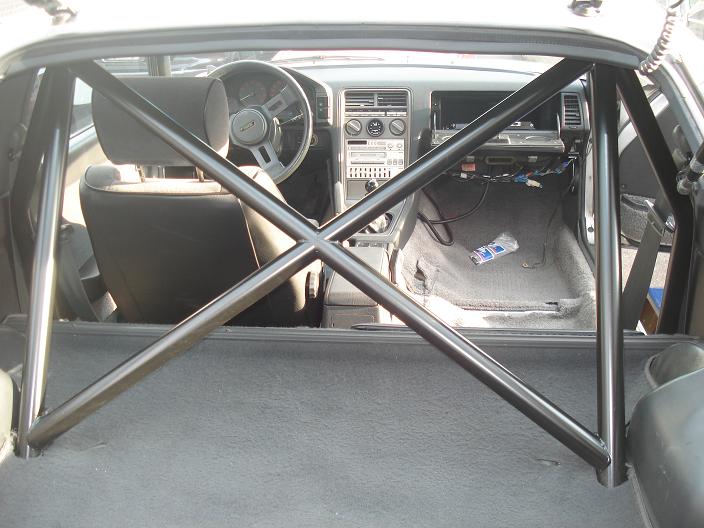

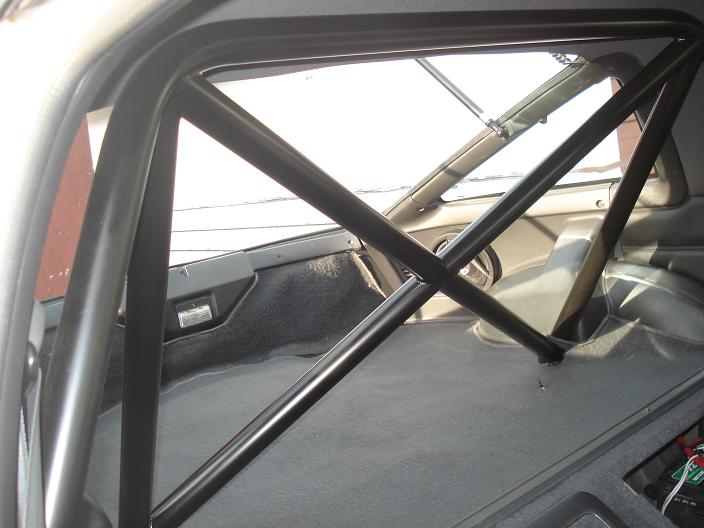

Did the rollcage & installed the Racing Beat strut towers.



Very cool project. I definitely suggest a diff upgrade and frame connectors for the liitle thing...
