speedgod

new updates from the past few days enjoy

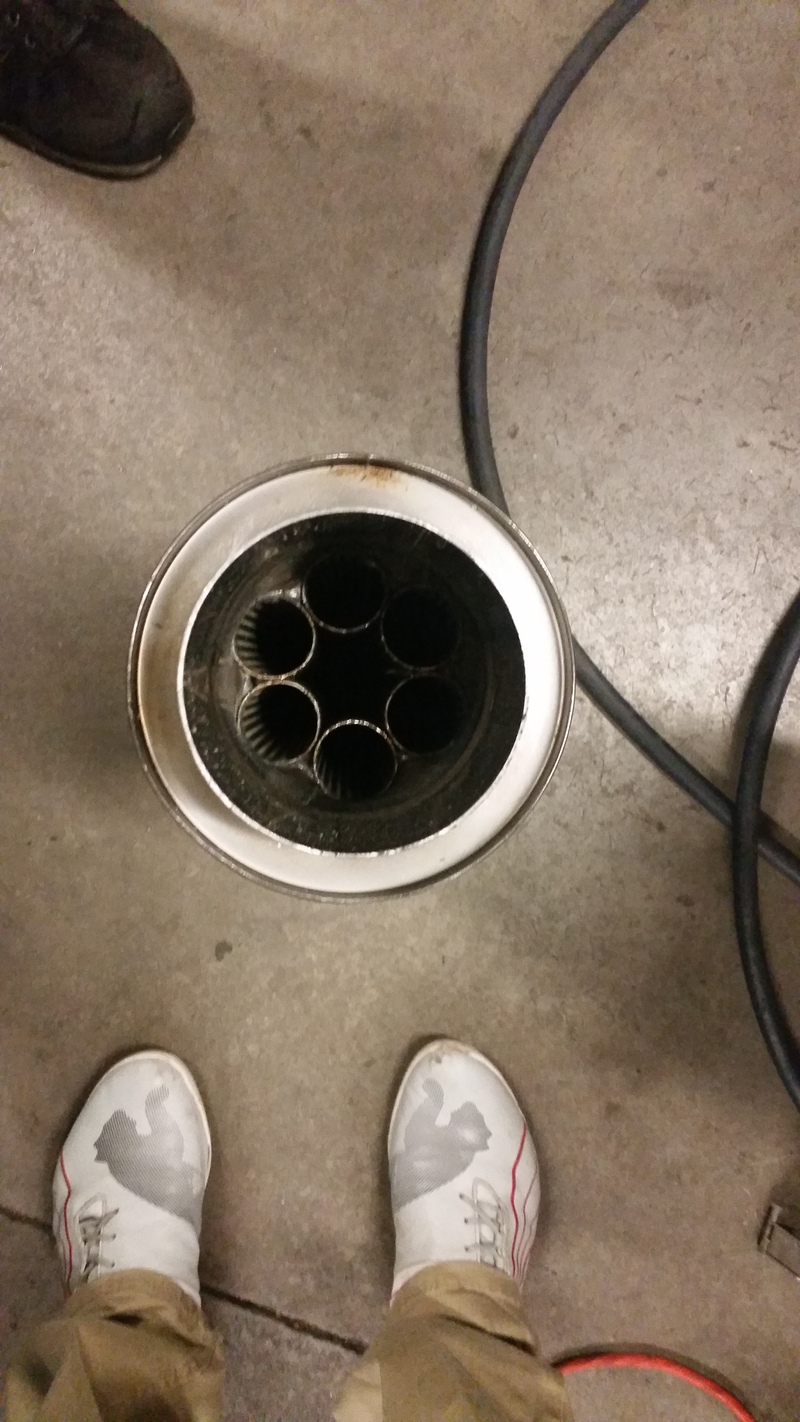

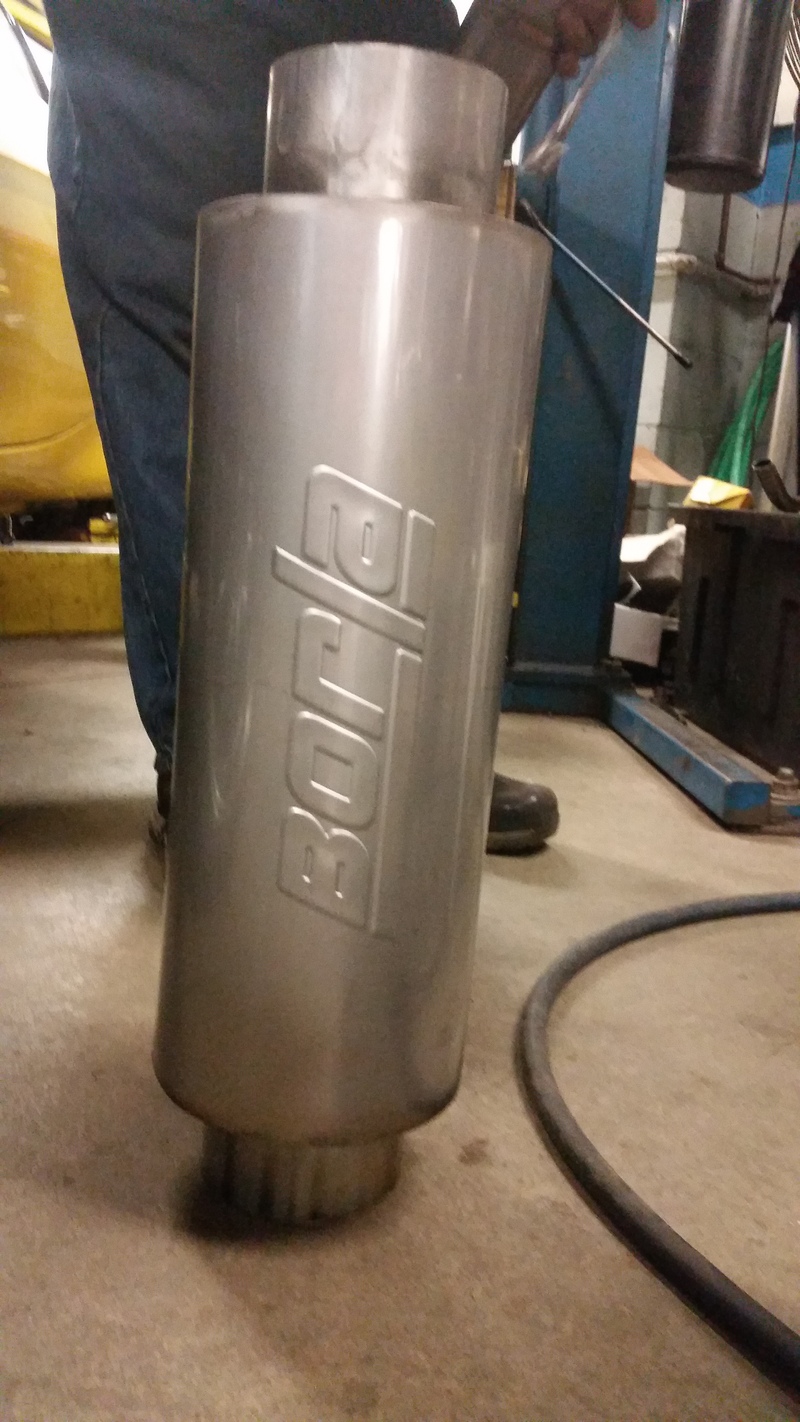

muffler Arrived




Water meth is in. mounted the tank in the trunk, and the pump where the spare tire was.




AEM Gauges are in as well:
True Boost, Widban, and water/meth fail safe



Since the turbo sits so high up, it will hit the hood once everything is attached, so we had cut bit of the top and weld an elbow to make it clear the rebar.

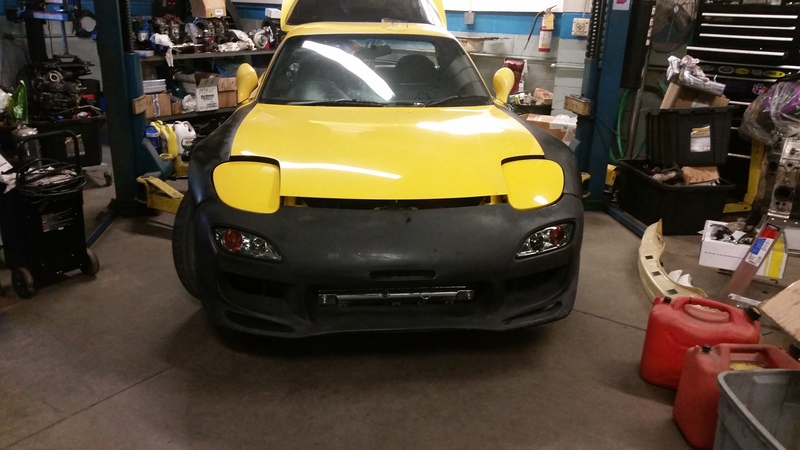

we also test fitted the the shine auto bumper without bolting it just to see how it looks.

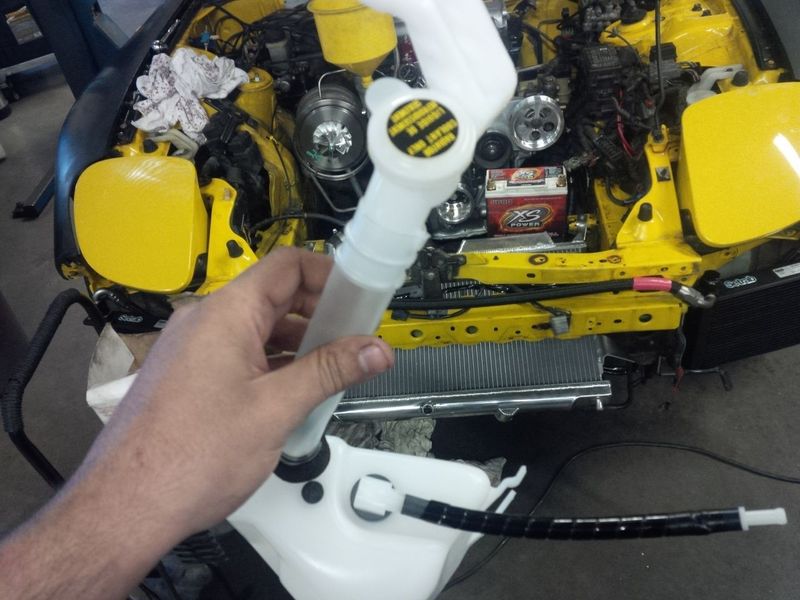

New coolant Tank since the old is dry and about to crack

speedgod

Thanks guys

nigel20b

iTrader: (8)

beast in the making ...brap brap

speedgod

Ok we drove the car to DGRR this weekend to break it in and here it is idling. The belts needed to be tightened which was fixed after. next step will be tuning it

nigel20b

iTrader: (8)

nice ....

speedgod

Update for build List:

Engine & Others:

Halfbridge Port
New Rotor
New Housing
Adaptronic Select Mazda RX-7 ECU 87-95
CJ Motorsports kit has brackets for the regulator etc. along with Injectors
CJM FD Twin Pump
4" Exshaust system
Turblown Engineering FD3S EFR 9180 Turbo System
FD3S: Dual Oil Cooler Upgrade Kit
FD3S: Complete Package - AEM Ignition Upgrade Kit + LHD Mount
Harness Adapter
Water/Methanol FAILSAFE Device - 1/4" SAE
RX7 Store V Mount Intercooler / Radiator Setup 93+ RX-7
ACT Extreme 6 Puck Clutch 93+ RX-7 Turbo
AEM Methanol Injection Kit
TRU-BOOST - Boost Controller Gauge
AEM's Wideband Failsafe Gauge
Blockoff plates for going single
Odyssey PC680 Battery
Xcessive13B-REW Lower Intake Manifold
FD3s 3-Bar Map Sensor
UR Style FD Pulley Kit (93+RX-7)
Iridium Racing Spark Plugs
FD3s Power FC Commander Holder*
FD3s 3-Bar Map Sensor Bracket
PR FD Idler Pulley Kit (93+ RX-7)
2x FD Timken front wheel hubs
3.25" ARP Extended Wheel Studs
Muteki SR48 Lug Nuts, Color: Titanium Chrome
FD Koyo Wheel Bearing - Rear


Body:

FD3S RX-7 Type-FIIR (FEED Style) Front Aero Bumper
4-Piece Canard Set for Type-FIIR Bumper. Can be slightly modified to fit 99-spec OEM Bumpers as well.
FD3S RX-7 Spec-GT (FEED Style) Rear Fenders (25mm wide)
FD3S RX-7 Spec-GT (FEED Style) Bumper Protectors.
FD3S Spec-S Rear Add-On
FD3S RX-7 Spec-GT (FEED Style) Front Fenders (25mm wide)
FD3S RX-7 Spec-GT (FEED Style) Sidesteps/Sideskirts
FD3S RX-7 Spec-S Rear Diffuser

sctRota

iTrader: (2)

When do I add her to the "to do list" for that paint

speedgod

Hehehe, Very soon very soon

speedgod

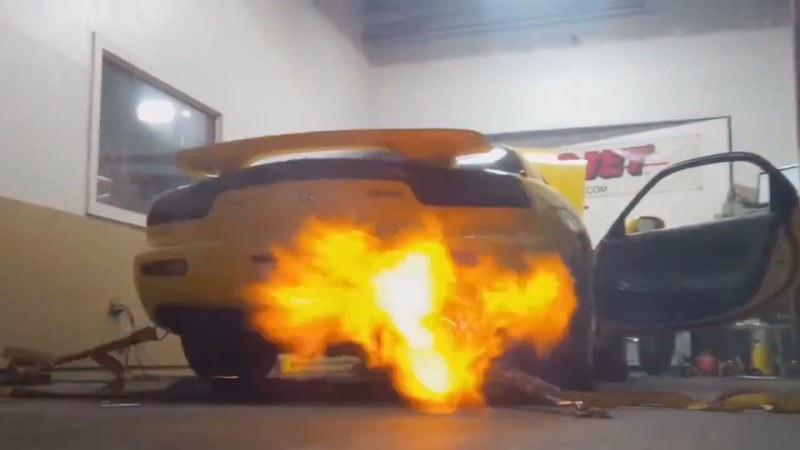

Hi guys sorry about the late update. Car was finally on the dyno, and we got some prettyy amazing results. 9180 half-bridge beast on the dyno. 589.6 rwhp with 454 ft/lbs of torque on pump gas with water/meth @ 25 psi
Observe:

p4nc7

iTrader: (1)

That's gnarly. Good stuff!

Turblown

iTrader: (12)

More videos !

rotaryfreak3

Nice results! Which 9180 did you use? Is it the internally gated .92 A/R model?

thewird

iTrader: (8)

It's the external wastegate 1.05.

thewird

rotaryfreak3

Ah, that makes a bit more sense. Awesome stuff! Makes me wonder if you might be able to break 700whp as you get closer to 40psi boost with this setup.

thewird

iTrader: (8)

I wouldn't be surprised. There was definitely more power to be had on the setup with more boost with better fuel.

thewird

misterstyx69

iTrader: (142)

meh..needs more smoke..lol!!..
Right Marco?..(Styx blown turbo seal episode!)

7_rocket

iTrader: (6)

What are your thoughts on the Sake Bomb oil coolers?

speedgod

They're pretty good no issues so far

speedgod

sYnth.

Awesome build so far! Good to hear about the oil coolers. Been thinking about which setup to go for.

michaelz

What's the paint code for the chuki JDM yellow? Is it the same as USDM CYM (J9)? Assuming isn't the same as suburst yellow (HZ)?

speedgod

yes its sunburst yellow (HZ) but i am not sure about earlier models

403rx7

Just read through the build.. wicked power that thing put down. Sounds really healthy too. Any updated pics of the engine bay?
