Need Help Holes!!

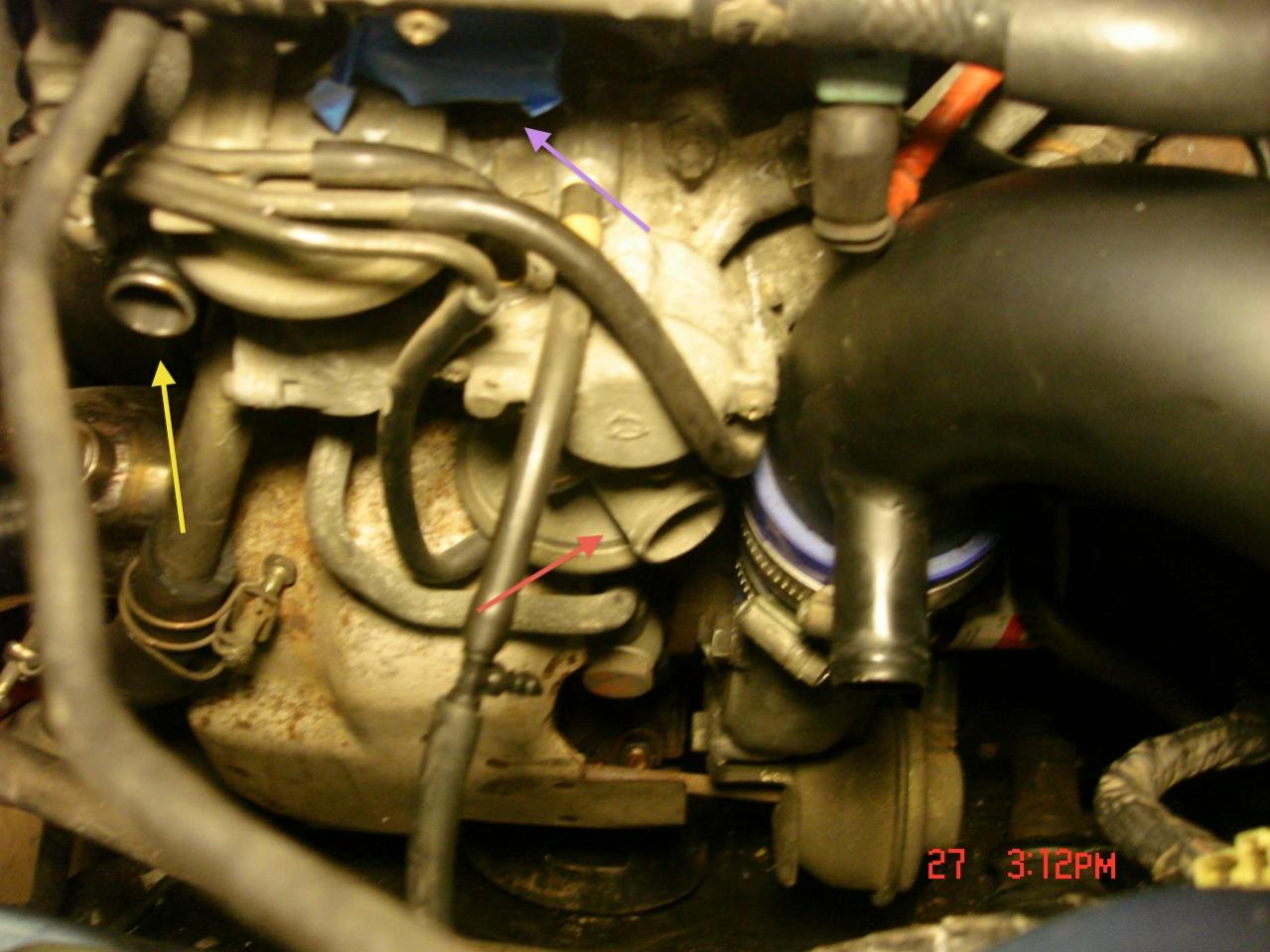

Hey, I'm trying to figure out where these holes lead to or if i should just block them off. This is from a TII S4

Attached Thumbnails

Reply Like

07-27-12, 11:48 PM

misterstyx69

Retired Moderator, RIP

iTrader: (142)

Join Date: Sep 2005

Location: Smiths Falls.(near Ottawa!.Mapquest IT!)

Posts: 25,581

Likes: 0

Received 131 Likes on 114 Posts

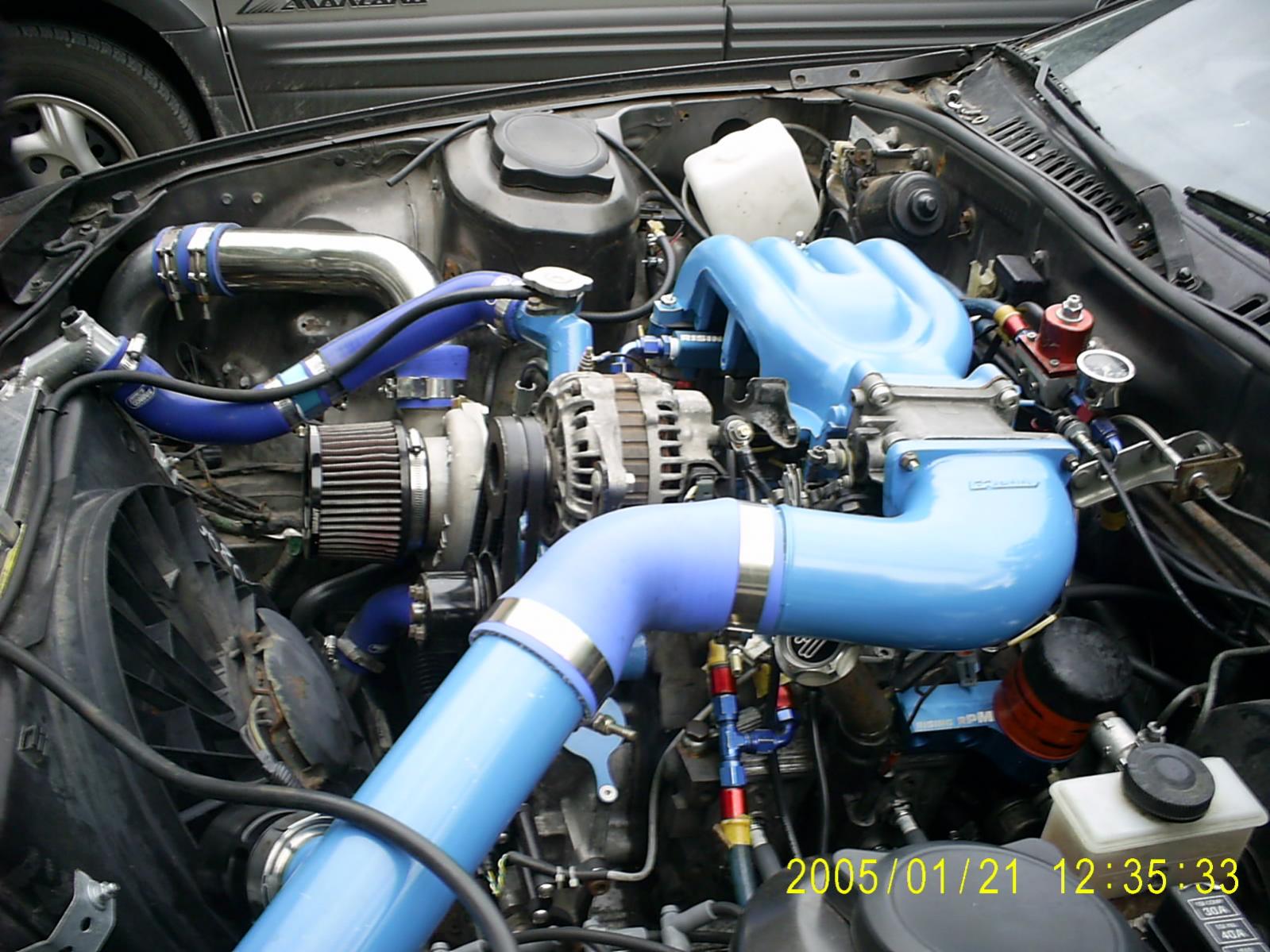

sorry man,wrong thread.

Attached Thumbnails

Need Help Holes!!-driveshaft-godzilla-car-006.jpg

Reply Like

07-29-12, 09:59 AM

pfsantos

(blank)

iTrader: (1)

Join Date: Nov 2005

Location: YYZ

Posts: 2,285

Likes: 13

Received 13 Likes on 12 Posts

Red arrow looks air silencer hose to reduce noise when acv dumps to atmosphere...not essential just reduces noise. Purple arrow may be just sub zero system that most disable...just feeds a little coolant into intake to increase compression from sub zero tank mounted right side firewall. Other arrow not sure...im more fam. With S4 NA's
