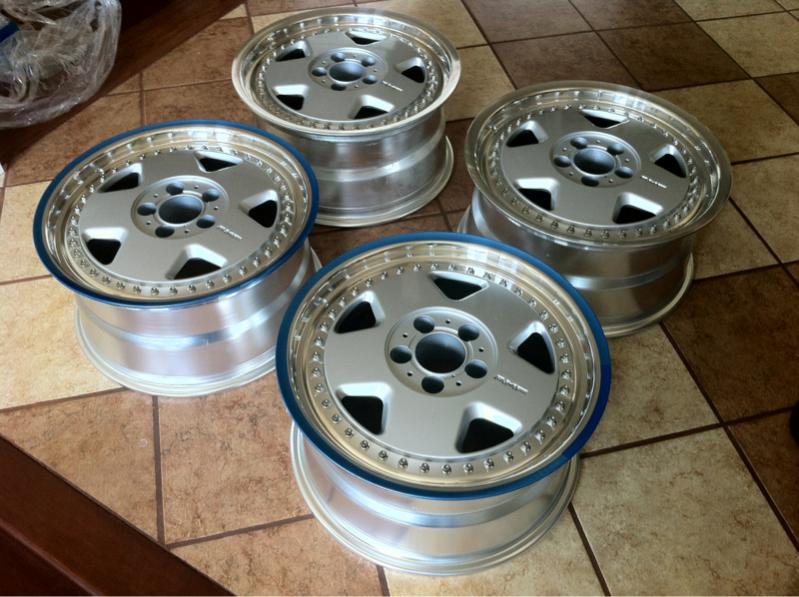

New shoes. JDM DP Motorsports Amp.

17 x 8.5 + 38

I found these 15 year old wheels brand new in box. Genuine 3-piece beauties. Unfortunately the center caps were not included so I'm designing them for CNC.

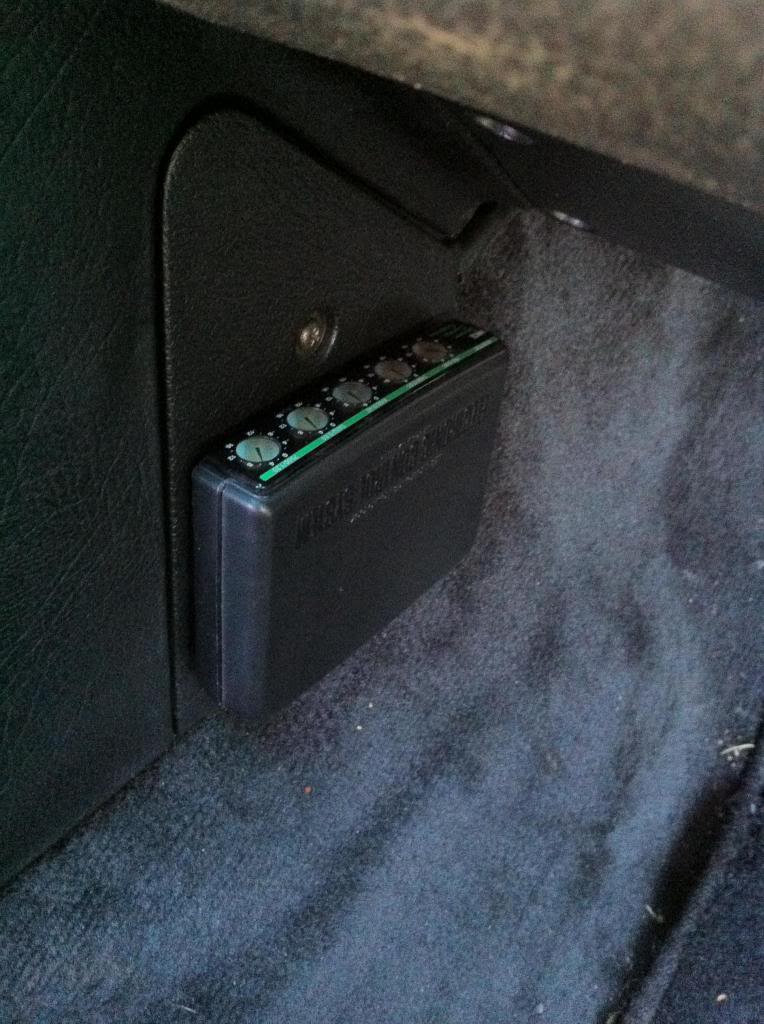

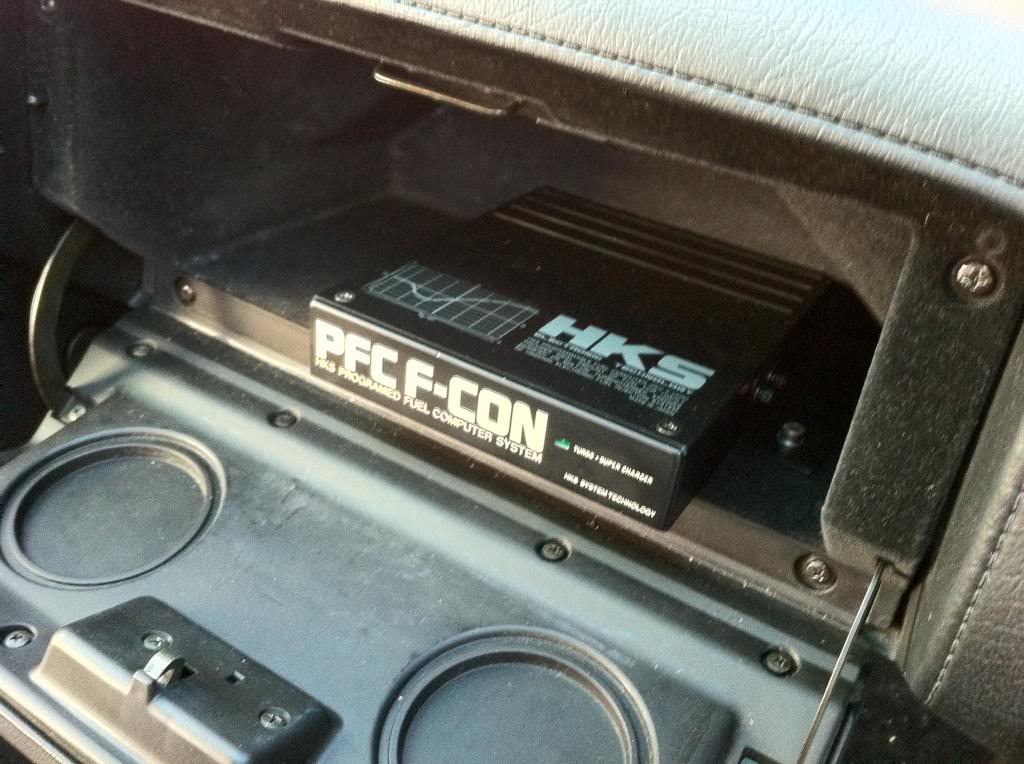

HKS F-CON and GCC all cleanly installed!

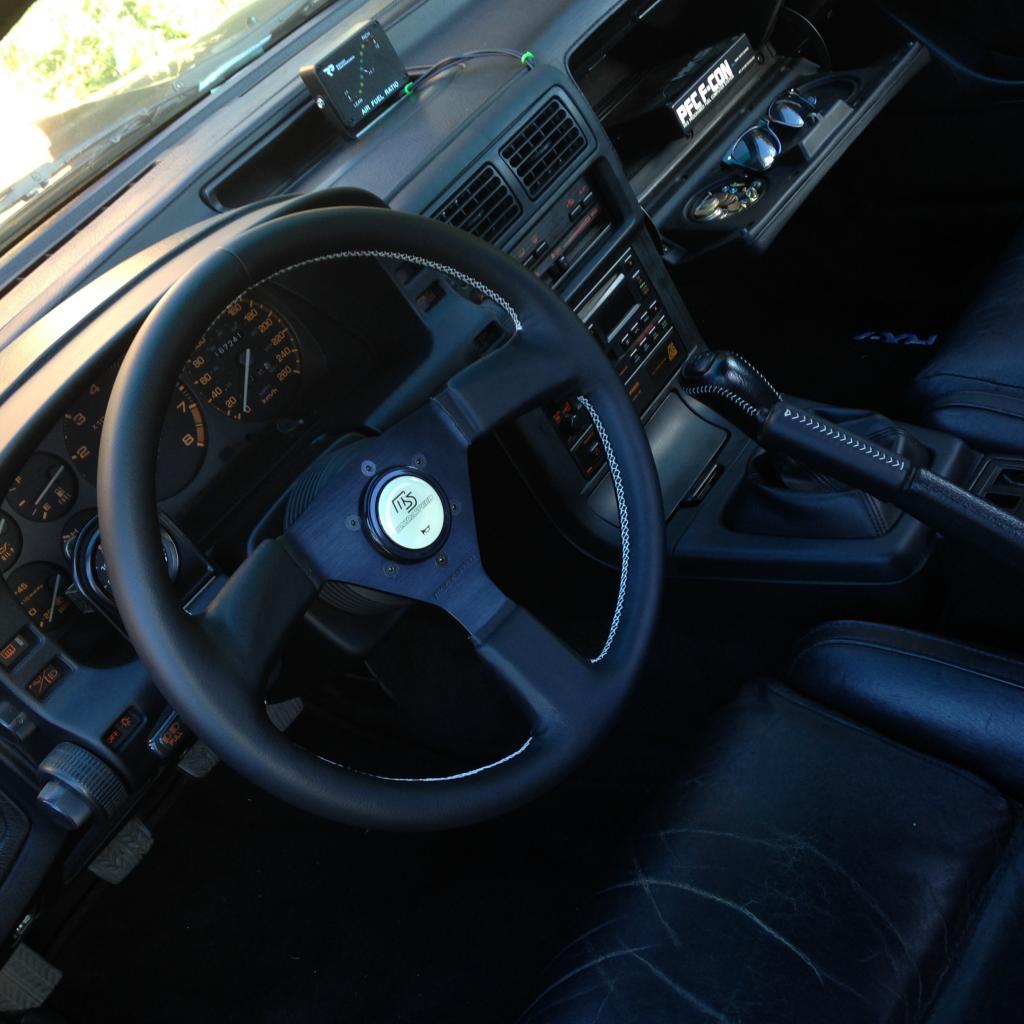

Freshly reupholstered leather goods courtesy of Mr. Matt Hulan (Hulanfd3s) here on the forums. Anyone interested in getting work done I highly recommend sending a message his way.

I chose to have them done in a classic black leather with white stitching. My factory MOMO had white stitching, and wanted to bring this back with a bit of a "punch." I have more in the works for the interior, but for now..... just take a peak at the awesome job done.





Any footage of the car in action? Beautiful car



Not yet unfortunately. Saving my pennies for a go pro for some nice videos.

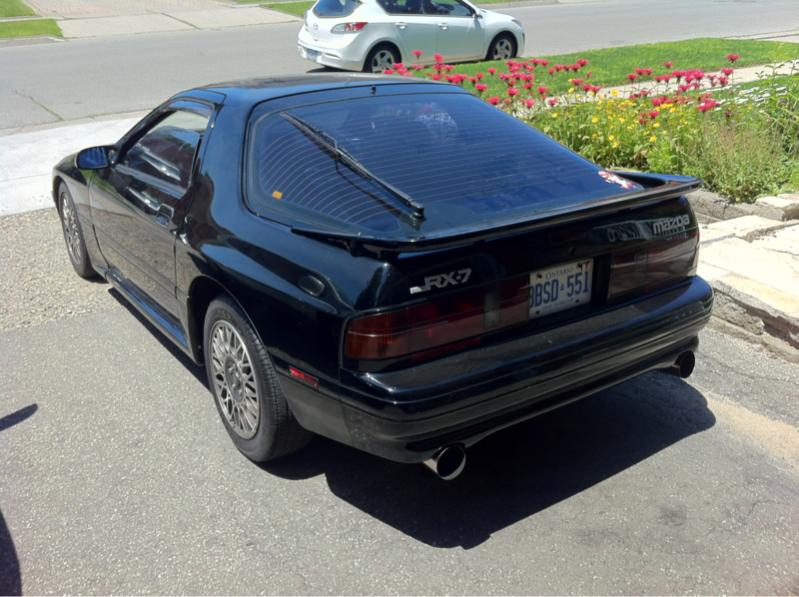

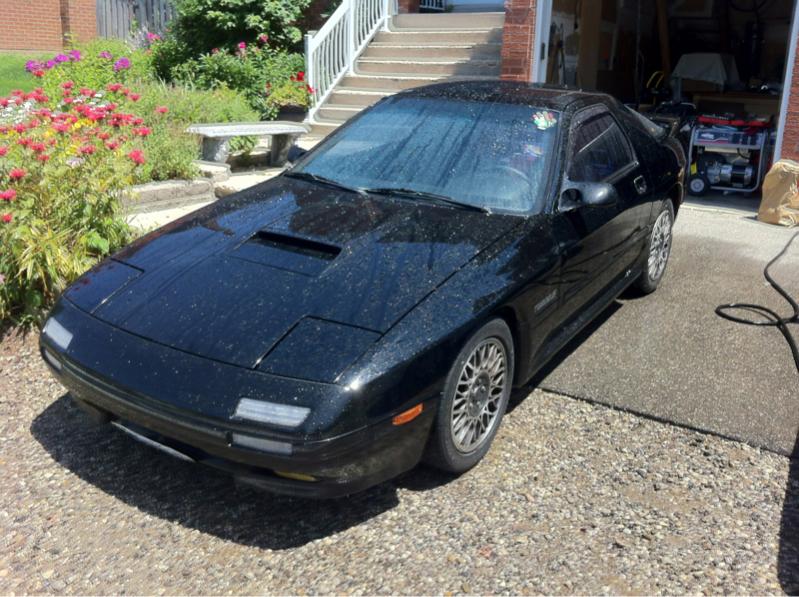

Out for a bath this weekend.



Solid build man. Diggin' the retrofitting idea between the US and Japan solid works drawing. Did that ever come into manufacturing?



I wish my interior looked that good



I'm going to get a one-off machined prototype, and then will be making molds for the production part.



Back finally!!! My apologies for the lack of updates. School took over for the last few years and I'm now graduated! Small update, but will have more soon!

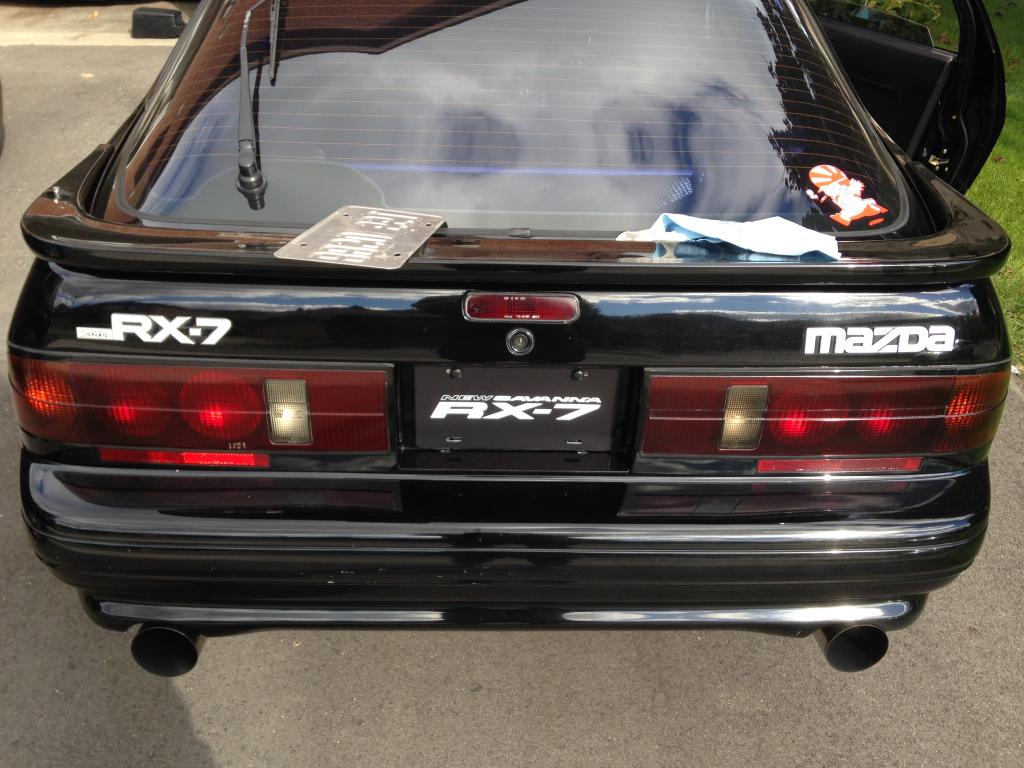

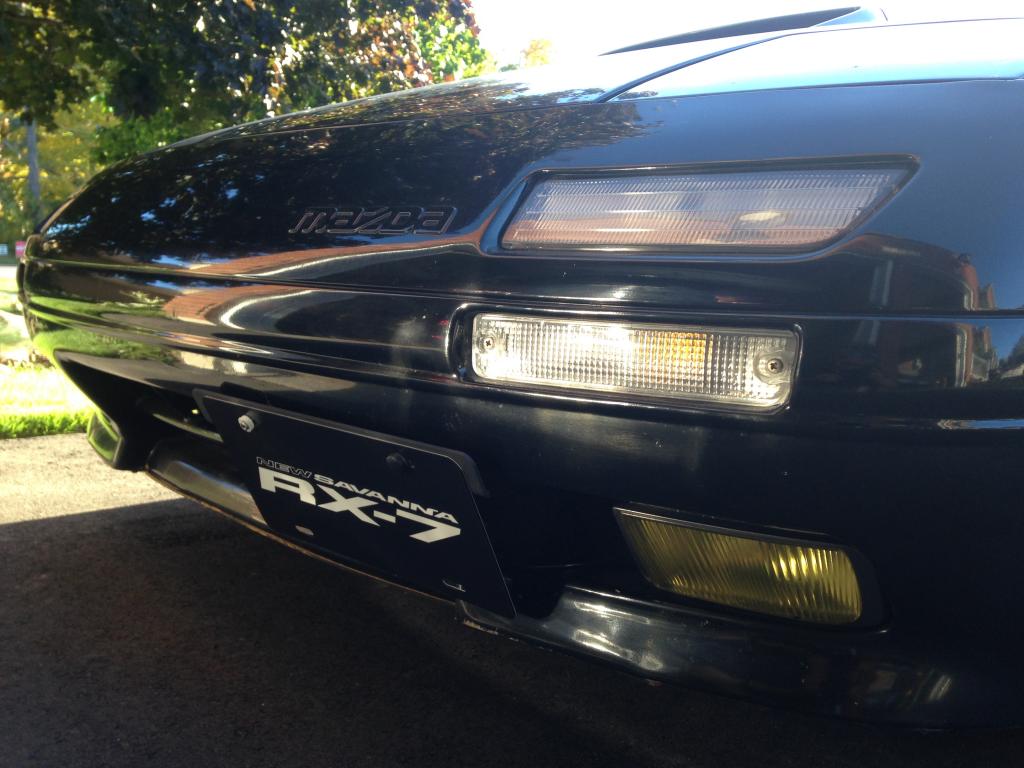

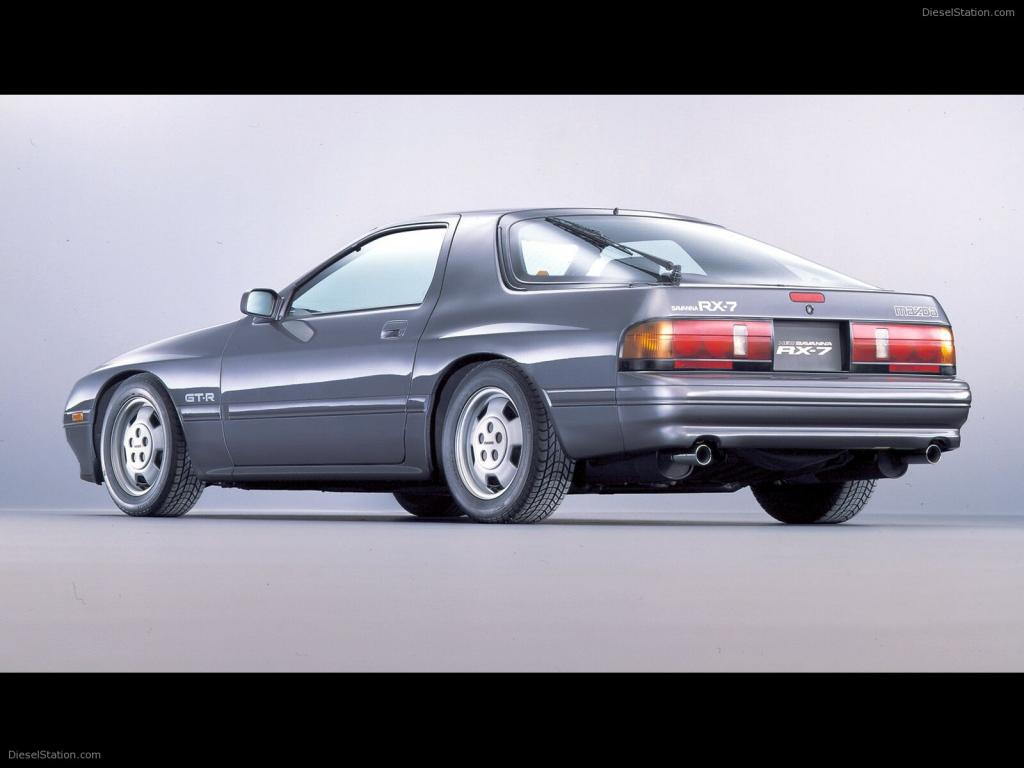

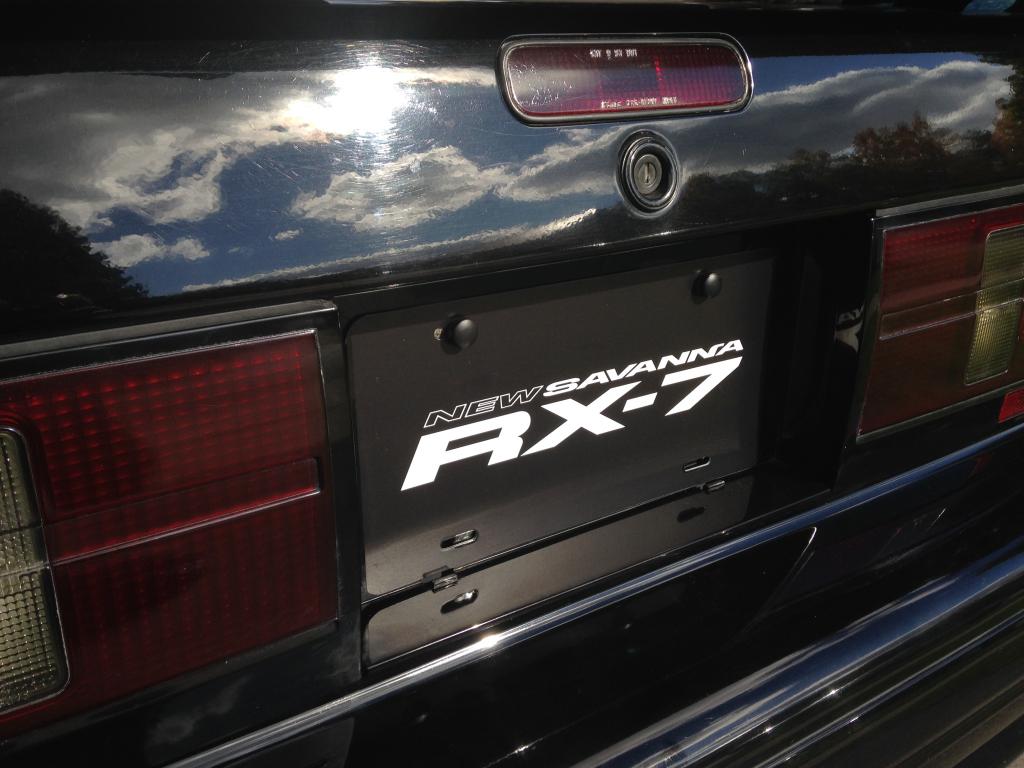

I've always wanted a factory license plate for the car. In many of the Japanese press shots, you see these plates on the car.



These would be a great addition for going to shows, taking photos etc. So, I created the design via Illustrator and generated a vector file for vinyl printing. From there, purchased a bulk of blank license plates and then applied the graphic to the blank plates. Very satisfied with the result!

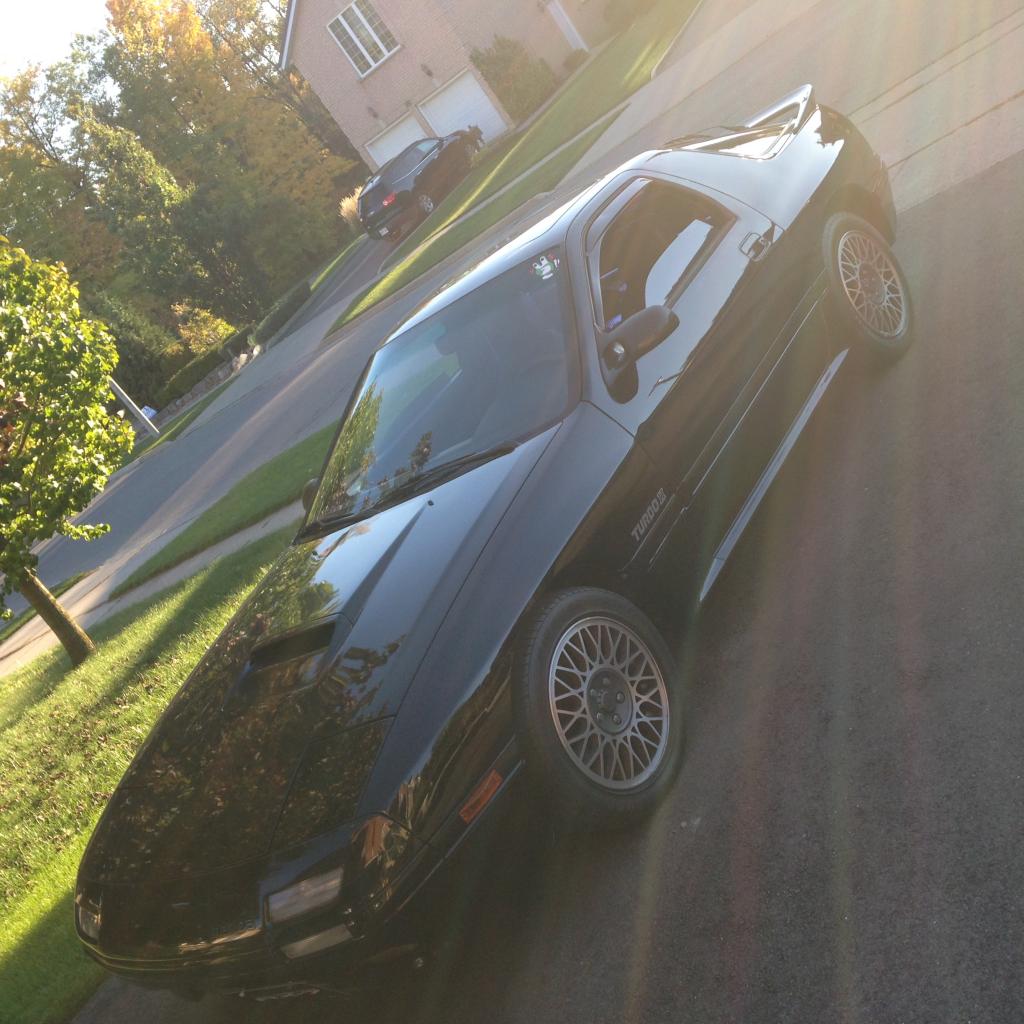

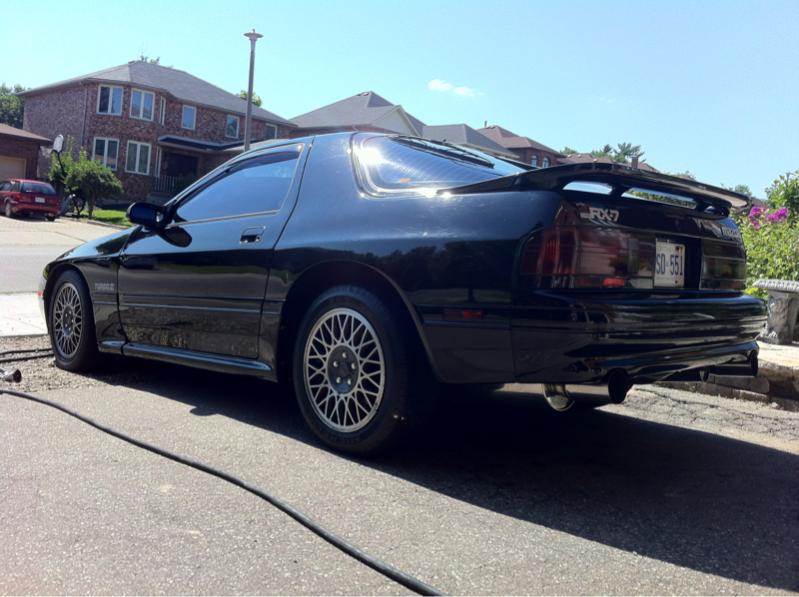

And just a few pics I snapped of the car . Next will be the installation of an ARC Top mount and hopefully some suspension work!

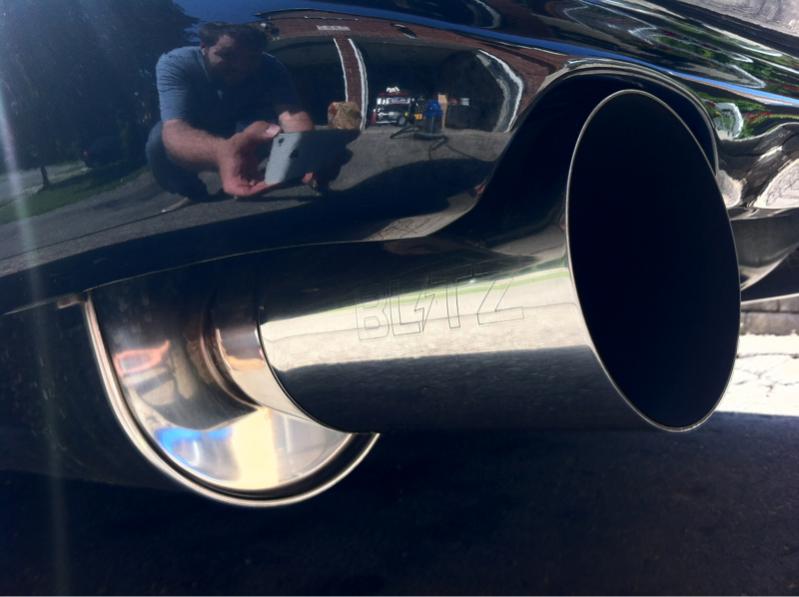

Slick exhaust!

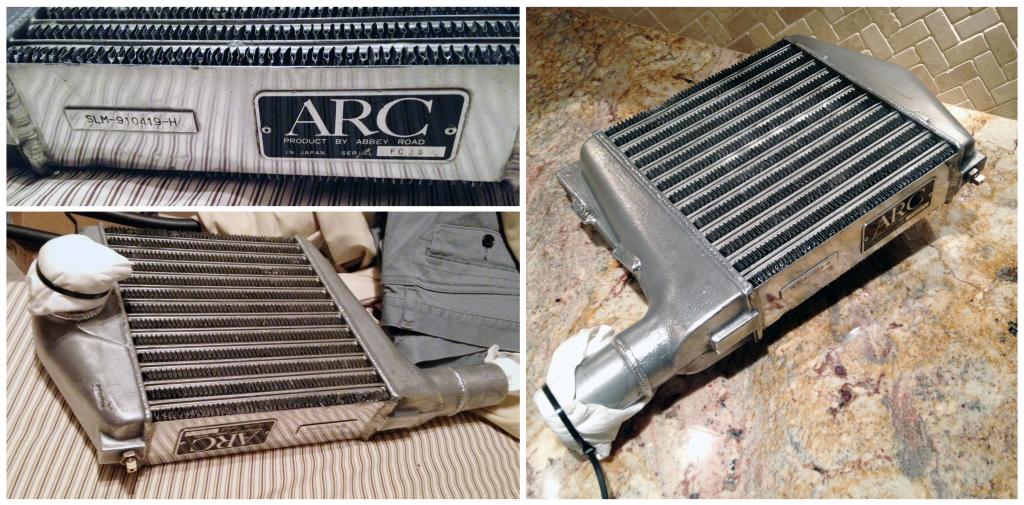

She arrived



after looking through your build thread, i'm glad i sold you that arc top mount. Its gonna look great on your car. enjoy

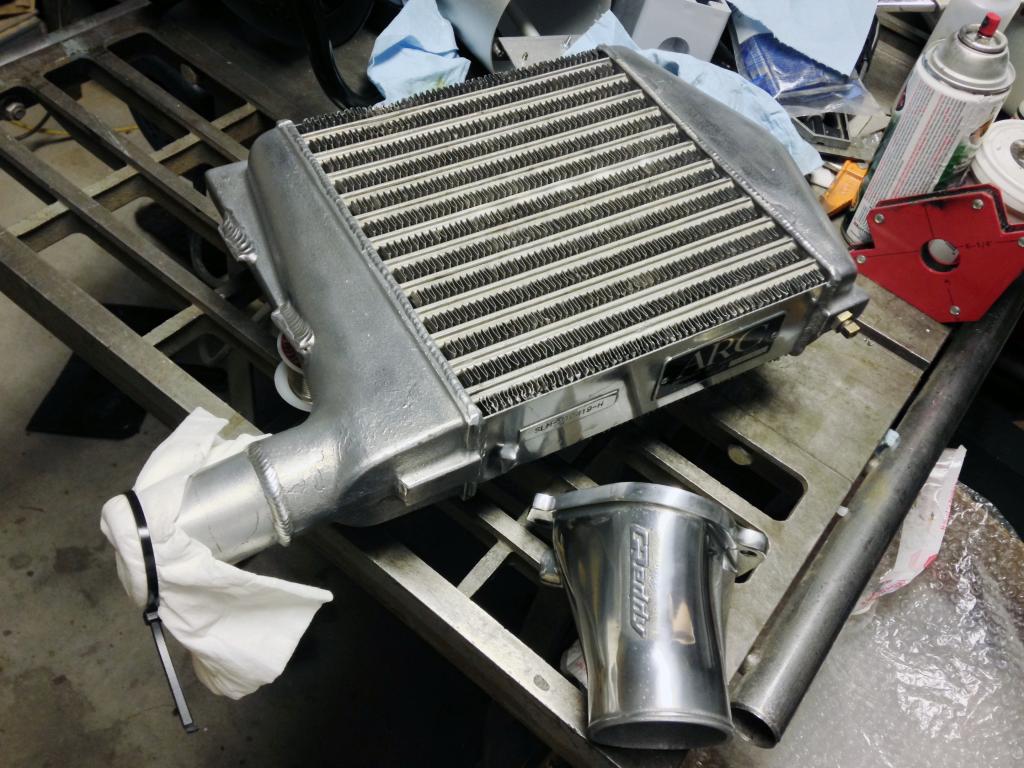

Just need some couplers and we'll be good to go!

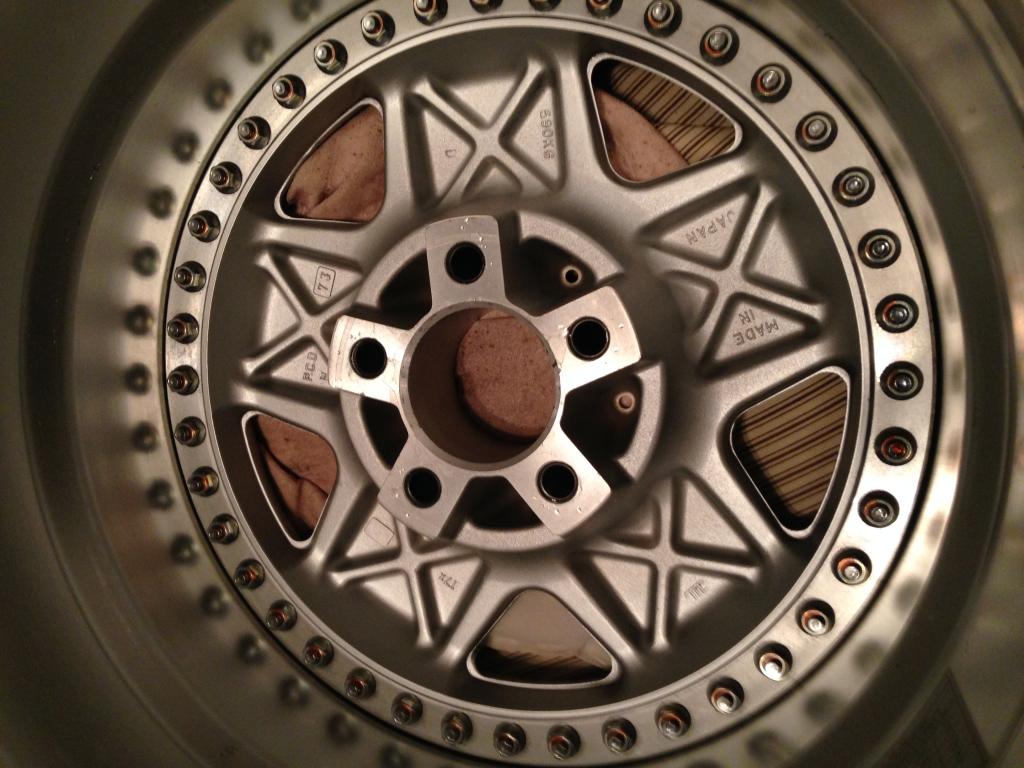

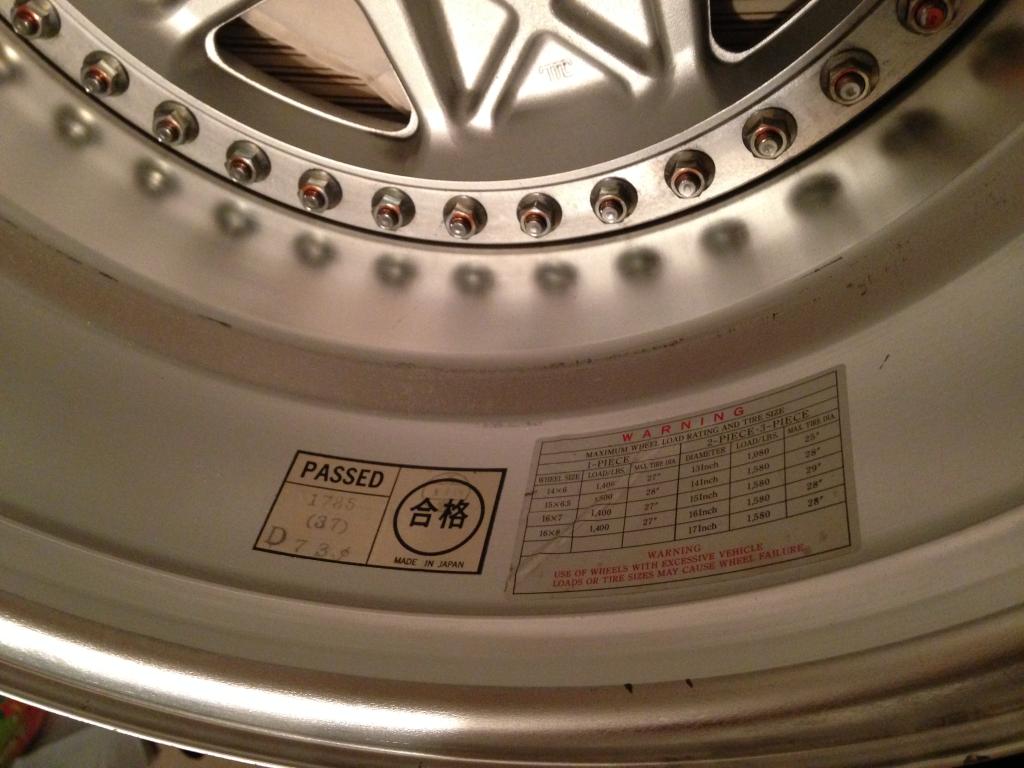

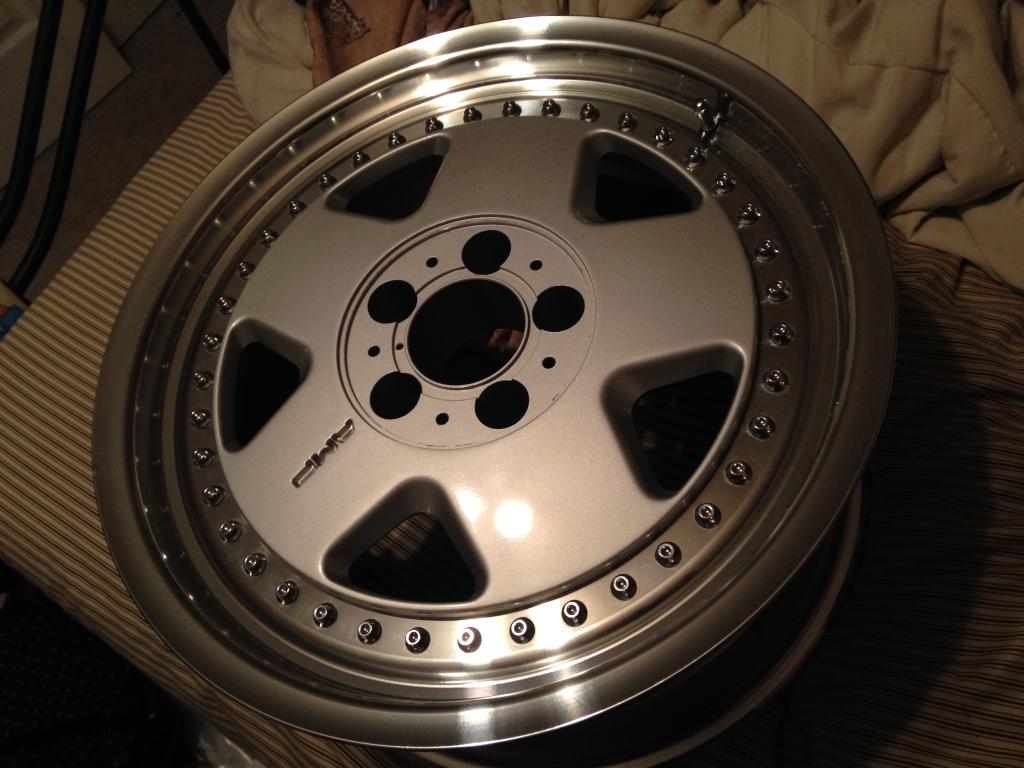

Finally got around to snapping a nice picture of one of the DP Wheels.



Looks good



Nice..



looks awesome i cant wait to get a tII and drop in my vert



Stunning. I am now stuck with the tough decision of making the cuts for my cusco bar, or going all in for the MS bar

Great build and we should get in touch about custom parts. Love it!



My goodness, this brings tears of joy to my shriveled up eyes. There's a certain joy in quality bolt-ons, as well as clean execution in general. Although I have to agree with clokker... What on earth is with the useless intake tube on the radiator?

Considering the glaringly bright air filter, I don't suppose you intend on making the engine the least stock-looking part of the package? If not, a black filter might go a long ways to making it more subtle and stock-looking. That, and hood dampers. Hood dampers might be the only thing I would change about this car.

Beautiful car, irrespective of my misplaced grumblings!



Haha! You do make some good points. I'm working on making a box that will be connected to the tube, but as of now it's just hanging out! It probably will be the least stock looking, but tasteful none-the-less.



I'll second you on "tasteful". That ARC TMIC is a work of art. If you use the same level of scrutiny that you did for the interior on the engine, then I doubt anyone will have any complaints on your design philosophy.

The box makes sense. Although, I'll be honest, the intake snorkel wasn't exactly Mazda's greatest show of engineering competency. I'd have personally ditched it, since it's one of the few laughably bad designs where an ebay air intake kit will actually have a positive effect.

If you're concerned about the missing snorkel making the engine bay look "incomplete" because of the fan shroud, I'd say an electric fan is in order. A Taurus/Villager fan would keep things looking "factory-made", unlike an overly shiny aluminum shroud. You'd have plenty of space for that intake box as well. Either way, it seems you have access to good fabrication capabilities, so I'm not concerned that whatever you choose to do, it'll look mint.



Thanks pzr2! I've been contemplating an electric fan, I've read tons of good things and it's been on my radar for some time now.

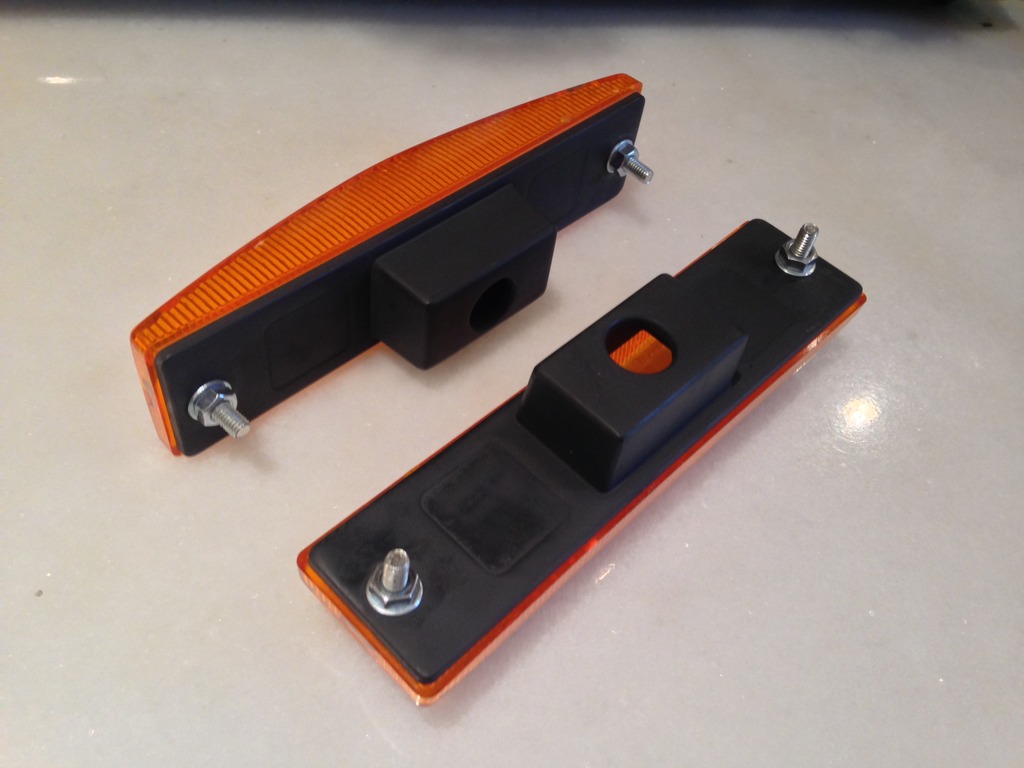

Side marker update! I received the first prototypes in the other day. Cleaned them up and tested them for fitment. There are some tolerance issues that aren't allowing the housing to "socket" into the marker as I intended, so I'll be making a few changes for ver.2. Thanks for looking!

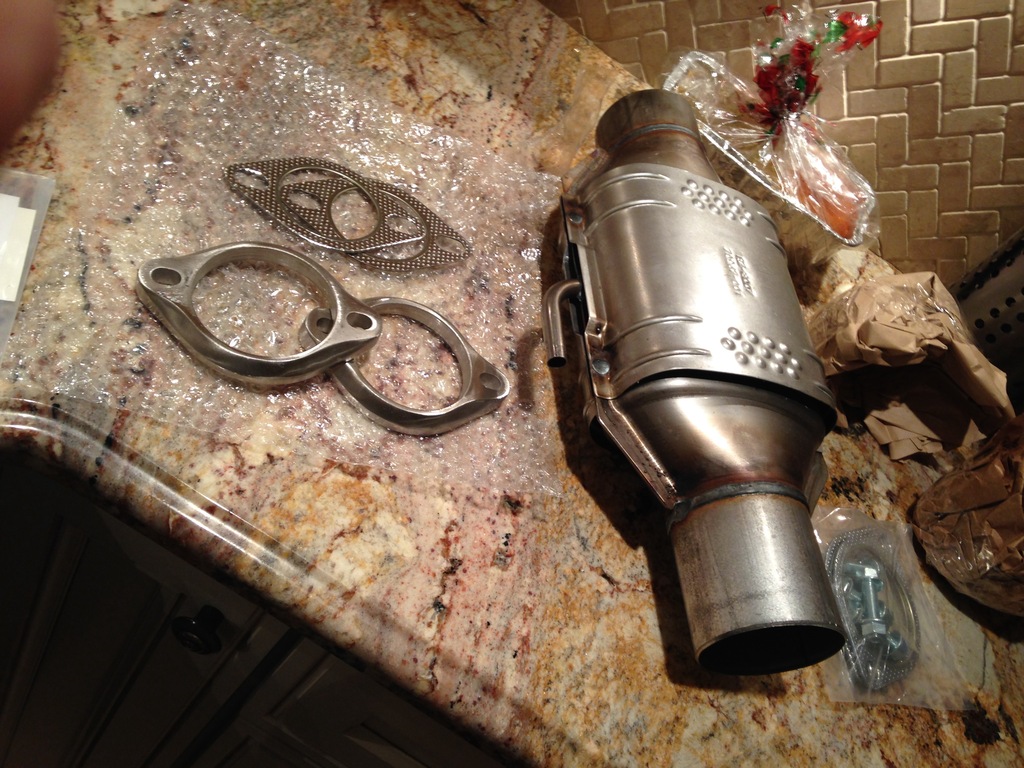

Received this big guy in the mail. RotaryPerformance 3" High-Flow Catalytic Converter.

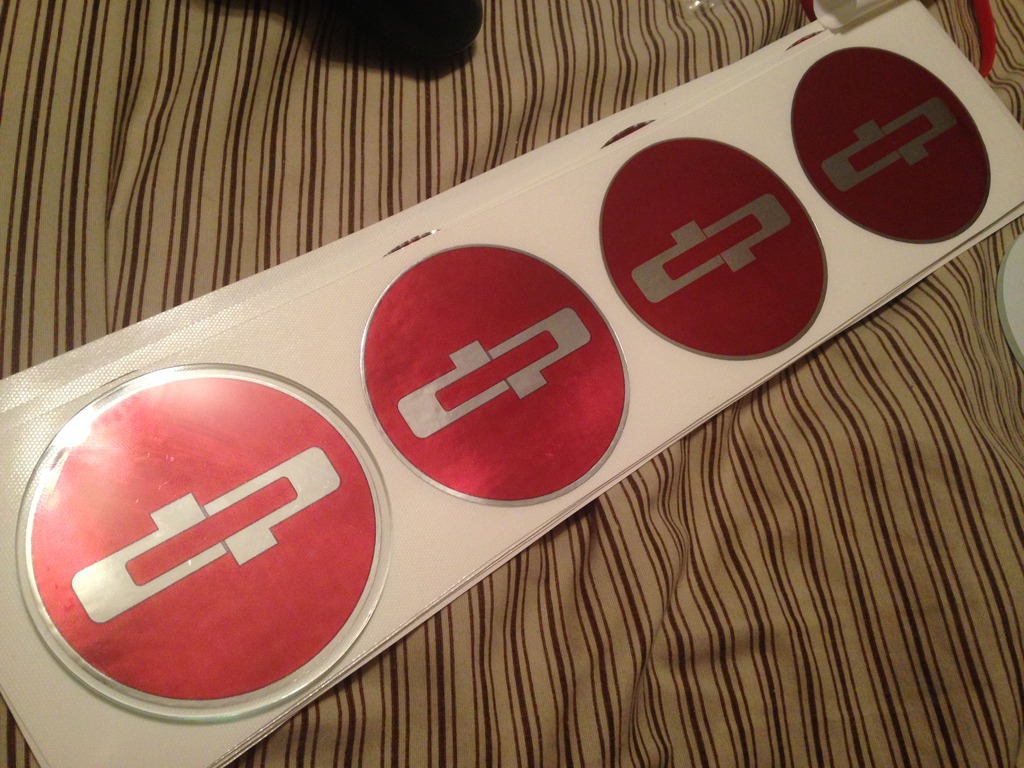

First round of parts came in for the center caps. Because these wheels are near extinct, finding center caps are nearly impossible.

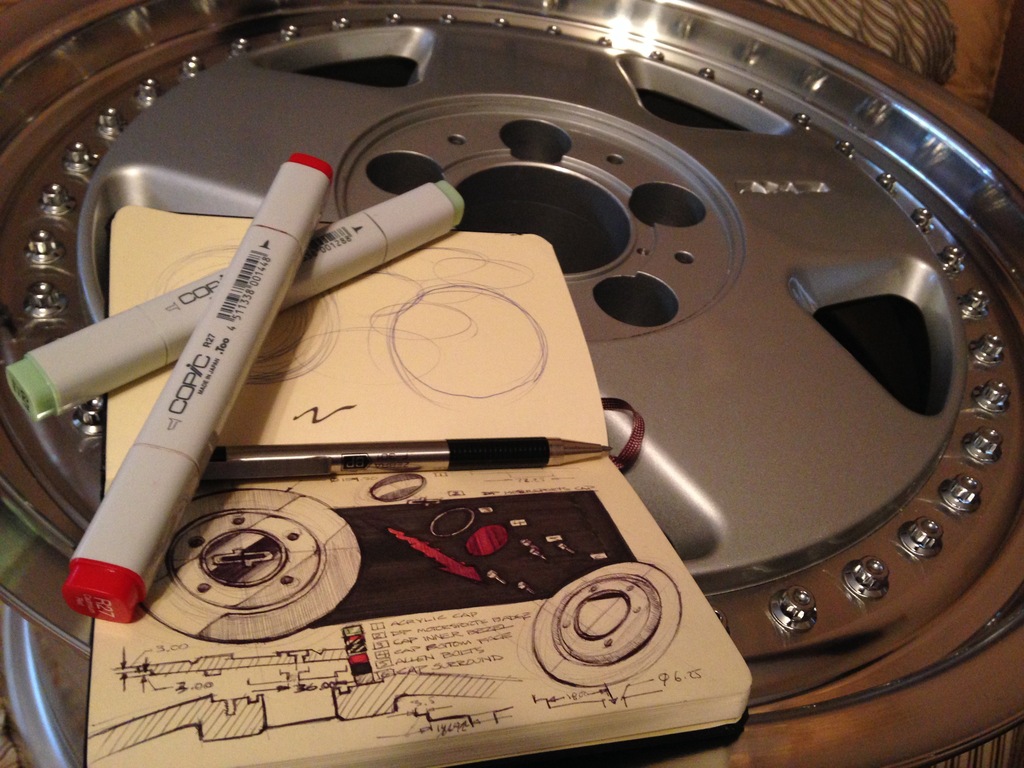

So, did a round of sketches to design my own for the car! I've done my best to keep to the original, and soon I'll have the finished machined parts in.
