Been long time between updates. So here is the latest.

All the panels are on including alloy hood.
Name:  IMG_0732_zpsf43c22f4.jpg
Views: 595
Size:  81.3 KB

Name:  IMG_0733_zps9f99d74b.jpg
Views: 454
Size:  77.4 KB

Name:  IMG_0734_zps186467c5.jpg
Views: 453
Size:  70.4 KB

Got the door trims done too
Name:  IMG_0886_zps7c32db56.jpg
Views: 441
Size:  90.1 KB

Name:  IMG_0885_zps11934e7f.jpg
Views: 448
Size:  76.3 KB

Front end upgrade including

Steel front hubs to replace the weak alloy units that grow under extreme heat cycling causing the front wheels bearing to loosen
Name:  IMG_0737_zpsed7b222d.jpg
Views: 611
Size:  81.4 KB

Front hub bearing spacers to allow proper bearing pre load
Name:  IMG_0738_zpsd9cfab25.jpg
Views: 458
Size:  120.4 KB

Front brake upgrade. Involves machining front hub down to accept Brembo 324mm rotors off a 350Z on the front as well as spacing the calliper to fit over the thicker rotor and move it out 1" radially for larger diameter rotor.
Name:  IMG_0741_zps131bb192.jpg
Views: 468
Size:  69.7 KB

Rear brake upgrade is Supernow FD 315mm rear rotor conversion. Decent size upgrade.

Name:  IMG_0765_zps7d3c4a94.jpg
Views: 439
Size:  80.4 KB

Name:  IMG_0736_zpsa771b32e.jpg
Views: 483
Size:  89.2 KB

The plan is to increase the thermal efficiency of the system with larger rotors. I will run Hawk Blue pads to start but the whole idea is to keep the look period correct, cost effective and subtle. It also works with the standard brake master cylinder bore to keep the pedal feel right like factory. Just going to fit a bias valve to fine tune it but should be pretty close and help dial out the tendency to lock the rears first under hard braking.

Finally scored an awesome find on Gumtree - A RE AMEMIYA COMPLETE SERIES 4 DASH!!! guy was wrecking an FC out in QLD so I grabbed it.
Name:  IMG_0739_zps6edeb0fe.jpg
Views: 431
Size:  80.9 KB

Also scored 2 more sets of the same Work Rezax Roar wheels. Painting them up now bringing the total number of sets to 4 which is plenty for track days.

Last edited by JamesG; 01-18-14 at 10:01 PM.
JamesG is offline
Old 01-18-14, 10:17 PM
  #27
BRUCE LEE APPROVED
Thread Starter

JamesG's Avatar

Join Date: Dec 2010
Location: Melbourne, Australia
Posts: 52
Likes: 0
Liked 0 Times in 0 Posts
Here is the brake system all installed on the front
Name:  IMG_1244_zps6c930013.jpg
Views: 400
Size:  42.5 KB

Name:  IMG_1241_zps2f30bca9.jpg
Views: 472
Size:  61.4 KB

Name:  IMG_1242_zpse0248aa1.jpg
Views: 403
Size:  77.0 KB

Name:  IMG_1243_zps0710a3f8.jpg
Views: 434
Size:  77.9 KB

All fits under 17" rim. I will run a 5mm spacer but I needed that anyway to clear the front rims to the struts. Uses all OEM rotors and pads. Pads are stock FC. Rotor is stock Brembo 350Z and we utilised longer pad pins from a Toyota Landcruiser. Once it is dialled in, I will switch across to a 2 piece rotor on the front as well as the FD rotor on the rear. A good balance size of rotors at 324mm front and 315mm rear. Looks stock too!

Here is the pretty plain looking fuel system. All Aeroflow with the fuel reg and in line filter. Stock hardline is used with a fitting to connect to the push on fittings.
Name:  IMG_1076_zps6dcb2027.jpg
Views: 420
Size:  77.2 KB

If you have an FC you may know the whole issue of swapping a factory auto transmission car to a manual with the transmission cross member being different................problem solved. (I was waiting on a custom bolt hence the drill bit lol!!!).
Name:  IMG_1246_zpsc7588b72.jpg
Views: 464
Size:  84.6 KB

The car is now back in the shop having the intercooler, exhaust system and some other minor fabrication work finished up then it's back to my home workshop to wire it up and hopefully fire it up!

Thanks for checking out my build,

James.
JamesG is offline
Old 01-18-14, 11:46 PM
  #28
Cake or Death?
iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,168
Liked 22 Times in 19 Posts
I thought it was beautiful a year and a half ago and still do.
clokker is offline
Old 01-19-14, 12:12 AM
  #29
FAL
★*NGTDRV★*
10 Year Member
iTrader: (16)

FAL's Avatar

Join Date: May 2004
Location: Miami, FL
Posts: 348
Likes: 0
Liked 1 Time in 1 Post
Awesome build! Exactly how I want to do my interior. Jealous of the RE-A cluster!
FAL is offline
Old 01-19-14, 05:50 AM
  #30
BRUCE LEE APPROVED
Thread Starter

JamesG's Avatar

Join Date: Dec 2010
Location: Melbourne, Australia
Posts: 52
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by clokker View Post
I thought it was beautiful a year and a half ago and still do.
On the home stretch but yeah been a little longer than I originally thought but I have always wanted to do my own car from a shell to finish doing all the little things the way I always wanted.
JamesG is offline
Old 01-19-14, 03:43 PM
  #31
bcrotary.
5 Year Member

7speed's Avatar

Join Date: Jul 2010
Location: Abbotsford, British Columbia
Posts: 515
Likes: 0
Liked 0 Times in 0 Posts
This is really an inspiration. I'm with clokker on this one, with the exception of the front bumper
7speed is offline
Old 01-19-14, 04:14 PM
  #32
Dirty Harry
iTrader: (5)

MaczPayne's Avatar

Join Date: Dec 2005
Location: California
Posts: 5,659
Liked 0 Times in 0 Posts
You won't be disappointed with those Ronin brakes

Best. Upgrade. Ever.
MaczPayne is offline
Old 01-19-14, 05:36 PM
  #33
Cake or Death?
iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,168
Liked 22 Times in 19 Posts
About your Ronin-ed calipers...
Were they bondoed before paint?
I don't see any part lines in the center where the halves meet the spacer.
clokker is offline
Old 01-19-14, 11:58 PM
  #34
BRUCE LEE APPROVED
Thread Starter

JamesG's Avatar

Join Date: Dec 2010
Location: Melbourne, Australia
Posts: 52
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by clokker View Post
About your Ronin-ed calipers...
Were they bondoed before paint?
I don't see any part lines in the center where the halves meet the spacer.
Looks pretty neat don't you think? No bondo, I doubt it would survive the immense temps anyway! The Ronin kit was a cool concept - we just refined it a little. A few things we did were...

#Clearance the calipers on a mill rather than die grind it out making it quick and easy
#When we joined the calipers we linished down the caliper for a smooth OEM look and just painted them gloss black
#We ordered longer caliper pins to suit from a Toyota Landcruiser rather than counter sink/reuse the stock FC pins

Also for some reason we did not require the spacer to go behind the 350Z Rotor. I did however upgrade to a steel front hub from KSP Attain in Japan. This allowed me to machine down the stronger steel hub with heaps more material on it where it counts to suit a stock 350Z Brembo rotor no machining of the centre bore needed. Perhaps this all had something to do with it.

Anyway after good reviews on your site I decided to go for it. Looks stock but should hold up under race conditions. If I am pleased I will go 2 piece front and rear but machining the front hub to suit 350Z stock and the rear to FD RZ spec stock means it's always off the shelf parts for Rotors and hats in the future.

For me this car has been all about an unremarkable looking car that can punch above it's weight on a track. These brakes fit the requirement to a tee!

James.
JamesG is offline
Old 01-21-14, 07:36 PM
  #35
likeasumbooodai

Join Date: Sep 2010
Location: Shreveport, LA
Posts: 24
Likes: 0
Liked 0 Times in 0 Posts
sweet car!
j_ting_318 is offline
Old 02-25-14, 09:47 PM
  #36
HKS obsessed
5 Year Member
iTrader: (7)

blackedoutFC3S's Avatar

Join Date: Mar 2008
Location: OP, KS
Posts: 1,529
Likes: 0
Liked 0 Times in 0 Posts
The car looks great would love to see some updates! So clean and well thought out.

Are you running quick releases on your front bumper?
blackedoutFC3S is offline
Old 02-25-14, 11:38 PM
  #37
JLa
Full Member
10 Year Member
iTrader: (8)

JLa's Avatar

Join Date: Jan 2003
Location: Seattle
Posts: 82
Liked 0 Times in 0 Posts
Very cool build and nice garage. Do you still happen to have the original steering wheel? I'd be interested in picking that up from you if shipping to the states isn't too expensive.
JLa is offline
Old 06-02-14, 12:41 AM
  #38
Junior Member
5 Year Member

Lemon's Avatar

Join Date: Oct 2004
Location: Nanaimo BC
Posts: 9
Likes: 0
Liked 0 Times in 0 Posts
great build. cant wait to see action shots.
Lemon is offline
Old 06-06-14, 08:55 AM
  #39
NA-BOOSTIN

unek87's Avatar

Join Date: Oct 2004
Location: austin,tx
Posts: 1,203
Likes: 0
Liked 2 Times in 2 Posts
Your build is truly inspiring brotha . One of the few builds I've seen done very clean , simple , and in my eyes very elegant and yet rough . The white on black , you can't go wrong with for sure . Subscribed for updates and pics
unek87 is offline
Old 08-28-14, 12:05 PM
  #40
Heartless GXL
iTrader: (18)

FCJG15's Avatar

Join Date: Apr 2012
Location: Ma
Posts: 515
Likes: 0
Liked 0 Times in 0 Posts
Wow. That undertray.... WOW. You should measure that and have a few made. probably make some decent profit... profit means parts... parts mean more smiles per gallon!. Do you have a write up of those door panels? I have a couple of extra pairs I would love to replicate with different material. Top notch!
FCJG15 is offline
Old 09-08-14, 10:16 PM
  #41
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,175
Liked 10 Times in 10 Posts
I had never seen the front hub bearing spacers before... they look pretty cool. I assume they let you tighten down the hub really tight without crushing the bearing? Do you know anyone who has used them? Do they actually work well?

I assume you got them from MSF?
eage8 is offline
Old 09-09-14, 05:24 PM
  #42
F**K THE SYSTEM!!

junito1's Avatar

Join Date: Sep 2006
Location: Florida
Posts: 2,578
Likes: 0
Liked 0 Times in 0 Posts
Please please please- get live action footage, thanks in advance.=)
junito1 is offline
Old 01-12-19, 11:09 PM
  #43
BRUCE LEE APPROVED
Thread Starter

JamesG's Avatar

Join Date: Dec 2010
Location: Melbourne, Australia
Posts: 52
Likes: 0
Liked 0 Times in 0 Posts

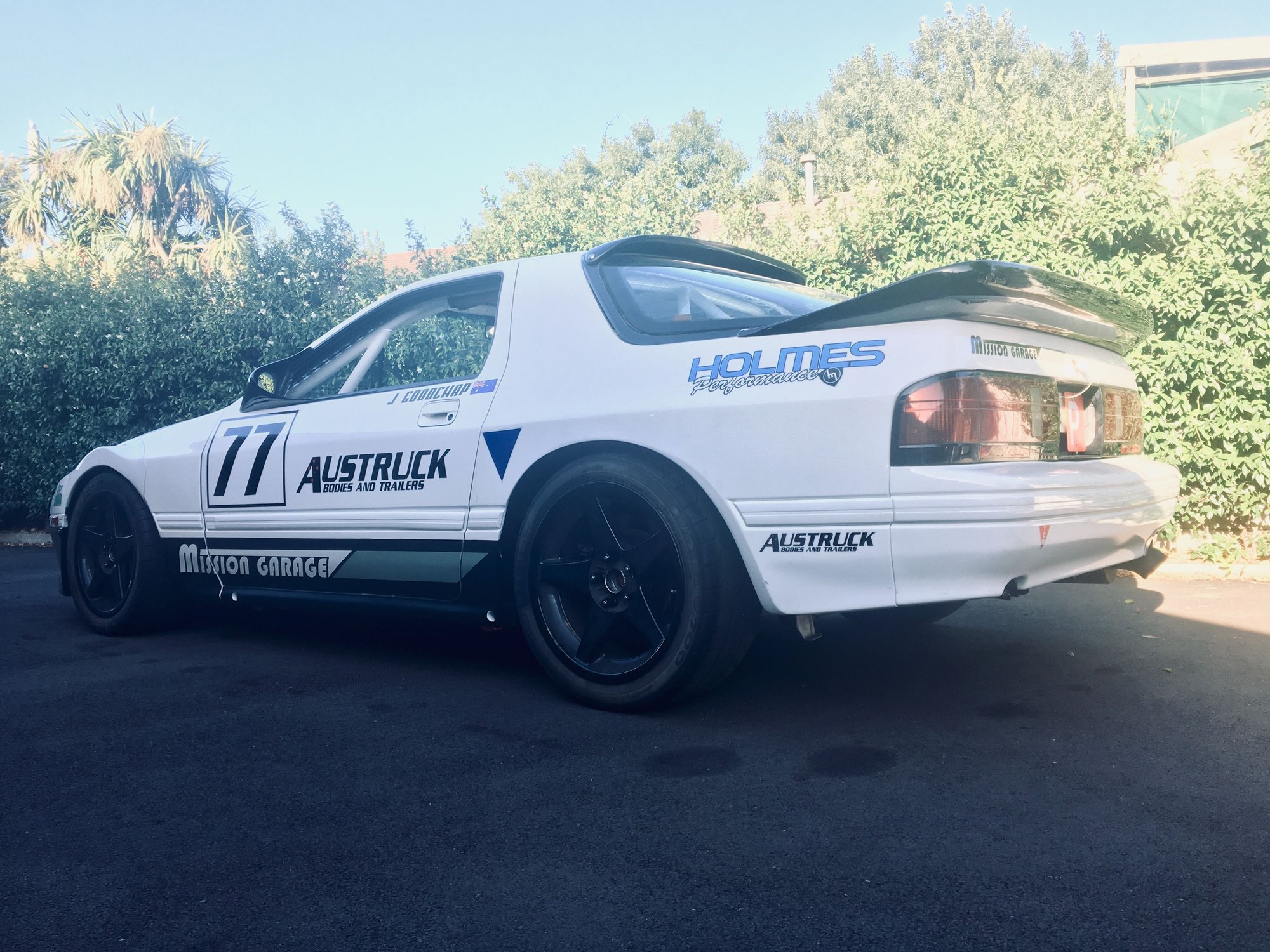

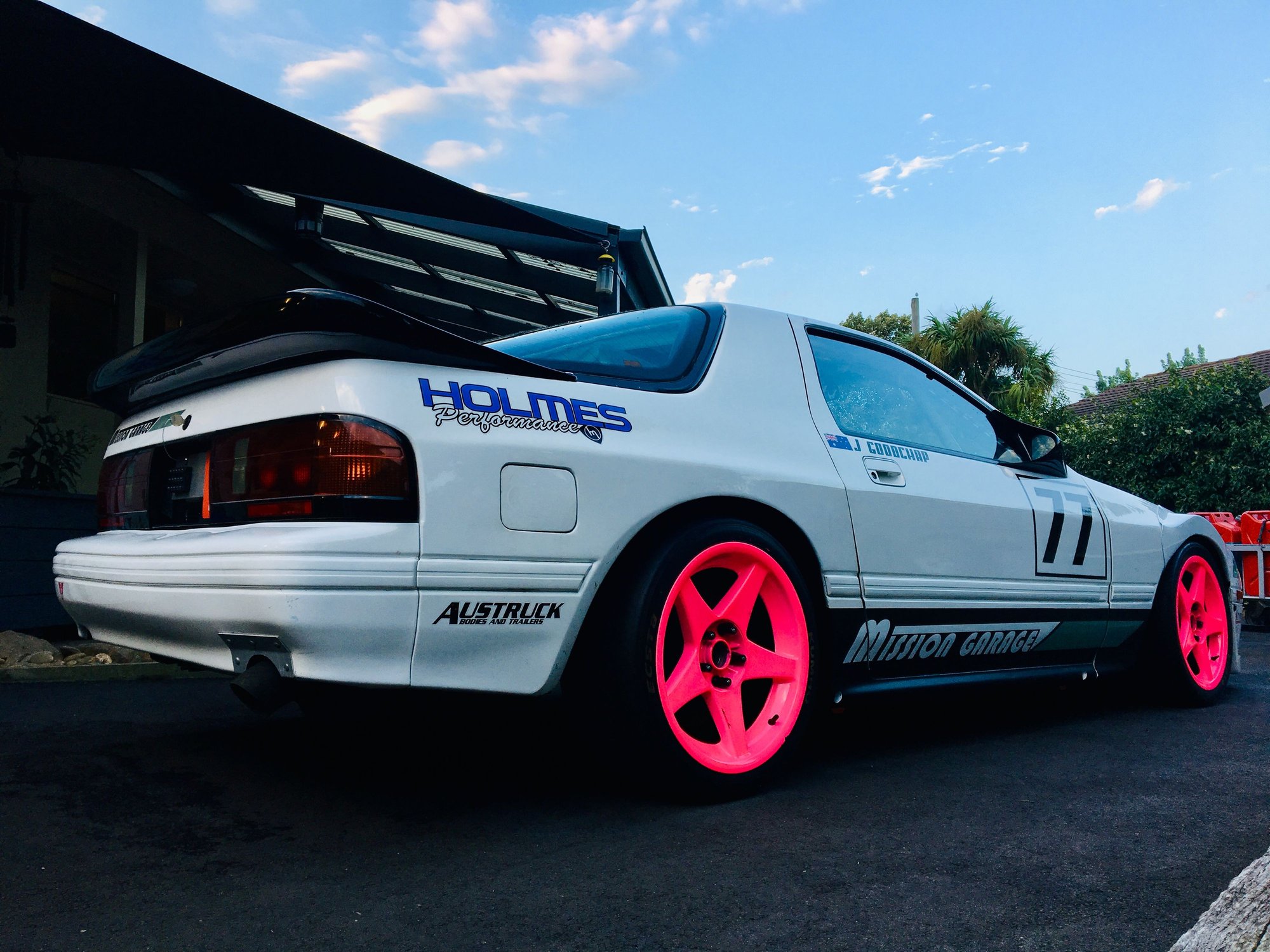

Been away a while but thought Id post updated pics, a lot of updates Ill try to post them over the next week.
