Dropped rear Rotor
Hi guys would like to share my little build...After my 1991 Mazda RX-7 FC3S dropped its rear rotor due to suspected over boost or was just its time, I embarked on complete engine rebuild. After some attempts to DIY it with cheap parts and not wanting to spend much $$ the results wern't quite as I expected so the decision was made to get new parts and get a professional to complete the job, but I must say will all be worth it. I'm all for doing as much as I can in my own garage, but handing it over to the experts seeing it come together still can feel just as good as doing it yourself without the heart ache, and sore back! The old saying do it once do it right was in my mind during this dicision not the extra $$ I will have to fork out. At the end of the day there will be no compromise in going down the road of brand new parts to cutting corners with cheap parts, and your Rotary will love you for it. That is what I have learned, go the extra distance spend more on where it matters, theres no substitute for quality, especially for our dear friend the Rotary engine. So here are some pics of the 7 month journey so far (waiting on parts is a tiresome process), she's almost there, will add more pics in the coming weeks. She should be running next week, very exciting times ahead.
New engine spec:
Series V 13B block, full rebuild, new housings, stage II street port, enlarged exhaust ports, low comp series IV rotors, 3mm apex Aviation super seals, custom JTUNE FD intake manifold, custom JTUNE FMIC setup, Garret 35/40 Turbo, Turbosmart external wastegate, Greddy Type R BOV, 4x1000cc ID injectors, Speedflow lines and fittings, AEM fuel reg and pump, OS Giken twin plate clutch, Apexi Power FC.
Cheers guys, mine is not the most amazing of builds compared to some on here which I take my hat off to, your patience and time spent on your projects is respected, wish I could do the same. But hey I'm more than happy with my seven, she keeps me happy.
Original engine
Selfie
sleepy eyes
side profile of my seven
engine out

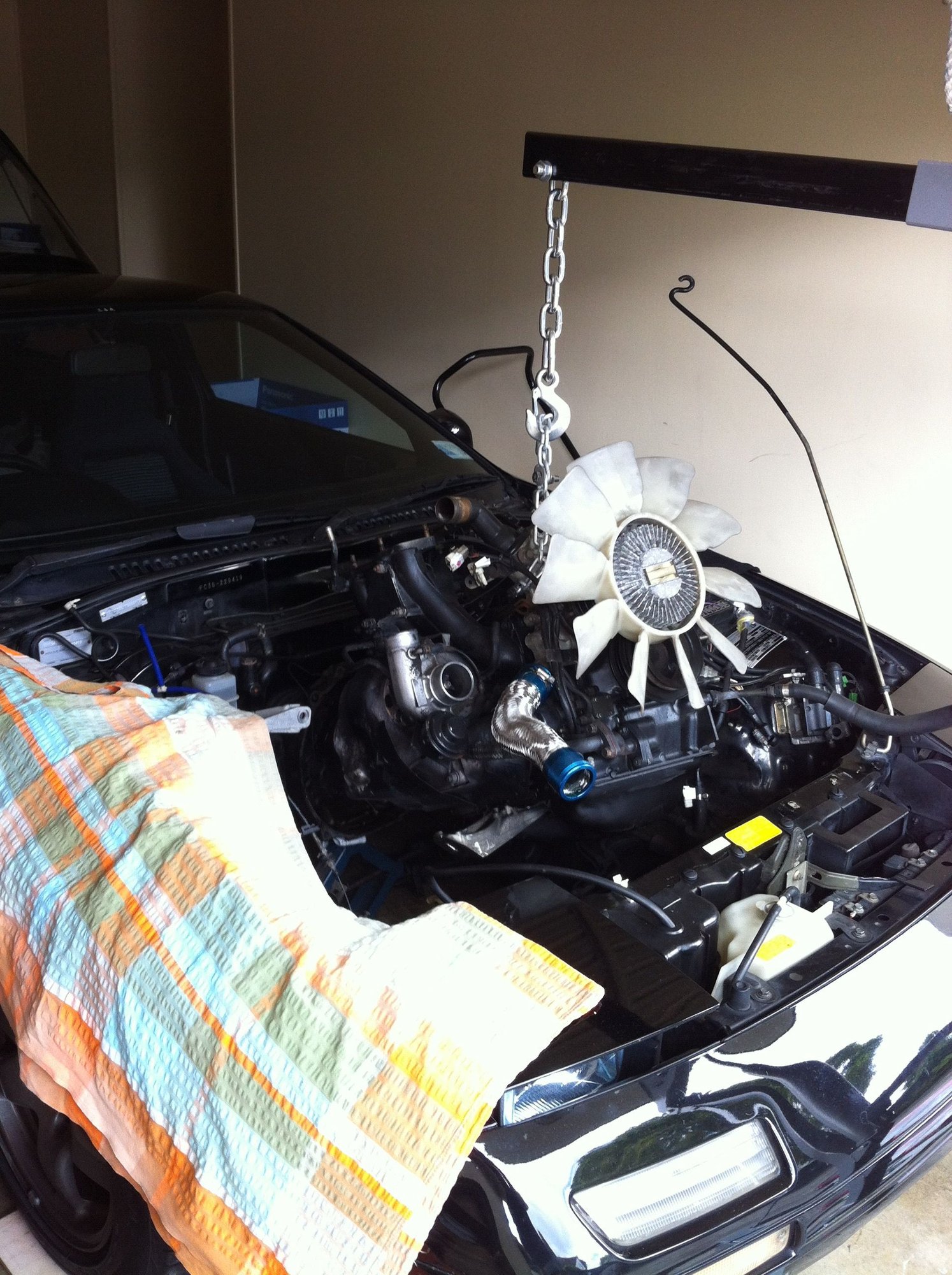

original engine just been lifted out
Rotary bits
original block
Flywheel nut removal tool contraption, it worked!
original block stripped
original motor opened up
original side plates in good condition
New engine spec:
Series V 13B block, full rebuild, new housings, stage II street port, enlarged exhaust ports, low comp series IV rotors, 3mm apex Aviation super seals, custom JTUNE FD intake manifold, custom JTUNE FMIC setup, Garret 35/40 Turbo, Turbosmart external wastegate, Greddy Type R BOV, 4x1000cc ID injectors, Speedflow lines and fittings, AEM fuel reg and pump, OS Giken twin plate clutch, Apexi Power FC.
Cheers guys, mine is not the most amazing of builds compared to some on here which I take my hat off to, your patience and time spent on your projects is respected, wish I could do the same. But hey I'm more than happy with my seven, she keeps me happy.
Original engine
Selfie
sleepy eyes
side profile of my seven
engine out
original engine just been lifted out
Rotary bits
original block
Flywheel nut removal tool contraption, it worked!
original block stripped
original motor opened up
original side plates in good condition
Last edited by misterstyx69; 05-30-15 at 01:11 AM.
#2
Junior Member
Thread Starter
Join Date: Feb 2014
Location: new zealand
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
more pics
block stripped
original front housings
side peeling, reusable? maybe but compression will be down.
cheap engine bought for rebuild, not what expected
cheap housings
cheap housings, big exhaust port but not best condition
as you can see surface not great
cheap side plates
big ports but too much stepping on surface
3mm low comp rotors
3mm rotors
engine bay cleaned up
block stripped
original front housings
side peeling, reusable? maybe but compression will be down.
cheap engine bought for rebuild, not what expected
cheap housings
cheap housings, big exhaust port but not best condition
as you can see surface not great
cheap side plates
big ports but too much stepping on surface
3mm low comp rotors
3mm rotors
engine bay cleaned up
Last edited by misterstyx69; 05-30-15 at 01:10 AM.
#3
Junior Member
Thread Starter
Join Date: Feb 2014
Location: new zealand
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts

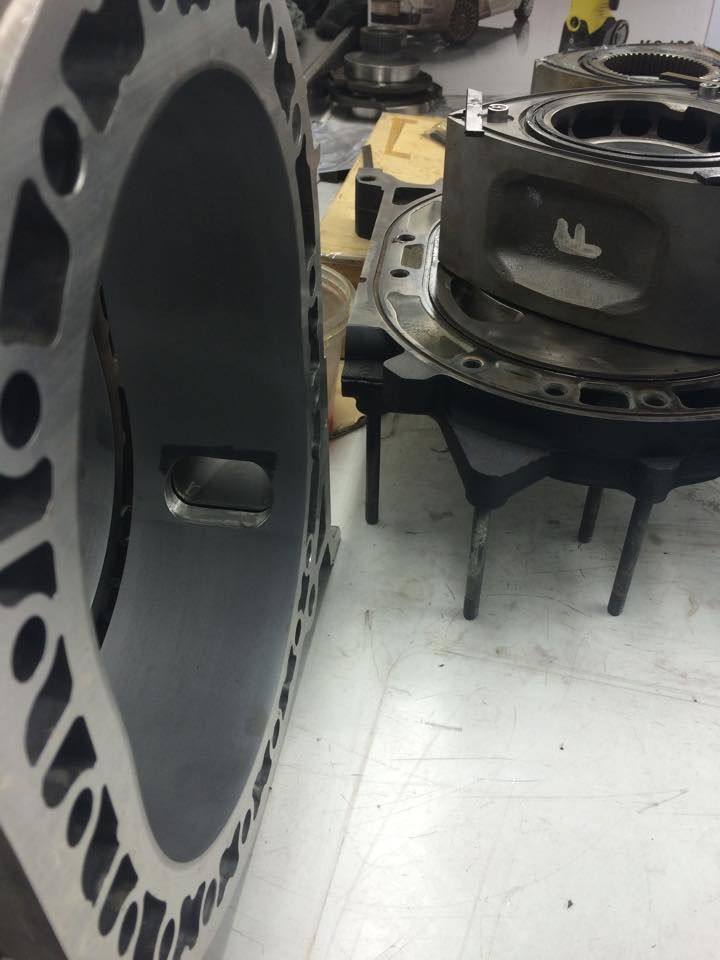

New housings
Rotary Aviation 3mm Super Seals
new engine ready to seal up
New block complete
ready to be towed
bits in the boot, rear strut brace fitted
at the workshop
intake manifold trick FD setup, custom JTUNE FMIC plumbing, looks tough!
#6
Junior Member
Thread Starter
Join Date: Feb 2014
Location: new zealand
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
cheers, ahhh what an idiot, ha sorry man, overlooked where was posting, face palm!
Yeh I had a donor pair of good condition Rotors already 3mm, and low comp compared to series V's so decided to use em for better turbo reliability other than that no real reason. I will be running 7psi run in tune then up to 1bar, which the 3mm will handle no probs. Brand new housings from Japan already ported.
Yeh I had a donor pair of good condition Rotors already 3mm, and low comp compared to series V's so decided to use em for better turbo reliability other than that no real reason. I will be running 7psi run in tune then up to 1bar, which the 3mm will handle no probs. Brand new housings from Japan already ported.
