Clean 90 FC build
The stars have aligned and I finally purchased my first rx7! It's a 1990 GXL with 90,000 km on the clock and wasn't started since 2000. and both the transmission and diff were serviced 5,000 km ago.
The good:
-Manual Transmission
-GXL with LSD
-Very little body rust
-most electric features in working order
-no play in wheels
-price payed
The bad:
-Engine in questionable condition
-some wires chewed in engine bay
-Stuck/siezed clutch
-paint is faded

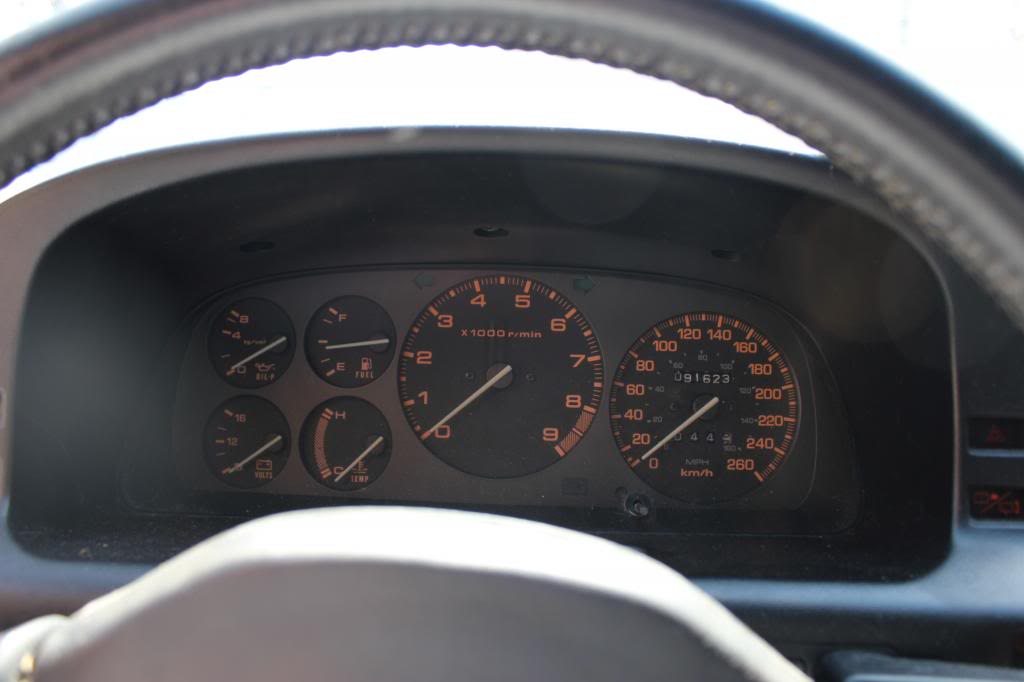

-Fuel gauge sits at halfway without a battery in the car

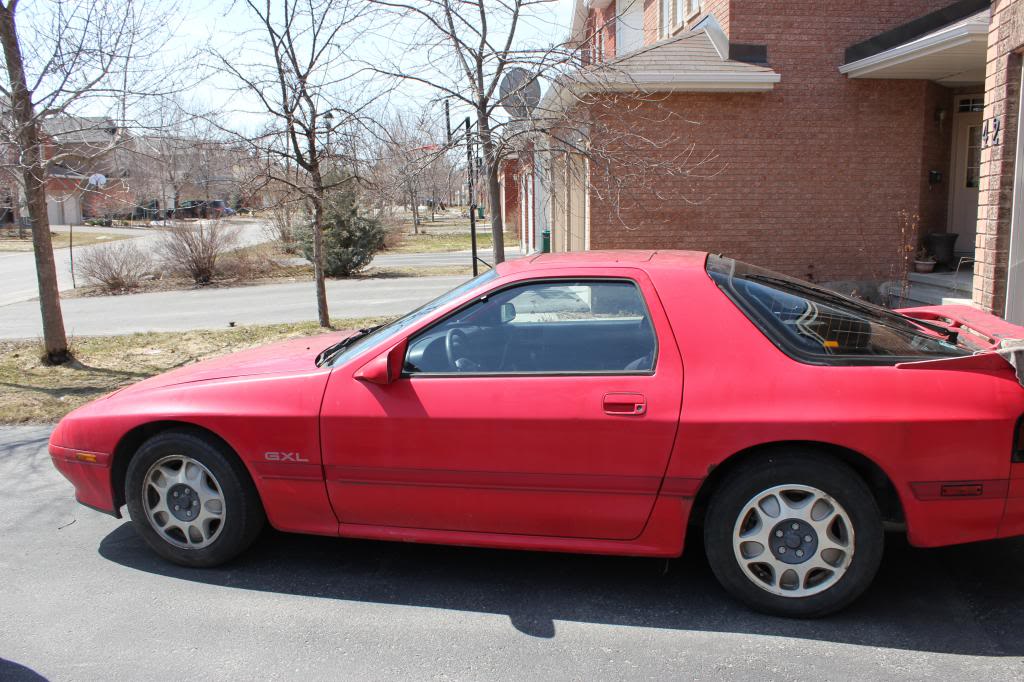

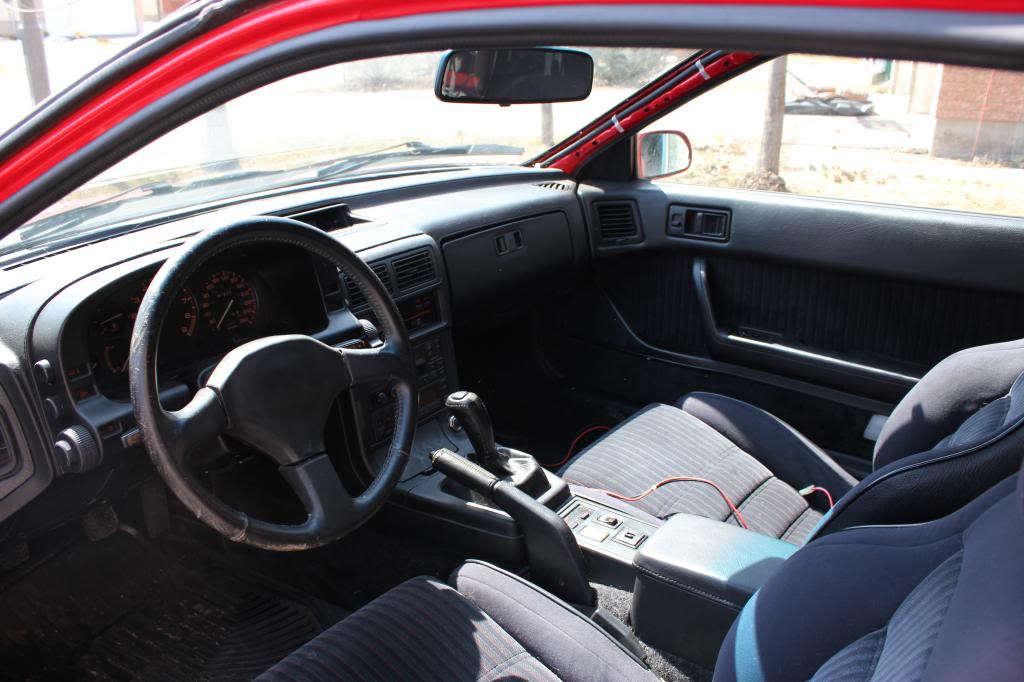

I plan on taking all the correct precautions before attempting to start the engine. First order of business is getting it to turn over so I compression test this thing. Here are some pictures of the car when it arrived on my driveway
Big things to come in the following weeks
The good:
-Manual Transmission
-GXL with LSD
-Very little body rust
-most electric features in working order
-no play in wheels
-price payed
The bad:
-Engine in questionable condition
-some wires chewed in engine bay
-Stuck/siezed clutch
-paint is faded
-Fuel gauge sits at halfway without a battery in the car
I plan on taking all the correct precautions before attempting to start the engine. First order of business is getting it to turn over so I compression test this thing. Here are some pictures of the car when it arrived on my driveway
Big things to come in the following weeks
#2
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts

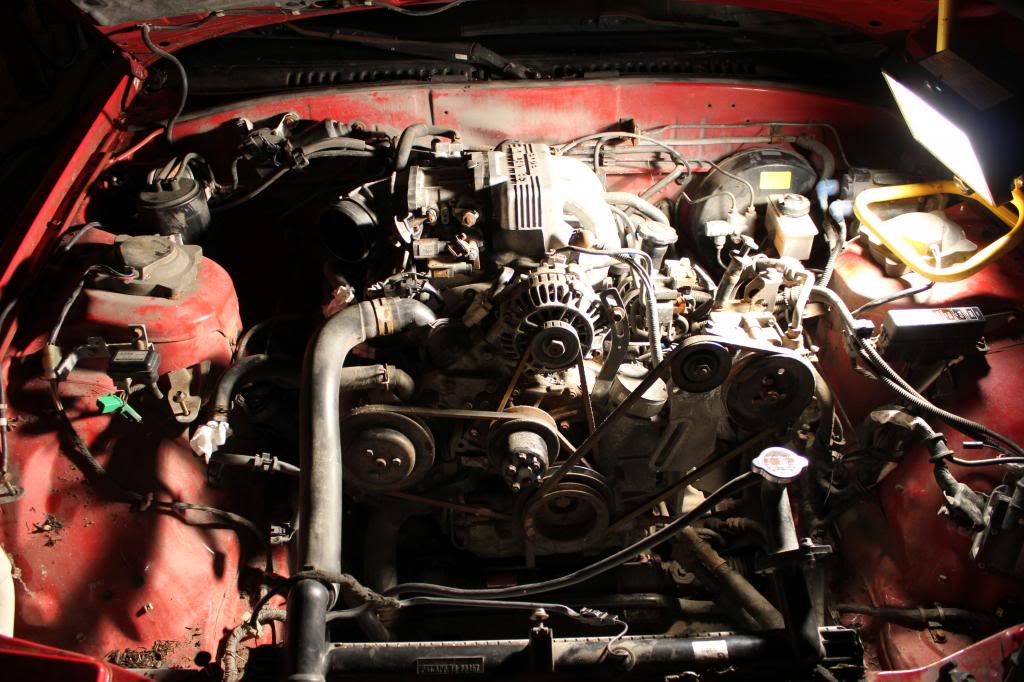

Pulled some stuff from the engine bay so I could get to the main pulley of the engine to check if the engine could turn over. And it did! Pulled the plugs to do a poor man's compression check and it seems to be in alright shape. Spark plugs were put in about 5,000 km ago so they look to be in pretty good shape.

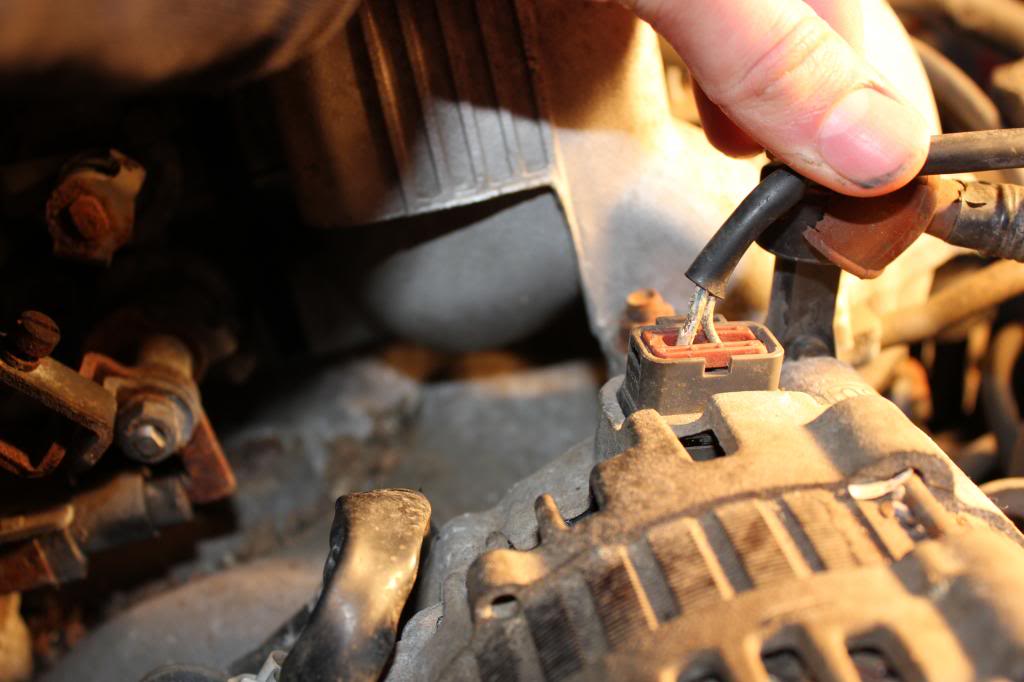

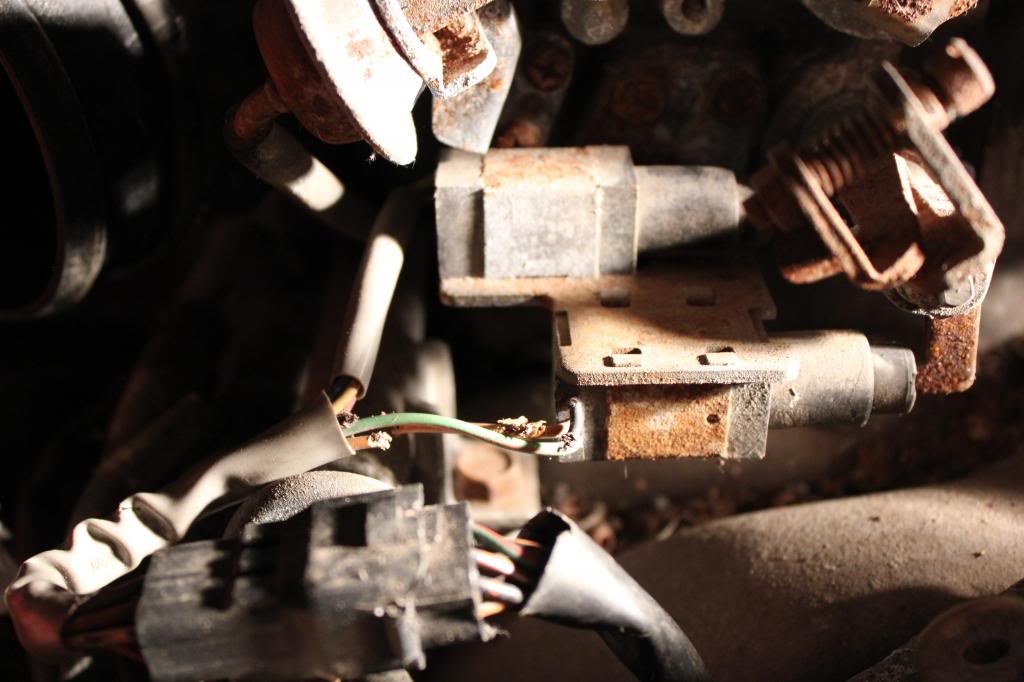

Next step would be to fix the wiring that has been chewed on
I can't wait to try to start this thing once everything is good to go. Anybody know of a good way to siphon fuel out of the tank? Are there any products you guys would recommend for getting the gunk our?
Next step would be to fix the wiring that has been chewed on
I can't wait to try to start this thing once everything is good to go. Anybody know of a good way to siphon fuel out of the tank? Are there any products you guys would recommend for getting the gunk our?
#3
Best way to siphon the gas out would be to go to the hatch and lift up the carpeting. under there is where the fuel pump is located. just pop a few screws off and you should be able to lift up the pump up enough to fit a siphon hose into the gas tank. looks like a good little project GL.
#6
I have a rotary addiction
iTrader: (18)
Honestly if it's sat for 13 years with 1/2 a tank of gas there won't be much "siphoning" going on. It's probably a solid mass of varnish by now. You'll most likely need to get a "new" tank unless you want to spend an equal amount of money on cleaning materials (kerosene) and lots of time and effort scrubbing, scraping, and pressure washing. I'm sure the pump is beyond repair.
As for the lines, don't waste your time cleaning them. Buy new EFI grade lines and be done with it. Buy a new filter. Plan on sending the injectors off to be ultrasonically cleaned too. I wouldn't even try to start it until the fuel and electrical systems are repaired fully. Change the engine oil and coolant before starting.
I would go ahead and buy new plugs. Most rough start, rough idle conditions are contributed to the spark plugs. You'll have more peace of mind in knowing the everything is in top new shape rather than trouble shooting.
As for the lines, don't waste your time cleaning them. Buy new EFI grade lines and be done with it. Buy a new filter. Plan on sending the injectors off to be ultrasonically cleaned too. I wouldn't even try to start it until the fuel and electrical systems are repaired fully. Change the engine oil and coolant before starting.
I would go ahead and buy new plugs. Most rough start, rough idle conditions are contributed to the spark plugs. You'll have more peace of mind in knowing the everything is in top new shape rather than trouble shooting.
#7
Rotary Enthusiast
iTrader: (1)
Join Date: Nov 2012
Location: bloomington, mn
Posts: 1,100
Likes: 0
Received 0 Likes
on
0 Posts
Honestly if it's sat for 13 years with 1/2 a tank of gas there won't be much "siphoning" going on. It's probably a solid mass of varnish by now. You'll most likely need to get a "new" tank unless you want to spend an equal amount of money on cleaning materials (kerosene) and lots of time and effort scrubbing, scraping, and pressure washing. I'm sure the pump is beyond repair.
As for the lines, don't waste your time cleaning them. Buy new EFI grade lines and be done with it. Buy a new filter. Plan on sending the injectors off to be ultrasonically cleaned too. I wouldn't even try to start it until the fuel and electrical systems are repaired fully. Change the engine oil and coolant before starting.
I would go ahead and buy new plugs. Most rough start, rough idle conditions are contributed to the spark plugs. You'll have more peace of mind in knowing the everything is in top new shape rather than trouble shooting.
As for the lines, don't waste your time cleaning them. Buy new EFI grade lines and be done with it. Buy a new filter. Plan on sending the injectors off to be ultrasonically cleaned too. I wouldn't even try to start it until the fuel and electrical systems are repaired fully. Change the engine oil and coolant before starting.
I would go ahead and buy new plugs. Most rough start, rough idle conditions are contributed to the spark plugs. You'll have more peace of mind in knowing the everything is in top new shape rather than trouble shooting.
Trending Topics
#8
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
I can still hear alot of sloshing when I rock the car so I will drain whatever liquid substance remains in there, and inspect the condition of the fuel tank before beginning to search for a new one. Never hurts to look
#10
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
No need to pull start, turn the engine over by hand. I didn't want to risk damaging anything if the engine was seized. I might take a look at the slave cylinder for the clutch this evening an order a new one if its shot, that way I can compression test the engine properly before giving it fuel and spark. When I have the time to check out the fuel tank I will post my findings. God knows whats in there
#11
If u have the time, pull the engine harness and check continuity to the wires that are cut. You will need the wiring diagram.
Your clutch components may need a complete overhaul such as a slave cylynder a clutch master cylinder.
If u have any ? let me know.
Fuel gauge may be shot, or the float my be stuck. Pull the fuel pump assembly and check it out.
Your clutch components may need a complete overhaul such as a slave cylynder a clutch master cylinder.
If u have any ? let me know.
Fuel gauge may be shot, or the float my be stuck. Pull the fuel pump assembly and check it out.
#12
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
Yea I think the whole clutch system is messed. There is plenty of fluid in the master cylinder but when I move the pedal back and forth none of it moves. I just wanted to see if the levels change with the cylinder cap open, and they didn't. I didn't have time to remove the entire system and take a closer look but I will be doing so in the days to come. I will probably end up ordering a new set parts but I want to learn and understand how the system works, and why it failed before doing so
Do you guys recommend replacing the rubber line running from the master to the slave with something of better quality? Some sort of braided line perhaps?
Do you guys recommend replacing the rubber line running from the master to the slave with something of better quality? Some sort of braided line perhaps?
#15
Cake or Death?
iTrader: (2)
Yea I think the whole clutch system is messed. There is plenty of fluid in the master cylinder but when I move the pedal back and forth none of it moves. I just wanted to see if the levels change with the cylinder cap open, and they didn't. I didn't have time to remove the entire system and take a closer look but I will be doing so in the days to come. I will probably end up ordering a new set parts but I want to learn and understand how the system works, and why it failed before doing so
Do you guys recommend replacing the rubber line running from the master to the slave with something of better quality? Some sort of braided line perhaps?
Do you guys recommend replacing the rubber line running from the master to the slave with something of better quality? Some sort of braided line perhaps?
It's a dead simple hydraulic system, there's not much to understand.
It failed because the seals went, they should be considered as consumables, so there's no "failure" to find, just normal wear.
#17
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
so I removed both master and slave cylinders for the clutch, and started working on draining all the fuel out of the car. I noticed small flecks of rust in the fuel so i tried to bang on the fuel tank as much as possible to get some of it out along with the fuel. I'll probably get around to taking a closer look at the interior condition of the fuel tank in the days to come. Parts should come in by the end of next week
#18
I have a rotary addiction
iTrader: (18)
Of course braided lines are recommended, and are a better option, but cost is key. It's up to you. I have had braided clutch and brake lines on 3 of my cars and can honestly say I can't tell a substantial difference in every day driving. The pedals engage maybe 1/8" quicker. I think if you have the money for it go all out and get stainless lines, bu it isn't necessary.
#20
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
I have a question which i will probably end up answering myself haha
The starter system has a switch which doesnt allow the car to start unless the clutch is depressed. This switch then activates the solenoid in the starter and begins cranking the engine. If i remove all the clutch hydraulics and pop the car in neutral, shouldn't the engine crank? If the clutch pedal is on the floor the switch is not engaged as it would be if the hydraulics were working. It's not a very complex system, im just trying to figure out whether im missing something or i have an electric problem on my hands
The starter system has a switch which doesnt allow the car to start unless the clutch is depressed. This switch then activates the solenoid in the starter and begins cranking the engine. If i remove all the clutch hydraulics and pop the car in neutral, shouldn't the engine crank? If the clutch pedal is on the floor the switch is not engaged as it would be if the hydraulics were working. It's not a very complex system, im just trying to figure out whether im missing something or i have an electric problem on my hands
#21
It would be easier to connect a remote starter trigger (used to set your timing and for compression tests) to your starter to crank your starter. Removing all of your clutch fluid will not aid in starting your car, what you would have is a clutch system with fluid, or pressure instead. There are threads here already pertaining to your question with answers you are looking for. Try a little research and you will find plenty of threads, this site is great in that way.
#24
I have a rotary addiction
iTrader: (18)
I have a question which i will probably end up answering myself haha
The starter system has a switch which doesnt allow the car to start unless the clutch is depressed. This switch then activates the solenoid in the starter and begins cranking the engine. If i remove all the clutch hydraulics and pop the car in neutral, shouldn't the engine crank? If the clutch pedal is on the floor the switch is not engaged as it would be if the hydraulics were working. It's not a very complex system, im just trying to figure out whether im missing something or i have an electric problem on my hands
The starter system has a switch which doesnt allow the car to start unless the clutch is depressed. This switch then activates the solenoid in the starter and begins cranking the engine. If i remove all the clutch hydraulics and pop the car in neutral, shouldn't the engine crank? If the clutch pedal is on the floor the switch is not engaged as it would be if the hydraulics were working. It's not a very complex system, im just trying to figure out whether im missing something or i have an electric problem on my hands
#25
I have a rotary addiction
iTrader: (18)
Also... Do a switch check. Ground the green check plug near the battery/ignition coil. Turn the key to illuminate the warning lights and press the clutch pedal in and out. The CEL (check engine light) should illuminate. Same goes for the Reverse/5th switch and a few other switches.
