Happy new year, bonne année 2025 !

First update of the year

I previously order all internal parts of my engines on jdmplanet but after 3 mouth with no updates at all, I asked PayPal to refund me. So be aware jdmplanet can take a long long time to ship your part. Aaand I didn’t order my cancelled parts, I will do it soon.

I’ve received my new fuel pump, Walbro Hellcat and my new injectors, Bosch 2x1400cc 2x1050cc, flow matched.

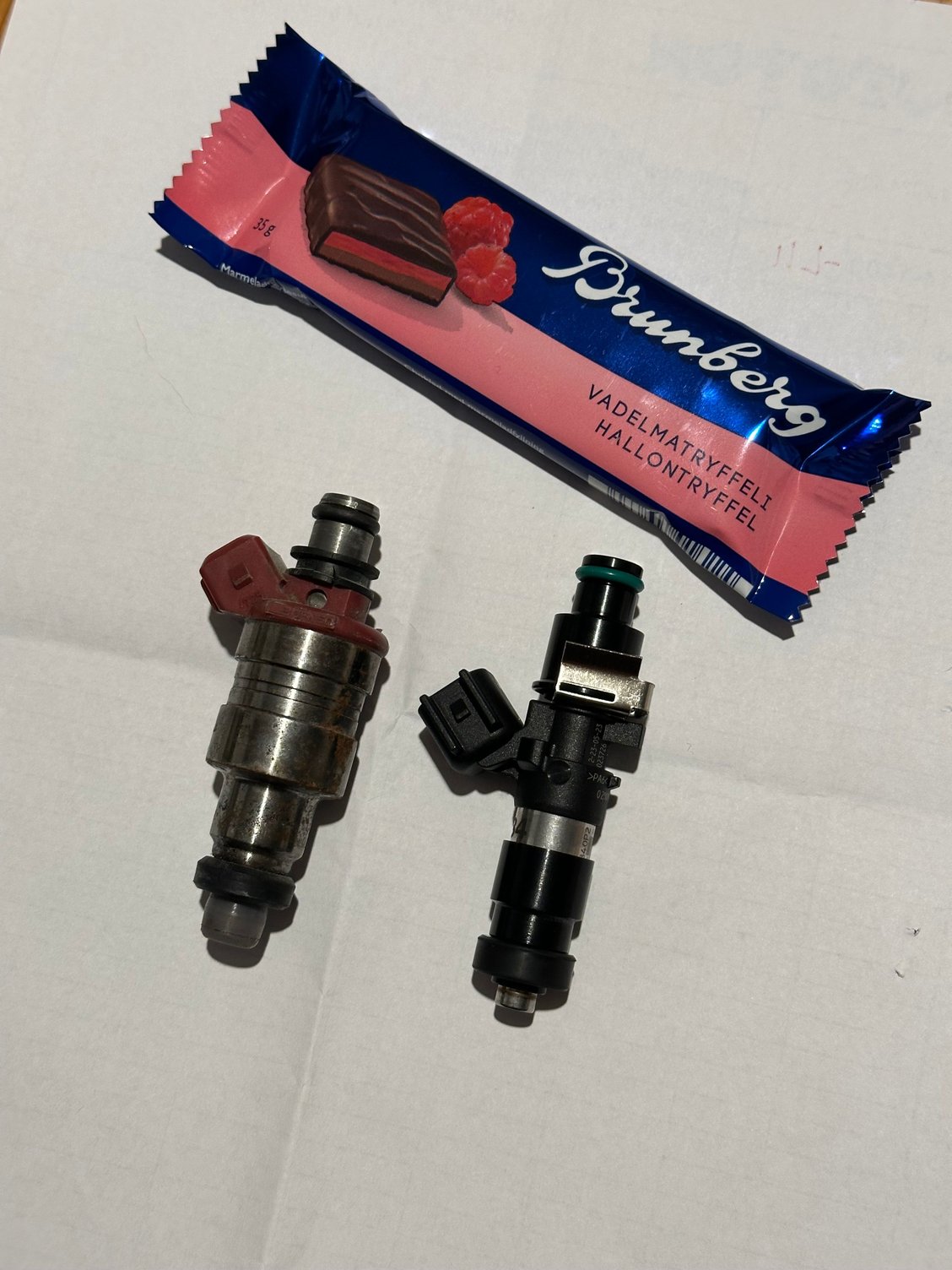

Old vs New

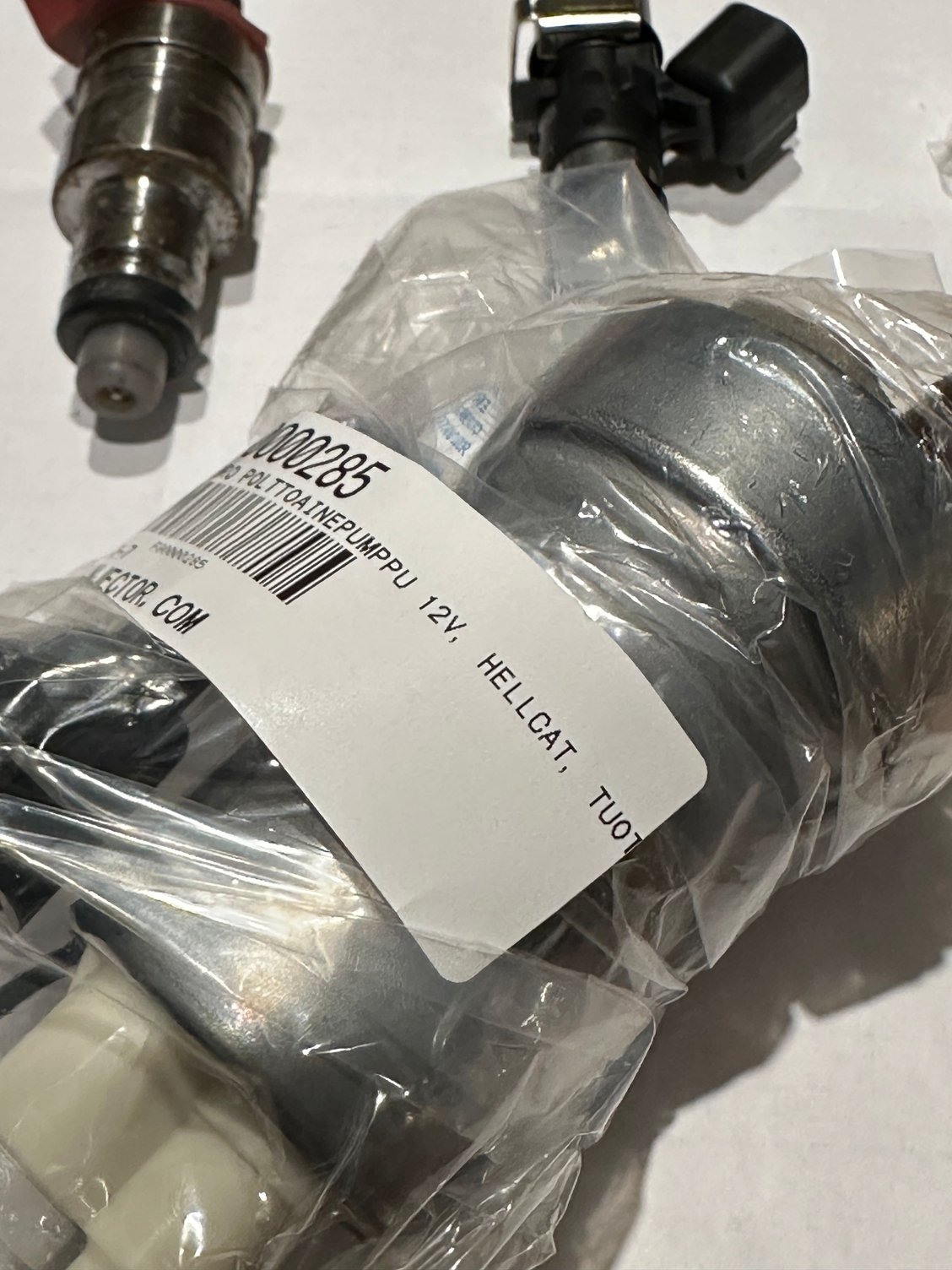

Hellcat pump

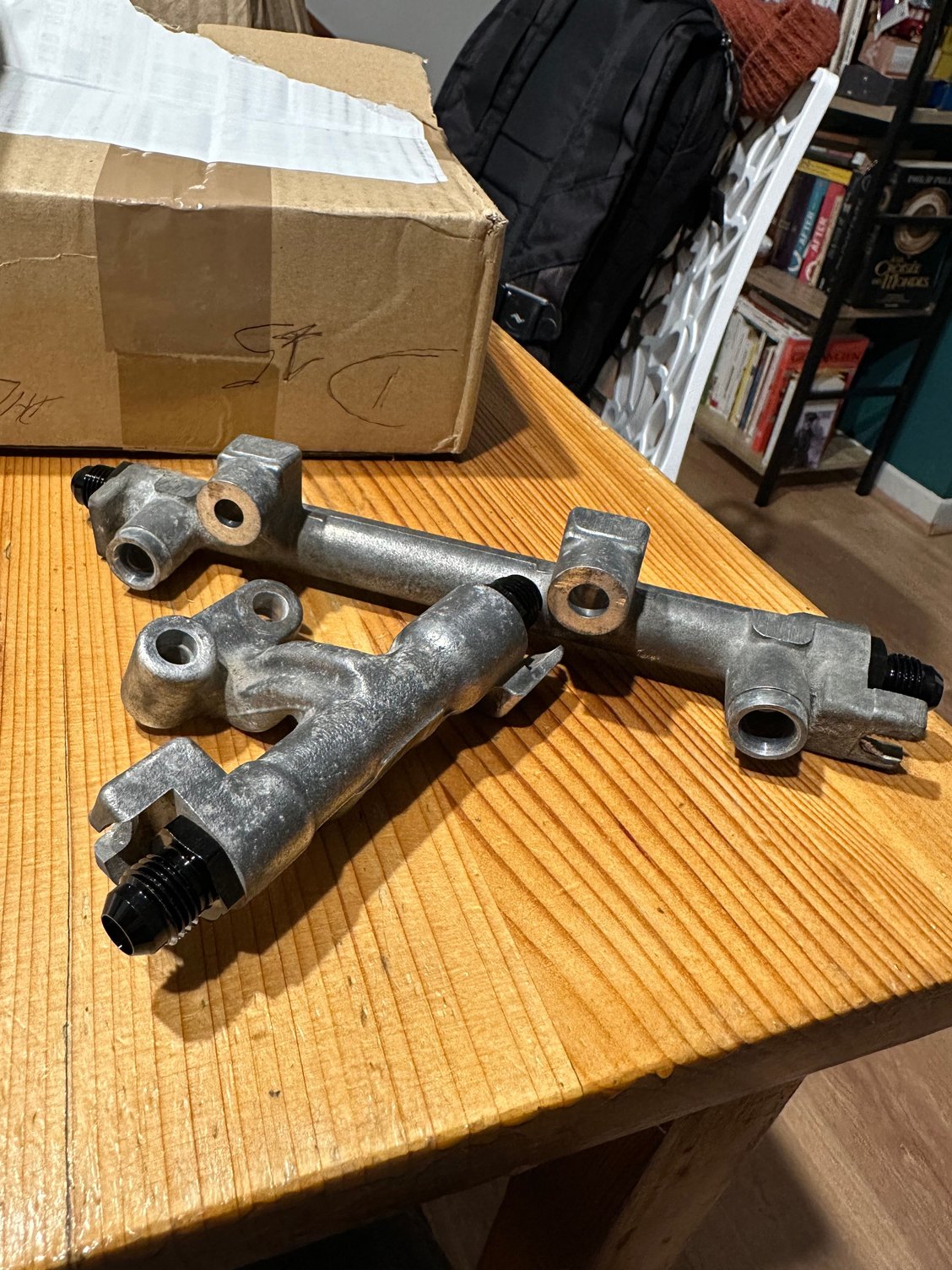

Fuel rail convert to AN6

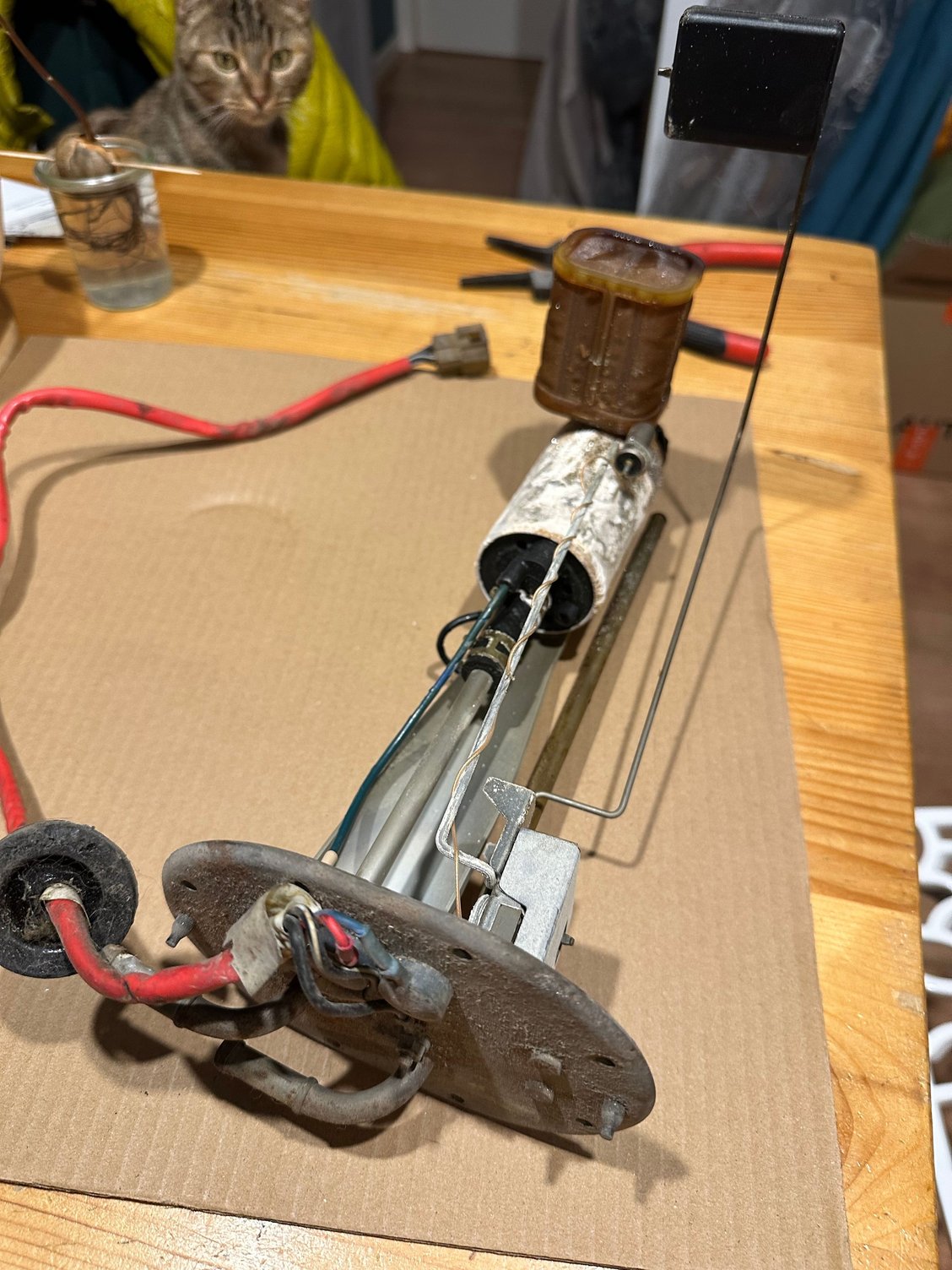

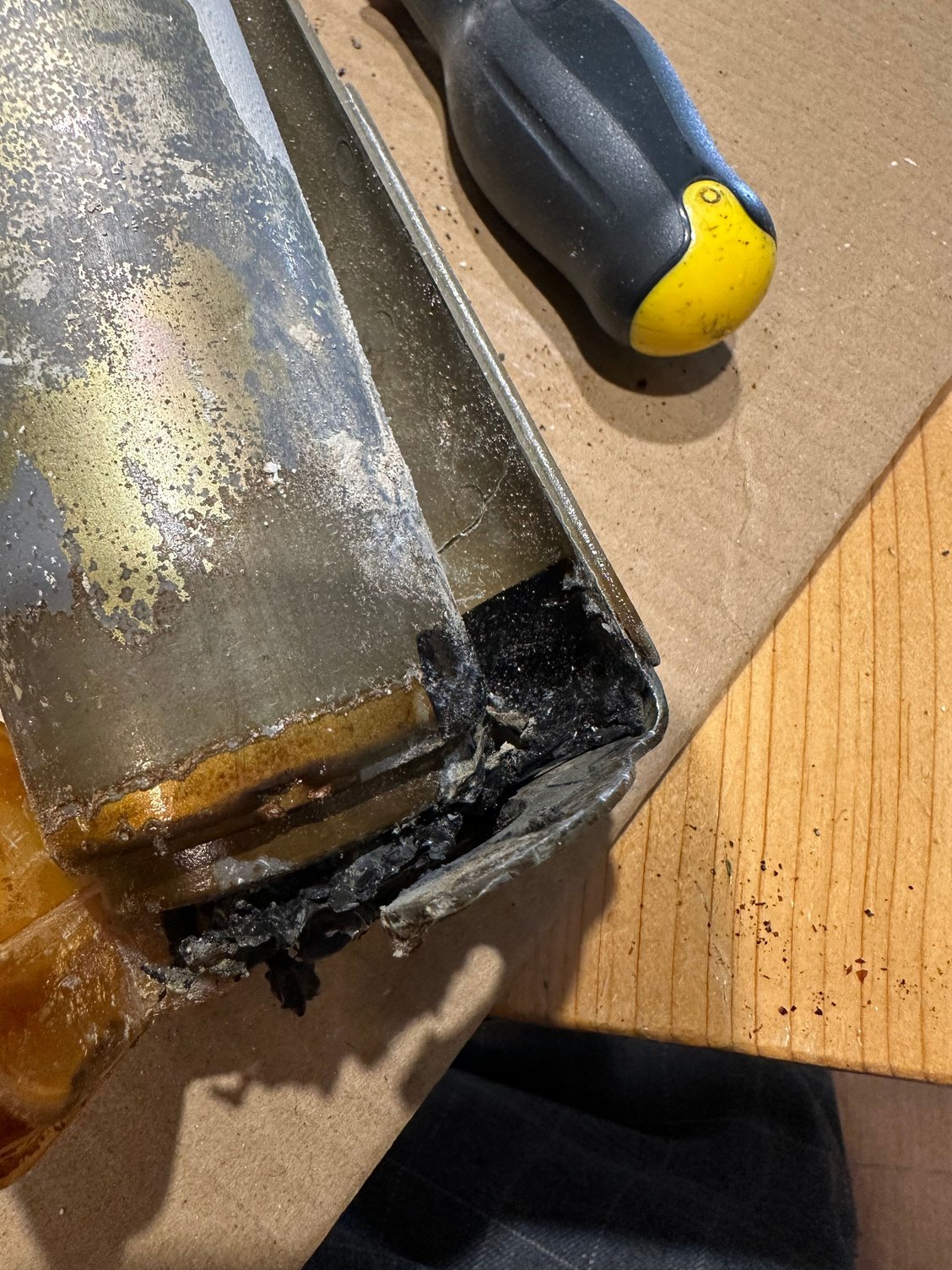

Weird goo on the stock fuel pump



Cool build, glad to see you are still cranking on this. How's the motor going?



Why do a 4 lug conversion from 5 lug?. . .



This was answered already... I think. Those awesome wheel it came with are four bolt.
Also some prefer the four lug setup as the selection of vintage wheels or other is better.



I believe that he mentioned that the parts ordered were never delivered so .... I assume no progress.



I see. . .previous parts. . .Sorry, late to the post.

I see the rear flared fenders now.

As a 4 lug owner, I always wanted the braking performance of the 5 lug setup.



RHDJapan should be back this week, so i'm gonna (i hope) order this week !

I'm still using the bigger brake, redrilled disc.



Build list updated (01/2025) :
Engine

• Used S4 T2 rotor
• Used S4 ECCENTRIC SHAFT
• New S5 front, mid, rear iron plates
• New S6 rotor housings
• OEM seals (side, apex, ...) (to buy)
• S6 corner seals springs (to buy)
• S6 oil pressure regulator (to buy)
• Turbosource stud kit (to buy)
• Supernow oil baffle plate
• Supernow solid engine mount
• Supernow block-off plate kit
• Turbosource 7670 turbo-kit (to buy)
• 3" exhaust system (to buy)

Fuel system

• 2 x Bosch 1050cc
• 2 x Bosch 1400cc
• Stock S4 fuel rails converted to -AN6
• Walbro 525l/h Hellcat fuel pump
• Fuel pressure regulator (to buy, don't know the brand/model)
• Fuel filter (to buy, don't know the brand/model)
• Need to make new fuel hardline

Cooling :

• Koyorad radiator
• Silicon hose

Ignition - Electrical :

• FFE trigger kit (to buy)
• Coil system (to buy, don't know the brand/model, but probably AEM)
• ARD 150A FD3S alternator (to buy)
• Battery kit and relocation (to buy)
• Complete pulley kit (to buy - looking at the Franklin Performance Multi-V kit)
• Side mount alternator kit (to buy - i prefer the look, but not my priority)

ECU :

• Still debating between Maxxecu and Link (to buy)
• ECU harness (to buy or made)
• Fuel pressure sensor (to buy)
• Oil pressure / temp sensor (to buy)
• Bosch knock sensor (to buy)
• MAP sensor (to buy)
• IAT sensor (to buy)
• AFR sensor and controller (to buy)
• DBW conversion (to buy)

Transmission - brakes:

• Differential is currently opened for rebuild
• LSD 1.5way (to buy)
• Transmission mount (to buy)
• Lightweight flywheel ? Or resurfaced the OEM one ? (to buy)
• ACT clutch pack (to buy)
• Rebuild all brakes (to buy)
• Brakes lines (to buy)

Exterior :

• S5 white door-bumper trims (ordered, waiting from japan)
• Sunroof panel (to buy)
• Windshield (to buy)

Interior :

• Carpet (to buy)
• Seats & rails (to buy)



14/01/2025 : Order update

I've just ordered some parts, i'm gonna copy paste Mazda reference if someone want to order it

Transmission - Brakes

• FB02-49-240 Rear Caliper Seal kit
• FB05-49-240 Front 4 piston brake rebuild kit
• 0603-16-103 Front transmission seal
• M502-17-335A Rear transmission seal
• FB01-64-490B Gearshift boot
• 0305-49-686b Brake master to reservoir seal

Engine :

• 9956-21-000 Oil injector crush washer
• N326-10-C15 Front Cover Teflon O-Ring
• 0813-11-505B Thrust bearing (you need 2)
• N3A1-14-230 FD3S Oil pressure regulator
• 0810-14-171b Oil pickup tube gasket
• NF01-11-C24 FD3S corner Seals spring (use them if you are rebuilding, they are better) x12
• NF01-11-C17 Side seals Spring x12
• N3Y1-11-C11 Side seals x12 (i've got a deal on a brand new atkins side seal ARU96)
• N326-11-C06C Large Apex Seals x6
• N326-11-C04A Small Apex seals x6
• 0810-11-711C 54mm Flywheel nut

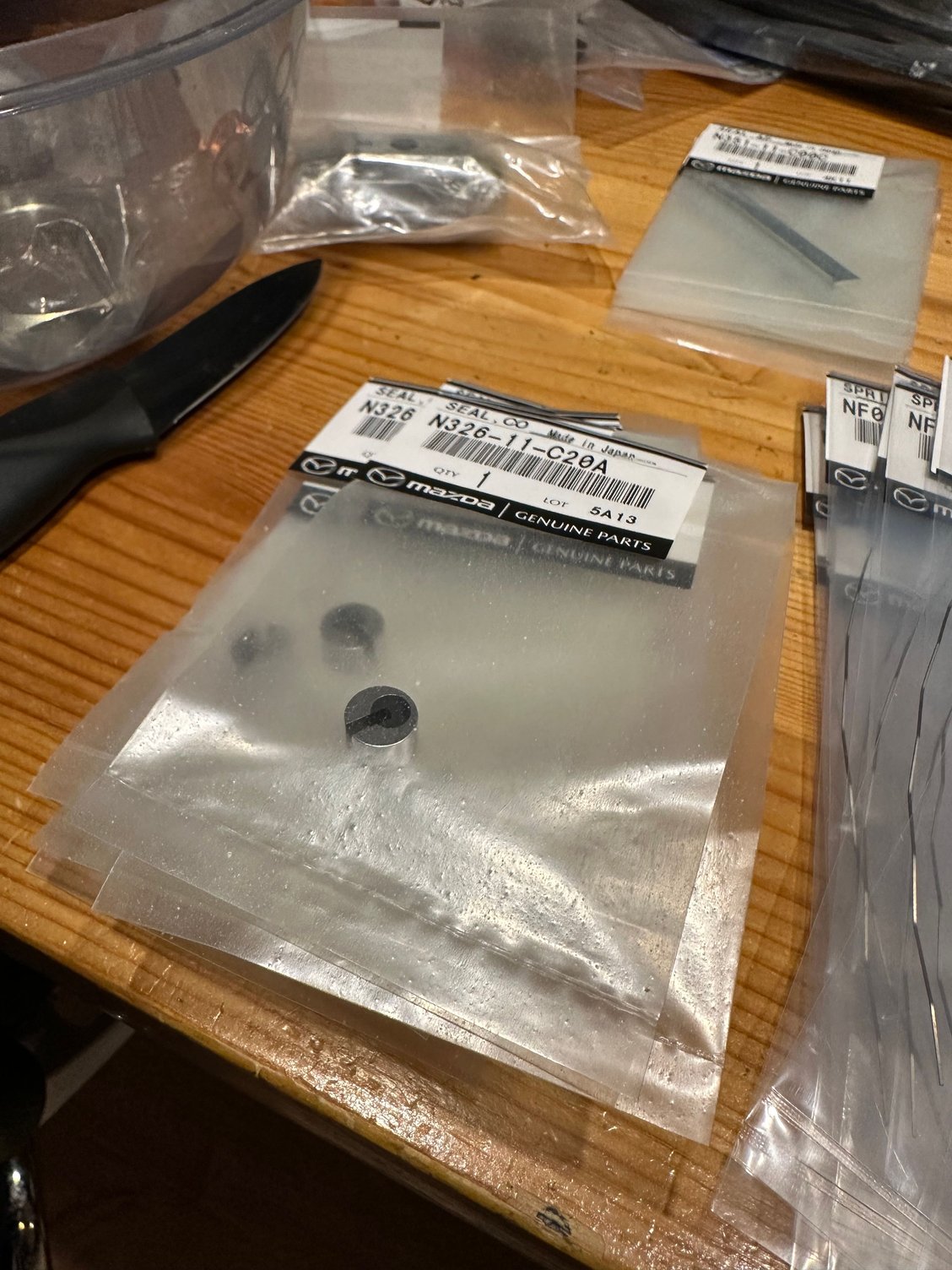

• N326-11-C20A Corner Seals x12

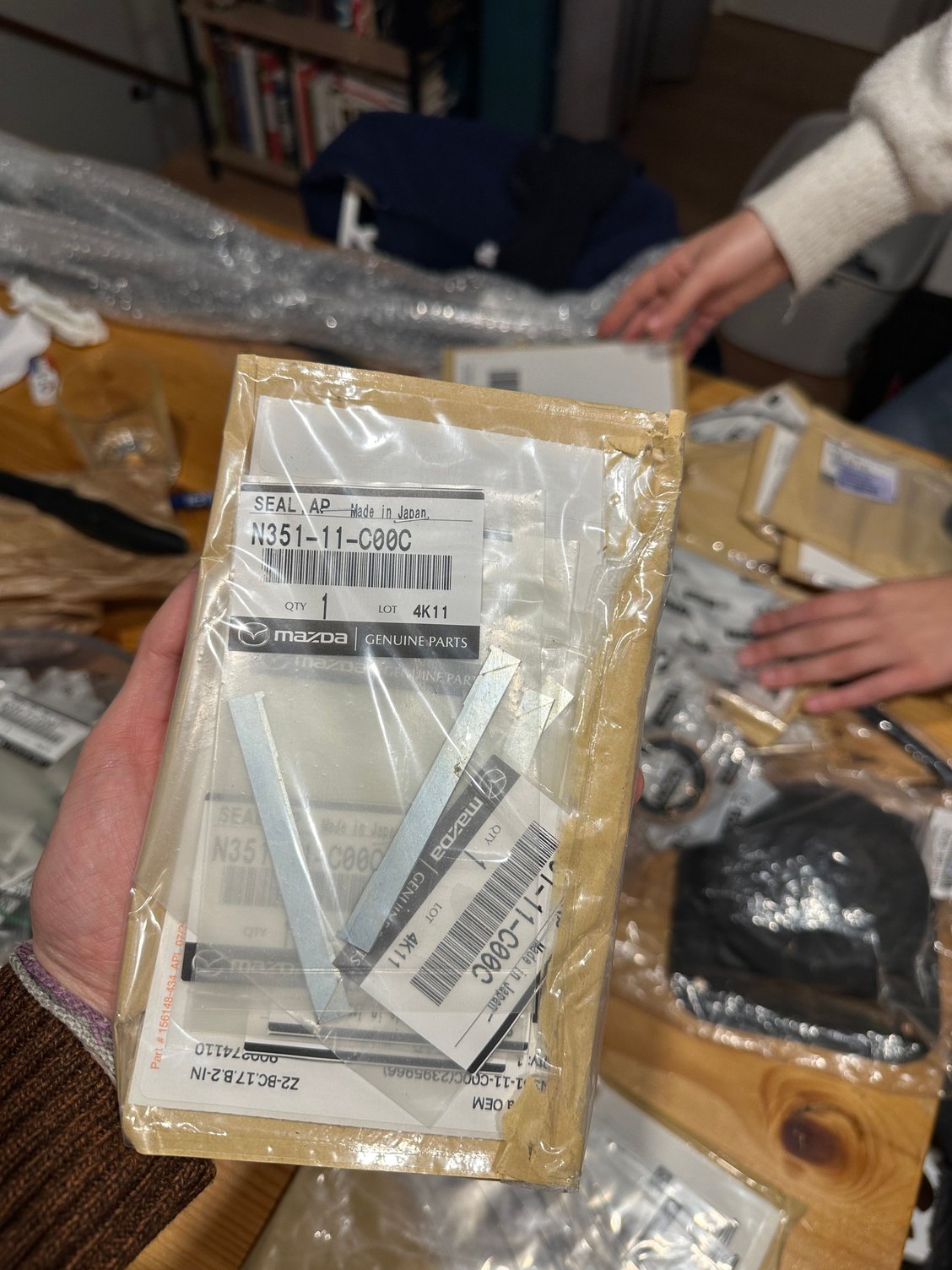

• N351-11-C00C 2 pieces Apex Seals x6
• N225-11-351 Oil Seal Spring -Front Inner x2
• 1011-11-363A Oil Seal Spring -Rear Outer x2
• N225-11-361 Oil Seal Spring -Rear Inner x2
• 1011-11-353A Oil Seal Spring -Front Outer x2
• 9954-10-1601 OIL FILTER PEDESTAL O-RING x2
• 8341-11-343 O-Ring Seal (Outer) x4
• 0820-11-341 O-Ring Seal (Inner) x4
• 1668-10-556A Rear Main Seal
• N318-10-S60A Oring kit
• N386-15-162 Water pump gasket
• N386-10-502 Front cover gasket
• N318-13-111D Lower intake manifold gasket

Exterior - Trim :

• FB01-50-601A Upper windshield seal
• FB01-50-870B Left windshield seal
• FB01-50-860B Right windshield seal
• FB01-59-810 Left Outer Door Window Trim
• FB01-58-810 Right Outer Door Window Trim



Lesgo !








A friend of mine give me for free some RX8 tension bolt. Nice free upgrade ! (Turblown stud kit is a bit overkill for my power goal)

stay updated !



Feb update

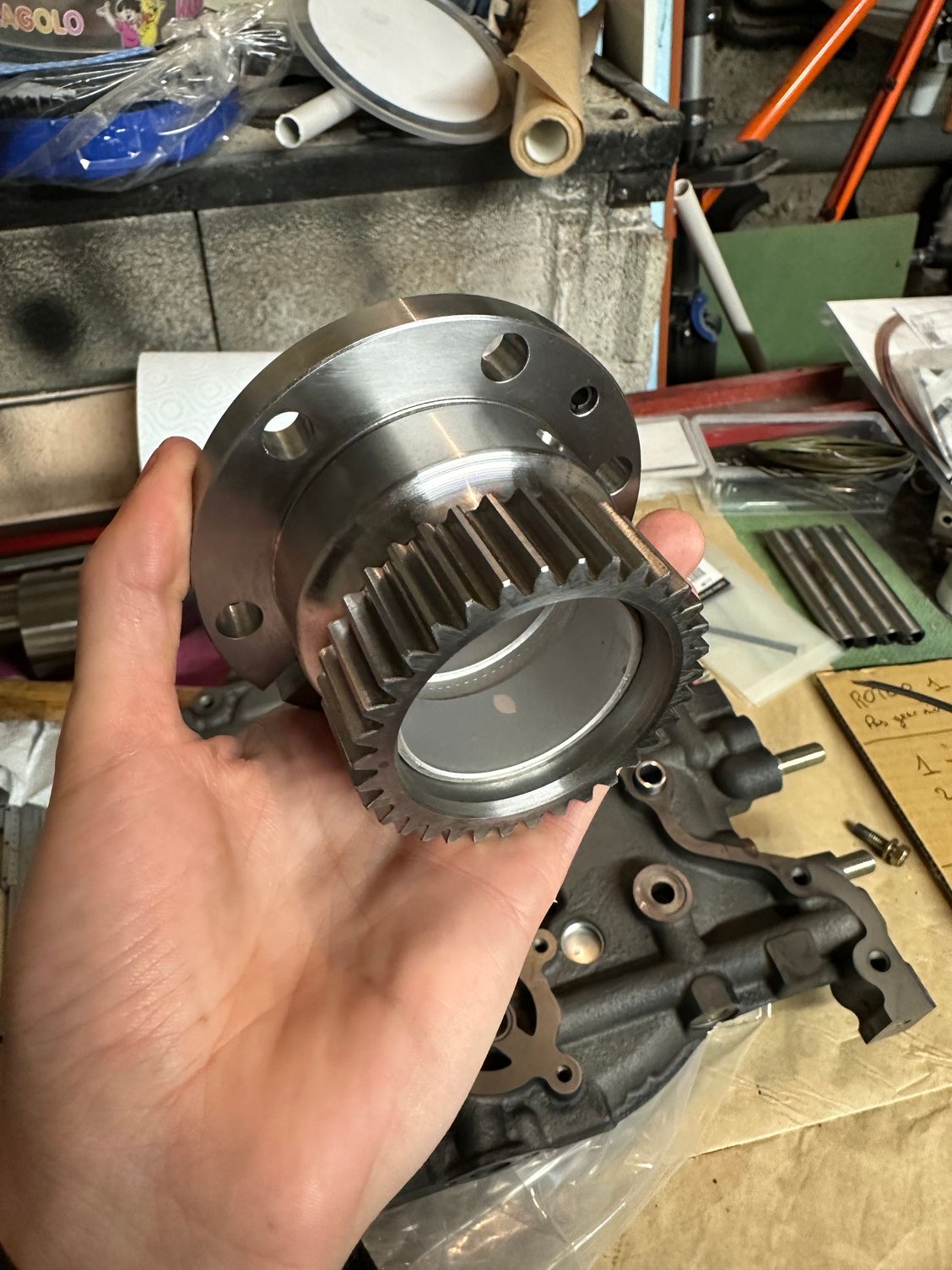

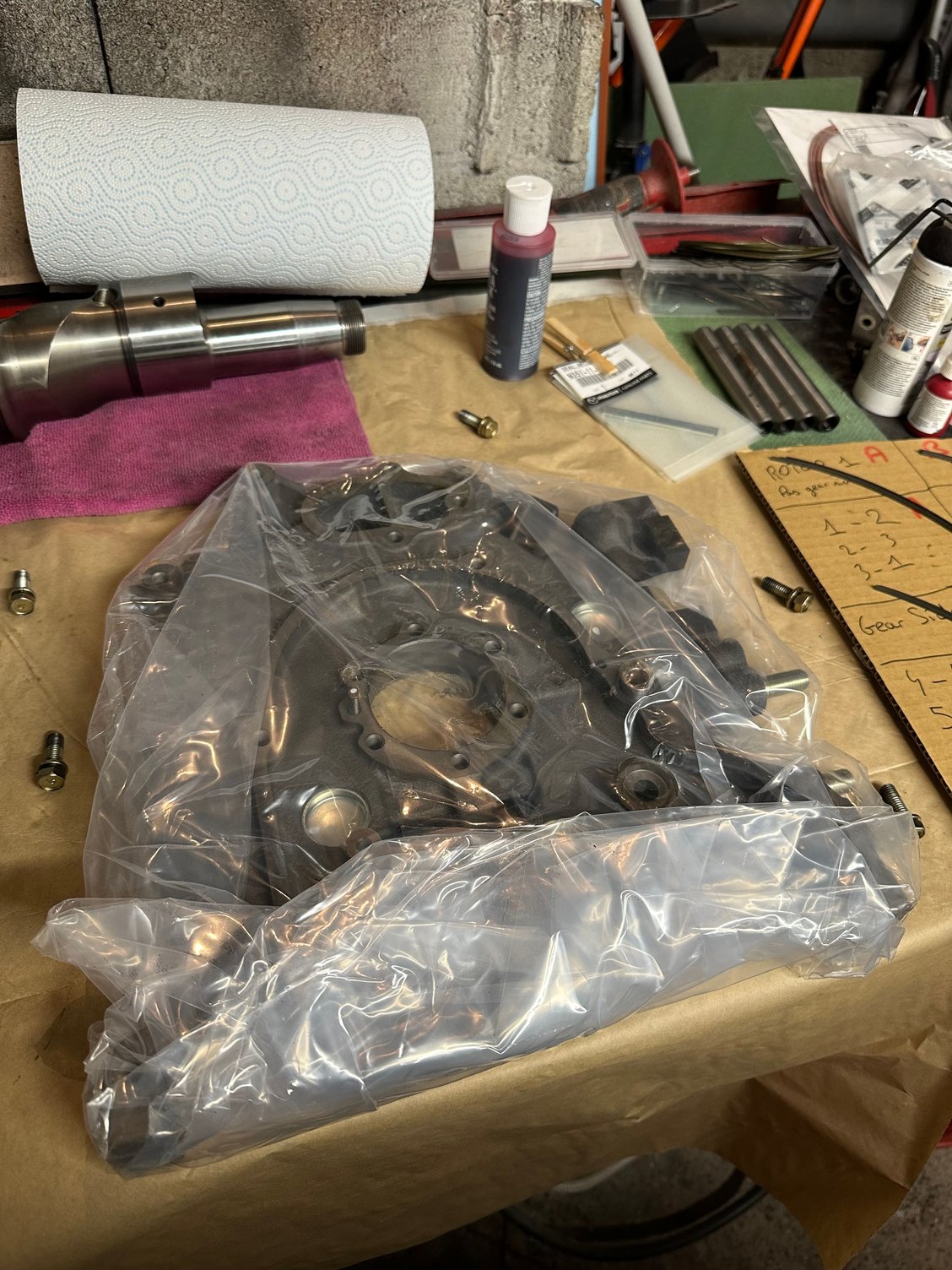

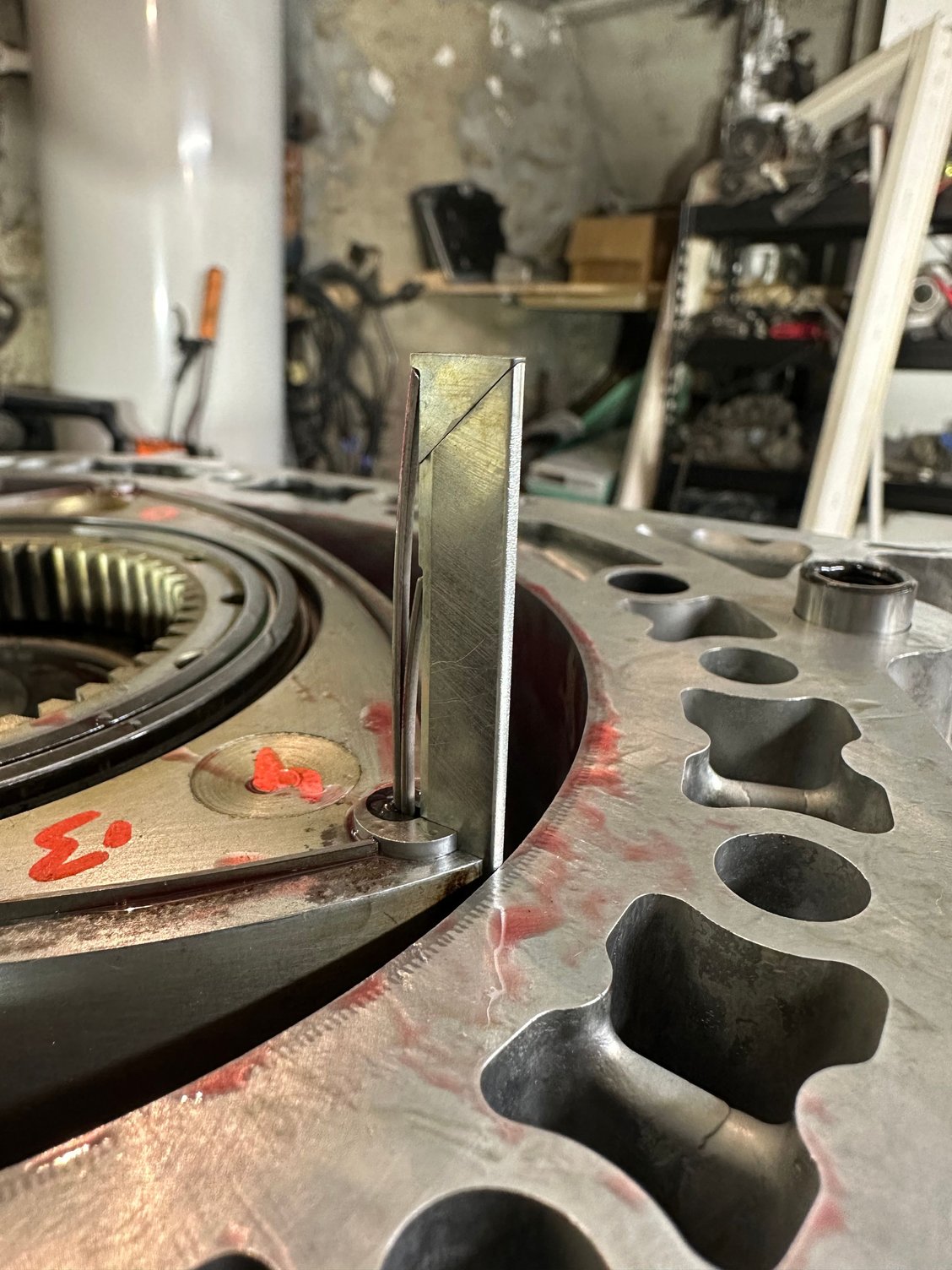

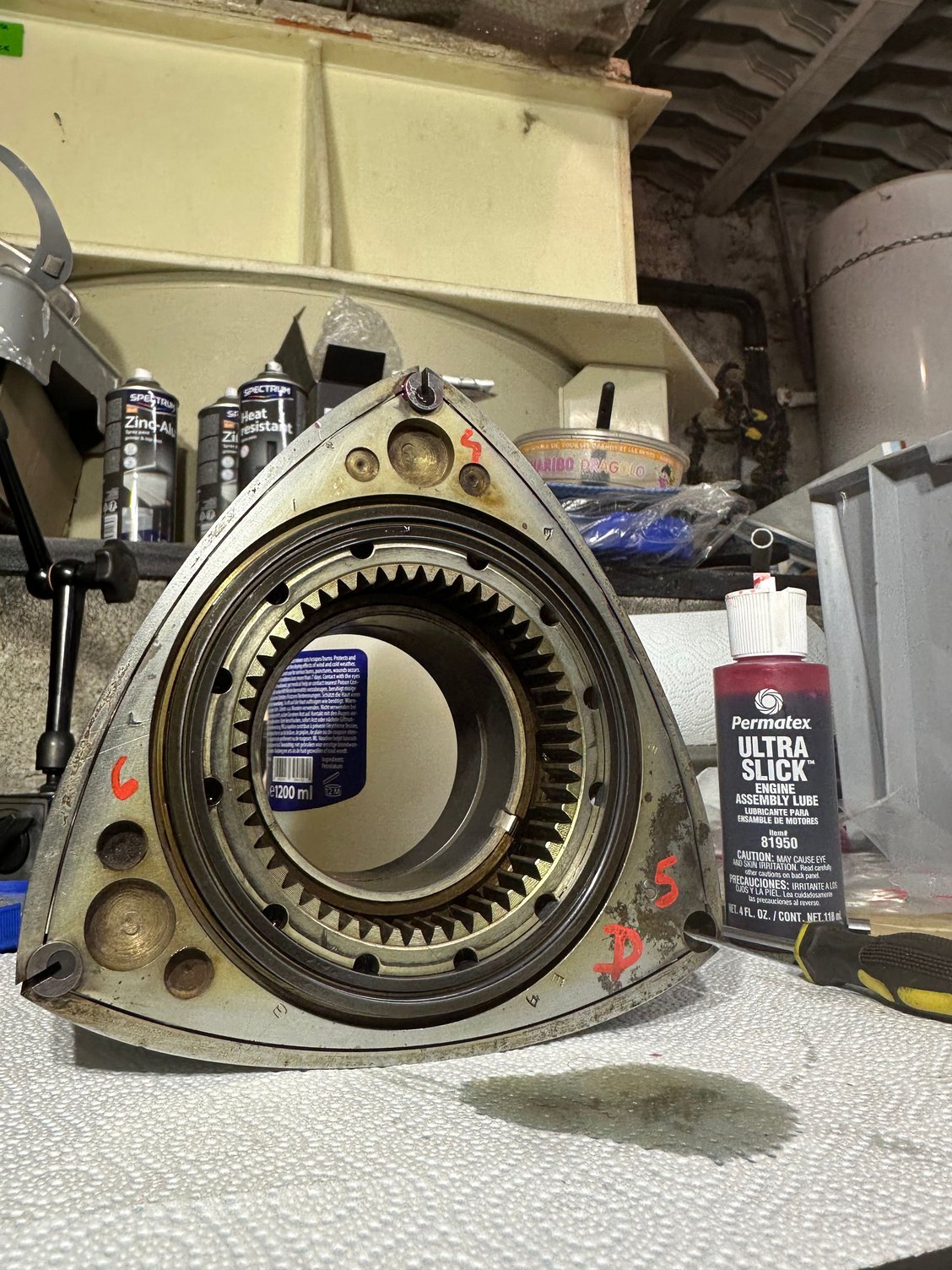

My first time doing a rebuild, it was pretty straightforward. Except maybe side seal clearance. I’ve messed up my first side, I trim them by hand and I didn’t had the right angle… doing it with drill should be easier and better.

Shaft is turning freely with no hard point at all. You can ear all 6 comps

I’ve put too much assembly lube, it was a mess haha.

Next thing is to order the last bit for the fuel system (fittings and fuel line).

Money pit project but I love it !



April update :

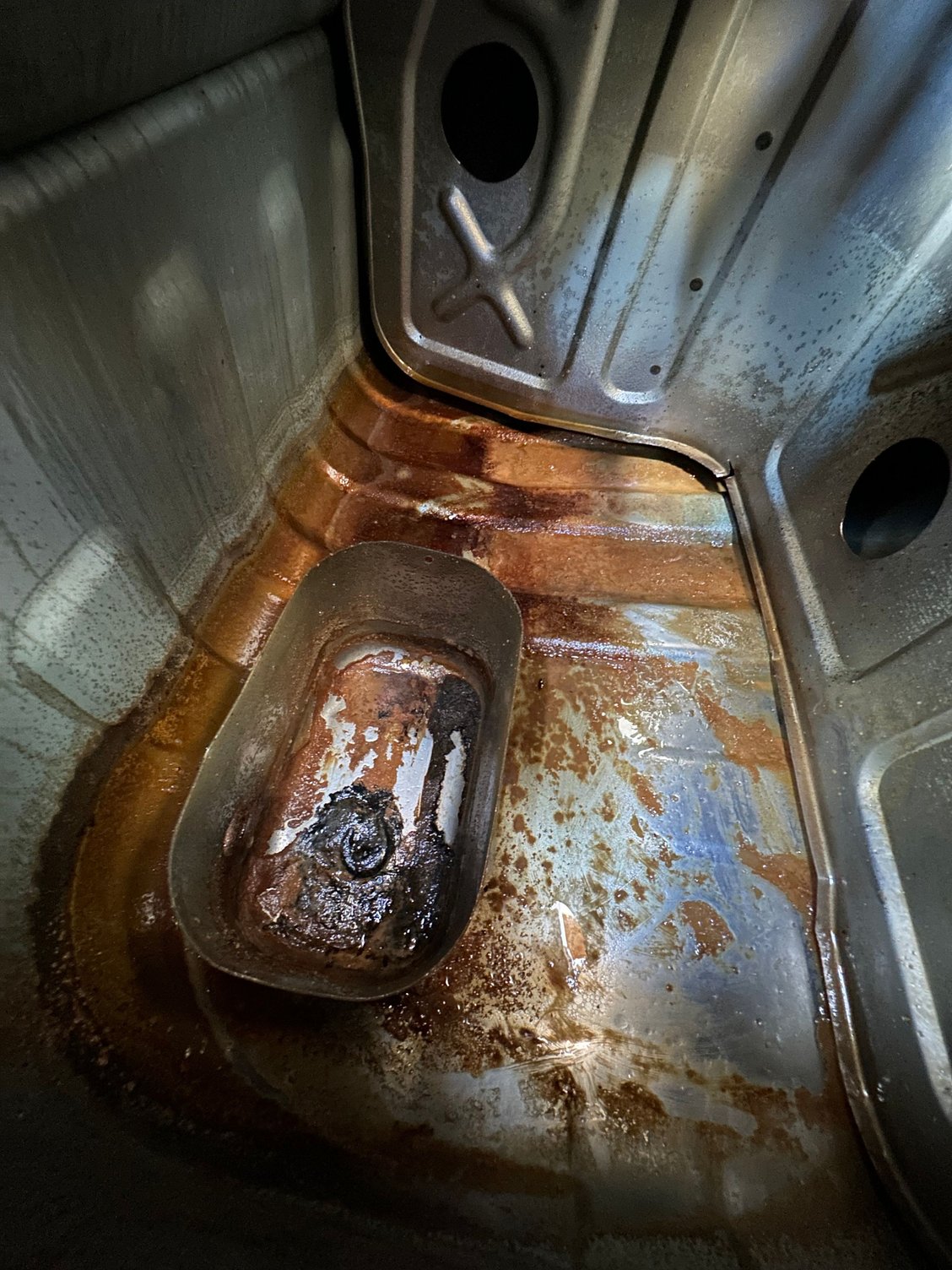

Fuel tank need a good clean !

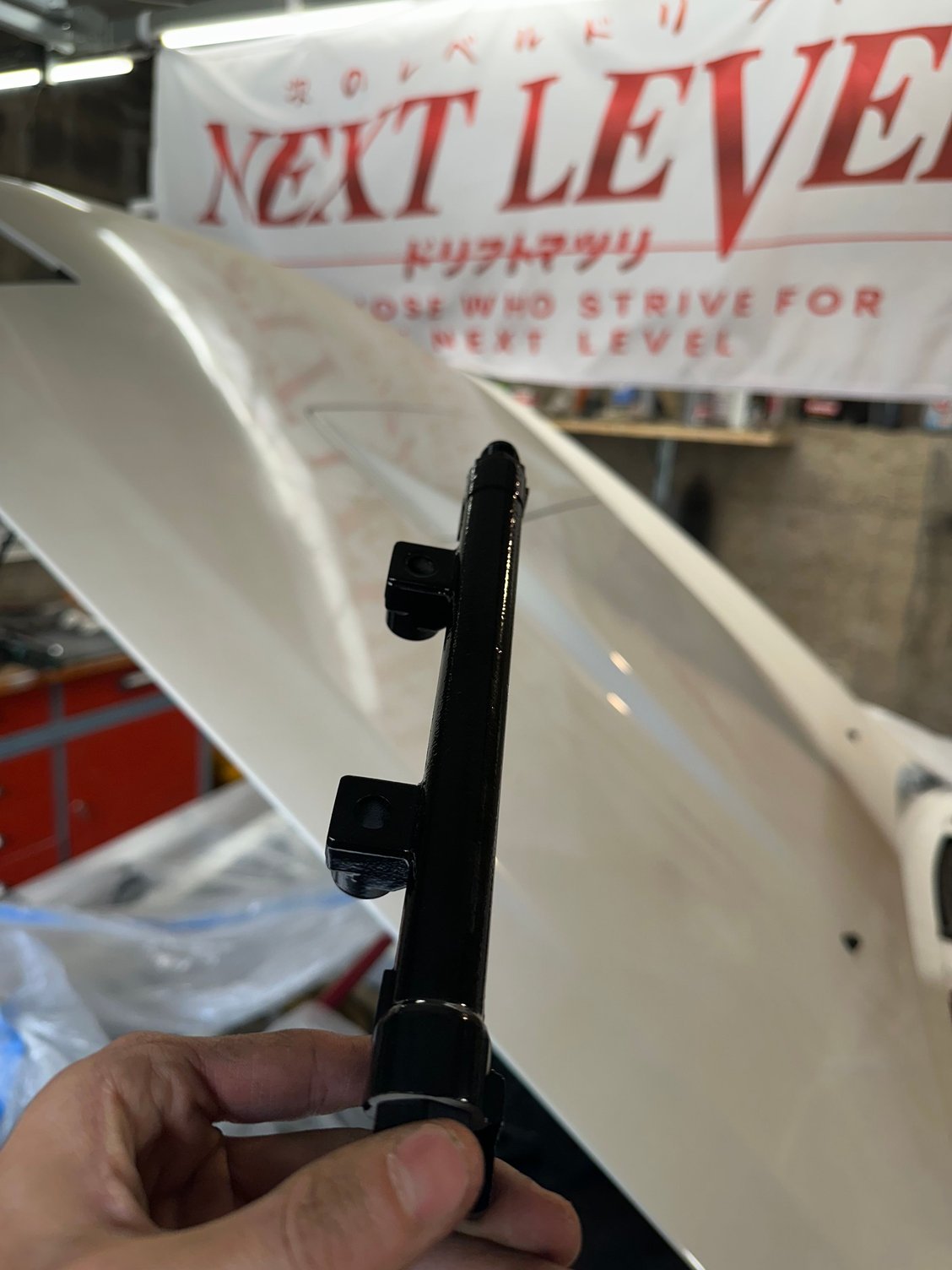

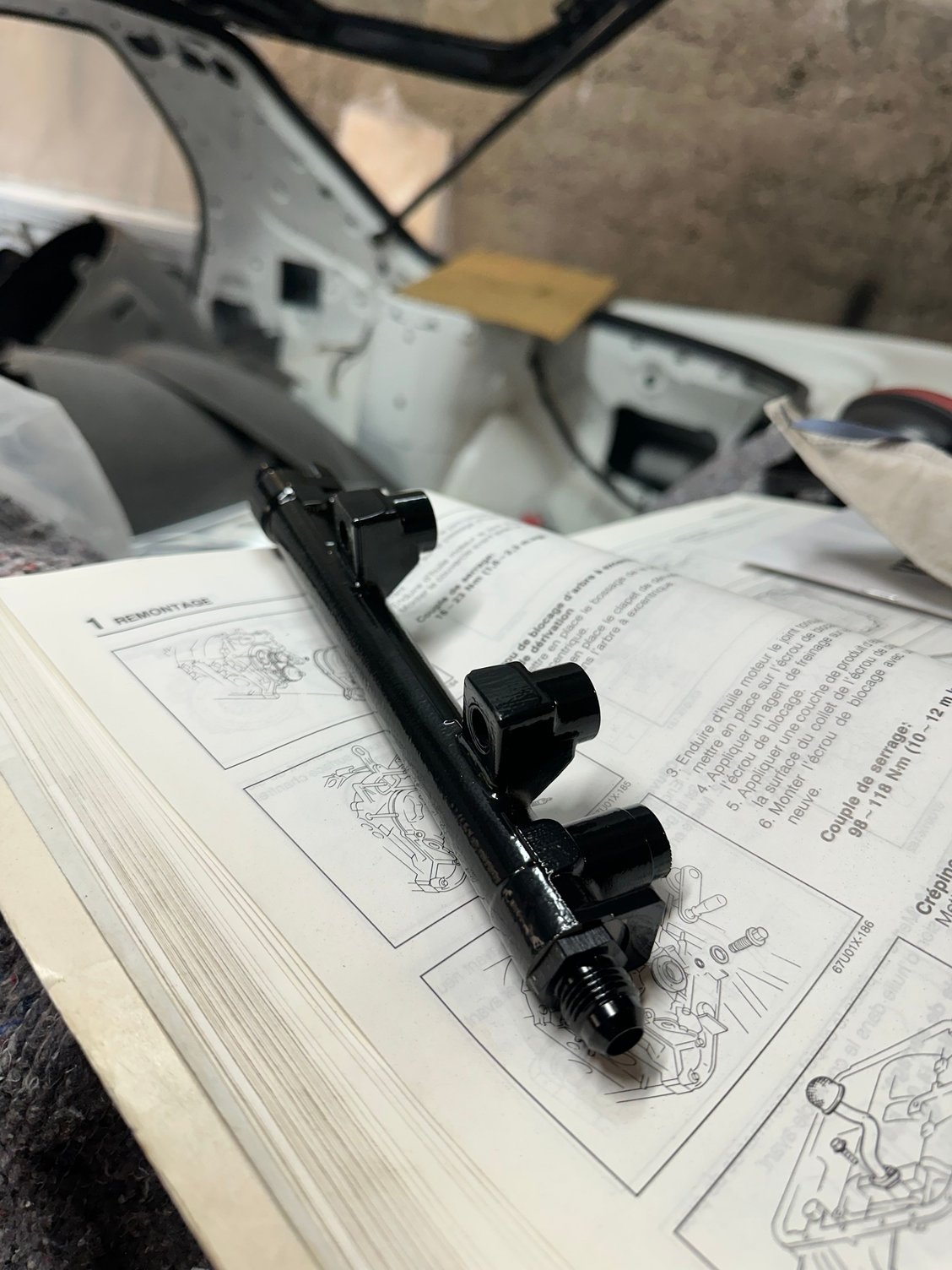

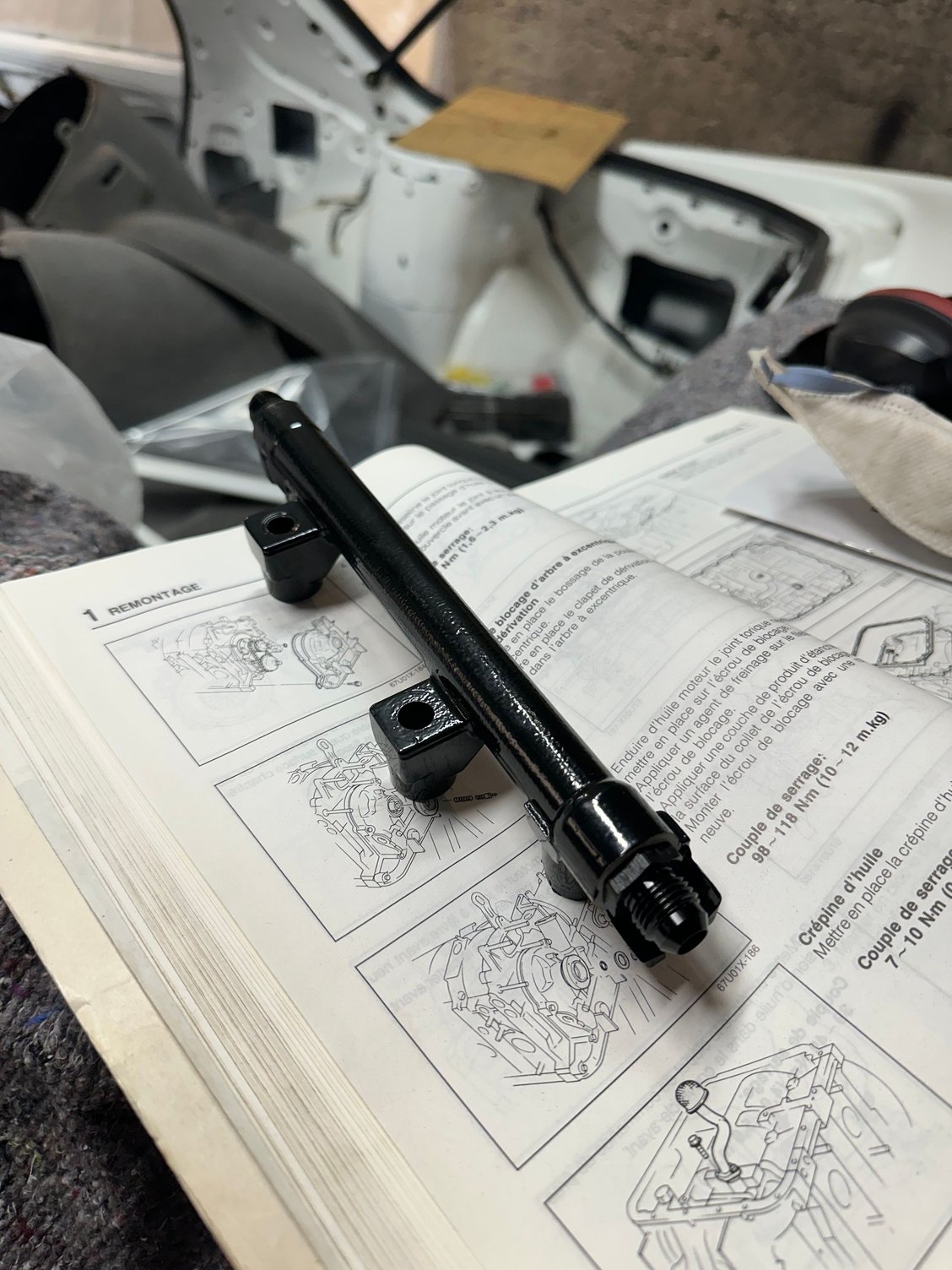

AN6 stock fuel rail. Sandblasting + powder coating make life sooo much easier and cleaner

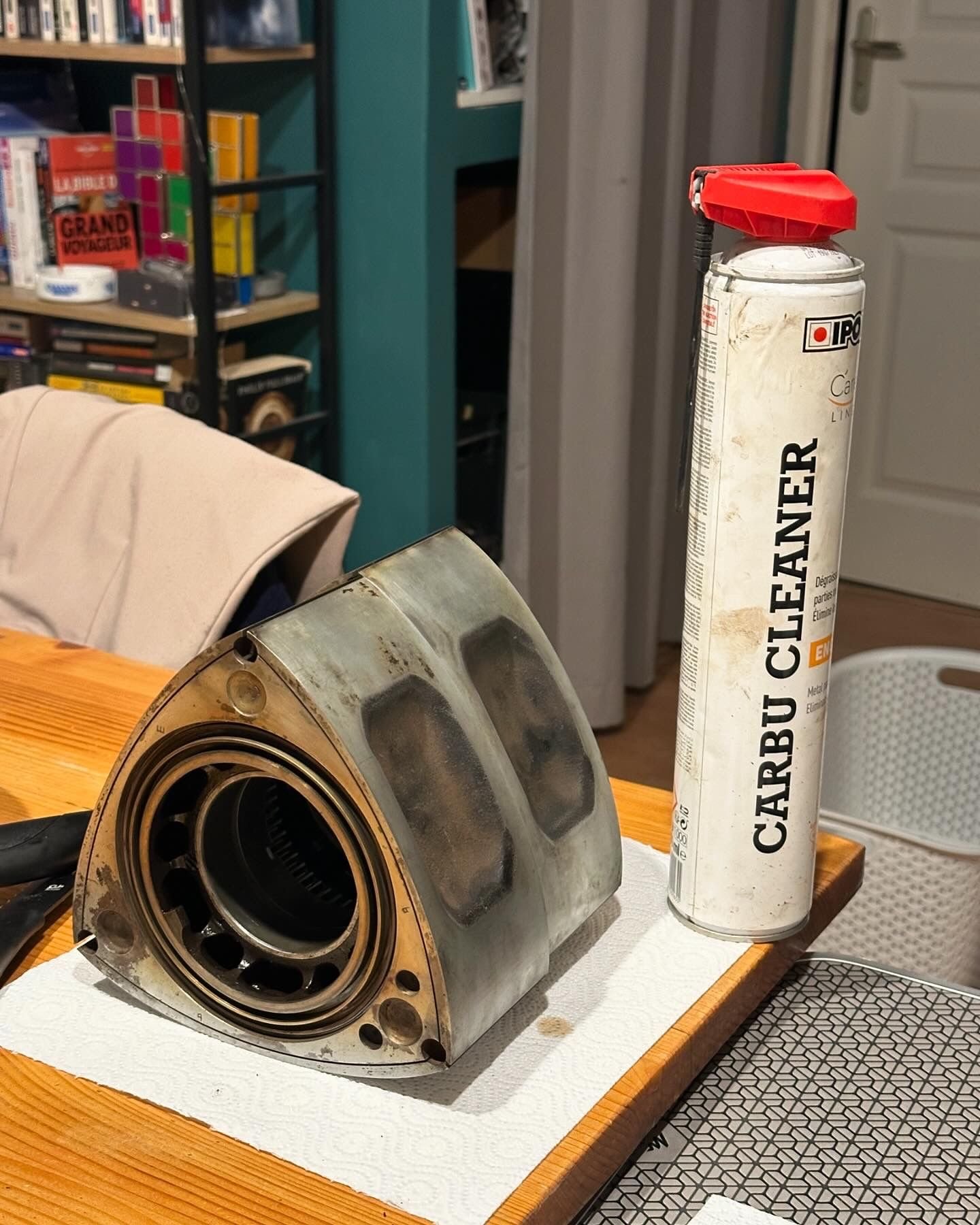

Old housing. Holding my RX-7 books

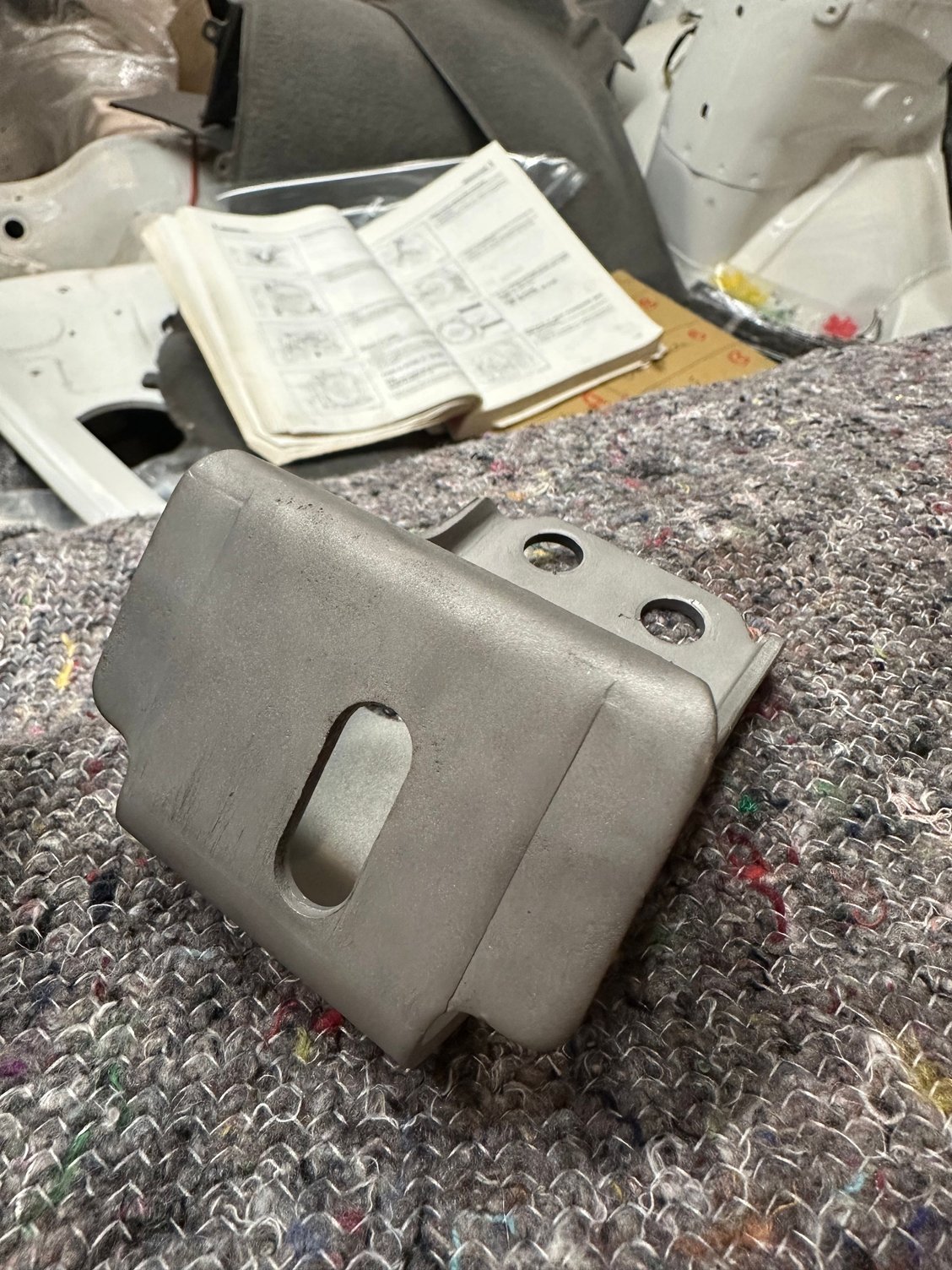

After sandblasting

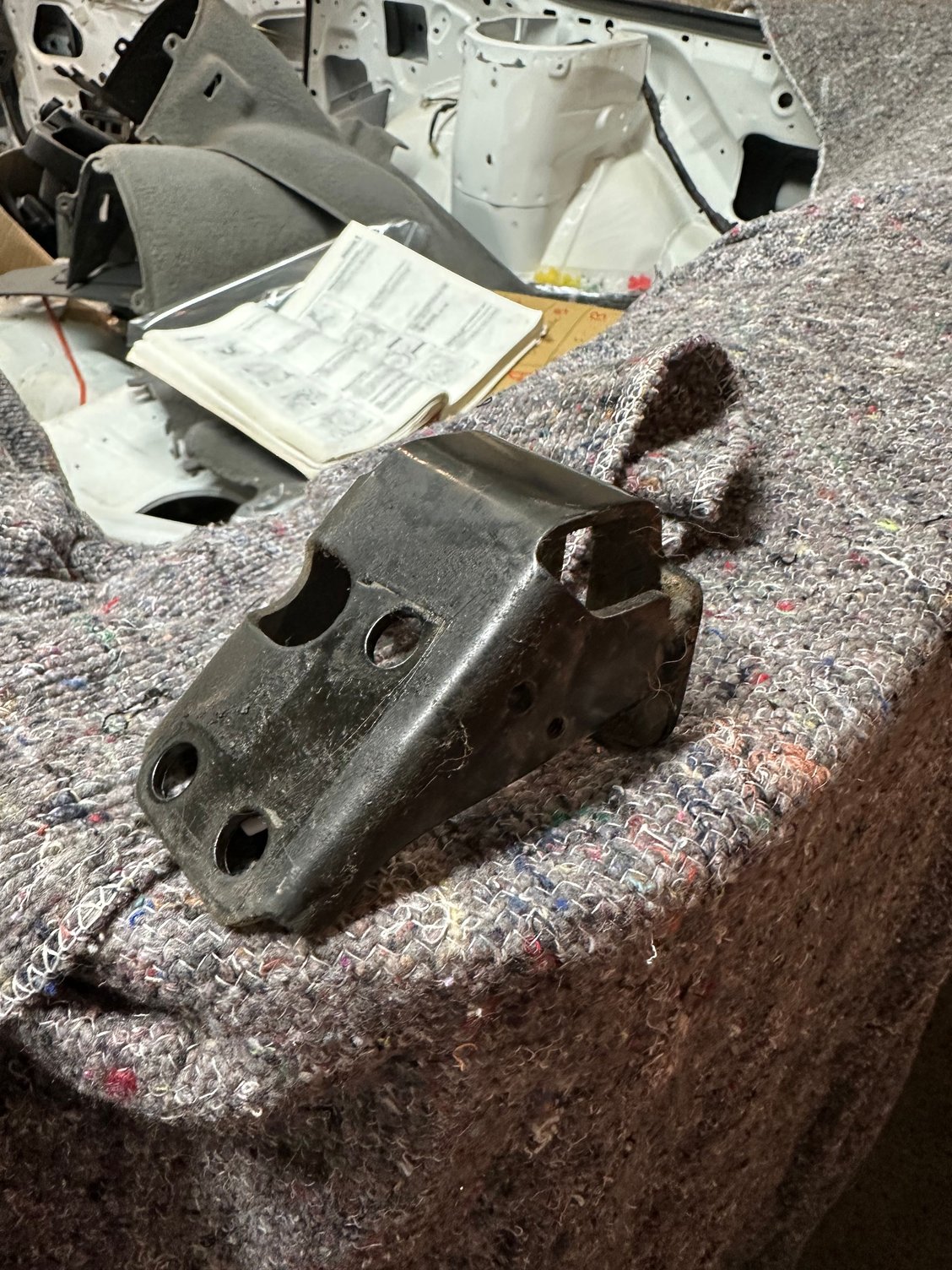

Before

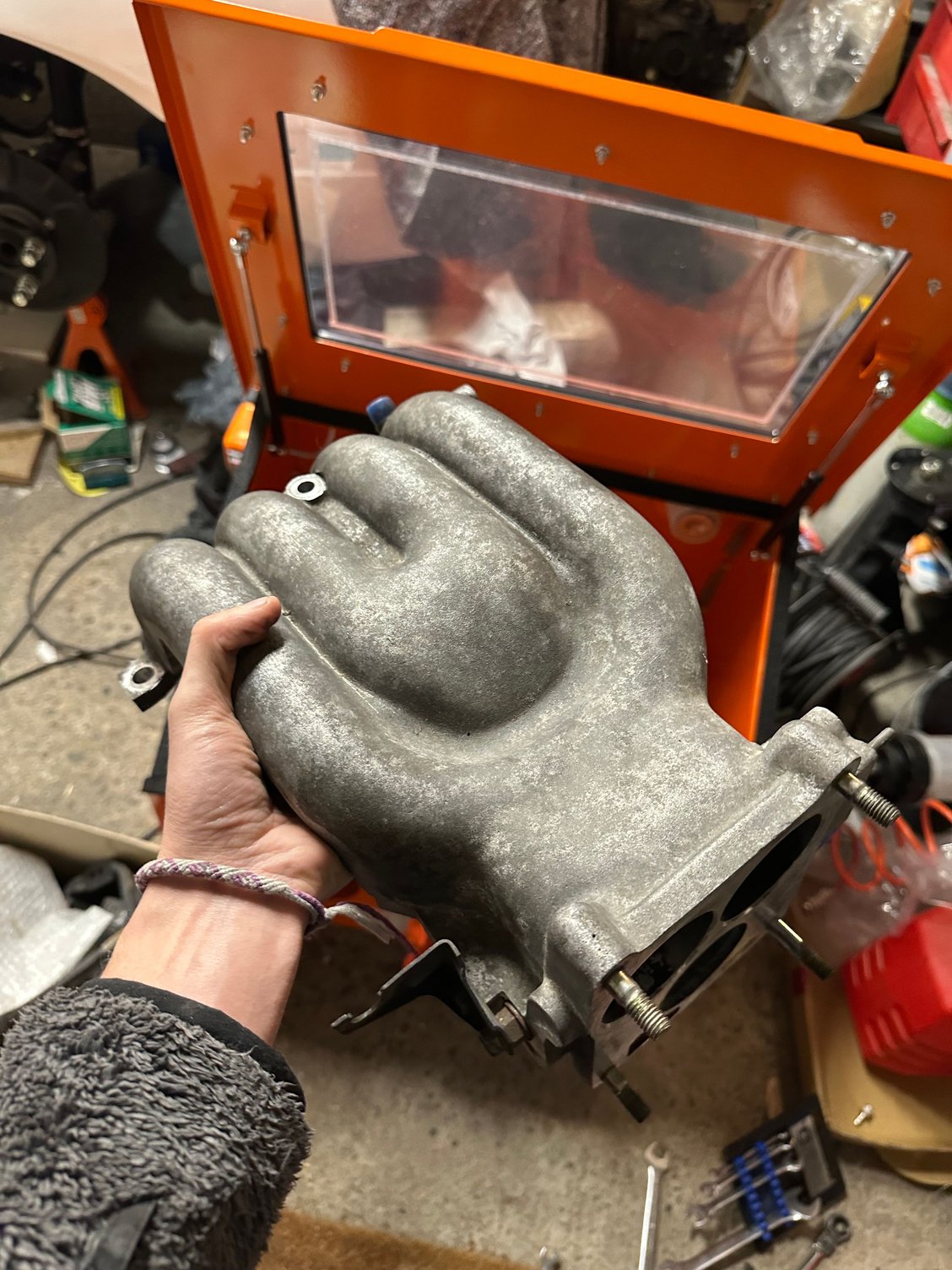

Scored this FD intake. Please. Don’t put the ugly FC… I hate it

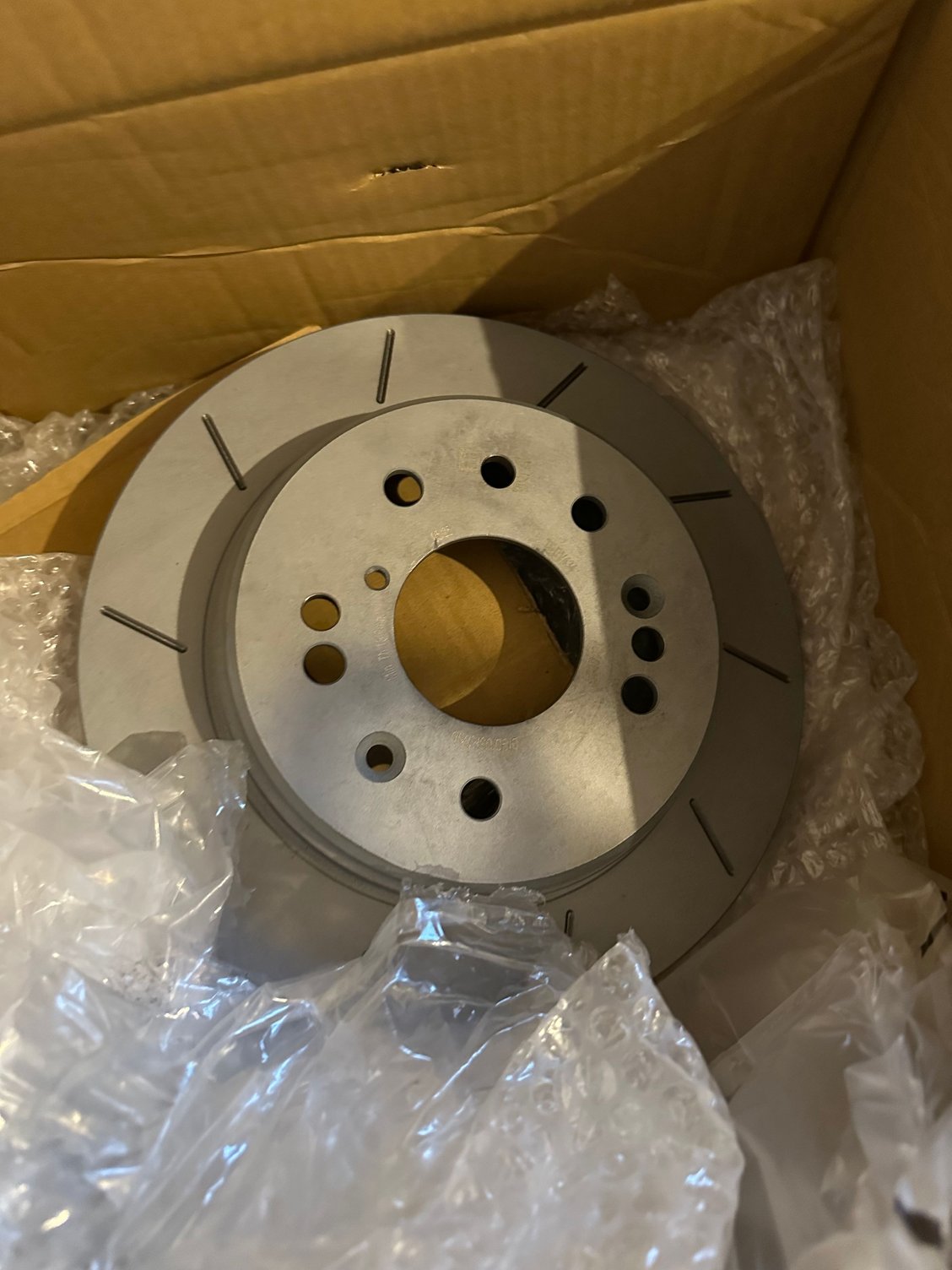

New brakes discs converted to 4x114.3



This bad boy is now sitting in the bay !

I’ve struggle removing the old pilot bearing (2hours), using dremel seems to be the way to go !

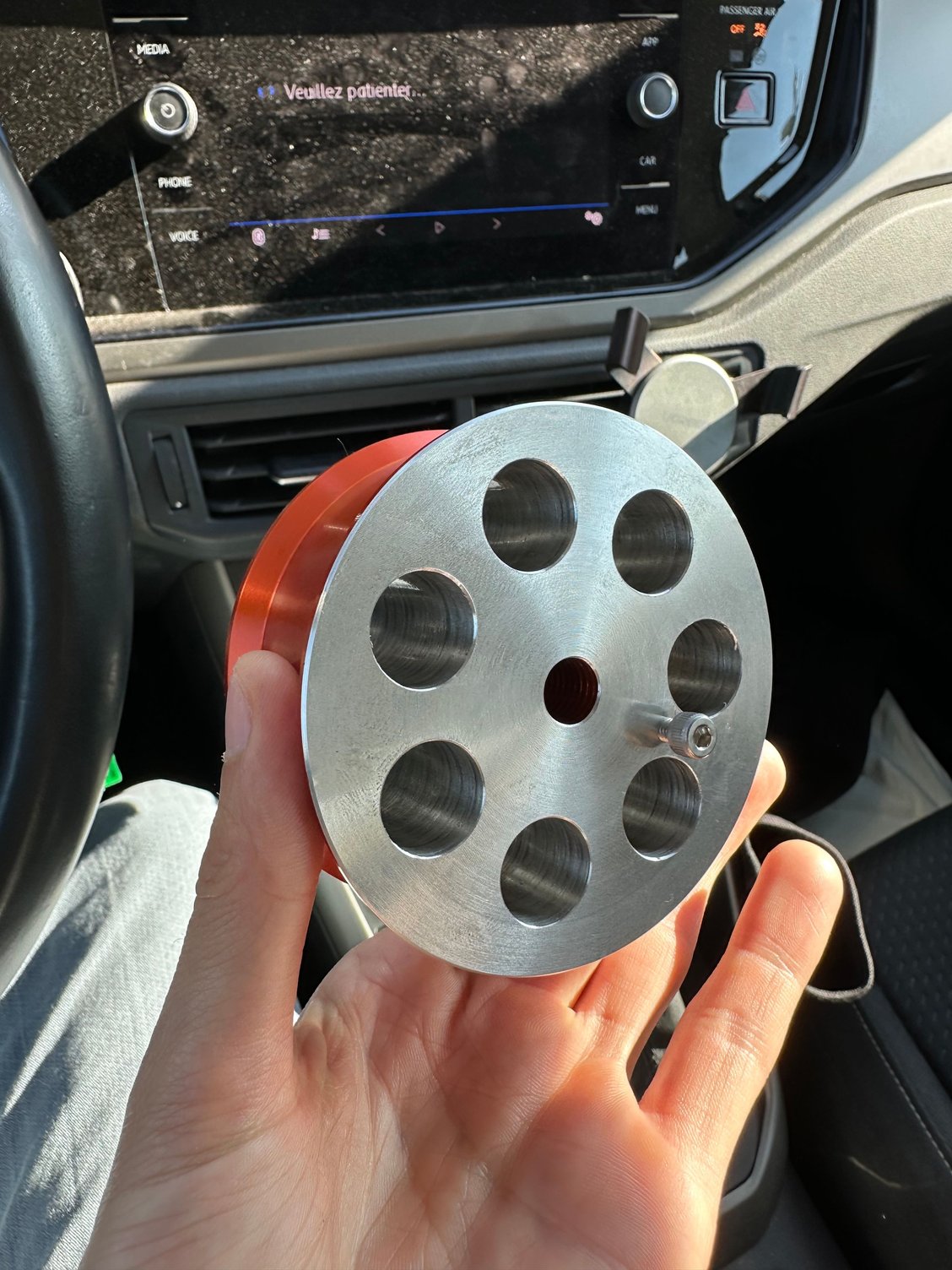

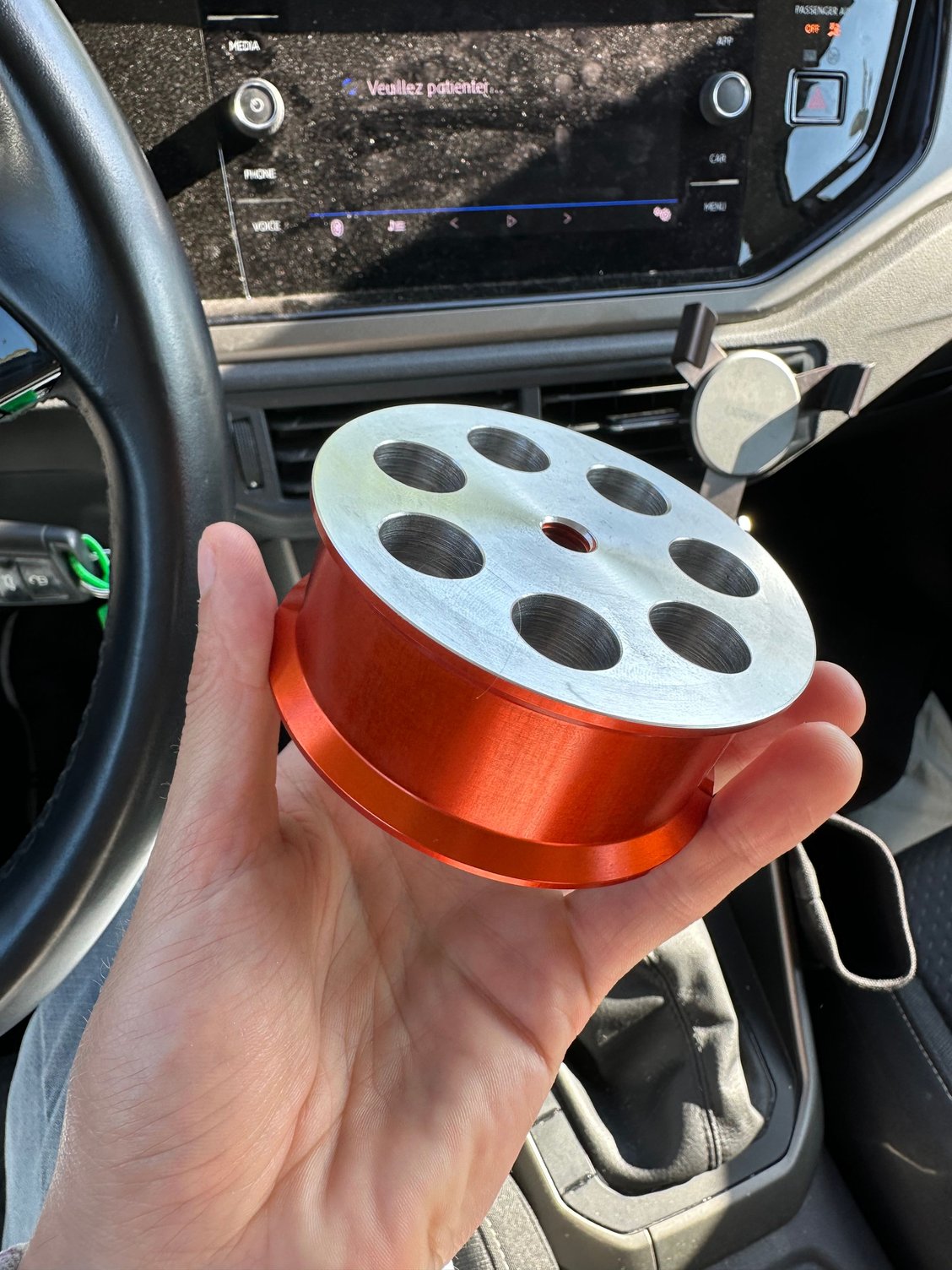

@j9fd3s quick question : I’ve got super now solid engine mount. I checked and I ordered 46mm height one. Since I’ve got the thick sump baffle plate didn’t I need shorten one like you said on a previous reply here ? I don’t know the stock height…

I’ve got a little screw on 1 face of each super now mount. Don’t know if it need to be on top or lower when mounted… I will check later.



i thought there were 46mm mounts, and -10mm or 36mm mounts, but i don't see the shorter ones?
it also turns out that the Super Now! stuff is based on something else, and that one machined the aluminum engine mount arm.
or maybe its fine?



so they both 46mm

after checking on their website (very hard to understand because Japanese only).
Super Now say : you need to remove 10mm to 1 engine mount.

I will try to find someone locally who can do it

thanks for your reply !



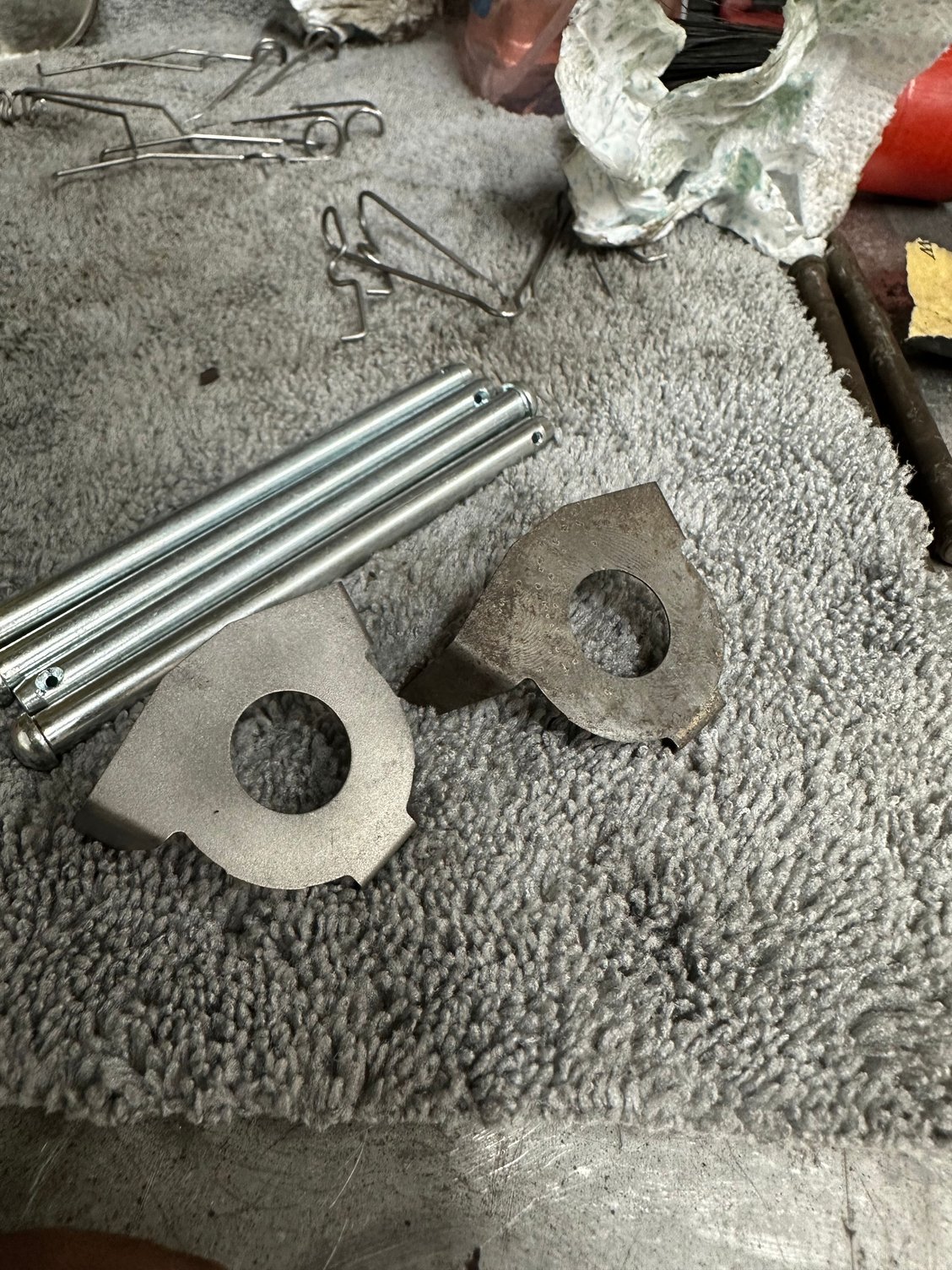

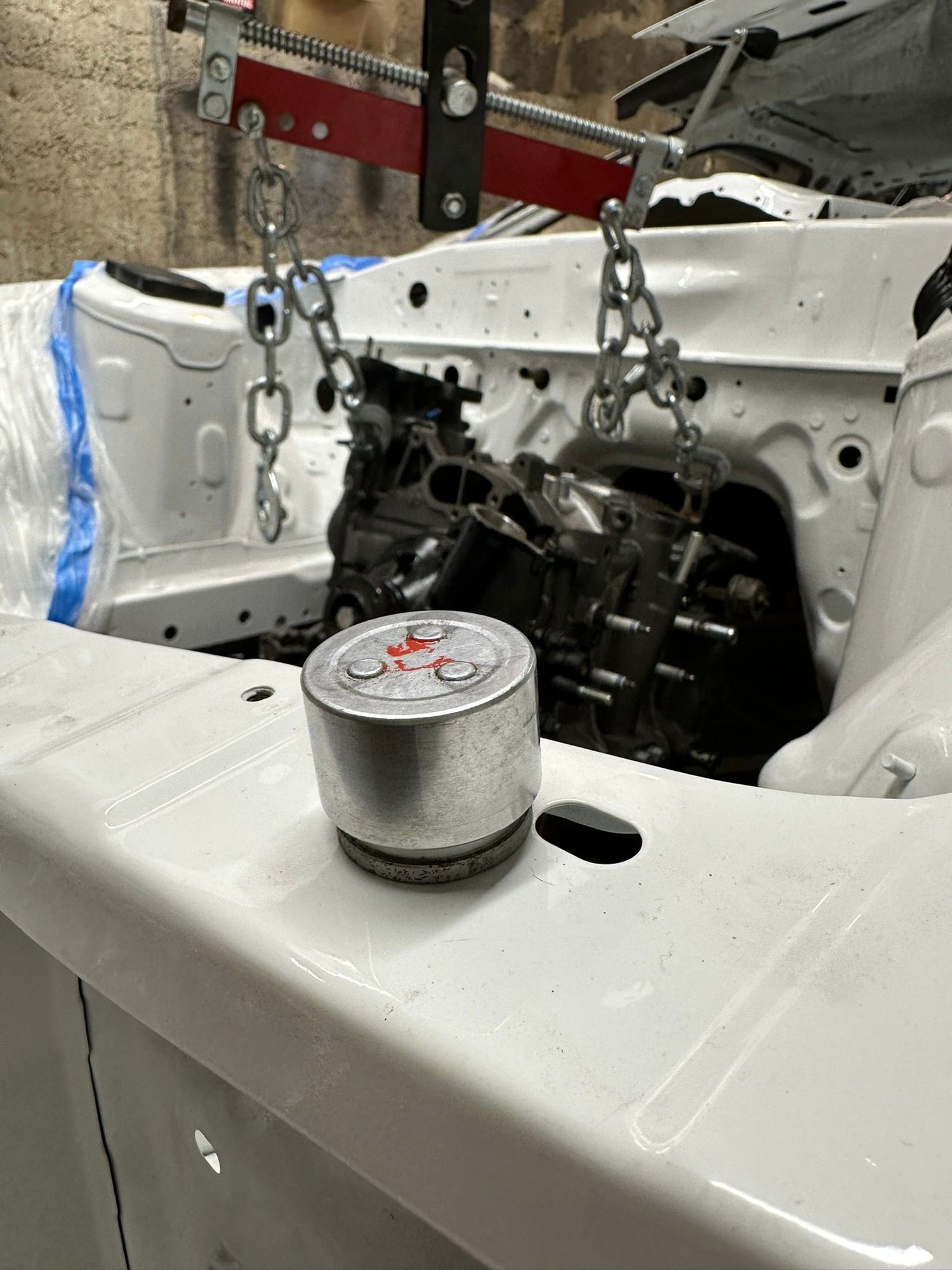

I didn't know but 1 kit = 1 pair of caliper

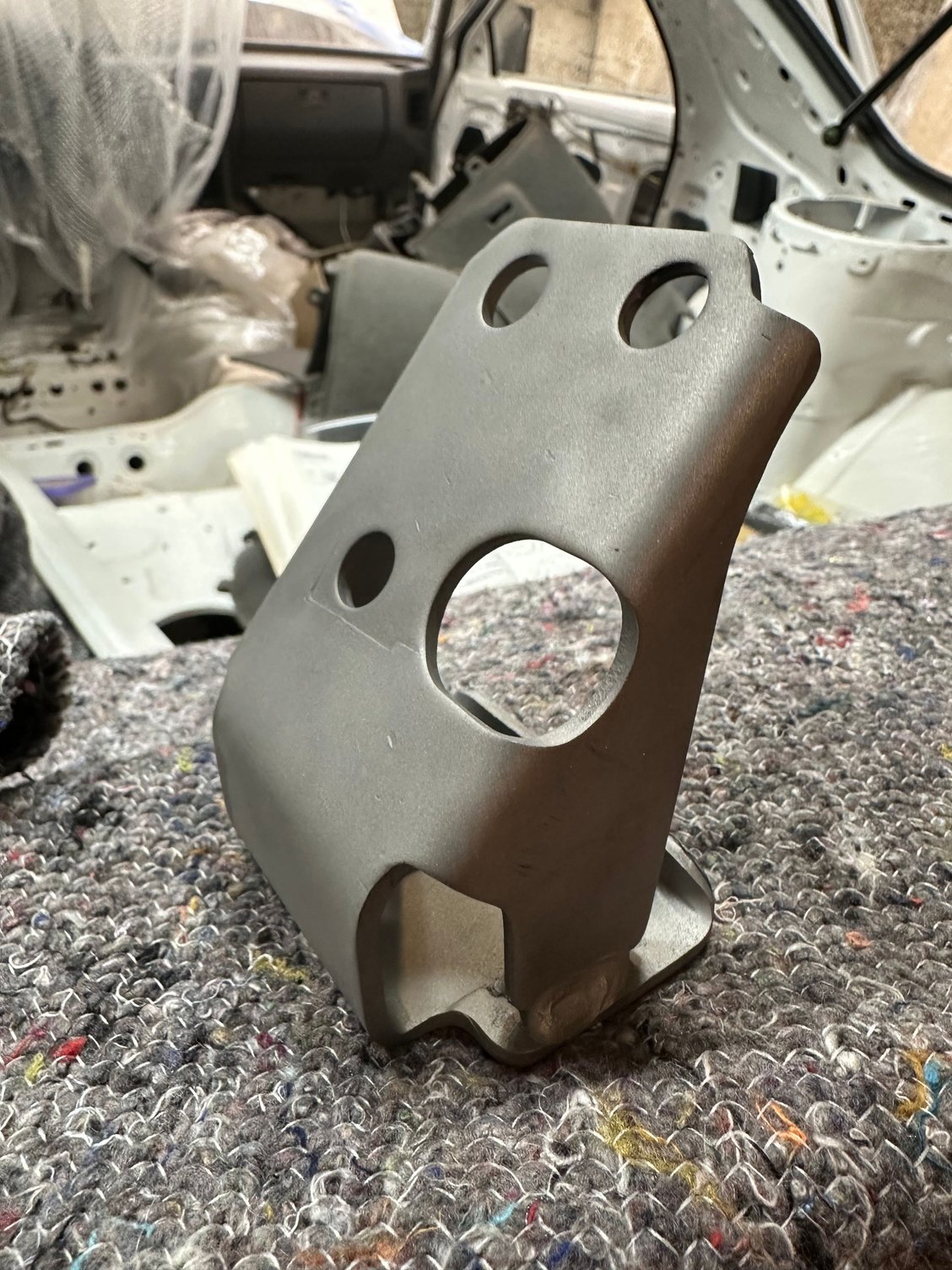

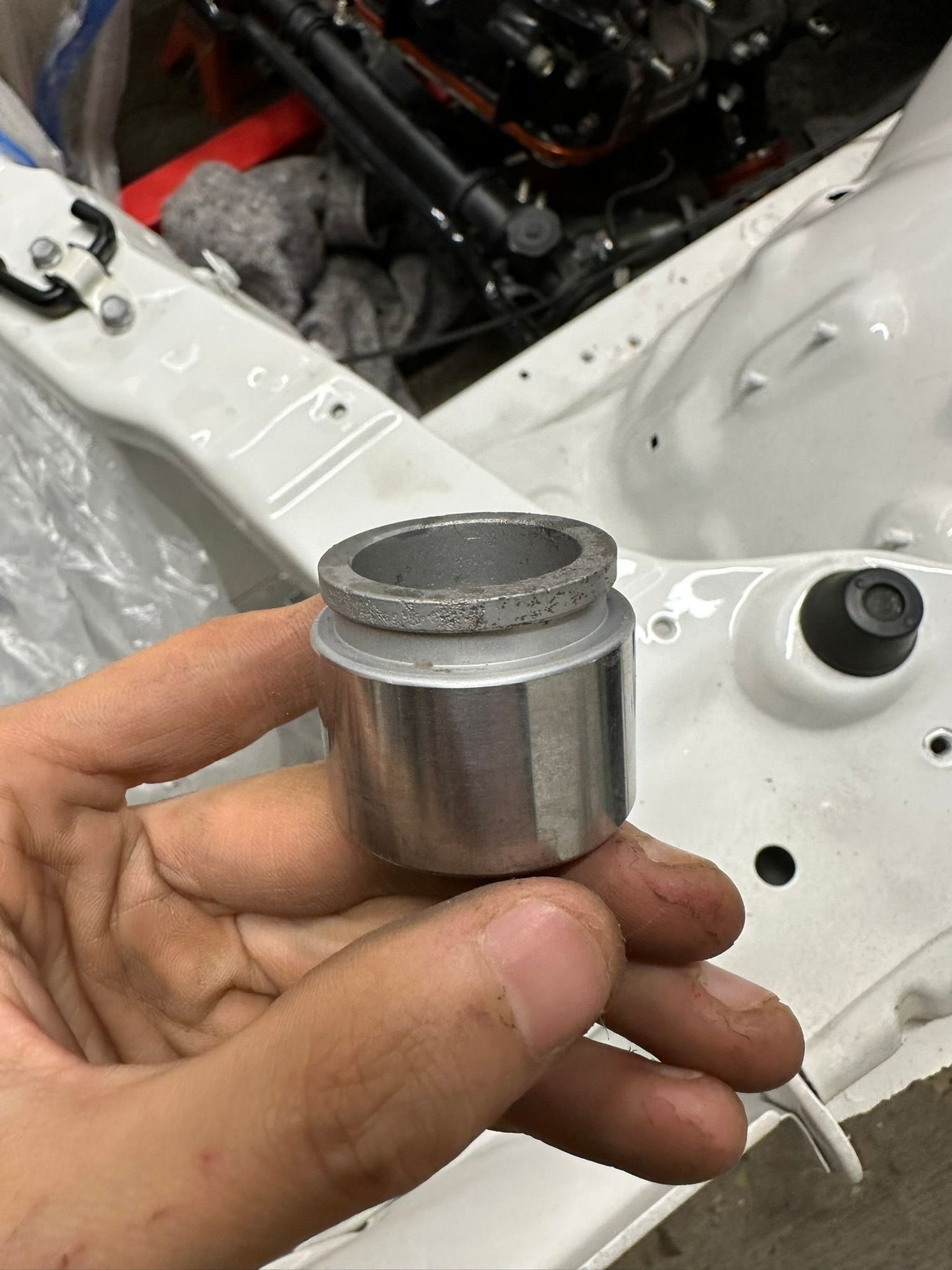

Pitting from rust

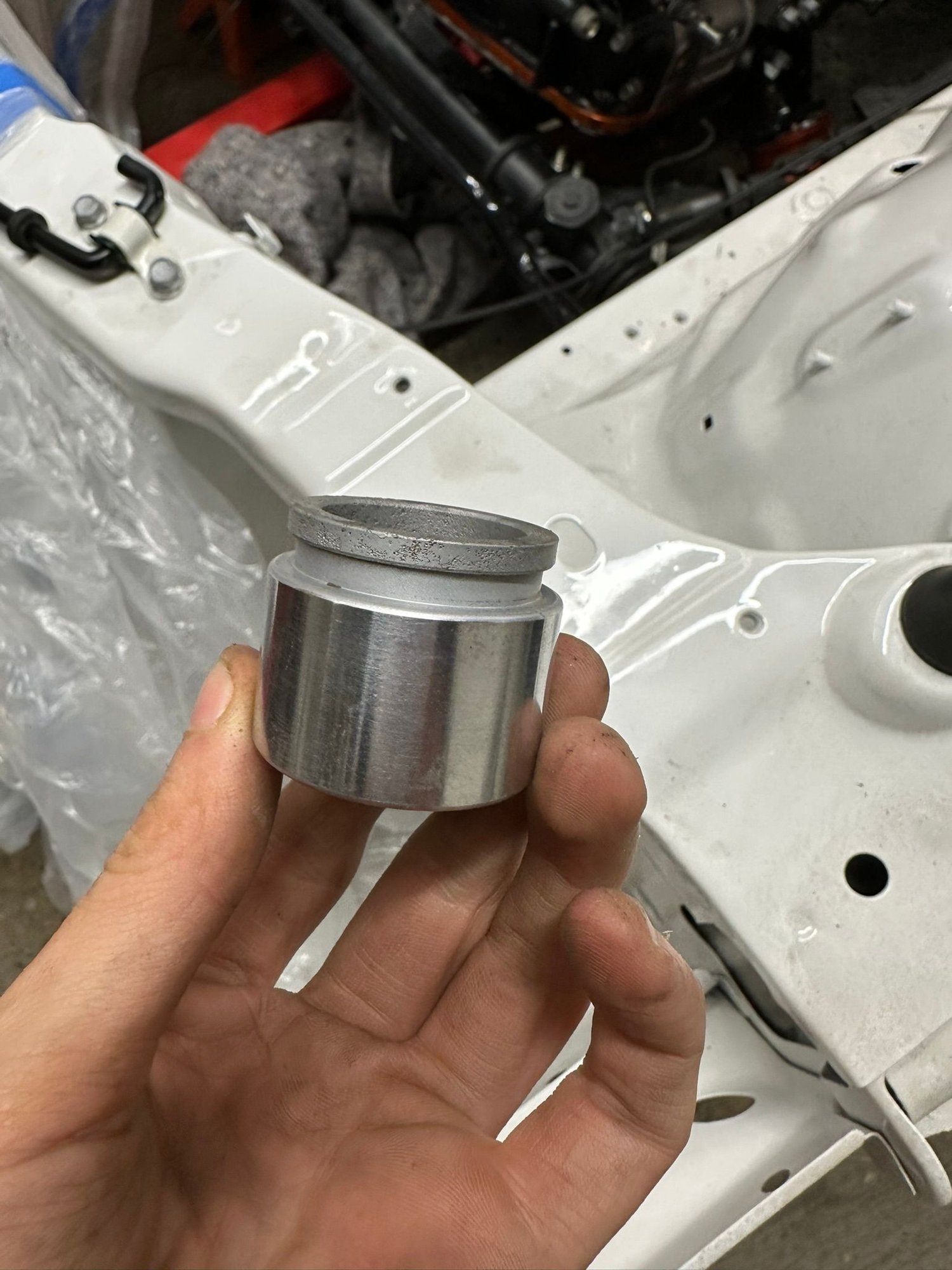

I lightly sandblasted the upper part to remove rust

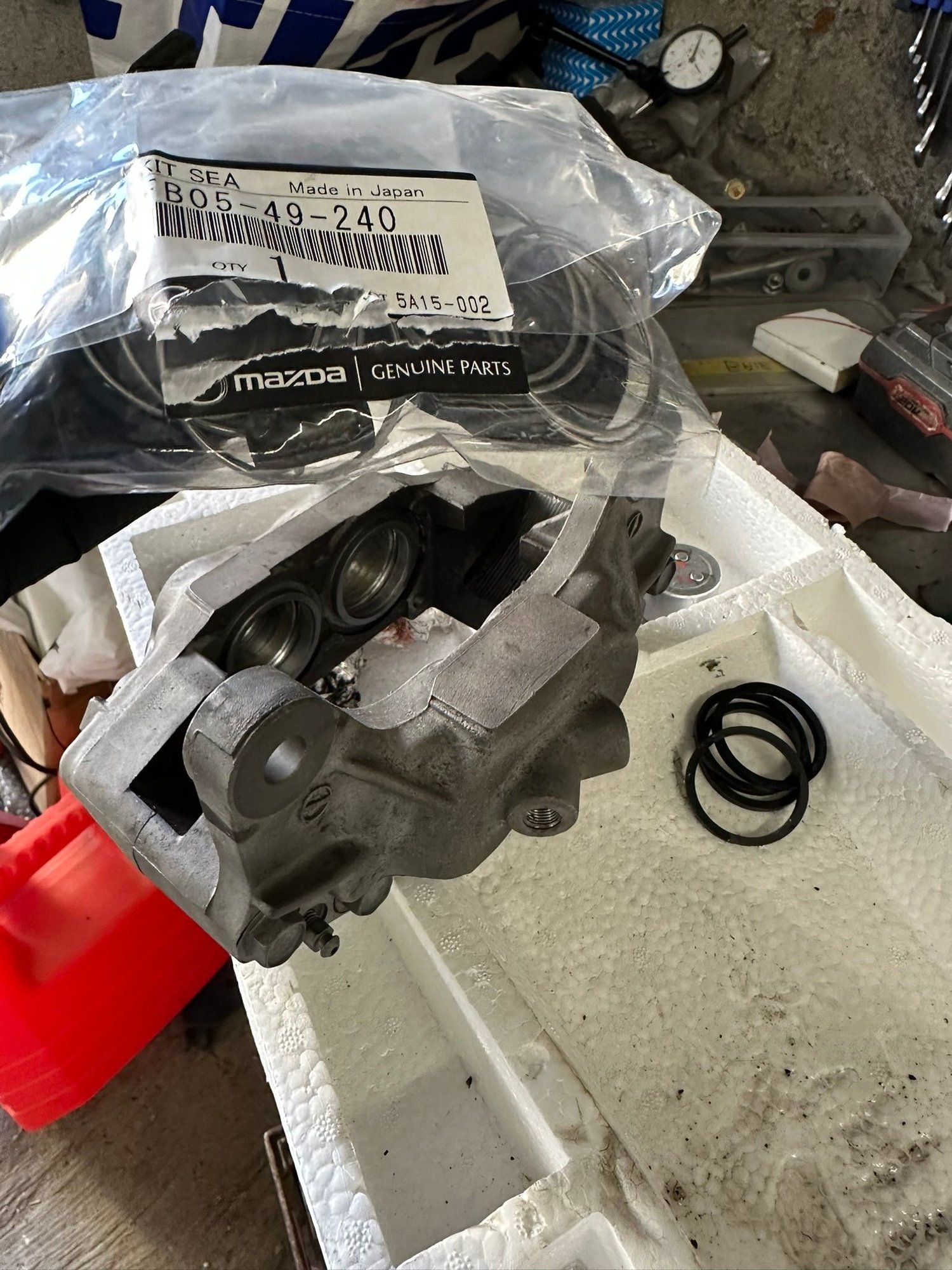

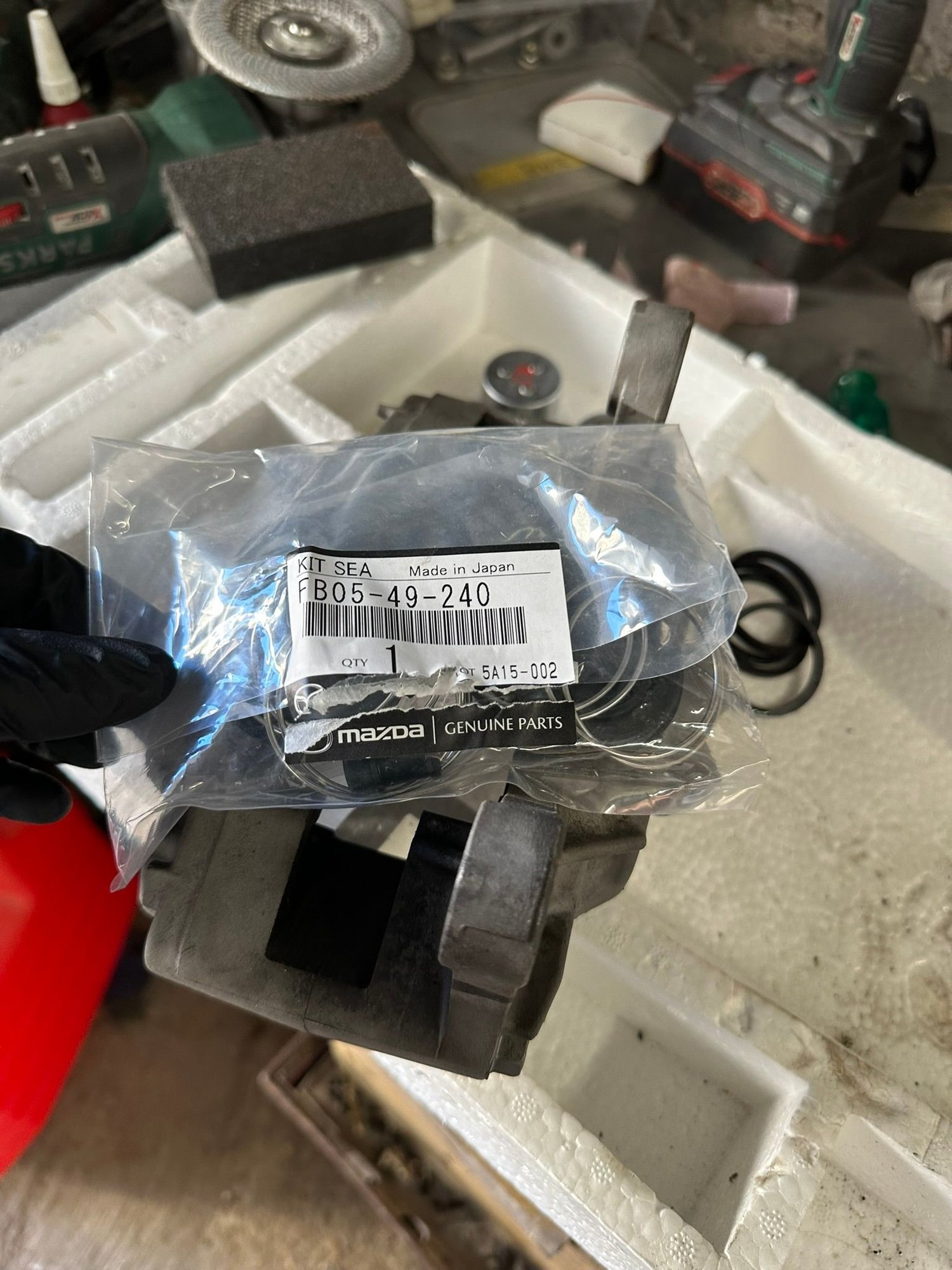

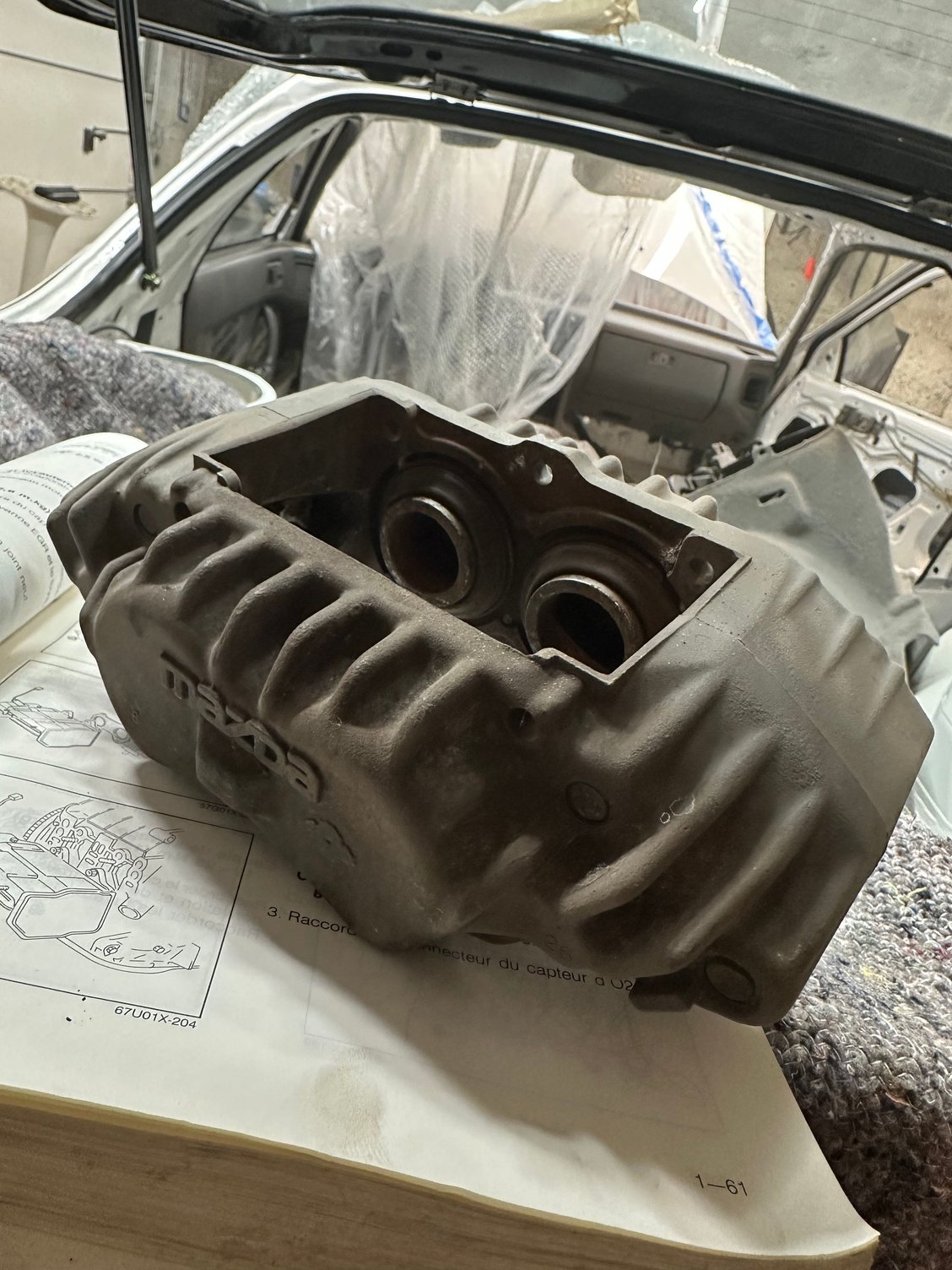

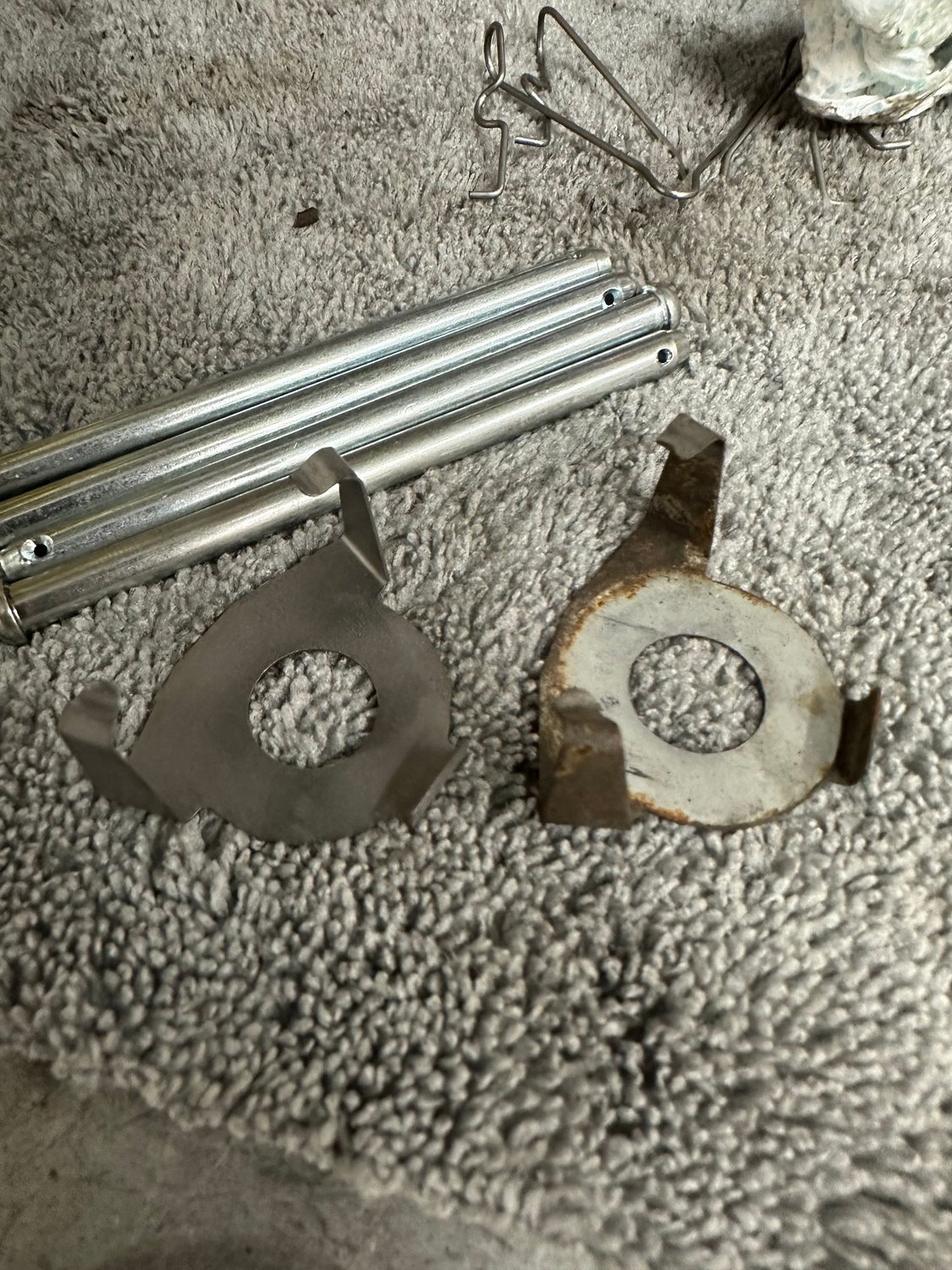

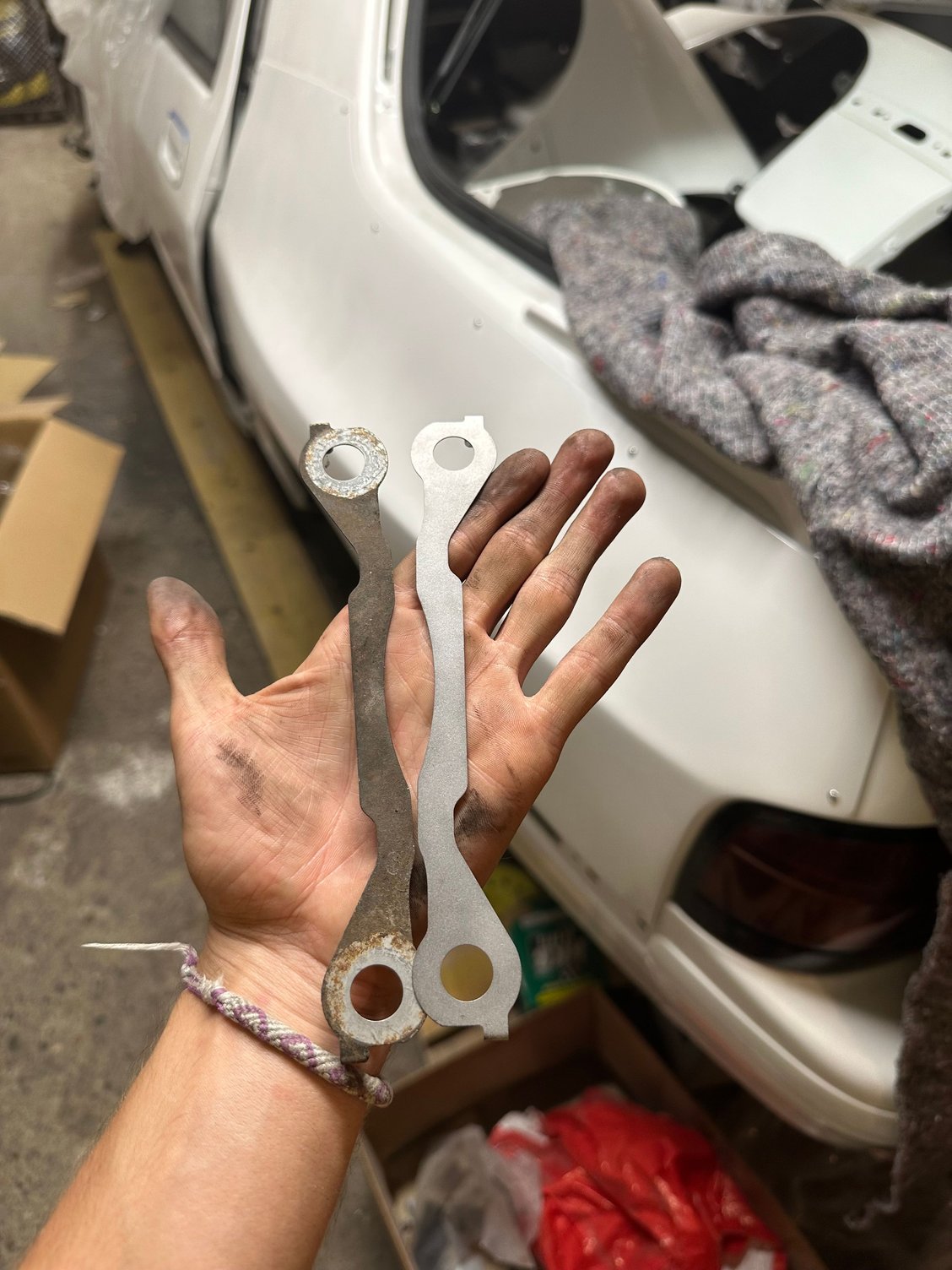

OEM Mazda rebuild kit


This one is the second pair, previous owner said to me he rebuild it. Yeah for sure, you just paint on rust....

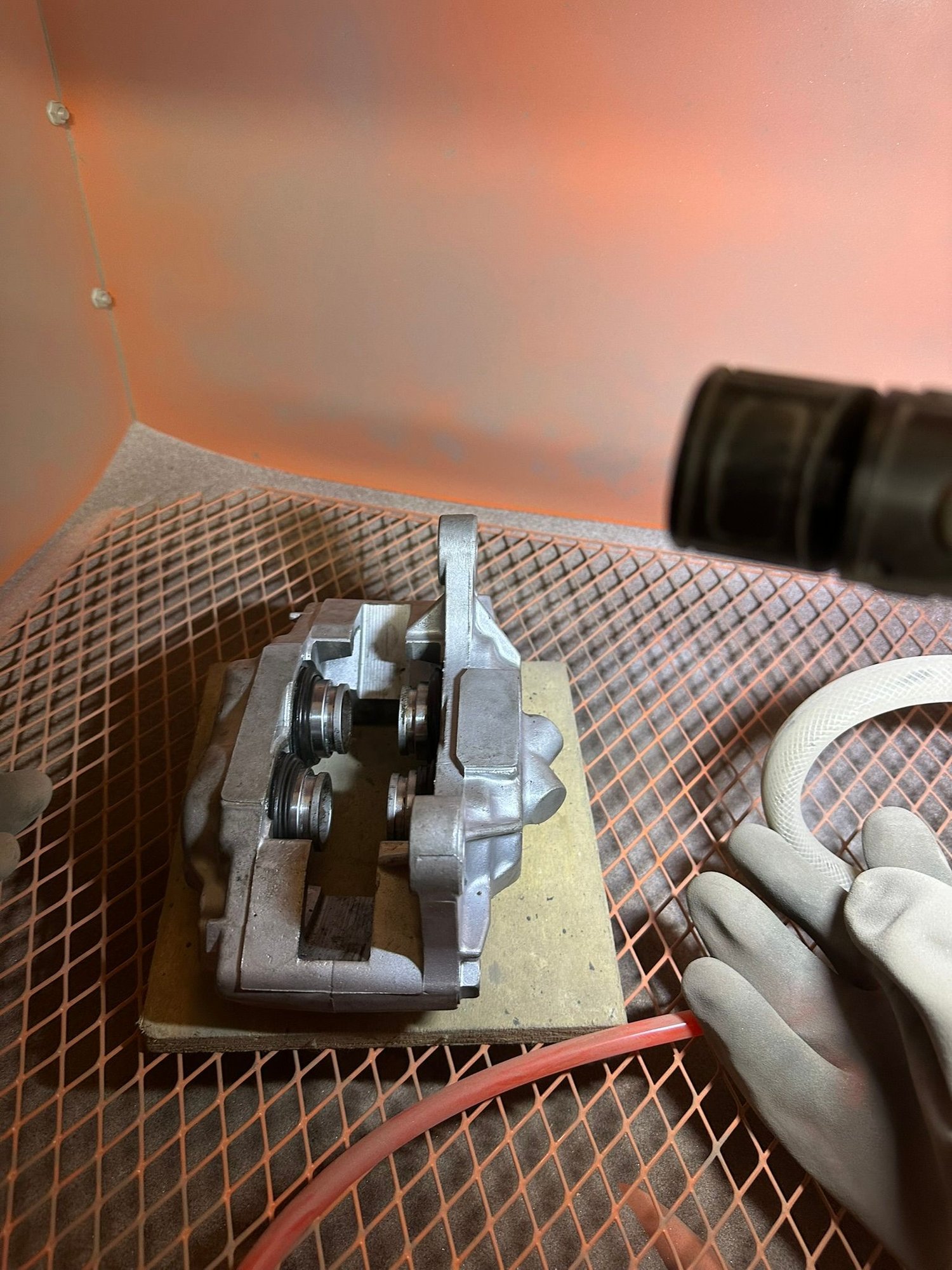

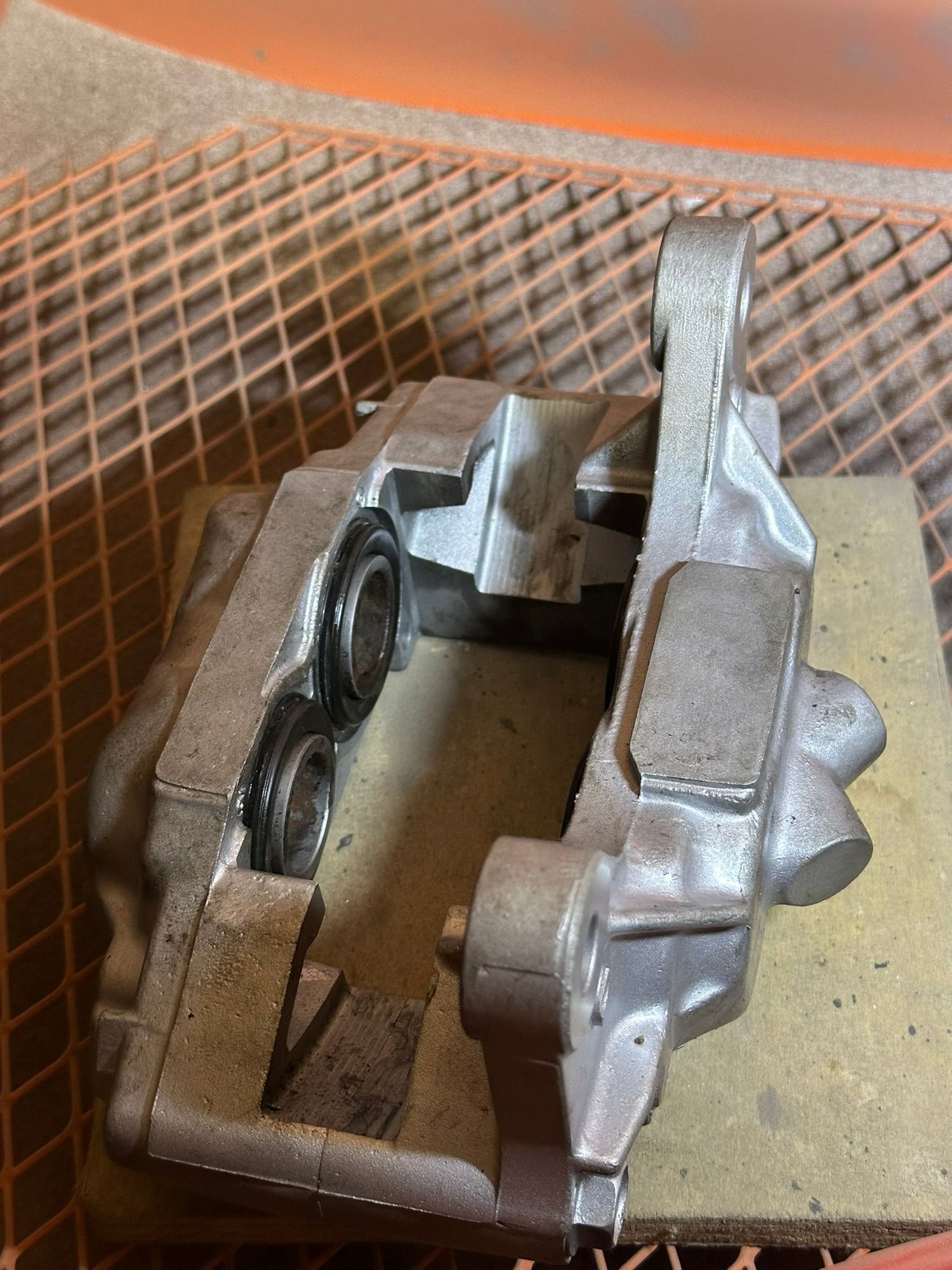

Sandblasting time, only the exterior

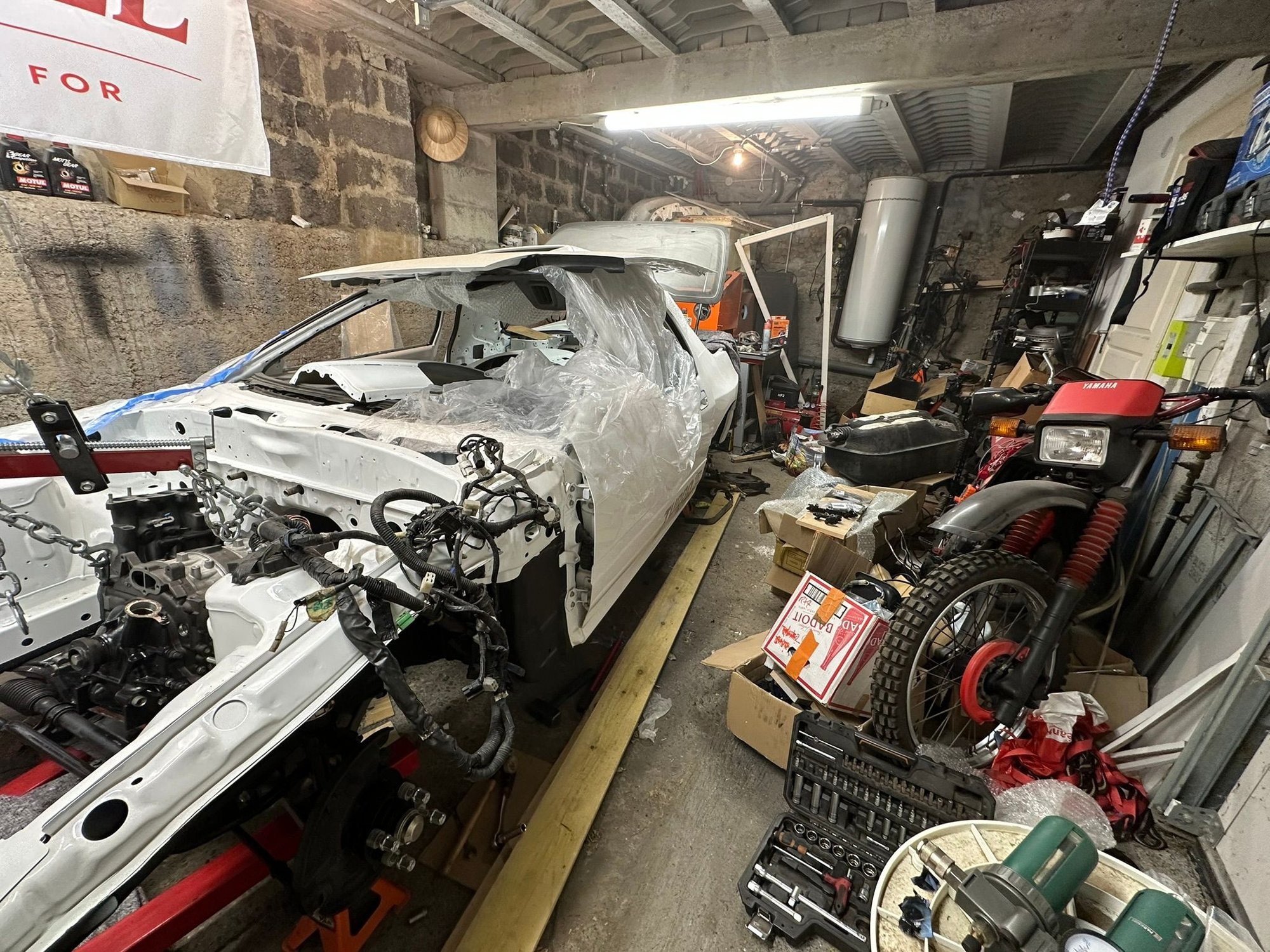

Current situation



Bunch of photos

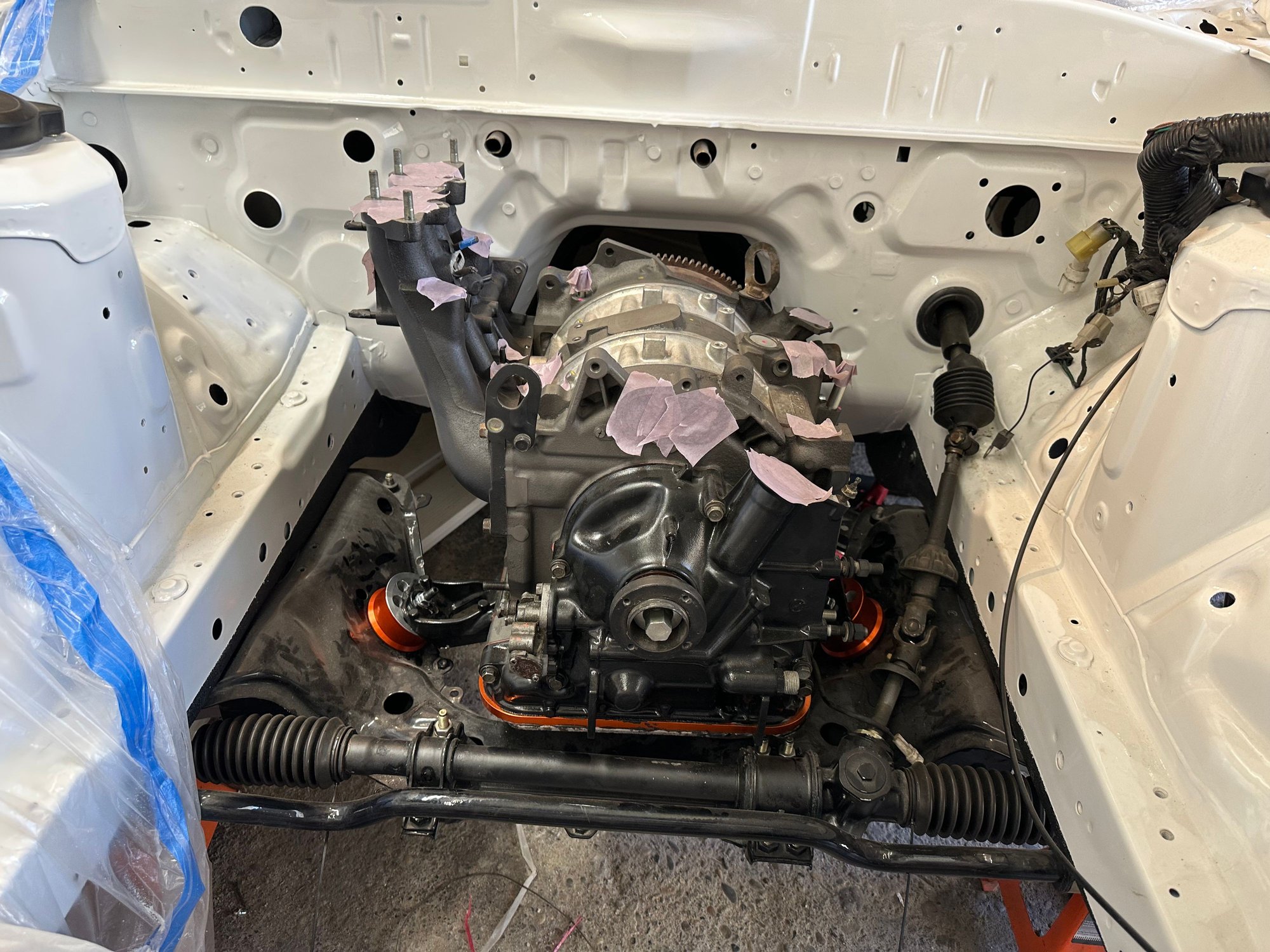

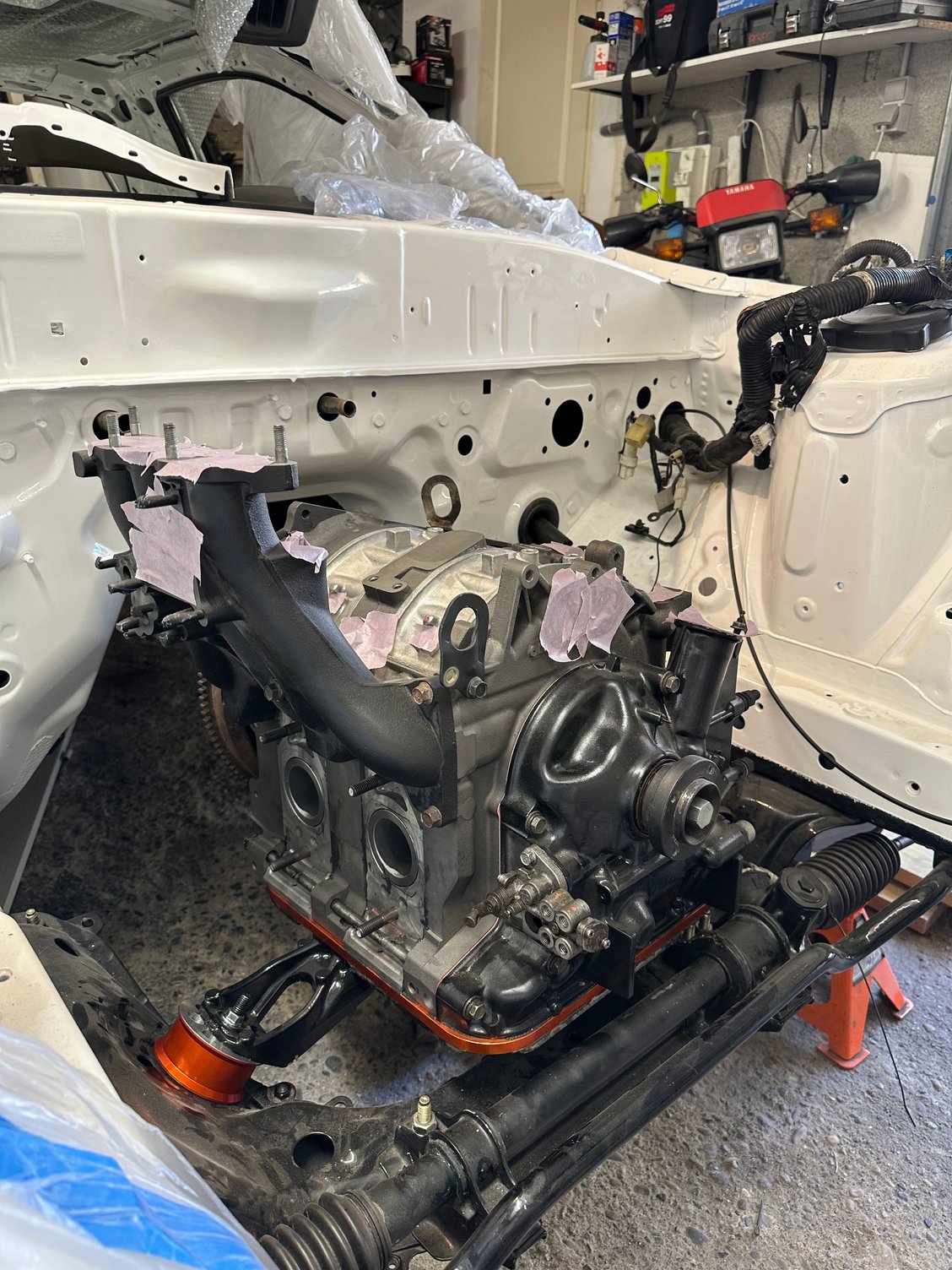

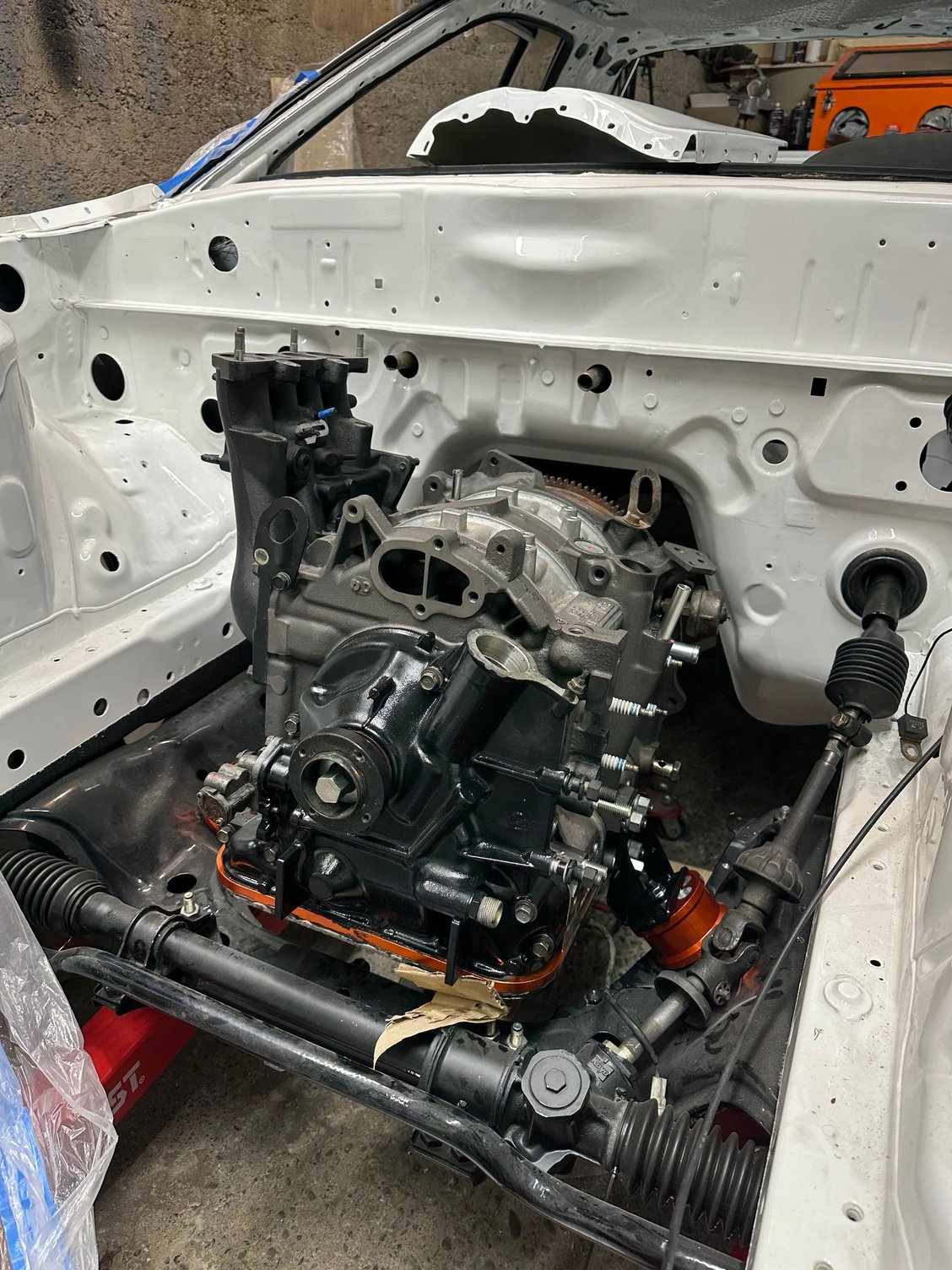

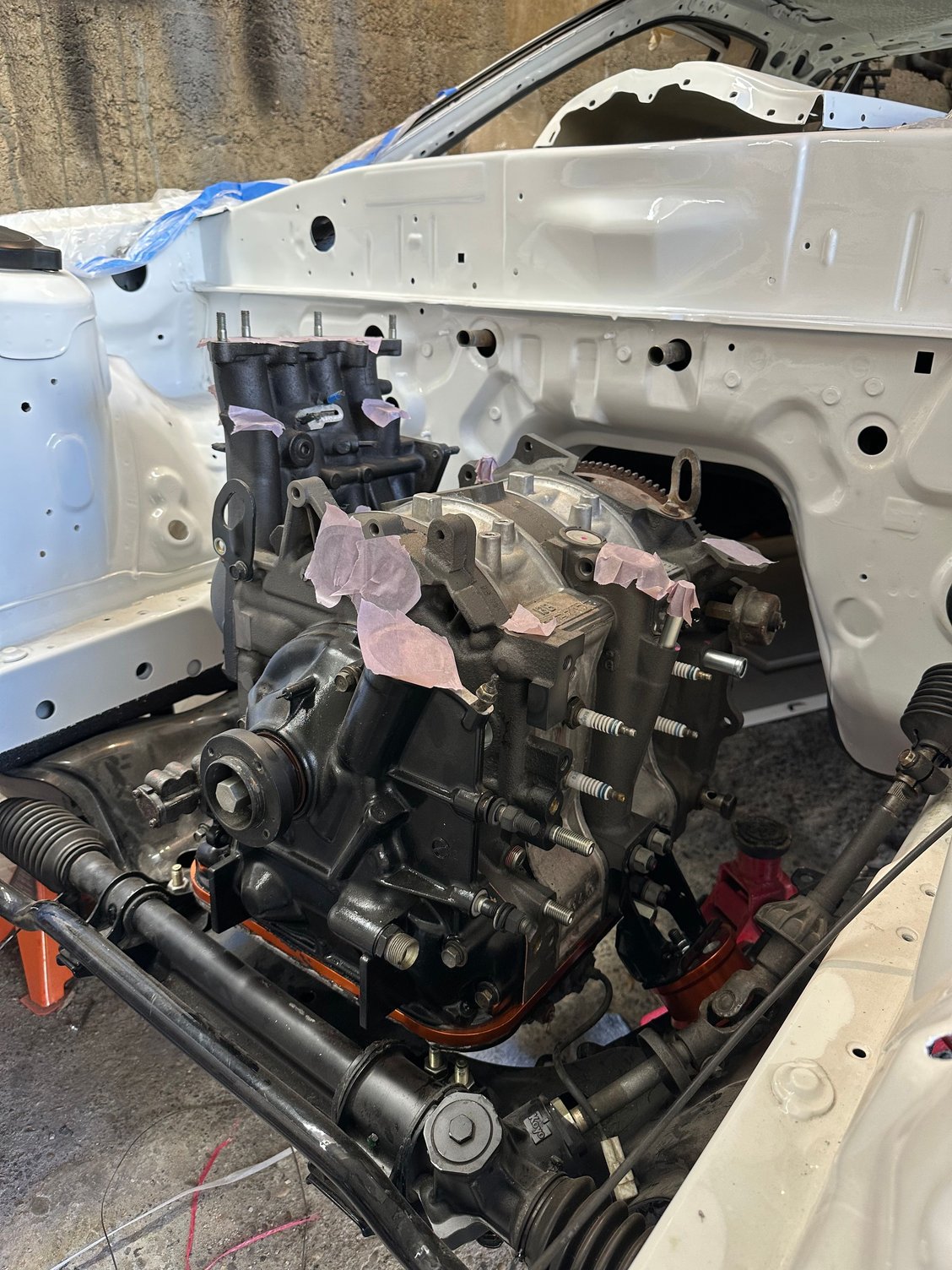

Engine is now sitting in his bay.

last pic is the left engine solid mount with 10mm removed, 5mm on each faces.

Now, I need to finish rebuilding calipers and after I hope I will work on the differential.



I can't help but be impressed. I don't feel quite so intimidated with my own "restoration".



[img alt="Front brakes are now fitted. But I need a spacer behind the rotor. I think 4 lug hub a deeper compare to 5 lugs. When you bolt the rotor it will touch the brake shield but not only touch it’s gonna block it.
Now I know to figure it. Spacer behind the rotor ? Mmm don’t really like the idea. Remove the brake shield ? Easy. Cut the brake shield where it touch ? "]https://cimg1.ibsrv.net/gimg/www.rx7club.com-vbulletin/2000x1504/img_5283_e680a527ed7119ea7fe30b91ca3d53e9ff88b5c3. jpeg[/img]

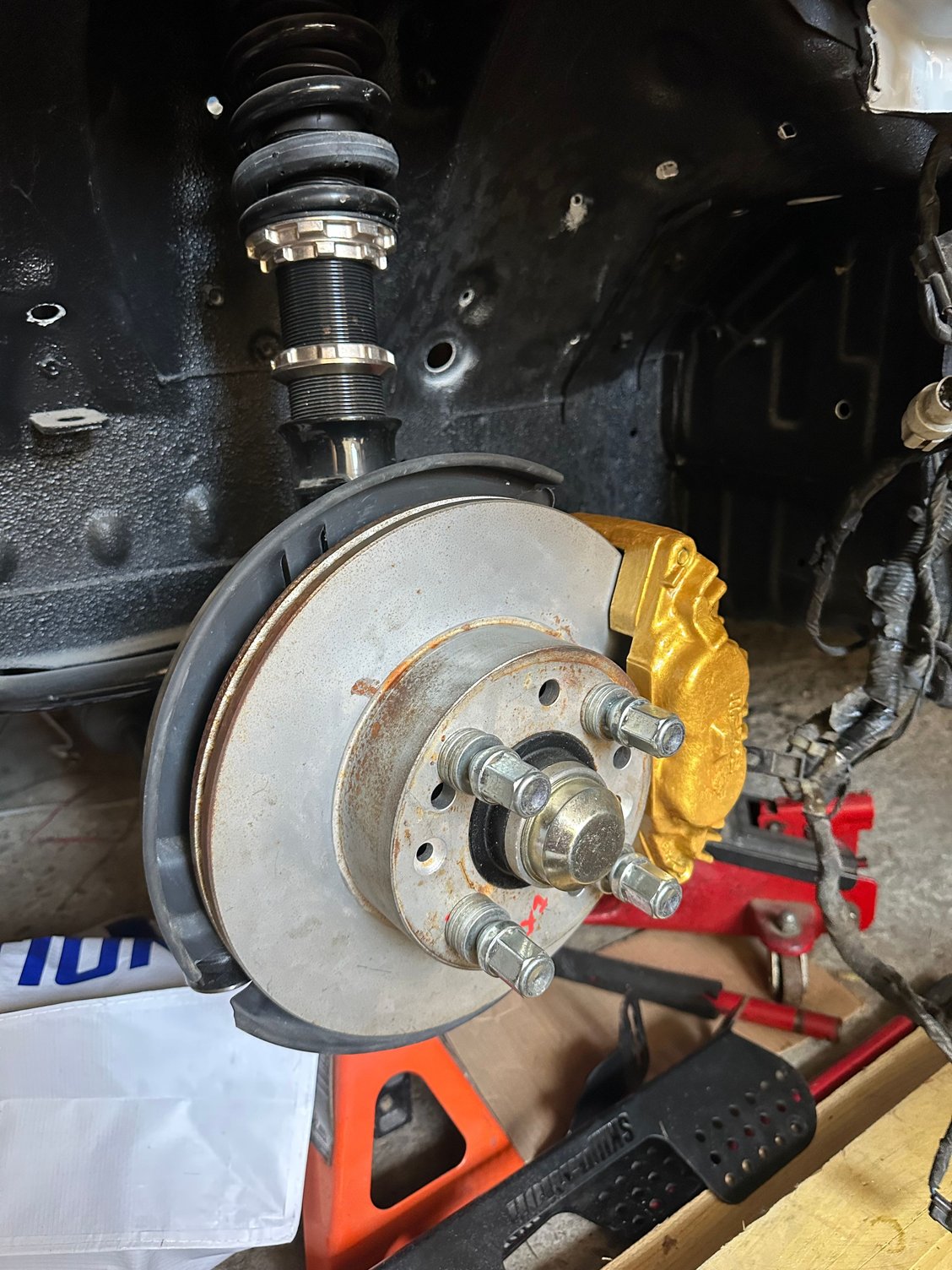

Front brakes are now fitted. But I need a spacer behind the rotor. I think 4 lug hub a deeper compare to 5 lugs. When you bolt the rotor it will touch the brake shield but not only touch it’s gonna block it. Now I know to figure it. Spacer behind the rotor ? Mmm don’t really like the idea. Remove the brake shield ? Easy. Cut the brake shield where it touch ?

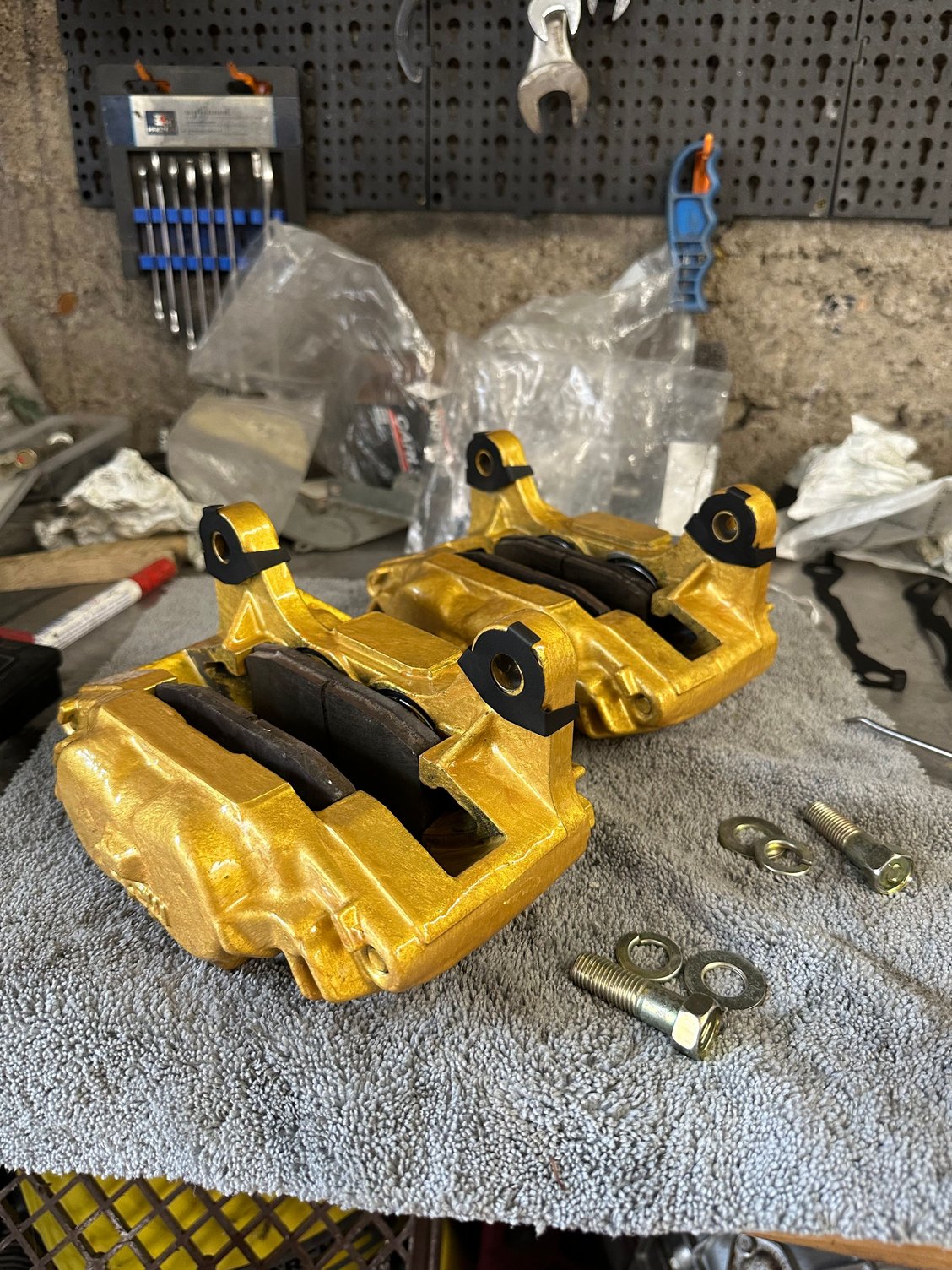

Front brake are now done. I’ve fitted previous brake pads. I will order new/better one later

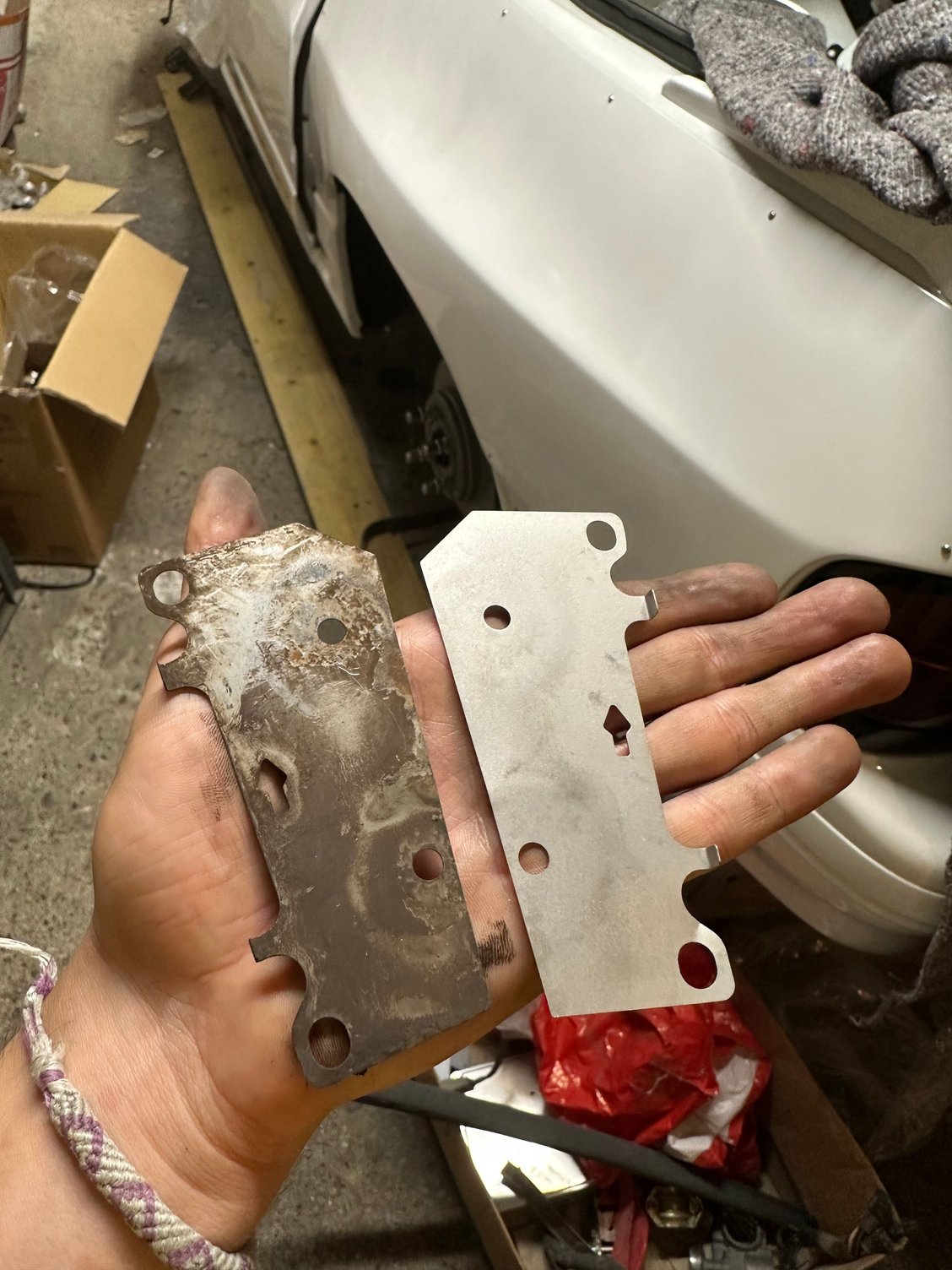

Sandblasting is so good. Everything look so clean after it
..



Awesome progress so far! Wish I too had room for a blast cabinet!



Mine is 40gallon, I've put it in top on one of my workbench.

189€ (219USD), I regret not buying him sooner.



Hello,

I'm looking at clutch option. Everybody here seems to like this one : Z65-XTSS from ACT.

I've checked on their website and it say : I'm still using stock flywheel, and I don't see why I need counterweight ?

Oh boy : Price is 821,98€ where US felow is 447€



It is possible that the clutch requires a different flywheel.

Otherwise, I don't know.

I will give you a bump for some help.



I emailed ACT this morning to ask them.

Answer :



Hi,
Août update, +40°c (104F°), i think i will order an AC soon...

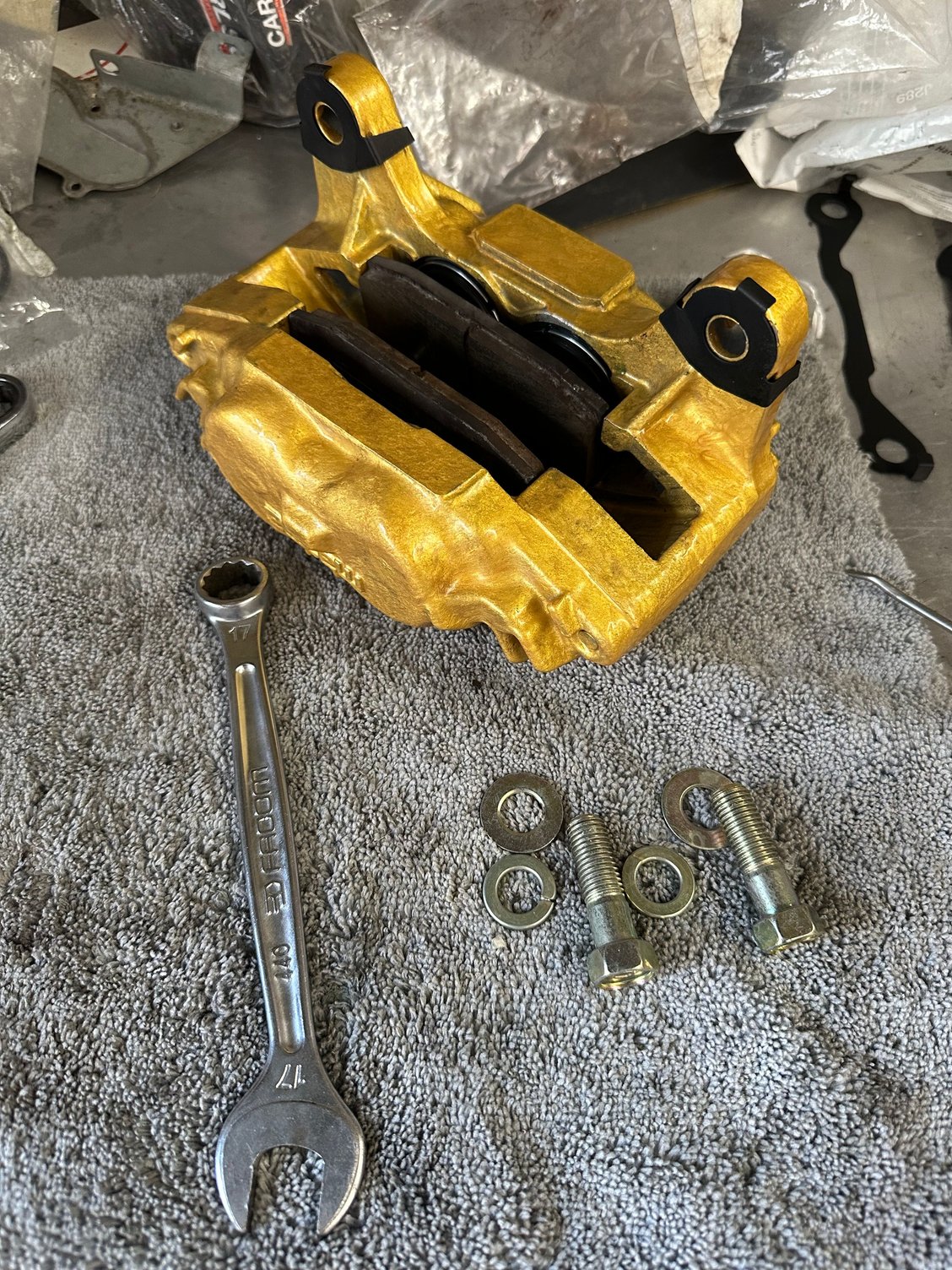

I post pic below, i've finish rebuilding my calipers, still need to find new boot for the rear, OEM one seems to be discontinued.
I've also receive my Franklin Performance parts, nice quality and fitment !
I'm gonna order new boot, washer and spring for the gearbox lever.

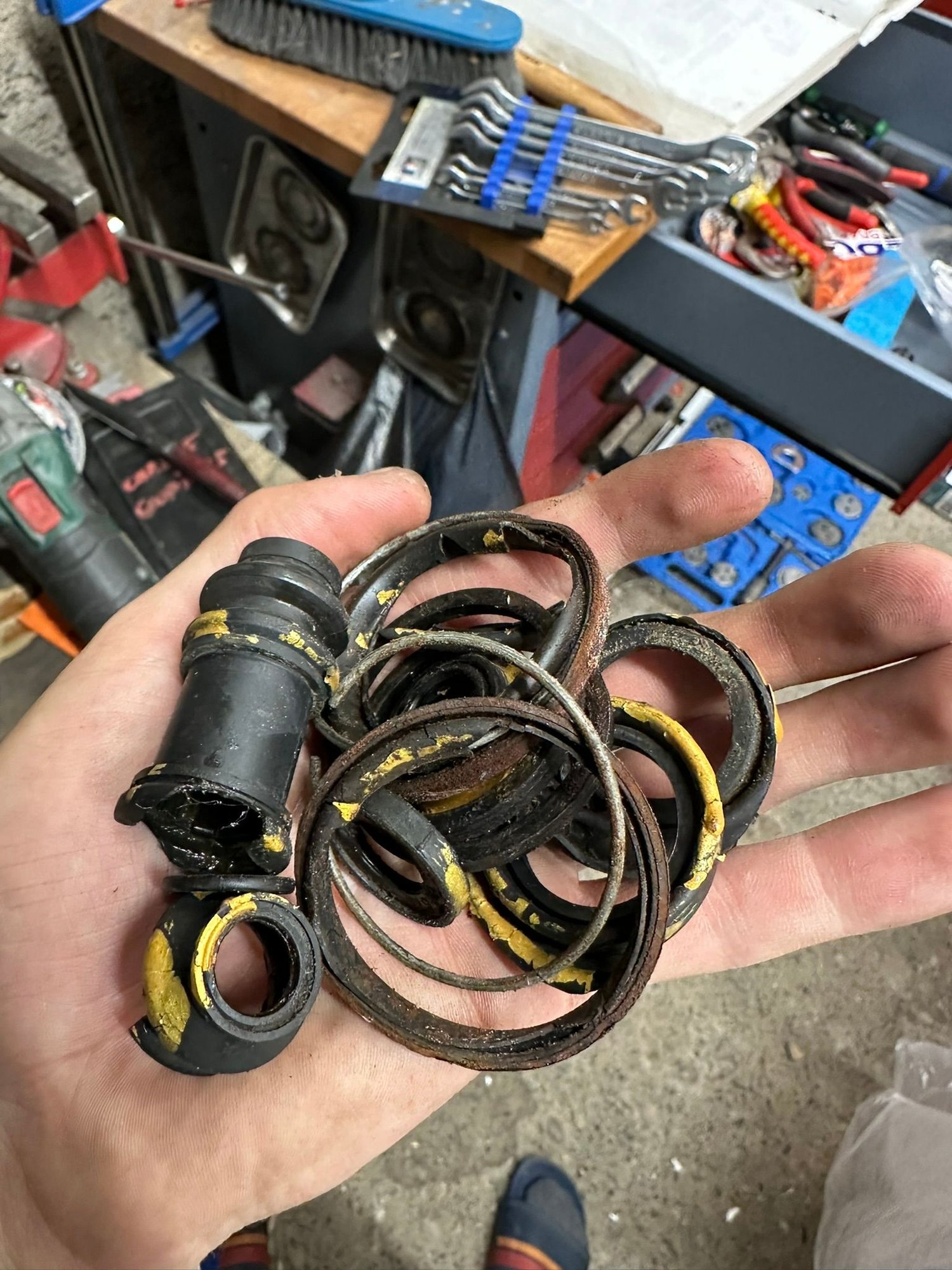

It was time to rebuild these rear calipers.....

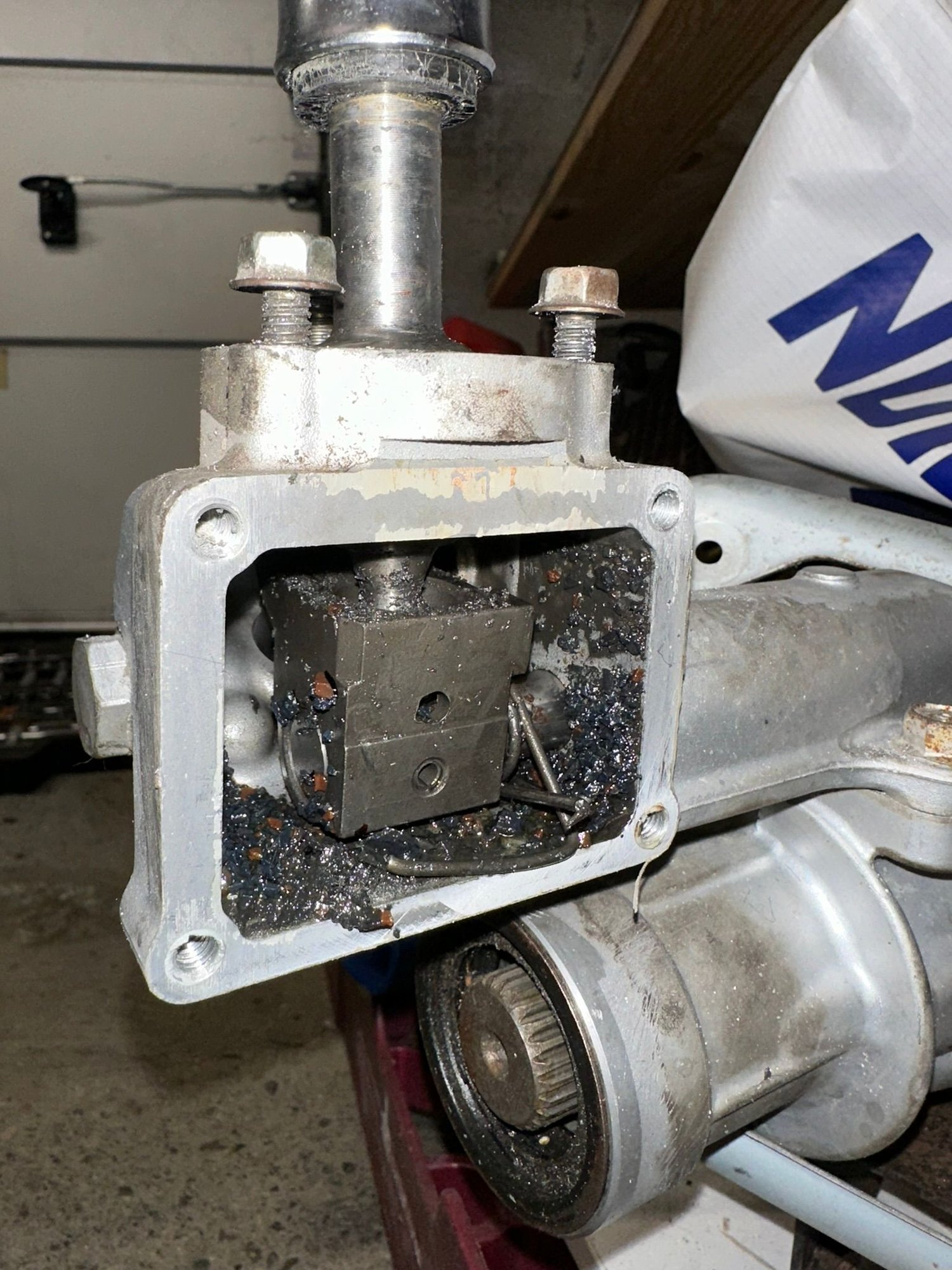

And time to order new return shifter spring

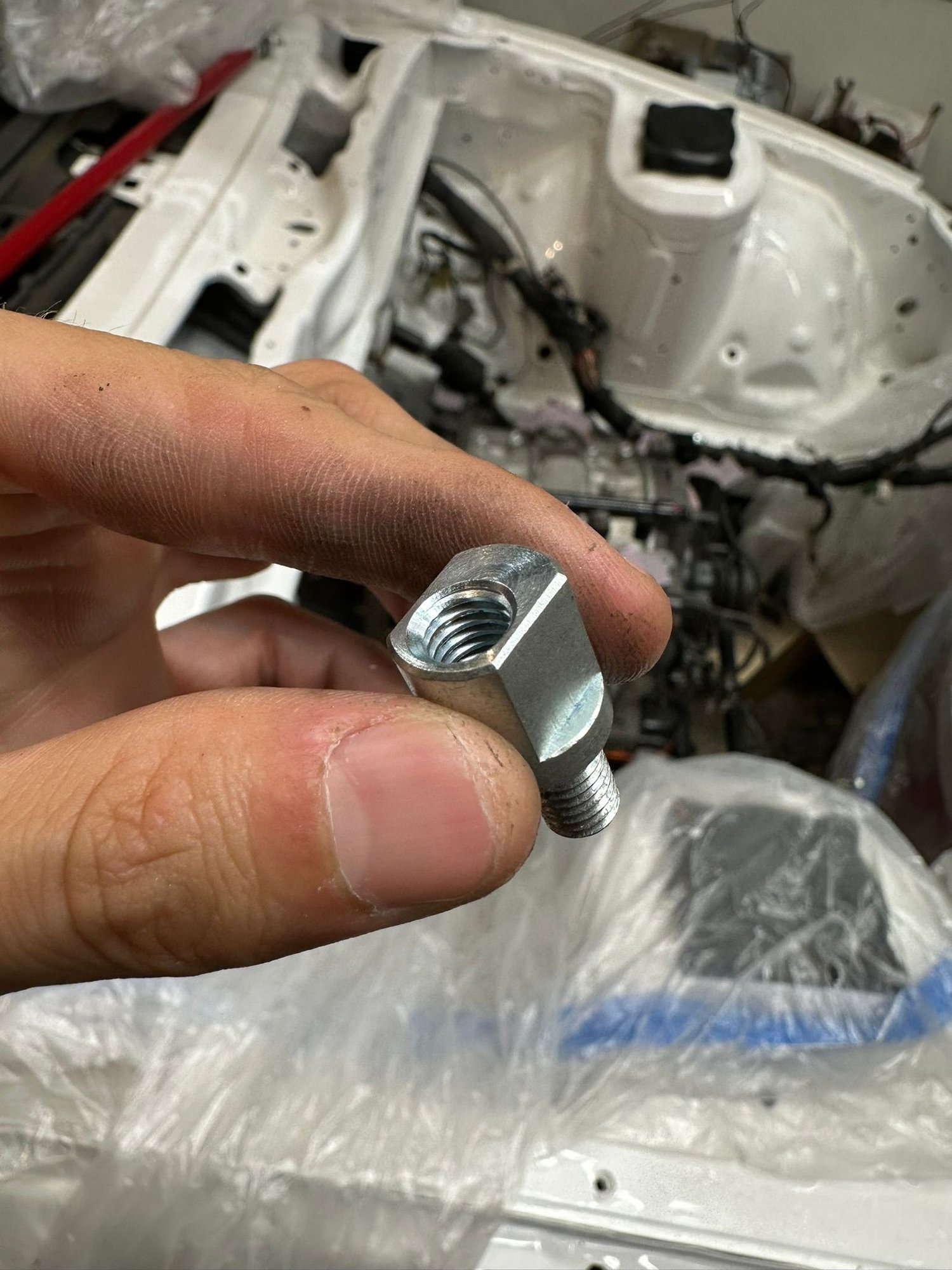

[img alt="These eccentric adapter are very good. Pain in *** to align but when done it looks good.
You need to remove OEM stud"]https://cimg1.ibsrv.net/gimg/www.rx7club.com-vbulletin/1500x2000/img_5421_fc3abfaee3af68337a541e74338e3104b9c0ee80. jpeg[/img]

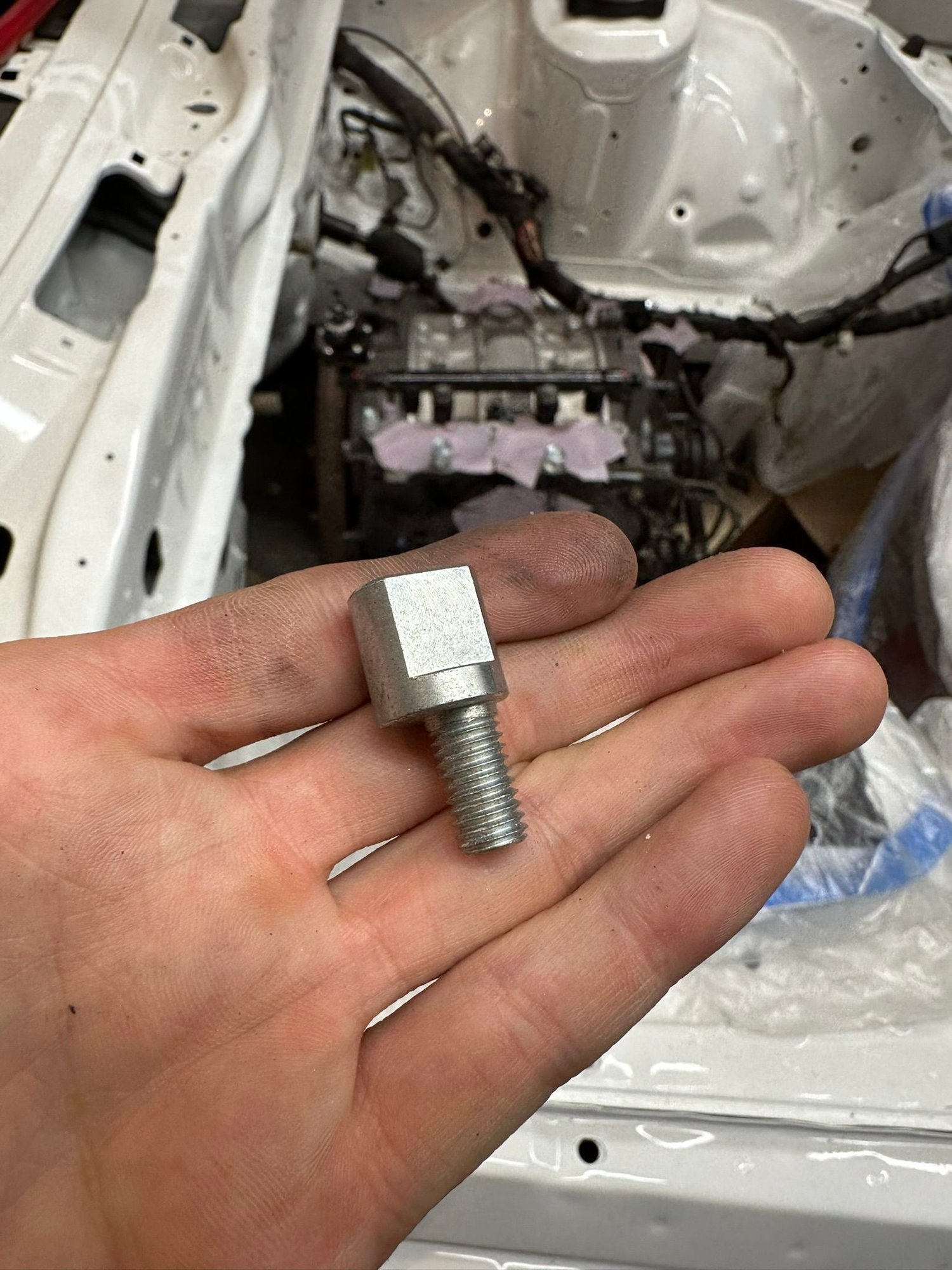

These eccentric adapter are very good. Pain in *** to align but when done it looks good. You need to remove OEM stud

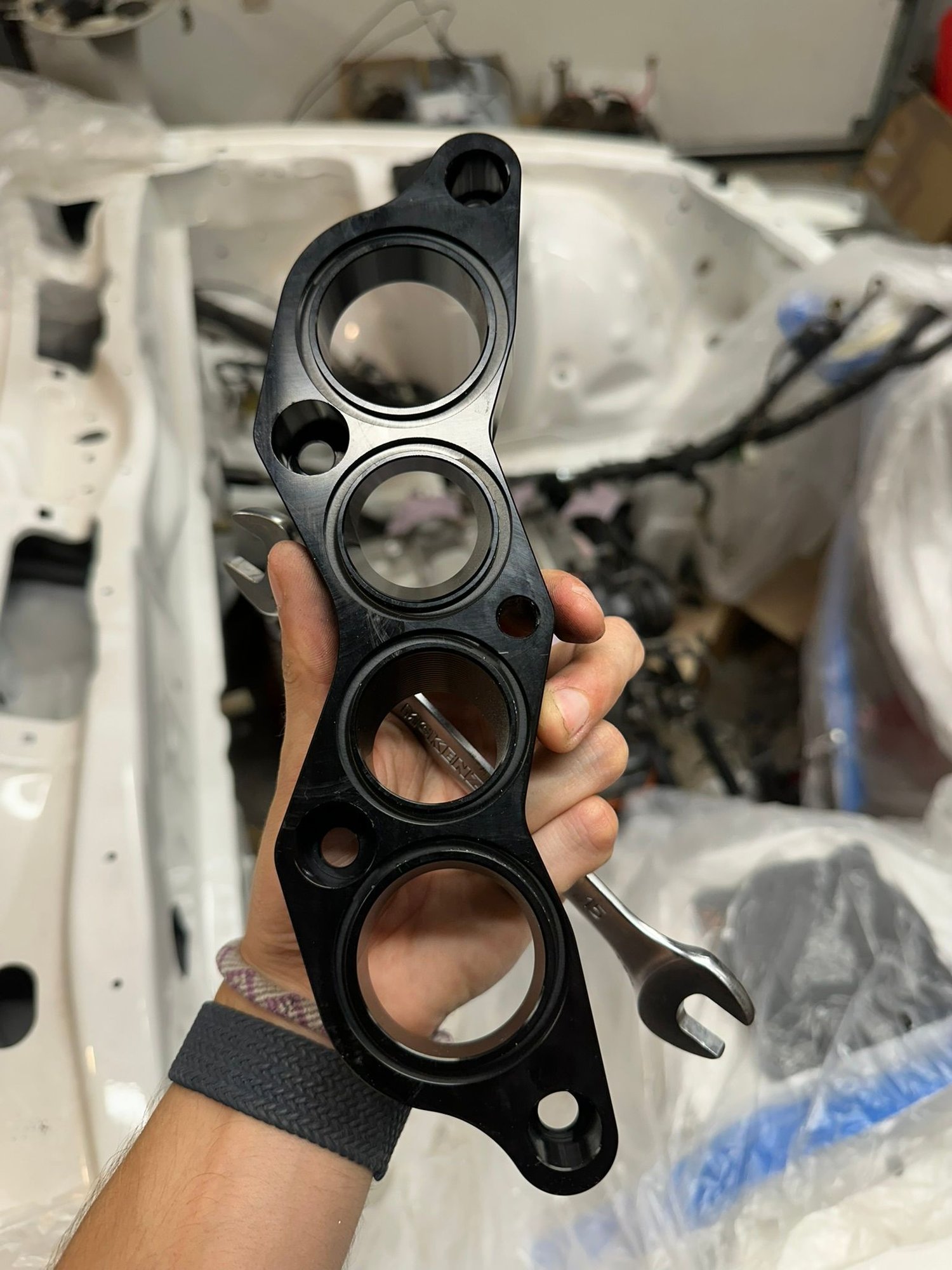

Adapter plate S4 to S6

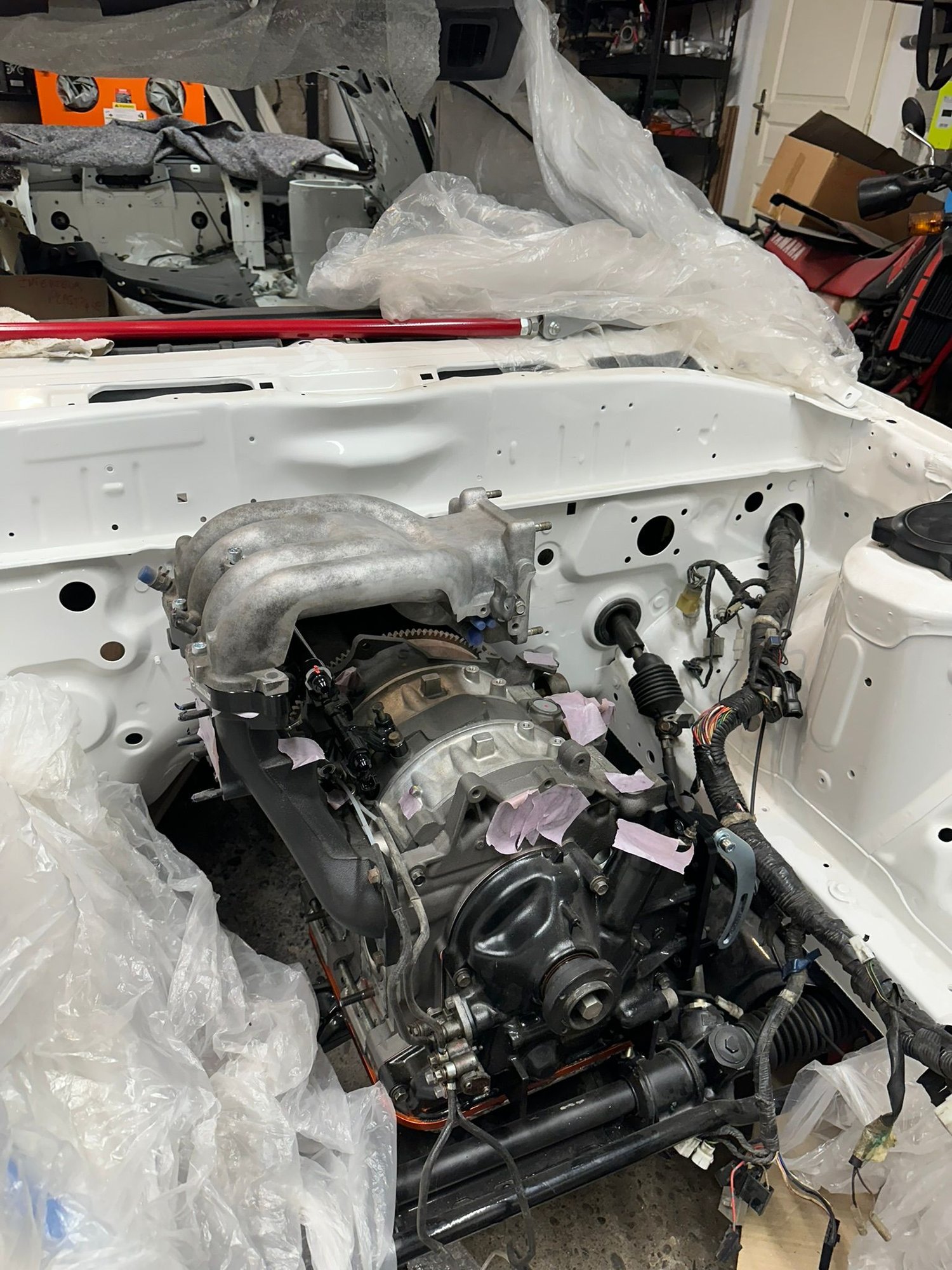

Raw fitment

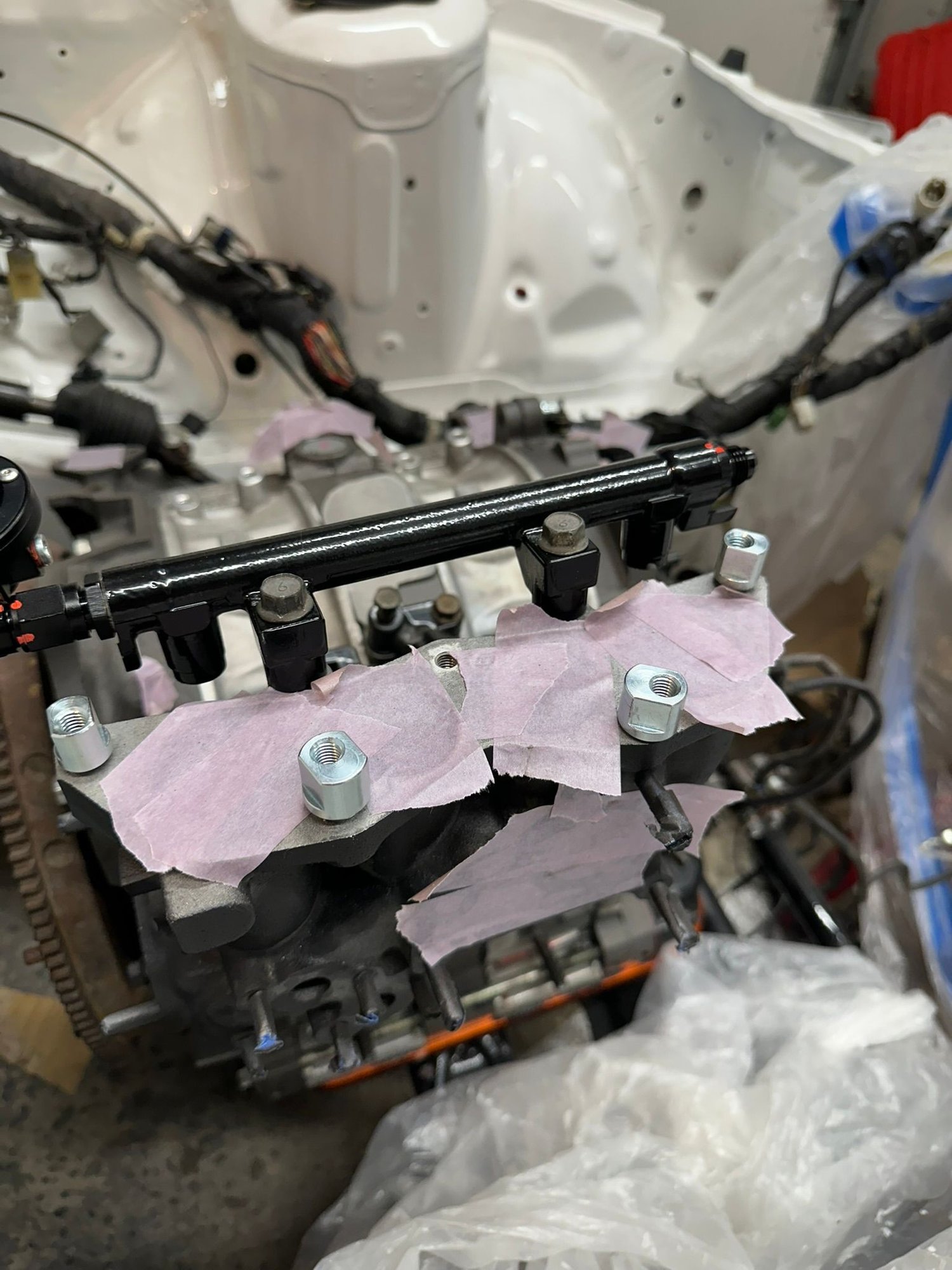

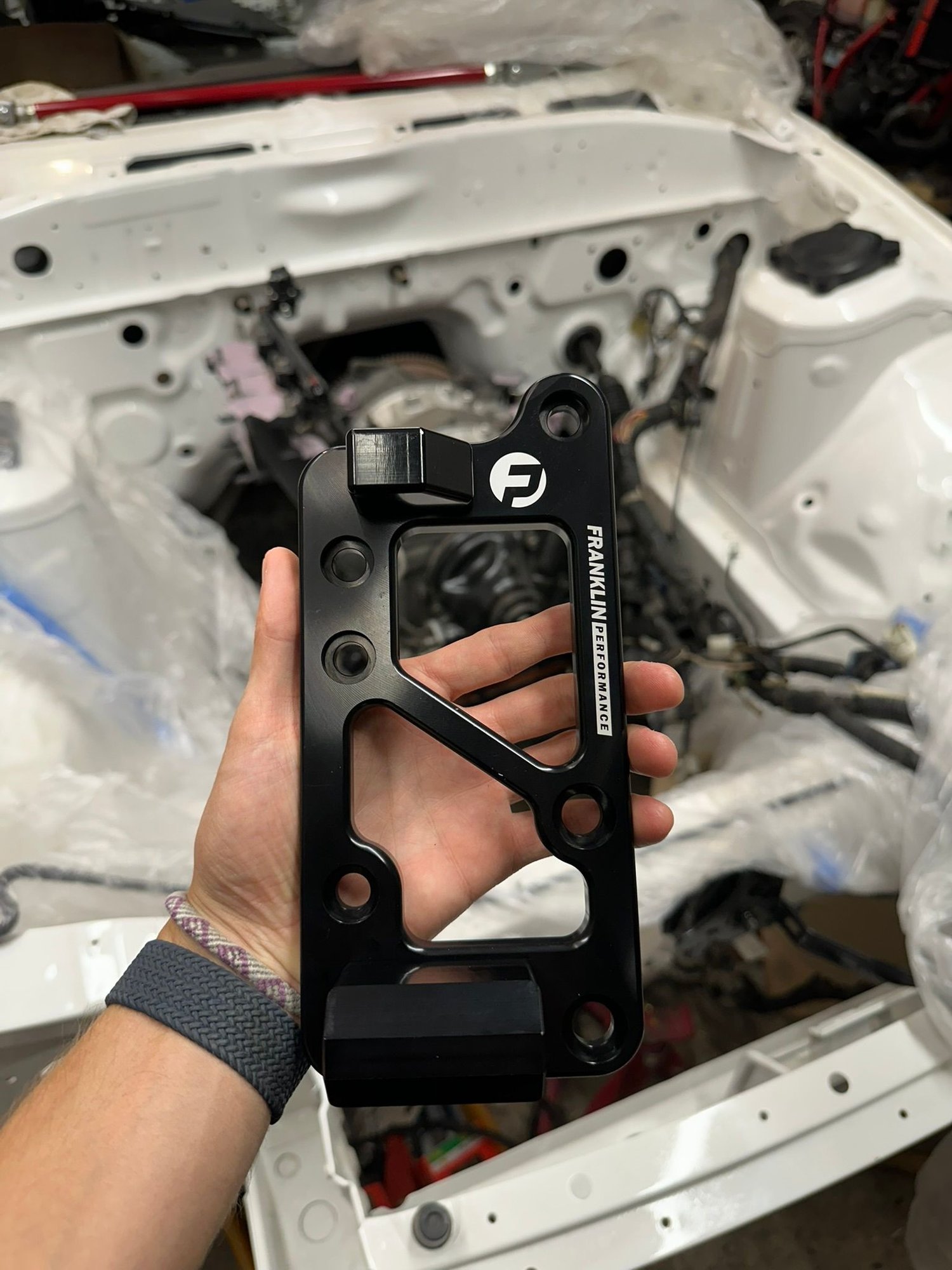

Franklin Performance side mount alternator

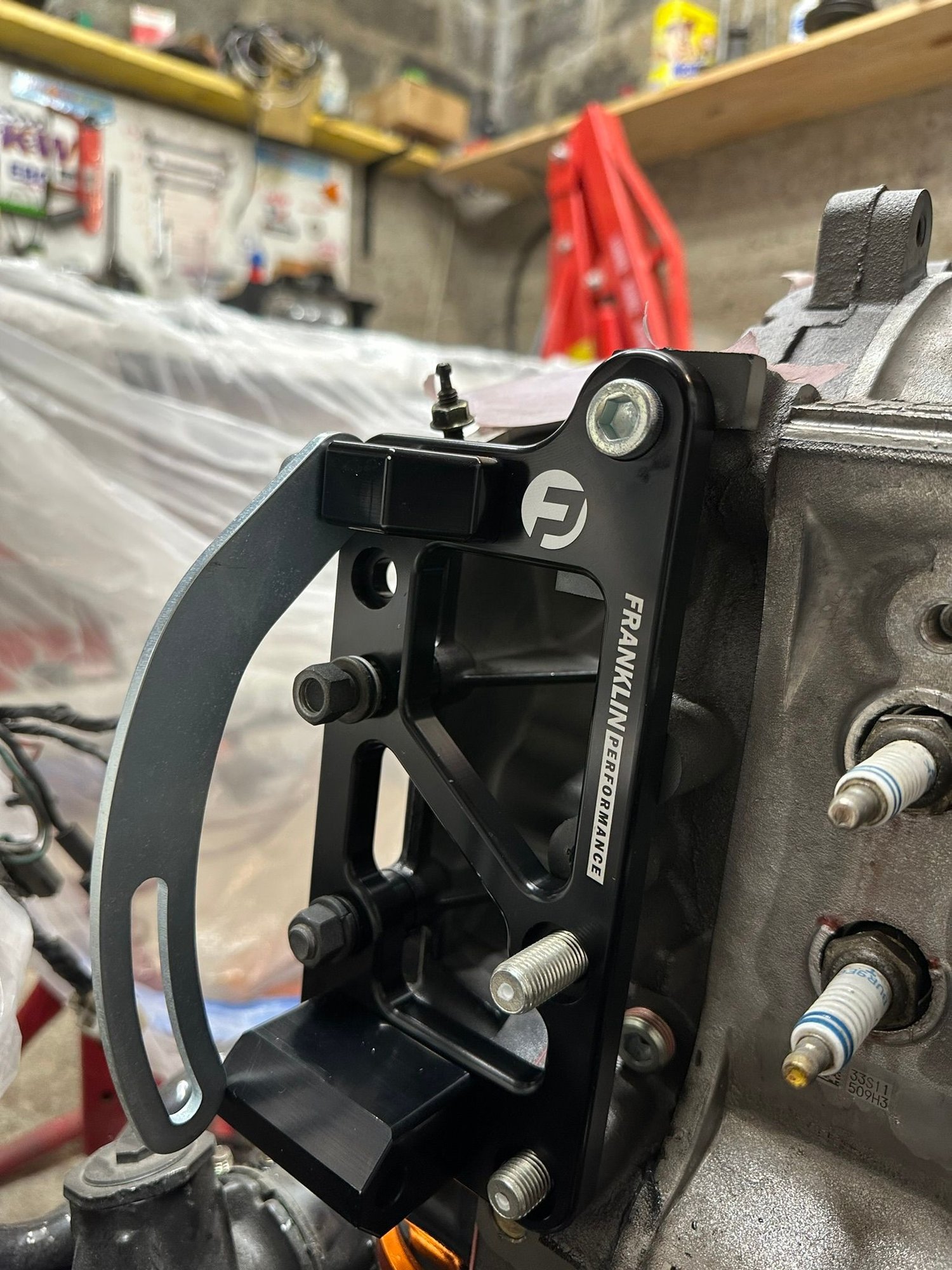

I've remove stud and now i'm using bolt all around
