89 GXL to go +T with other goodies!
#1
HOO BOY!!
Thread Starter
89 GXL to go +T with other goodies!
Hey y'all!! I thought I'd share what im getting done to my 89 GXL to restore it and add some more power!! with myself being on deployment (navy) at the start of the build, most of it is being taken care of by a builder in Miami at RotaryWerks, which is perfect for me because as much as I would love to do this myself... this is my daily and I would need to drive it still . I will be adding other things when I get back but for now I will post up progress that I get and go over what I've picked to go the vehicle. Most of the things which I researched here on this very site!!
First a list of planned upgrades-
S5 TII Engine and transmission w/ turbo
KOYO Aluminum Rad (Double Pass)
Competition Engine Mounts
Competition Transmission Mounts
Stainless Oil cooler lines
REV TII Exhaust from RB
Adaptronic Modular ECU
Ford Taurus E-fan
Godspeed FMIC
Racing Beat springs
KYB AGX shocks
Hyperflex complete bushing kit
Exedy Stage 1 HD clutch
Ford Taurus Alt
4xID 1000cc injectors
Walbro 255 fuel pump
Aeromotive A1006 FPR
Stage 3 BNR S5 turbo

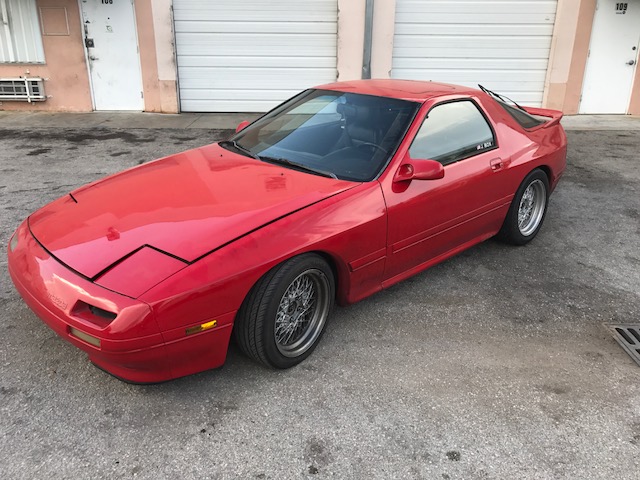

Now... I'm starting this thread a tad late and am part way into the process already, so I will fill in as to what has happened over the past few weeks. but here is the car as it stood when it was shipped to Miami.

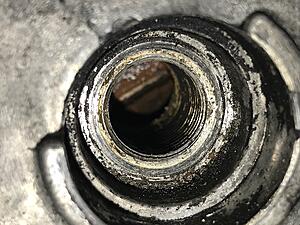

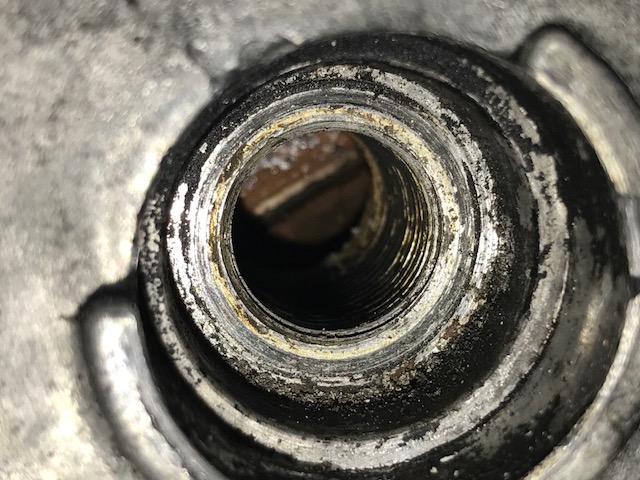

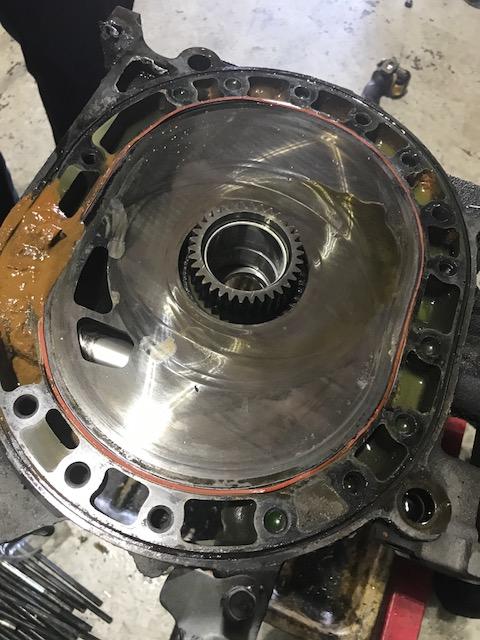

I had purchased an engine from a supposedly reputable engine dealer in Orlando and when the engine arrived it seemed that not everything was kosher at first look inside it was not good signs

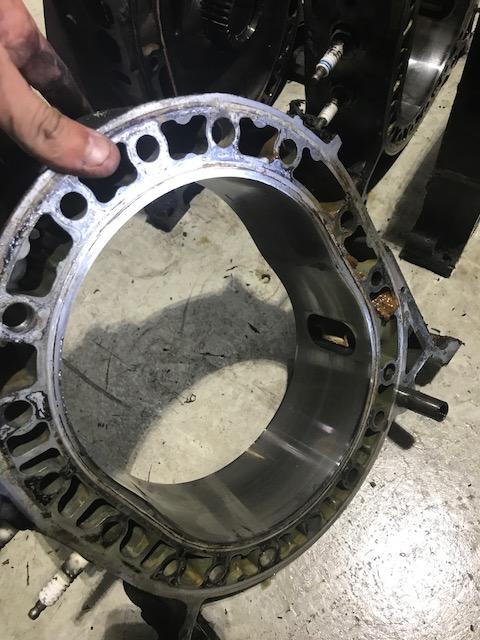

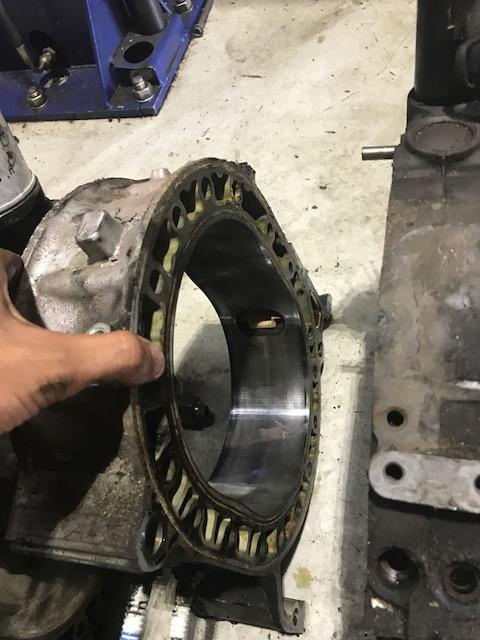

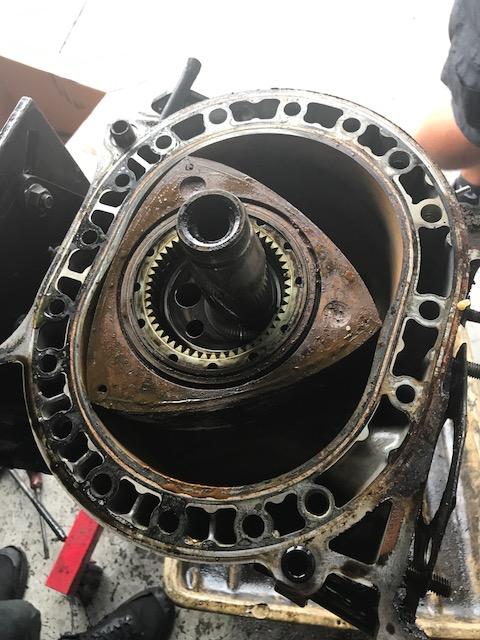

So when the keg was cracked the engine was found to be almost 80% unusable
The decision to go +T was made here considering that I had purchased the necessary components to build around the engine. I just couldn't run as much boost as reliably on high comp rotors as I would be able to on the low comp ones. No worries though as my current N/A housings and rotors were in excellent condition!!

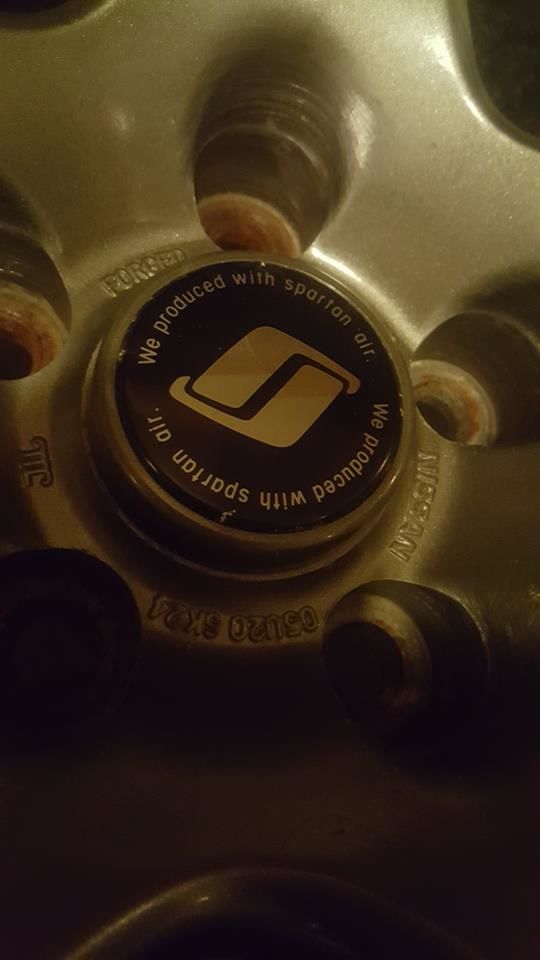

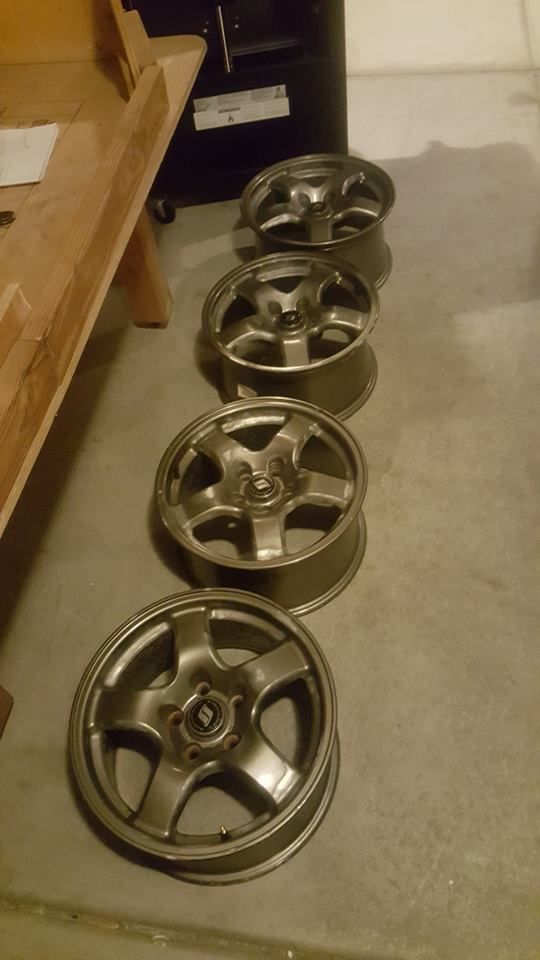

and the last thing to catch yall up would be to say that I purchased a set of GTR32 wheels from another member on the forum and sent them to be powdercoated!! they have no scratches and gouges, just a lot of paint wear.
More to come when I can update!!
First a list of planned upgrades-
S5 TII Engine and transmission w/ turbo
KOYO Aluminum Rad (Double Pass)
Competition Engine Mounts
Competition Transmission Mounts
Stainless Oil cooler lines
REV TII Exhaust from RB
Adaptronic Modular ECU
Ford Taurus E-fan
Godspeed FMIC
Racing Beat springs
KYB AGX shocks
Hyperflex complete bushing kit
Exedy Stage 1 HD clutch
Ford Taurus Alt
4xID 1000cc injectors
Walbro 255 fuel pump
Aeromotive A1006 FPR
Stage 3 BNR S5 turbo
Now... I'm starting this thread a tad late and am part way into the process already, so I will fill in as to what has happened over the past few weeks. but here is the car as it stood when it was shipped to Miami.
I had purchased an engine from a supposedly reputable engine dealer in Orlando and when the engine arrived it seemed that not everything was kosher at first look inside it was not good signs
So when the keg was cracked the engine was found to be almost 80% unusable
The decision to go +T was made here considering that I had purchased the necessary components to build around the engine. I just couldn't run as much boost as reliably on high comp rotors as I would be able to on the low comp ones. No worries though as my current N/A housings and rotors were in excellent condition!!
and the last thing to catch yall up would be to say that I purchased a set of GTR32 wheels from another member on the forum and sent them to be powdercoated!! they have no scratches and gouges, just a lot of paint wear.
More to come when I can update!!
Last edited by Dream_Box; 07-14-17 at 02:26 PM. Reason: Crappy work computer cut off half of post.
