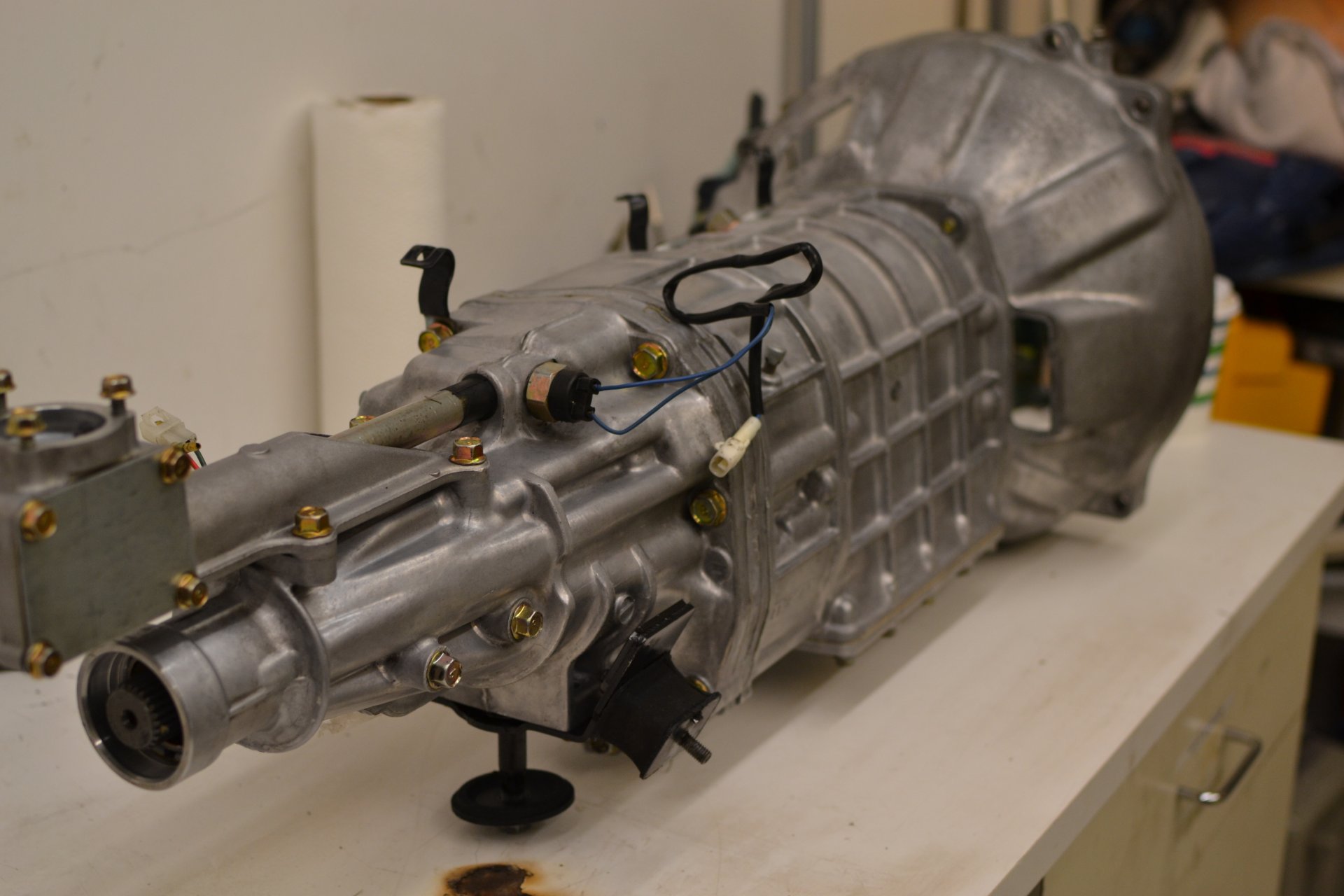

The weather finally rose above freezing so I took the trans outside to gunk and powerwash it. There, that's proper.

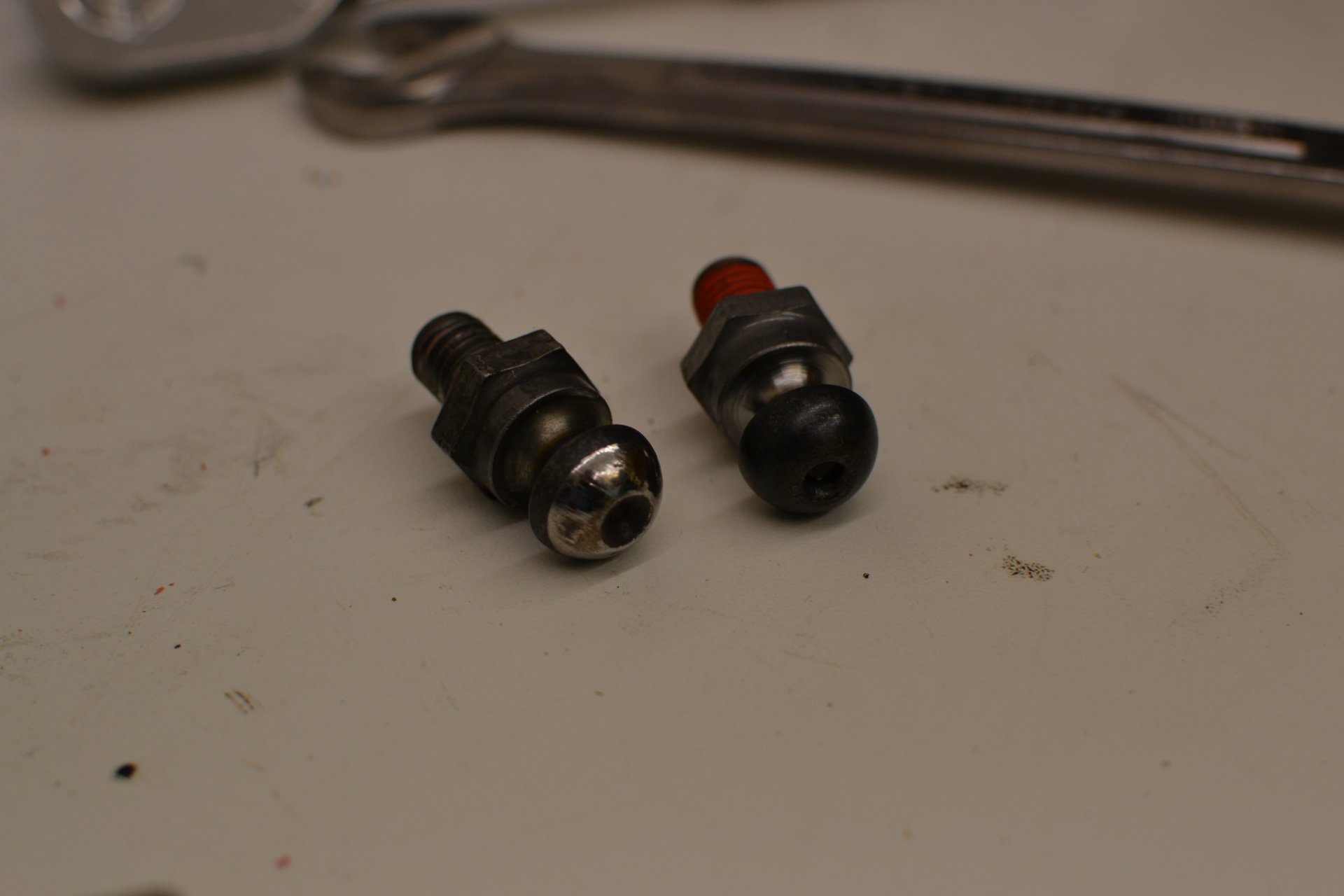

New pivot ball. The old one looks fine, but I'm refreshing all the hardware for a stiff pressure plate.

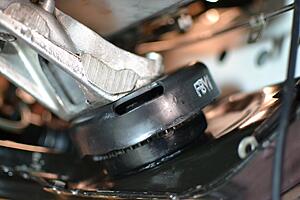

Fresh mazda comp trans mounts!

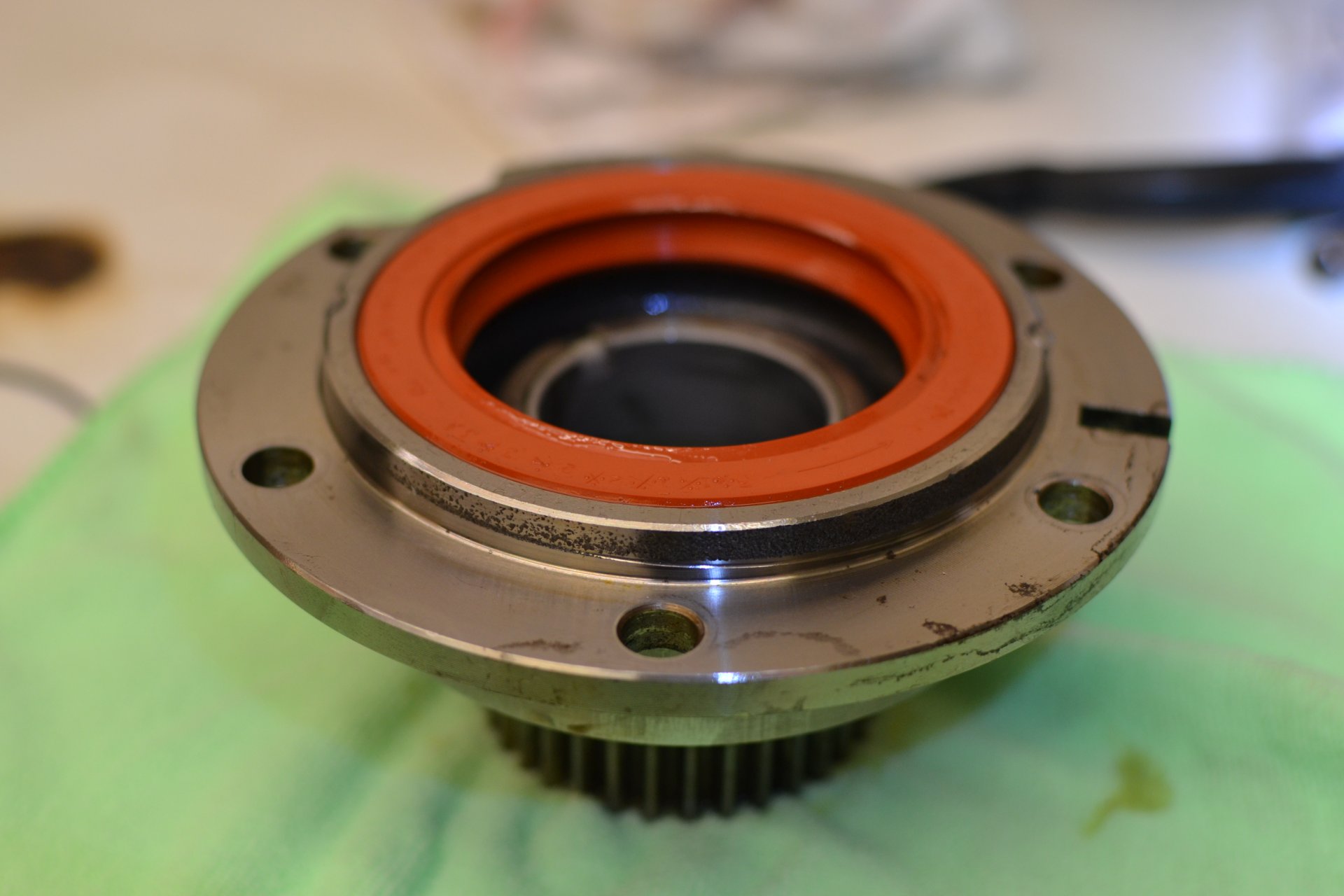

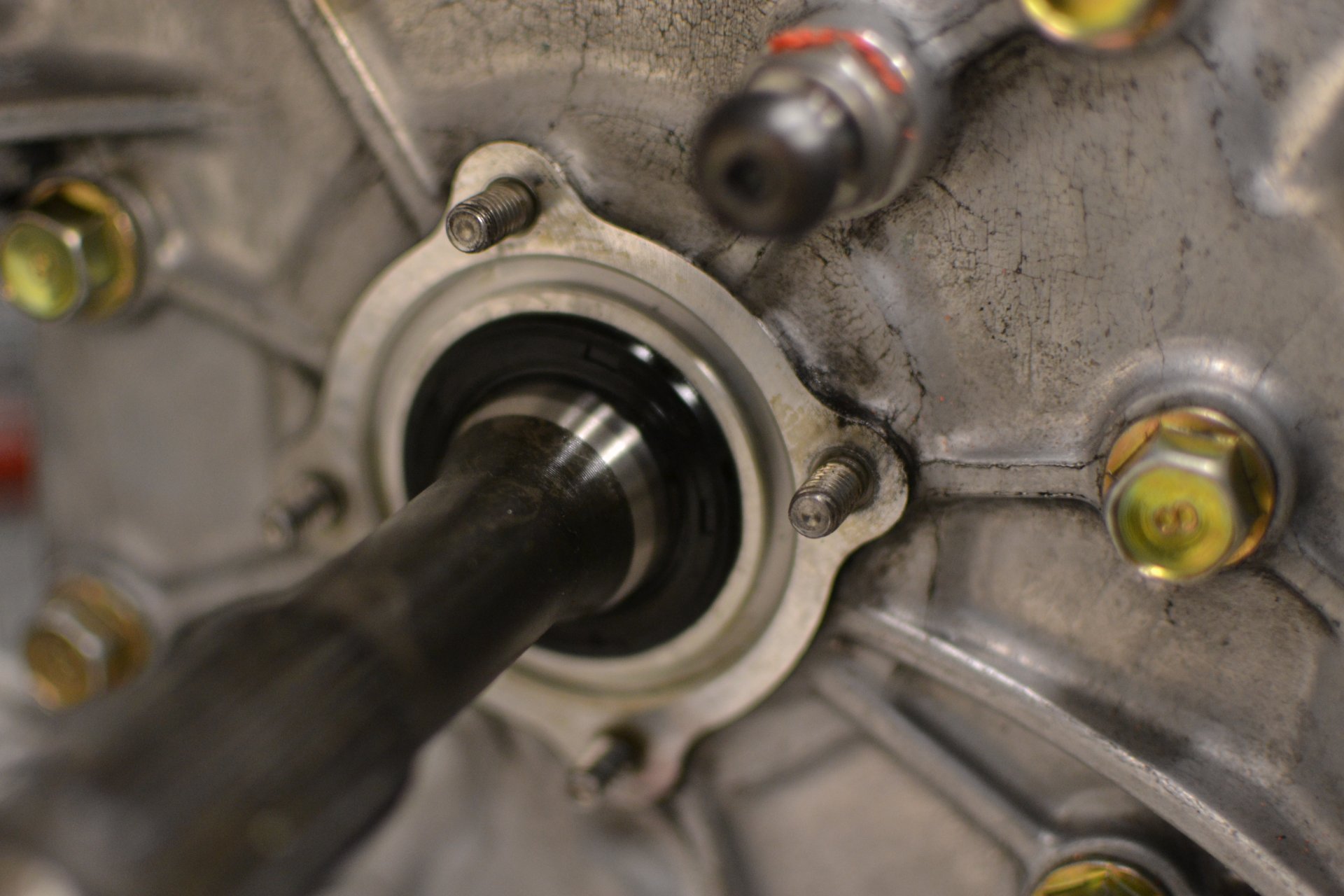

New front and rear transmission seals. A hammer and chisel and pick helped me out.
Next, tackling the oil leak that was infecting my bellhousing with oil. I'm not sure what was causing it, so the plan is to replace the common culprits.
Not pictured: New oil filter pedestal o-rings. They looked pretty flat.

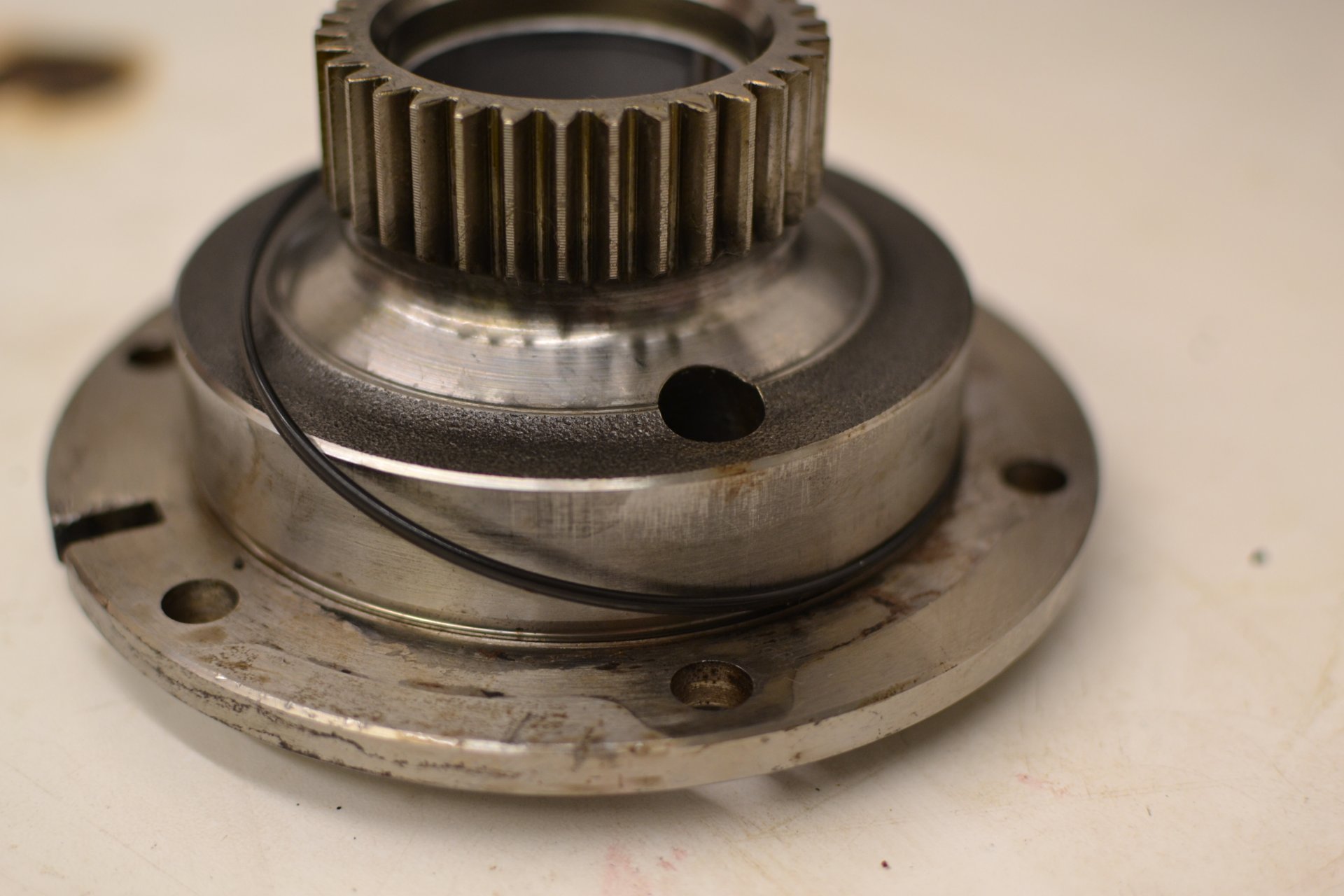

Next, removing the rear stationary gear to get at its o-ring. The o-ring looked decent, but it's time for a new one.

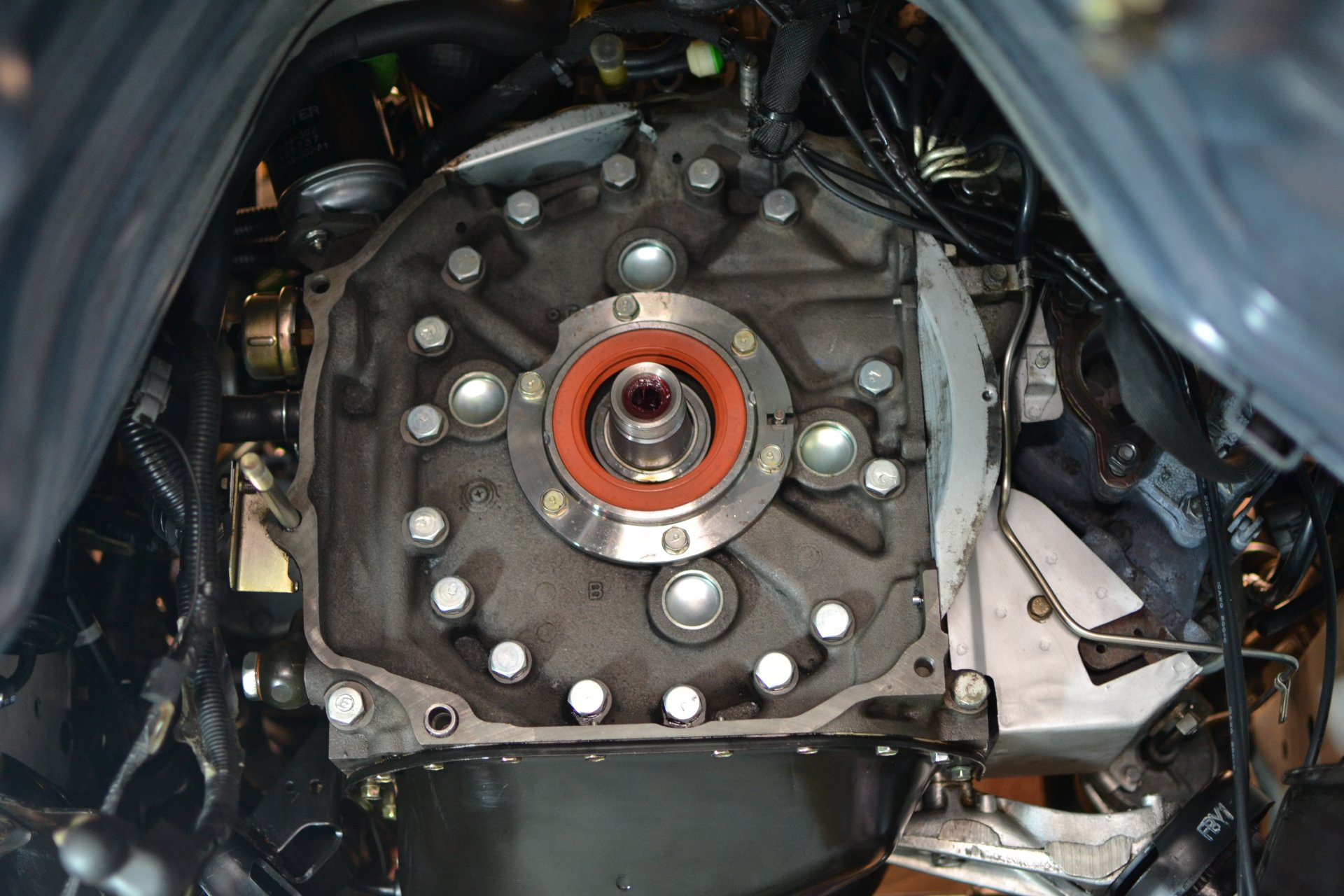

Also, a new (RX-7 style) rear main seal goes in.

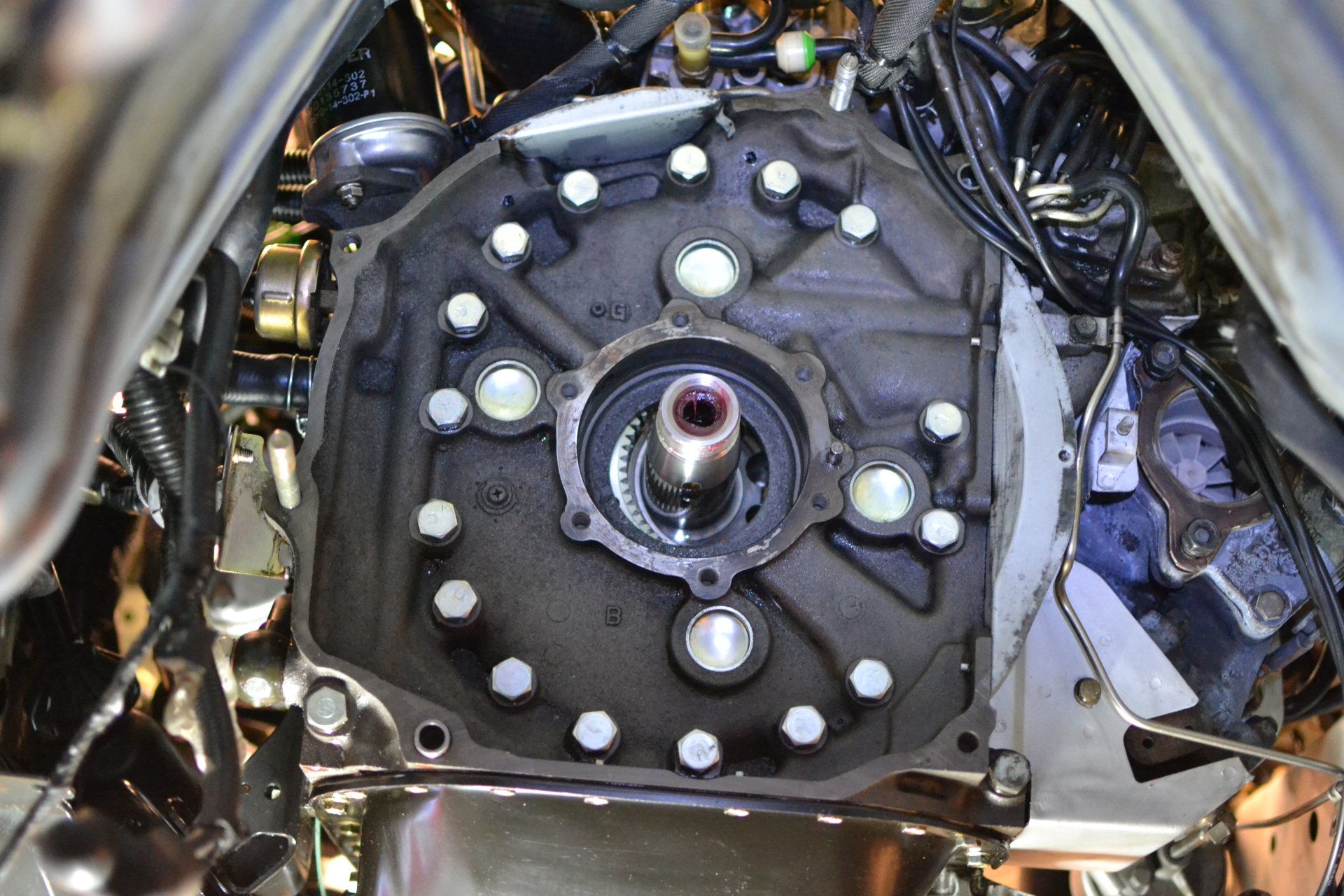

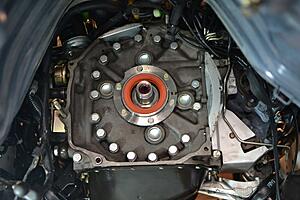

The engine after cleaning and pilot bearing replacement. This job is quick and easy with the Mazdatrix slide hammer and punch. The punch even shows you exactly how the input shaft will fit, so you can know whether that's way too much grease in there, buddy. First attempts were made with a ground down harbor freight pilot bearing puller (not enough reach), in order to maximize enjoyment of the new tools.
I... did get the rear stationary gear back in, but not until after many harrowing/frantic/nauseous hours. It would not go in by hand, and never felt like it was meshing. I went to the store to pick up a dead blow hammer. It slid in after 3 light taps. Yeeeesh.
New pivot ball. The old one looks fine, but I'm refreshing all the hardware for a stiff pressure plate.
Fresh mazda comp trans mounts!

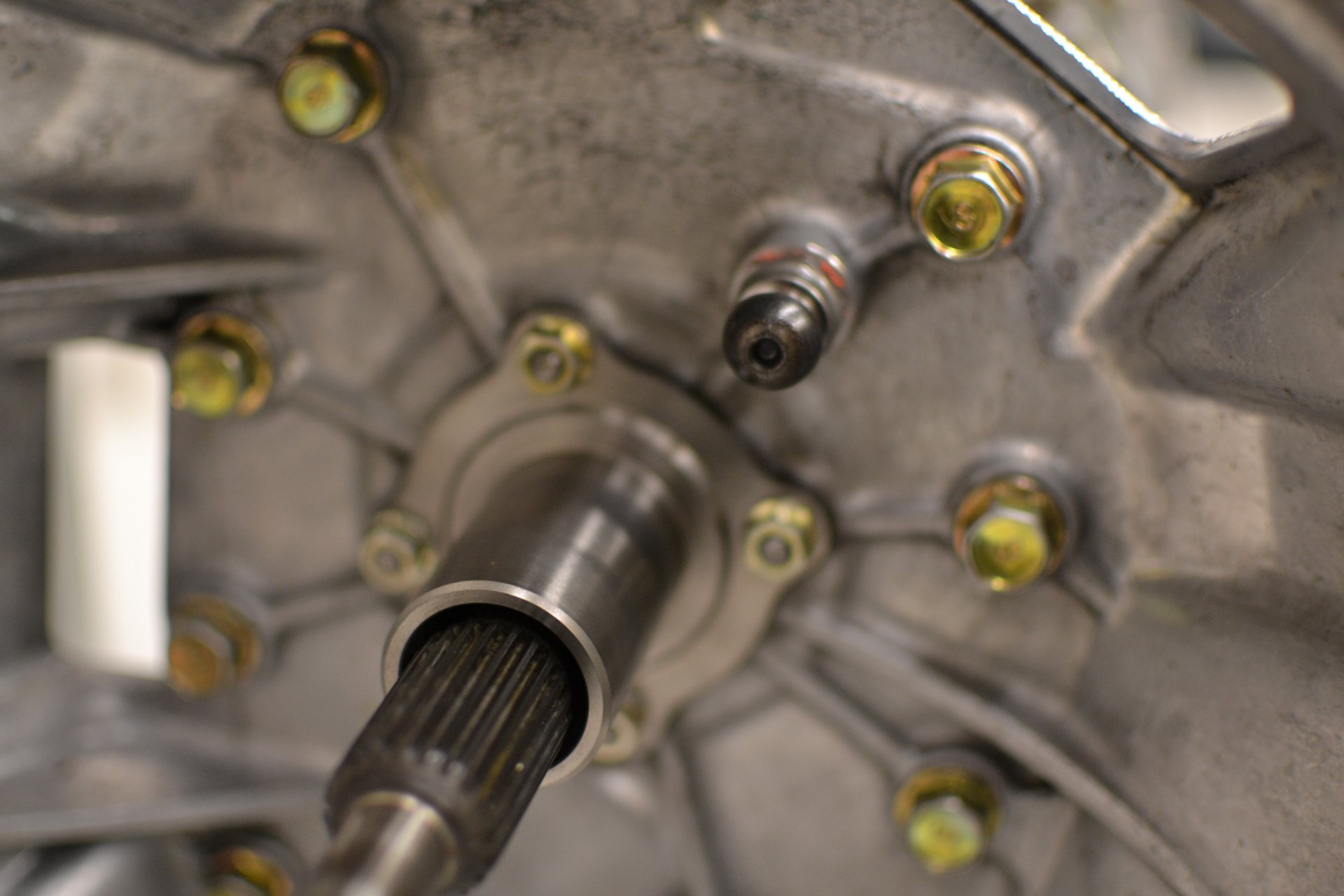

New front and rear transmission seals. A hammer and chisel and pick helped me out.
Next, tackling the oil leak that was infecting my bellhousing with oil. I'm not sure what was causing it, so the plan is to replace the common culprits.
Not pictured: New oil filter pedestal o-rings. They looked pretty flat.
Next, removing the rear stationary gear to get at its o-ring. The o-ring looked decent, but it's time for a new one.
Also, a new (RX-7 style) rear main seal goes in.
The engine after cleaning and pilot bearing replacement. This job is quick and easy with the Mazdatrix slide hammer and punch. The punch even shows you exactly how the input shaft will fit, so you can know whether that's way too much grease in there, buddy. First attempts were made with a ground down harbor freight pilot bearing puller (not enough reach), in order to maximize enjoyment of the new tools.
I... did get the rear stationary gear back in, but not until after many harrowing/frantic/nauseous hours. It would not go in by hand, and never felt like it was meshing. I went to the store to pick up a dead blow hammer. It slid in after 3 light taps. Yeeeesh.
#104
RX-7 Old Timer
Thread Starter
Stuff
See proof that my stat gear is back in:

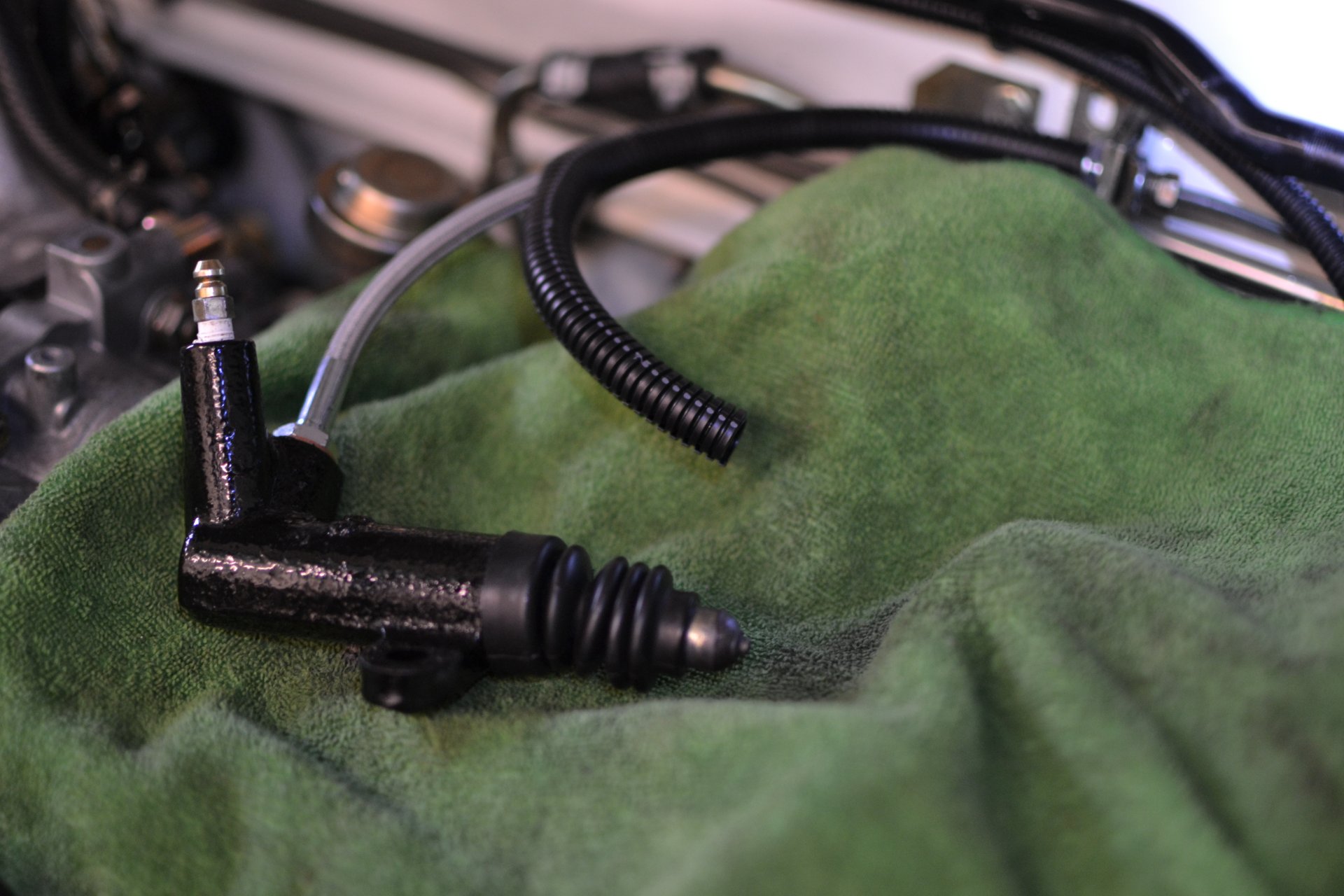

Refurbied my clutch slave with Por-15 and a new stainless line.
I wiggled new MazdaComp engine mounts in, nubs facing inward.
Inspecting old clutch...
Clutch wear is very close to the rivet heads, which is throw away time, says the factory manual.

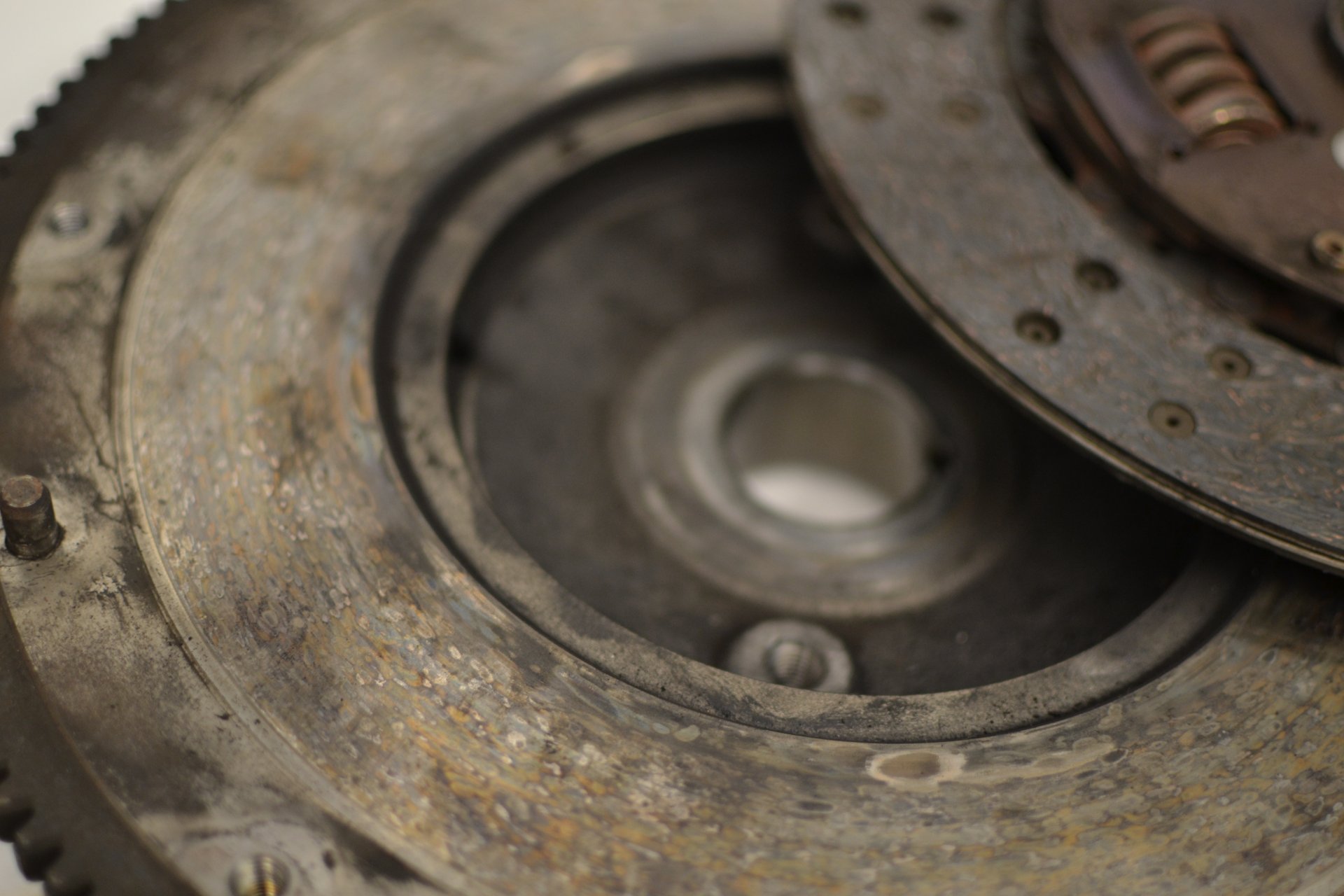

Flywheel surface looks like this. Shrug.
Nuuuuu Paaaaarts.

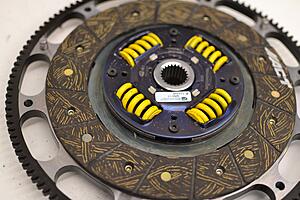

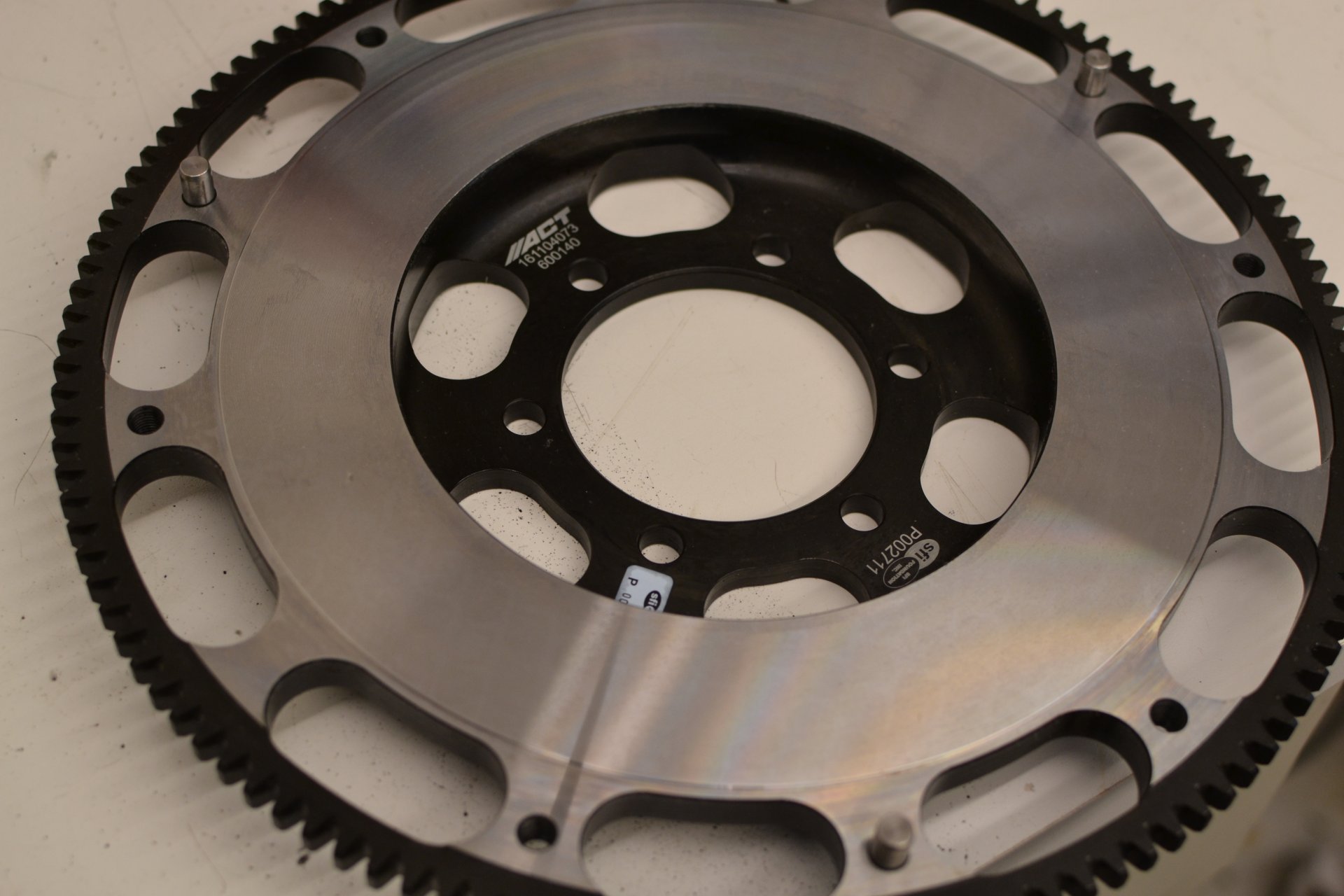

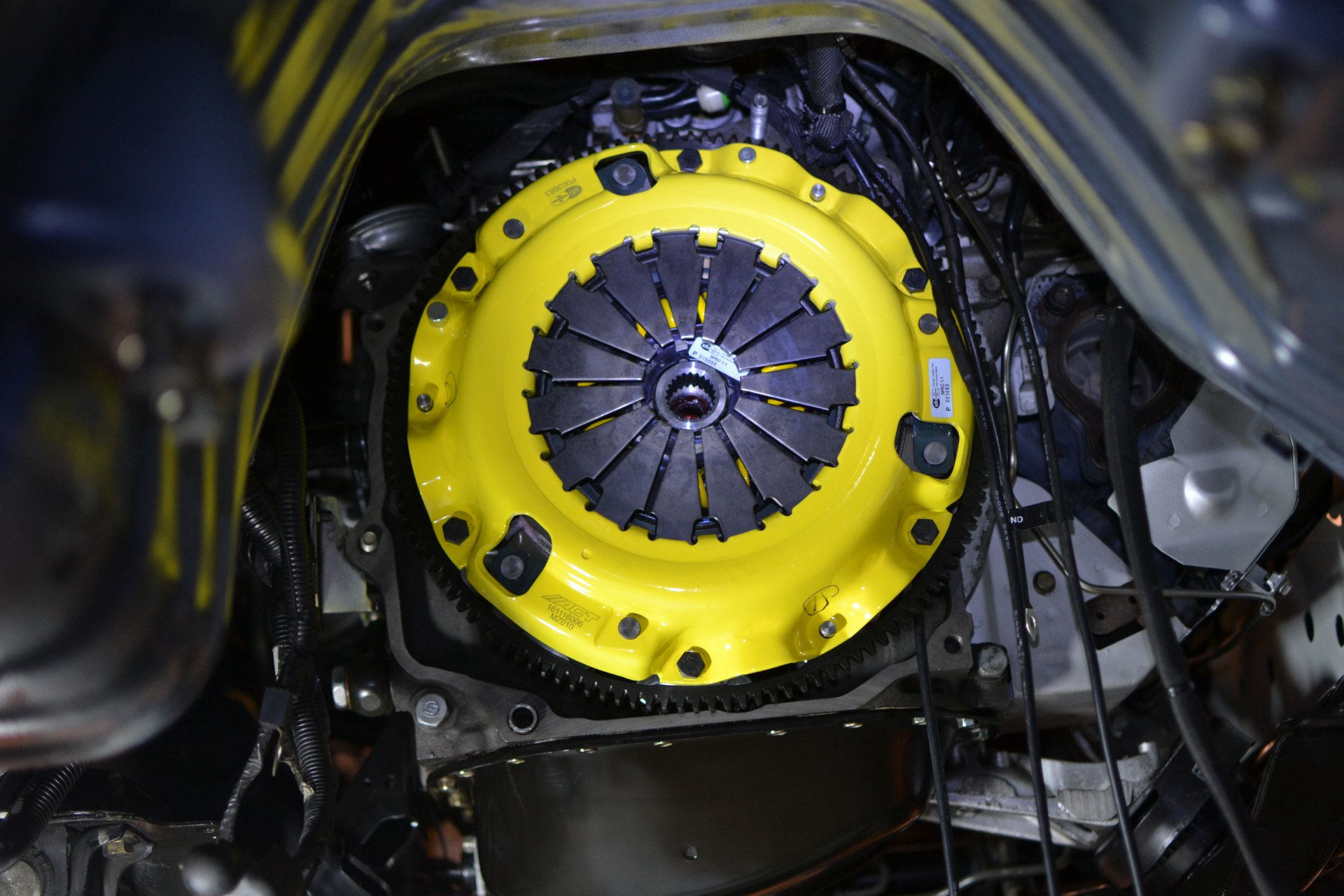

ACT Full Disc clutch, HD pressure plate, and Prolite steel flywheel.

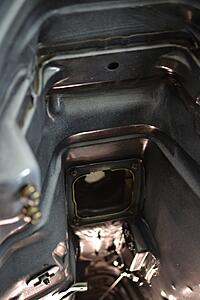

At this point, getting a bit bored, and cleaning my transmission tunnel.
See proof that my stat gear is back in:
Refurbied my clutch slave with Por-15 and a new stainless line.
I wiggled new MazdaComp engine mounts in, nubs facing inward.
Inspecting old clutch...
Clutch wear is very close to the rivet heads, which is throw away time, says the factory manual.
Flywheel surface looks like this. Shrug.
Nuuuuu Paaaaarts.

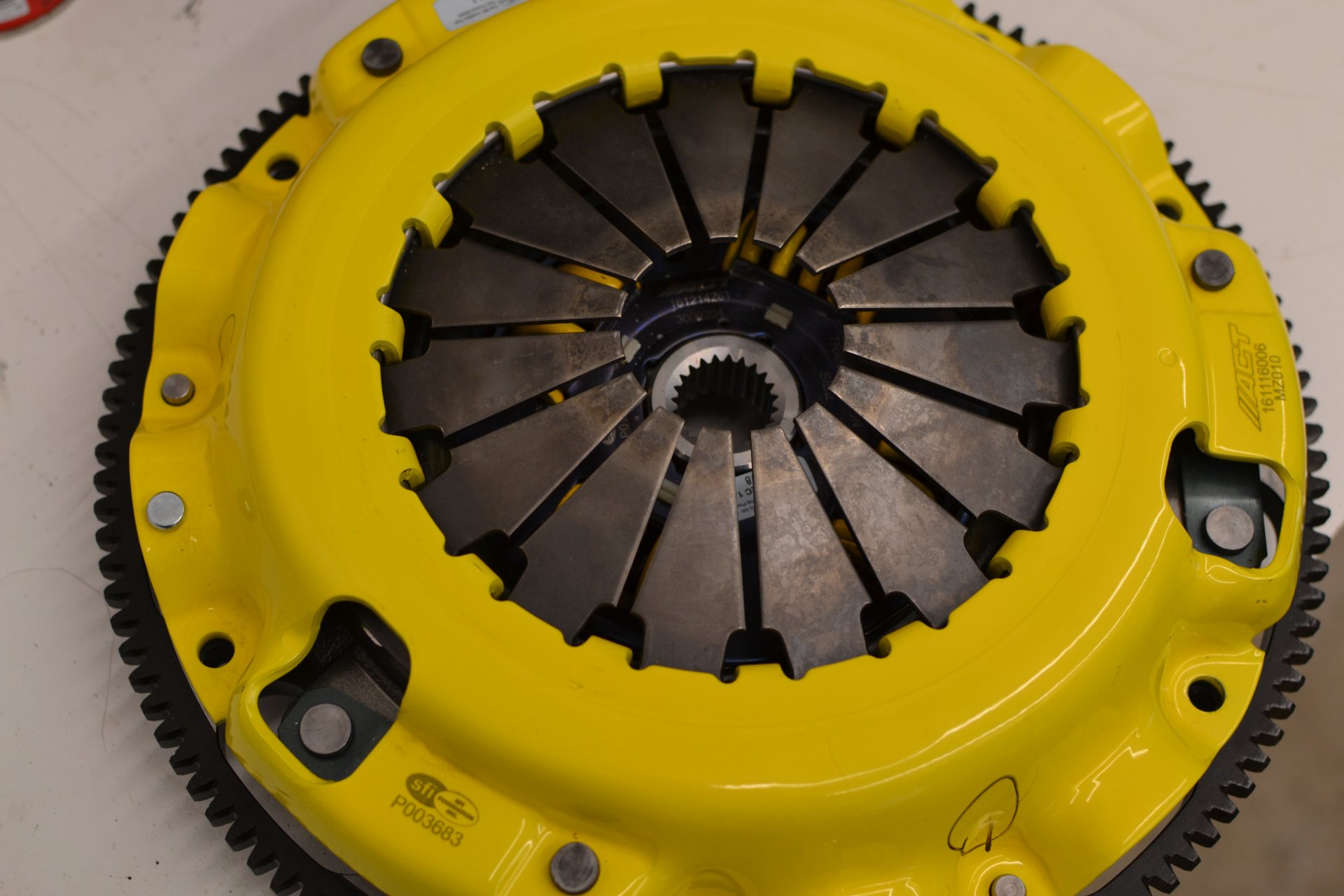

ACT Full Disc clutch, HD pressure plate, and Prolite steel flywheel.
At this point, getting a bit bored, and cleaning my transmission tunnel.
#105
RX-7 Old Timer
Thread Starter

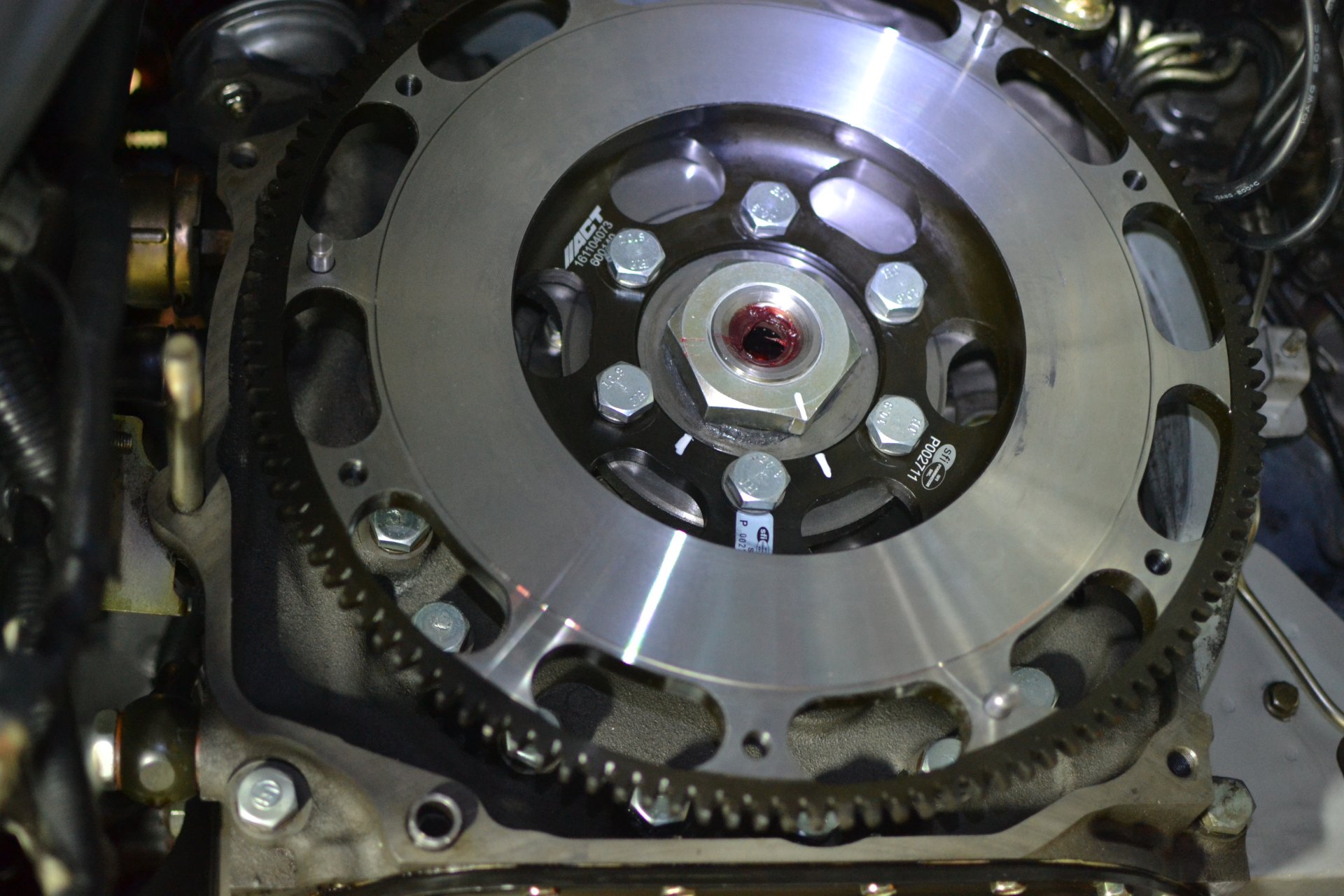

Flywheel nut procedure:
Get it seated firmly on the e-shaft.
The flywheel ring gear stopper is useful now. It was unnecessary when removing the nut with an impact gun.
I used permatex thread sealant on the threads (one of the stinkiest things I have in my garage), and back RTV sealant on the nut face.

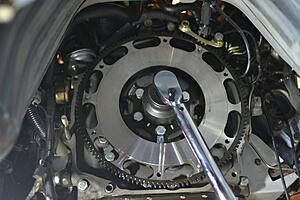

Set torque wrench to 150 lb/ft, which is the maximum setting, and tighten.
Mark 60 degree increments, and hammer it to the mark with an impact gun. I used a 231C gun, and this is about as far as it could spin the nut. It was barely moving at the end.
There was some grease on the flywheel, and the friction surfaces got a wipe-down with brake cleaner.
Pressure plate mounted and tightened.
Currently waiting on an oil pressure sender, which I believe could have been leaking.
-------------------------
Edit: rx7club sure did add a lot of link spam in my post. Please disregard links.
Get it seated firmly on the e-shaft.
The flywheel ring gear stopper is useful now. It was unnecessary when removing the nut with an impact gun.
I used permatex thread sealant on the threads (one of the stinkiest things I have in my garage), and back RTV sealant on the nut face.
Set torque wrench to 150 lb/ft, which is the maximum setting, and tighten.
Mark 60 degree increments, and hammer it to the mark with an impact gun. I used a 231C gun, and this is about as far as it could spin the nut. It was barely moving at the end.
There was some grease on the flywheel, and the friction surfaces got a wipe-down with brake cleaner.
Pressure plate mounted and tightened.
Currently waiting on an oil pressure sender, which I believe could have been leaking.
-------------------------
Edit: rx7club sure did add a lot of link spam in my post. Please disregard links.
Last edited by ColinShark; 02-26-17 at 01:24 PM.
#106
RX-7 Old Timer
Thread Starter

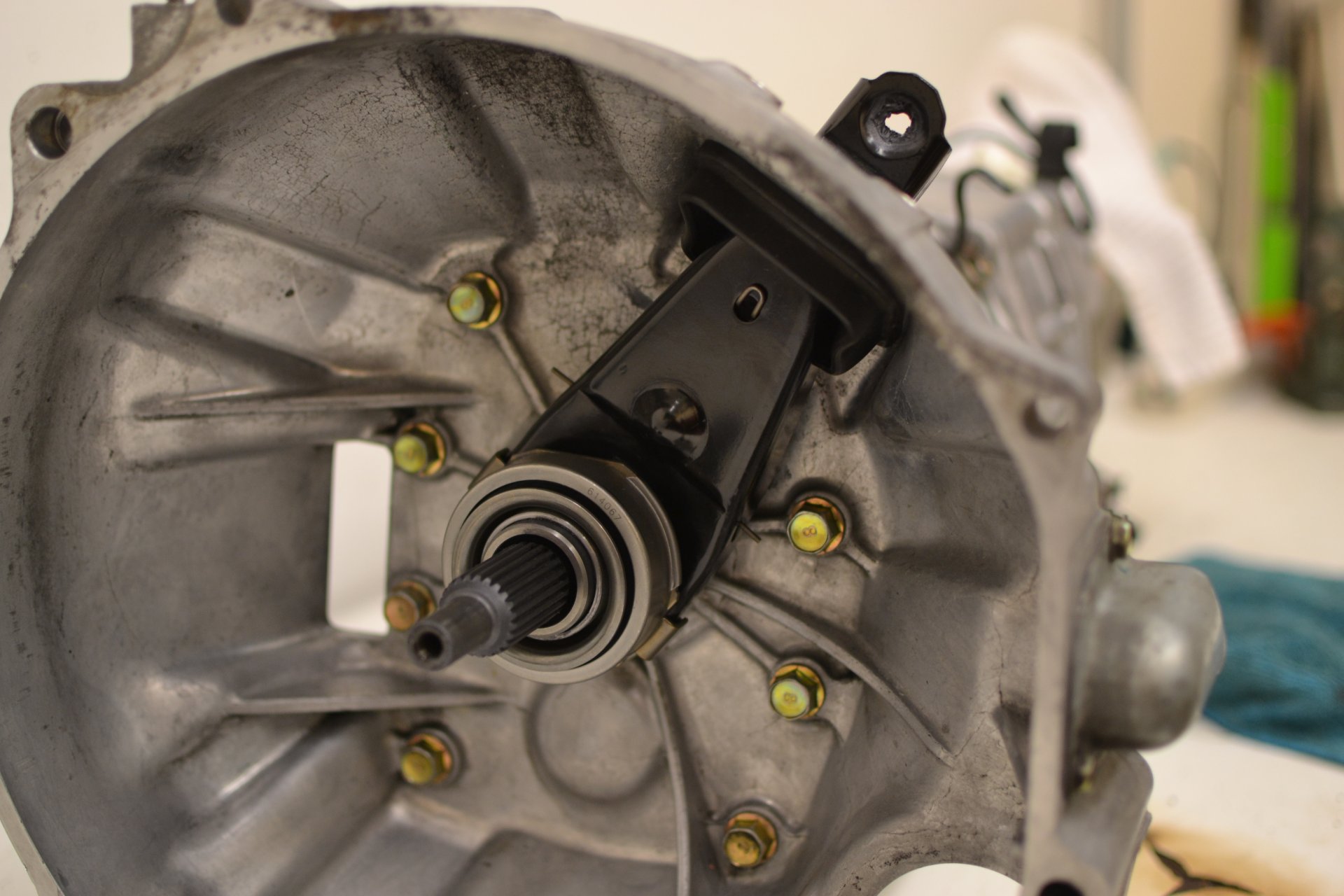

New throwout bearing, and fork. Honda M-77 high moly paste on the contact surfaces.

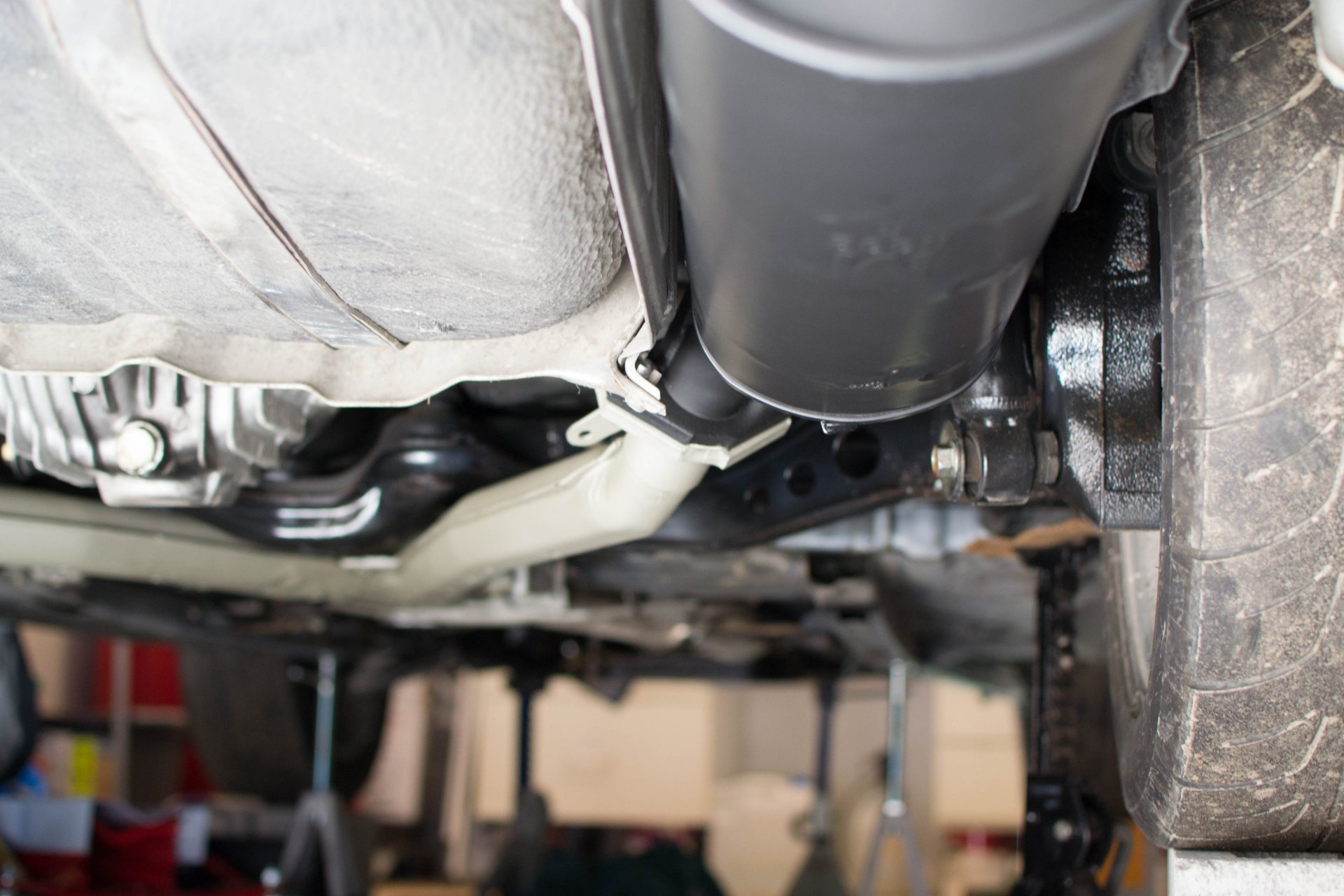

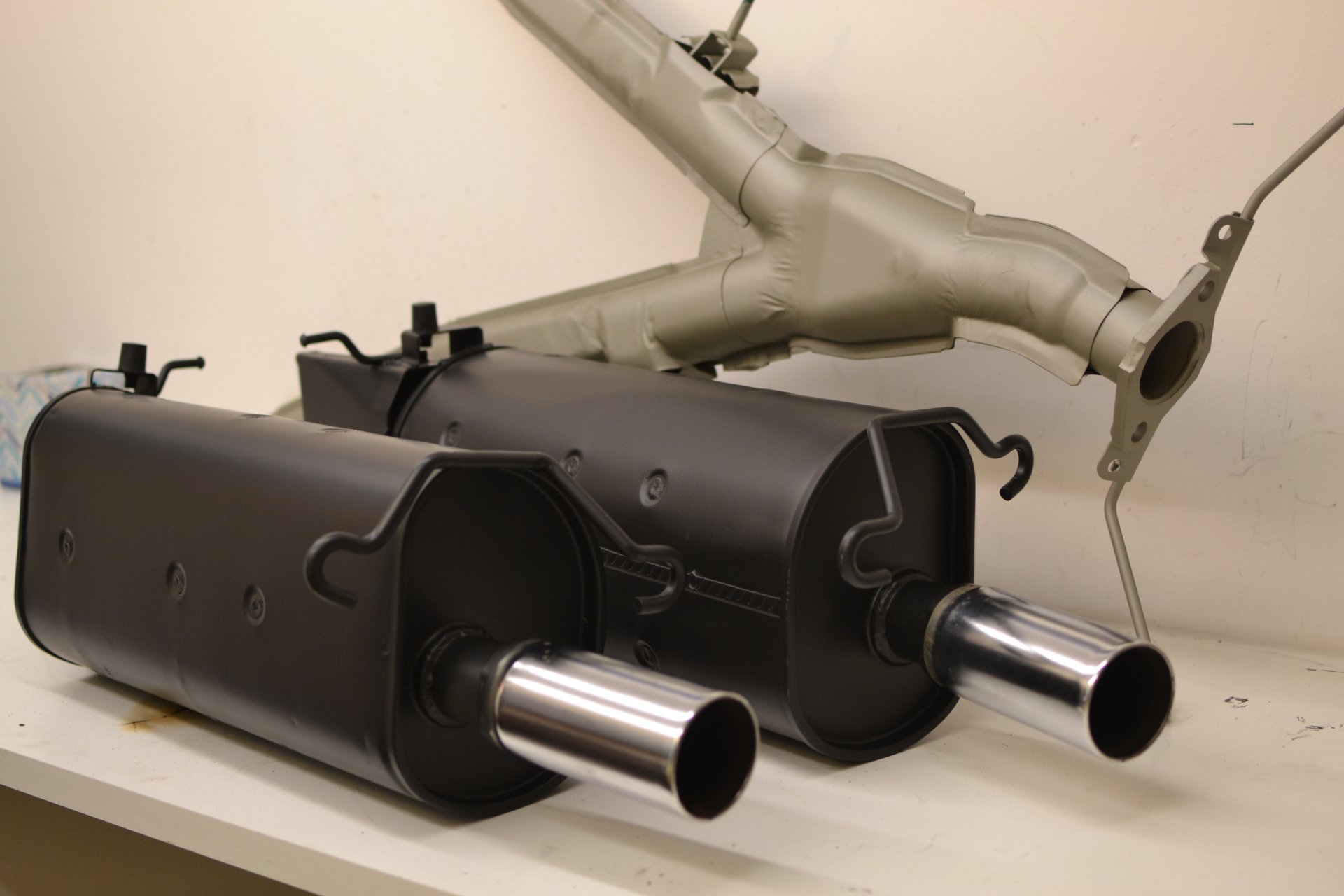

Got the cat-back back from ceramic coating at Bean's Best in Ann Arbor, MI. Looking very good. Not sure how many of these stock setups are left running around.

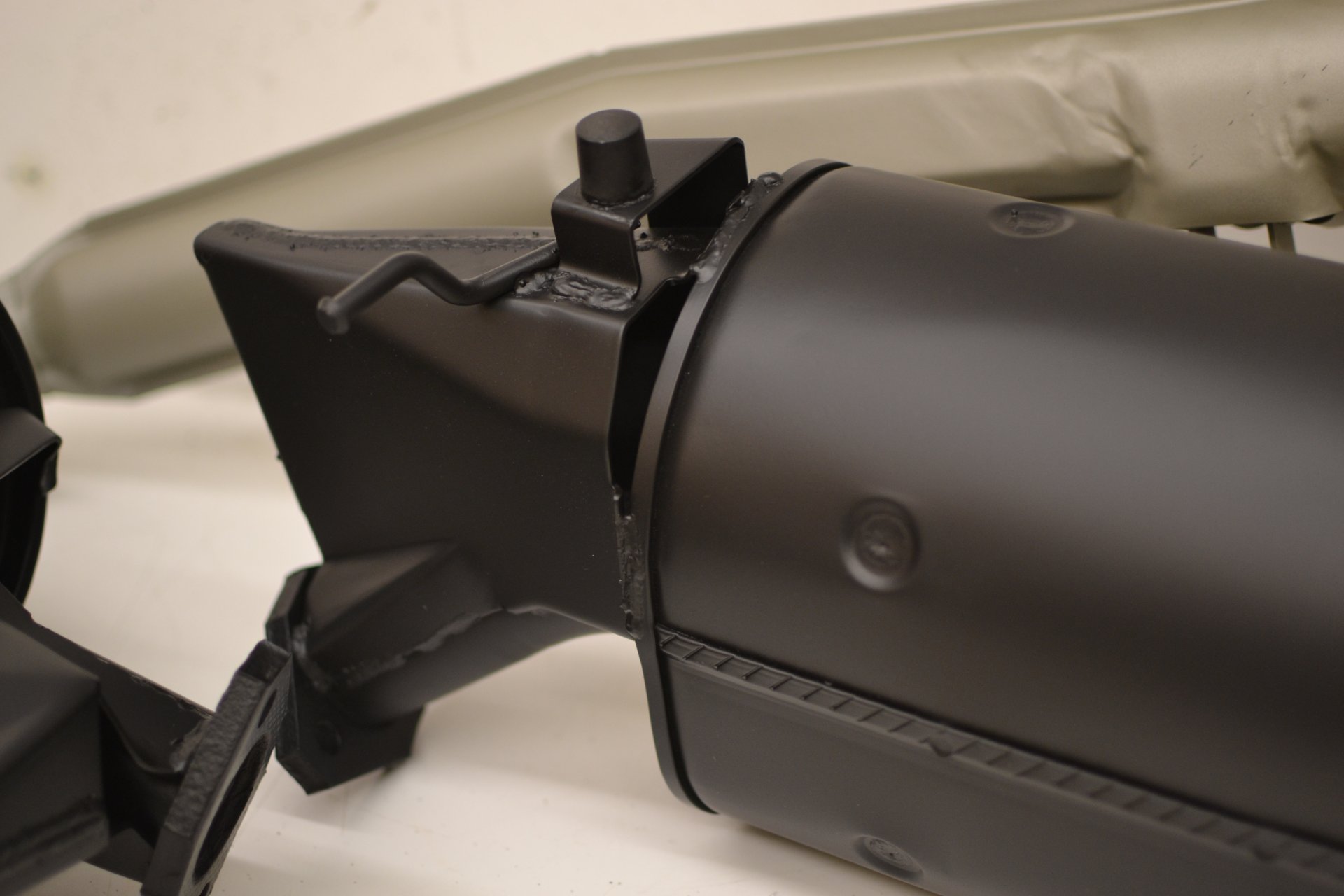

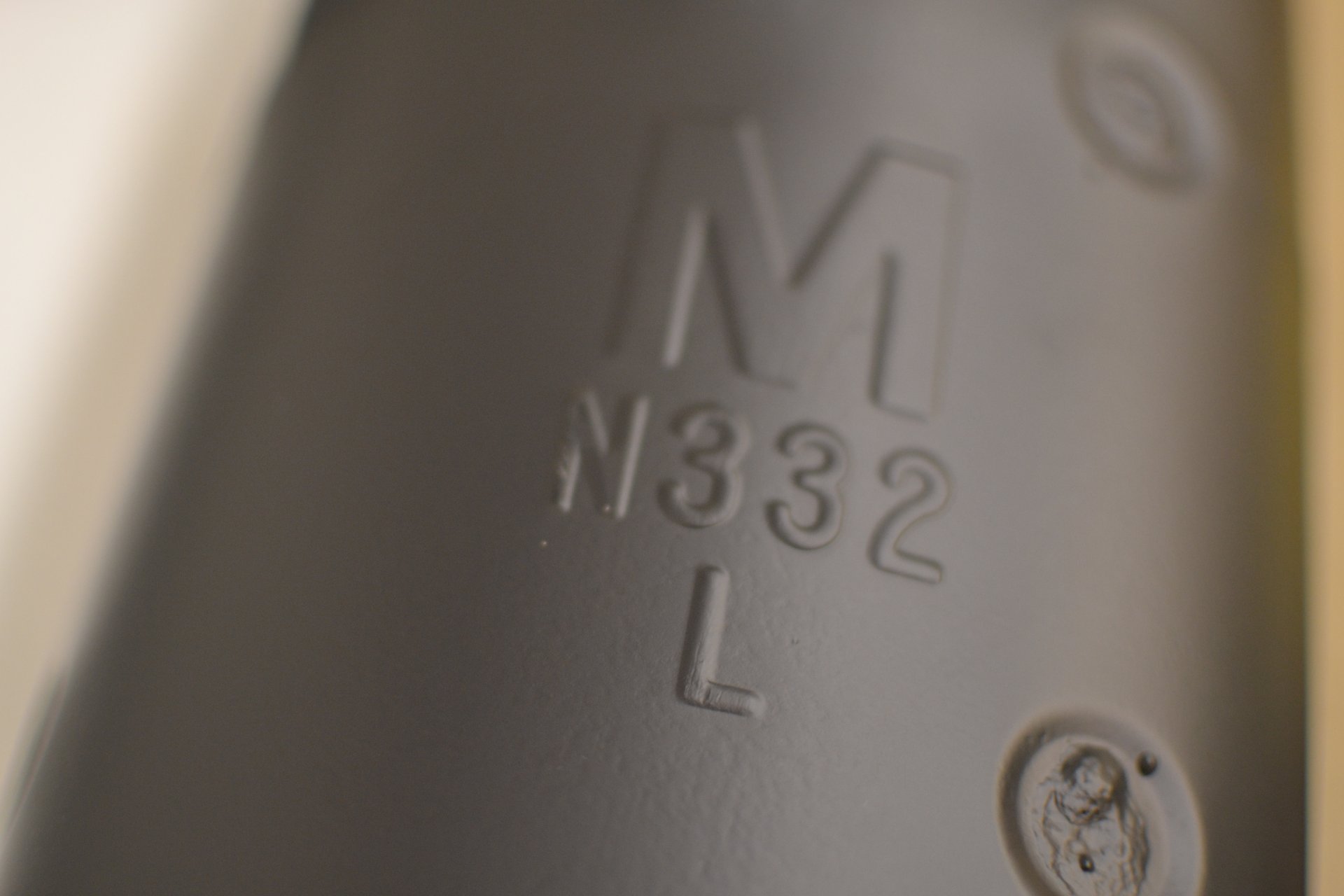

They are very heavy pieces. Mazda thought to incorporate bump stops on them, and what look like aerodynamic cowls.
Now time to put the car back together.
Got the cat-back back from ceramic coating at Bean's Best in Ann Arbor, MI. Looking very good. Not sure how many of these stock setups are left running around.
They are very heavy pieces. Mazda thought to incorporate bump stops on them, and what look like aerodynamic cowls.
Now time to put the car back together.
The following users liked this post:
mazdaverx713b (06-23-21)
#111
Stewiefied Racing CEO
iTrader: (36)
I love your build, so much time dedicated to clean installs and attention to details, that being said..... i think you will be hard pressed to see 300 whp with a BNR stage 1, stock top mount, restrictive AFM, and stock cat back.
Again, love your build and look forward to seeing future updates.
Again, love your build and look forward to seeing future updates.
#112
RX-7 Old Timer
Thread Starter
Not dead.
Car is alive!
Almost all of the photos are JPGs straight off the camera, resized for web.
Thanks! I'll dyno it sometime. I bet it is south of 300 whp as it sits. I'm eyeballing the cat-back. I'll do a big exhaust down the road, but for now, I've ported some of the protruding inner welds in the stock cat back.
----------------------------------------
Fewer pics lately because I've just been scrapping together small amounts of wrench time and trying to get this car moving under its own power.
Trans is inserted and bolted up. The worst part was reefing on it for about an hour until I realized it was pinching my beefy grounding harness between the trans and engine, after which it went in easily.
Also put in the new oil pressure sender. It was dated 2015. I can't believe Mazda still makes them, but thank you Mazda.
Exhaust is in, with stainless hardware and fresh OEM gaskets.
Thhhhherrre ya go!
Did a 6 mile test drive on Fall gas.
Thoughts on the ACT HDSS Clutch + ACT Prolite Flywheel + Mazda Comp Mounts:
There are no driveability problems or harshness compared to stock. Honestly, I could not easily tell the difference pulling away from a stop. Clutch is smooth and easily modulated. Clutch pedal effort is like stock. My wife's Focus ST has a stiffer pedal (could have gone stiffer?). The biggest change I can feel is the throttle response when free revving. Revs do not drop too quickly. Idle is rock solid, including when the AC cycles. There is no vibration or added noise in the cabin.
The car is very nice to drive and should have shipped this way from the factory.
I'll put together an in-car video once its configured for full boost.
Car is alive!
Almost all of the photos are JPGs straight off the camera, resized for web.
----------------------------------------
Fewer pics lately because I've just been scrapping together small amounts of wrench time and trying to get this car moving under its own power.
Trans is inserted and bolted up. The worst part was reefing on it for about an hour until I realized it was pinching my beefy grounding harness between the trans and engine, after which it went in easily.
Also put in the new oil pressure sender. It was dated 2015. I can't believe Mazda still makes them, but thank you Mazda.
Exhaust is in, with stainless hardware and fresh OEM gaskets.
Thhhhherrre ya go!
Did a 6 mile test drive on Fall gas.
Thoughts on the ACT HDSS Clutch + ACT Prolite Flywheel + Mazda Comp Mounts:
There are no driveability problems or harshness compared to stock. Honestly, I could not easily tell the difference pulling away from a stop. Clutch is smooth and easily modulated. Clutch pedal effort is like stock. My wife's Focus ST has a stiffer pedal (could have gone stiffer?). The biggest change I can feel is the throttle response when free revving. Revs do not drop too quickly. Idle is rock solid, including when the AC cycles. There is no vibration or added noise in the cabin.
The car is very nice to drive and should have shipped this way from the factory.
I'll put together an in-car video once its configured for full boost.
The following users liked this post:
mazdaverx713b (06-23-21)
#113
RX-7 Old Timer
Thread Starter
#115
Full Member
What were your AFRs on that pull? Im pulling the same numbers from a Mustang Dyno with a BNR Stage 3 and 15lbs of boost to redline but have it tuned pretty fat at high 10s right about 11 afr after 12lbs of boost.
Last edited by YoKramer; 05-10-17 at 07:19 AM.
#116
#117
Senior Member
Euhm 11.5 is not lean but rich
Ow btw interesting article to read: The Ultimate Wideband Air/Fuel Ratio Meter Test Part 1
Ow btw interesting article to read: The Ultimate Wideband Air/Fuel Ratio Meter Test Part 1
#118
Full Member
For exhaust Im running the newer REV2 from Racing beat all the way back.
#119
RX-7 Old Timer
Thread Starter

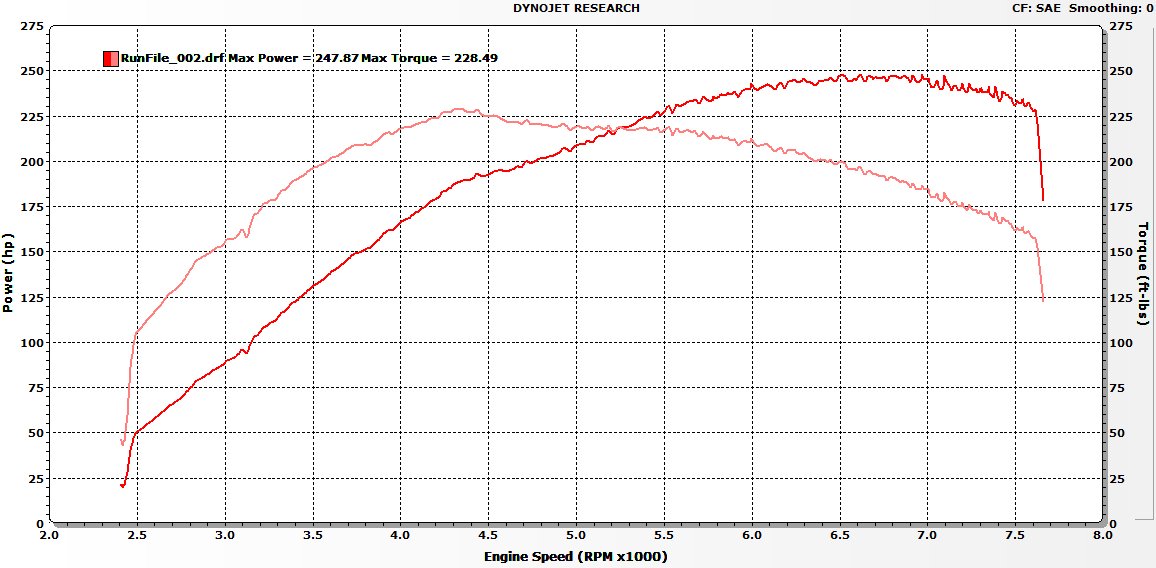

If you look closely at my graph, you can see how it suddenly transitions from 10.5 to 11.5 AFR at the secondary transition. Just eyeballing the dyno chart, you can see the dip, and it looks like about an 8% difference in torque. That's something.
#120
Full Member
Yea it took quite a while to figure out the weird dips on the dyno that you cant quite get smoothed just on the street. But the engine also only has ~3k on it so Im sure compression is still changing.
#121
RX-7 Old Timer
Thread Starter
Sorry OEM cat-back. Replaced by larger RB exhaust.

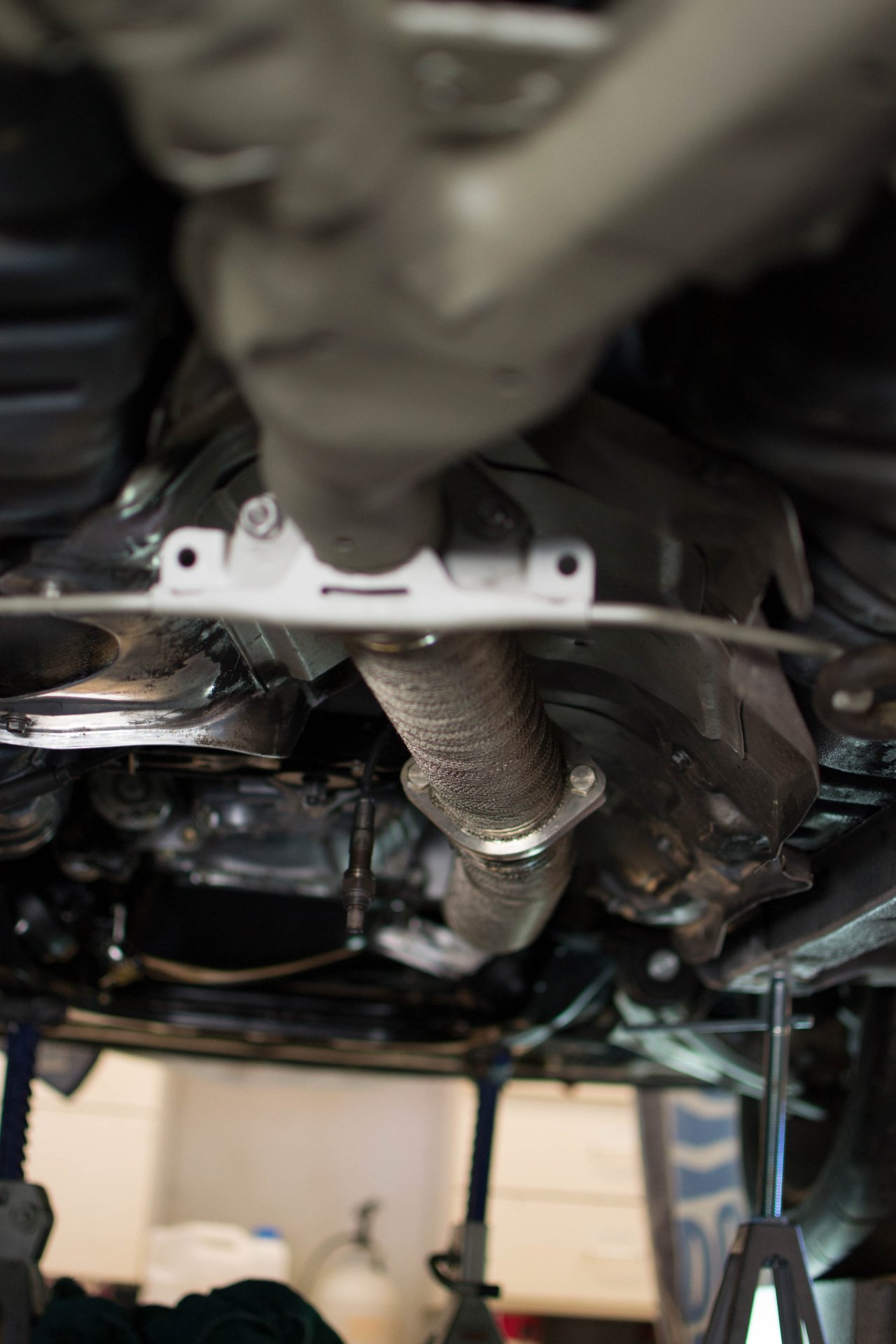

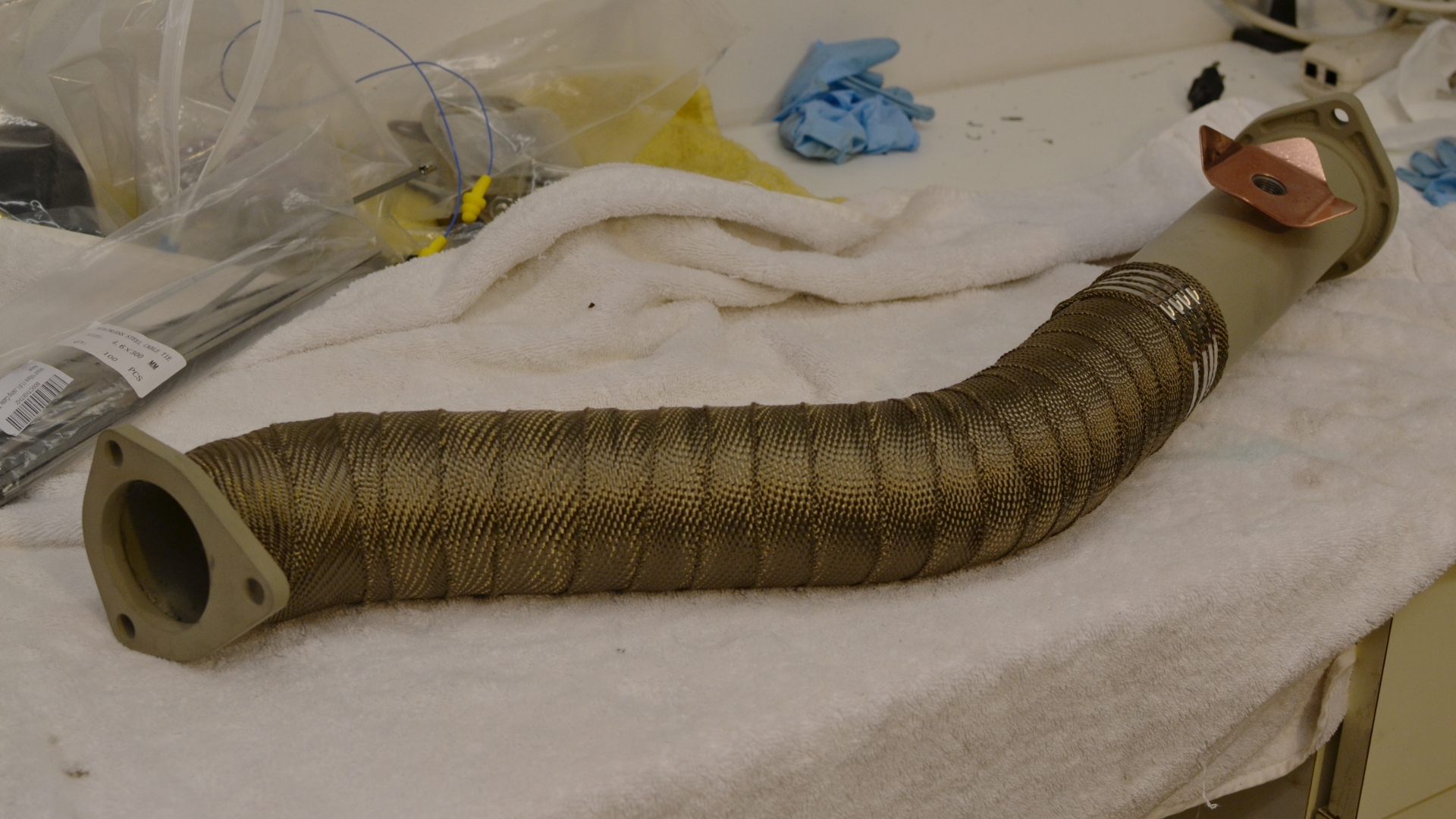

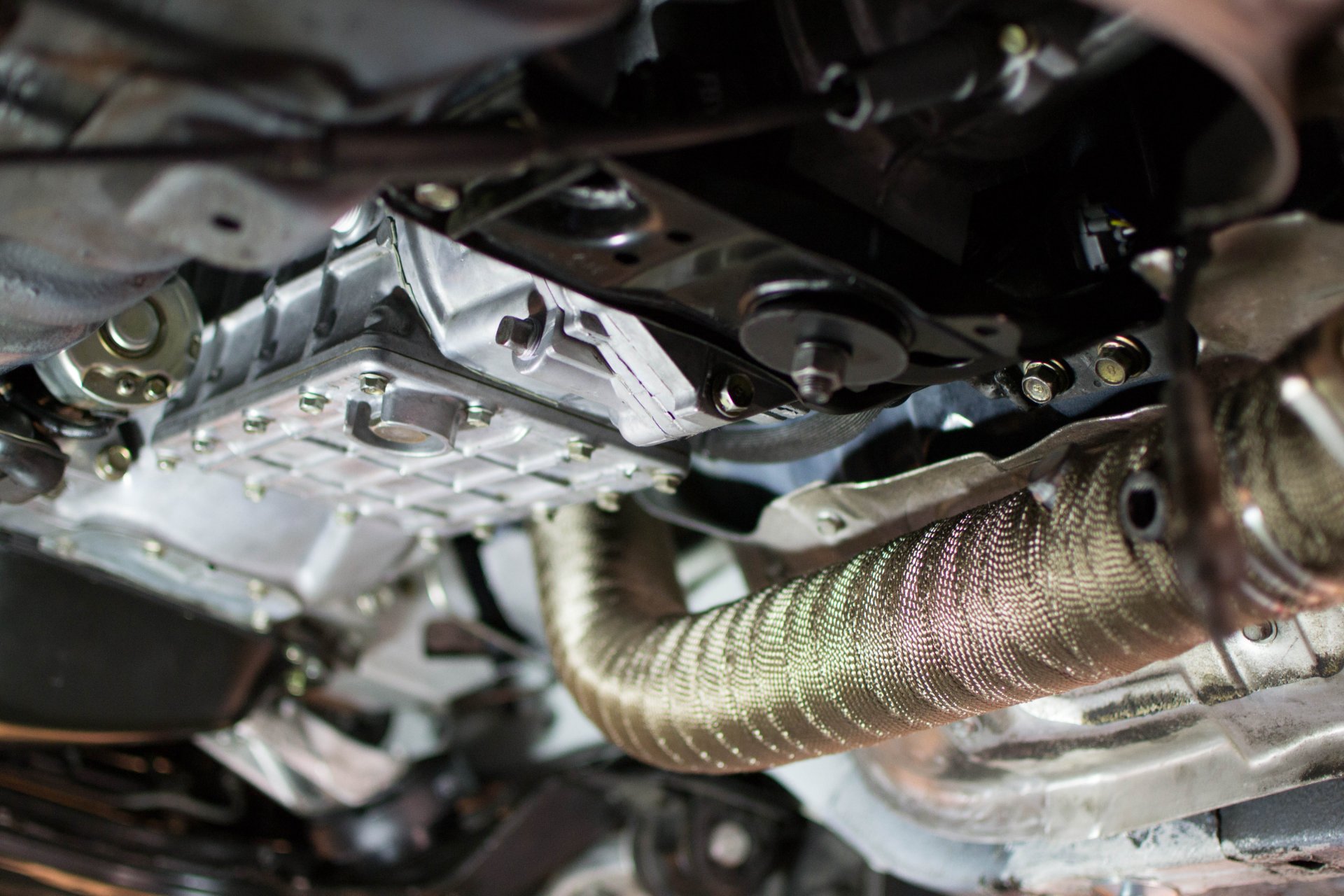

I had the down pipe ceramic coated by Bean's Best in Ann Arbor. Also threw on some DEI Wrap that I had left over. This should keep things cooler.
Also fabbed up a simple copper O2 sensor heat sink. I trashed the old sensor's threads, so the new one is a Bosch sensor.
The sound is quieter at idle and louder on boost. The RB exhaust really takes out all the high frequency rasp. Very impressed.
Holds boost a bit better! Still maxing out the boost controller.
I had the down pipe ceramic coated by Bean's Best in Ann Arbor. Also threw on some DEI Wrap that I had left over. This should keep things cooler.
Also fabbed up a simple copper O2 sensor heat sink. I trashed the old sensor's threads, so the new one is a Bosch sensor.
The sound is quieter at idle and louder on boost. The RB exhaust really takes out all the high frequency rasp. Very impressed.
Holds boost a bit better! Still maxing out the boost controller.
#122
RX-7 Old Timer
Thread Starter
I am still alive.
The car rules but it makes me feel like I'm choking when the toxic exhaust cloud wafts back into the cabin. I want a cat.
Racing beat doesn't sell parts for this, so time to make more one-offs.
This is a 3" G-Sport GESI cat (EPA version for the good wash coat).
And me learning to gas weld using my new oxy-acetylene torch setup.

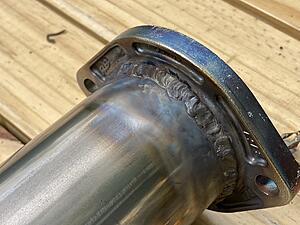

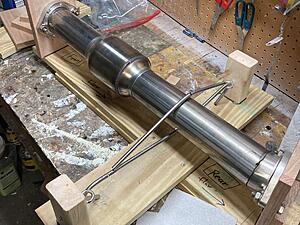

This is.... not beautiful, but it appears to be leak free and is holding up. I used stainless tig rod as filler.
