TurboGSL-SE's widebody build

Old 11-10-13, 06:55 AM
  #76
Slowly but surely
iTrader: (9)

craaaazzy's Avatar

Join Date: May 2011
Location: GA
Posts: 1,657
Liked 7 Times in 7 Posts
Nice wheels...they'll be beautiful once you refinish them.
craaaazzy is offline
Old 11-10-13, 10:16 AM
  #77
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts
Thanks. I've got one of the four 95% polished, it looks great. The centers are all cleaned. Three of the centers had overspray on them from a rattle can paint job. That was no fun cleaning out the paint from the insides of the mesh.
turbogslse is offline
Old 11-23-13, 06:13 PM
  #78
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts

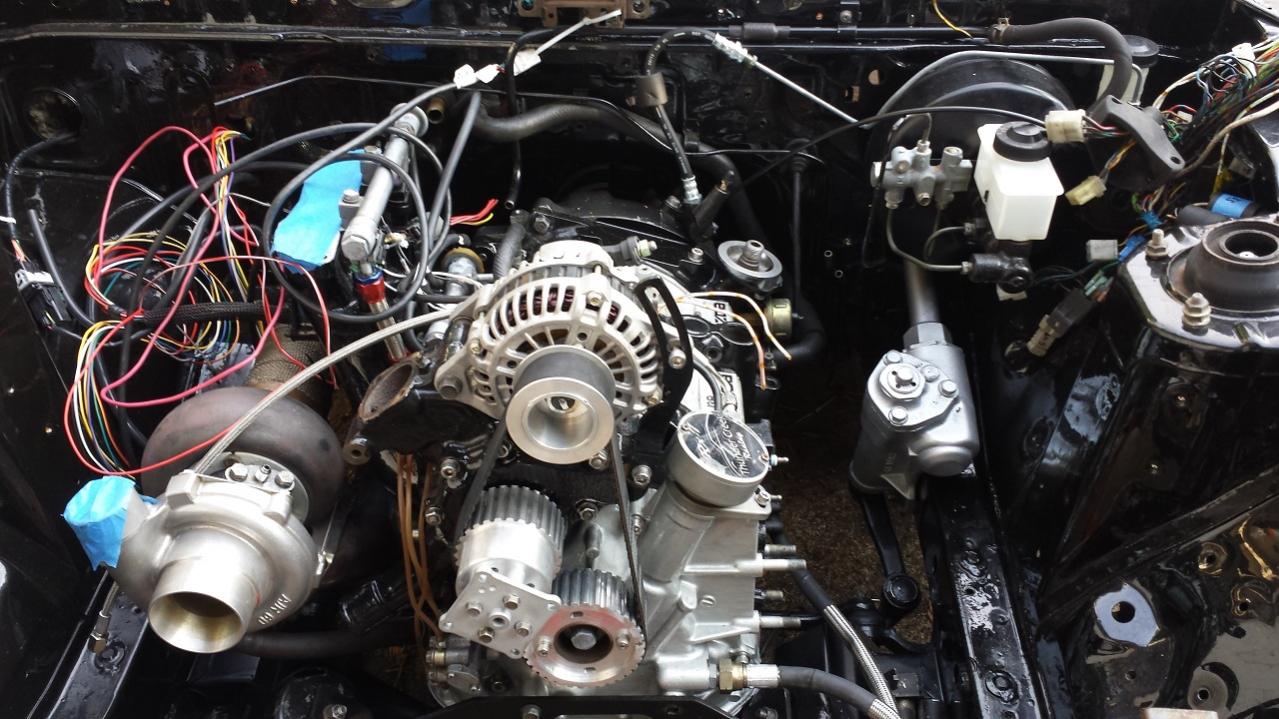

Power steering is no more. Swapped in a manual unit from a donor '85. They are not easy to remove with the motor and A/C in place. Sheesh!

Drained and replaced the gear oil in the manual unit, and replaced all the steering column wiring. Super happy!

Worked a bit more on the wiring tuck - pulling the main harness back into the cabin and out along the fender.
Attached Thumbnails TurboGSL-SE's widebody build-manualsteeringinplace.jpg
turbogslse is offline
Old 11-23-13, 06:39 PM
  #79
You wanna do what?????
iTrader: (2)

Frankenmazda's Avatar

Join Date: Apr 2007
Location: Greater Cincinnati
Posts: 447
Likes: 0
Liked 4 Times in 3 Posts
cool

That's looking good!
Frankenmazda is offline
Old 11-25-13, 04:50 PM
  #80
'84 5-letter
iTrader: (5)

ioTus's Avatar

Join Date: Jul 2002
Location: Washington State
Posts: 3,219
Liked 1 Time in 1 Post
Dave how are you routing the wires through from the cabin into the fender? Curious where you're cutting into.

~Geoff
ioTus is offline
Old 11-25-13, 05:27 PM
  #81
Common sense ain't common
iTrader: (29)

estevan62274's Avatar

Join Date: May 2002
Location: Melbourne, Fl
Posts: 2,407
Liked 10 Times in 10 Posts
Originally Posted by ioTus View Post
Dave how are you routing the wires through from the cabin into the fender? Curious where you're cutting into.

~Geoff


^ditto,

Nice build btw... I love me some wide body first gens!
estevan62274 is offline
Old 11-26-13, 09:00 AM
  #82
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts

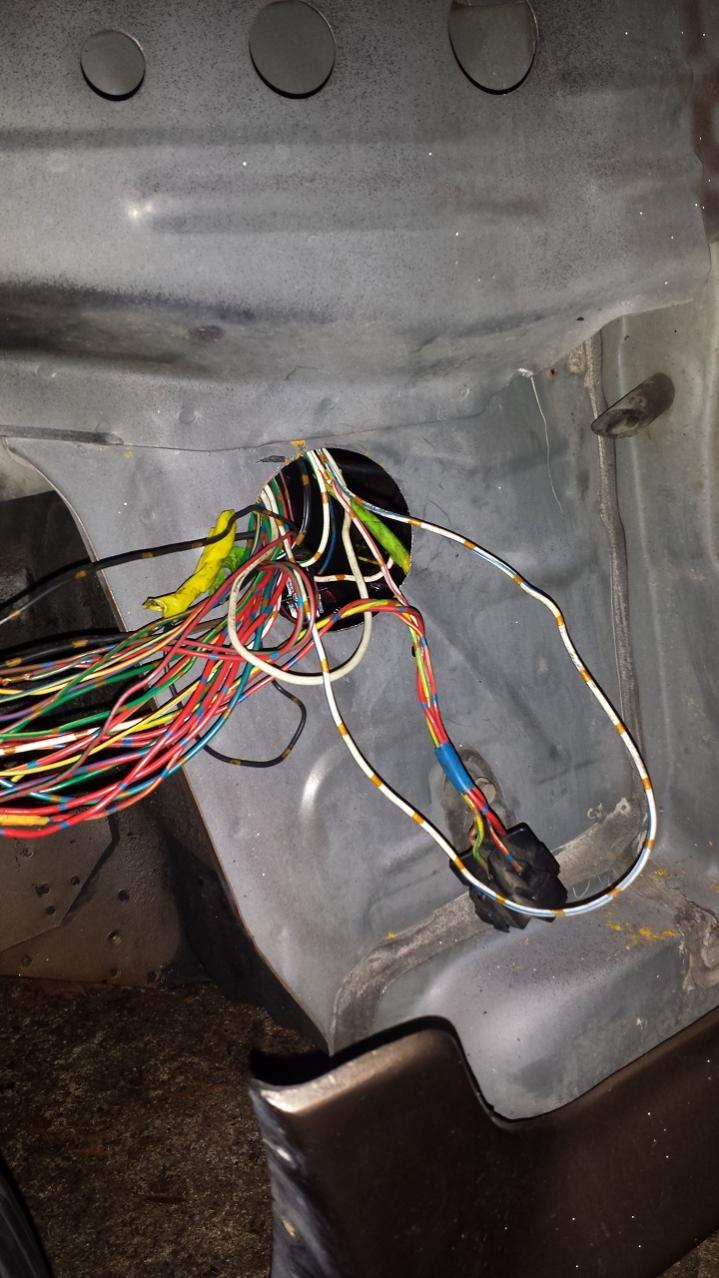

Cut a hold up high in the drivers side footwell above the dead pedal. Used a hole saw for a nice round cut. I'll put some spare door molding around the sheet metal to protect the wires. It will need some type of waterproofing eventually.
Attached Thumbnails TurboGSL-SE's widebody build-wiringholefender.jpg
turbogslse is offline
Old 11-28-13, 02:06 AM
  #83
'84 5-letter
iTrader: (5)

ioTus's Avatar

Join Date: Jul 2002
Location: Washington State
Posts: 3,219
Liked 1 Time in 1 Post
Very nice.

Are you pulling a fresh harness? Extending the factory?

I've been thinkin of replacing a lot of my factory harness, noticing lots of shoddy, rusted through connections in my harness.
ioTus is offline
Old 11-28-13, 08:56 AM
  #84
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts
Just extending the stock harness where necessary. The wiring for the headlights, turn signals and marker lights is pretty close to required length anyway. Because the battery is in my driver's side rear bin, I'll be extending a few +12V wires back there and will also relocate the engine bay fusible link block with a Mazda fuse block instead. Most of my wiring is in good condition, the alternator wiring (BW and WB on connector A-02) is frail, mostly because of repeated heating of the insulation. Those wires will be replaced and tucked.
turbogslse is offline
Old 12-15-13, 09:41 AM
  #85
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts

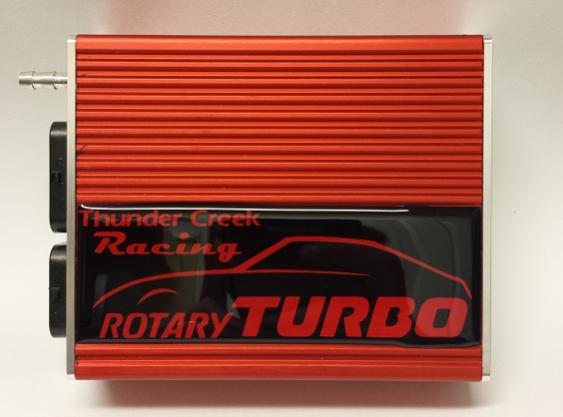

Replaced the old "Wolf v550" decal on my ECU with a more proper version today.
Attached Thumbnails TurboGSL-SE's widebody build-wolfwithnewdecal.jpg
turbogslse is offline
Old 12-15-13, 10:59 AM
  #86
Out In the Barn
iTrader: (8)

KansasCityREPU's Avatar

Join Date: Mar 2005
Location: Liberty, Missouri
Posts: 4,169
Liked 94 Times in 89 Posts
If your going with the wide body, would you be interested in selling the Mariah side skirts and rear lower skirt?
KansasCityREPU is offline
Old 12-15-13, 11:43 AM
  #87
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts
Much as I like the super wide-body look, I don't like it at all some times, and like it a lot other times. For the moment, the Mode 4 kit is staying on the car, so I'm not going to part with it. I still have to figure out what is best with the 11.5" wide wheels in the back. Thanks for asking though!
turbogslse is offline
Old 12-15-13, 04:32 PM
  #88
'84 5-letter
iTrader: (5)

ioTus's Avatar

Join Date: Jul 2002
Location: Washington State
Posts: 3,219
Liked 1 Time in 1 Post
Dave,

I 100% hear you on the wide-bodies. Personally, if anything, I'm going for the fender flare look. For whatever reason the Aussie Group-C look just totally does it for me.

As far as widebodies tho....
Attached Thumbnails TurboGSL-SE's widebody build-1208471_705002979514247_1711547603_n.jpg   TurboGSL-SE's widebody build-75.jpg
ioTus is offline
Old 12-15-13, 05:20 PM
  #89
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts
Yep, seen the RES wide body - looks awesome, but I've never seen that Mariah Mode 1 before. That's very nice. I even have the same targa band and whale tail. HMmmmm.
turbogslse is offline
Old 12-26-13, 06:26 PM
  #90
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts

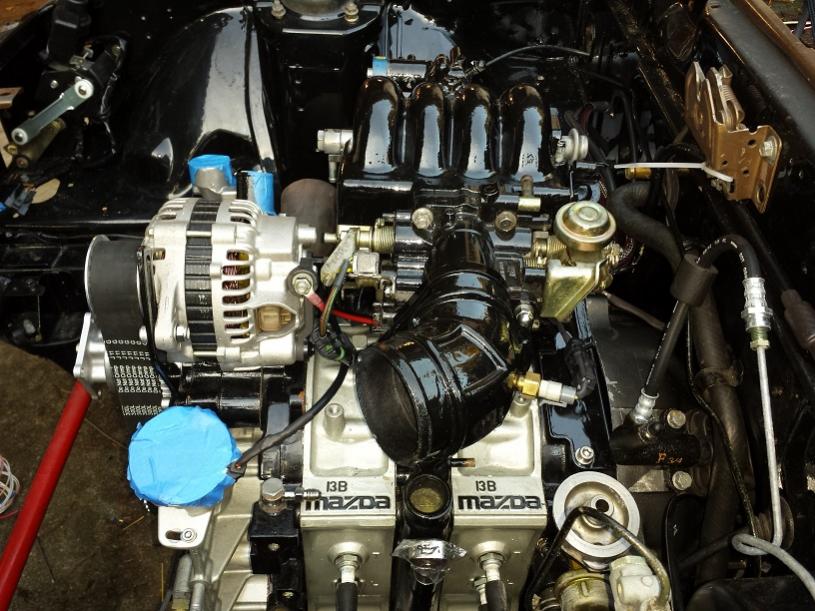

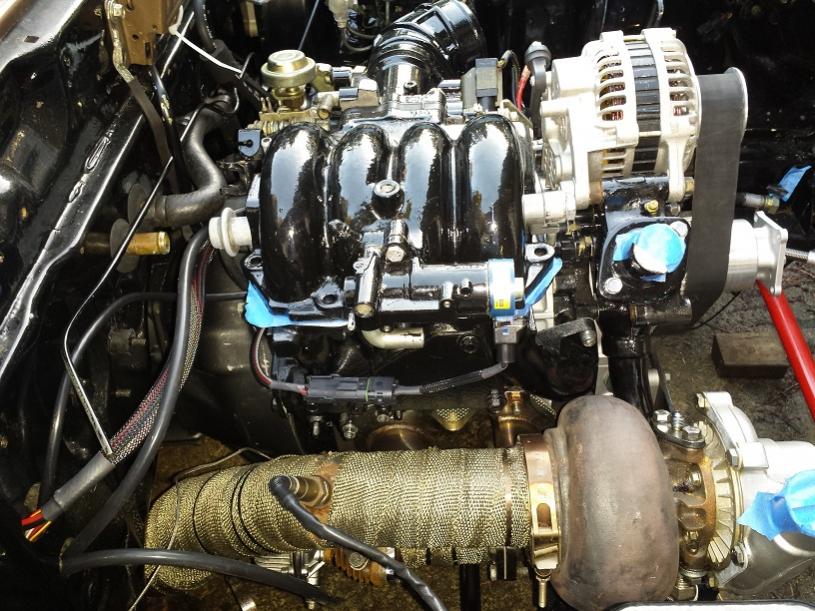

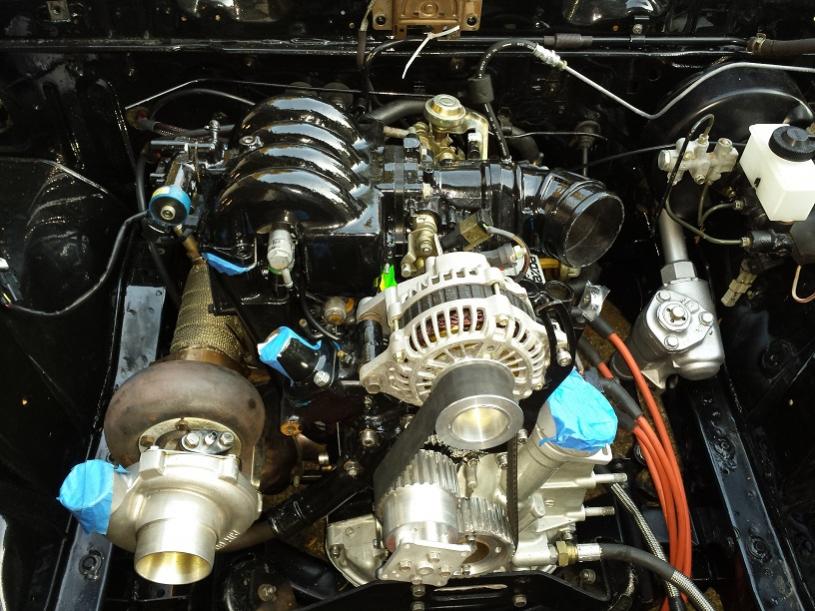

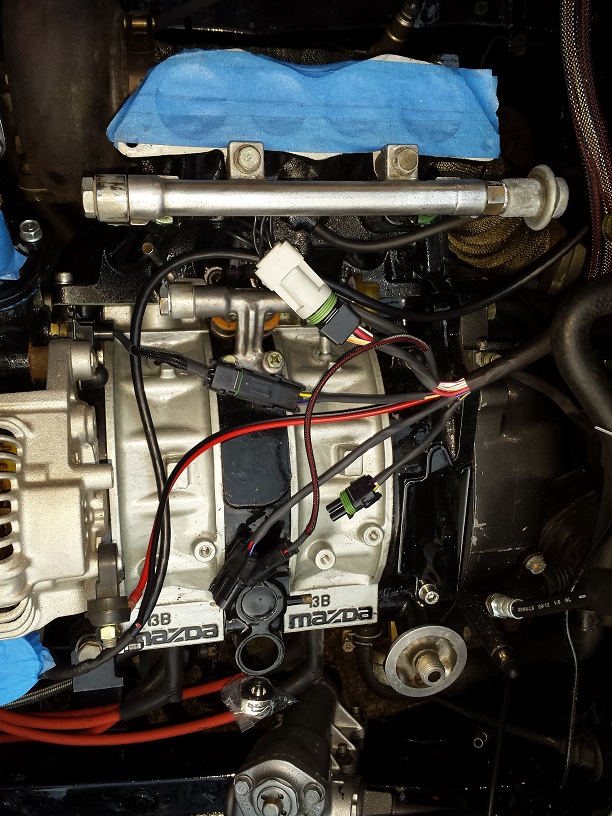

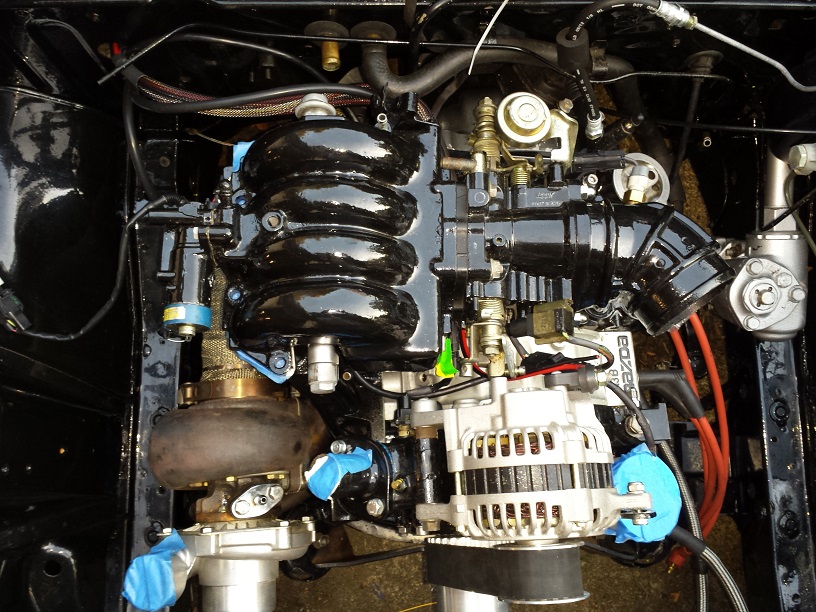

A clear but cold day was finally here for some good outdoor wiring work on the RX7. I had recently received the upgraded Wolf v550 ECU and flying lead, and rough wired-in the harness for the engine. The engine harness only needs wires for TPS, CAS, Water Temp, Air Temp, BAC valve and injectors. I also pulled through wires for the alternator, rather than using the old factory wires. The ignition coil wires will go through the drivers side fender wall. The ignitors themselves will be mounted under the dash.

I bought a Weatherpack connector kit. A company "Vehicle Harness connections" on ebay - their username is "avilaelecinc" has nice kits and crimpers. About the best price/value, but you can also get them from diyautotune.com. Makes everything "factory new" for all wiring. You won't ever go back to anything but these once you've used them.
Basically all the wiring is tucked underneath the upper intake manifold as best as I can get it. Results are pictured below.
Attached Thumbnails TurboGSL-SE's widebody build-baywithwires5.jpg   TurboGSL-SE's widebody build-baywithwires4.jpg   TurboGSL-SE's widebody build-baywithwires3.jpg   TurboGSL-SE's widebody build-baywithwires2.jpg   TurboGSL-SE's widebody build-baywithwires1.jpg

turbogslse is offline
Old 12-31-13, 11:50 PM
  #91
Bridge Port Freak
iTrader: (12)

ArmyOfOne's Avatar

Join Date: Oct 2003
Location: Wiesbaden, Germany
Posts: 1,026
Liked 0 Times in 0 Posts
Looking real good Dave, can't wait to see it in person!
ArmyOfOne is offline
Old 01-01-14, 03:59 PM
  #92
Slowly but surely
iTrader: (9)

craaaazzy's Avatar

Join Date: May 2011
Location: GA
Posts: 1,657
Liked 7 Times in 7 Posts
Build's coming along nicely Dave.
craaaazzy is offline
Old 04-13-14, 09:09 PM
  #93
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts
Smile

Been picking away at the wiring over the last two months. Wiring is not my strong suit, so I'm taking my time and doing it right.

Got far enough with wiring to hook up the battery and check on Wolf v550 statistics. TPos is reversed, but AirT and WaterT are spot on. Boost controller seemed to be operating continuously, so going to have to figure that out. Generally, super happy that I can power up the car and troubleshoot any wiring issues much more easily.

Did some fit-up on my 3-row Champion radiator. Unfortunately, it's just so big that it can't fit with the sway bar, and it's too close to the motor mount, and as such, the lower radiator hose won't fit. I can't get the fan in without shredding up the radiator fins, so it may have to sit in it's box until some other project. I was hoping to get better cooling than stock, but maybe there's something out there that's better than stock but still stock size.

Drove a stock GSL-SE - very stock! this weekend, and it reminds me how much power my TII motor really has when running well.

Feeling happy.
turbogslse is offline
Old 05-08-14, 07:57 AM
  #94
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts
And...................................... it runs.

Super happy that the beast is awake once more. Video? Sure!

turbogslse is offline
Old 05-08-14, 08:25 AM
  #95
Slowly but surely
iTrader: (9)

craaaazzy's Avatar

Join Date: May 2011
Location: GA
Posts: 1,657
Liked 7 Times in 7 Posts
awesome dave!
craaaazzy is offline
Old 05-08-14, 09:05 PM
  #96
1 bar boost
10 Year Member
iTrader: (4)

notveryhappyjack's Avatar

Join Date: Jun 2005
Location: Seattle, Washington
Posts: 2,735
Likes: 0
Liked 0 Times in 0 Posts
exciting! sounds nice, what RPM was that idling at?
notveryhappyjack is offline
Old 05-09-14, 09:41 PM
  #97
'84 5-letter
iTrader: (5)

ioTus's Avatar

Join Date: Jul 2002
Location: Washington State
Posts: 3,219
Liked 1 Time in 1 Post
Niiiiiiiice! That sounds like a solid 900rpm idle?

And he's right - that Gilmer isn't that loud at ALL. Did you notch the teeth?
ioTus is offline
Old 05-11-14, 03:11 PM
  #98
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts
About a 1000 rpm idle, maybe a bit less. I drilled holes in the center of the grooves on the pulleys. Still need to do the alternator pulley, but it made a big difference.

Had some nice revs, but currently have an ignition issue to figure out.
turbogslse is offline
Old 05-18-14, 05:20 PM
  #99
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Likes: 0
Liked 0 Times in 0 Posts

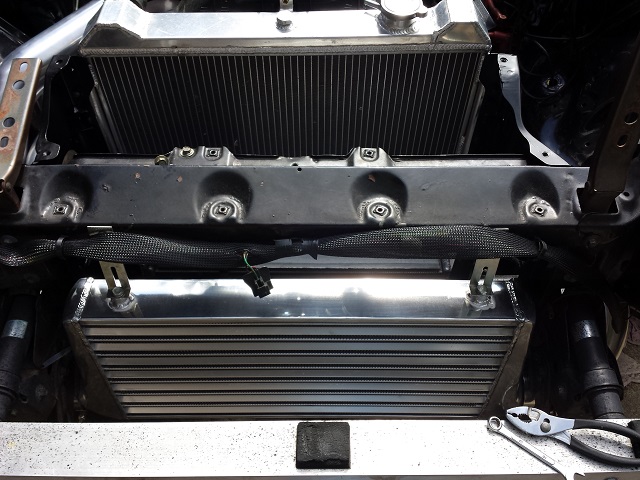

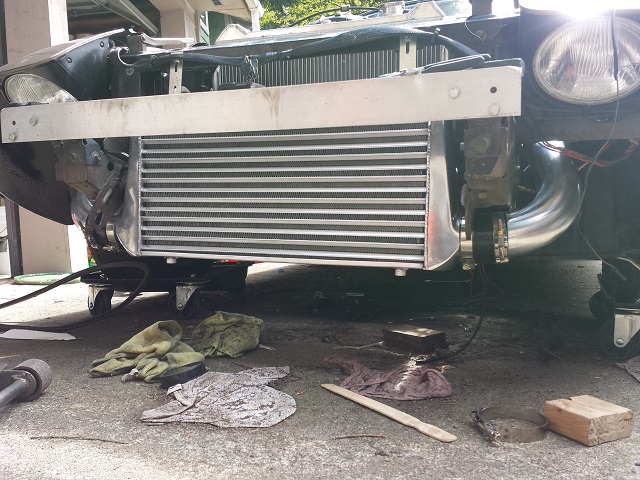

That should keep that intake temp down.
Attached Thumbnails TurboGSL-SE's widebody build-20140518_105644.jpg   TurboGSL-SE's widebody build-20140518_105653.jpg
turbogslse is offline
Old 05-18-14, 05:39 PM
  #100
'84 5-letter
iTrader: (5)

ioTus's Avatar

Join Date: Jul 2002
Location: Washington State
Posts: 3,219
Liked 1 Time in 1 Post
Yup.

So where did you get that radiator? I am 0 for 2 on the eBay specials. The last one I ordered was the same design as yours only rattle canned in mexichrome, which was flaking off before I even touched it
