TurboGSL-SE's widebody build

Old 05-18-13, 01:03 AM
  #51
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
I have some 8x15" fronts and 11x15" rears. They're Epsilons. I've driven without PS for a while, and then got my PS pump fixed. I know the difference. You'll be happy to be back on power.
turbogslse is offline
Old 05-21-13, 06:54 PM
  #52
'84 5-letter
iTrader: (5)

ioTus's Avatar

Join Date: Jul 2002
Location: Washington State
Posts: 3,219
Thanked 1 Time in 1 Post
Oh right -sorry i meant stock or aftermarket steering wheel.

Damn nice Epsilons - would love to check those out.

PS back on - this car is 1000% better. How it was engineered to handle. Fills out the engine bay too, looks more substantial. I just fell in love with my car all over again
ioTus is offline
Old 05-29-13, 01:29 AM
  #53
Always Wanting to Learn
iTrader: (45)

DreamInRotary's Avatar

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 2,969
Thanked 22 Times in 21 Posts
Looking good! Have to ask, you're building it into a widebody right? Where are the pics?? I'm supposed to be picking up a CP Racing WB Kit next week and I'd love to collaborate on how to get the thing on the car without ruining the car or the kit
DreamInRotary is offline
Old 09-29-13, 10:36 PM
  #54
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
A few more updates. Dropped in the motor and TII Tranny. Got a driveshaft made up for the mis-match. Quoted a length of 40.25" from flange face to centerline on the slip yoke. Pretty reasonable as far as I can see. Probably could have gone to 40.5" without much difficulty. Anyhow, next up are mods to the tunnel to accommodate the shifter. In the meantime, weather in my area isn't getting any nicer, so I picked up some center caps for my Epsilons. I really didn't like the way they looked with a sticker on it, so I made some super sexy "E" logo emblems. I'm very happy with they way they came out. I made a few spares too, so PM me if you're looking for an upgrade or a set. BTW, I can easily make the waterfall M logo emblems as well. In any size.

So, here are the pics of the latest effort.

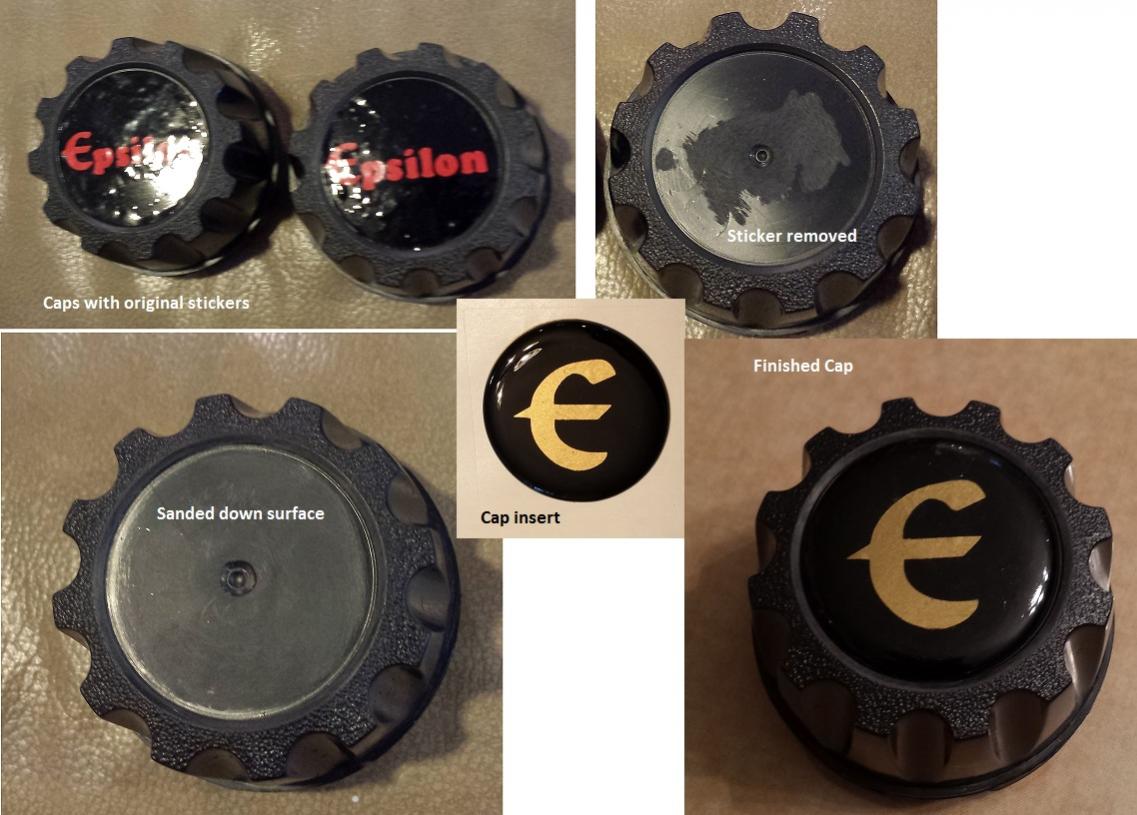

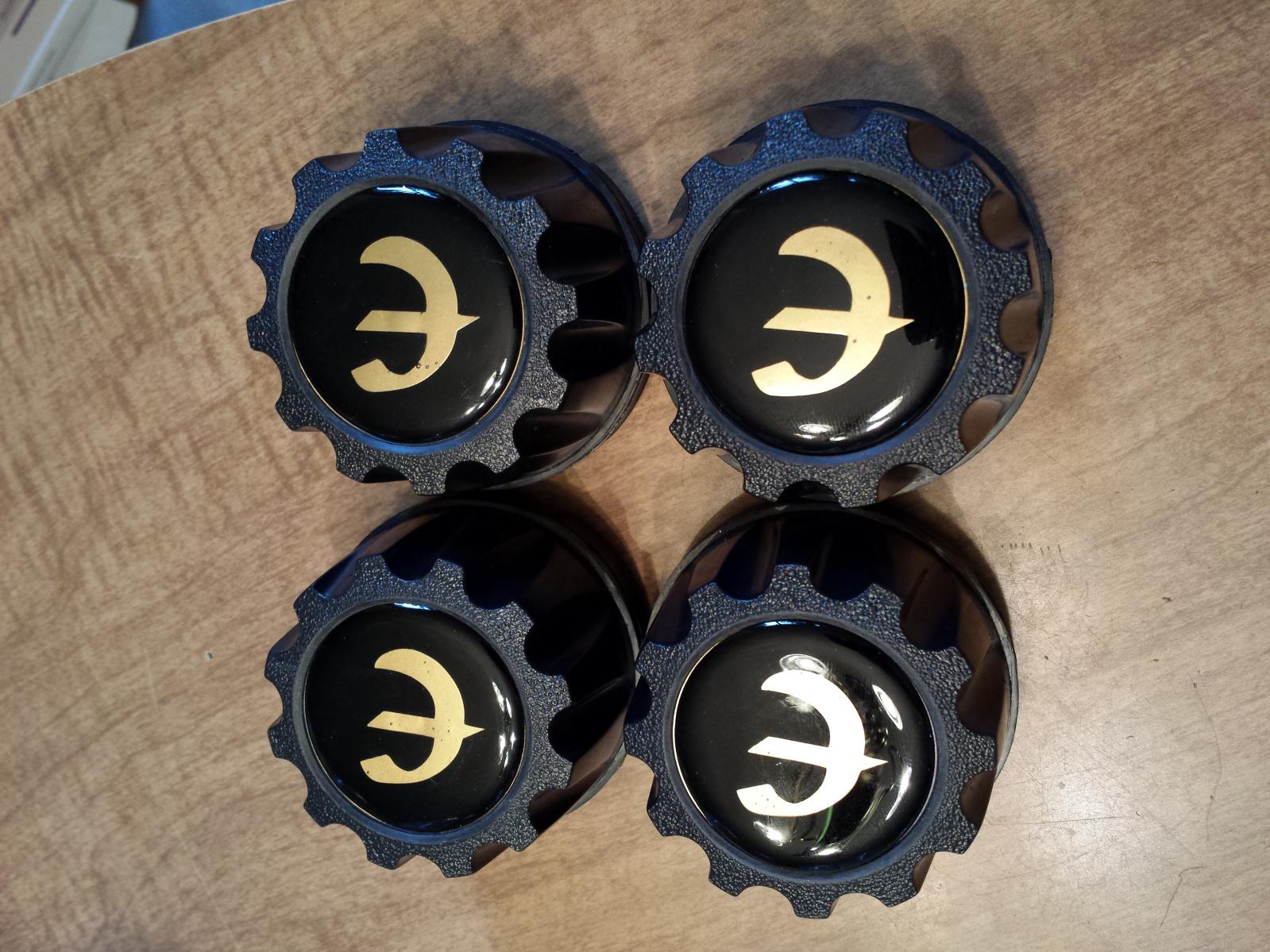

First pic is the process of making them - with the red logo as the original version. The second photo is my finished set.
Attached Thumbnails TurboGSL-SE's widebody build-cap-making.jpg   TurboGSL-SE's widebody build-20130929_115327.jpg

Last edited by turbogslse; 09-29-13 at 10:38 PM. Reason: updated pic
turbogslse is offline
Old 09-30-13, 02:30 PM
  #55
'84 5-letter
iTrader: (5)

ioTus's Avatar

Join Date: Jul 2002
Location: Washington State
Posts: 3,219
Thanked 1 Time in 1 Post
Nice man. I will definitely hit you up when i get some wheels. Could you do the Mazda logo like from the front hood?
ioTus is offline
Old 09-30-13, 02:59 PM
  #56
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by ioTus View Post
Nice man. I will definitely hit you up when i get some wheels. Could you do the Mazda logo like from the front hood?
Yep, I also have the waterfall M that would come out nicely in a circle. I also have the RX-7 that's like the side badge which I could put in an emblem. See the below page for the "MAZDA" and "RX-7" elements I have.

Mazda RX-7 (1st Generation) Vinyl Sticker

Dave
turbogslse is offline
Old 10-01-13, 04:02 PM
  #57
Slowly but surely
iTrader: (9)

craaaazzy's Avatar

Join Date: May 2011
Location: GA
Posts: 1,648
Thanked 7 Times in 7 Posts
nice build. everything is so clean.
craaaazzy is offline
Old 10-01-13, 04:23 PM
  #58
Always Wanting to Learn
iTrader: (45)

DreamInRotary's Avatar

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 2,969
Thanked 22 Times in 21 Posts
Looks good so far! Would still like to see the pics of the body kit going on the car!
DreamInRotary is offline
Old 10-03-13, 12:14 AM
  #59
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
Spent a little time this evening on the TII Transmission. I really didn't like the idea of cutting the tunnel, although so many folks said to just do it. I just bought brand new rubber seals and wasn't really in the mood to cut them up or mess with the shifter boot location and top cover. So, I pulled apart one of my horrible grindy GSL-SE transmissions and did the mod like is shown here: TII trans shifter location mod VIDEO!!! - RX7Club.com. Turns out it was pretty easy, and I welded the dust cover sleeve together after trimming out the required length. Now, I just need to mill out the pin hole and trim the end off. Unfortunately, the TII transmission showed some signs of rust when I pulled off the tailshaft housing, so I'm not 100% sure of the quality of the transmission. I bought it used, and the seller didn't have first hand knowledge of how it ran. So, we'll try to get an expert opinion about it, and see where that gets me.
turbogslse is offline
Old 10-03-13, 12:22 AM
  #60
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts

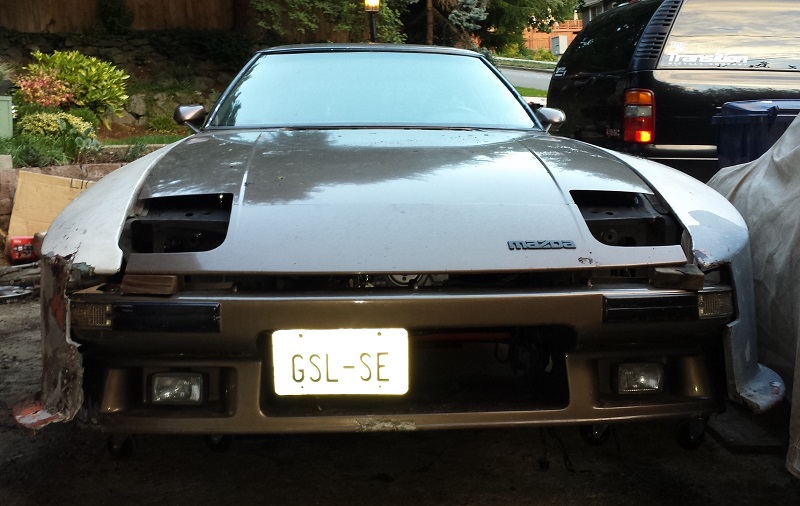

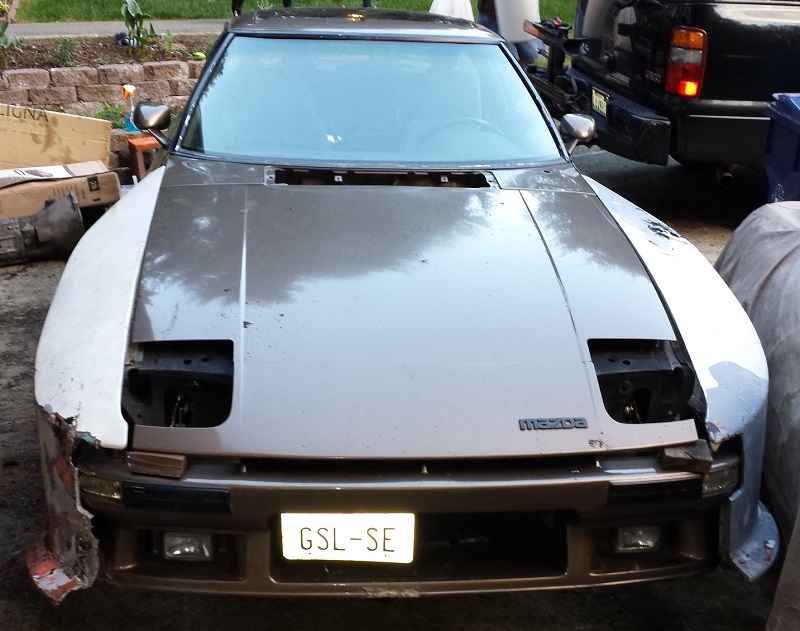

So, you want to see body kit... I put on the fenders and my Mariah Mode 4 front air dam. Call me crazy, but my goal is to use the Mariah front air dam with the CP fenders. Yep, that'll mean some fiberglass work, but for all that I love about the CP kit, I hate the fact that it used the SA bumper. So, I "fitted up" (yes, I use that term liberally) the Mariah front air dam with the fenders to get an idea of what I'm up against. So, here are the pics. What do you think?
Attached Thumbnails TurboGSL-SE's widebody build-bodkitfit1.jpg   TurboGSL-SE's widebody build-bodkitfit2.jpg
turbogslse is offline
Old 10-03-13, 06:28 AM
  #61
Senior Member
10 Year Member

Join Date: Jun 2002
Location: London,ON
Posts: 565
Thanks: 0
Thanked 1 Time in 1 Post
Put on a front splitter & call it a day? lol
Mazda RX-7 EFINI TYPE is offline
Old 10-13-13, 10:34 AM
  #62
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
OK, more on the transmission. Here are some pics of the work I did and the differences that are relevant.

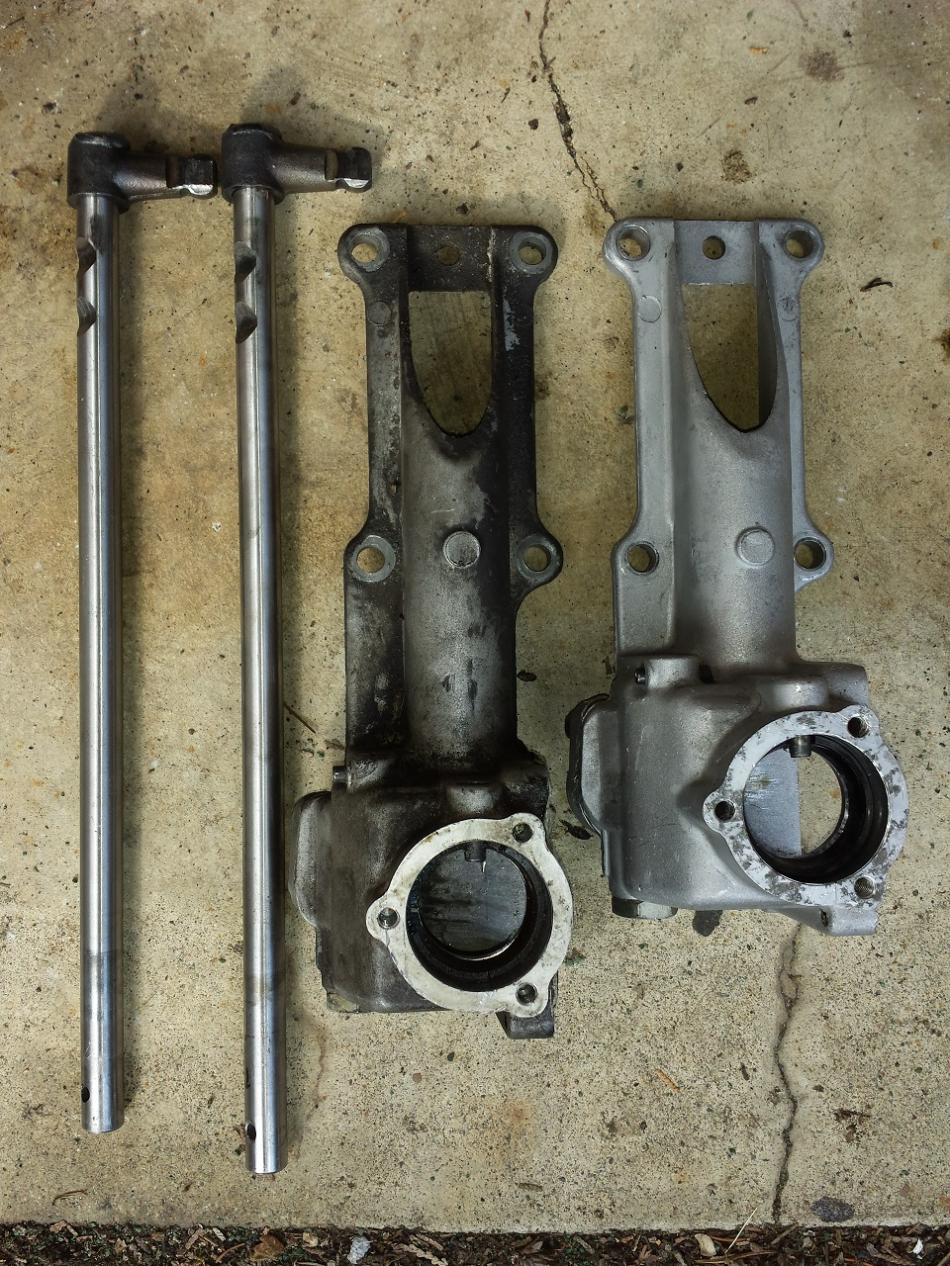

You can see the two shift assemblies side by side. The clean one is from a GSL-SE transmission, the dirty one from a TII transmission. The bolt and pin patterns are identical. The selector rods are also from GSL-SE and TII transmission. You'll need the shorter one from the GSL-SE transmission. Lastly, the dust tubes. The short one was made from cutting out a section from the middle and welding it back together.

The last part is making a mount that bolts to the bottom of the TII tailshaft housing and bolts to the stock transmission crossmember. Pics of that later.
Attached Thumbnails TurboGSL-SE's widebody build-dusttubes.jpg   TurboGSL-SE's widebody build-transmissionshifter.jpg
turbogslse is offline
Old 10-13-13, 10:09 PM
  #63
Junior Member

Join Date: Apr 2013
Location: Des Plaines
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Sex on wheels.
BoostedRotary13b is offline
Old 10-20-13, 08:36 PM
  #64
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts

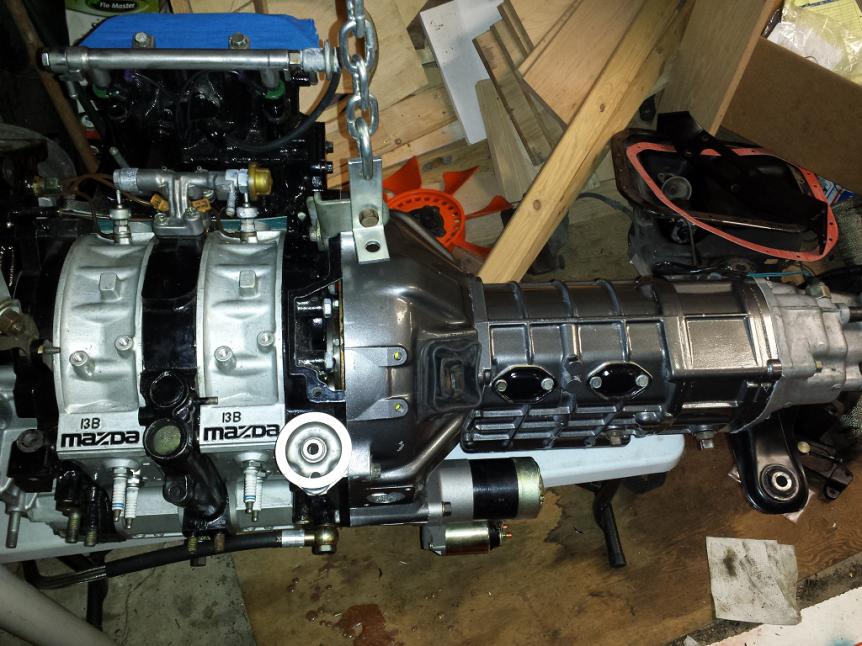

Bolted up the starter & transmission today. Got the transmission cross member mount figured out too.
Attached Thumbnails TurboGSL-SE's widebody build-longblock.jpg
turbogslse is offline
Old 10-20-13, 09:18 PM
  #65
Slowly but surely
iTrader: (9)

craaaazzy's Avatar

Join Date: May 2011
Location: GA
Posts: 1,648
Thanked 7 Times in 7 Posts
Motor and tranny look great!
craaaazzy is offline
Old 10-28-13, 06:05 PM
  #66
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by turbogslse View Post
OK, more on the transmission. Here are some pics of the work I did and the differences that are relevant.

You can see the two shift assemblies side by side. The clean one is from a GSL-SE transmission, the dirty one from a TII transmission. The bolt and pin patterns are identical. The selector rods are also from GSL-SE and TII transmission. You'll need the shorter one from the GSL-SE transmission. Lastly, the dust tubes. The short one was made from cutting out a section from the middle and welding it back together.

The last part is making a mount that bolts to the bottom of the TII tailshaft housing and bolts to the stock transmission crossmember. Pics of that later.
UPDATE: You will have to trim .67" from the end of the GSL-SE shift selector rod and re-drill the hole. The GSL-SE selector rod WILL NOT work unless you trim it down.
turbogslse is offline
Old 10-28-13, 07:30 PM
  #67
Slowly but surely
iTrader: (9)

craaaazzy's Avatar

Join Date: May 2011
Location: GA
Posts: 1,648
Thanked 7 Times in 7 Posts
I'm not surprised about that Dave. In your pic, it looked like the rod needed to me shortened to match the difference between the 2 housings.
craaaazzy is offline
Old 10-28-13, 07:48 PM
  #68
Tui
Banned. I got OWNED!!!
iTrader: (2)

Join Date: Oct 2013
Location: California
Posts: 315
Thanks: 0
Thanked 0 Times in 0 Posts
I really like my GSLSE, but I think I would like it much better with this set up. Ima following this project for sure.

What is the reason you are not going to use 16 inch rims?
Tui is offline
Old 10-28-13, 10:50 PM
  #69
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
I'm not going with 16's because I was able to get a good deal on the existing 15" rims that I have. Epsilon's are just crazy expensive for the barrels, so I'm cleaning mine up and making the most of them. They'll be awfully pretty when they're on the car for sure.
turbogslse is offline
Old 10-29-13, 06:07 PM
  #70
1 bar boost
10 Year Member
iTrader: (4)

notveryhappyjack's Avatar

Join Date: Jun 2005
Location: Seattle, Washington
Posts: 2,735
Thanks: 0
Thanked 0 Times in 0 Posts
Engine & especially the transmission look beautiful.
notveryhappyjack is offline
Old 11-02-13, 09:39 PM
  #71
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts

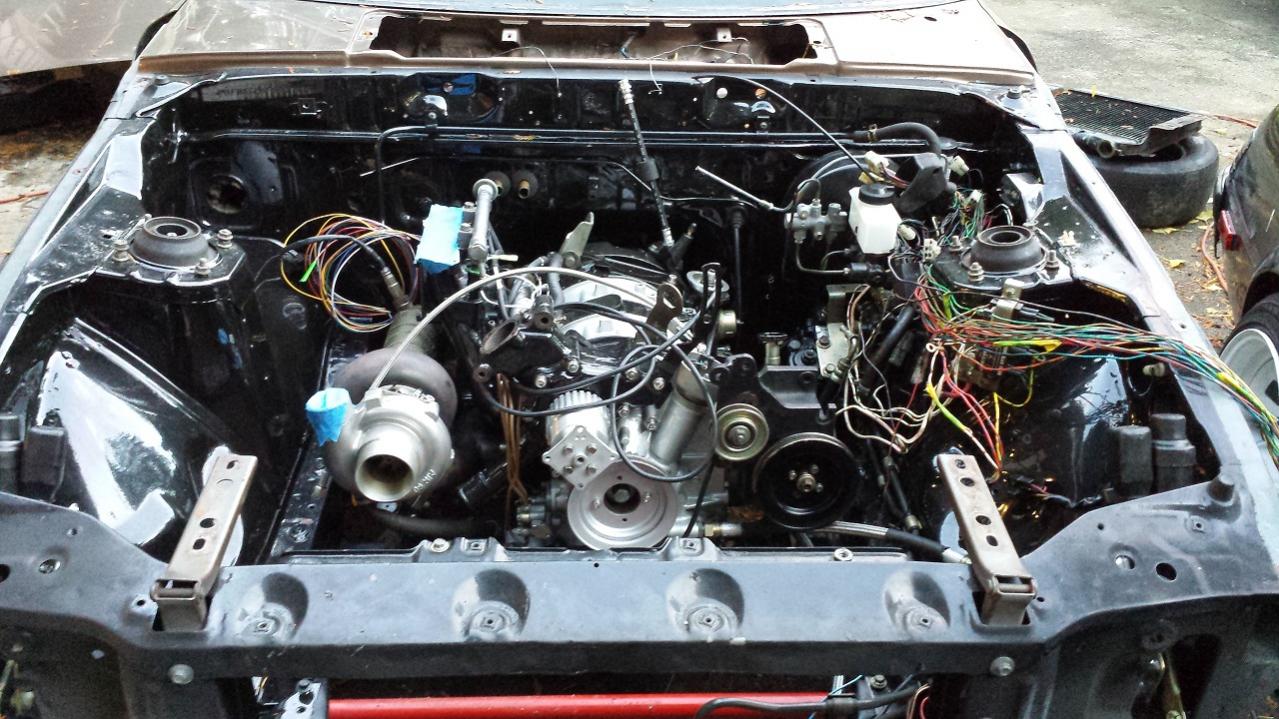

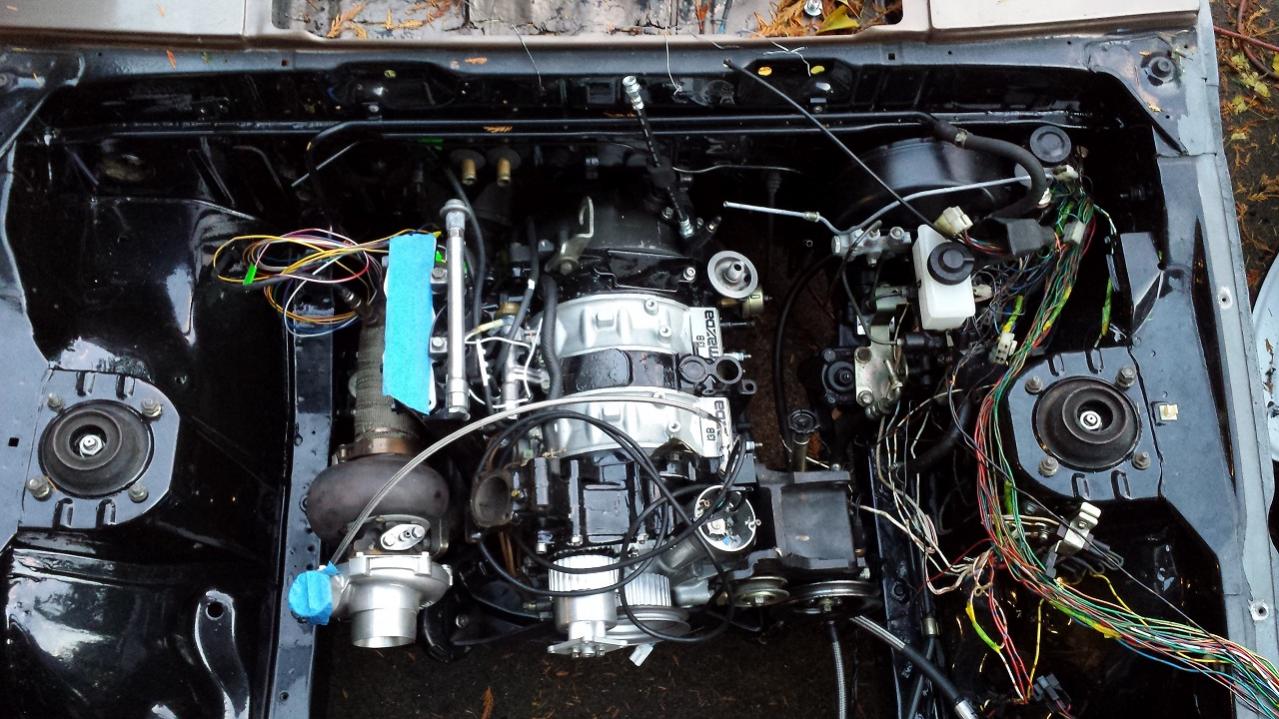

Started the full wire tuck today and dropped the motor in!

Based on what I actually need for wiring, the tuck should go really well.
Attached Thumbnails TurboGSL-SE's widebody build-baywithmotornowires1.jpg   TurboGSL-SE's widebody build-baywithmotornowires2.jpg
turbogslse is offline
Old 11-07-13, 12:12 PM
  #72
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts

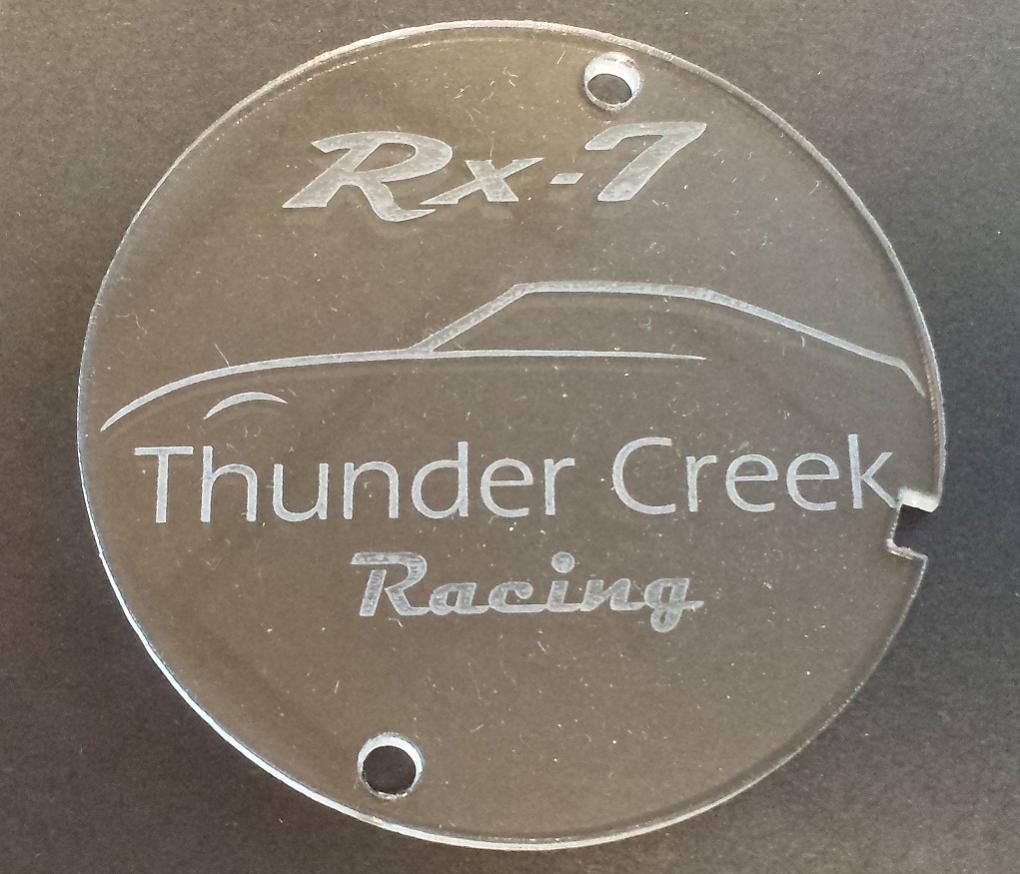

Got the crank angle sensor cover made today. Turned out great!
Attached Thumbnails TurboGSL-SE's widebody build-cas-cover.jpg
turbogslse is offline
Old 11-09-13, 11:10 PM
  #73
Senior Member
10 Year Member

Join Date: Jun 2002
Location: London,ON
Posts: 565
Thanks: 0
Thanked 1 Time in 1 Post
Ohhh, that's sexy . I gotta make one of those too. We need to have a widebody meet when they're all done!
Mazda RX-7 EFINI TYPE is offline
Old 11-09-13, 11:13 PM
  #74
Senior Member
Thread Starter
iTrader: (3)

turbogslse's Avatar

Join Date: Mar 2001
Location: Redmond
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts

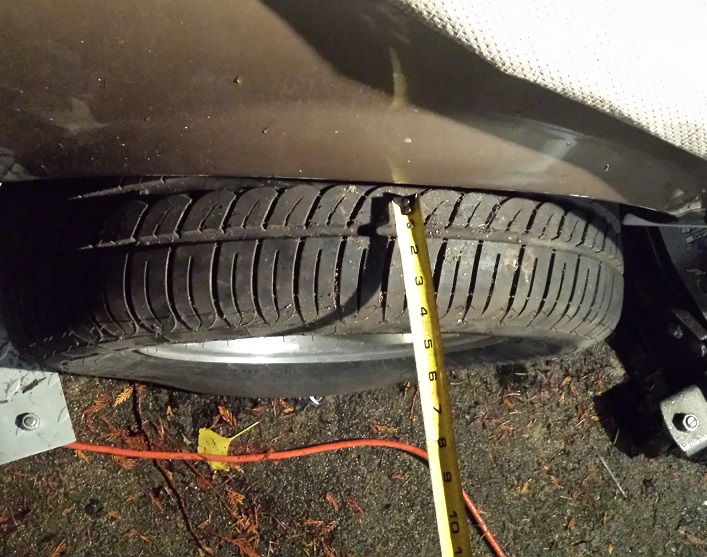

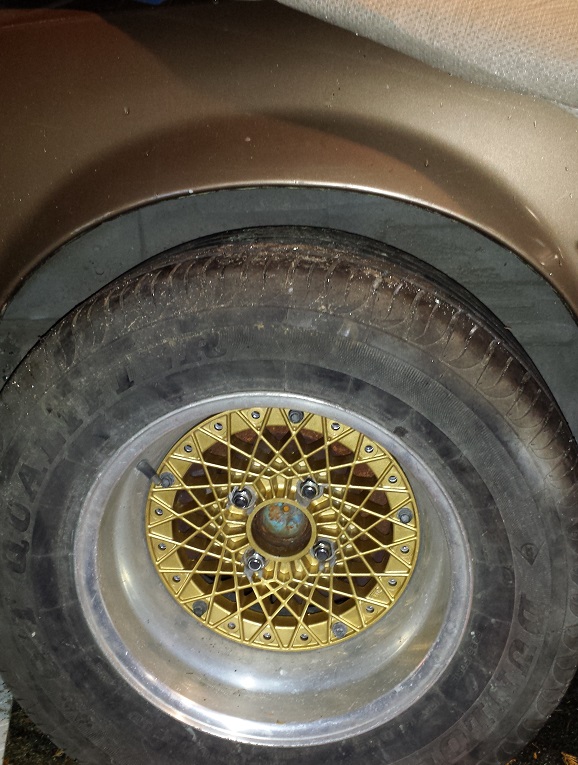

Fatty's on the rear
Attached Thumbnails TurboGSL-SE's widebody build-rearwheel1.jpg   TurboGSL-SE's widebody build-rearwheel2.jpg
turbogslse is offline
Old 11-10-13, 12:29 AM
  #75
Bridge Port Freak
iTrader: (12)

ArmyOfOne's Avatar

Join Date: Oct 2003
Location: Wiesbaden, Germany
Posts: 1,026
Thanks: 0
Thanked 0 Times in 0 Posts
I'd was great meeting you today!!!
ArmyOfOne is offline
