Miami GSL-SE Turbo II S5 Build

Old 08-26-13, 07:53 PM
  #26
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Update ...

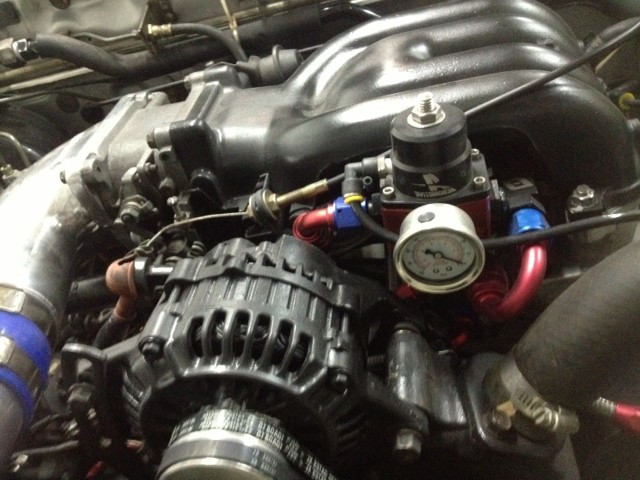

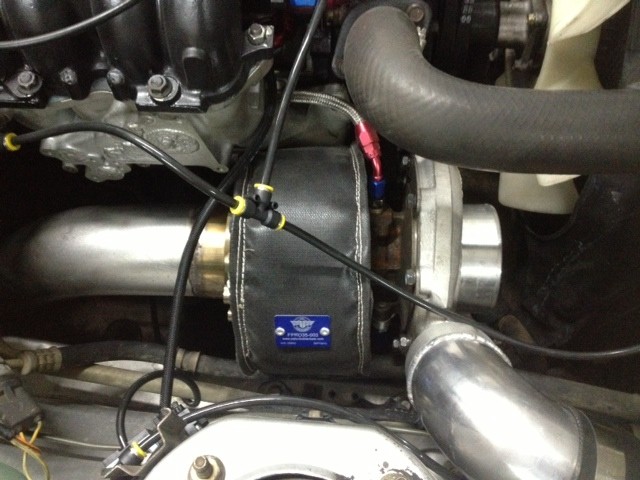

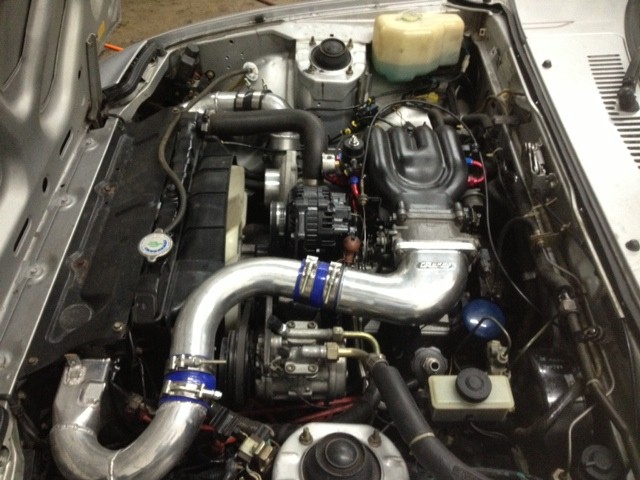

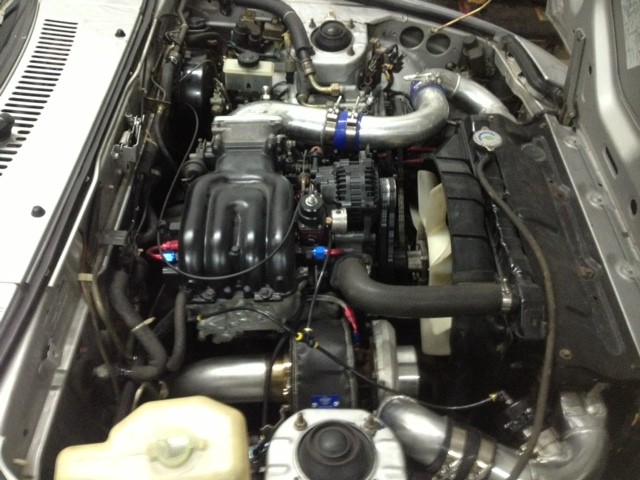

I finally got some new pic of the car... I will let the pictures do the talking..

The car is running at 12 psi at low boost.. more to come....
Attached Thumbnails Miami GSL-SE Turbo II S5 Build-motor-1.jpg   Miami GSL-SE Turbo II S5 Build-motor-ii.jpg   Miami GSL-SE Turbo II S5 Build-turbo-setup-i.jpg   Miami GSL-SE Turbo II S5 Build-fuel-press-reg..jpg   Miami GSL-SE Turbo II S5 Build-air-con-set-up.jpg


Last edited by AXA; 08-26-13 at 08:01 PM.
AXA is offline
Old 08-26-13, 07:54 PM
  #27
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Some more...

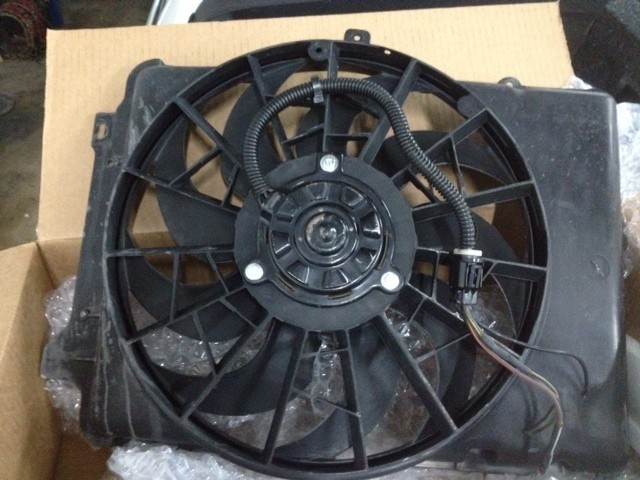

We are doing a ford Taurus e-fan upgrade and taking the oem fanclucth off the car ..

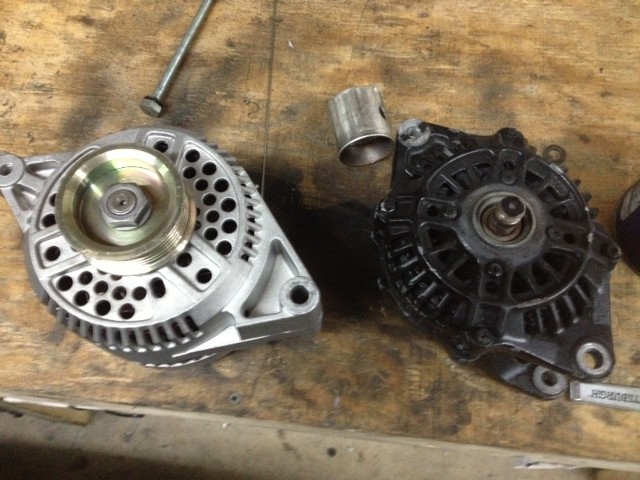

for the big E-fan we need it more juice .. Alt 130amp upgrade also..
I also upgrade the new alt pulley with a racing beat one.. Not in pics...
Attached Thumbnails Miami GSL-SE Turbo II S5 Build-130-amp-alt..jpg   Miami GSL-SE Turbo II S5 Build-fan-ford-taurus.jpg   Miami GSL-SE Turbo II S5 Build-microtech-glove-box.jpg   Miami GSL-SE Turbo II S5 Build-microtech-dash.jpg   Miami GSL-SE Turbo II S5 Build-baterry-bin.jpg


Last edited by AXA; 08-26-13 at 08:05 PM.
AXA is offline
Old 08-26-13, 07:58 PM
  #28
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts

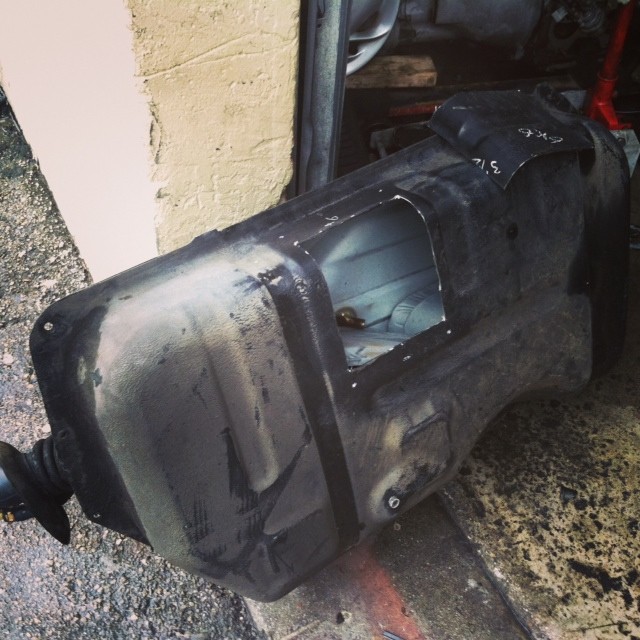

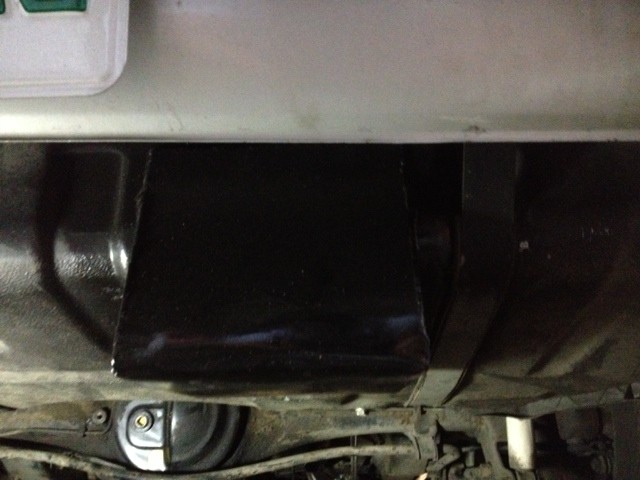

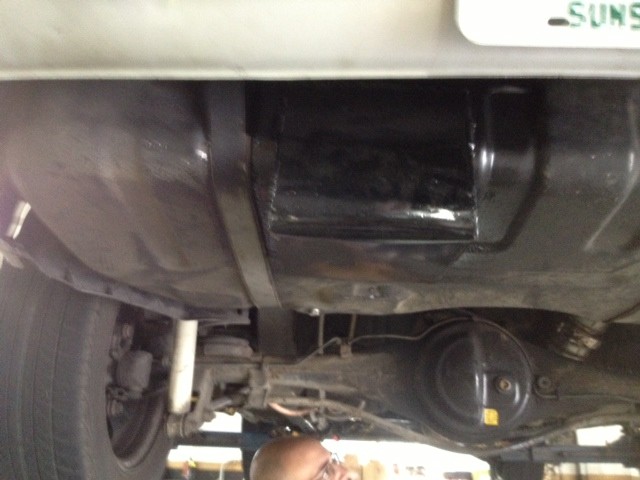

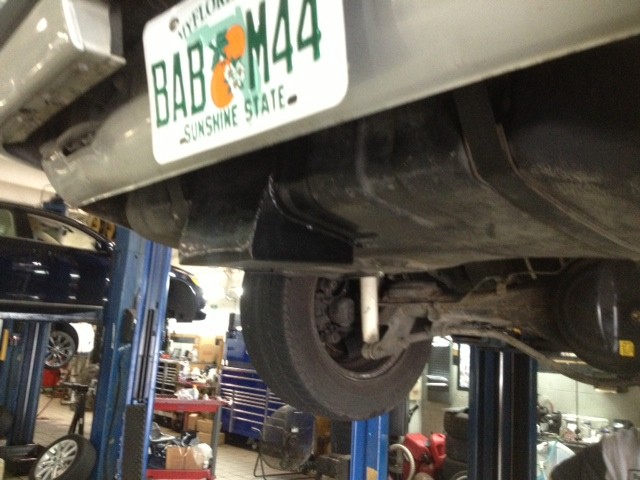

Erick fuel tank mod.. to fit dual walboro E85 pumps...
we also use a old turbo II fuel hanger .....

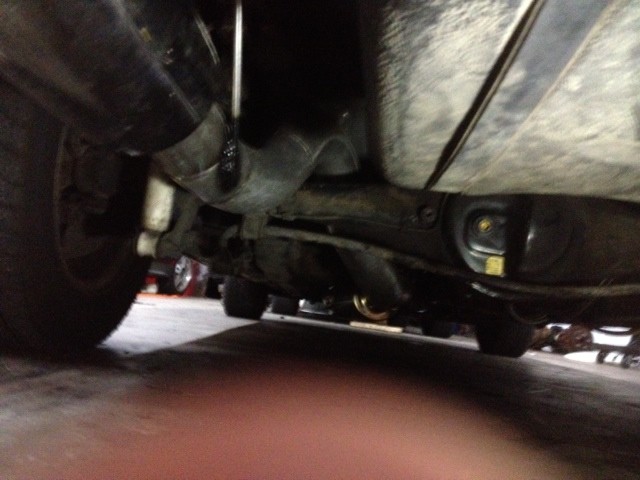

3.5 inch turbo back custom exhaust by Rotory werks... Sound great video clip to come...
Attached Thumbnails Miami GSL-SE Turbo II S5 Build-fuel-tank.jpg   Miami GSL-SE Turbo II S5 Build-3.5-inch-ext-system.jpg   Miami GSL-SE Turbo II S5 Build-tank-i.jpg

Last edited by AXA; 08-26-13 at 08:04 PM.
AXA is offline
Old 08-26-13, 08:07 PM
  #29
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts

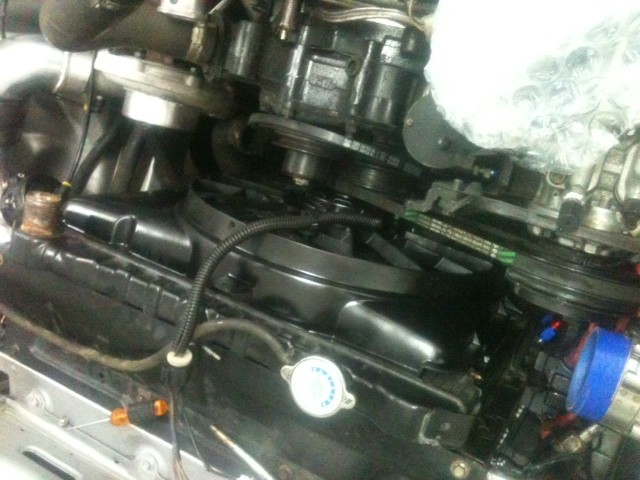

Taurus E-fan install
Attached Thumbnails Miami GSL-SE Turbo II S5 Build-taurus-e-fan-install.jpg
AXA is offline
Old 08-26-13, 08:14 PM
  #30
Common sense ain't common
iTrader: (28)

estevan62274's Avatar

Join Date: May 2002
Location: Melbourne, Fl
Posts: 2,386
Thanked 8 Times in 8 Posts
Nice!

How is S366 response feel??

Congrats man, Looks great!
estevan62274 is offline
Old 08-27-13, 03:11 PM
  #31
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by estevan62274 View Post
Nice!

How is S366 response feel??

Congrats man, Looks great!
Thank you Sir...

I feel bad I can't do a proper write up of this project but I don't have the time with work...
Eric from Rotary werk has done a great Job and has put his heart on this car also to make sure everything is to par..

It feel's great and it is a great turbo for the street...

I have the .91 back housing I am thinking to change to the 1.10 before tuning....
The turbo lag is not that bad in my opinion.....
AXA is offline
Old 08-29-13, 12:38 PM
  #32
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts

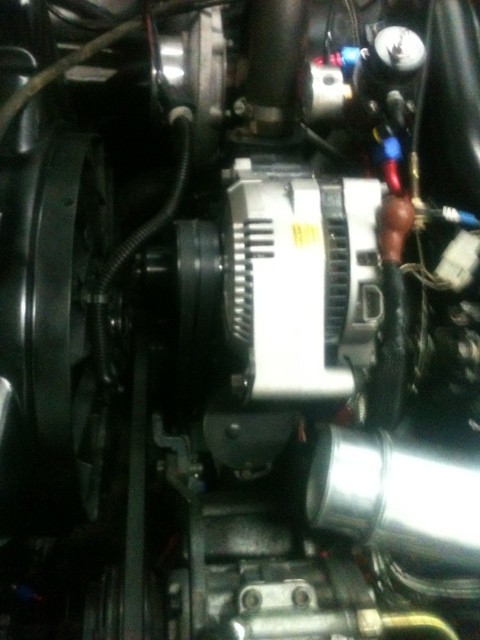

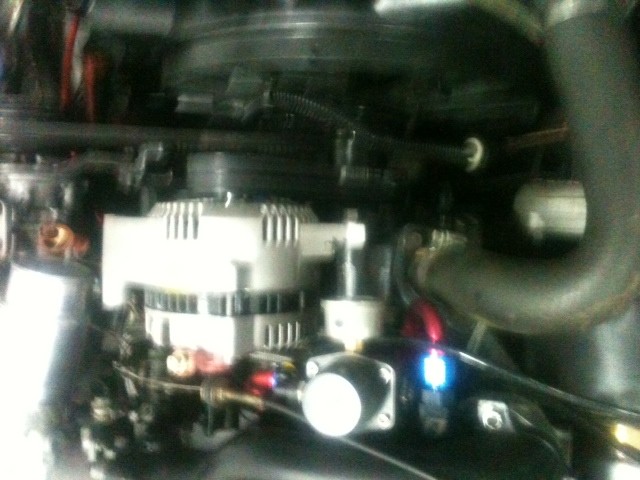

Alt install with Racing Beat altpully...

13.5 volt across the boar with the big Taurus E-fan....
Attached Thumbnails Miami GSL-SE Turbo II S5 Build-alt-install-racing-beat-pully.jpg   Miami GSL-SE Turbo II S5 Build-alt-install-racing-beat-pully-ii.jpg
AXA is offline
Old 08-29-13, 12:51 PM
  #33
Common sense ain't common
iTrader: (28)

estevan62274's Avatar

Join Date: May 2002
Location: Melbourne, Fl
Posts: 2,386
Thanked 8 Times in 8 Posts
Awesome!

Thanks for the info on the S366.

Some videos would be cool to see.

Enjoy the car.
estevan62274 is offline
Old 09-02-13, 10:00 AM
  #34
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Update:
Erick decided to change the thermostat on the stock radiator and the temp when down from 88c in heavy traffic with AC on, to 82C flat all day long...

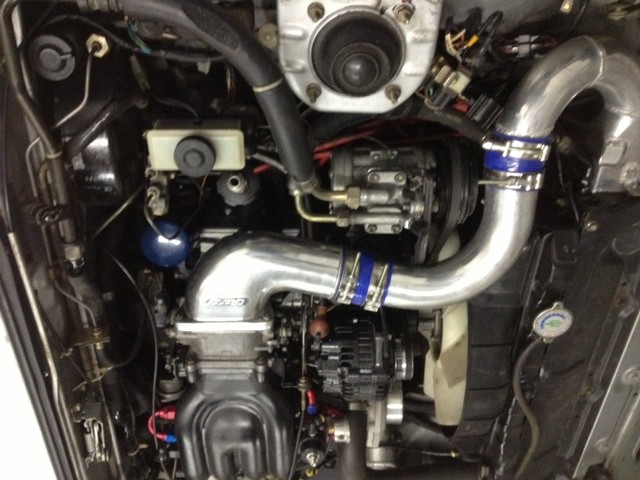

For me was very important to have A/C in the car here in Miami Florida, and able to drive the car in heavy traffic without hiccups...

We have manage to solve the temp issue and keep a steady Amp ( volts) supply after the E-fan install by upgrading some parts..
Soon I will have her home...

estevan62274 videos are coming soon...
AXA is offline
Old 09-13-13, 01:26 PM
  #35
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Good new after 5 month..... SHE HOME.....

I got the FB yesterday afternoon from Erick at Rotary Werks.. Car feel's great and drive good... Need little tweaking on the tune for street driving but nothing major..

Still breaking in the clutch, no boost only a few psi ..

The response on the BW S366 turbo is great in 4 gear a see positive boost on the street at 2200 rpm I can even hear the tial blow off valve discharging...

More to come...
AXA is offline
Old 09-13-13, 03:36 PM
  #36
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Love the smell of E85 with Benoil mix ....

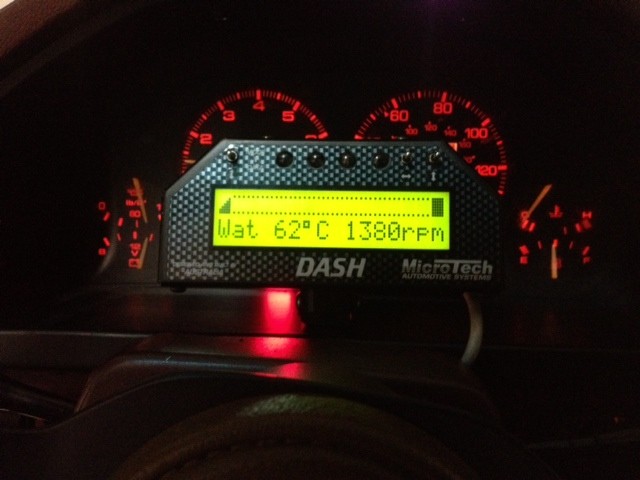

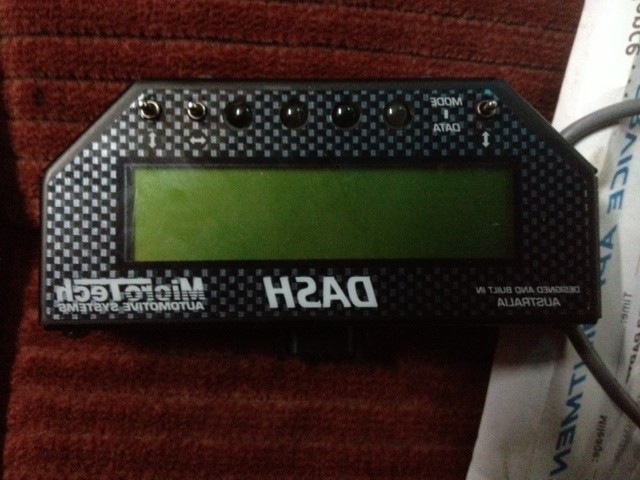

The Microtech dash look good and you have all the info you need...
AXA is offline
Old 09-22-13, 12:31 PM
  #37
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts

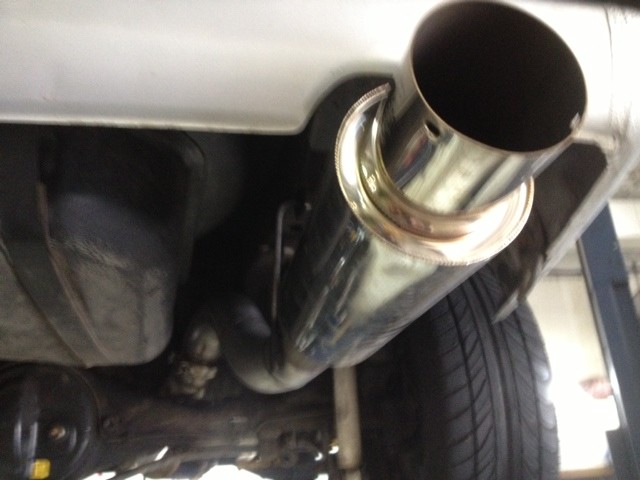

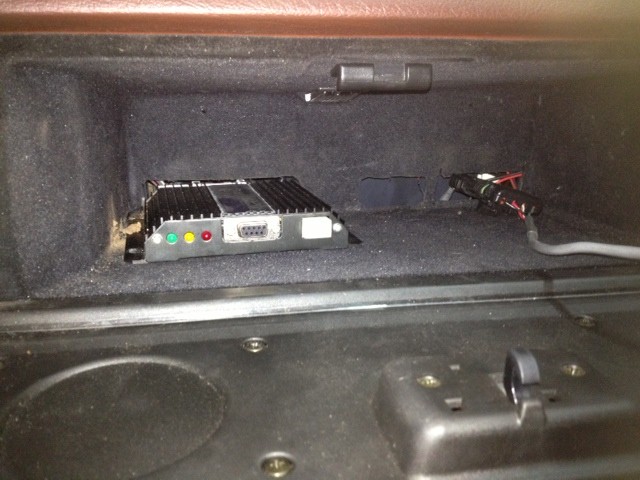

A few pics of the interior goodies..... I also put some picture of the work done to the stock fuel-tank to fit the 2 Walboro 400 E85 pumps..

I need a street tune bad .. the car is burning E85 like crazy...

Hopefully I will get a good street tune on Wednesday.. Only 100 miles on the break inn so far..

Need to fix a few things and change the transmission shiftier bushing..

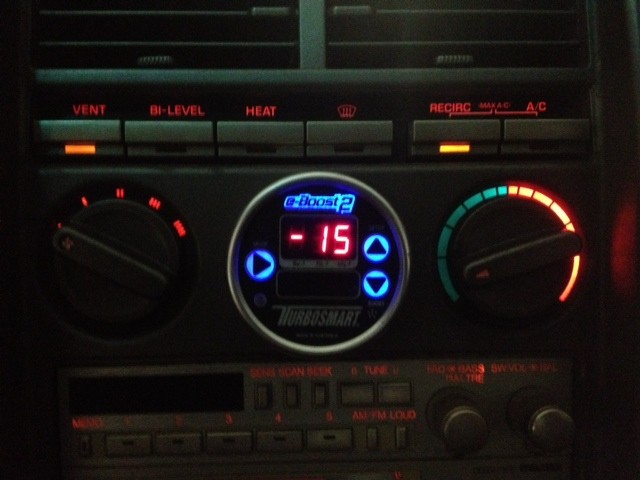

I need read the instructions of the Eboost II boost controller.. have no idea how to adjust the settings..
Attached Thumbnails Miami GSL-SE Turbo II S5 Build-micretech-dash.jpg   Miami GSL-SE Turbo II S5 Build-eboost-ii.jpg   Miami GSL-SE Turbo II S5 Build-exaust-1.jpg   Miami GSL-SE Turbo II S5 Build-surge-thank-1.jpg   Miami GSL-SE Turbo II S5 Build-surge-thank-2.jpg

AXA is offline
Old 10-11-13, 05:30 PM
  #38
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
New updates.....

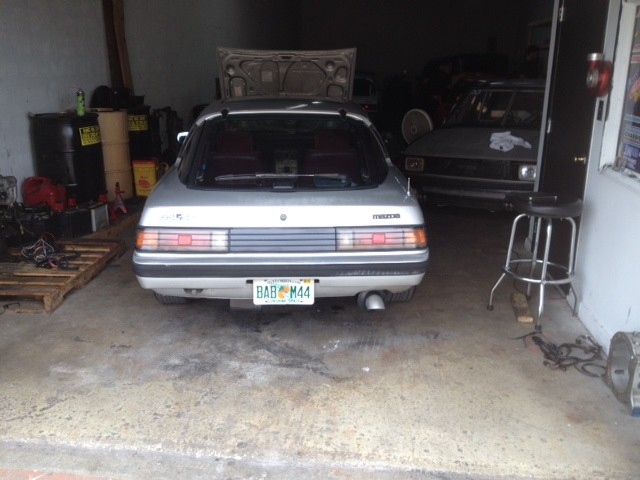

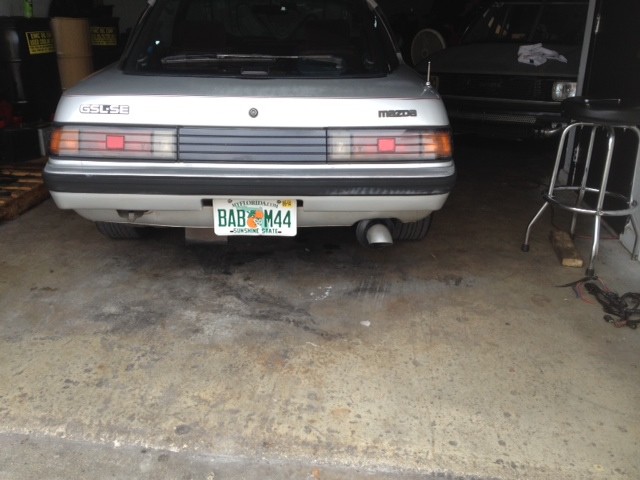

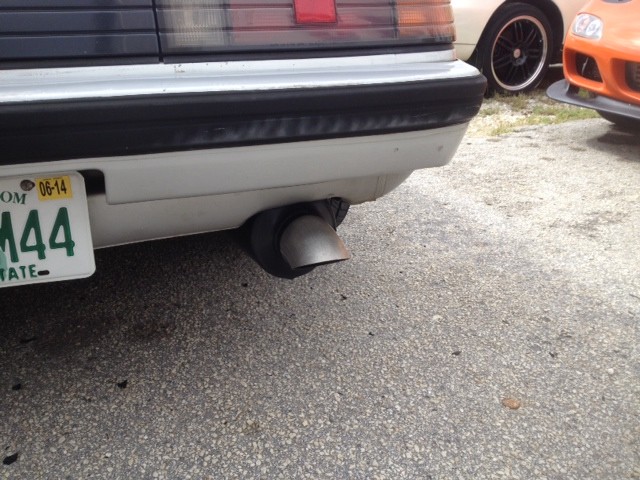

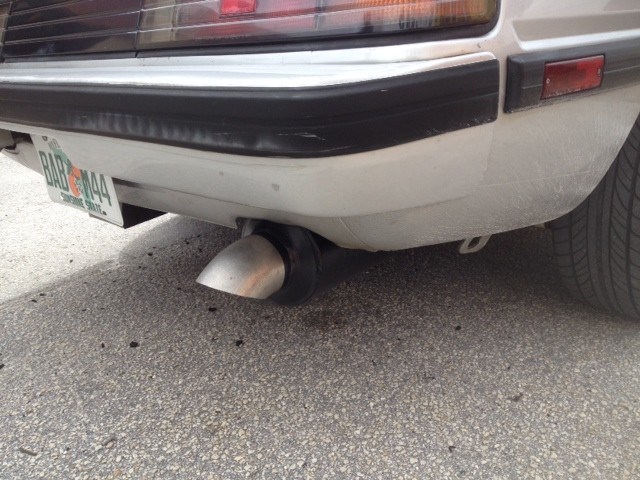

Put a new exaust in the car hated the Honda look I had before.. More old school ...
Magnaflow 3.5 in and out.. Love the new sound ...

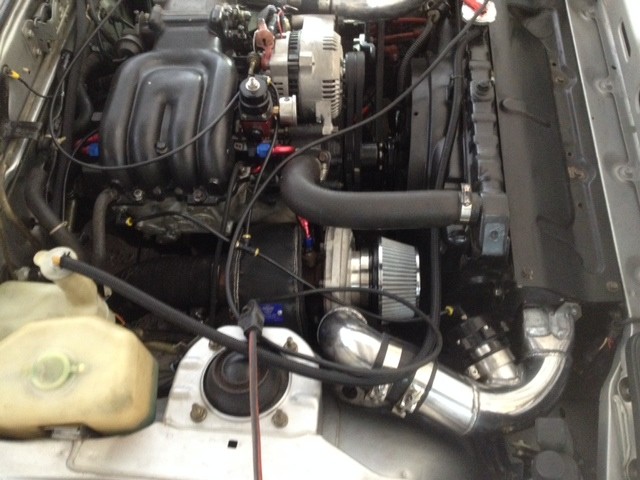

I also got a air filter the only that fits from auto zone.. not that bad looking...

On to the pics....
Attached Thumbnails Miami GSL-SE Turbo II S5 Build-exaust-1.jpg   Miami GSL-SE Turbo II S5 Build-exaust-2.jpg   Miami GSL-SE Turbo II S5 Build-exaust-3.jpg   Miami GSL-SE Turbo II S5 Build-exaust-4.jpg   Miami GSL-SE Turbo II S5 Build-air-filter.jpg

AXA is offline
Old 10-11-13, 06:28 PM
  #39
Common sense ain't common
iTrader: (28)

estevan62274's Avatar

Join Date: May 2002
Location: Melbourne, Fl
Posts: 2,386
Thanked 8 Times in 8 Posts
Looks great bro!

Are you going to the Charrazco meet? I hope to see your car there.


Steve
estevan62274 is offline
Old 10-11-13, 07:01 PM
  #40
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by estevan62274 View Post
Looks great bro!

Are you going to the Charrazco meet? I hope to see your car there.


Steve
Yes I am going to the Churrasco meet if God permits... It sounds like a good time...

Hopefully I get to meet some RX7club members in the event in November...
AXA is offline
Old 10-12-13, 12:37 AM
  #41
I can has a Hemi? Yes...
10 Year Member
iTrader: (2)

Directfreak's Avatar

Join Date: Dec 2001
Location: 3OH5
Posts: 9,372
Thanks: 0
Thanked 0 Times in 0 Posts
I'am pretty sure I was right behind you for a few blocks this week. Near Tamiami airport? Stock wheels? It sounded like the your idle was high? Looked good. I'am sure it scoots well though!
Directfreak is offline
Old 10-12-13, 09:32 AM
  #42
Common sense ain't common
iTrader: (28)

estevan62274's Avatar

Join Date: May 2002
Location: Melbourne, Fl
Posts: 2,386
Thanked 8 Times in 8 Posts
Thumbs up

Originally Posted by AXA View Post
Yes I am going to the Churrasco meet if God permits... It sounds like a good time...

Hopefully I get to meet some RX7club members in the event in November...
Cool, I'll see you there, my first gen still isn't ready so ill have my RX-8, which ain't bad cause I'll have a/c and cruise control for the ride down.

Originally Posted by Directfreak View Post
I'am pretty sure I was right behind you for a few blocks this week. Near Tamiami airport? Stock wheels? It sounded like the your idle was high? Looked good. I'am sure it scoots well though!
What's up DF, you going to the meet?



.
estevan62274 is offline
Old 10-12-13, 09:56 AM
  #43
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by AXA View Post
Thank you Sir...

I feel bad I can't do a proper write up of this project but I don't have the time with work...
Eric from Rotary werk has done a great Job and has put his heart on this car also to make sure everything is to par..

It feel's great and it is a great turbo for the street...

I have the .91 back housing I am thinking to change to the 1.10 before tuning....
The turbo lag is not that bad in my opinion.....


If you are planning on running more than 26 psi I would suggest you to run a 1.00 or 1.10 back housing ,
BLACK MAMBA is offline
Old 10-12-13, 11:06 AM
  #44
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Directfreak View Post
I'am pretty sure I was right behind you for a few blocks this week. Near Tamiami airport? Stock wheels? It sounded like the your idle was high? Looked good. I'am sure it scoots well though!
Thanks for the compliment...

Yes stock wheels... Sleeper look for now ....

Eric shop is around Tamiami airport I am usually around there on Wendsday on my day off ... My idle is high (1600 RPM) when my air is on... The car has a idle control valve install wire to the Microtech that we need to adjust and play with it...
AXA is offline
Old 10-12-13, 11:15 AM
  #45
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by BLACK MAMBA View Post
If you are planning on running more than 26 psi I would suggest you to run a 1.00 or 1.10 back housing ,
Thank you Sir for the reply...

I will get one 1.10 from Mike Turbo before going to the dyno for big boost..... I will also be installing two more 1000cc injectors as my primaries injectors and having 4 2000cc in the secondary rails.

What will be the lag diference between the .91 and the 1.10?


Will you think it will be that notable....

I try searching but no back to back dynos from a .91 to 1.10 in the same car..
AXA is offline
Old 10-12-13, 11:22 AM
  #46
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by AXA View Post
Thank you Sir for the reply...

I will get one 1.10 from Mike Turbo before going to the dyno for big boost..... I will also be installing two more 1000cc injectors as my primaries injectors and having 4 2000cc in the secondary rails.

What will be the lag diference between the .91 and the 1.10?


Will you think it will be that notable....

I try searching but no back to back dynos from a .91 to 1.10 in the same car..
When I dyno my car with the .91 the turbo wouldn't make no more power after 28 psi, and on the street after 120 mph car wouldn't keep pulling due to much back pressure and I was running the .91 with 3.5 exhaust.

I think with the 1.10 it should start to spool 400-500 rpm later than with the .91.
BLACK MAMBA is offline
Old 10-12-13, 03:13 PM
  #47
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by BLACK MAMBA View Post
When I dyno my car with the .91 the turbo wouldn't make no more power after 28 psi, and on the street after 120 mph car wouldn't keep pulling due to much back pressure and I was running the .91 with 3.5 exhaust.

I think with the 1.10 it should start to spool 400-500 rpm later than with the .91.
This is no good...


I also have the 3.5 exhaust... Were your EGT high do to the high back pressure..
AXA is offline
Old 10-16-13, 11:32 PM
  #48
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Day off today.. I got some little things done..

Exhaust housing 1.10 order today..
The 1000cc injectors are inn..

Short shifter install also... I love the short shifter...

We change the BOW spring today and program the Turbo smart E-boost on low boost ( 12.0 psi) and the car feel and drive much better and the turbo is much quicker to spool up ...
AXA is offline
Old 10-17-13, 11:25 PM
  #49
Full Member
5 Year Member

Join Date: Nov 2006
Location: ???
Posts: 112
Thanks: 0
Thanked 0 Times in 0 Posts
What brand is the exhaust manifold?
jccNV is offline
Old 10-21-13, 08:36 PM
  #50
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by jccNV View Post
What brand is the exhaust manifold?
Ebay special for Turbo II... The divided one...

The manifold ports were clean and the WG position on the manifold look good..
So far so good .. 12 PSI of boost at the moment..

Almost forgot Erick ( Rotary Werks) welded some support to help with the heavy BW turbo..
AXA is offline

Thread Tools
Search this Thread
Quick Reply: Miami GSL-SE Turbo II S5 Build


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
