Not much to show for the time being, most of the setup is welded and ready to go. Gave special treatment to the air filter flange, I didn't want to have a rubber coupler in my engine bay plus this will let me rapidly swap between air filter and velocity stack on the go!

Since I preferred having the quick release clamp on the TB, I cut the OEM TB in order to make it possible to fit the clamp on top instead of where it used to be. Anyway, all I needed on it was the final butterflies and this way it's easier to take out the cold side piping section to work on the car or whatever.


Name:  Untitled-3_zpsfslaivgh.png
Views: 1575
Size:  444.3 KB

Name:  Untitled-4_zpsqernz8pd.png
Views: 1591
Size:  861.8 KB

Name:  13388785_10209146051063929_1214651503_o_zpszgfczblu.jpg
Views: 1582
Size:  44.8 KB

Name:  13383789_10209139800067658_962564909_o_zpsetc1e3i2.jpg
Views: 1583
Size:  73.7 KB
DeeSan is offline
Reply With Quote
Old 06-20-16, 06:23 AM
  #102
Senior Member

RuffRx7's Avatar

Join Date: May 2013
Location: Johannesburg, South Africa
Posts: 301
Thanks: 0
Thanked 0 Times in 0 Posts
So sick!!!
RuffRx7 is offline
Reply With Quote
Old 06-20-16, 08:00 AM
  #103
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts
Awesome work bro, love all the small details.
BLACK MAMBA is offline
Reply With Quote
Old 07-04-16, 12:49 PM
  #104
Full Member

karl_tate's Avatar

Join Date: Jan 2008
Location: UK
Posts: 91
Thanks: 0
Thanked 0 Times in 0 Posts
you may come into trouble when the motor is moving about without any silicon joiners

looks sooo sick tho
karl_tate is offline
Reply With Quote
Old 07-04-16, 03:59 PM
  #105
Built Not Bought
iTrader: (13)

TwinCharged RX7's Avatar

Join Date: May 2008
Location: Stamford, CT
Posts: 2,464
Thanks: 0
Thanked 18 Times in 17 Posts
Those types of clamps flex quite a bit which allow movement. It's not like a vband exhaust clamp that stays fixed.
TwinCharged RX7 is offline
Reply With Quote
Old 09-04-16, 06:06 PM
  #106
Full Member
iTrader: (15)

discodorito's Avatar

Join Date: Aug 2014
Location: Toronto
Posts: 90
Thanks: 0
Thanked 0 Times in 0 Posts
one of the cleanest builds on the forum
discodorito is offline
Reply With Quote
Old 09-18-16, 12:47 AM
  #107
Sexy Boo
Thread Starter
iTrader: (2)

Join Date: Apr 2008
Location: Behind the Steering Wheel
Posts: 583
Thanked 4 Times in 2 Posts
Originally Posted by RuffRx7 View Post
So sick!!!
Originally Posted by BLACK MAMBA View Post
Awesome work bro, love all the small details.
Originally Posted by karl_tate View Post
you may come into trouble when the motor is moving about without any silicon joiners

looks sooo sick tho
Originally Posted by TwinCharged RX7 View Post
Those types of clamps flex quite a bit which allow movement. It's not like a vband exhaust clamp that stays fixed.
Originally Posted by discodorito View Post
one of the cleanest builds on the forum
Thanks guys! Yes as Twin said, they are made for this and have quite a bit of flex to them! You can find more info on them here : http://www.hdiclamp.com/

Sorry guys, it's been a good while since my last update and I don't have much to show you neither. Things aren't going my way it seems...


Actually, I'm now looking to sell all these Aeroflow Kryptalon AN hose ends and hoses (there's about 2.6k in there). If anyone is interested in buying the whole lot, let me know.. I can make you a good deal! The reason I want to sell might sound stupid... but I just can't deal with gray lines. It'll look out of place once everything around is coated black. In any case, it's good stuff and there's pretty much everything you'd need to re-new or upgrade complete fuel / coolant / oil setups.

1x Aeroflow Kryptalon Series Ultra-Light Flexible Kevlar Braided Hose -8AN (AF7000-08-5M)
1x Aeroflow Kryptalon Series Ultra-Light Flexible Kevlar Braided Hose -10AN (AF7000-10-5M)
1x Aeroflow Kryptalon Series Ultra-Light Flexible Kevlar Braided Hose -12AN (AF7000-12-2M)
1x Aeroflow Kryptalon Series One Piece Full Flow Swivel 45° Hose End -8AN (AF7022-08)
2x Aeroflow Kryptalon Series Full Flow Swivel 180° Hose End -8AN (AF7026-08)
3x Aeroflow Kryptalon Series One Piece Full Flow Swivel 90° Hose End -8AN (AF7023-08)
8x Aeroflow Kryptalon Series Full Flow Swivel Straight Hose End -8AN (AF7021-08)
3x Aeroflow Kryptalon Series Full Flow Swivel Straight Hose End -10AN (AF7021-10)
1x Aeroflow Kryptalon Series Full Flow Swivel 30° Hose End -10AN (AF7027-10)
6x Aeroflow Kryptalon Series Full Flow Swivel 90° Hose End -10AN (AF7023-10)
2x Aeroflow Kryptalon Series Full Flow Swivel 90° Hose End -12AN (AF7023-12)
2x Aeroflow Kryptalon Series Full Flow Swivel 60° Hose End -12AN (AF7028-12)
4x Aeroflow 90° Tube to Female AN Adapter 3/8"to -6AN (AF139-06BLK)
2x Aeroflow 45° Tube to Female AN Adapter 3/8" to -6AN (AF129-06BLK)


Name:  20160808_105201_zpsp3odhw9m.jpg
Views: 1576
Size:  244.8 KB

Name:  20160907_221820_zpsyhjih5xk.jpg
Views: 1573
Size:  225.8 KB

Name:  13932997_10209661072779150_1274890061_n_zpsiljciy7o.jpg
Views: 1566
Size:  44.2 KB

Name:  DSC_74_zpsu9x2mivj.png
Views: 1581
Size:  1.09 MB

Since clearance in the front is tight like a virgin, I had to machine the pulley to fit the hall sensor's wheel.

Name:  13950942_10209670947266006_1239508450_o_zpso7kbkpqo.jpg
Views: 1572
Size:  56.1 KB

New billet alternator, it's made by March Performance (it's an LS1 alt) and is simply STUNNING in person! That other thing is my oil filter relocation pedestal, billet too of course!

Name:  DSC_0664_zpsvz8kpy6w.png
Views: 1584
Size:  917.1 KB

Name:  20160914_182047_zps4ctsielb.jpg
Views: 1580
Size:  259.0 KB

An old pic I recently came across of the car back when I started taking it apart... it was so clean!
Name:  Old-***-pic_zps7bmngcyf.png
Views: 1598
Size:  1.03 MB

Bonus and completely unrelated... I got this render done by Ash from Hero Prints in reminiscence of my last project.

Name:  wallpaper_zpstlh0zgrm.png
Views: 1588
Size:  692.4 KB

Last edited by DeeSan; 09-18-16 at 12:50 AM.
DeeSan is offline
Reply With Quote
Old 09-18-16, 02:57 PM
  #108
Senior Member
iTrader: (7)

bufferovrflo's Avatar

Join Date: Dec 2010
Location: Las Vegas
Posts: 385
Thanks: 0
Thanked 1 Time in 1 Post
So clean man, loving the updates. What amp rating is the alternator? Looks awesome
bufferovrflo is offline
Reply With Quote
Old 09-18-16, 09:19 PM
  #109
Full Member
iTrader: (5)

Join Date: Dec 2011
Location: Dallas, TX
Posts: 99
Thanks: 0
Thanked 2 Times in 2 Posts
I love everything you're doing and the how clean everything looks.
cvzg77r is offline
Reply With Quote
Old 09-23-16, 10:46 PM
  #110
Junior Member
5 Year Member

Join Date: Dec 2007
Location: Corning NY
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
Great car. Great work. Cant wait to see the finished product.
Aaron tietje is offline
Reply With Quote
Old 09-25-16, 09:11 PM
  #111
Sexy Boo
Thread Starter
iTrader: (2)

Join Date: Apr 2008
Location: Behind the Steering Wheel
Posts: 583
Thanked 4 Times in 2 Posts
Originally Posted by bufferovrflo View Post
So clean man, loving the updates. What amp rating is the alternator? Looks awesome
140 AMP I wish they made a more powerful one... still more than OEM though!

Originally Posted by cvzg77r View Post
I love everything you're doing and the how clean everything looks.
Originally Posted by Aaron tietje View Post
Great car. Great work. Cant wait to see the finished product.
Thanks guys!

Still waiting for some parts to come in. Meanwhile, I started working on my tail lights project! Worked on this today with my dad and we LOVE the result so far, let's see what you guys think!

Mats list:

- ACRYLITEŽ LED sign grade (SG) Red 3RK32 GT
- ACRYLITEŽ LED (P95) Black/White 9H04 SC
- 30x Deep Red (655nm) LUXEON Rebel LED on a SinkPAD-II 10mm Square Base
- 4x 700 mA, Dimmable, FlexBlock DC Driver - With Leads

I've always had plans to do update the look, had a couple ideas... then I saw LO7's photoshop https://s-media-cache-ak0.pinimg.com...e8afe523e3.jpg

It gave me some ideas and I went back to the drawing board, learned how to use illustrator and turned it into this more simple and smoother design. The small red part (island) will be the blinker.

Name:  tail-light-vector2_zpskvhnqibx.png
Views: 1563
Size:  28.9 KB


69 years old young, went through a back/neck surgery back in May and he's still out here working his *** off! There's just no stopping him!

Name:  20160925_114948_zps3xvpmbfn.jpg
Views: 1567
Size:  228.0 KB

Part all cleaned up and ready for the next step.

Name:  20160925_115009_zpswkswuler.jpg
Views: 1577
Size:  227.4 KB

Thermoforming the acrylic to the tail light housing's window.
Name:  20160925_132509_zpsffsg6x49.jpg
Views: 1581
Size:  224.0 KB

Name:  20160925_130728_zpslzrxx87g.jpg
Views: 1563
Size:  127.2 KB

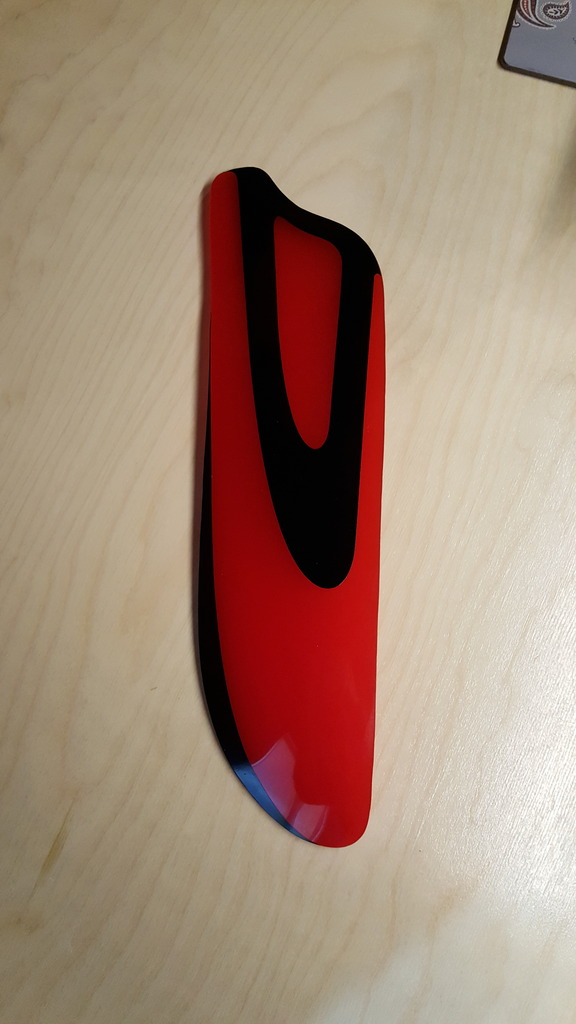

Made 2 samples, one in red and one in black to see which one I would like better. The black P95 acrylic looks incredibly nice in the housing but with the tight space we have to work with, the LEDs are too close and we could clearly see hotspots from the LEDs.

Name:  20160925_154844_zpsk64vrxot.jpg
Views: 1586
Size:  91.0 KB

and I couldn't wait any longer to see how this would actually look... so got on the pc printed my image and cut the black parts to make a quick mock up! Obviously, it'll look much better once we do it properly. I'm still debating between getting vinyls cut vs painting the black parts... vinyls seem like an easier/sure path to take.
Note: I need to black out the small gap around the lens opening.

Name:  20160925_184941_zps4ylyyzot.jpg
Views: 1579
Size:  134.1 KB

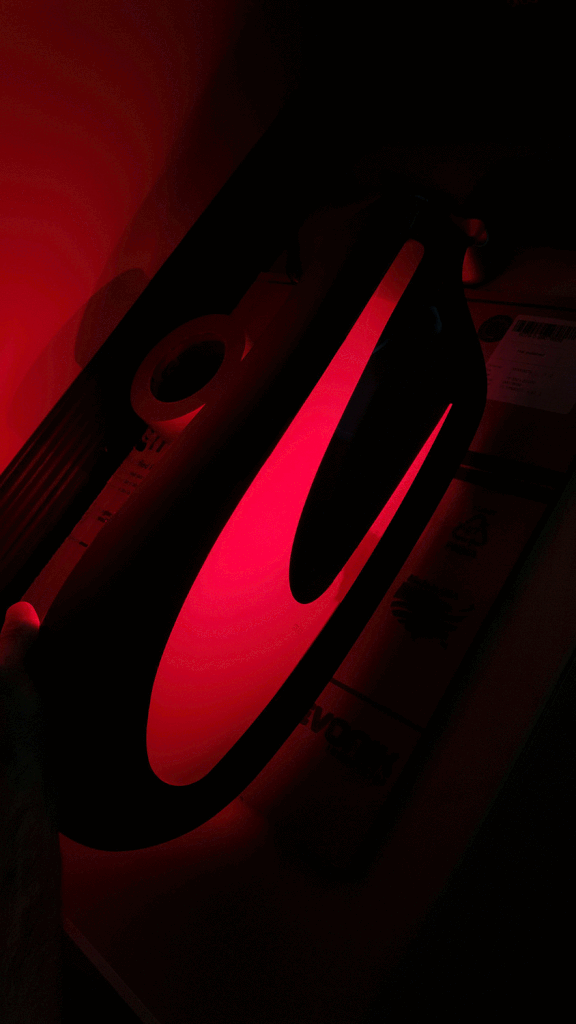

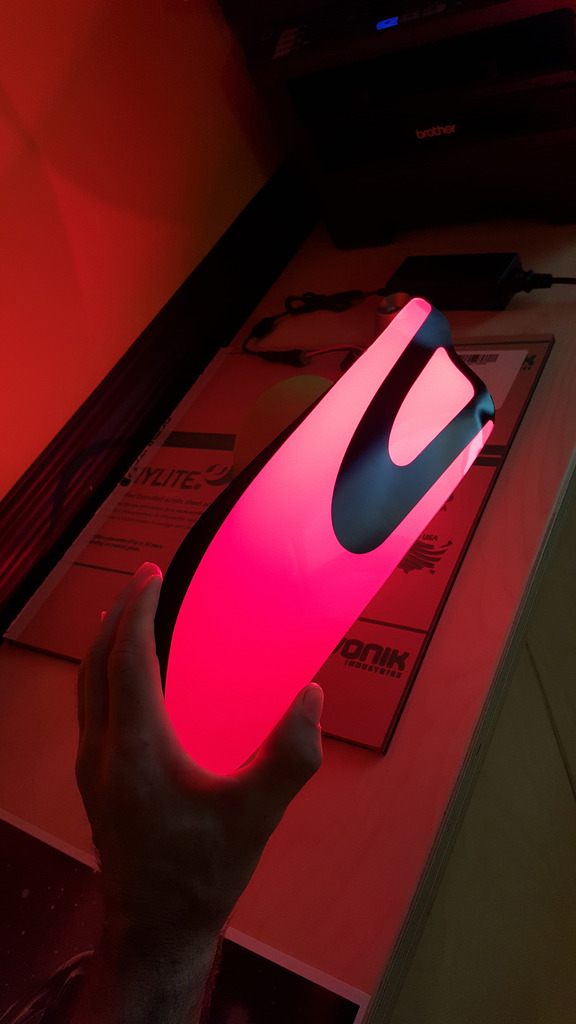

Here it is with back lighting. This is with only 4 LEDs flat on the counter in the open aimed toward the ceiling, only the lens no housing and it's already crazy bright! I was planning to use 11 LEDs on each sides for the main light section and 3 each for the blinkers, but now it feels like it would be overkill... we'll see as we make more progress.

Name:  DSC_0688_zps5klybcxv.png
Views: 1572
Size:  305.5 KB

Finally, what it should look like on the car! You might also notice that I made some little adjustment to the diffuser, the main thing is a shorter middle section... it's too low as it currently sits and I feel the diffuser will look better and overall more proportional with the center and sides closer height wise.

Name:  Good-one_zpsgu3vgu69.png
Views: 1604
Size:  1.05 MB
DeeSan is offline
Reply With Quote
Old 09-25-16, 10:56 PM
  #112
Full Member
iTrader: (5)

Join Date: Dec 2011
Location: Dallas, TX
Posts: 99
Thanks: 0
Thanked 2 Times in 2 Posts
This is incredible! I hope you decide on selling those tail lights if you can make more I'm sure a lot of ppl would line up including me lol. Great job on the build!
cvzg77r is offline
Reply With Quote
Old 09-26-16, 12:41 AM
  #113
Form > Function
iTrader: (99)

MattGold's Avatar

Join Date: Dec 2003
Location: Metro Detroit
Posts: 1,524
Thanked 98 Times in 62 Posts
Wow. Those look great.
MattGold is offline
Reply With Quote
Old 09-26-16, 04:25 AM
  #114
Full Member

Join Date: Jan 2013
Location: NZ
Posts: 234
Thanks: 0
Thanked 0 Times in 0 Posts
love everything about this build!very impressive attention to design details.
Rotate86 is offline
Reply With Quote
Old 09-26-16, 06:06 AM
  #115
Junior Member
10 Year Member

Join Date: Feb 2005
Location: Norway
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
awesome build!

Does that alternator fit straight onto the engine without any modifications?
MSpeed is offline
Reply With Quote
Old 09-26-16, 02:47 PM
  #116
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: los angeles
Posts: 695
Thanked 3 Times in 3 Posts
Originally Posted by cvzg77r View Post
This is incredible! I hope you decide on selling those tail lights if you can make more I'm sure a lot of ppl would line up including me lol. Great job on the build!

I am in
+1
MILOS7 is offline
Reply With Quote
Old 09-26-16, 07:27 PM
  #117
Senior Member
iTrader: (4)

Join Date: Jan 2014
Location: United States
Posts: 276
Thanks: 0
Thanked 1 Time in 1 Post
Hhhhhhhhhhhhnnnnnnnnnnnnnnnnnnnnnggggggggggggg!!
quichedem is offline
Reply With Quote
Old 09-27-16, 06:24 PM
  #118
TurboRX7.com
iTrader: (6)

rdahm's Avatar

Join Date: Jul 2002
Location: Monroe MI
Posts: 657
Thanks: 0
Thanked 1 Time in 1 Post
Damn Dee! shes beautiful! This makes up for your slowness hahaha
rdahm is offline
Reply With Quote
Old 09-28-16, 01:47 AM
  #119
Boilermaker!
iTrader: (110)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,359
Thanked 17 Times in 16 Posts
That has to be the best tail lights aside from the 99 Spec, good work
ZE Power MX6 is offline
Reply With Quote
Old 10-02-16, 04:28 PM
  #120
Hungry for the Power

waz_05's Avatar

Join Date: Oct 2013
Location: South Africa
Posts: 187
Thanks: 0
Thanked 0 Times in 0 Posts
Goddam this car

1x bodykit and 1x set of rear ligthts please sir

Awesome work bro mad skills and attention to detail!!

Cant wait to see this completed
waz_05 is offline
Reply With Quote
Old 10-04-16, 09:03 PM
  #121
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 756
Thanked 44 Times in 32 Posts
There is nothing more badass then home-made-well-made custom stuff. Those tail lights are badass man. I'm looking forward to watching this car come together
Skeese is offline
Reply With Quote
Old 10-10-16, 11:09 PM
  #122
LO7
Full Member
iTrader: (2)

LO7's Avatar

Join Date: Aug 2012
Location: Quantum Superposition ▲▼ Instagram: Reuleaux7
Posts: 237
Thanked 20 Times in 14 Posts
Originally Posted by DeeSan View Post
I've always had plans to do update the look, had a couple ideas... then I saw LO7's photoshop https://s-media-cache-ak0.pinimg.com...e8afe523e3.jpg

It gave me some ideas and I went back to the drawing board, learned how to use illustrator and turned it into this more simple and smoother design. The small red part (island) will be the blinker.
Appreciate the mention above- Glad I could provide some creative inspiration on your most excellent taillight diffuser design. I acquired some junk tails to make a set of shaped diffusers for my ARC LED tails recently, should be fun to experiment with that- to include some circuit board re-programming..

Also looking foreward to seeing how your custom exhaust turns out; decided I'm going to be doing something completely different on that front as well, thanks to some inspirations garnered from your builds direction. Will your triple tip design be finished any time soon?

Last edited by LO7; 10-11-16 at 02:16 AM.
LO7 is offline
Reply With Quote
Old 10-15-16, 12:35 AM
  #123
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,694
Thanks: 0
Thanked 8 Times in 6 Posts
Originally Posted by DeeSan View Post
140 AMP I wish they made a more powerful one... still more than OEM though!





Thanks guys!

Still waiting for some parts to come in. Meanwhile, I started working on my tail lights project! Worked on this today with my dad and we LOVE the result so far, let's see what you guys think!

Mats list:

- ACRYLITEŽ LED sign grade (SG) Red 3RK32 GT
- ACRYLITEŽ LED (P95) Black/White 9H04 SC
- 30x Deep Red (655nm) LUXEON Rebel LED on a SinkPAD-II 10mm Square Base
- 4x 700 mA, Dimmable, FlexBlock DC Driver - With Leads

I've always had plans to do update the look, had a couple ideas... then I saw LO7's photoshop https://s-media-cache-ak0.pinimg.com...e8afe523e3.jpg

It gave me some ideas and I went back to the drawing board, learned how to use illustrator and turned it into this more simple and smoother design. The small red part (island) will be the blinker.




69 years old young, went through a back/neck surgery back in May and he's still out here working his *** off! There's just no stopping him!



Part all cleaned up and ready for the next step.



Thermoforming the acrylic to the tail light housing's window.




Made 2 samples, one in red and one in black to see which one I would like better. The black P95 acrylic looks incredibly nice in the housing but with the tight space we have to work with, the LEDs are too close and we could clearly see hotspots from the LEDs.



and I couldn't wait any longer to see how this would actually look... so got on the pc printed my image and cut the black parts to make a quick mock up! Obviously, it'll look much better once we do it properly. I'm still debating between getting vinyls cut vs painting the black parts... vinyls seem like an easier/sure path to take.
Note: I need to black out the small gap around the lens opening.



Here it is with back lighting. This is with only 4 LEDs flat on the counter in the open aimed toward the ceiling, only the lens no housing and it's already crazy bright! I was planning to use 11 LEDs on each sides for the main light section and 3 each for the blinkers, but now it feels like it would be overkill... we'll see as we make more progress.



Finally, what it should look like on the car! You might also notice that I made some little adjustment to the diffuser, the main thing is a shorter middle section... it's too low as it currently sits and I feel the diffuser will look better and overall more proportional with the center and sides closer height wise.

Easily the best looking tail lights I've ever seen on ANY vehicle.
t-von is offline
Reply With Quote
Old 10-15-16, 05:30 PM
  #124
Sexy Boo
Thread Starter
iTrader: (2)

Join Date: Apr 2008
Location: Behind the Steering Wheel
Posts: 583
Thanked 4 Times in 2 Posts
Love reading your feedback guys, glad some people can appreciate what I'm doing!

I'm sure you will be pleased with these new pictures

Name:  20160928_165057_zps2v1byptx.jpg
Views: 1578
Size:  104.7 KB

Name:  20160928_165521_zpscpmn1yp6.jpg
Views: 1566
Size:  114.9 KB

Name:  output_eXRmg6_zpskbdxjxbq.gif
Views: 1597
Size:  263.6 KB
DeeSan is offline
Reply With Quote
Old 10-15-16, 05:35 PM
  #125
Sexy Boo
Thread Starter
iTrader: (2)

Join Date: Apr 2008
Location: Behind the Steering Wheel
Posts: 583
Thanked 4 Times in 2 Posts
Originally Posted by LO7 View Post
Appreciate the mention above- Glad I could provide some creative inspiration on your most excellent taillight diffuser design. I acquired some junk tails to make a set of shaped diffusers for my ARC LED tails recently, should be fun to experiment with that- to include some circuit board re-programming..

Also looking foreward to seeing how your custom exhaust turns out; decided I'm going to be doing something completely different on that front as well, thanks to some inspirations garnered from your builds direction. Will your triple tip design be finished any time soon?
Exhaust.. not there yet, even though I wish I could be at that stage, we have it all figured out thought!

What's your new plan for the front man?
DeeSan is offline
Reply With Quote
