Beautiful work!



Thanks Phil, how's your 20B going?

The project is still ticking on BTW



My project is on hold right now as I'm SUPER LAZY these days.. I'm also trying to clean out my garage so I can get a lift.



Thats posh, I'd love a lift!!



3 Rotors all ‘B’ weighted

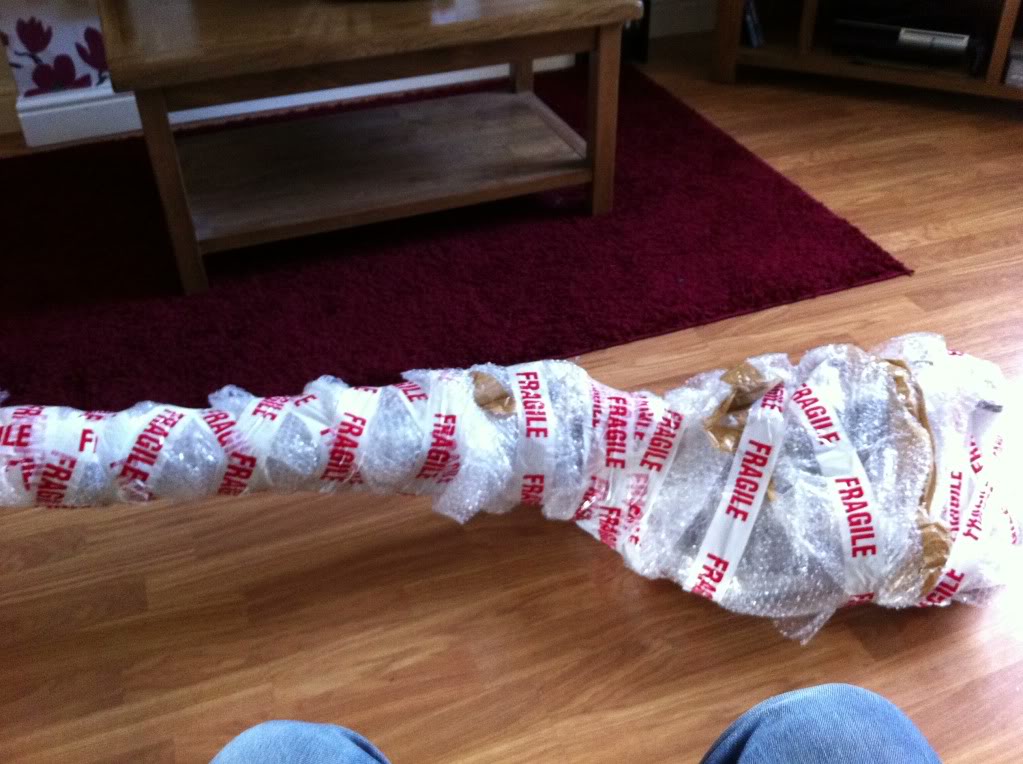

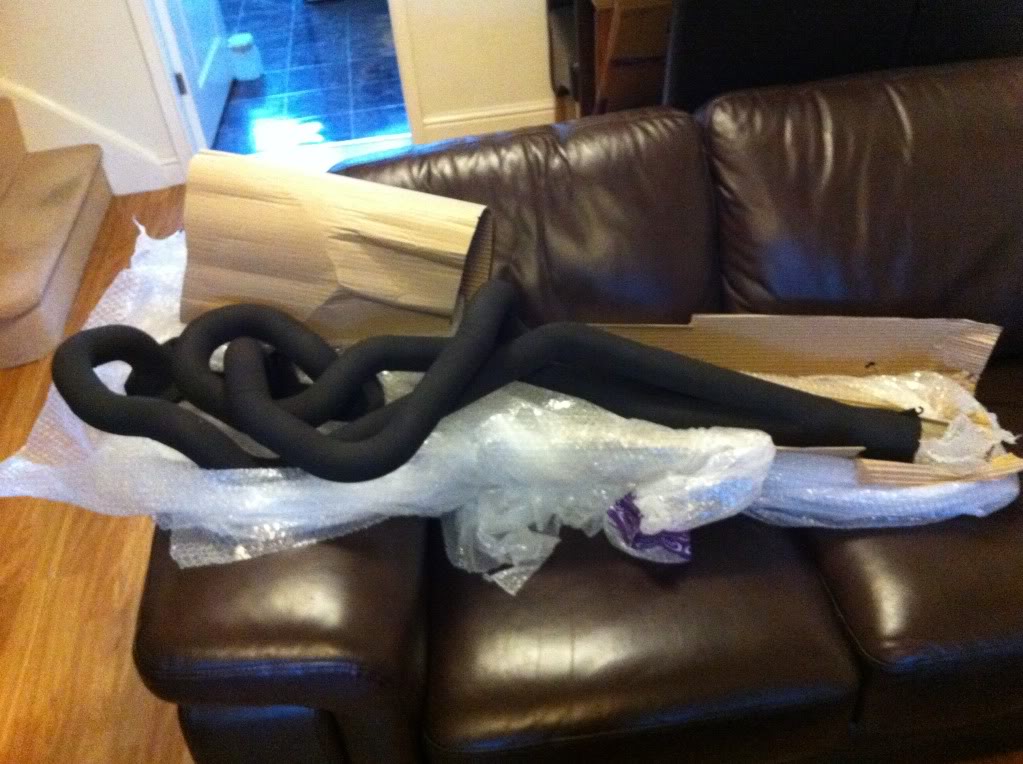

Manifold all packed up for going to Zircotec



Exedy Twin Plate



Nice!!!



Thanks Phil.

Got some plates to take to the machine shop tomorrow to be modified for my xtreme rotaries stud kit and the UIM will have the required nipple welded on for the brake servo.



have fun with that clutch. i have a twin plate hks GD and its a complete BITCH



I've driven a twin in ever FD build I have ever done, I'm sure it will be ok, not that bothered how easy it is to pull away!



One more rather large step towards being done!



Craig's fabrication is super legit. Following him on IG, his own car is just as tidy!



He's very good! His car is just as good in the metal as it is in pics!



So this happened...



Then this...

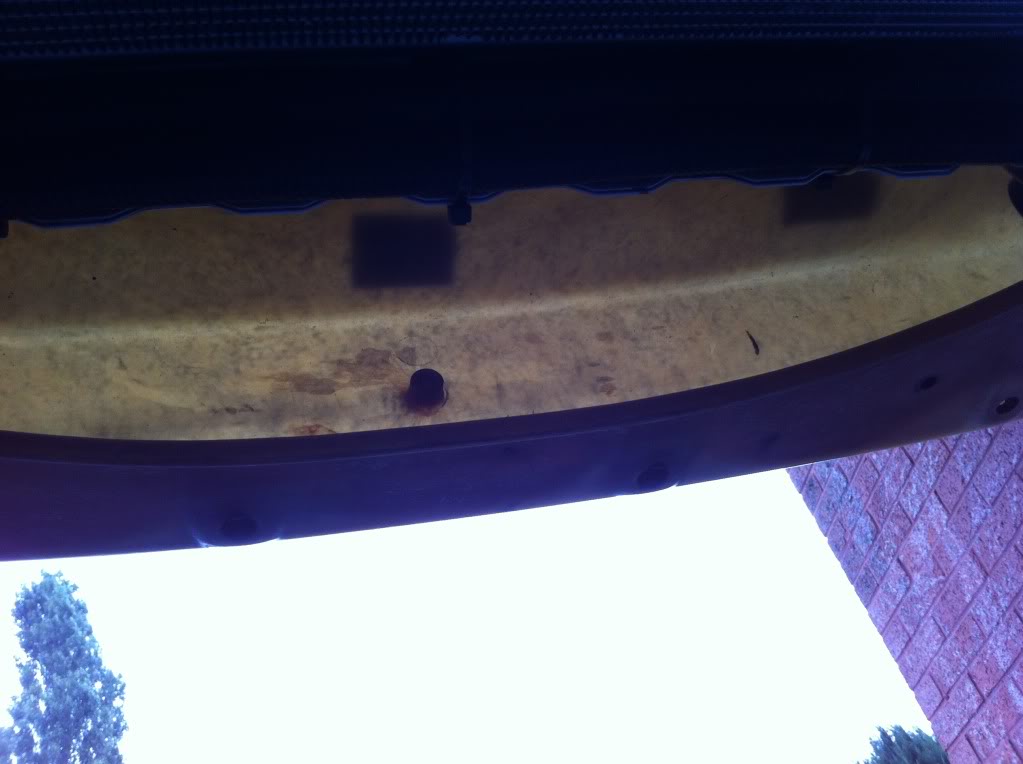

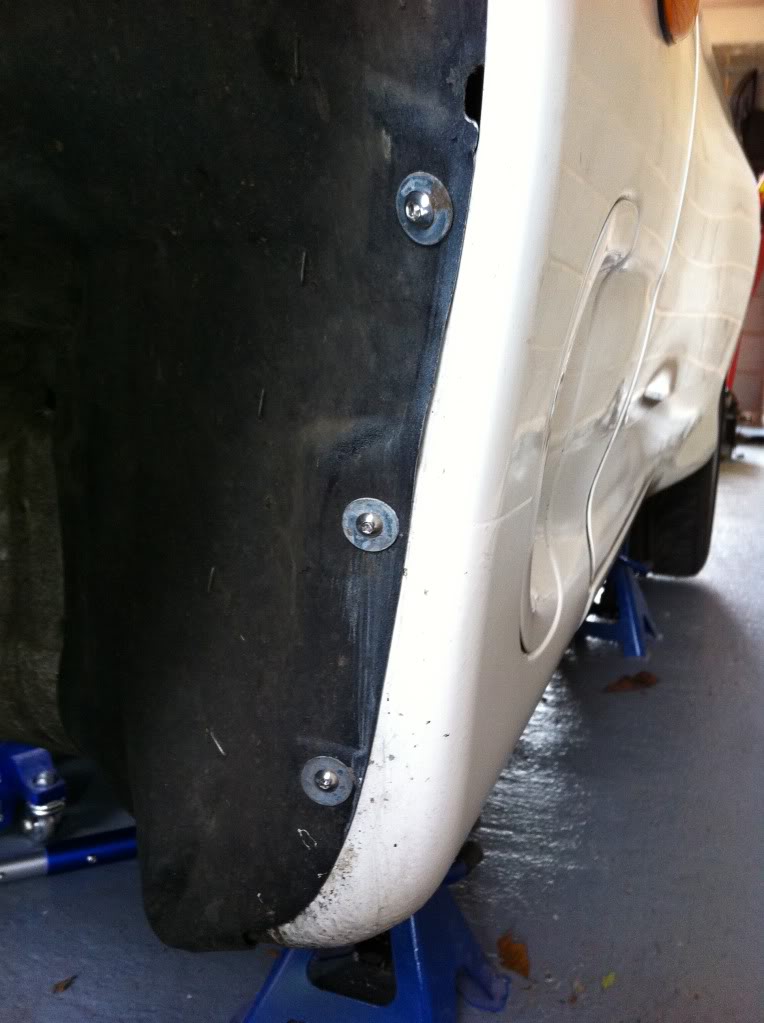

Also picked up some large late model RS front brakes and rivnuted and bolted the arch liners in



I hope these pics are a bit better but please remember I have no camera or computer this thread is 100% iPhone!

Fixed the broken door mirror, turns out it wasn't the mirror but more a broken screw head so drilled it out and got lucky saving the thread and removing the drill! Many thanks to Swanny for not dropping the drill!

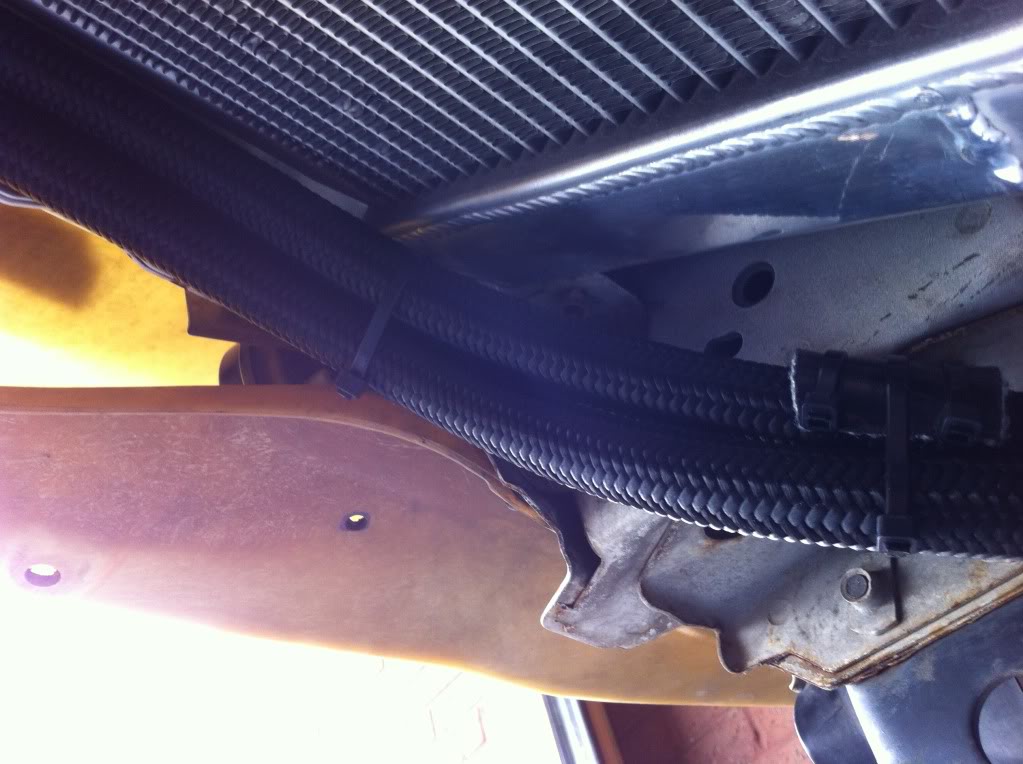

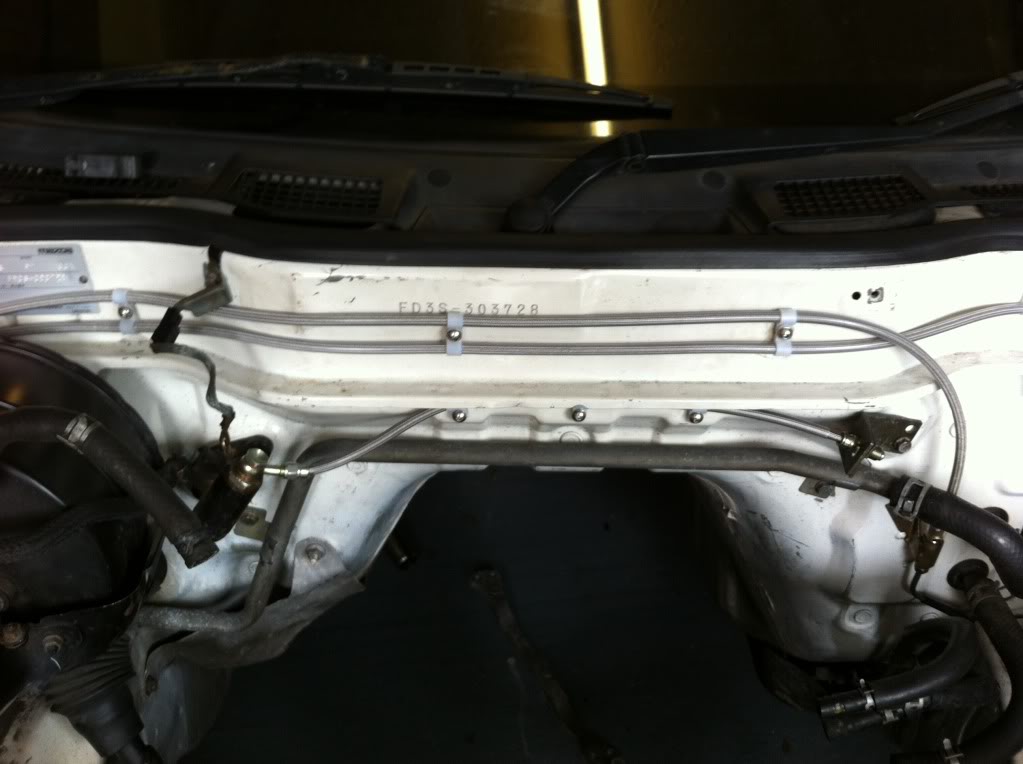

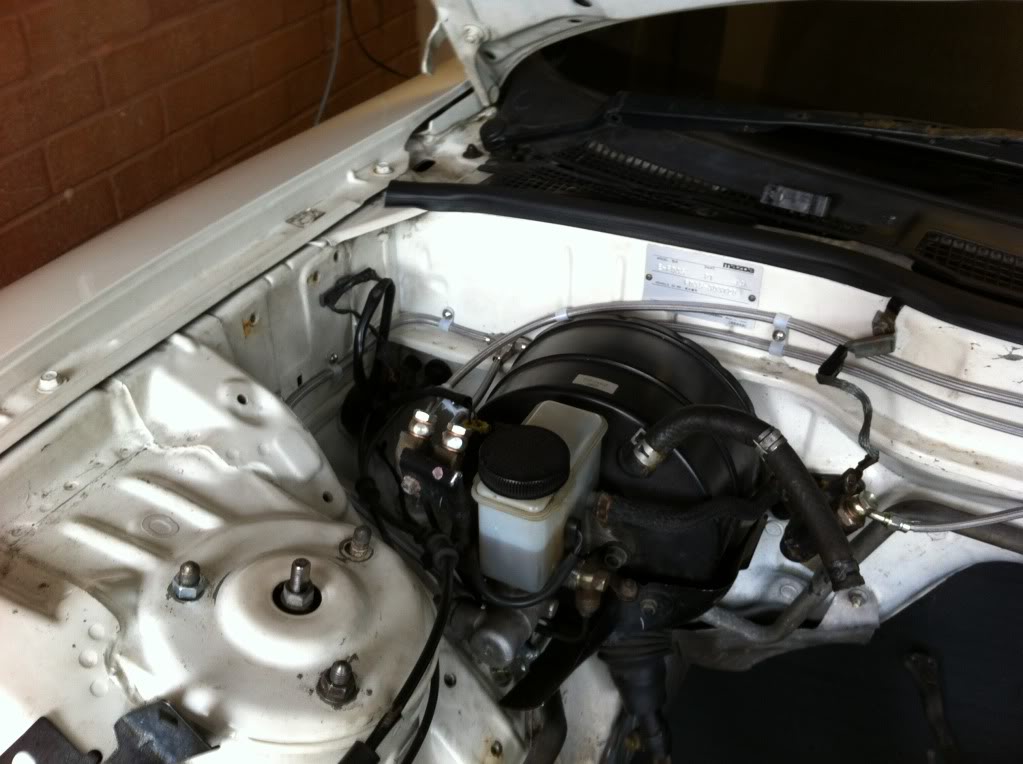

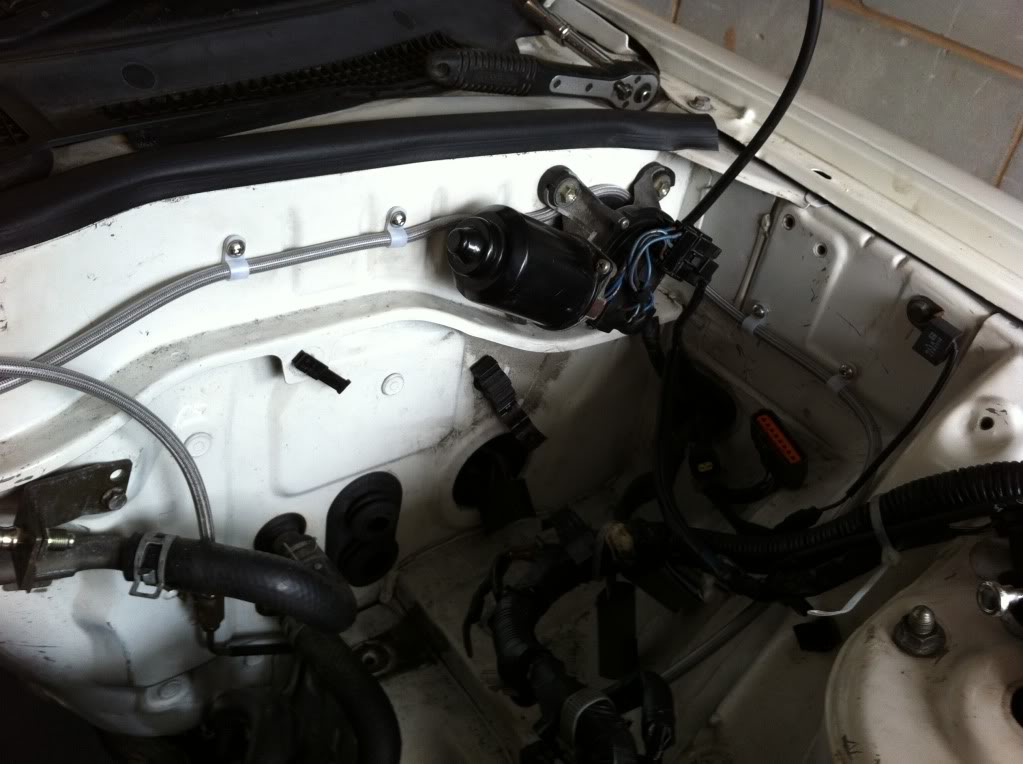

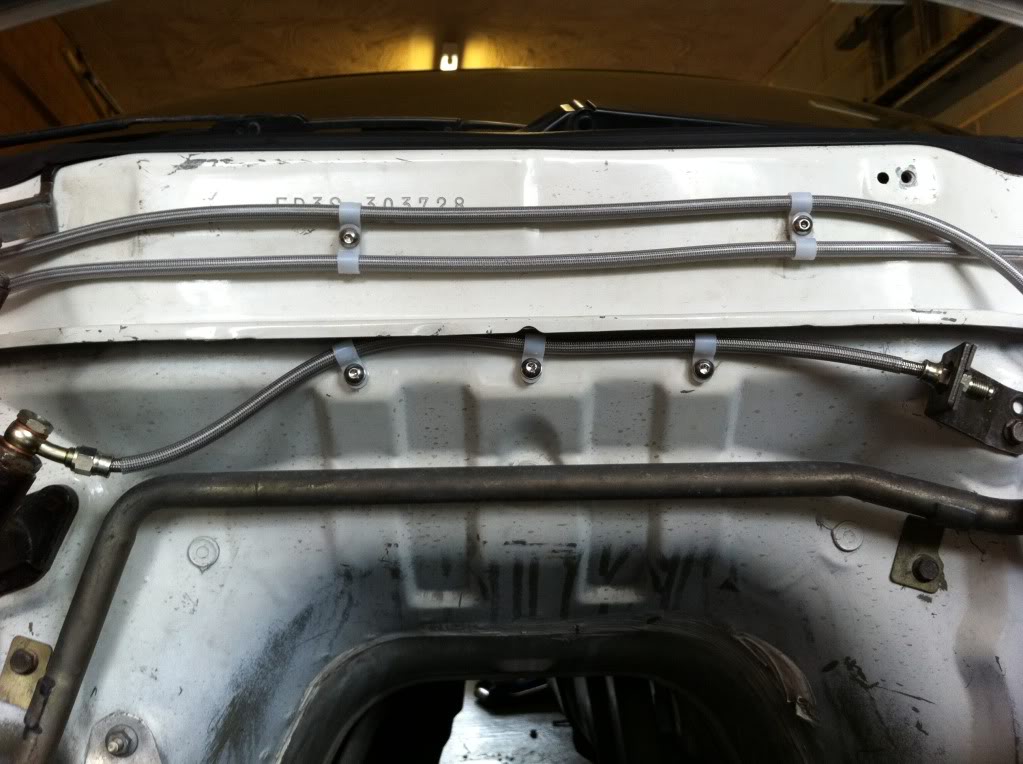

Anyway brake and clutch lines, yes I know I could hide them but if I'm honest you don't really see these against the white anyway and I have used the rubber over laid hose so not damaging the paint

All the clips are rivnuted and bolted for easy removal if needed.









Also see last page for more pics off this

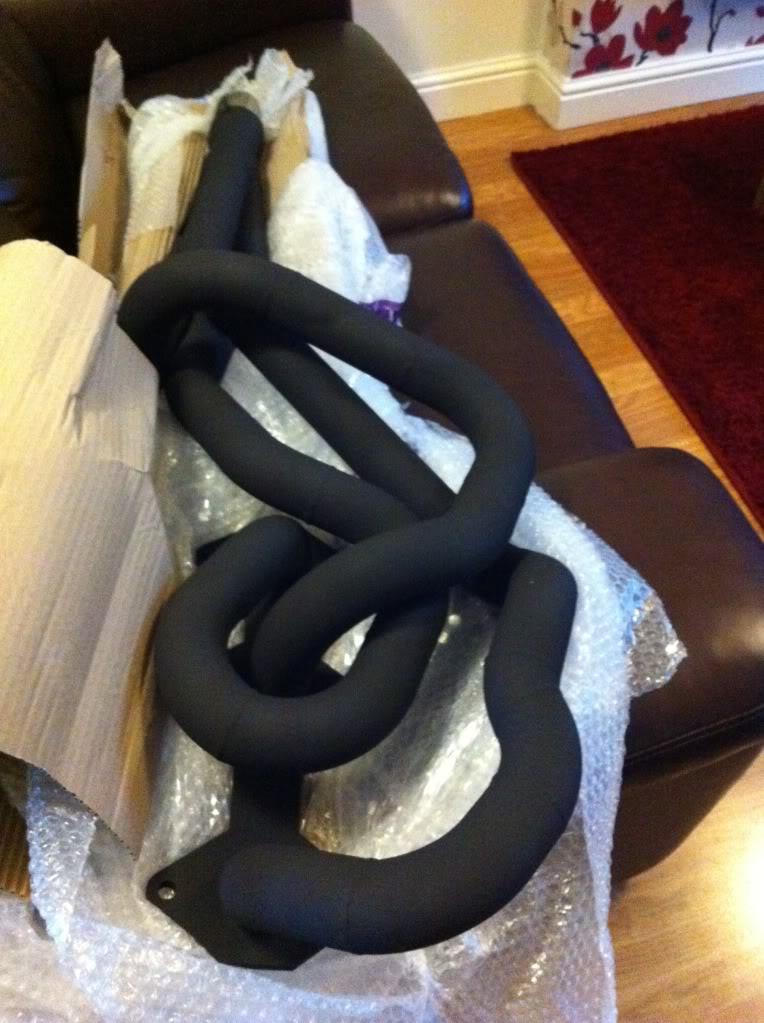

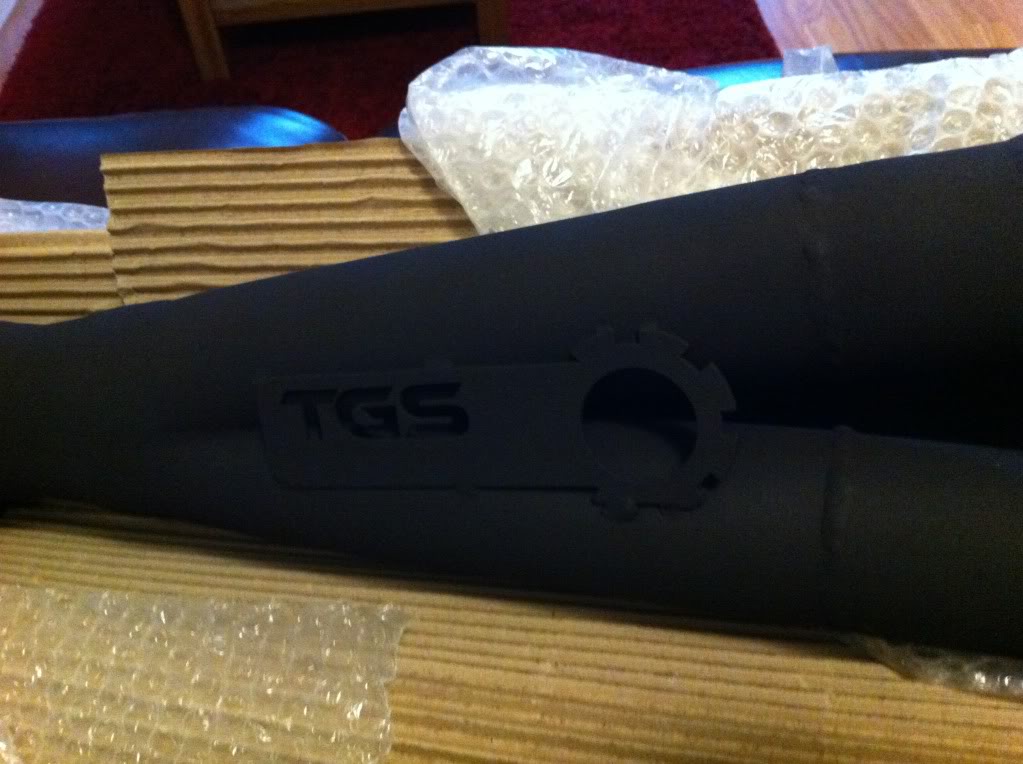

It's the Zircotec Primary Black ceramic coating, meant to be good for 25% temp reduction. Currently it's sat on the coffe table!



Massive update!

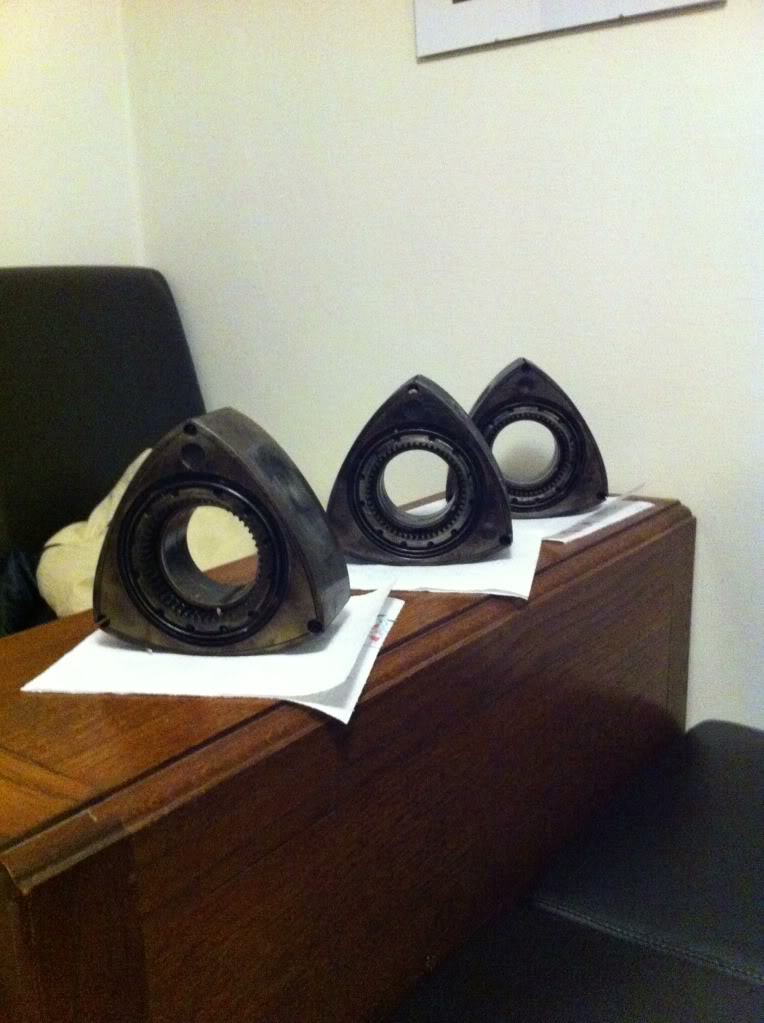

3 'C' weight FD-REW rotors

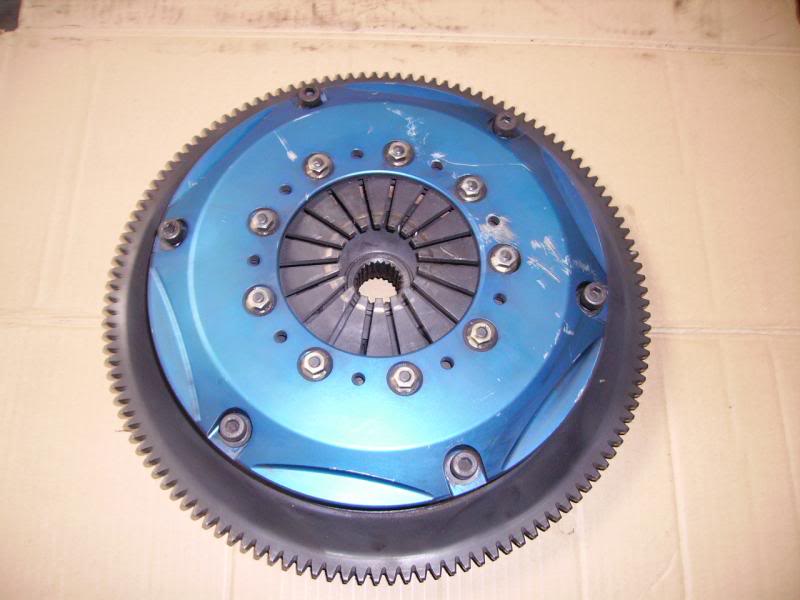

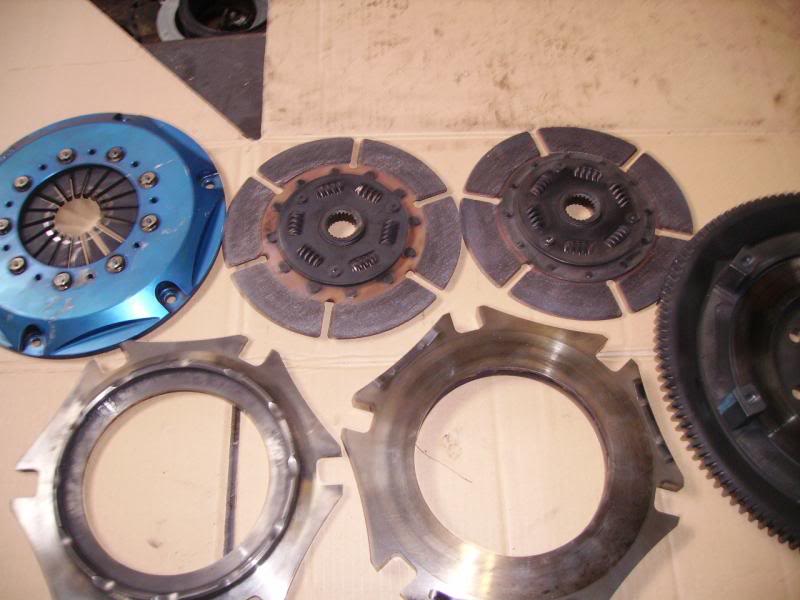

Cusco branded but it's a Exedy twin plate

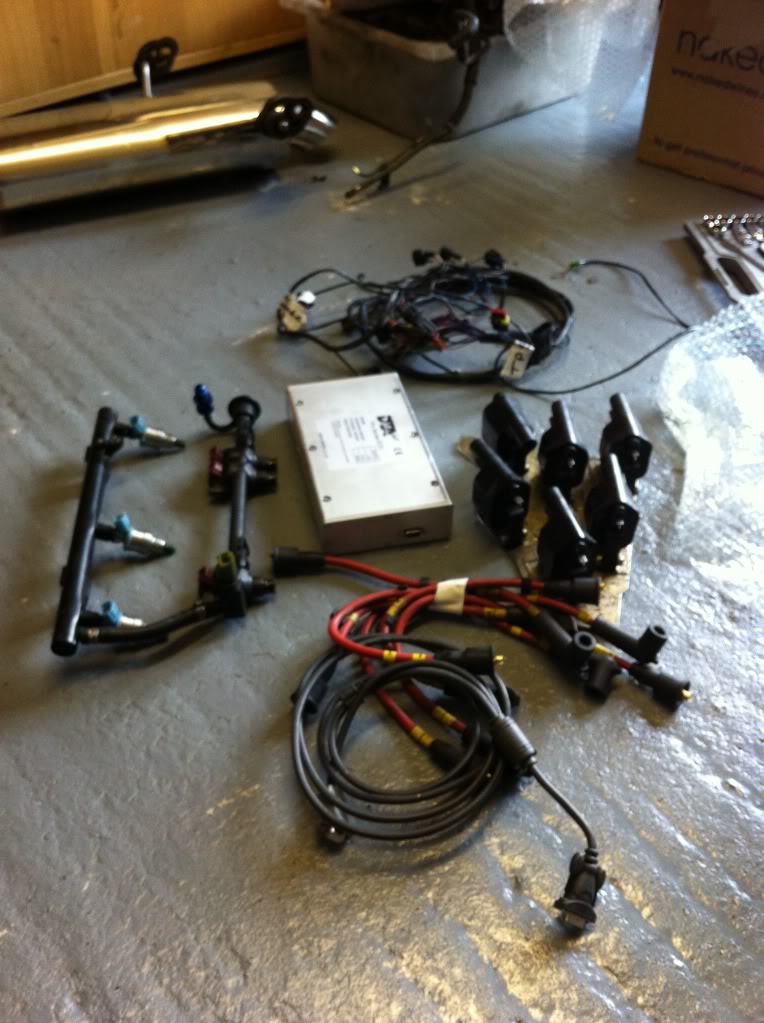

All the loom, coils and injectors as well as fuel rails off the last 20B build



Stock port



My port

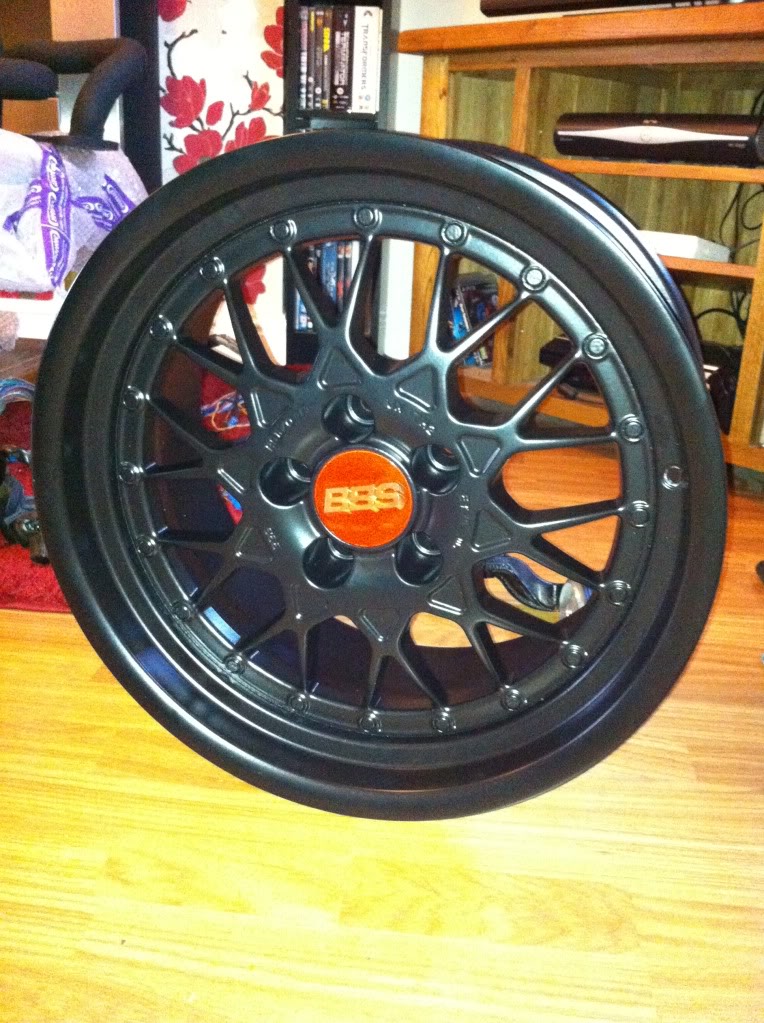

My BBS fresh from the powder coaters 9J ET20 all round more pics later!

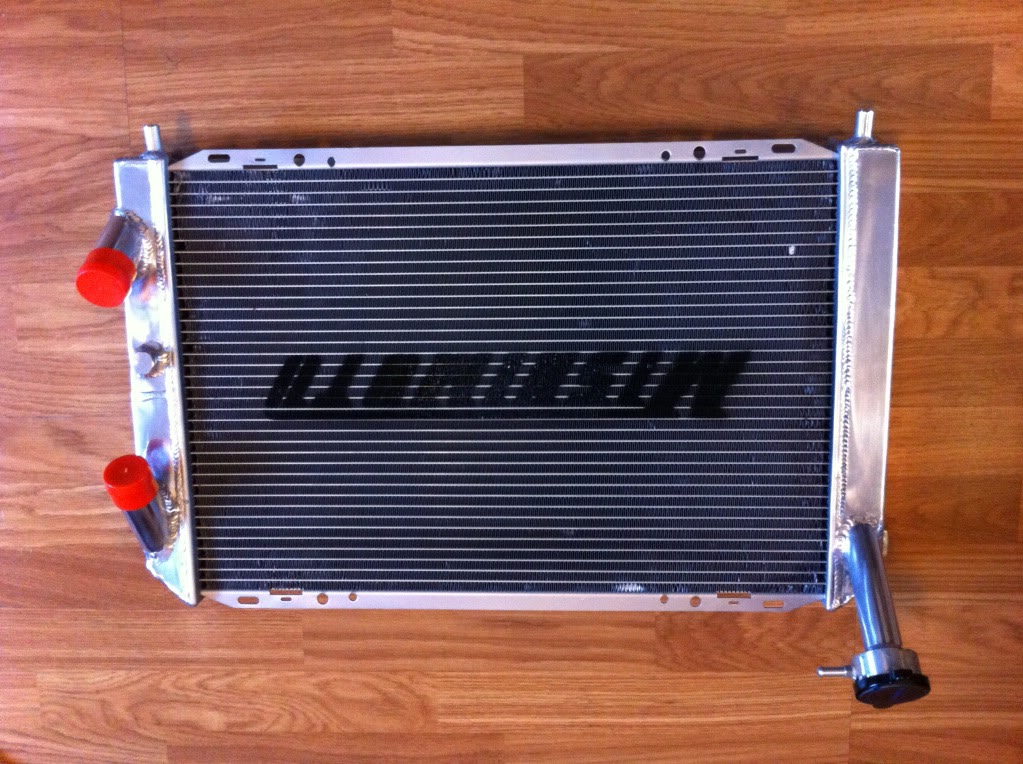

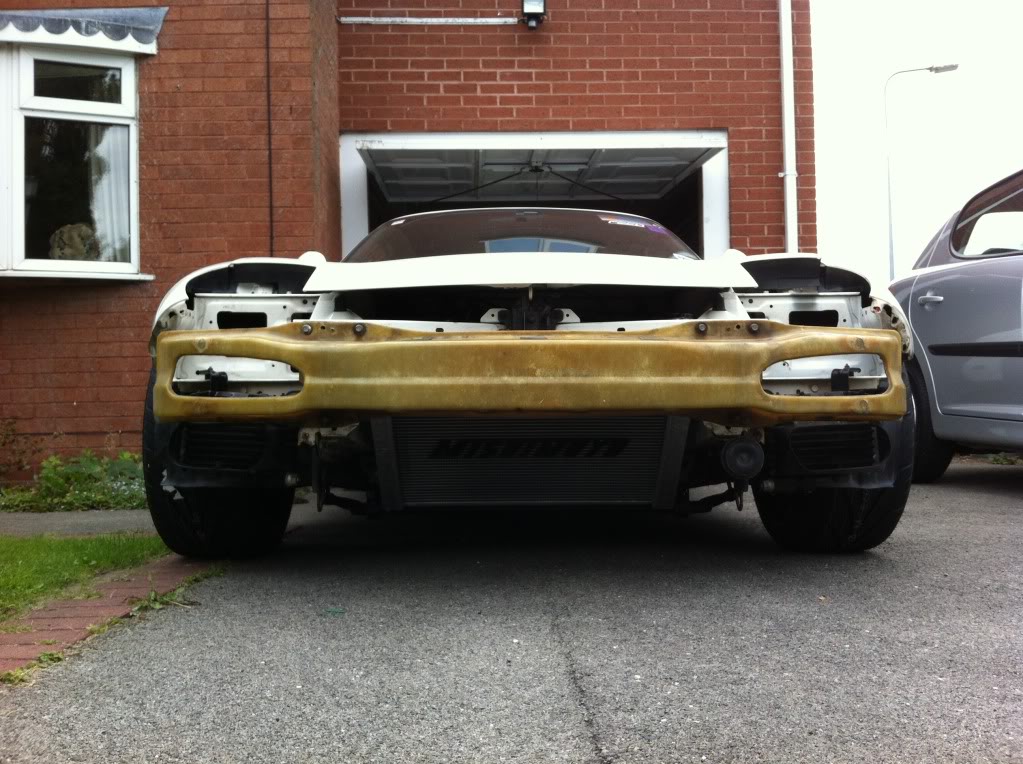

Mishimoto LS swap rad

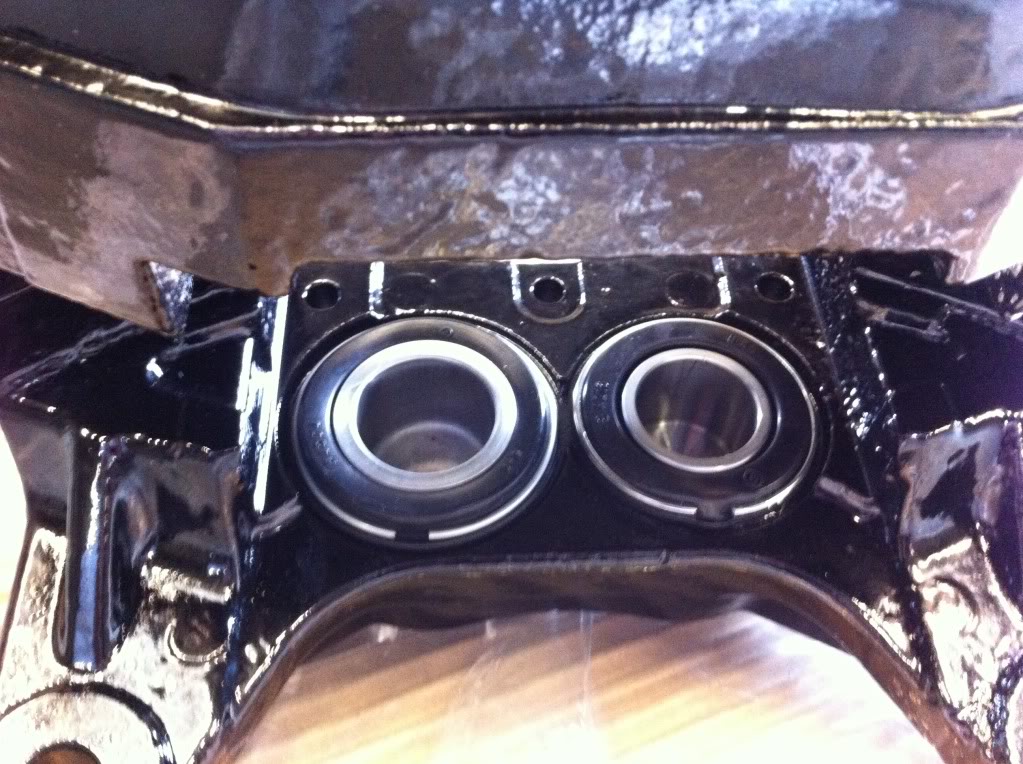

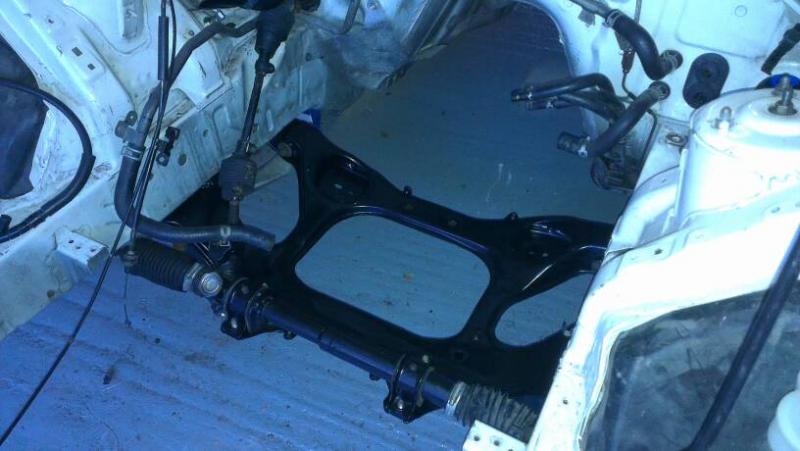

Powder coated subframe in

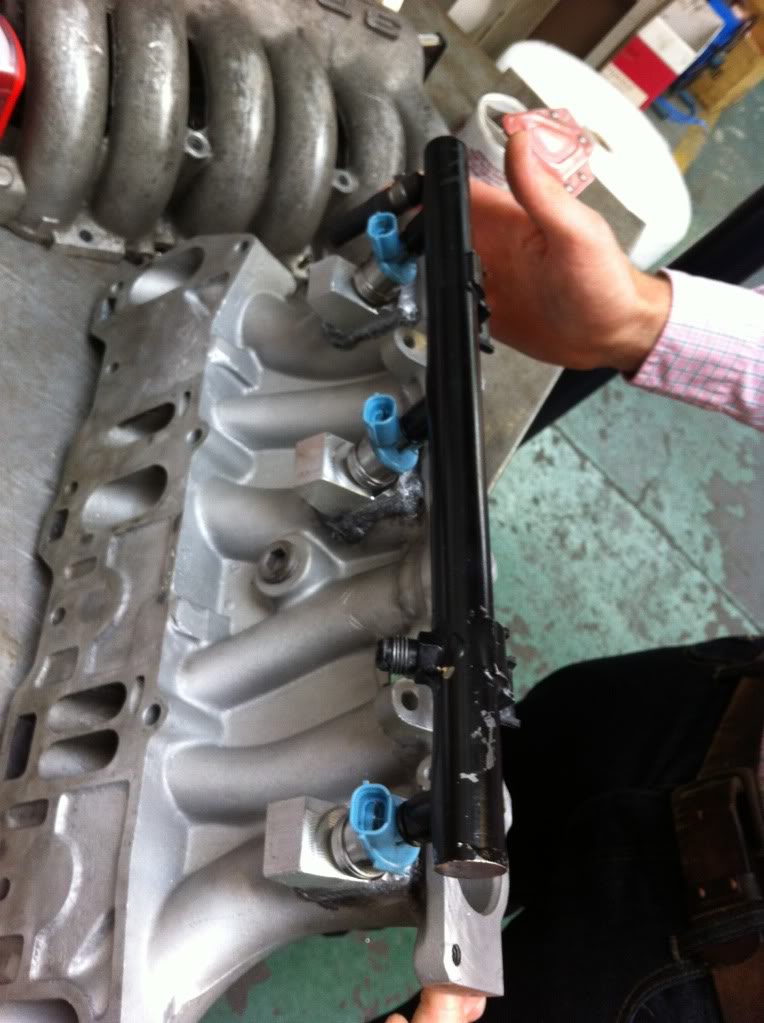

LIM tweaked to allow fuel rail to clear

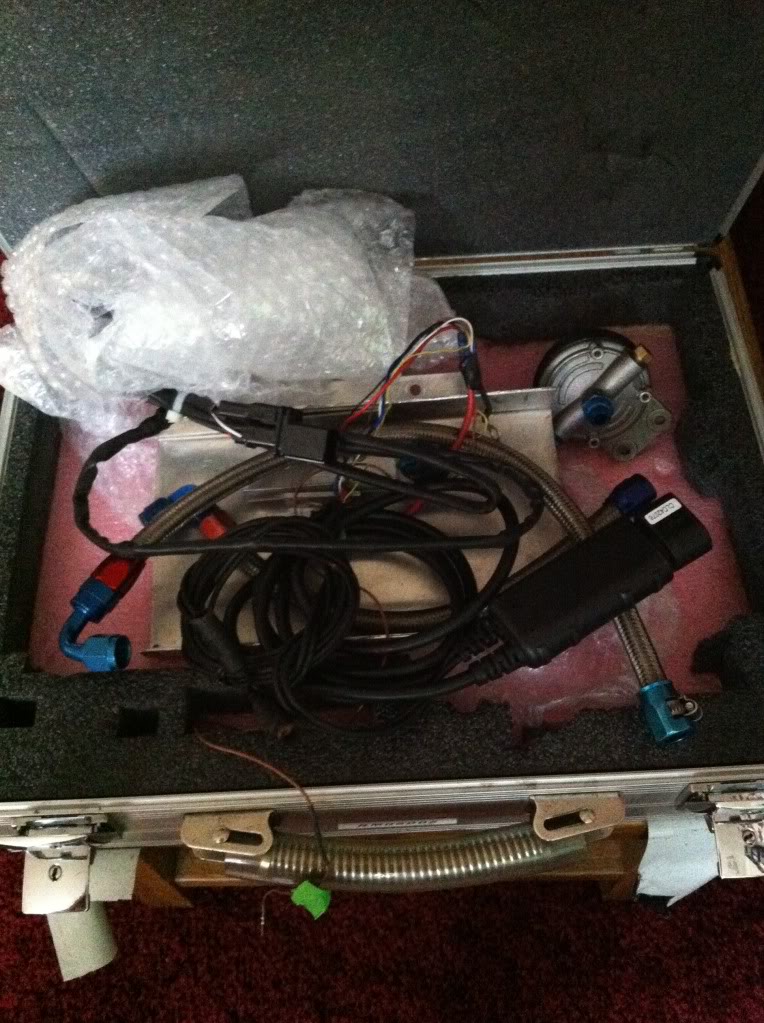

More goodies off the old car



The daddy!!

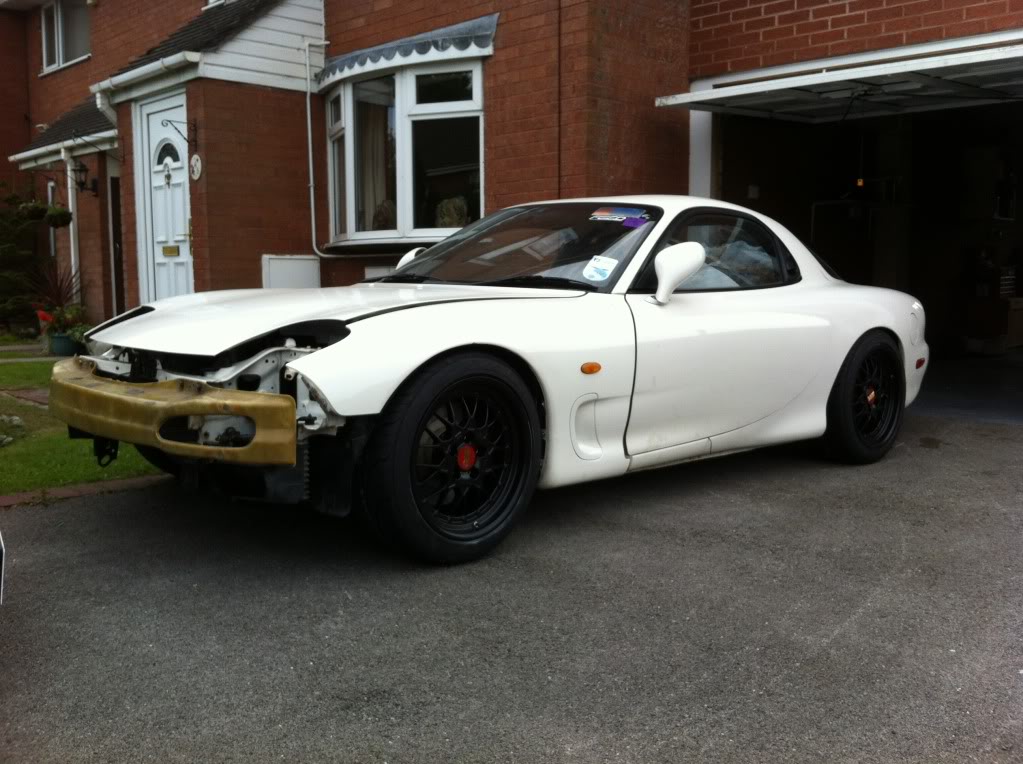

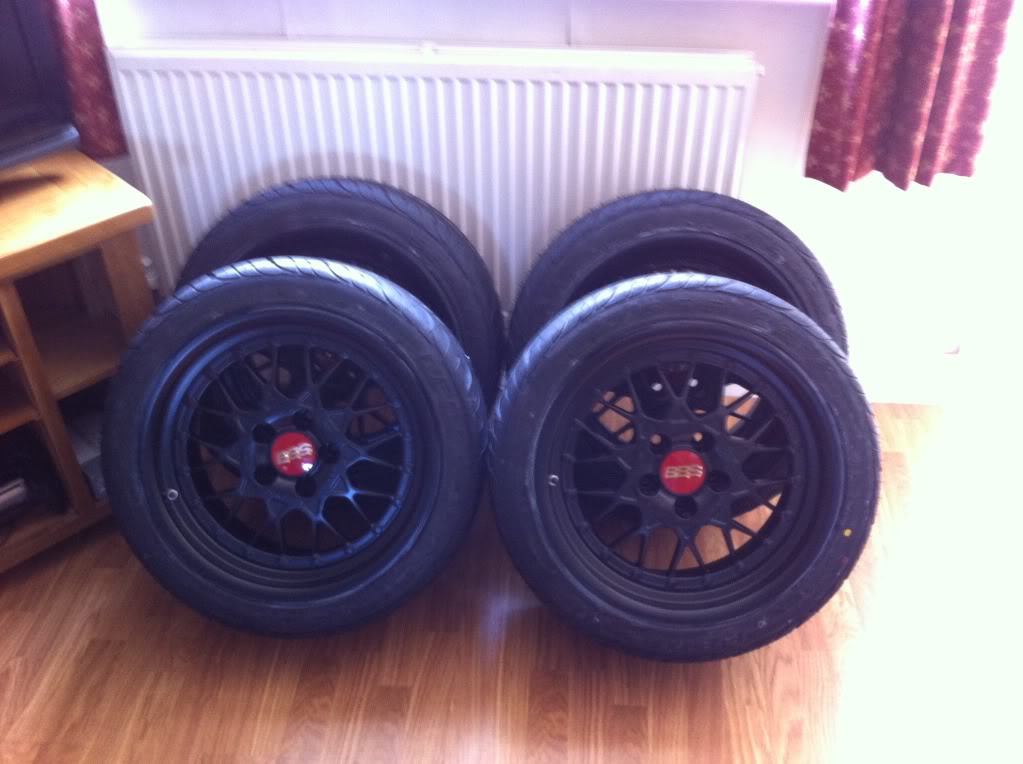

Wheels all fitted up with 225/45/17 Federal RSR's

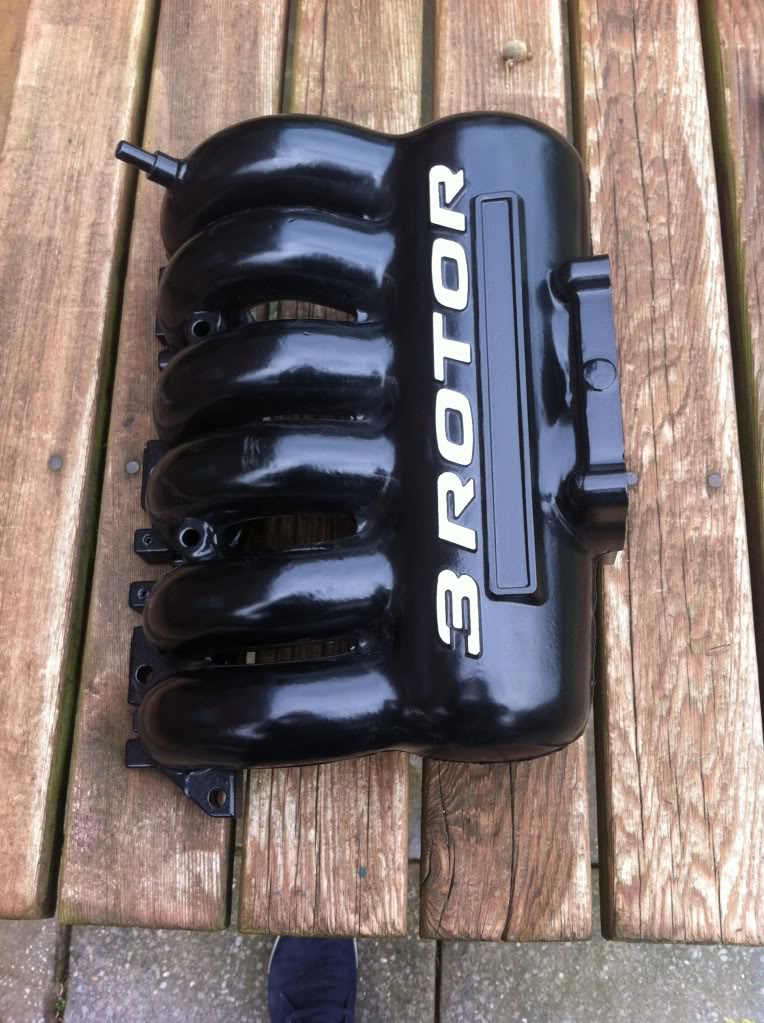

LIM powder coated

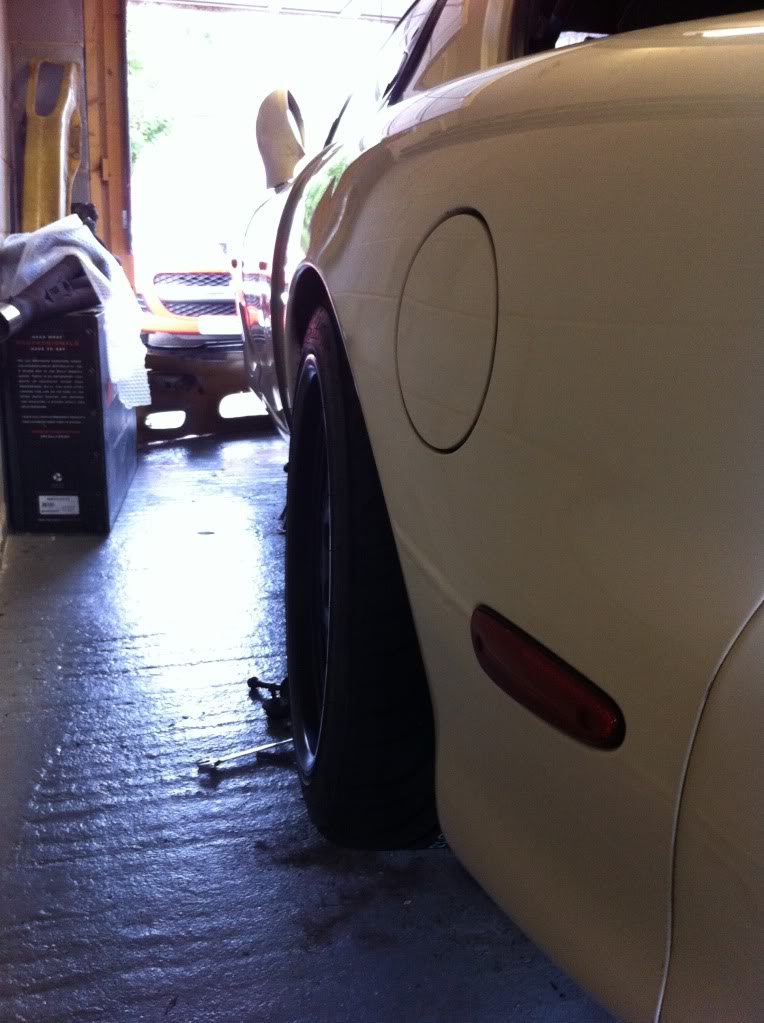

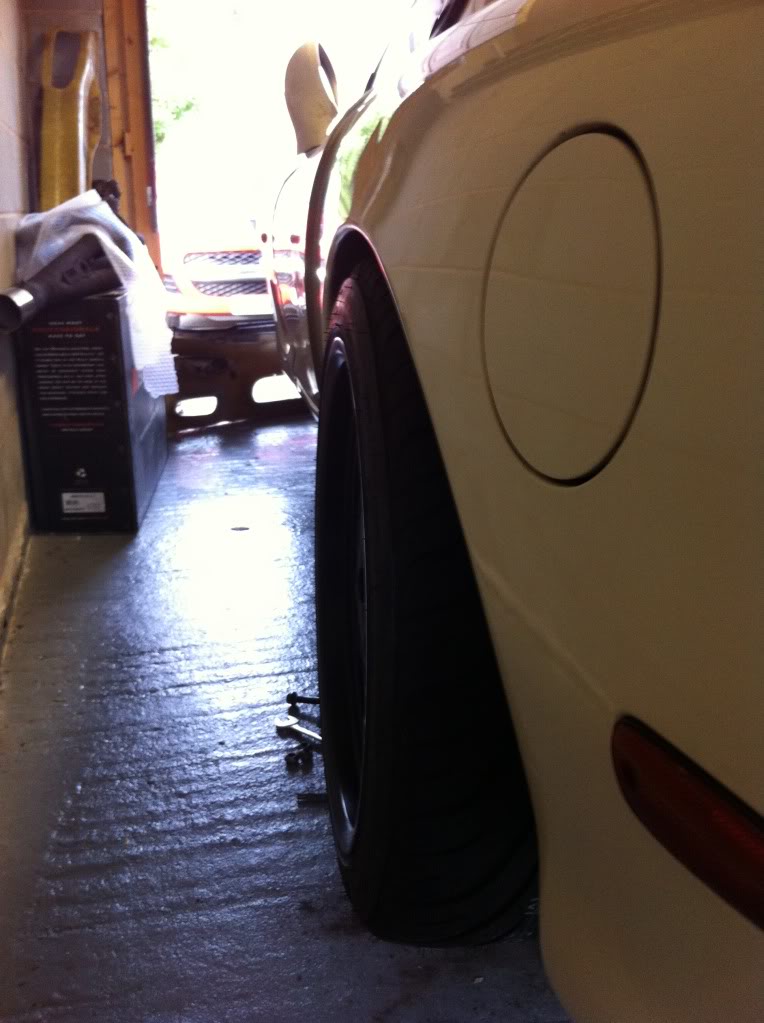

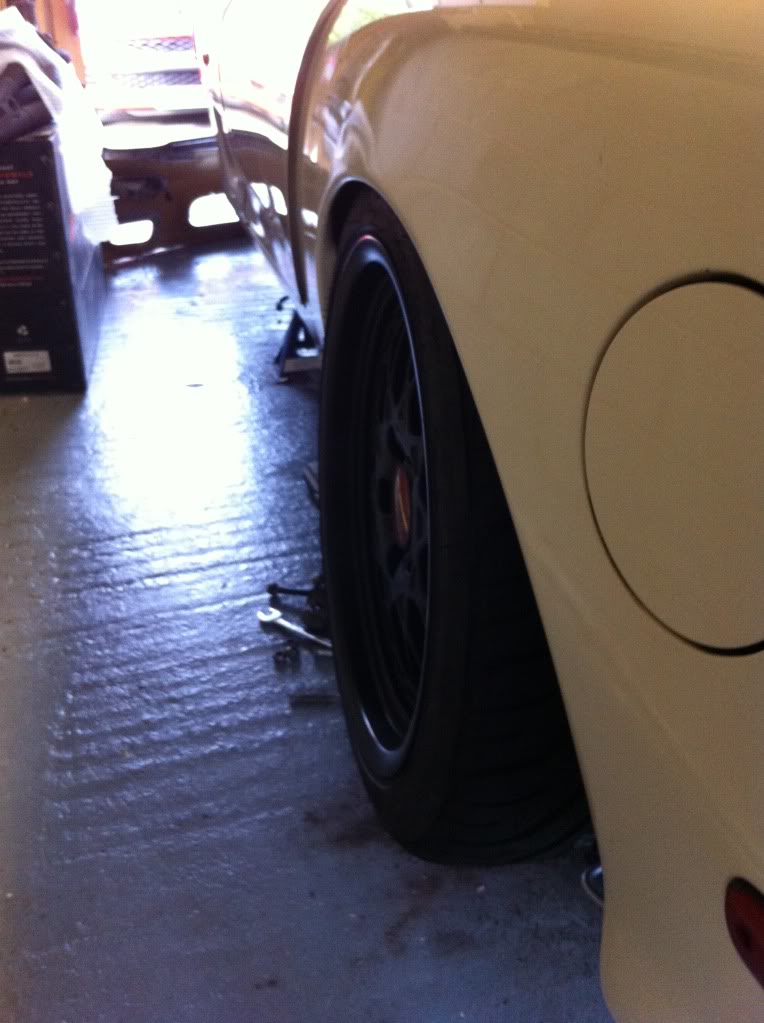

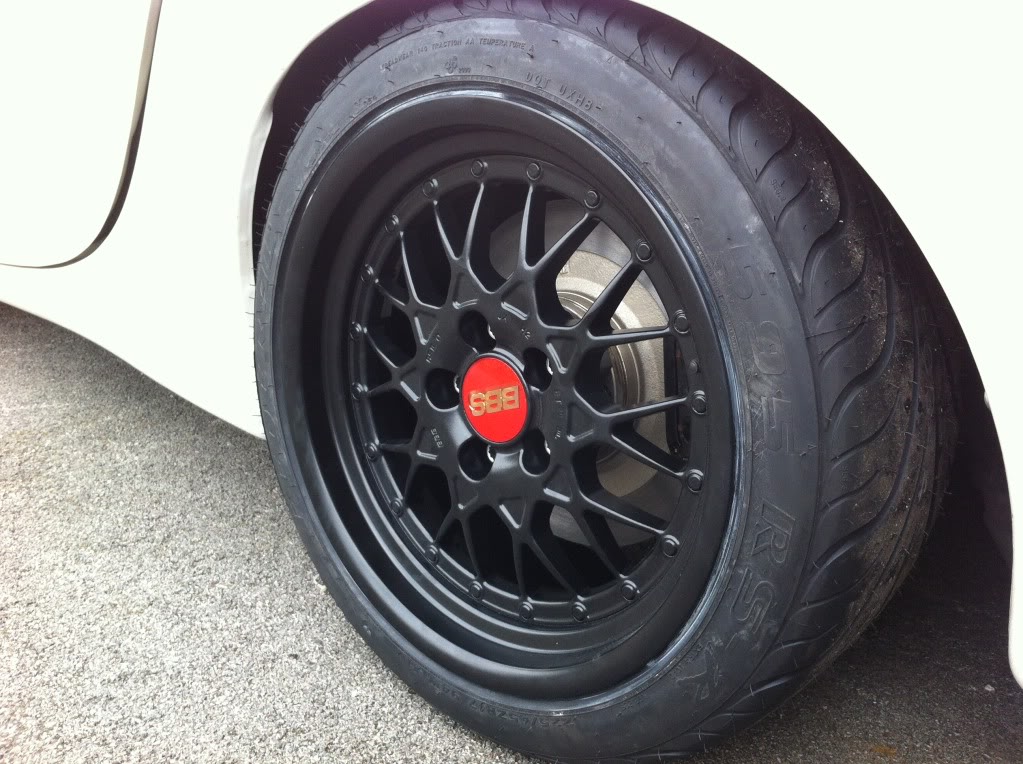

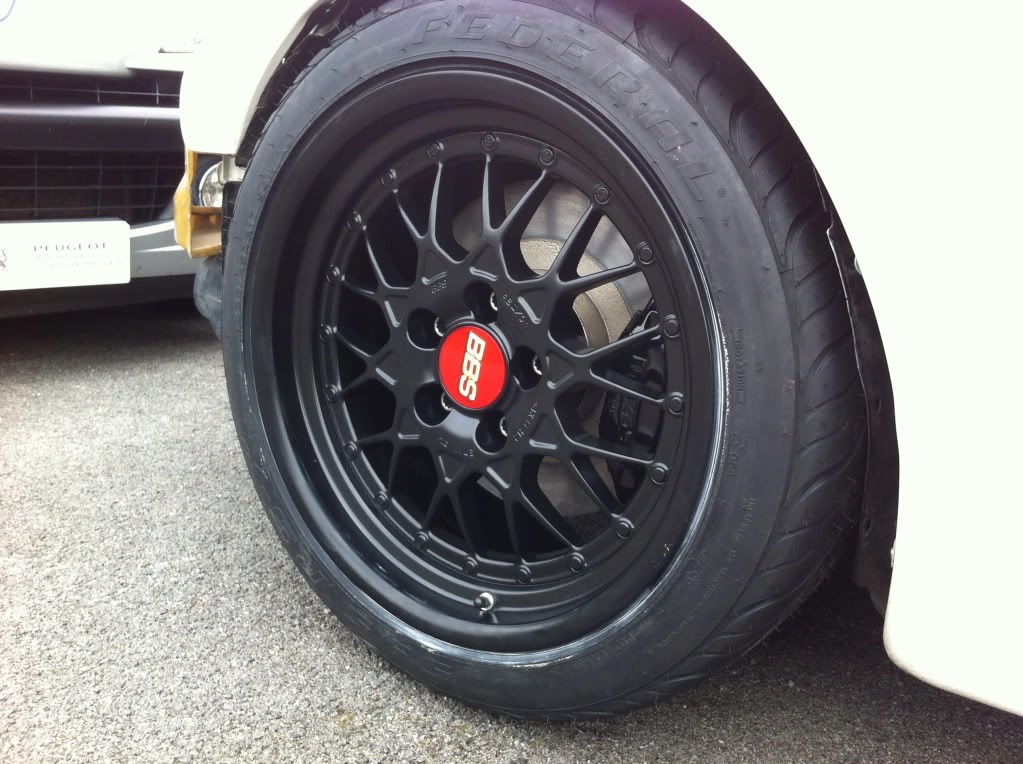

Fitment pics

9J ET20



9J ET5



9J ET5 compressed up

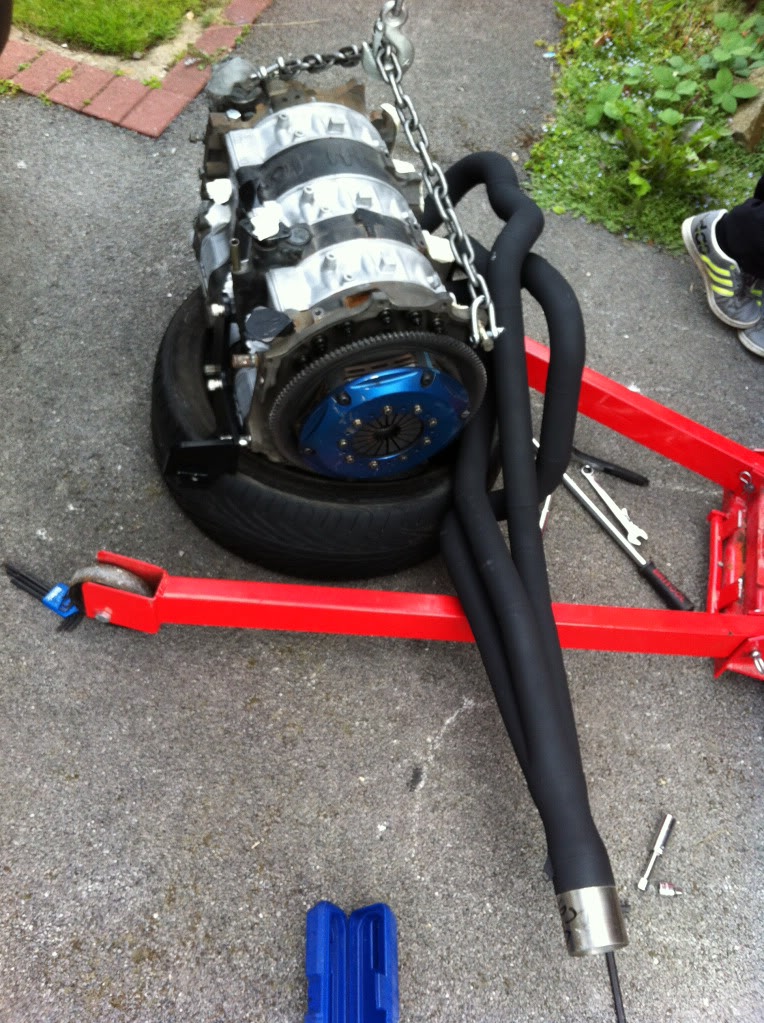

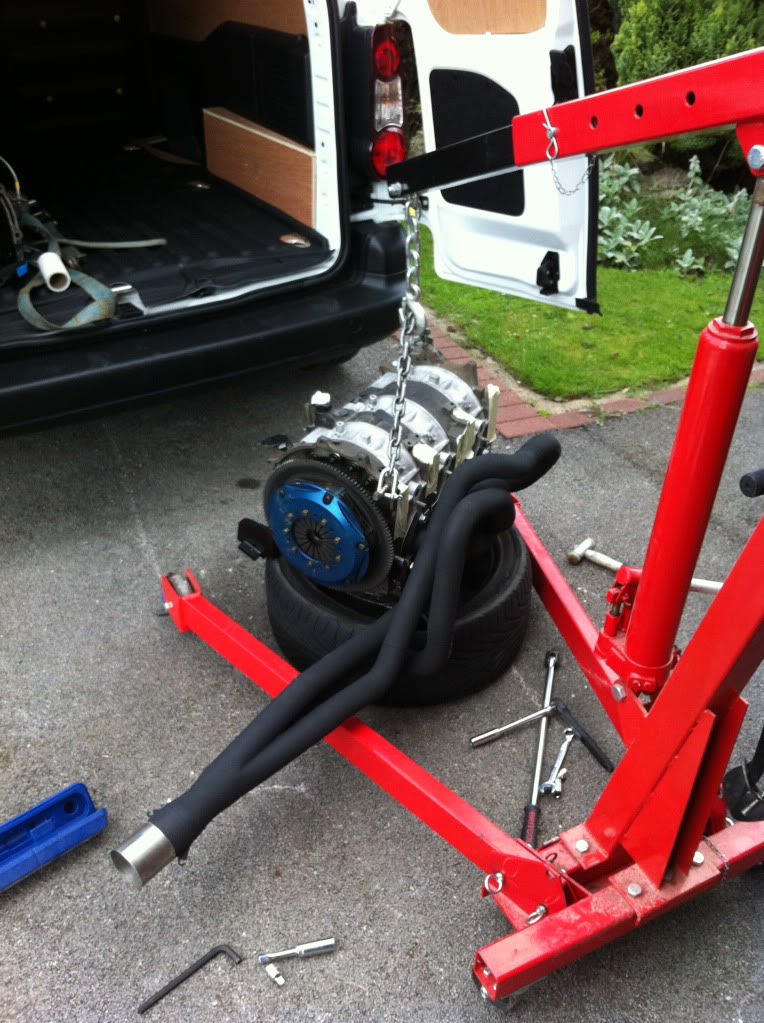

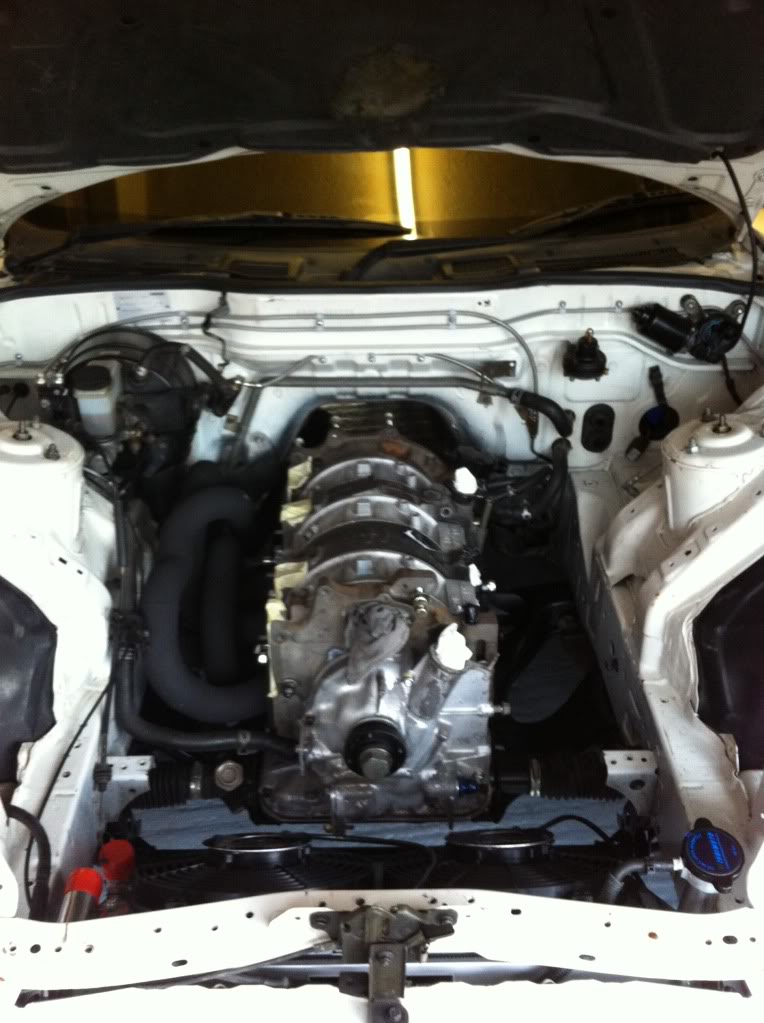

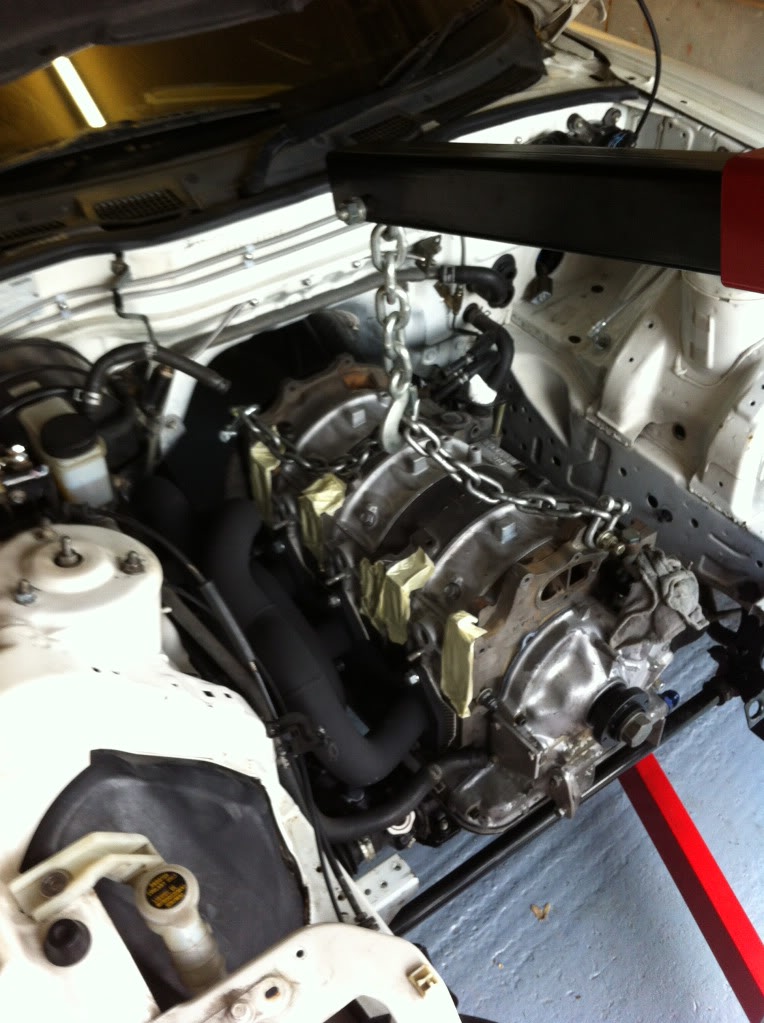

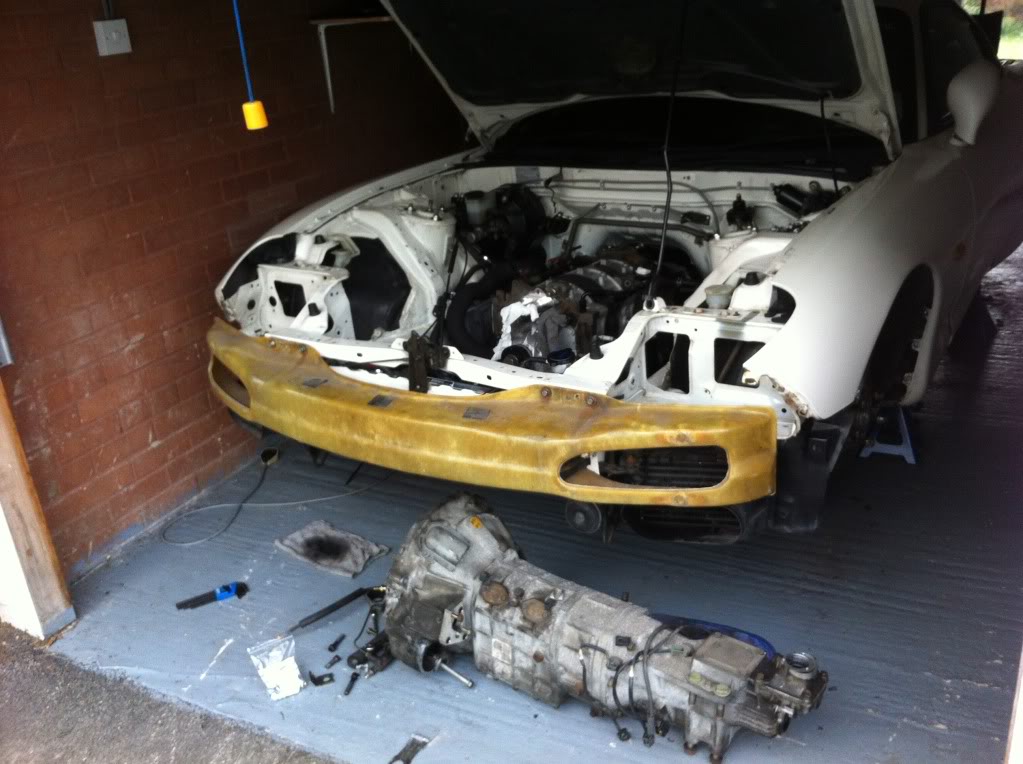

Motor in!

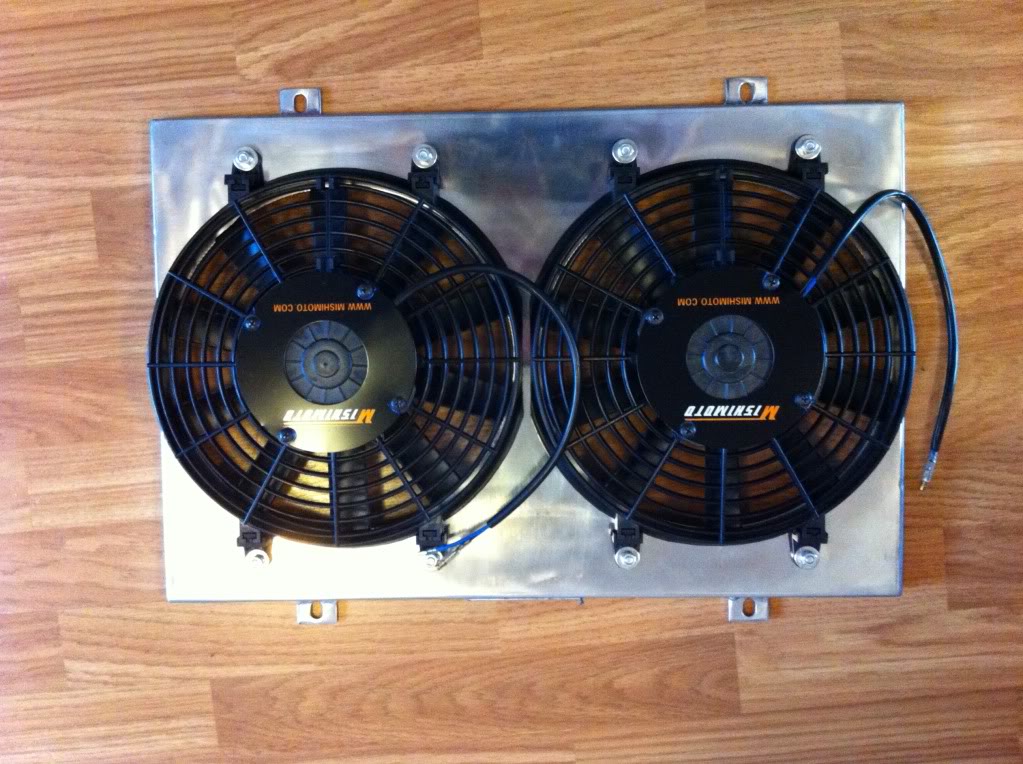

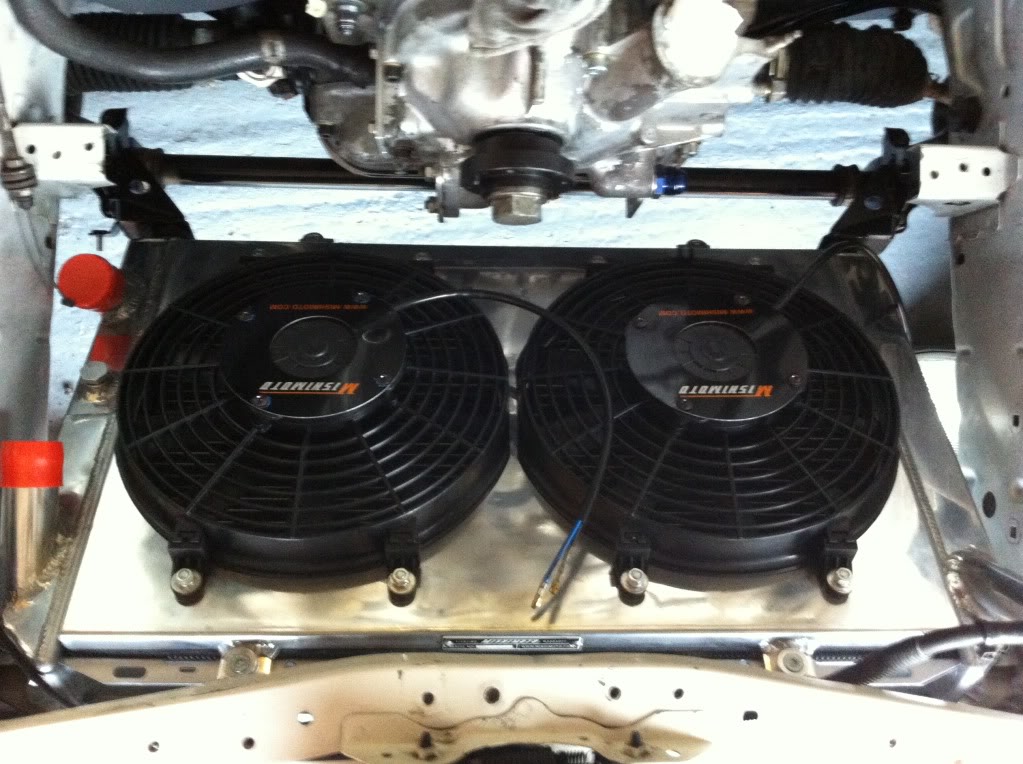

Rad and fans in



Random one

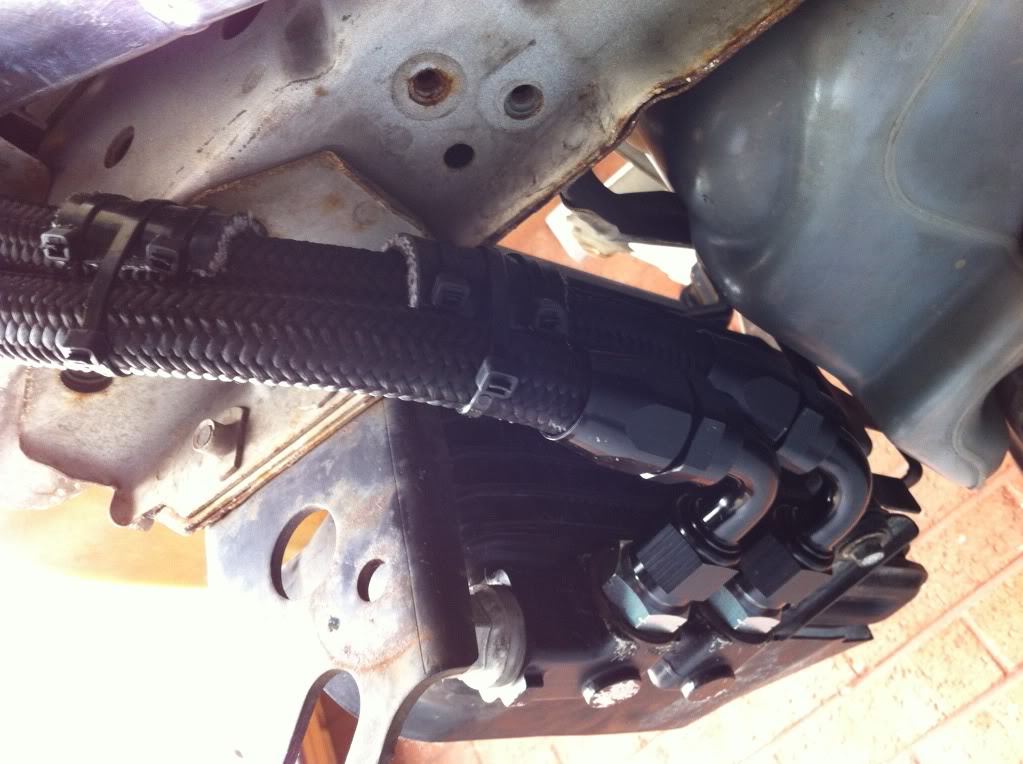

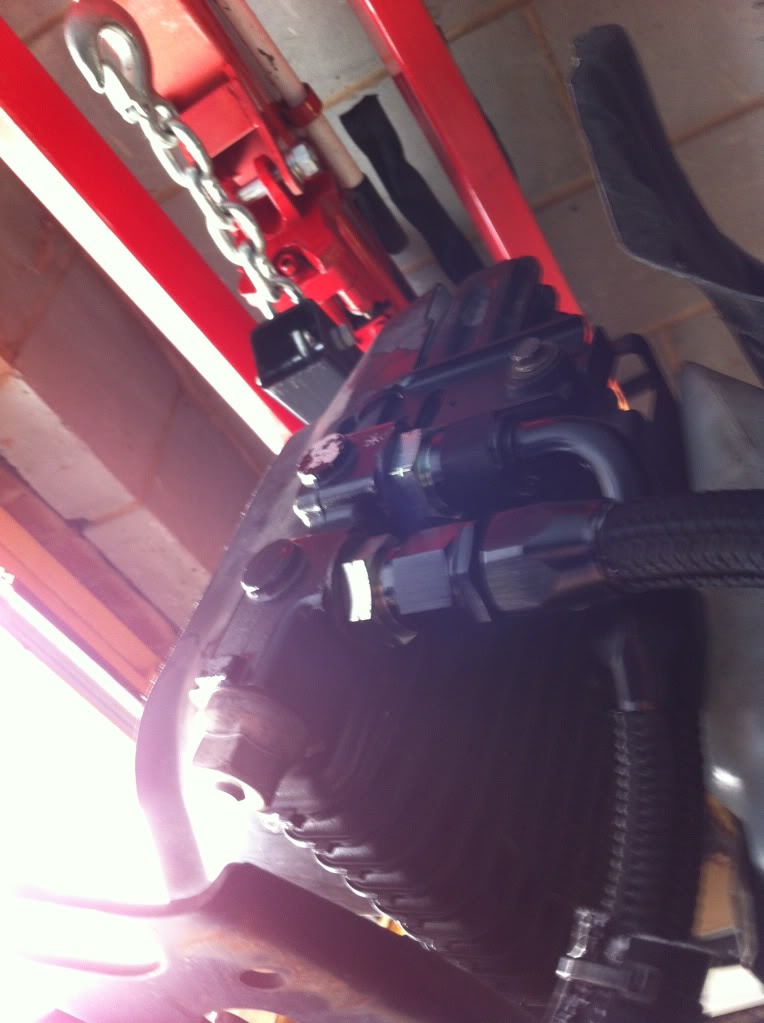

Oil feed

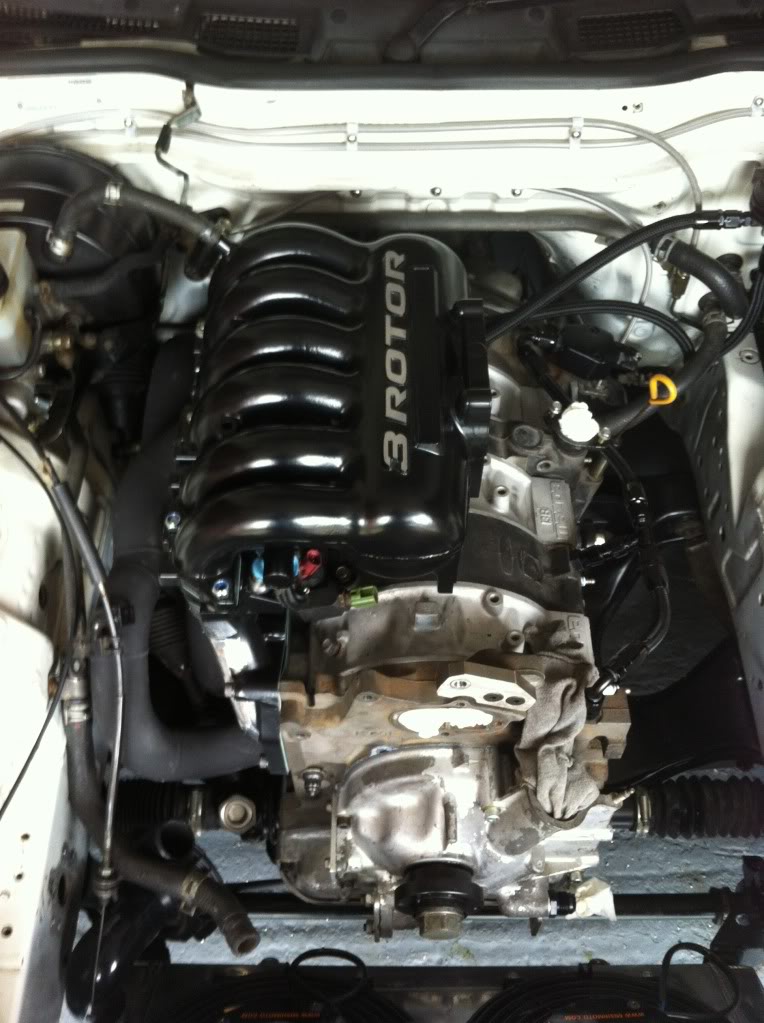

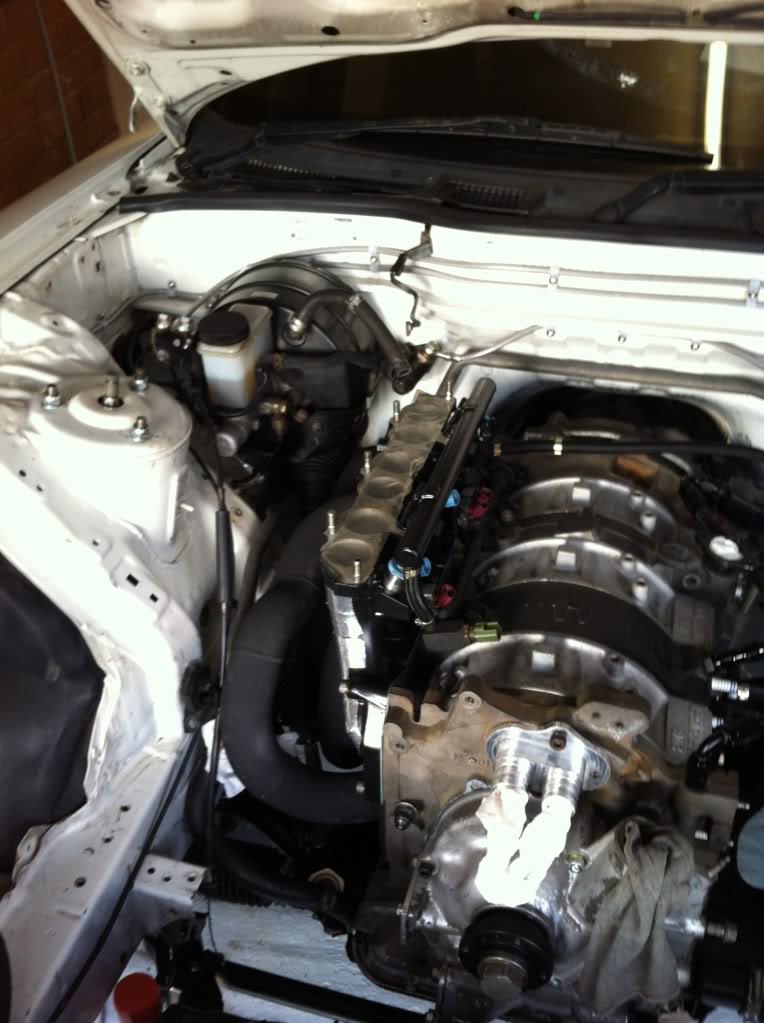

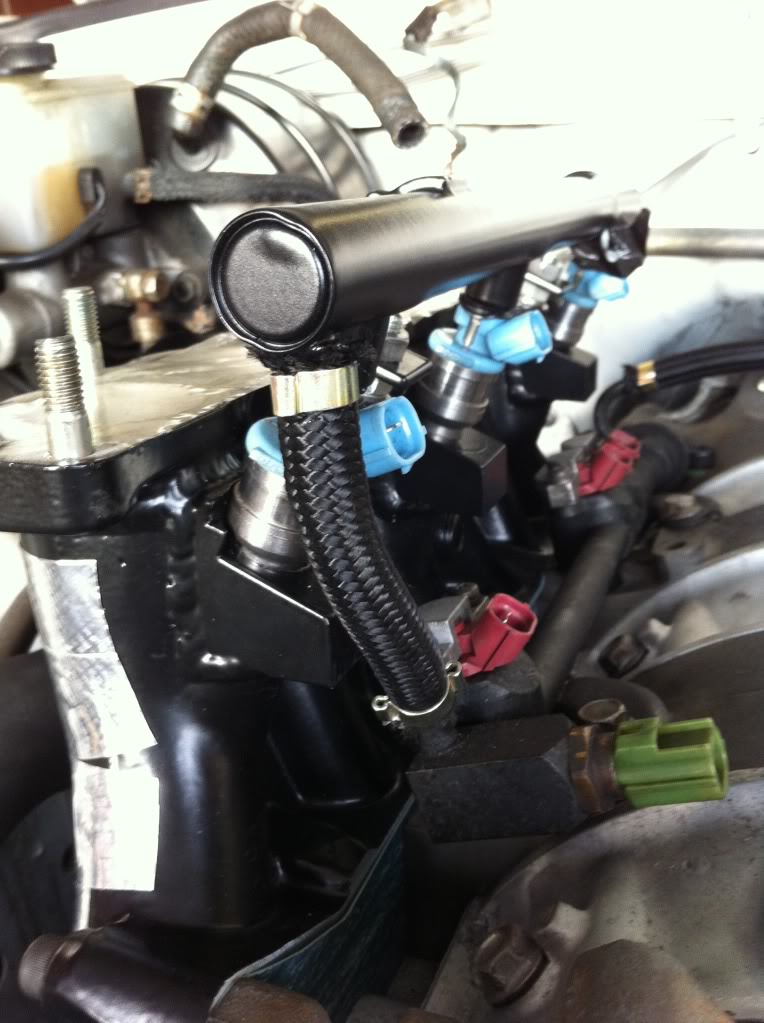

LIM and rails all fitted, yes it does clear

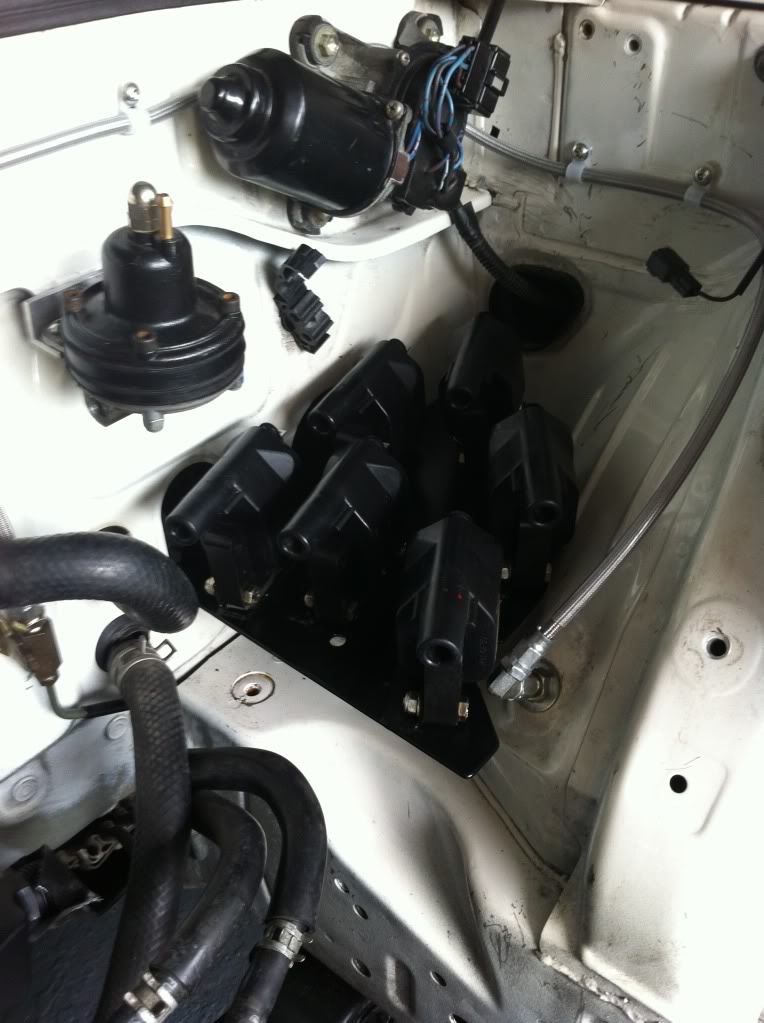

Coils mounted

Another step closer to being on its wheels for the first time in months!

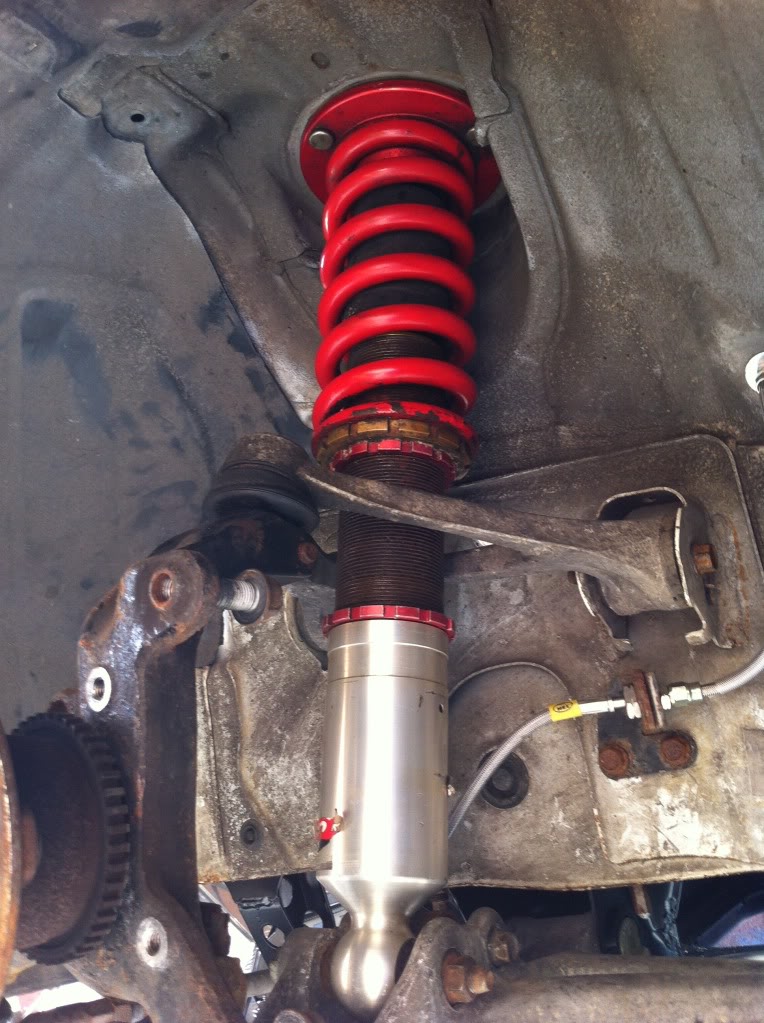

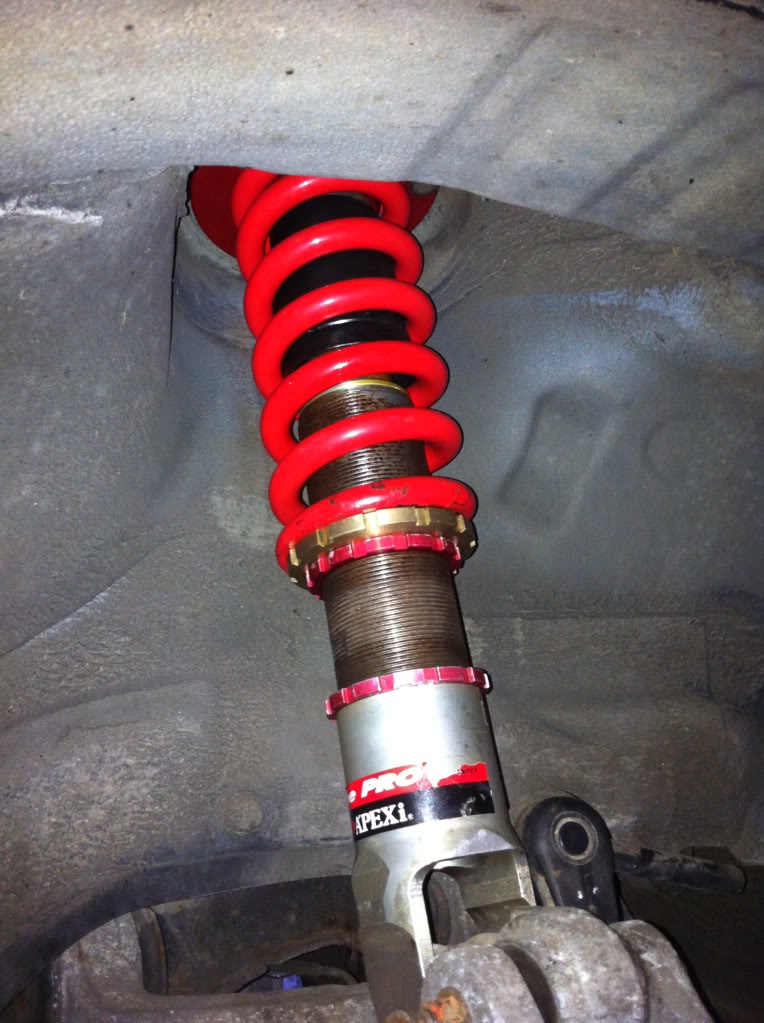

Apexi N1 Pro's


All 4 fitted but only took 2 pics as I'm lazy!
As soon as my adjustable rod for my push pull converter shows up from OS Giken and my new clutch slave is here I can have the lads round to help get the box, PPF and prop in then drop it to the floor as I hope my calipers will be back from Big Red by then too!

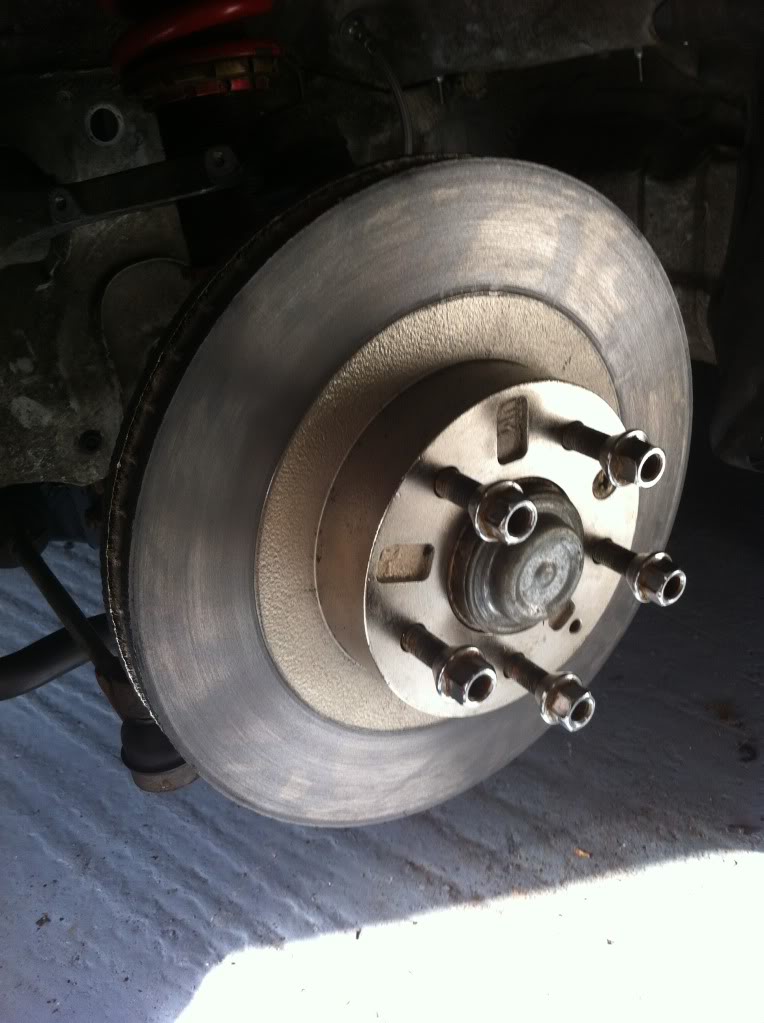

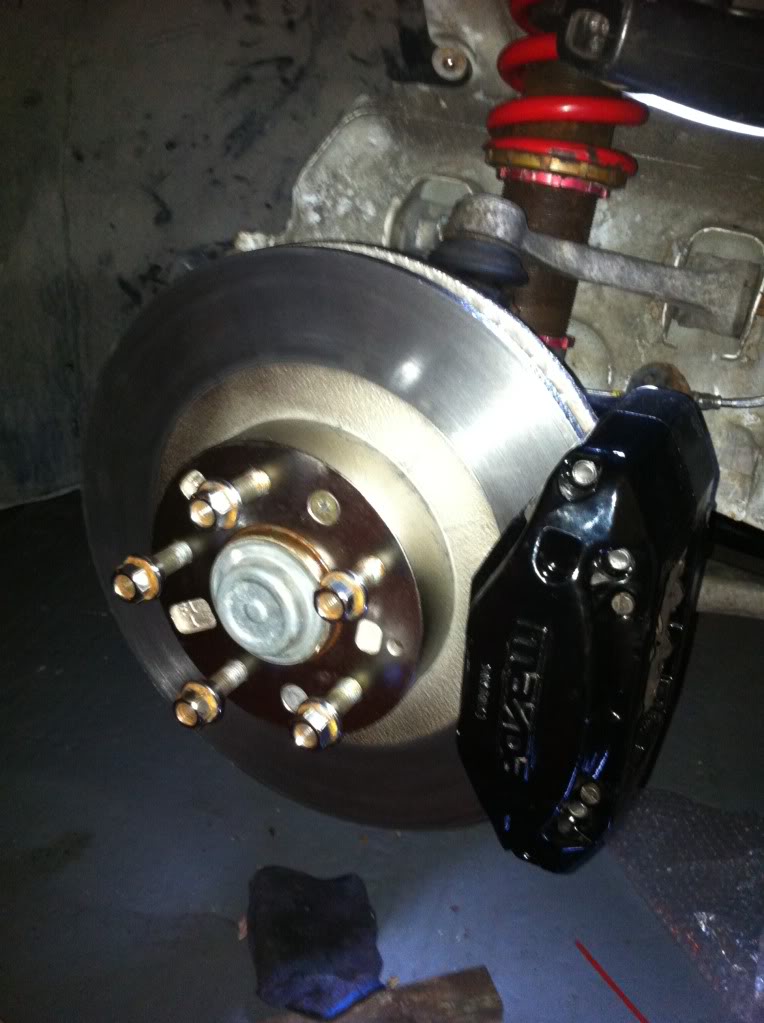

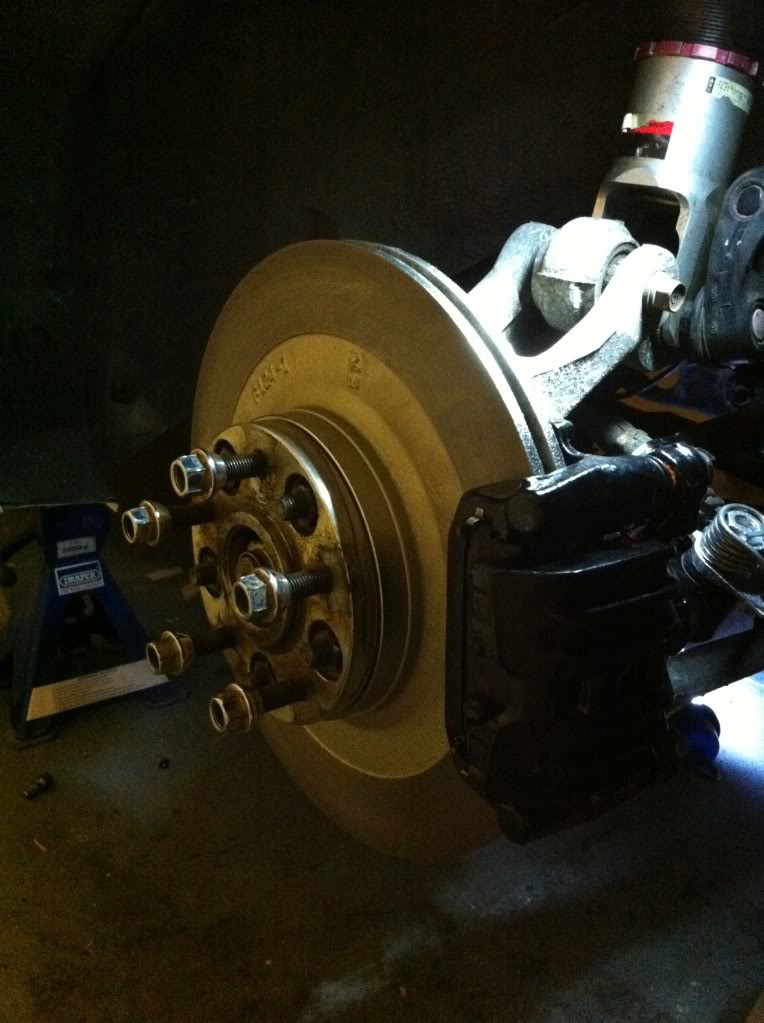

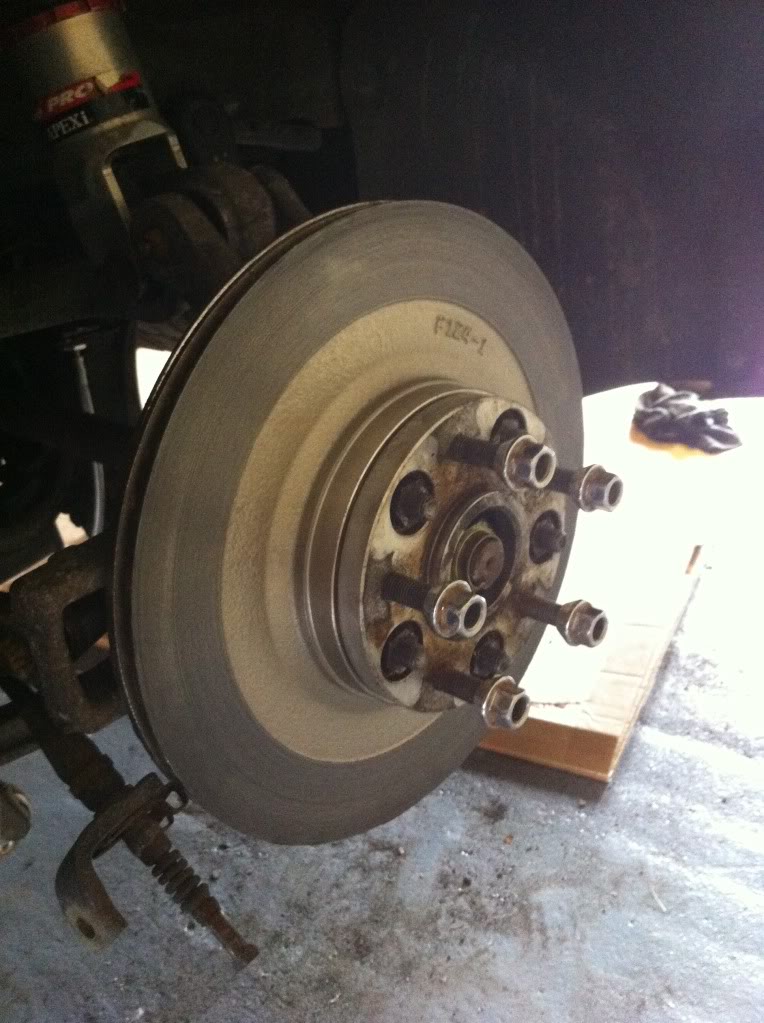

Nickel plated then skimmed RS/RZ larger disks


Well I'm still working on it!

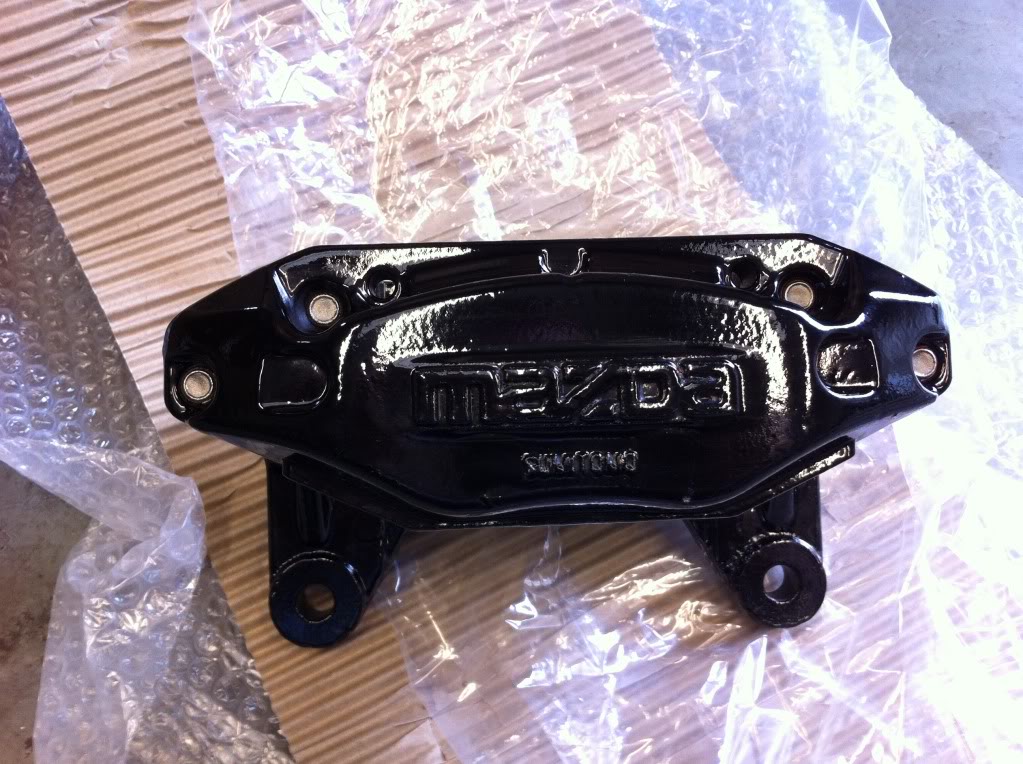

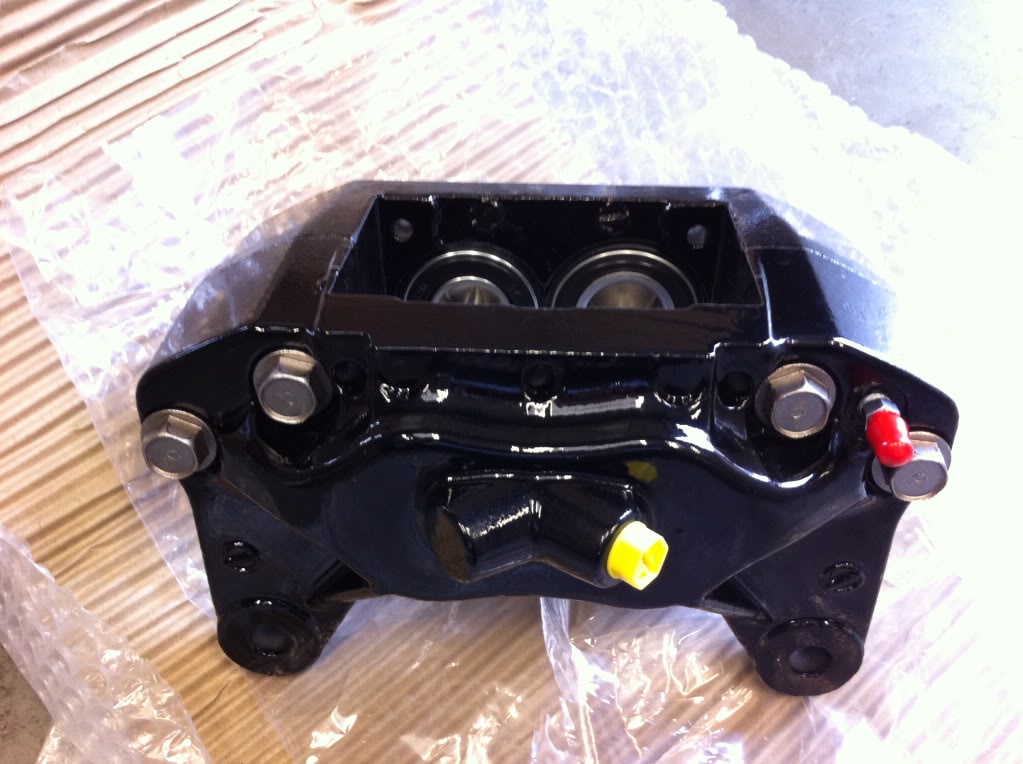

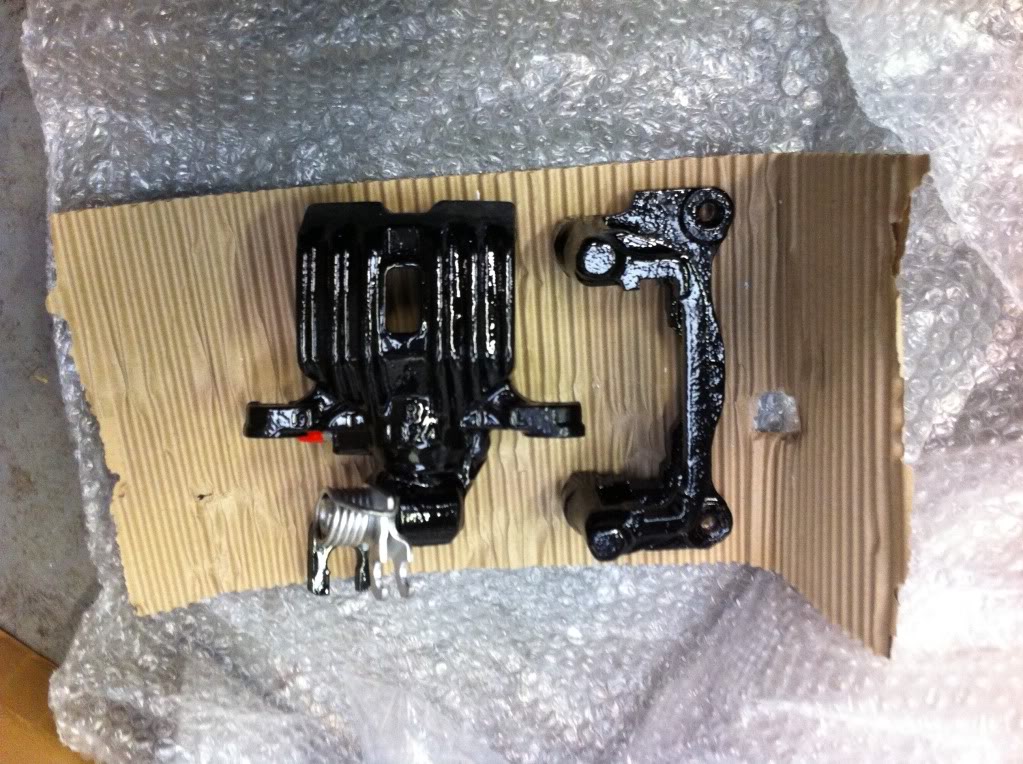

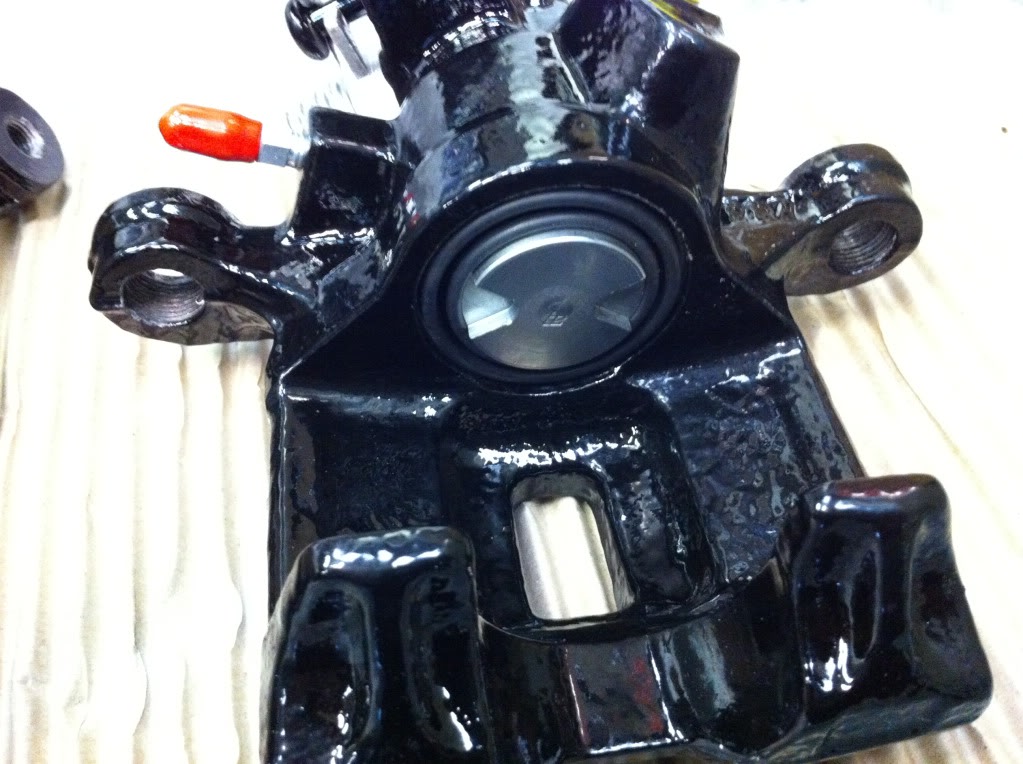

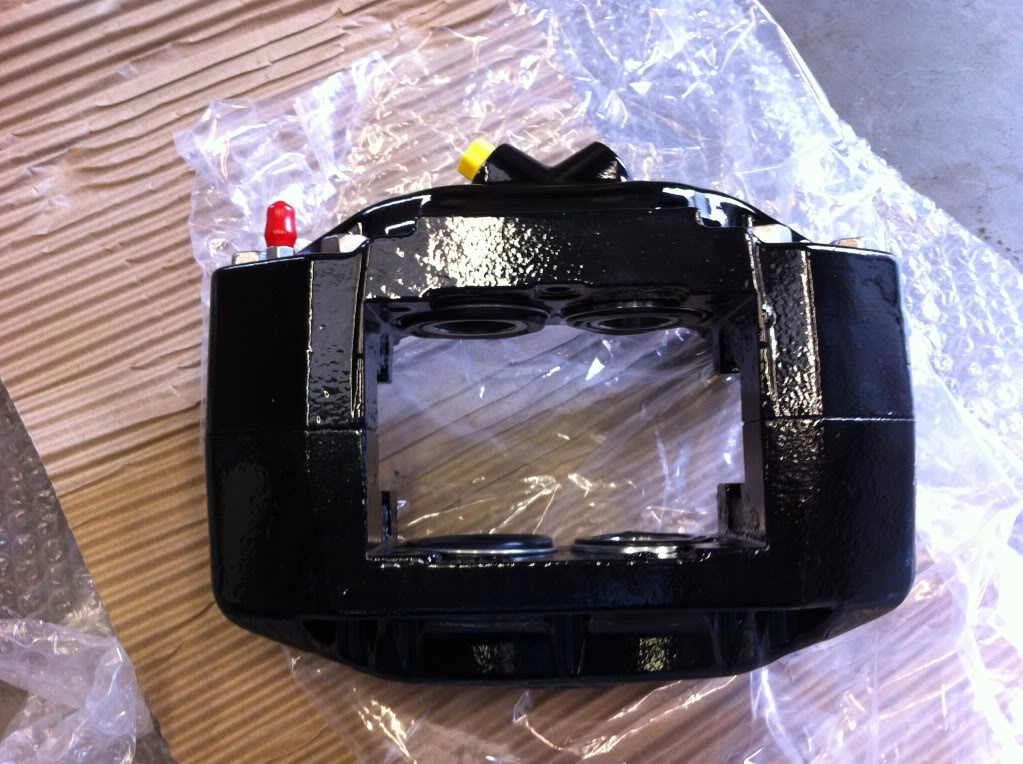

Calipers back from Bigg Red.
Only opened one front so far very impressed!



Again lazy pics as its late!


Will be fitting the further modified LIM as soon as its back from the machine shop and doing a full nut/bolt check then it's onto it's wheels! Yay!
In for the last time!

Nice O clips on the fuel line

It's mega close and might even touch but covered in Zircotec heat management down there it will be ok
Must be 24 anyway this happened!



Bagged this today

Got the spot weld drill, hammer and chisel out to make space!

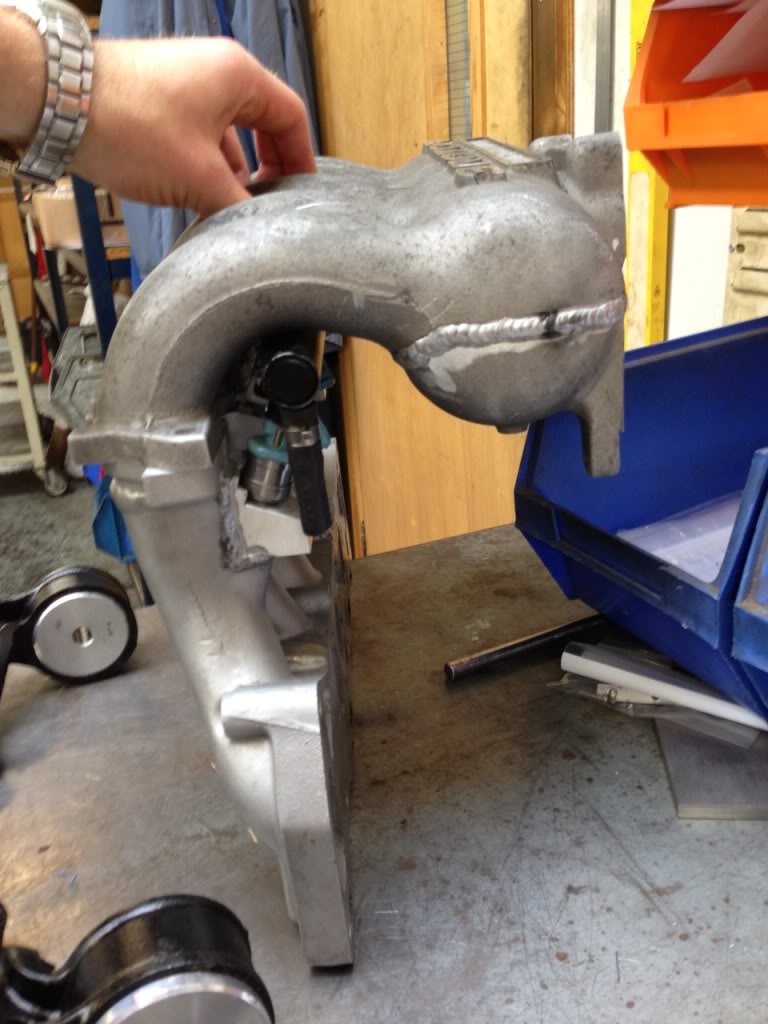

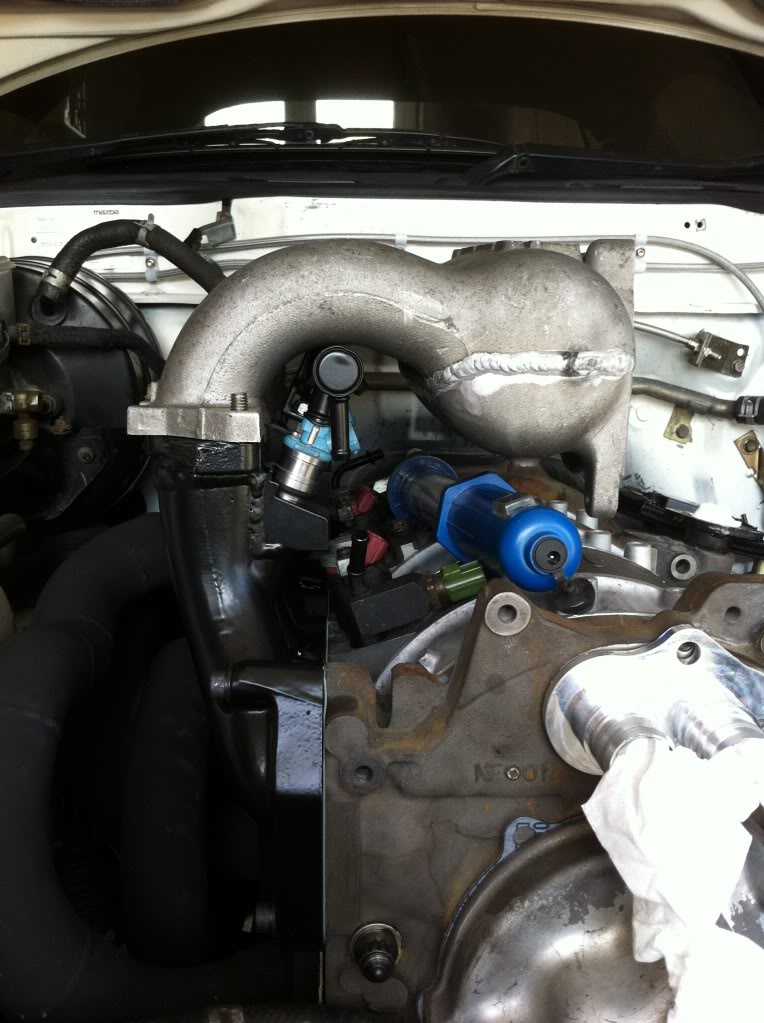

Finished UIM

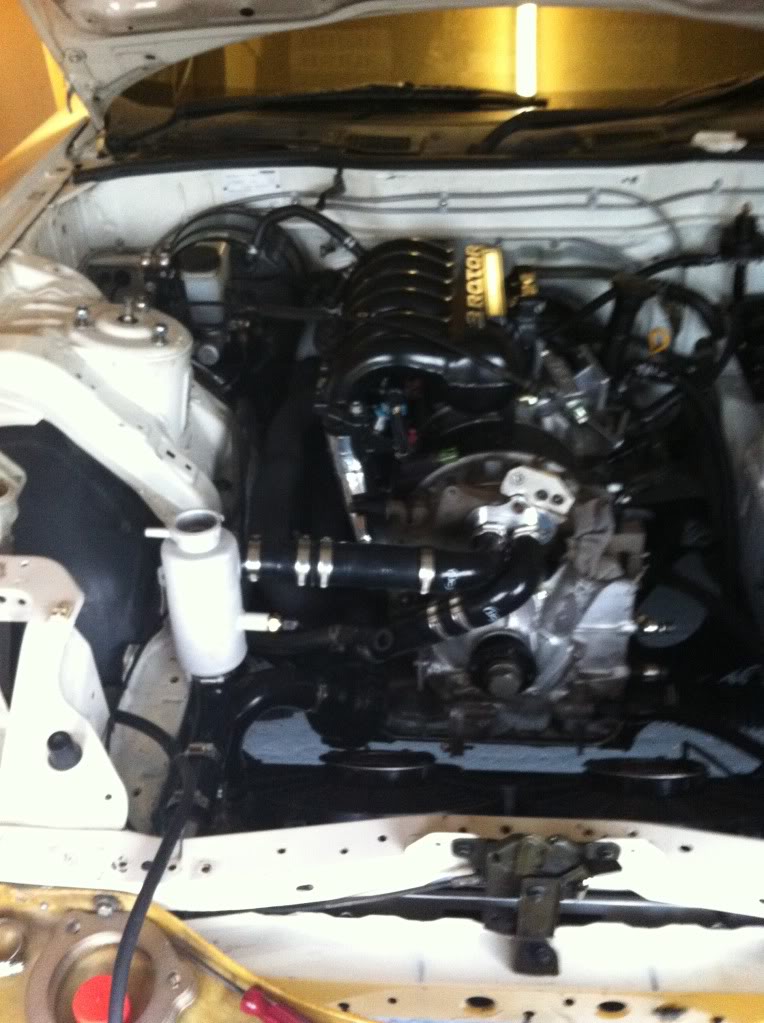

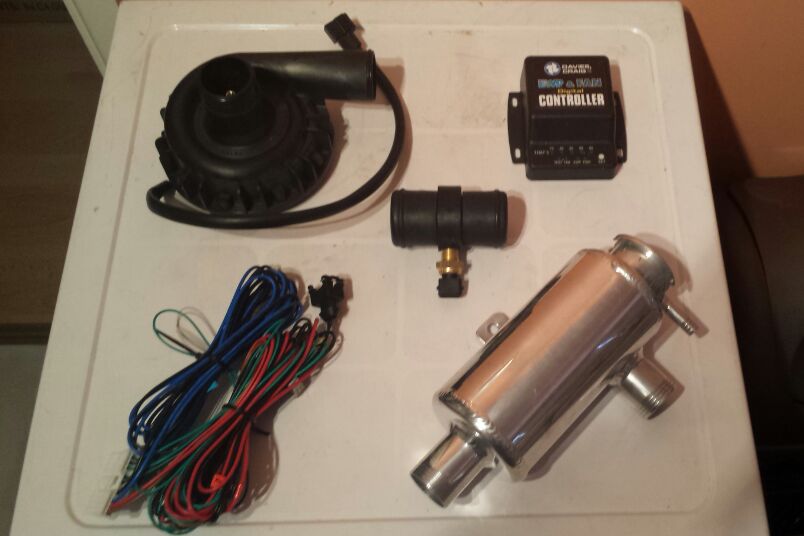

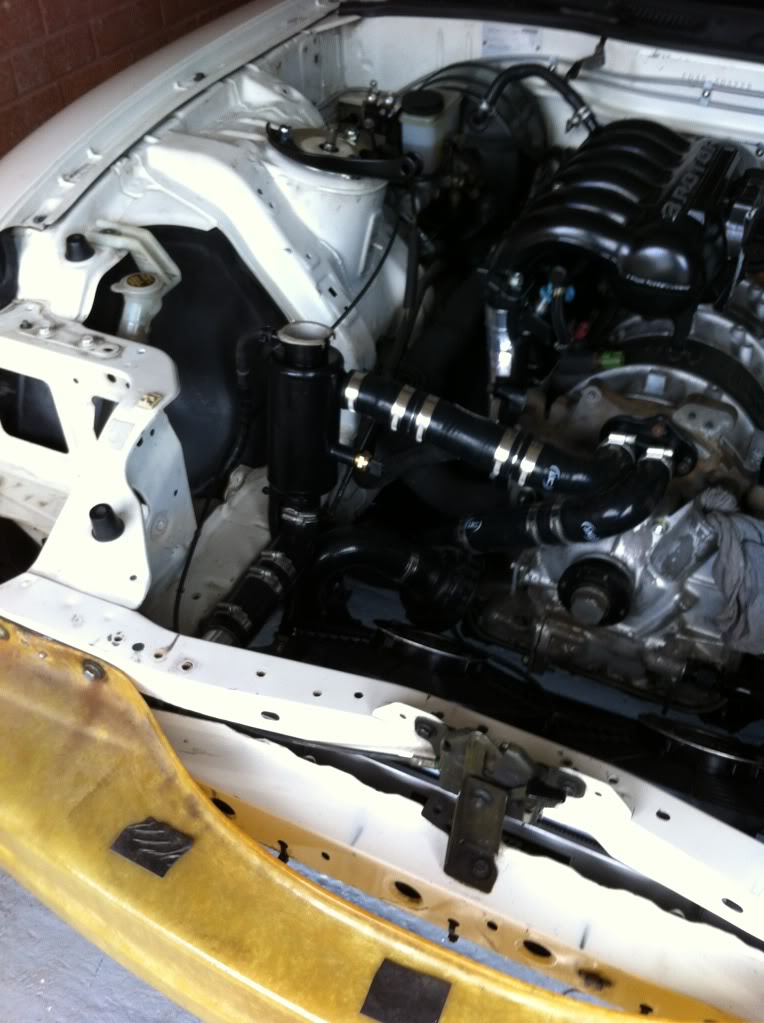

Start of the EWP and hoses



And got material I can sell people that want one too!

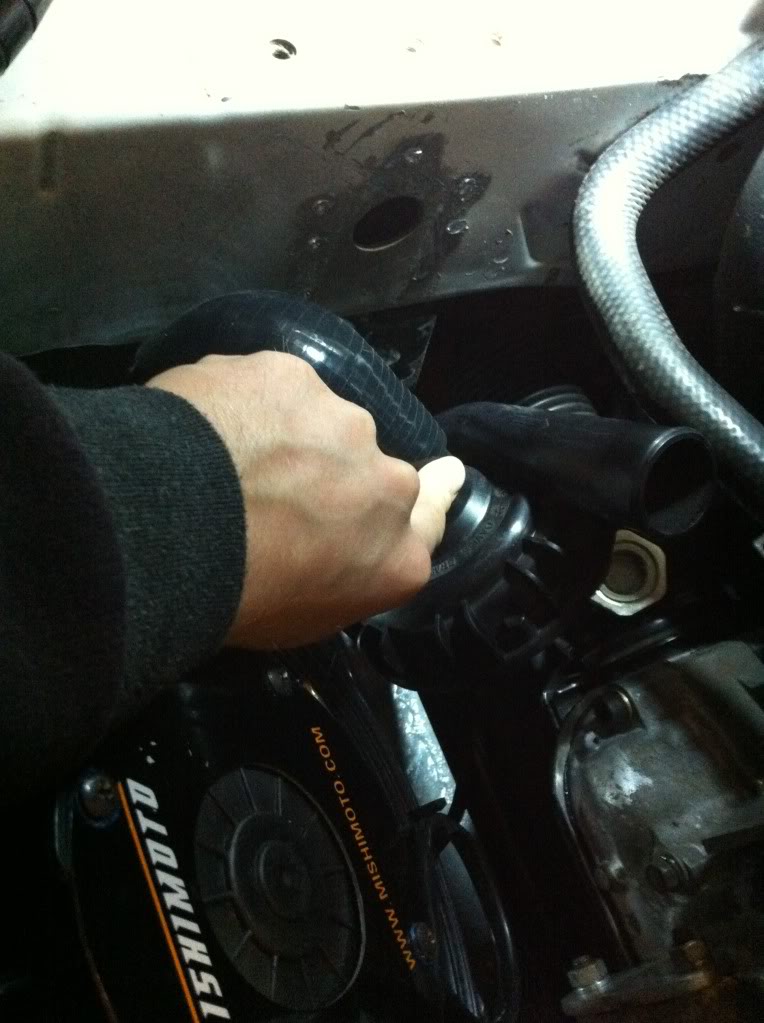

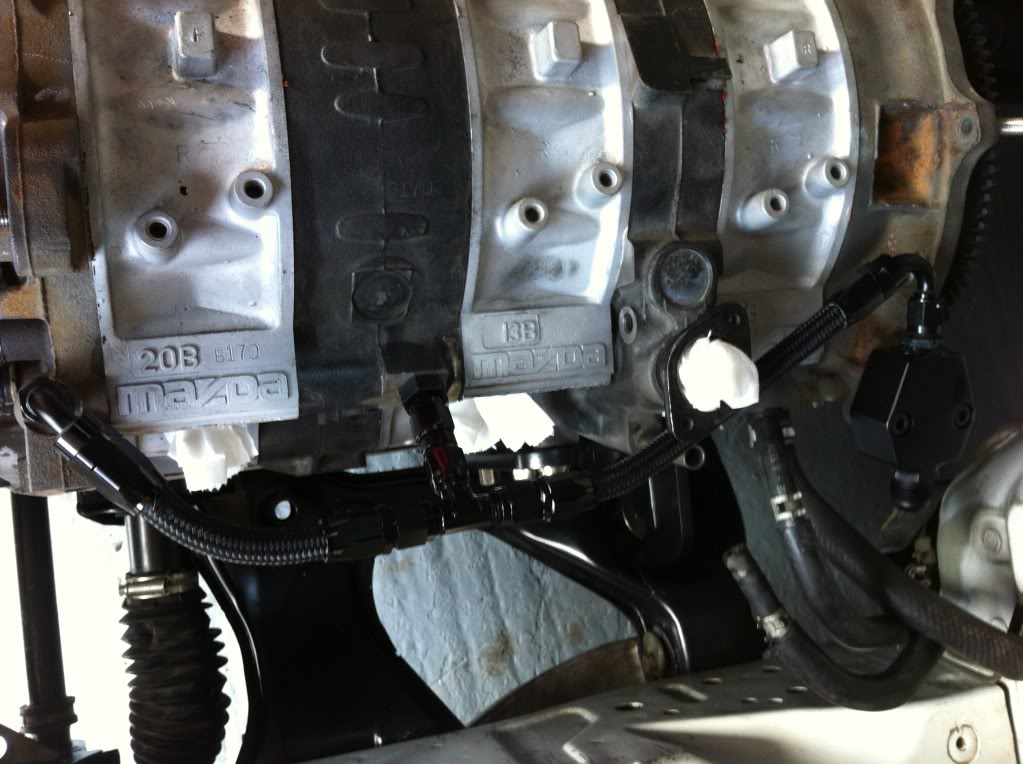

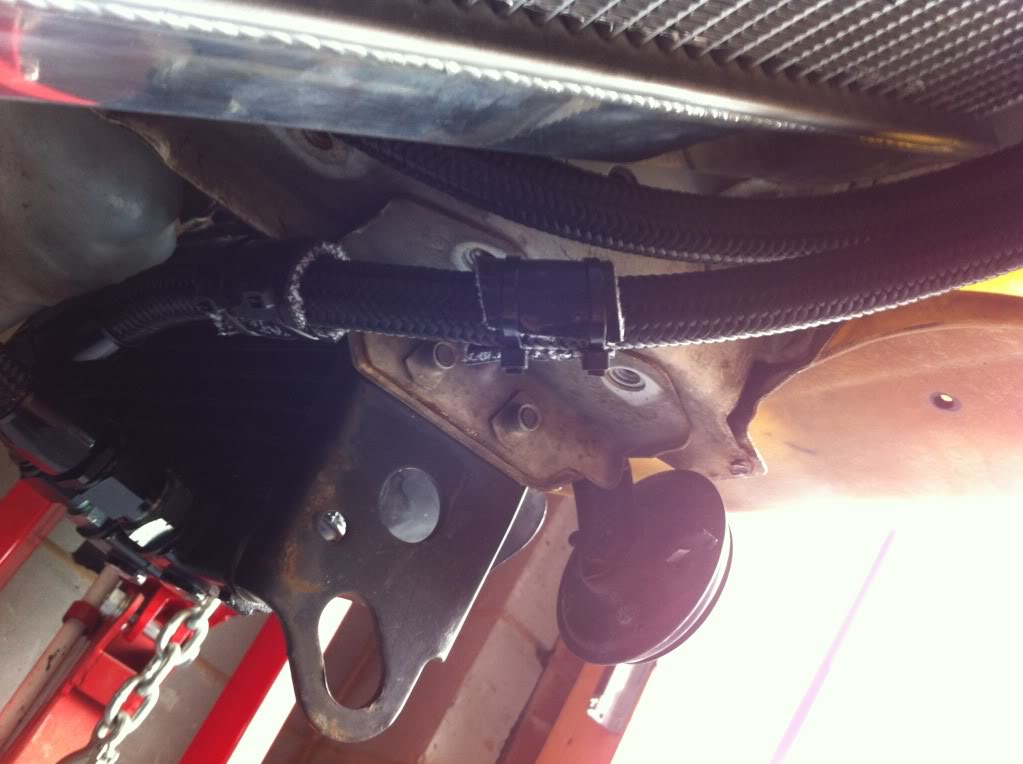

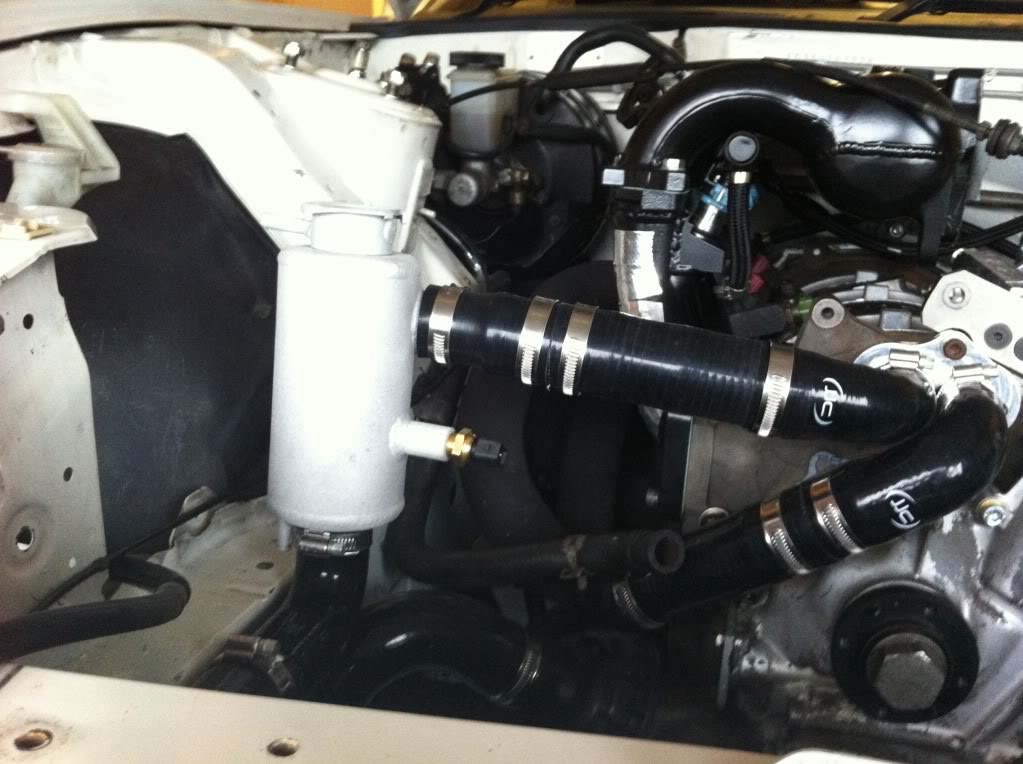

First bit of the water hoses

Pics of said hose ...



The slightly nasty looking bits of coolent hose are there to stop any rubbing on the sharper edges of the shell.
Just got to get a right angle drill now to be able to put the filter relocation kit on the shell and then the oil system is done.

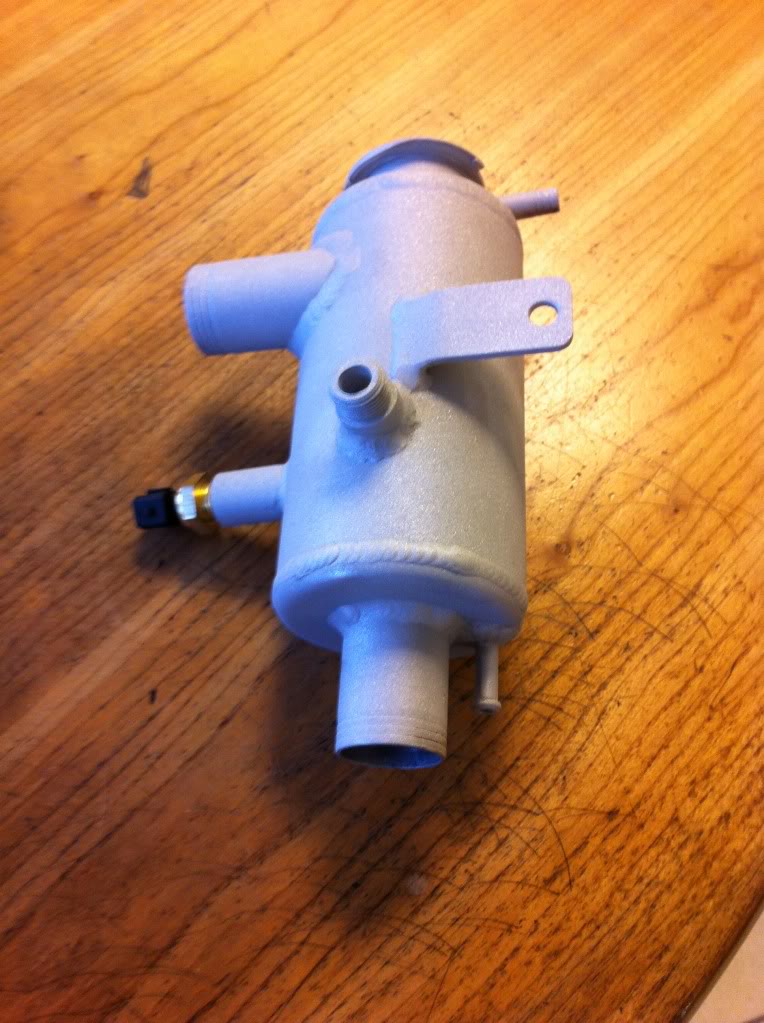

Finished up AST just needs powder coating now.
It's been modded to take the water temp sensor for the EWP and for my temp gauge.
Also had the nipple added for the small hoses at the bottom of the rad.



Very nice manifold



Bit more progress

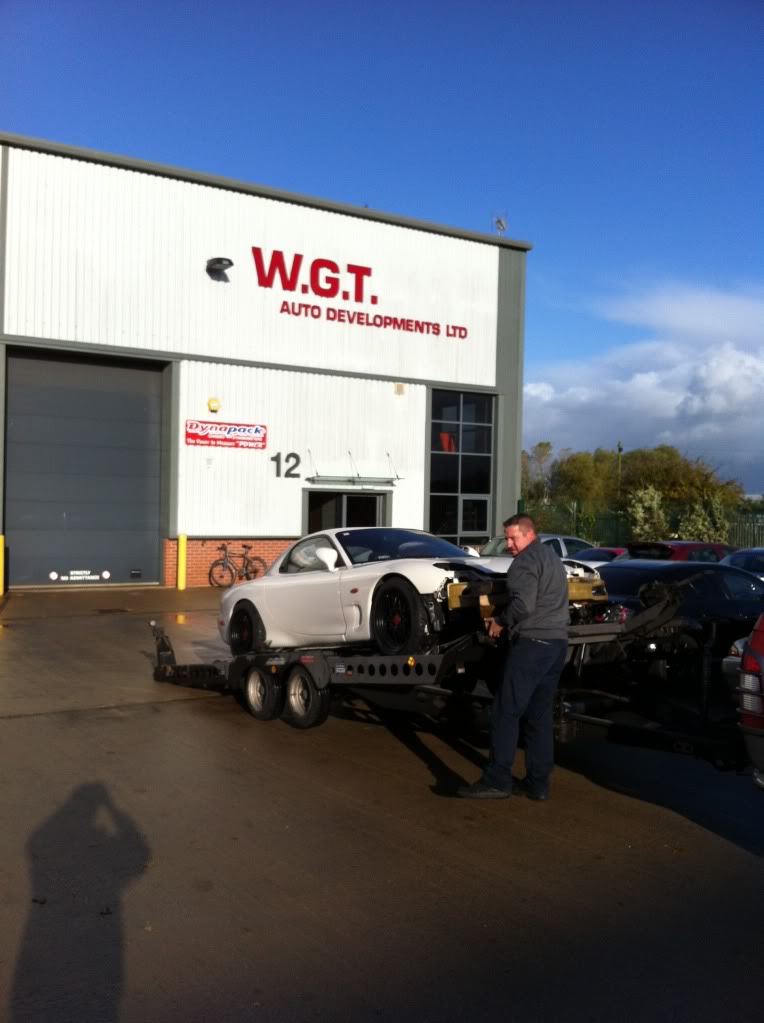

Off to WGT so it can be made to live!



One small progress pic as wirings dull

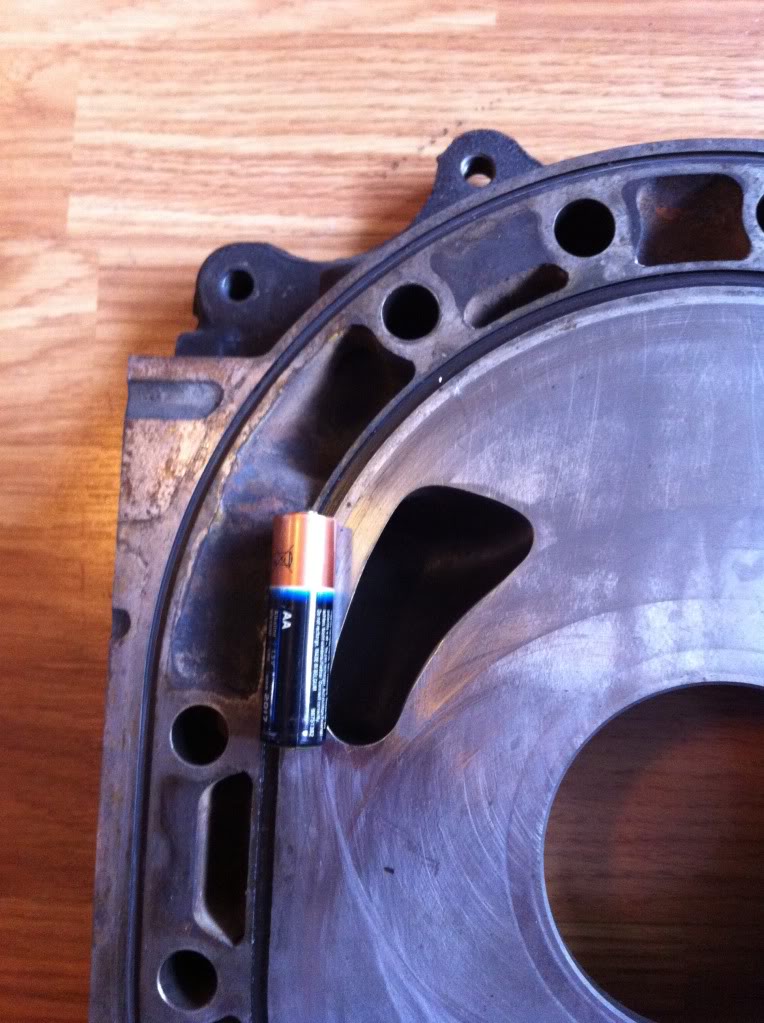

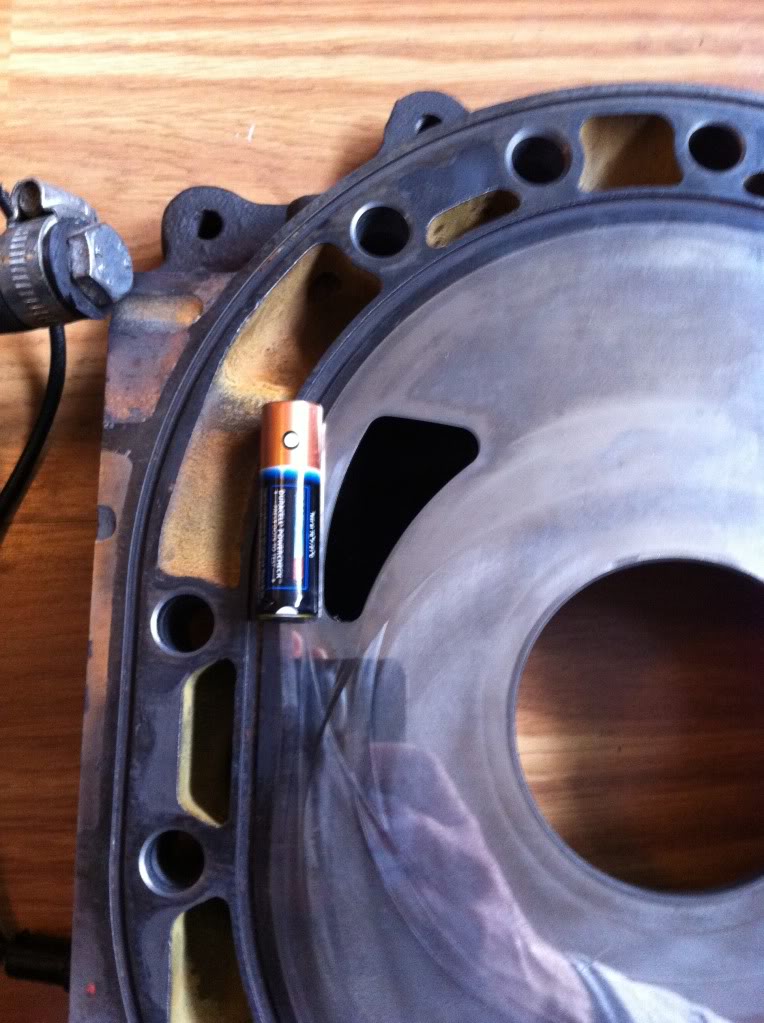

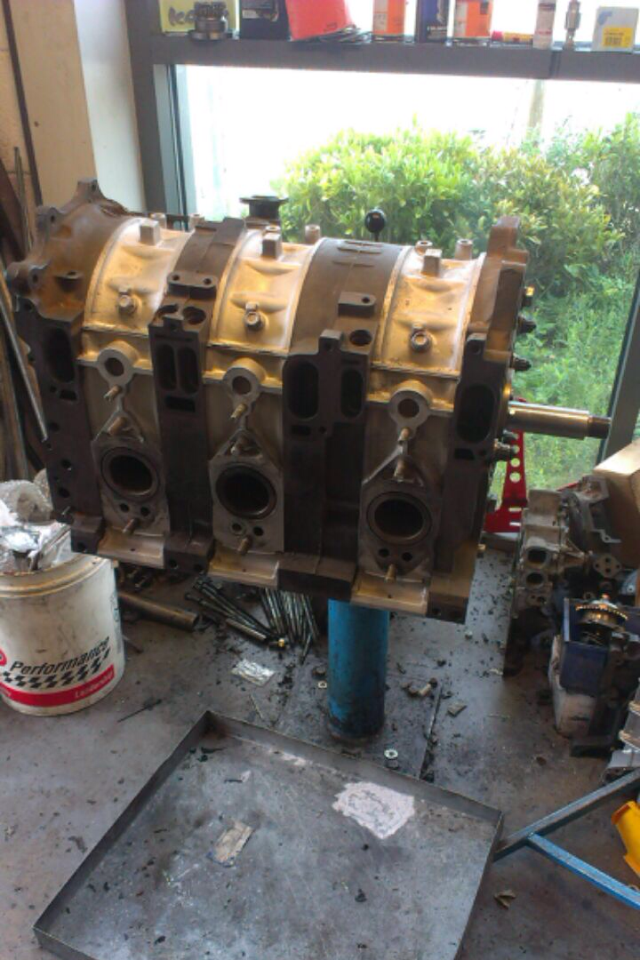

Had to pull the motor due to the cracks in the centre plate below
