OH Pics of my A.I. tank ('s), misc. setup??

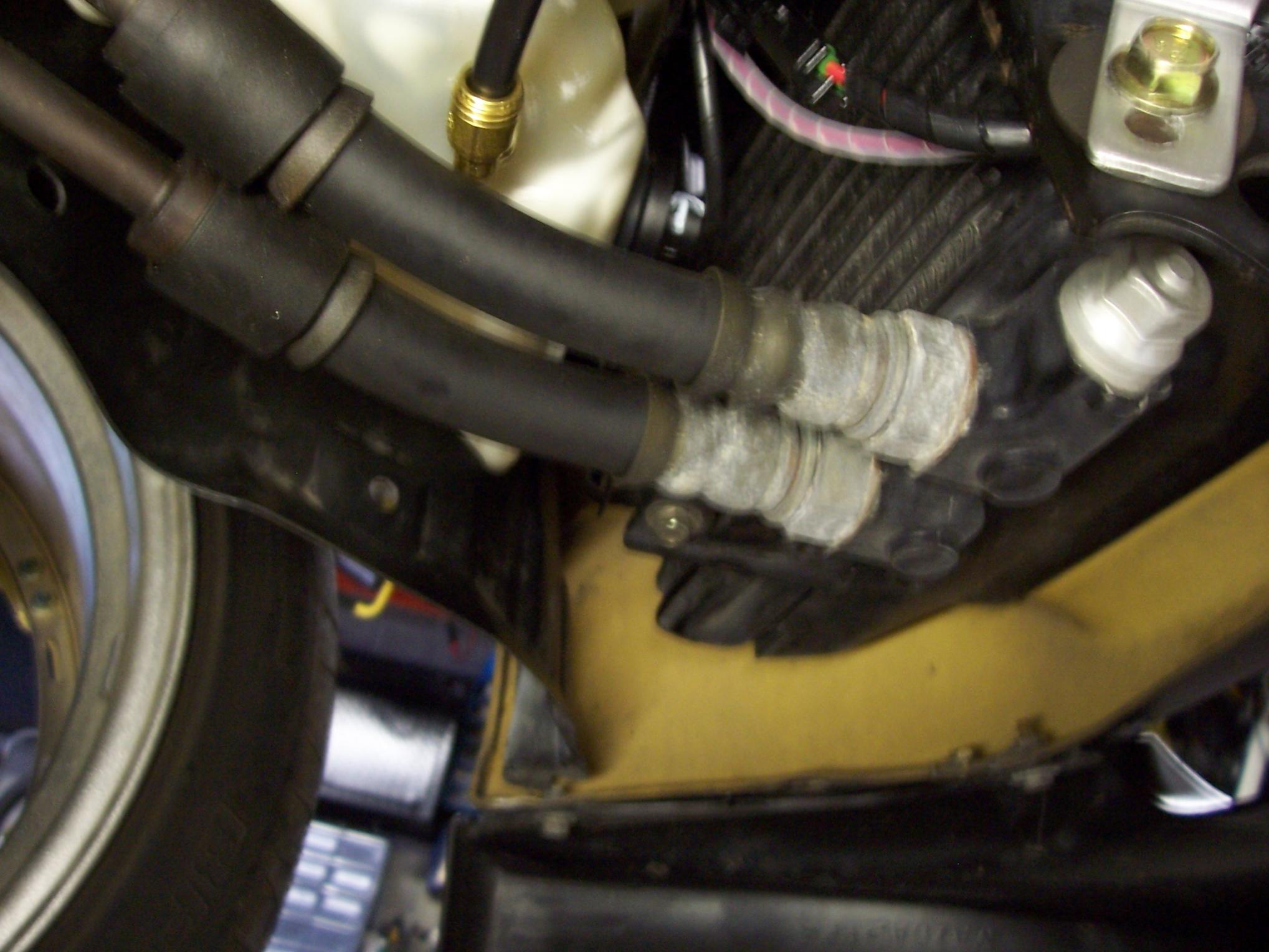

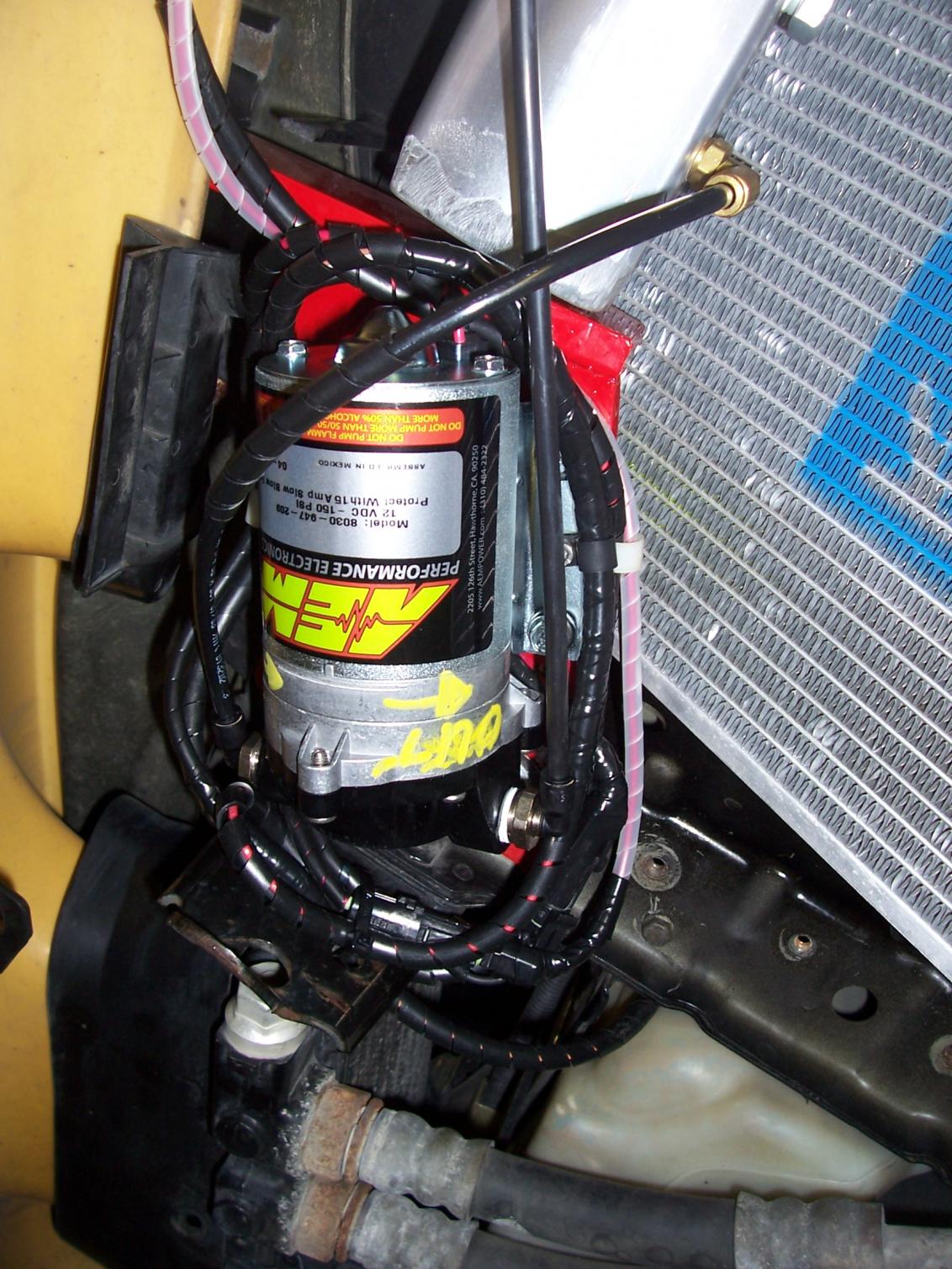

Just thouth I'd post these pictures of A.I. tank's, pump, and controller.
Attached Thumbnails Pics of my A.I. tank ('s), misc. setup??-001.jpg   Pics of my A.I. tank ('s), misc. setup??-003.jpg   Pics of my A.I. tank ('s), misc. setup??-004.jpg   Pics of my A.I. tank ('s), misc. setup??-005.jpg   Pics of my A.I. tank ('s), misc. setup??-007.jpg

KD-93R1 is offline
Reply Like
Old 08-24-10, 06:42 PM
  #2
SideWayZ The Only Way

iTrader: (11)

FD3S2005's Avatar

Join Date: Jun 2005
Location: Davie, Florida
Posts: 4,854
Received 6 Likes on 6 Posts
what the hell is that bar? and just curious if thats a pettit i/c duct, if so how old is it. mine does seem to show that much in the front end and i figured because of that its not getting enough air
FD3S2005 is offline
Reply Like
Old 08-24-10, 07:04 PM
  #3
No more G6

iTrader: (19)

Force13B's Avatar

Join Date: May 2005
Location: Nipomo, California
Posts: 1,935
Likes: 0
Received 1 Like on 1 Post
Alkicontrole kit

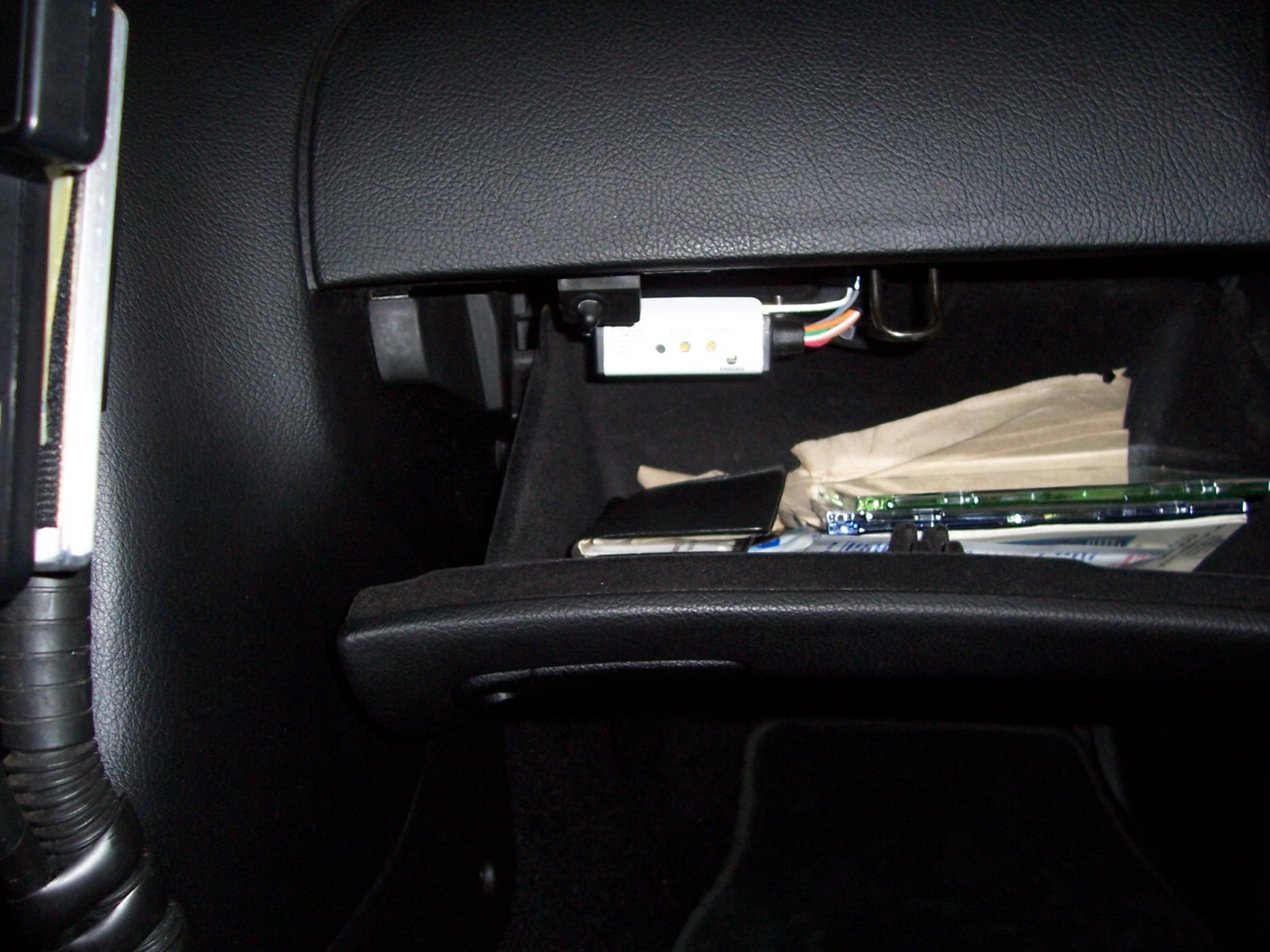

Controller box


Activation light


Low meth light






Force13B is offline
Reply Like
Old 08-25-10, 05:24 PM
  #4
The other one

Thread Starter

KD-93R1's Avatar

Join Date: Aug 2009
Location: Cols., OH
Posts: 263
Received 1 Like on 1 Post
OH Attn. Fd3s2005

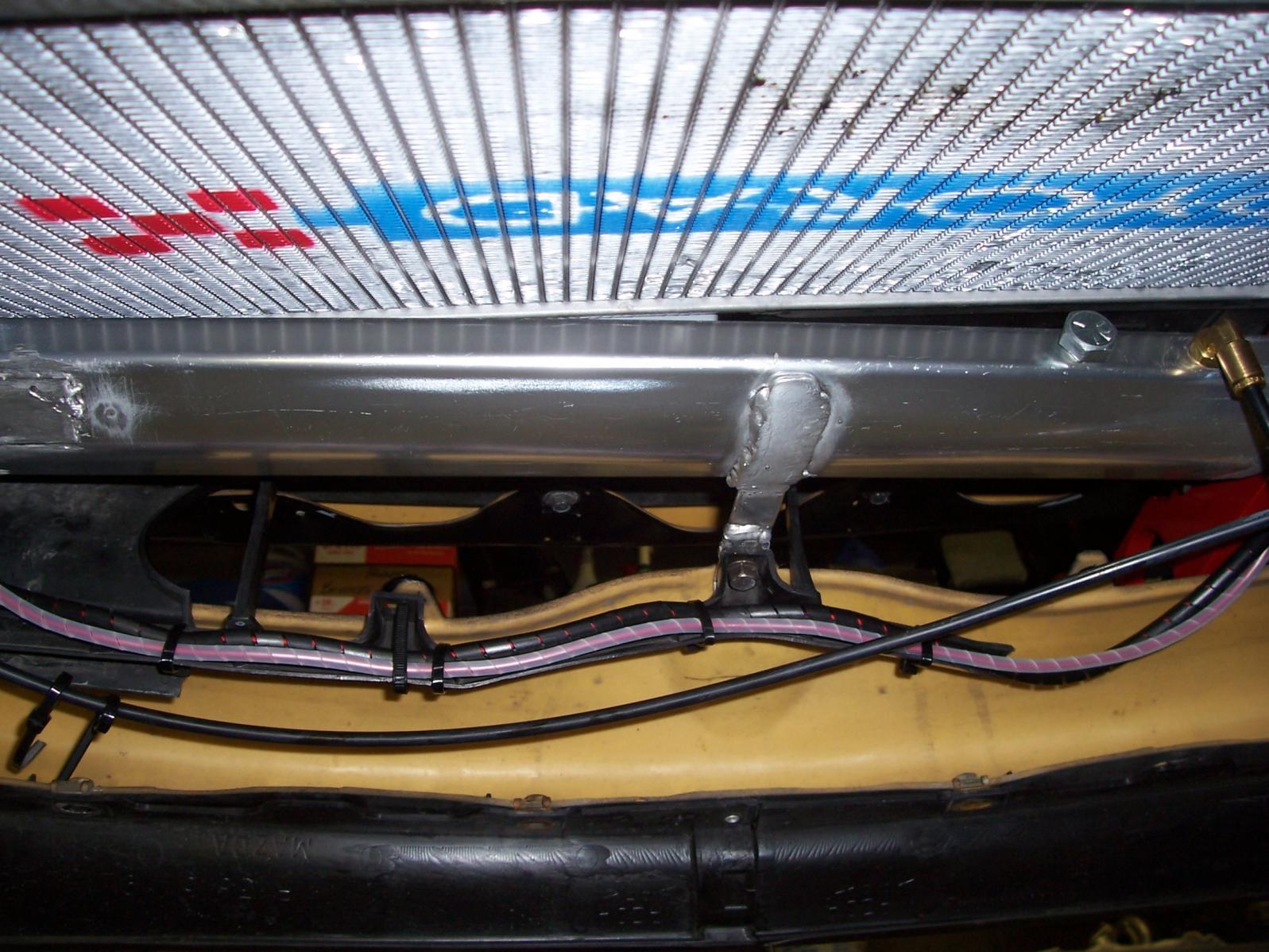

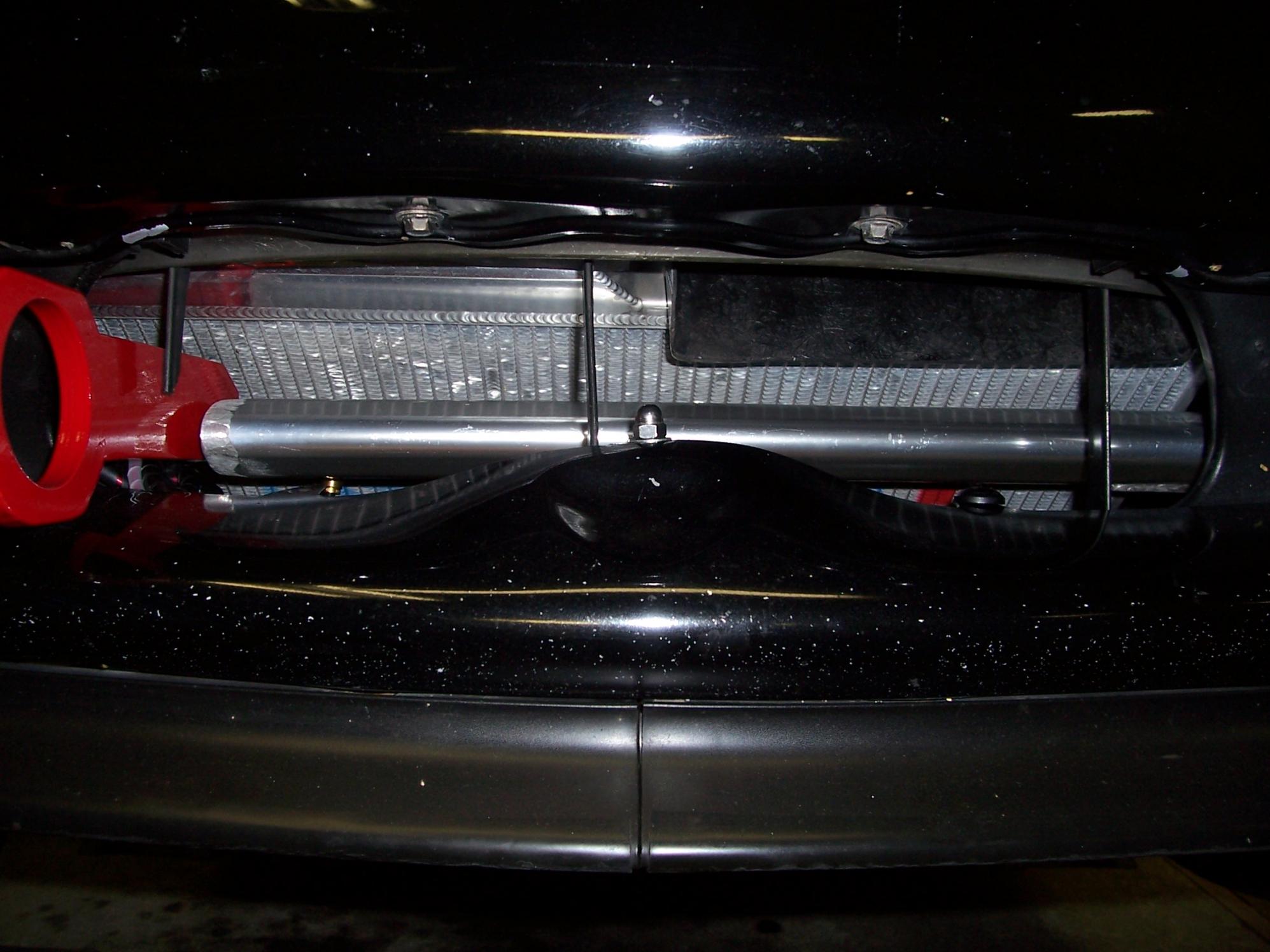

Bar is a pc. of aluminum tube, kinda egg shape, about 3/16" thick. I welded up the ends and added some mounting brackets. It actually just replaces the suction line from the bottom of the washer bottle to the pump. It holds considerably more than the 3/4" plastic airline I was going to use. Got lots of comments on that so far. Basically it allows me to hold more mix.

Intercooler is Pettit Cool Charge II. I dont think they advertise these anymore, but I would be very surprised if they wouldnt make one. I'm sure they have the ducts, and other ducts too I think.
KD-93R1 is offline
Reply Like
Old 08-25-10, 06:00 PM
  #5
No more G6

iTrader: (19)

Force13B's Avatar

Join Date: May 2005
Location: Nipomo, California
Posts: 1,935
Likes: 0
Received 1 Like on 1 Post
Originally Posted by KD-93R1
Bar is a pc. of aluminum tube, kinda egg shape, about 3/16" thick. I welded up the ends and added some mounting brackets. It actually just replaces the suction line from the bottom of the washer bottle to the pump. It holds considerably more than the 3/4" plastic airline I was going to use. Got lots of comments on that so far. Basically it allows me to hold more mix.

Intercooler is Pettit Cool Charge II. I dont think they advertise these anymore, but I would be very surprised if they wouldnt make one. I'm sure they have the ducts, and other ducts too I think.
When i first saw it i thought it was some sort of sprayer to cool down your radiator, like the put on intercoolers with nitros.
