My pre turbo WI

Old 01-07-13, 05:00 AM
  #76
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts

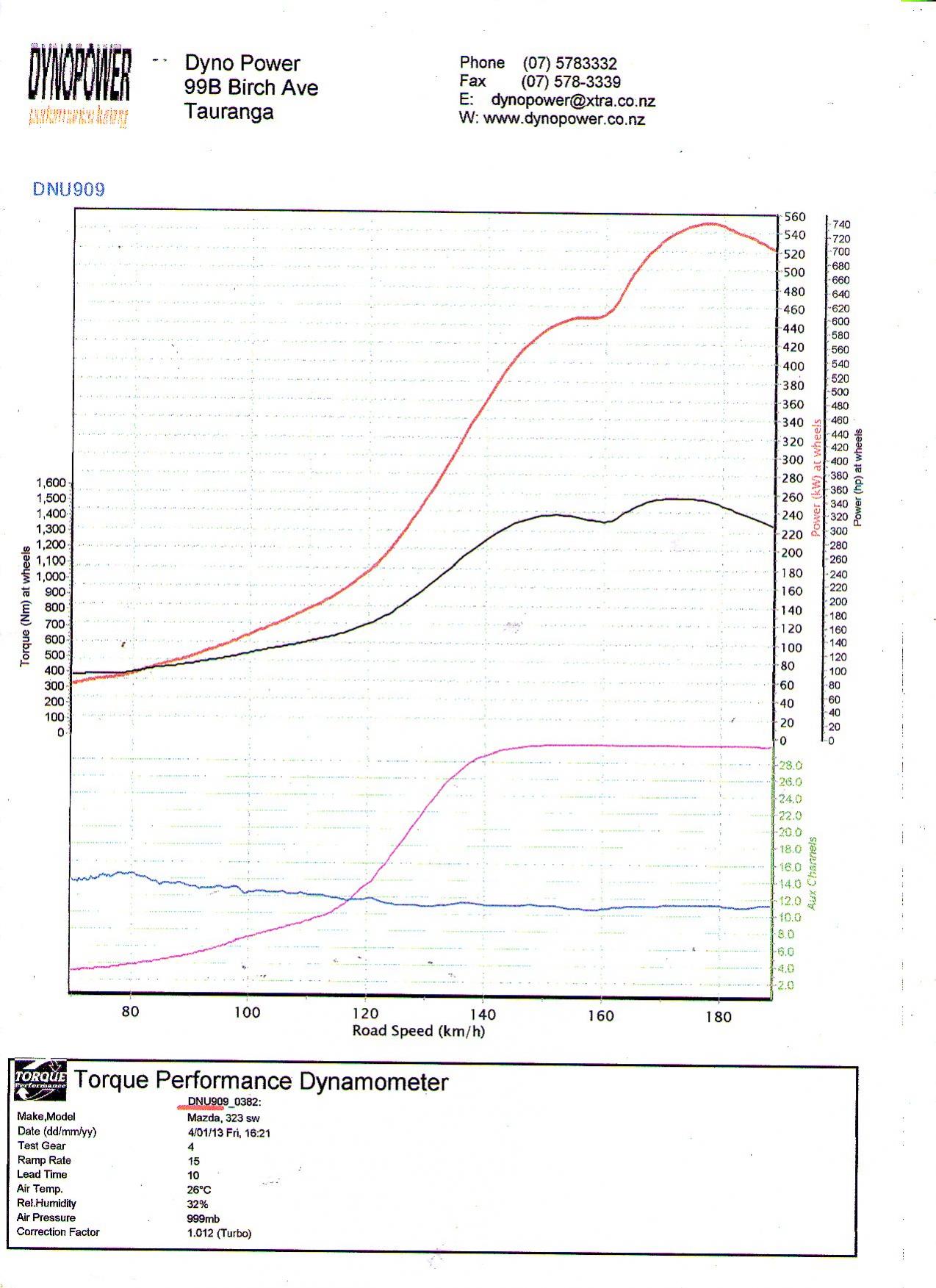

Dyno sheet from Friday
Attached Thumbnails My pre turbo WI-img059.jpg
JZG is offline
Old 01-07-13, 05:26 AM
  #77
Water Injection Specialist
10 Year Member

Erdin's Avatar

Join Date: Apr 2003
Location: UK
Posts: 479
Thanks: 0
Thanked 0 Times in 0 Posts
Looking good, did you say this was at 34psi?
Erdin is offline
Old 01-07-13, 09:08 PM
  #78
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,309
Thanked 34 Times in 23 Posts
can you re-post the sheet so the X line is in RPM rather than Km/h?

howard
Howard Coleman CPR is offline
Old 01-09-13, 01:59 AM
  #79
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
Howard, next time I'm at the dyno I'll see if I can print another sheet with rpm on it. To give you an idea the end of the run above was about 7500rpm from memory, instead of the 9000rpm we we're usually pulling to.
JZG is offline
Old 03-16-13, 06:17 AM
  #80
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
[email protected]
Still street legal in full street trim, full exhaust, all glass, leaf springs, 26x8.5 tire, H pattern, and most importantly 93octane pump gas with water injection.
JZG is offline
Old 03-16-13, 04:54 PM
  #81
Full Member

WLD 07's Avatar

Join Date: Oct 2004
Location: Australia
Posts: 99
Thanked 1 Time in 1 Post
Wow that's insane. Congrats guys
WLD 07 is offline
Old 03-16-13, 11:52 PM
  #82
Enthusiast
iTrader: (5)

rx7 SE's Avatar

Join Date: Aug 2004
Location: Charlotte, NC
Posts: 2,180
Thanks: 0
Thanked 1 Time in 1 Post
Incredible thread. My little 60-1 only made 282 rwhp at 12 psi on the stock TII motor. What's your secret ingredient!
rx7 SE is offline
Old 03-17-13, 04:57 AM
  #83
Rotary Enthusiast
iTrader: (6)

brian_skotch's Avatar

Join Date: Dec 2008
Location: ABQ, NM
Posts: 900
Thanked 7 Times in 3 Posts
So are the power gains from running WI pre turbo rather than right before the throttle body?
brian_skotch is offline
Old 03-19-13, 04:24 PM
  #84
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
There is no secret, just a combination that works. And a lot of dyno time. And remember i was running 29psi (dropping to 25psi) to make 520hp with the 60-1.

Brian I don't know if there is any difference between pre and post turbo WI as I've only tried pre turbo. In theory both achieve the same end result (knock suppression), however it seems pre turbo can extend the compressor map somewhat when trying to get the most out of the turbo at higher boost levels. It also makes the turbo slightly laggier due to the increased mass the blades have to move, but this is more than offset by the compressor map extension and the simplicity of pre turbo vs post turbo.
JZG is offline
Old 06-16-13, 01:32 PM
  #85
Senior Member

Join Date: Oct 2007
Location: N.J
Posts: 358
Thanks: 0
Thanked 0 Times in 0 Posts
Lol... This thing at TX2k14!?!?
rotormind is offline
Old 08-19-13, 11:16 PM
  #86
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Thanks: 0
Thanked 0 Times in 0 Posts
JZG, is this the New Zealand Wagon run with the conjunction of Green Brothers?
orange is offline
Old 08-20-13, 06:26 AM
  #87
Rotary Enthusiast

Havoc's Avatar

Join Date: Aug 2004
Location: Australia - Perth
Posts: 1,316
Thanked 7 Times in 6 Posts
yes
Havoc is offline
Old 03-04-14, 03:53 AM
  #88
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
Time for an update.

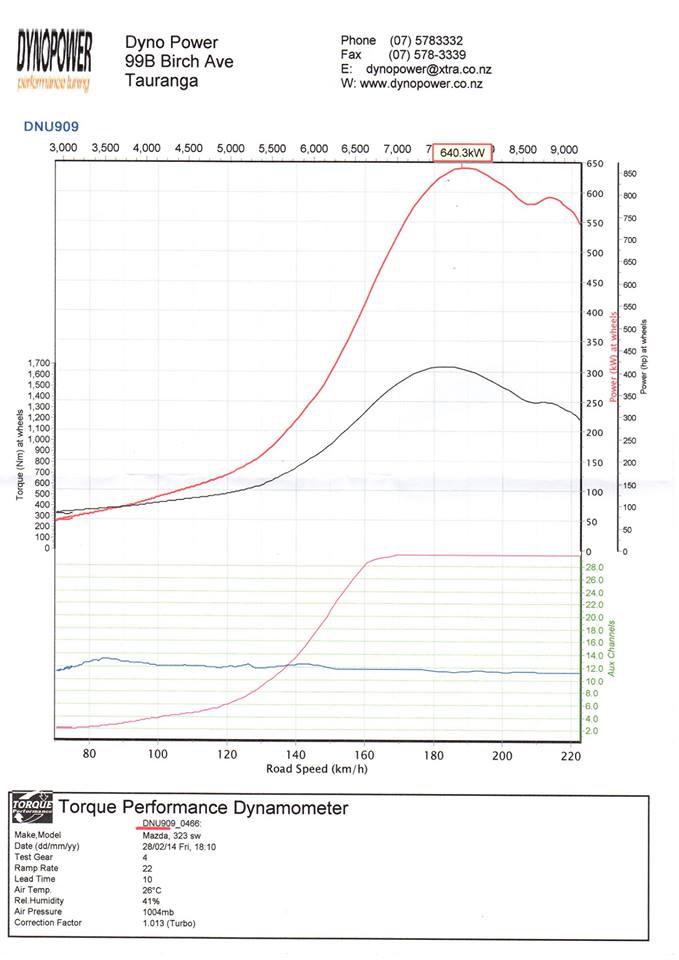

With an 80mm BW turbo fitted power jumped up some. Dyno plot is at 40psi.
The car has now trapped 161mph but only run slightly quicker in ET. It seems what it's gained in hp it's lost in 1/2 track performance, probably because it on 26x8.5's with leaf springs. With heavier wastegate springs I think the engine will take 45psi no problem.

Pre turbo water injection is working better than I could have ever hoped for!

BTW power drops away after peak torque because the tires start slipping on the roller at that point. In reality power doesn't start to drop until 9000rpm or so.
Attached Thumbnails My pre turbo WI-1619355_499982220110567_1274133331_n.jpg

Last edited by JZG; 03-04-14 at 03:57 AM.
JZG is offline
Old 03-04-14, 10:40 AM
  #89
Rotary Enthusiast

sleeper7's Avatar

Join Date: Aug 2006
Location: San Antonio TX/Okinawa Japan
Posts: 1,214
Thanks: 0
Thanked 10 Times in 10 Posts
Thanks for posting all the good information.

Are you still on 4 stock turboII trailing coils?

Ever thought about removing the intercooler and increase the amount of water?
sleeper7 is offline
Old 03-06-14, 06:53 PM
  #90
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
We switched to IGN coils a while back, and are now testing an ICE ignition.

I haven't considered removing the intercooler. Water injection amount is already high, and in my experience it doesn't really cool the intake charge much at all, even with a 50/50 mix of water and methanol. Removing the intercooler would save 35lbs though!
JZG is offline
Old 03-08-14, 01:46 PM
  #91
Rotary Enthusiast

sleeper7's Avatar

Join Date: Aug 2006
Location: San Antonio TX/Okinawa Japan
Posts: 1,214
Thanks: 0
Thanked 10 Times in 10 Posts
Mentioned the no intercooler thing since you mentioned running e85. Posted some info in the Auxiliary fuel section.

My DYI water system was not up to the task on a full out pass.
sleeper7 is offline
Old 03-08-14, 07:50 PM
  #92
B O R I C U A
iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,349
Thanked 5 Times in 5 Posts
Originally Posted by JZG View Post
We switched to IGN coils a while back, and are now testing an ICE ignition.

I haven't considered removing the intercooler. Water injection amount is already high, and in my experience it doesn't really cool the intake charge much at all, even with a 50/50 mix of water and methanol. Removing the intercooler would save 35lbs though!
Where the IGN coils a considerable improvement over the FC coils? I've been inspired by sleeper7, and plan on running FC coils on a direct fire setup.
KNONFS is offline
Old 03-13-14, 06:31 AM
  #93
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
Originally Posted by sleeper7 View Post
Mentioned the no intercooler thing since you mentioned running e85. Posted some info in the Auxiliary fuel section.

My DYI water system was not up to the task on a full out pass.

Sorry, forgot to mention I'm still running pump petrol. I never got around to trying E85 in the end.
JZG is offline
Old 03-13-14, 06:36 AM
  #94
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
Originally Posted by KNONFS View Post
Where the IGN coils a considerable improvement over the FC coils? I've been inspired by sleeper7, and plan on running FC coils on a direct fire setup.
Yes the IGN coils seemed to be better, all things being equal. Hard to say how much of an improvement though because I went around in circles with different spark plugs as hp increased and ignition requirements changed.
JZG is offline
Old 03-26-14, 07:19 AM
  #95
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 623
Thanks: 0
Thanked 0 Times in 0 Posts
ever considered trying 50/50 w/m mix instead of 100% water? wonder what it would bring, you might have to slightly lean out the tune to start at the same afr, but the methanol contains quite some oxygen which brings power at equal charge desnity ratio =)
Rub20B is offline
Old 03-26-14, 02:31 PM
  #96
Rotary Enthusiast
10 Year Member
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Thanks: 0
Thanked 1 Time in 1 Post
Thing is you have have to inject alot more of the total fluid to keep the knock down cause water alone does a much better job to keep the knock down compared to the same volume of 50/50, as I found out.
tom94RX-7 is offline
Old 03-26-14, 04:20 PM
  #97
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 623
Thanks: 0
Thanked 0 Times in 0 Posts
I see. but from the other side methanol ads oxidizer which makes power.. how do you measure knock, or do you listen with a stethoscope?
Rub20B is offline
Old 03-27-14, 01:40 AM
  #98
Arrogant Wankeler

Slides's Avatar

Join Date: Nov 2006
Location: Newcastle NSW Australia
Posts: 372
Thanked 14 Times in 14 Posts
Originally Posted by Rub20B View Post
I see. but from the other side methanol ads oxidizer which makes power.. how do you measure knock, or do you listen with a stethoscope?
I don't know how many times this has been covered, but here we go again.

Methanol or any alcohol is not an oxidiser. Consider it more as a fuel which has already been partially burned (or oxidised). It is the additional cool liquid mass of required fuel to match intake air mass which gives a power benefit over pump fuel, basically it is just additional evaporative cooling which increases air mass intake by ~10% nothing more, the extra oxygen is basically a passenger, not a reactant (it has aleady been "reduced" to a lower energy state). Cools intake charge, slower flame progression, cooler peak combustion temps.

Think of methanol more as pump fuel with the water injection already mixed in.

If he had reached the choke flow limit of the compressor it may give them a few % more mass air flow from charge cooling before the compressor if they put a big shot of meth in front of the turbo, but for a marginal gain it probably isn't worth it when you are dealing with turbos that big and no class restriction. If you wanted to get the most of that effect you would be better off using acetone as it has greater partial pressure for the same temperature anyway, or mix acetone/meth/ethanol for maximum effect.
Slides is offline
Old 03-27-14, 02:59 AM
  #99
No useless mods....
iTrader: (7)

Speed of light's Avatar

Join Date: Oct 2004
Location: San Diego
Posts: 1,182
Thanked 9 Times in 6 Posts
Originally Posted by tom94RX-7 View Post
Thing is you have have to inject alot more of the total fluid to keep the knock down cause water alone does a much better job to keep the knock down compared to the same volume of 50/50, as I found out.
This observation seems contrary to what was presented in the often cited NACA studies, but an interesting observation nonetheless. Others, including myself, however, have noticed similar WI behavior to what you describe.


Originally Posted by Slides View Post
....Methanol or any alcohol is not an oxidiser. Consider it more as a fuel which has already been partially burned (or oxidised). It is the additional cool liquid mass of required fuel to match intake air mass which gives a power benefit over pump fuel, basically it is just additional evaporative cooling which increases air mass intake by ~10% nothing more, the extra oxygen is basically a passenger, not a reactant (it has aleady been "reduced" to a lower energy state). Cools intake charge, slower flame progression, cooler peak combustion temps. ....

^^^Correct. I think there is considerable confusion regarding alcohol's reactions, possibly because of its classification as an Oxygenate when mixed with other fuels. That characterization is somewhat misleading because it doesn't release a bunch of free oxygen that is available for combustion. You'll need Nitro methane for that.
Speed of light is offline
Old 03-28-14, 08:41 AM
  #100
Arrogant Wankeler

Slides's Avatar

Join Date: Nov 2006
Location: Newcastle NSW Australia
Posts: 372
Thanked 14 Times in 14 Posts
JZG

If you want to leave the line on 15psi and run more in each gear, rather than fit a stiffer gate spring, why not use a 4 port boost solenoid and run boost per gear? I'm sure with the diaphragm area+spring force against even a rising EMP that you would have no worries pushing to 60psi boost on a 15psi spring with a 4 port solenoid which can pressurise the top chamber of the gate to hold it shut.
Slides is offline
