My pre turbo WI

Old 02-23-12, 09:05 PM
  #51
F-IT
10 Year Member
iTrader: (5)

rxspeed7's Avatar

Join Date: Jun 2006
Location: ocala,fl
Posts: 995
Thanks: 0
Thanked 0 Times in 0 Posts
need to put this thread on rcc too richard!!! congrats on what you have gotten soo far! pre-turbo A/I is the way to go!
rxspeed7 is offline
Old 02-23-12, 10:43 PM
  #52
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Thanks: 0
Thanked 0 Times in 0 Posts
Geezzz. cannot wait for update. You need to get vids
just startn is offline
Old 02-27-12, 05:13 AM
  #53
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts

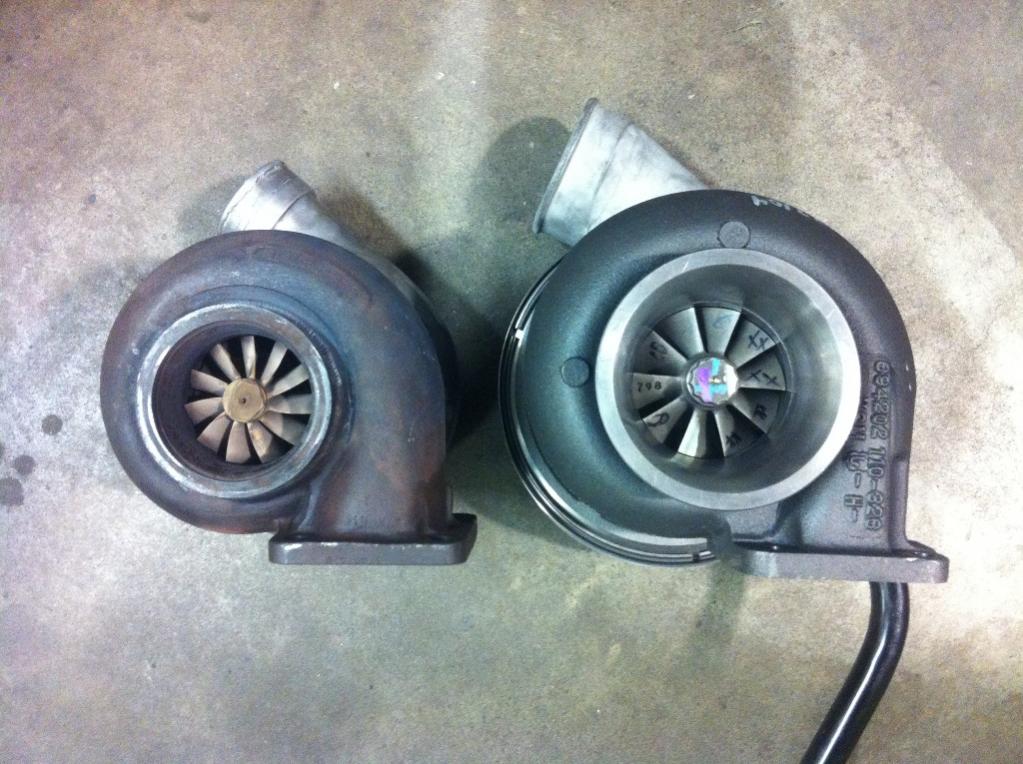

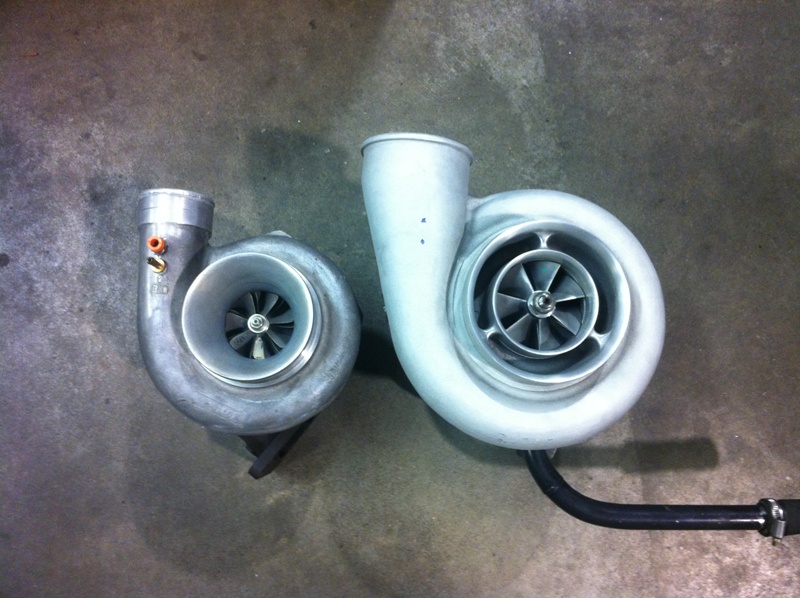

Nothing to report yet, just in the process of changing the turbo.
Attached Thumbnails My pre turbo WI-picture-015.jpg   My pre turbo WI-picture-016.jpg
JZG is offline
Old 03-07-12, 06:05 AM
  #54
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
After replacing the rear rotor with a non-dented one (again, pulled only the back off the engine), I dynoed with the BW turbo. 560 rwhp on 26psi. This time water flow is not restricted, nozzle is at full flow. From past experience less water made more hp, so I suppose it's a really conservative tune now. The engine sounds 10x better with a non-dented rotor haha and seems to be happy at that power level. Maybe 20+ dyno pulls at 560hp.

I was about to up the boost some more but the water tank split and caused the engine to knock at peak torque! The compression reading has not changed so hopefully the engine is still good. Time will tell.

BTW full boost is reached at 5500rpm. Not bad I thought for a basically stock port engine running pump gas and a full exhaust. Plus I now know that pre turbo WI makes the turbo spool slower. I don't think it will be a problem however, rpm does not drop below 6200rpm between gears.
JZG is offline
Old 03-07-12, 11:07 AM
  #55
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Thanks: 0
Thanked 0 Times in 0 Posts
What BW are you on?
just startn is offline
Old 03-07-12, 11:33 AM
  #56
Senior Member
5 Year Member
iTrader: (7)

indio84's Avatar

Join Date: Jun 2007
Location: aruba
Posts: 651
Thanks: 0
Thanked 0 Times in 0 Posts
S475 i think he wrote in another post. very good power .could you post the dyno graph from the old turbo comparing it to the new s475 turbo. i would like to see how the bw spools.
indio84 is offline
Old 03-07-12, 11:48 AM
  #57
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by indio84 View Post
S475 i think he wrote in another post. very good power .could you post the dyno graph from the old turbo comparing it to the new s475 turbo. i would like to see how the bw spools.
I searched for a sec but might have missed it. Graphs would be nice to see.
just startn is offline
Old 03-07-12, 12:19 PM
  #58
I Like Guns
10 Year Member
iTrader: (5)

jhammerrx7's Avatar

Join Date: Mar 2002
Location: Bismarck, ND
Posts: 512
Thanks: 0
Thanked 0 Times in 0 Posts
SD

[QUOTE=JZG;11007910]I was about to up the boost some more but the water tank split and caused the engine to knock at peak torque! The compression reading has not changed so hopefully the engine is still good. Time will tell.QUOTE]

Thanks for the info on this thread.
Did you try testing your tank before you installed it? Wondering at what PSI it split.
I had my 4-qt tank from Devils Own up to 25psi testing and it held fine.

Awesome numbers on the dyno.

*Edit* Sorry, forgot that you were running a metal tank. Not a plastic one.
jhammerrx7 is offline
Old 03-09-12, 04:40 AM
  #59
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
Went back on the dyno quickly after repairing the WI tank and the engine is still good at the same power level. With some larger injectors I'm confident it'll go over 600rwhp easily, the engine is exceptionally quiet at this point.

Yes BW 475 turbo

And yes alloy WI tank which I tested to 40psi when I made it. It split down the center of a weld, probably from the constant expansion/contraction. I'll make a thicker one later. Current boost level is 26psi.

I'll scan a dyno plot with a comparison to the 60-1 turbo when I get a moment.


BTW the turbo is spitting some water back out the intake at high rpm which makes me wonder if it's getting close to surge. Any ideas?

Last edited by JZG; 03-09-12 at 04:44 AM.
JZG is offline
Old 03-09-12, 10:31 AM
  #60
Senior Member
5 Year Member
iTrader: (7)

indio84's Avatar

Join Date: Jun 2007
Location: aruba
Posts: 651
Thanks: 0
Thanked 0 Times in 0 Posts
surge maybe , maybe also to much water.
indio84 is offline
Old 03-11-12, 04:28 PM
  #61
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
9.43 A 145mph. Humidity was unusually high and air pressure very low, so the turbo wouldn't make full boost (it seems the wastegate spring must have been maxed at 26psi on the dyno). 24psi was all it would manage + I had taken ignition timing out just to be safe. The track surface was average which meant the half track times suffered.
Considering the conditions I'm happy with the times.
JZG is offline
Old 03-11-12, 10:43 PM
  #62
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Thanks: 0
Thanked 0 Times in 0 Posts
jeeeeeezzzzussssss fuuuukkkkkkknnnnnn shhhhhttttt that thing is hauling! Any pics?
just startn is offline
Old 03-13-12, 04:36 PM
  #63
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
JZG is offline
Old 03-13-12, 04:52 PM
  #64
Water Injection Specialist
10 Year Member

Erdin's Avatar

Join Date: Apr 2003
Location: UK
Posts: 479
Thanks: 0
Thanked 0 Times in 0 Posts
Grat vid, look good
Erdin is offline
Old 03-13-12, 05:26 PM
  #65
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Thanks: 0
Thanked 0 Times in 0 Posts
Wow...that thing is smooth, straight, fast. Love it!
just startn is offline
Old 03-17-12, 05:10 AM
  #66
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
9.11 @ 149.9mph.

Also put it over the scales at the track out of curiosity and it weighs 2309lb.
Really close to that 8 sec pass now but it may have to be done with no exhaust as I think it is becoming a restriction now. Or maybe we could pull the seats etc out.
JZG is offline
Old 03-17-12, 10:13 AM
  #67
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Thanks: 0
Thanked 0 Times in 0 Posts
This thread dosnt get nearly enough attention.. So close to a 8sec pass. Props man.
just startn is offline
Old 04-21-12, 08:07 PM
  #68
Rotary Revolutionary
10 Year Member
iTrader: (16)

sharingan 19's Avatar

Join Date: May 2006
Location: Jacksonville, Tampa & Tallahassee
Posts: 3,881
Thanks: 0
Thanked 0 Times in 0 Posts
This thing is a beast! I'm still amazed at what you were able to accomplish with a 60-1 on stock ports
sharingan 19 is offline
Old 04-22-12, 07:36 AM
  #69
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
Well the final meeting of the season was a bit of a disaster. The track was not good all day and after several oil downs and timing gear problems we only got 2 runs in. The first was a 9.3 at 143 backing off due to wheel spin in the top end, and the 2nd 9.07 at 151 point something mph! So close to that 8 sec pass yet so far!
Nevermind, I think I'll build a half decent engine over the off season and the plan is to switch to E85 now and give that a go as I'm curious to learn about it. Maybe I'll start a thread about it.

All in all I'm real happy with the WI and pump gas. It's cheap, simple, reliable, and easy to set up. There is no compressor blade erosion at all with the Borg Warner either. In the end I got up to 590hp at the wheels but it must have a restriction somewhere as any extra boost over 28psi made no more hp at all. It still made exactly the same hp at 33psi! I'm wondering if it might be the limit of pump gas with near stock porting.

Anyway, onwards and upwards with E85 now...
JZG is offline
Old 04-22-12, 03:01 PM
  #70
Water Injection Specialist
10 Year Member

Erdin's Avatar

Join Date: Apr 2003
Location: UK
Posts: 479
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by JZG View Post
Well the final meeting of the season was a bit of a disaster. The track was not good all day and after several oil downs and timing gear problems we only got 2 runs in. The first was a 9.3 at 143 backing off due to wheel spin in the top end, and the 2nd 9.07 at 151 point something mph! So close to that 8 sec pass yet so far!
Nevermind, I think I'll build a half decent engine over the off season and the plan is to switch to E85 now and give that a go as I'm curious to learn about it. Maybe I'll start a thread about it.

All in all I'm real happy with the WI and pump gas. It's cheap, simple, reliable, and easy to set up. There is no compressor blade erosion at all with the Borg Warner either. In the end I got up to 590hp at the wheels but it must have a restriction somewhere as any extra boost over 28psi made no more hp at all. It still made exactly the same hp at 33psi! I'm wondering if it might be the limit of pump gas with near stock porting.

Anyway, onwards and upwards with E85 now...
Hi, I know you side your using the sua25 air atomising nozzle but would you know what part number you used for the fluid cap and air cap?
Erdin is offline
Old 04-23-12, 03:48 AM
  #71
Rotary Revolutionary
10 Year Member
iTrader: (16)

sharingan 19's Avatar

Join Date: May 2006
Location: Jacksonville, Tampa & Tallahassee
Posts: 3,881
Thanks: 0
Thanked 0 Times in 0 Posts
Thumbs up

Originally Posted by JZG View Post
Well the final meeting of the season was a bit of a disaster....we only..runs ...9.07 at 151 point something mph! ....
wish a disaster would befall me

All in all I'm real happy with the WI and pump gas. It's cheap, simple, reliable, and easy to set up. There is no compressor blade erosion at all with the Borg Warner either. In the end I got up to 590hp at the wheels but it must have a restriction somewhere as any extra boost over 28psi made no more hp at all. It still made exactly the same hp at 33psi! I'm wondering if it might be the limit of pump gas with near stock porting.

Anyway, onwards and upwards with E85 now...
I guess. If water allows you to run 33 psi on a basically stock engine without blowing it up, what is E85 really bringing to the table? other than of course the need for ridiculous injectors

Last edited by sharingan 19; 04-23-12 at 03:48 AM. Reason: removed abr.
sharingan 19 is offline
Old 04-25-12, 09:30 PM
  #72
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
Originally Posted by sharingan 19 View Post
wish a disaster would befall me



I guess. If water allows you to run 33 psi on a basically stock engine without blowing it up, what is E85 really bringing to the table? other than of course the need for ridiculous injectors
Yea that probably sounded a but weird. I'm actually really happy with the car in general considering it's the turbo setup I've done making more than 450hp. I'm very happy to go from a mid 11 second first pass to a 9.0 within one season of racing.

I have no idea how E85 will go, but if nothing else it'll lower temps. I'll probably try WI with it at some point, out of curiosity.
JZG is offline
Old 01-05-13, 07:29 PM
  #73
JZG
Full Member
Thread Starter

Join Date: Jun 2009
Location: 3116
Posts: 148
Thanks: 0
Thanked 3 Times in 3 Posts
Well if anyone is interested I decided to stick with water injection and pump gas out of curiosity and a couple of days ago on the dyno made 740hp at the wheels on 36psi!! (did run a high as 38psi at one point) This was not safe hp however so it wasn't a high rpm dyno pull, and I'm fairly sure it was barely controlled pre-ignition that was making the extra power (Howard Coleman will cover this anomaly at some point). However the engine did it no trouble and we went racing the following day with a lot less power (first race of the season). To cut a long story short I ended up going in circles on the dyno so didn't really have a good tune up for racing, plus the wastegate decided to play up at the last minute so boost control was a bit hit and miss, and thanks to a crazy hot day 60ft times were 1.5 tenths slower than usual. Even so the car still ran [email protected] and that's with about 130lb more weight in the car than last time we raced (9.0 at 151). So I'm guessing about 620hp, that's about 30-40hp up from last time. This is full street trim, full interior, full exhaust, but running slick tires.

So I think that once I sort out the wastegate and get a good day at the track we should be able to crack the 8 sec bracket.

I'll post up the dyno sheet when I get a chance to scan it.

The setup is basically the same as last season but I did build a better condition engine over the off season. Still using used parts it's still a T2 engine using T2 intake/throttle body, only I switched to 8.5 rotors and a reasonable street/extend port this time.
JZG is offline
Old 01-06-13, 08:51 PM
  #74
Back to basics
iTrader: (4)

dabigesii's Avatar

Join Date: Mar 2004
Location: Crescent City
Posts: 794
Thanks: 0
Thanked 0 Times in 0 Posts
Completely sick!!! Very badass numbers, times, and mph!!!
dabigesii is offline
Old 01-06-13, 09:43 PM
  #75
Senior Member
10 Year Member
iTrader: (1)

seandizzie's Avatar

Join Date: Apr 2003
Location: fwb.florida
Posts: 536
Thanks: 0
Thanked 0 Times in 0 Posts
Thats sweet man. Time to step up the intake and throttle body.
seandizzie is offline
