E85. Lessons learned.
07-08-10, 07:32 PM
#51
Rotary Freak
Join Date: Dec 2001
Location: chandler, AZ
Posts: 2,402
Likes: 0
Received 0 Likes
on
0 Posts
The ID2000's respond very well to increases in fuel pressure, so if your pump(s) can handle the pressure, you can turn it up to get some more breathing room..
Bruce is running twin bosch 044's, which is also what I'll be using on my 4x ID2000 E85 setup..
Bruce is running twin bosch 044's, which is also what I'll be using on my 4x ID2000 E85 setup..
07-08-10, 10:08 PM
#54
Banned. I got OWNED!!!
iTrader: (1)
Join Date: Jun 2006
Location: Denver
Posts: 697
Likes: 0
Received 0 Likes
on
0 Posts
I ran the Pikes Peak car on E-85 with the following setup:
1/2" feed and return fuel lines
550cc RC primaries
1600CC RC secondaries
single Walbro in-tank
stock S4 FPR
AEM EMS
GT3588r
E-85 premixed with Redline Powersports 2-cycle oil.
this setup gave us 370whp on a very safe and conservative tune.
Not sure how much E-85 helps lower engine temps, although I know several cars that ran very close to overheating on pump gas run cooler on E-85. I know that the race cars engine runs on the thermostat and we have to really lean on it to see 180/185 temps.
1/2" feed and return fuel lines
550cc RC primaries
1600CC RC secondaries
single Walbro in-tank
stock S4 FPR
AEM EMS
GT3588r
E-85 premixed with Redline Powersports 2-cycle oil.
this setup gave us 370whp on a very safe and conservative tune.
Not sure how much E-85 helps lower engine temps, although I know several cars that ran very close to overheating on pump gas run cooler on E-85. I know that the race cars engine runs on the thermostat and we have to really lean on it to see 180/185 temps.
07-09-10, 05:42 PM
#63
Rotary Freak
Join Date: Dec 2001
Location: chandler, AZ
Posts: 2,402
Likes: 0
Received 0 Likes
on
0 Posts
I'm not sure I exactly understand your question. Recommended pressure range for the ID2000's are 43.5 - 130psi base, regardless of type of fuel. I would probably not increase your base pressure above 50psi with the twin denso's, especially if you're going to be running 20+psi of boost.
For your HP goals, I would probably go the route of twin 044's and ~60psi base. At 60psi base pressure, you should be good for ~750hp at 9krpm based on our injector calculator. If running 20psi boost, the pumps will be at 80psi, and supplying ~9000cc/min. Meanwhile the injectors will be flowing ~8300cc/min, so you'll have a little bit of room with the pumps..
Also note that without 3D compensation tables for the deadtimes (voltage compensation), as base pressure increases, you will be increasing the minimum flow of the injector and may lead to a slightly rich idle..
For your HP goals, I would probably go the route of twin 044's and ~60psi base. At 60psi base pressure, you should be good for ~750hp at 9krpm based on our injector calculator. If running 20psi boost, the pumps will be at 80psi, and supplying ~9000cc/min. Meanwhile the injectors will be flowing ~8300cc/min, so you'll have a little bit of room with the pumps..
Also note that without 3D compensation tables for the deadtimes (voltage compensation), as base pressure increases, you will be increasing the minimum flow of the injector and may lead to a slightly rich idle..
07-09-10, 06:32 PM
#64
Banned. I got OWNED!!!
iTrader: (1)
Join Date: Jun 2006
Location: Denver
Posts: 697
Likes: 0
Received 0 Likes
on
0 Posts
You really have to be careful when using some ECU's and the way they calculate IDC. I have seen an ECU that was "properly set up" show 100% IDC when the reality was closer to 60%. If you think your injectors are maxing out too early for the hp/airflow/afr or BSFC, and your sure they are not clogged, dropping voltage, etc., then really check through the injector setup.
07-11-10, 05:42 PM
#71
dorito powered
iTrader: (5)
Join Date: Mar 2008
Location: Lincoln, NE
Posts: 2,839
Likes: 0
Received 0 Likes
on
0 Posts

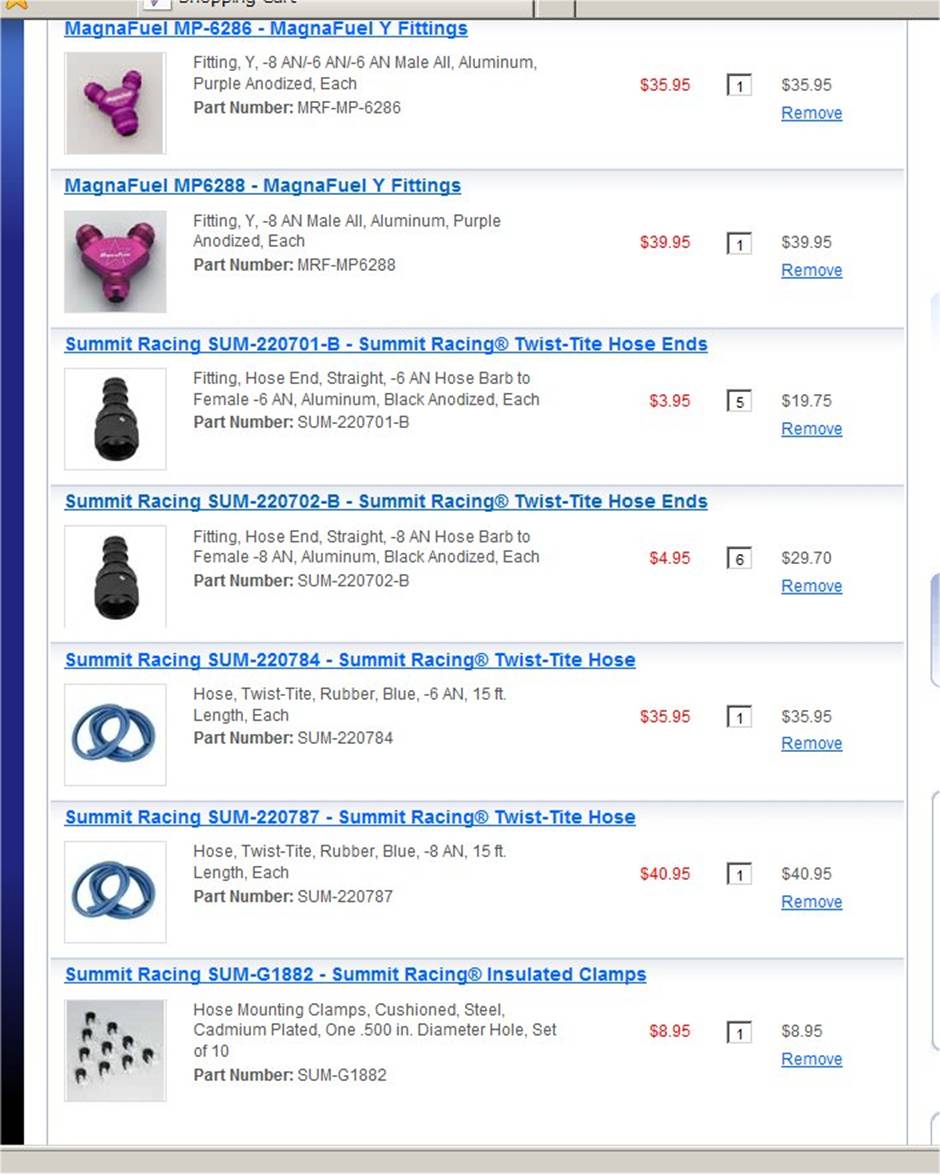

reading into this with a double pump set-up, you have posted the magnafuel y-fittings, I was wondering what it cost, I found this guy and was wondering how they compared since they seem identical.
http://www.summitracing.com/parts/AEI-15673/
http://www.summitracing.com/parts/AEI-15673/
