RexRyder

iTrader: (10)

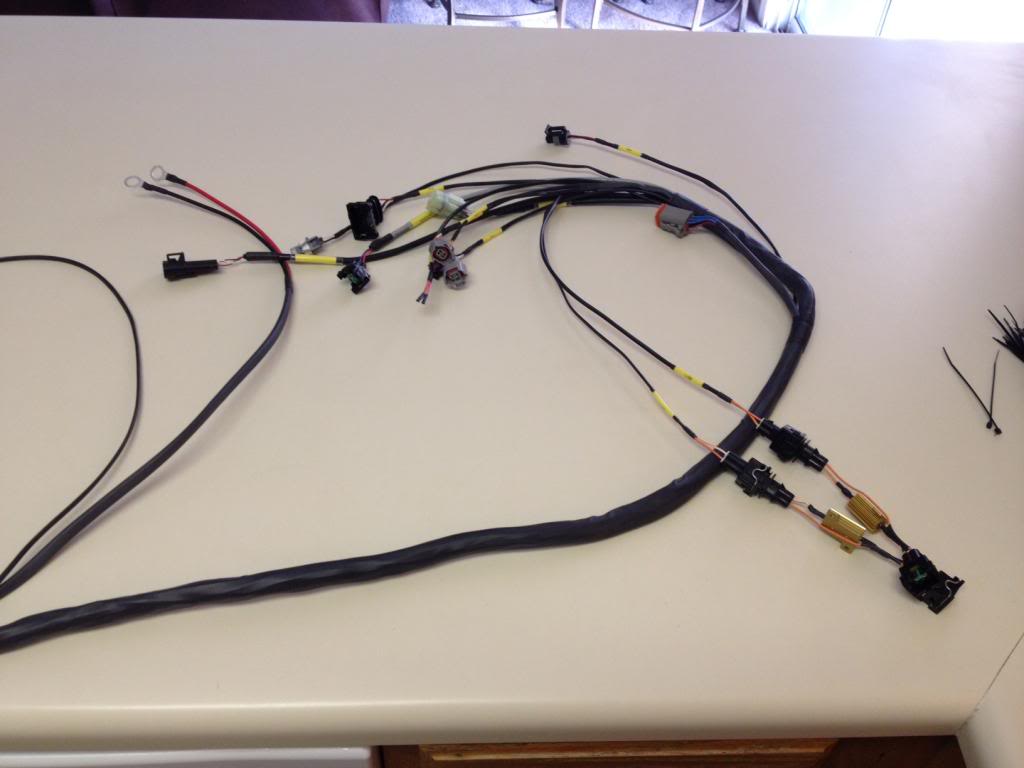

Here is my AEM EMS-4! It was ordered from LMS-EFI/C Ludwig on the forum. Everything was ordered from him and he also made a custom harness that needs very minimal wiring. I am very happy with the work done, here are some pics:

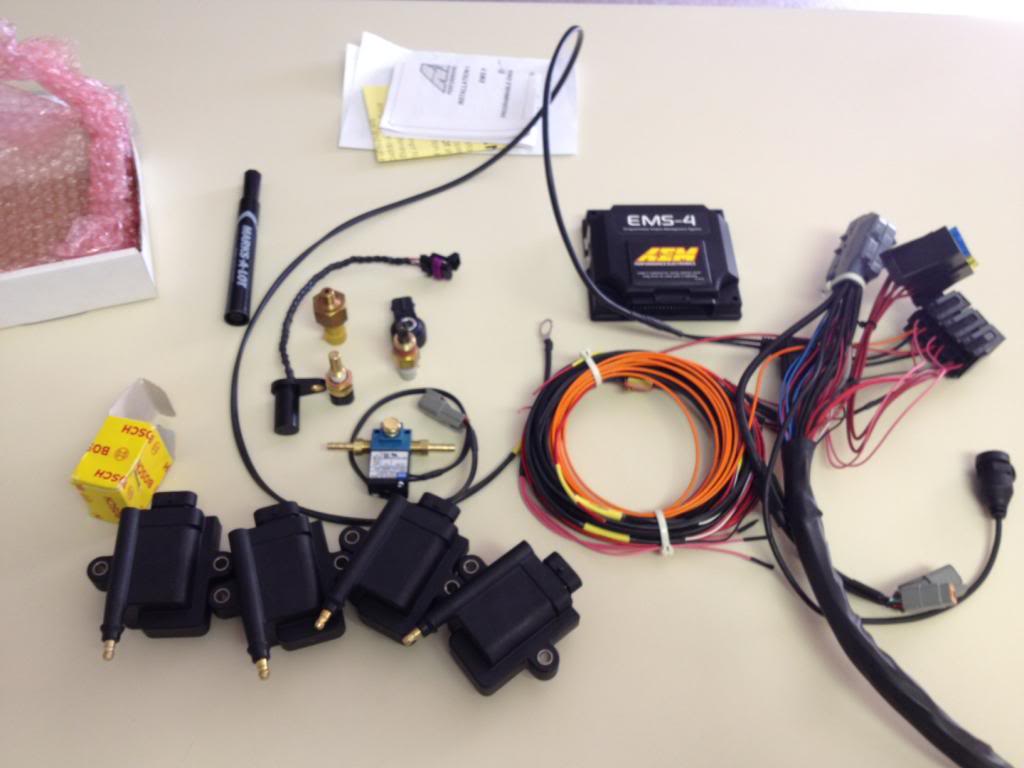

Here is everything:

RX7(613)

iTrader: (9)

that looks great , keep us updated once you install it and tune.




I see a hall sensor, whats that for ? , using stock cas ?

RexRyder

iTrader: (10)

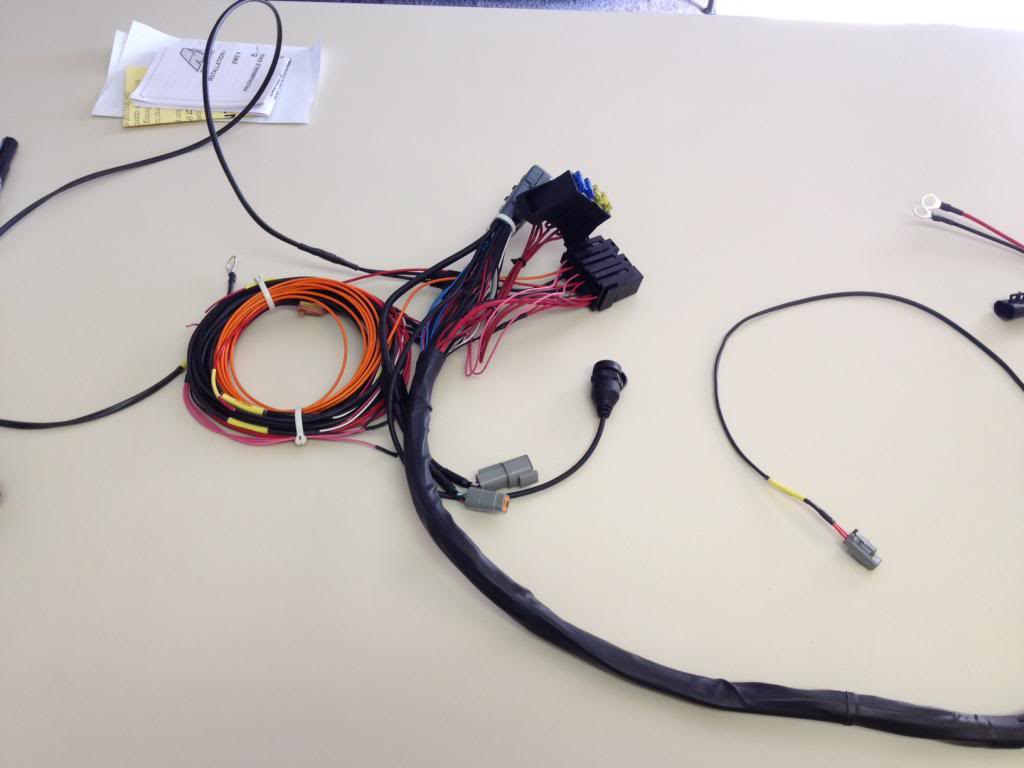

Close up of connectors:

RexRyder

iTrader: (10)

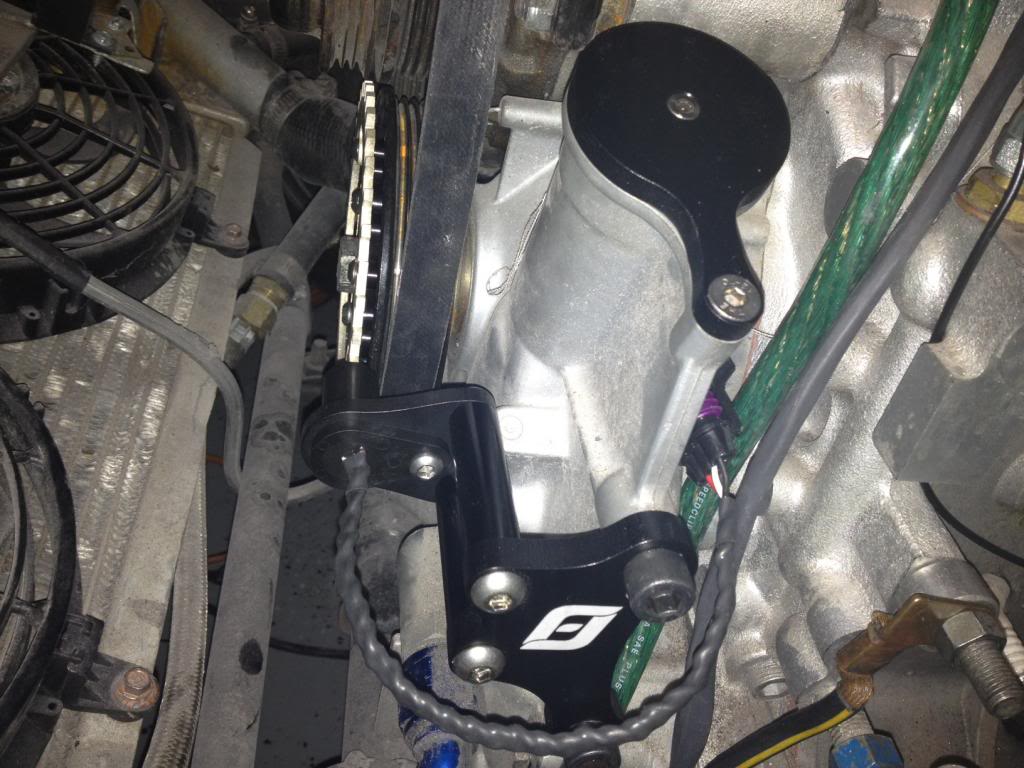

This is what the HALLS for!!

RexRyder

iTrader: (10)

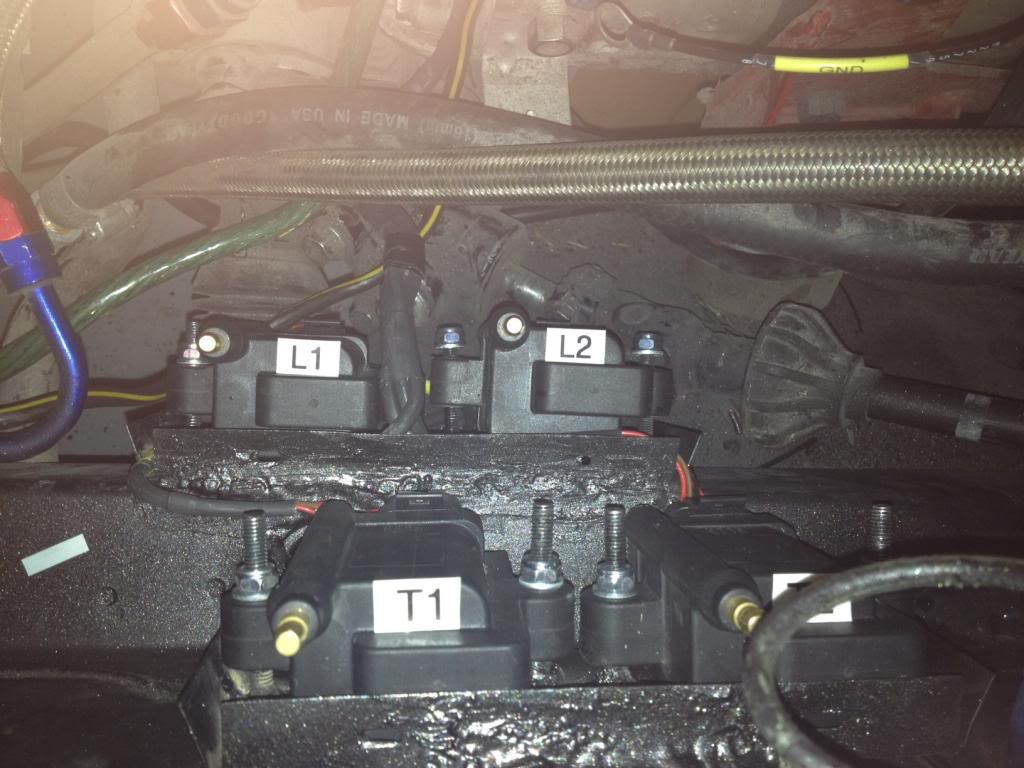

Here I made a bracket for the smart coils out of some metal I just had laying around. I just pretty much welded bolts to the pieces of metal, and then welded 1 to the frame rail and 1 to the strut tower just above it. Its not too pretty but its good and solid. Also It can be grinded off easily if I need to move them. I dont think I will though it seems perfect there.

RexRyder

iTrader: (10)

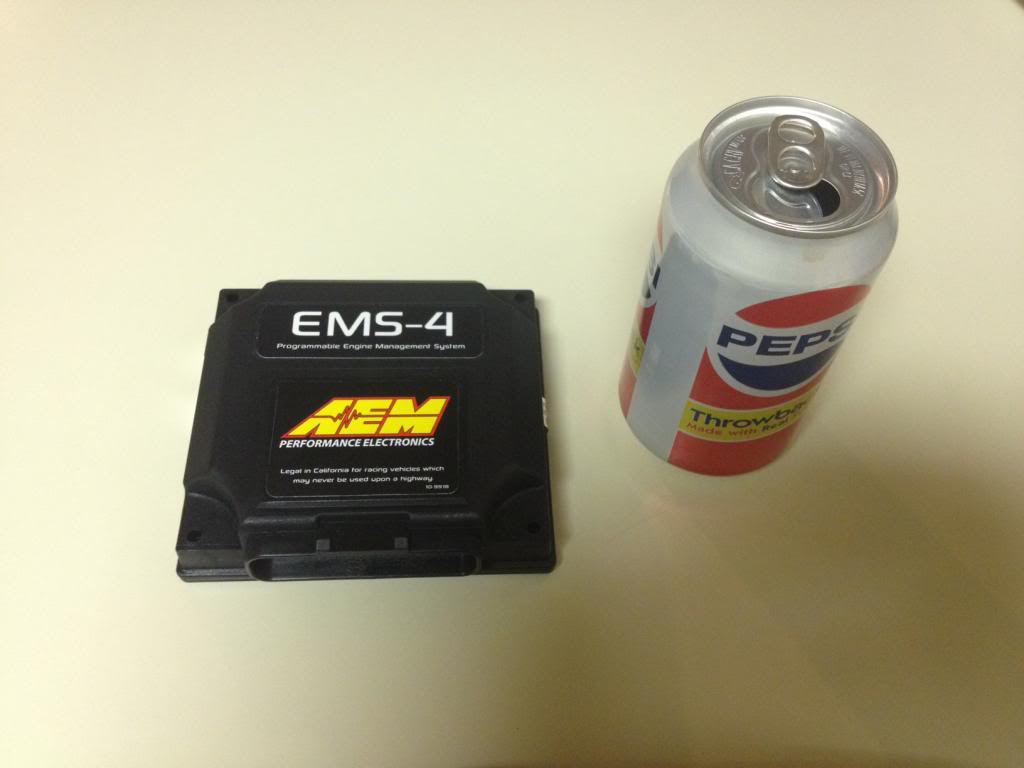

Here is the ECu next to a pop can. Its really small alot more than I thought.

RexRyder

iTrader: (10)

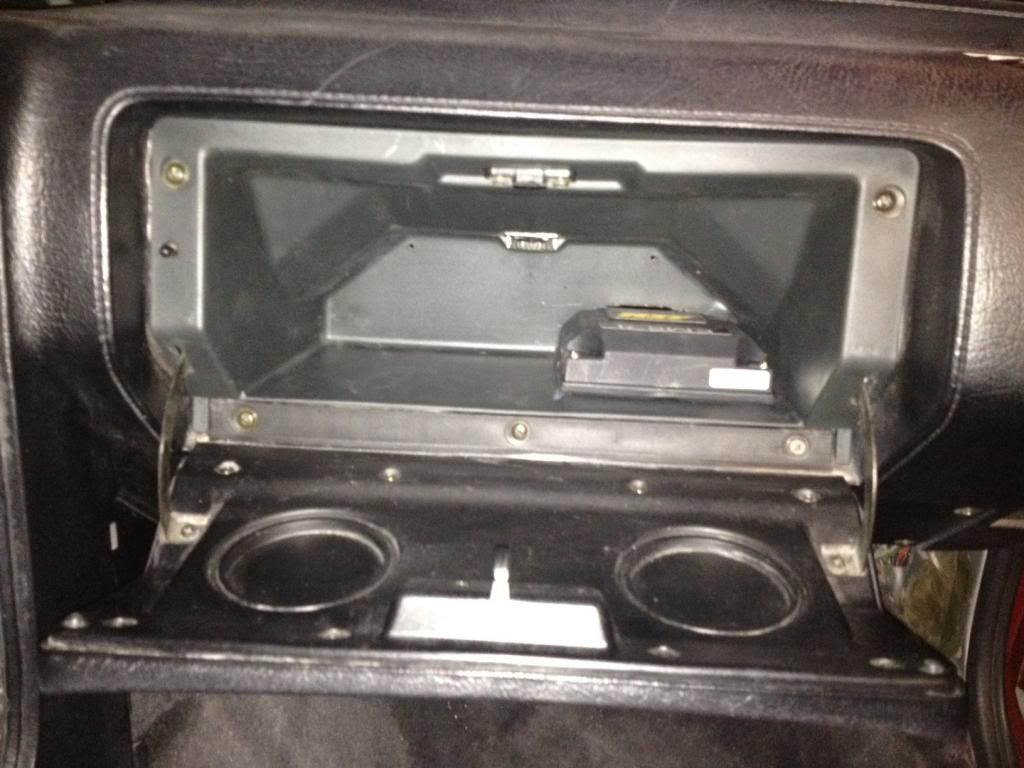

I put it in my glovebox. I want to show it off!!

con-3-fc3s

That's perfect!.. Was that harness made to fit the FC?..

RexRyder

iTrader: (10)

Yes it's an FC with a 13B-RE swap.

mymmeryloss

iTrader: (13)

Damn thats tiny!

robx7fcna

Wow, that looks awesome!

CONNORA

Nice! how did tuning go?

RexRyder

iTrader: (10)

I'm doing other things at the same time so it's not running yet.

CONNORA

ok i was curious if the newer software was easier to navigate/tune

RexRyder

iTrader: (10)

I had a Microtech before so I dont know about the older software. But I did download the AEM software to look at sample maps and seems to be straight forward. You can download it on the AEM forums. Im planning to get it tuned at UMS tuning in Phoenix, are you in AZ too?
