Trying to fire my new combo up but no luck. I was looking around and see were it shows warnings..... No connection trigger 1,2 and 3! Key on or off. Cas is set to 1 and 12 tooth and plugged in. Is this s wiring issue on the harness?



Hi sk8world,

I'm very sorry for the delay. Have you been able to start the engine by now? If not, can you please email me at mark@adaptronic.com.au or tech@adaptronic.com.au

But to answer the question, the ECU warning for CAS could tell you they're not connected when the engine is not turning. The best way to tell if they're working properly is if it reads a proper RPM signal e.g. during cranking, and if you have a stable ignition timing.

Actually those are the first two things we check when sorting a no-start problem - Trigger setup checking / engine doesn't run checklist

This thread may also help - Installation Guide: RX7 S6 FD Plugin ECU

I can also check what the ECU reads if you can do a log of the engine cranking - How to do a log file using WARI

Thanks.



Mark,

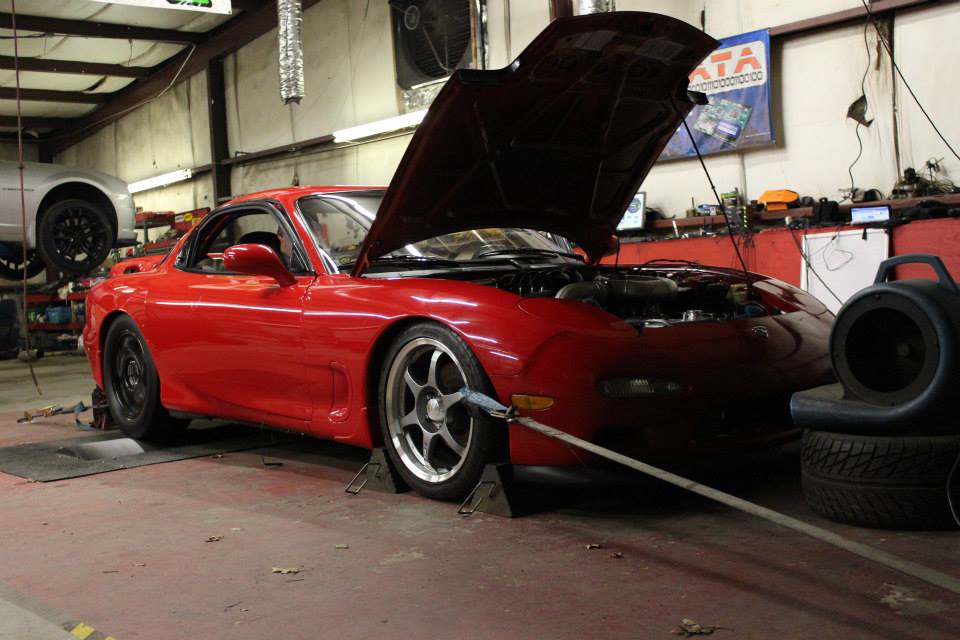

It was just fouled plugs This was the methanol car I tuned, and Andy helped setup...
