wiring help needed
having a little trouble terminating a few connections on the driver side of the engine bay after reinstalling my motor and need some help, ive looked through the shop manual and its pretty vague.

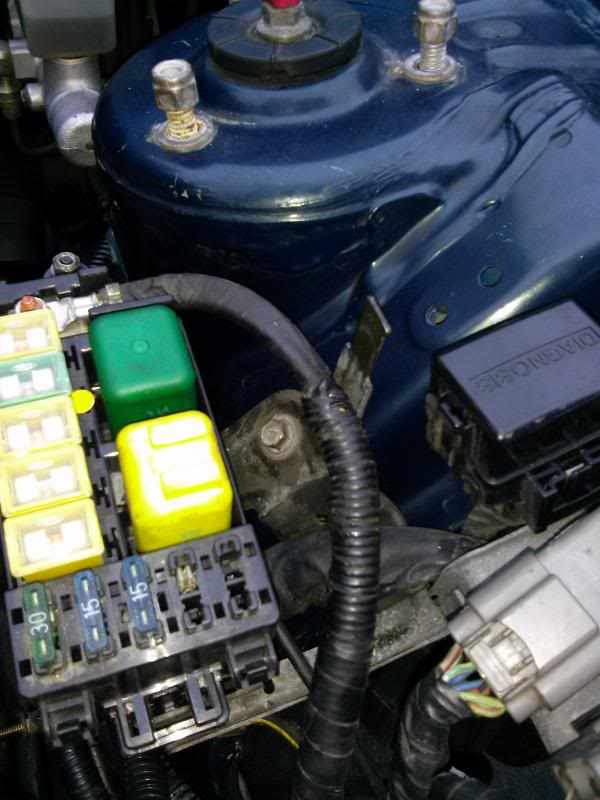

first question; what relay belongs on that post? cant seem to find it anywhere in my garage, and it quite possibly wasnt there perviously, but definitely looks like one belongs there.

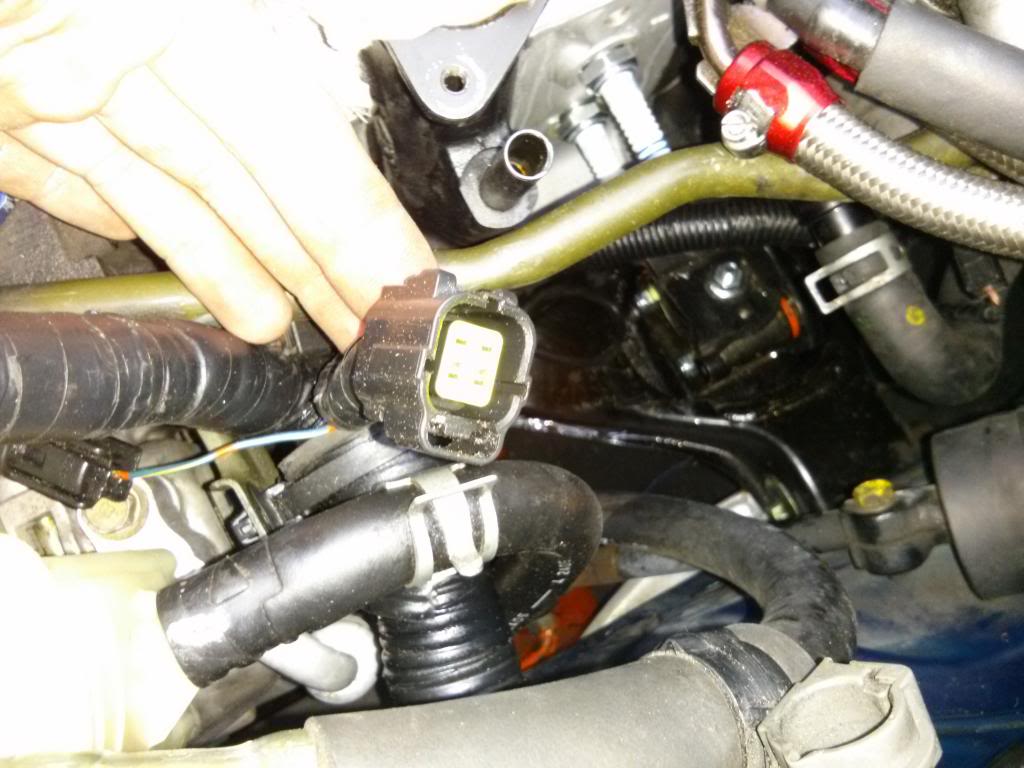

what does this connector plug into? located right beind the power steering pump, its the last one remaining and i cant find a recieving end. its clean so im assuming it was connected before pulling the motor, but maybe not.
lastly, where should i terminate this ground?
seems like many of you know these cars like the back of your hand and wont have a problem with these. any help is greatly appreciated, really want to get this thing running again! thanks in advance.
first question; what relay belongs on that post? cant seem to find it anywhere in my garage, and it quite possibly wasnt there perviously, but definitely looks like one belongs there.
what does this connector plug into? located right beind the power steering pump, its the last one remaining and i cant find a recieving end. its clean so im assuming it was connected before pulling the motor, but maybe not.
lastly, where should i terminate this ground?
seems like many of you know these cars like the back of your hand and wont have a problem with these. any help is greatly appreciated, really want to get this thing running again! thanks in advance.
