Wire harness clips

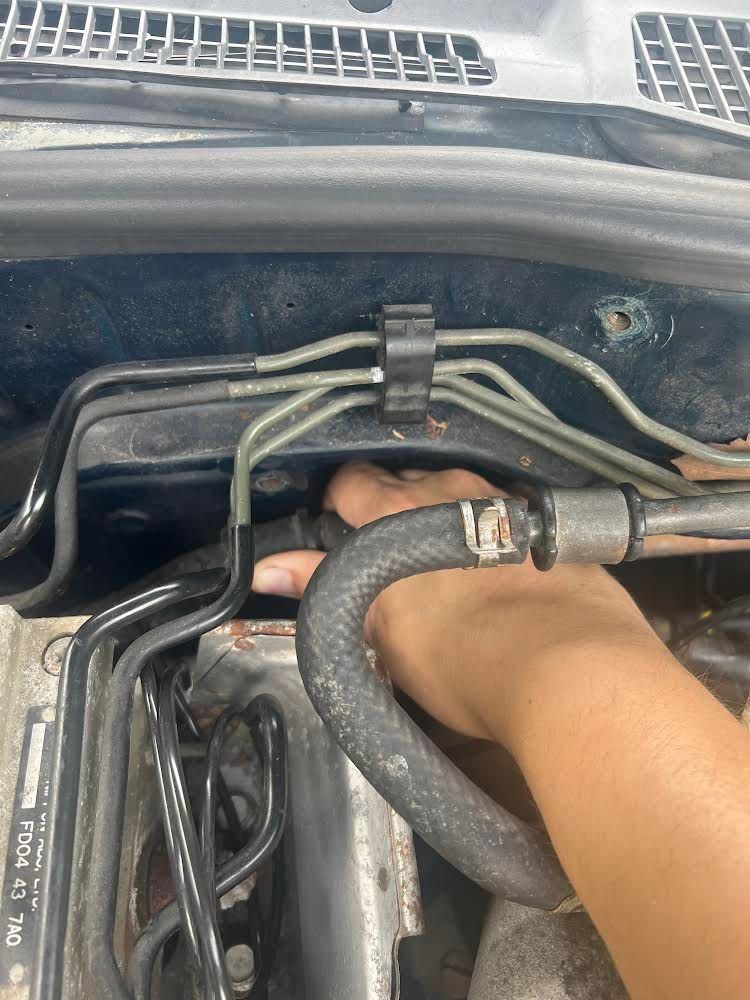

I’m looking for the clamps that hold the wire harness in place after it comes out of the firewall on the engine side. I’ve never had anything holding mine so I’m not sure what goes here? I’ll attach a photo. I think there’s another one as it gets closer to the engine but I’m not sure where that one would mount. My harness is just “floating”.

Reply
Old May 14, 2024 | 12:55 PM
  #2
LegoMontego's Avatar
Thread Starter
Senior Member

Joined: Dec 2020
Posts: 266
Likes: 11
From: FL

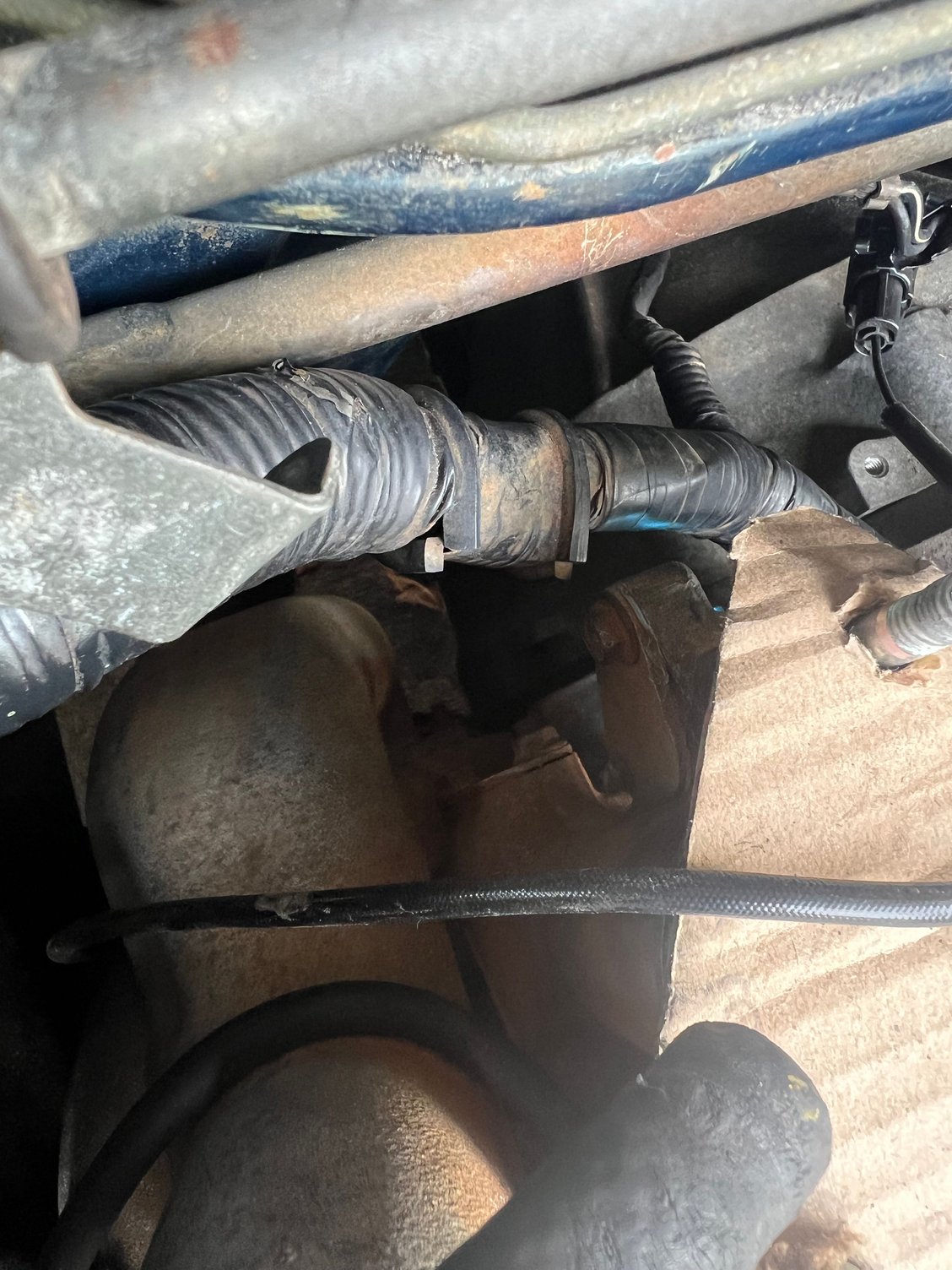

Looks like there’s a spot for another mount but I don’t know where it would mount to? Ignore the doodie color, had a coolant leak.

Reply
Old May 14, 2024 | 01:01 PM
  #3
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,835
Likes: 3,232
From: https://www2.mazda.com/en/100th/
That first one comes with the harness, there must be a separate number, but i spent ~30 seconds and didn't find it.

it is however just a P clip


Reply
Old May 14, 2024 | 01:15 PM
  #4
LegoMontego's Avatar
Thread Starter
Senior Member

Joined: Dec 2020
Posts: 266
Likes: 11
From: FL
Originally Posted by j9fd3s
That first one comes with the harness, there must be a separate number, but i spent ~30 seconds and didn't find it.

it is however just a P clip

How did you find this? When I tried looking it up I wasn’t getting anything. I assumed the one closer to the firewall grommet was a p clip but I’m not sure about the one closer to the engine. I don’t see anywhere it would connect to.
Reply
Old May 16, 2024 | 10:14 AM
  #5
LegoMontego's Avatar
Thread Starter
Senior Member

Joined: Dec 2020
Posts: 266
Likes: 11
From: FL
I got a $2 insulated 1 inch P clamp from Home Depot for the mount behind the ABS. But I’m not sure where the one that’s closer to the engine mounts to. I’m thinking maybe it use to connect that something that was deleted?
