silverTRD

iTrader: (37)

i have a 93 touring and want to add the R1 wing. i have the wing and all the hardware. i called Malloy Mazda and they helped me get all the stock hardware. there is a lot of little crap that im not sure where it goes. so im looking for a diagram or pics that might show me the details of the stock install. i searched and it was all for installing aftermarket wings.

thanks

RotorJoe

www.iluvmyrx7.com

then find the third gen manual and look to the "body A pdf." On page 111 they have an exploded view of the rear spoiler and the hardware.

Not sure if that will help you enough though.

silverTRD

iTrader: (37)

yeah that helps but i wish i could zoom in a bit more or something. if nothing else this will help quite a bit. what a great website too! lots of great info. maybe now i wont have to ask a bunch of newbie questions. lol

nashman69g

iTrader: (3)

There is a better image on the sticky at the top of this section...Use it instead; it might help help more. It's a '94 but that area should be the same!

dgeesaman

iTrader: (7)

Check page 4 of the collision diagram - zoom in with your PDF reader.

https://www.rx7club.com/showpost.php...2&postcount=24

Also check FSM page S-27 from that thread, and the same page mentioned by RotorJoe since these scans are much higher res.

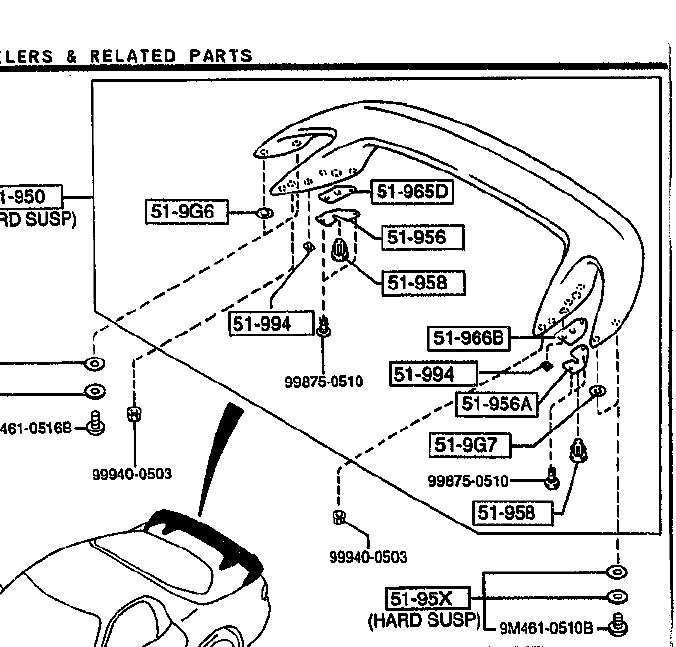

(edit) Check the attachment - this is from section 7800 of the parts diagrams that you can download from iluvmyrx7.com

Dave

silverTRD

iTrader: (37)

my main concern(of course) is drilling the holes. im not sure where they go. is there a measurement i can pull to find the holes.

Csefiroth0

im doing the same.. what did you end up doing?

silverTRD

iTrader: (37)

i ended up maiking my own template. worked quite well. i had some old dot matrix paper, cut it to fit the hatch, taped it down placed it where it should go, traced it, marked the holes, measured a MILLION times and then installed it. it really was a PITA. i wouldnt want to do it again but i saved quite a bit of money. a respectable body shop wanted 200-250 but they wouldnt tell me till they were finished. i laughed in their faces. hahahaha

Csefiroth0

cool. im glad it worked out. what size drill bit did you use?
