Where does this wire/plug go? Engine Harness Related
#1
Manly
Thread Starter
Join Date: Mar 2008
Location: Toms River, NJ
Posts: 146
Likes: 0
Received 0 Likes
on
0 Posts
Where does this wire/plug go? Engine Harness Related

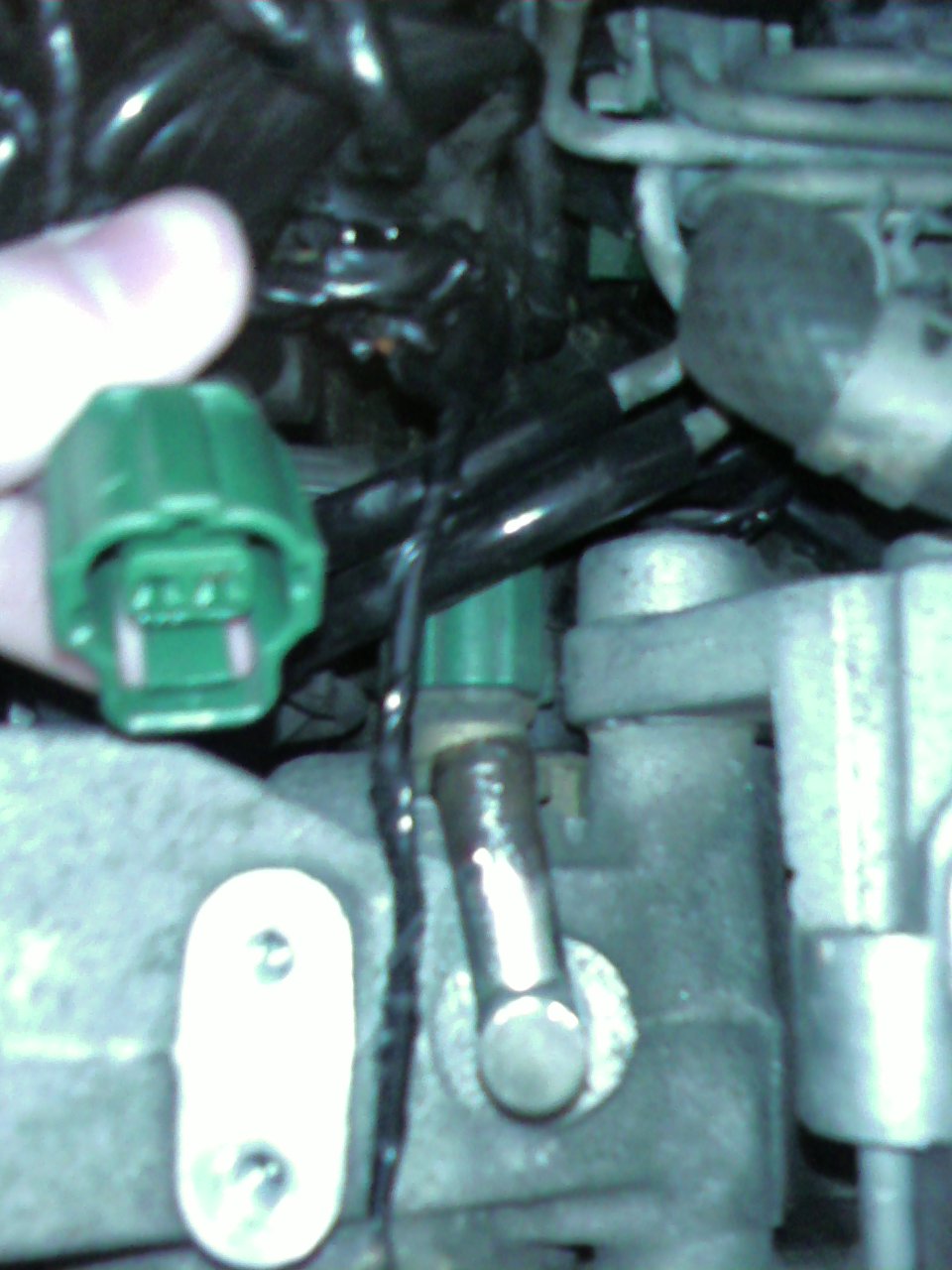

Does anybody know where this plug goes? Ive been pouring over the wiring diagrams and every time I think I think I have found it it ends up being already connected. It appears to be 1 of 3 green plugs on the engine harness. Its the plug in the top left that I am holding that I cannot figure out. This is the only plug keeping from finishing. Thanks in advance
#3
Manly
Thread Starter
Join Date: Mar 2008
Location: Toms River, NJ
Posts: 146
Likes: 0
Received 0 Likes
on
0 Posts
well the egr is the blue one.. that is connected, the two light green ones that bolt to the intake are connected, the green one pictured that goes into the coolant fill and the one underneath it are all connected. it could possibly be the fuel temp sender but I cannot seem to locate where that would plug into or the fuel thermosender but again I havent found what that connects to either. I have 1 green plug and nothing to connect it to. Is there a picture available detailing the engine harness that I possibly missed in the FAQ or what not? for the record I own the 94 workshop manual
#4
Full Member
Join Date: May 2006
Location: Oak Park, Il
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
when i did the hose job there were two dark green connectors. one goes behind the coolant fill housing and the other dark green connector goes to the secondary fuel rail(fuel temp sender).
#5
Full Member
Join Date: May 2006
Location: Oak Park, Il
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
if im correct the dark green connector behind cooling housing fill will have two wires one solid green with with dots and one solid brown with white dots. if the connector you are showing has two brown wires that one will go on the secondary fuel rail.
