Hi everyone,

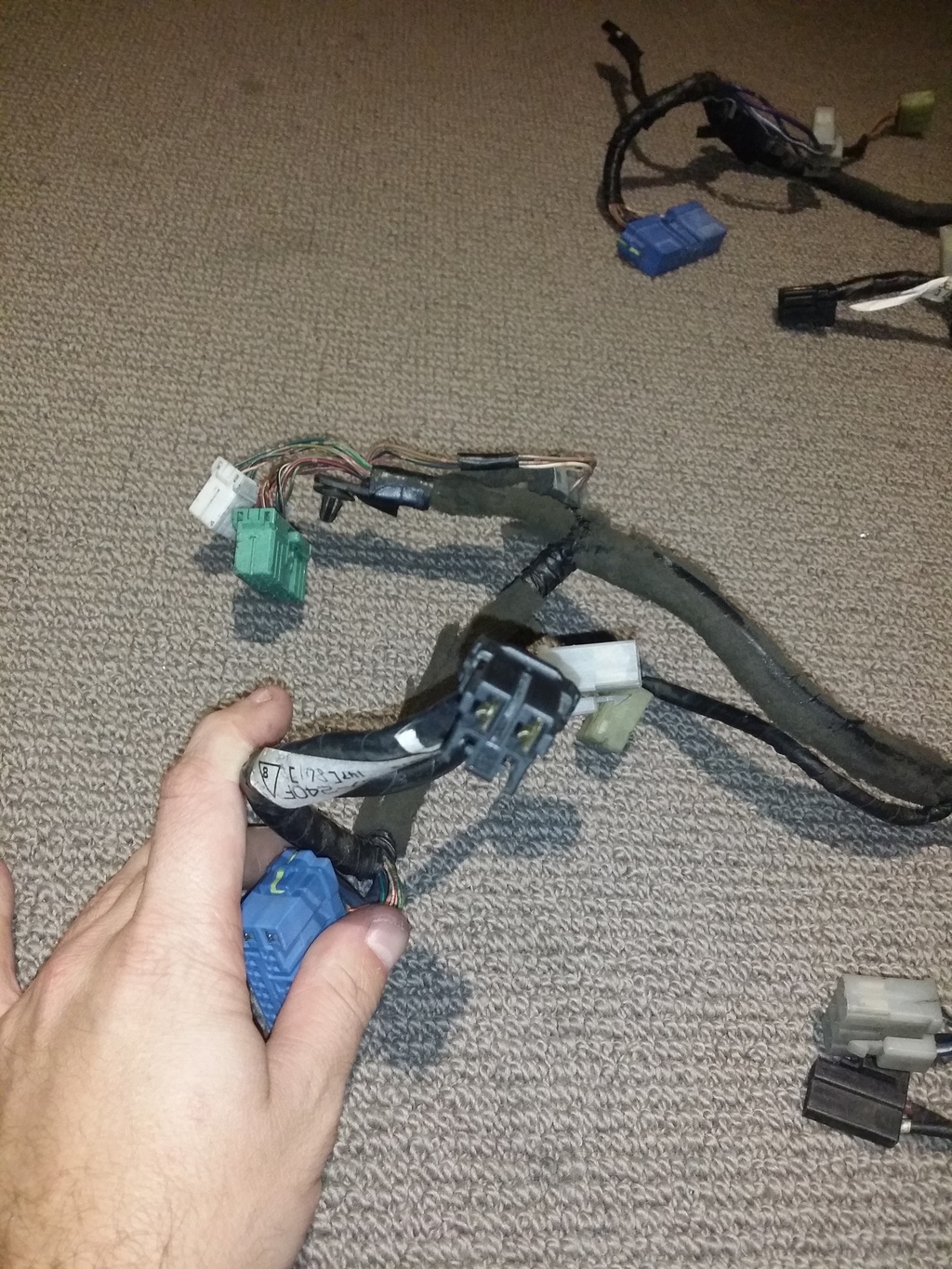

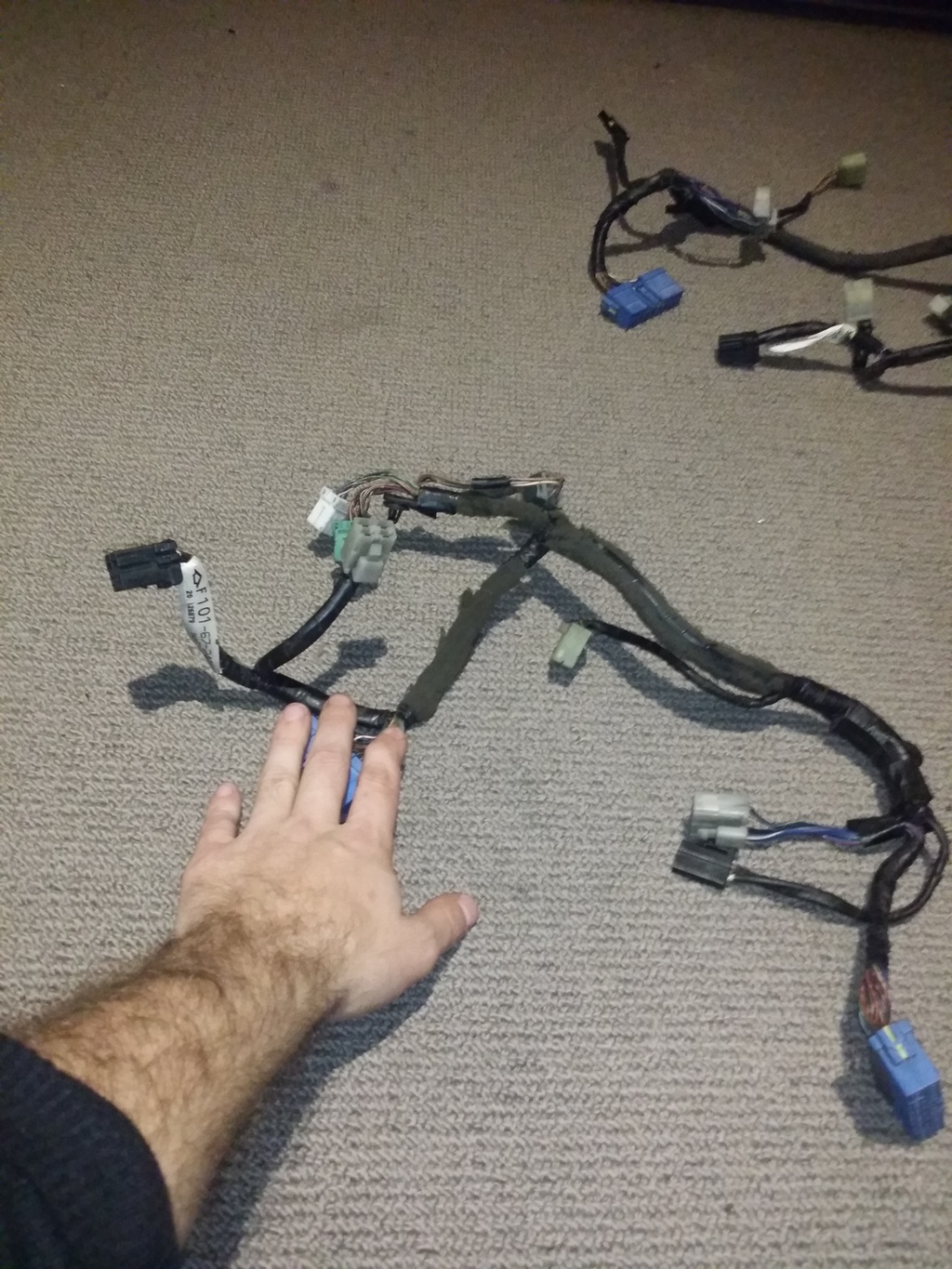

Hoping someone could help me. My heater blower never worked so I thought I would look into what the issue was. I found that there was a main (main power source - black) that was just sitting there. When I ground it, the blower works fine. Great, but I cannot for the life of me find anywhere in any harness under the dash as to where it should plug into.

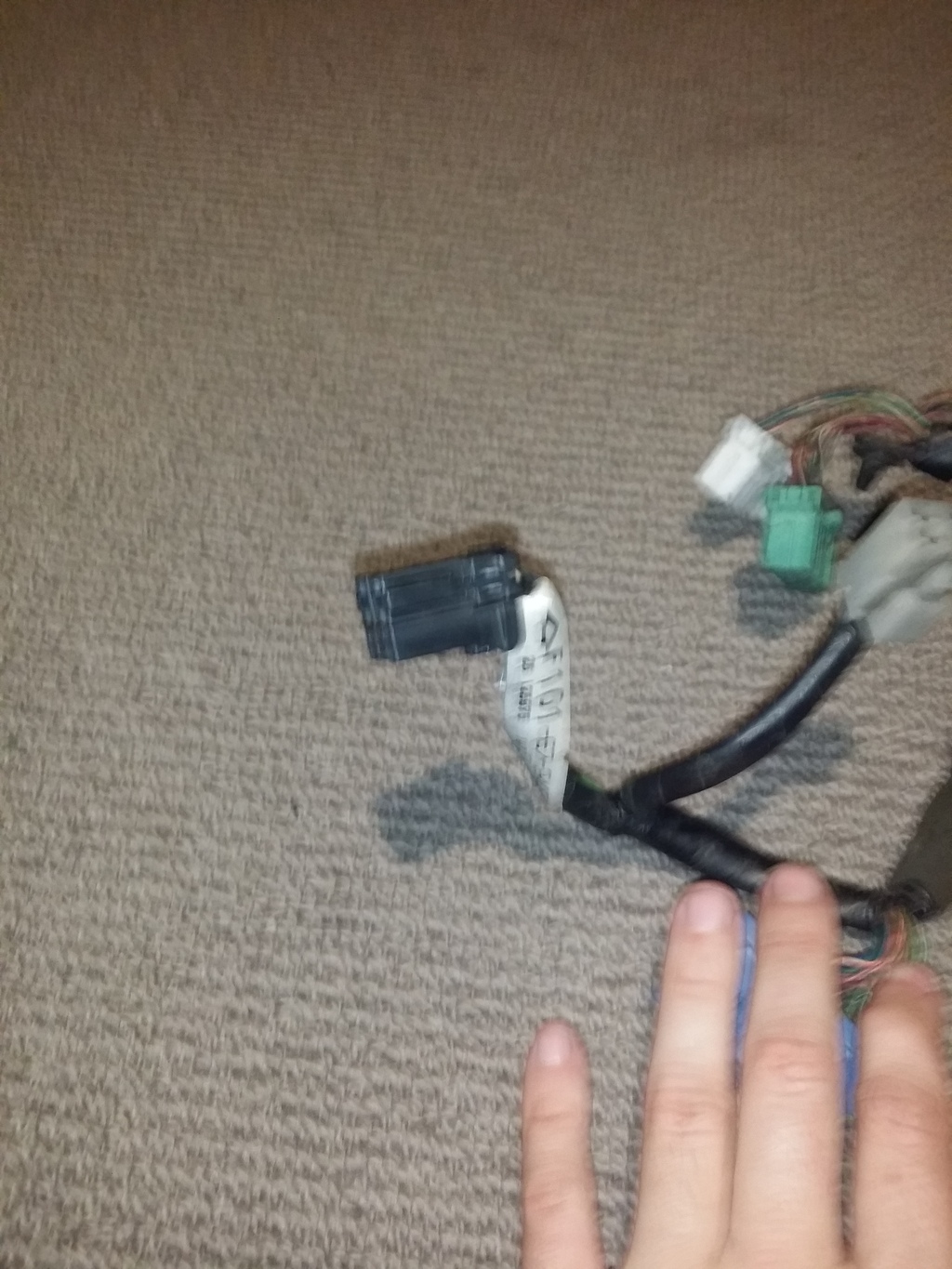

I pulled out the blower and AC evaporator but cannot find nothing... Does anyone have any idea? There is part number on the harness for this plug - F101-67-240F

Any help is appreciated.



Bump!

I've been doing research with wiring diagrams but still cannot manage to find where this plugs belongs. It's a 2 pin plug, one white wire and another white/blue plug and is a main power source. I've looked under my dash and dash harness but nothing...

Anyone?

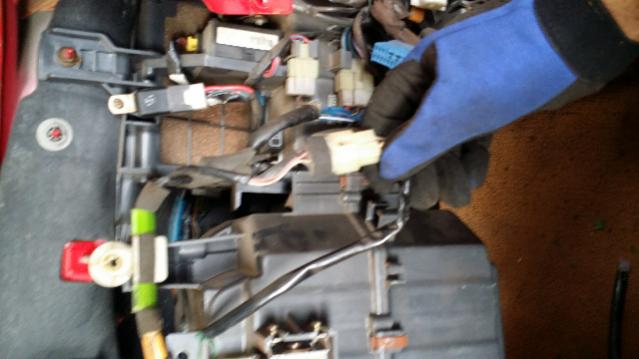

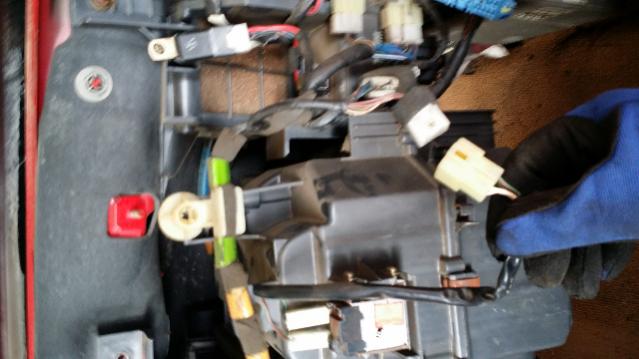

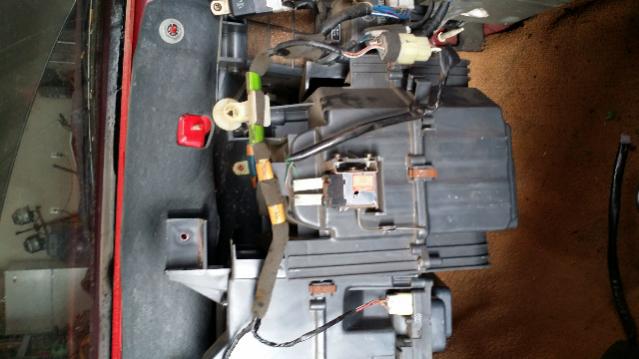

I took some pics when I had my dash out, Dont see that black plug, but l put up what I have for reference.



http://m.ebay.com/itm/JDM-RHD-FD3S-M...-/181045326788

Looks like the black plug right on top?



Spot on! I found another blower on ebay that shows the plug but my blower doesn't have it! It looks like its connected to a fuse?

Mazda RX7 FD3S A C System Blower Motor Assembly JDM Hvac RHD | eBay
