Where does this line go? Picture included....

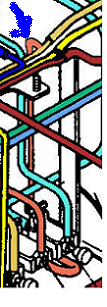

When look at the wiring diagram. Where does this line go. It is the rear line of the Pressure Reg it looks like.

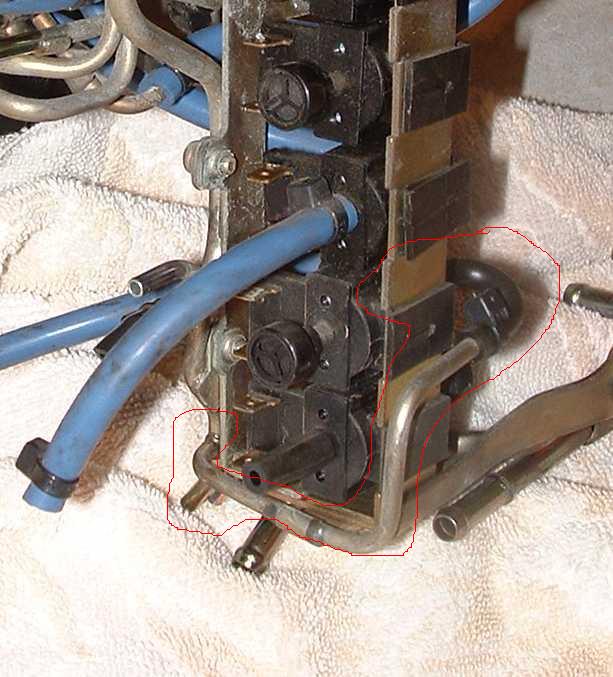

hard to tell from that pic too tiny. but it looks like the location of the relief 1 solenoid. Hard to tell for sure.
I'll look for a bigger pic. If i remember correctly the FPR solenoid has 2 hoses and 1 vent filter. The hose off the back side of the solenoid goes to the LIM nipple that is pointing out towards the back of the engine. And the hose off the front top goes to the FPR itself on the fuel rail.
I'll look for a bigger pic. If i remember correctly the FPR solenoid has 2 hoses and 1 vent filter. The hose off the back side of the solenoid goes to the LIM nipple that is pointing out towards the back of the engine. And the hose off the front top goes to the FPR itself on the fuel rail.
