Hey all,

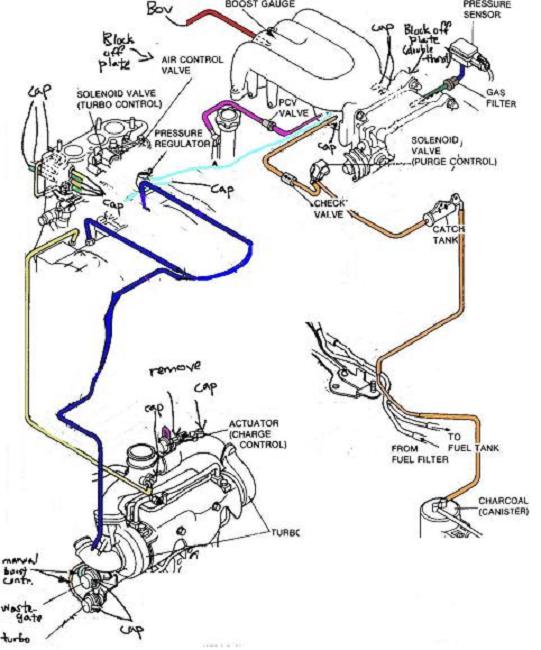

I was bored while waiting for my dad to call to pick him up (11pm now) and I took the original vaccuum diagram and came up with a simplified diagram for removing emissions, rats nest and twin turbo control. I believe I got all the ones I "need" left and ended up with a question... a couple actually

1. on the scuderiaciriani website, he mentions running the vaccuum line for the fuel pressure regulator to a rear nipple on the intake manifold. Is it possible to run it into one of the front ones?? Like shown in the simplified pic?

2.The darker yellow hose (on diagram) from the y pipe to the LIM, can I remove this hose?
What is it's function?

If I am missing anything or have removed anything needed... feel free to comment
Thanks
Edwin



their is already a simplification vac diagram
