vacuum solenoid part?

Thread Tools

Search this Thread

Old 11-19-06, 06:14 PM
  #1
Full Member

Thread Starter

M14socom's Avatar

Join Date: Feb 2006
Location: Oklahoma
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
vacuum solenoid part?

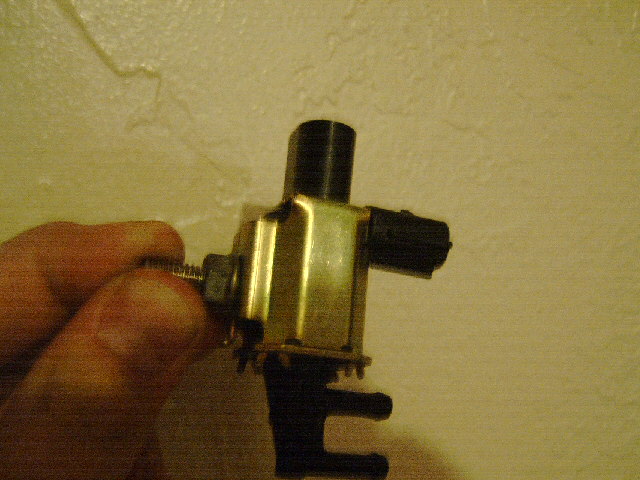

I can't figure out where this part goes. It has a mitzibishi emblem on the top 2 vacuum holes. Can someone tell me where to put this or if it got mixed up with my rx7 parts somehow. Here is a picture.
Attached Thumbnails vacuum solenoid part?-imag0060.jpg
M14socom is offline
Reply Like
Old 11-19-06, 06:56 PM
  #2
Sponsor
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts
Bolts to the air control valve. Its the turbo control solnoid.
IRPerformance is offline
Reply Like
Old 11-19-06, 07:32 PM
  #3
Rotary Enthusiast

iTrader: (1)

tiger18's Avatar

Join Date: Feb 2004
Location: UK
Posts: 899
Likes: 0
Received 0 Likes on 0 Posts

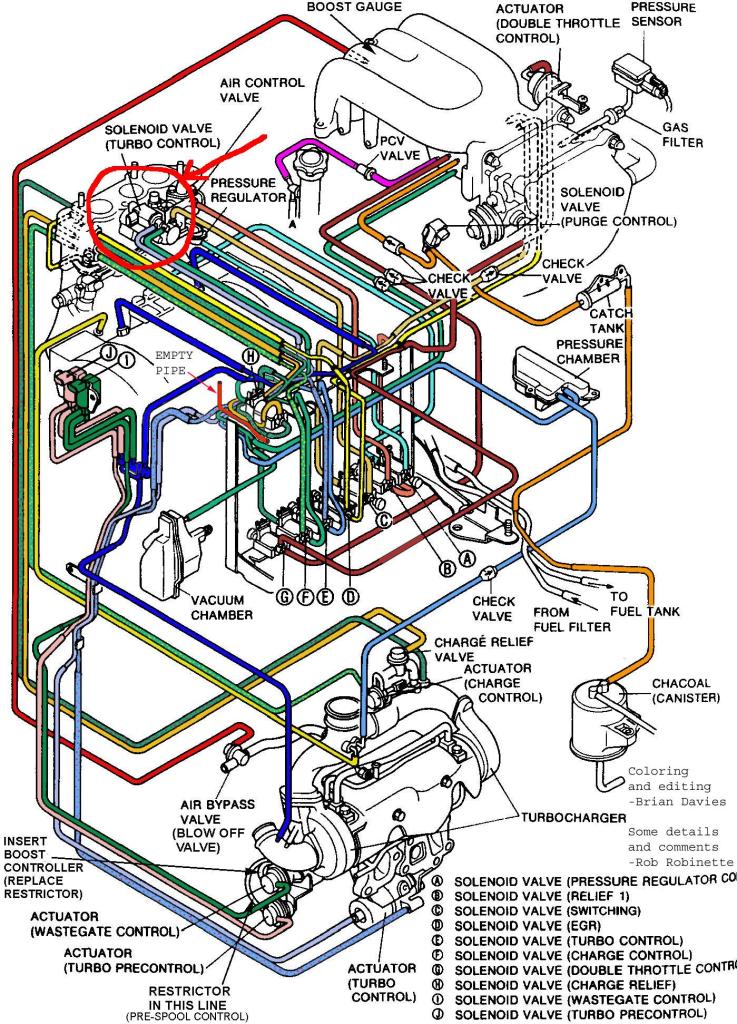

check this out>
Attached Thumbnails vacuum solenoid part?-vacuum_hose_diagram4.jpg
tiger18 is offline
Reply Like
Old 11-19-06, 11:40 PM
  #4
Full Member

Thread Starter

M14socom's Avatar

Join Date: Feb 2006
Location: Oklahoma
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Thanks, I removed the acv so I just didn't see where to bolt it.
M14socom is offline
Reply Like
