Vacuum line connection to what?

Thread Tools

Search this Thread

Old 06-25-12, 11:17 PM
  #1
Senior Member

Thread Starter
iTrader: (1)

a3dcadman's Avatar

Join Date: Jan 2004
Location: seattle area
Posts: 555
Likes: 0
Received 0 Likes on 0 Posts
Vacuum line connection to what?

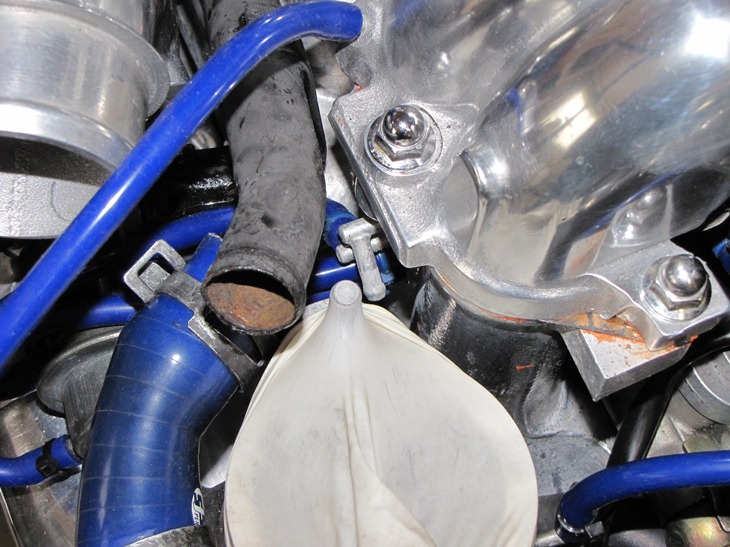

I have gone over my vacuum line routings in my poster size image and in the Mazda dealer service manual and cannot find where this nipple connection on the LIM goes. Nipple is in center of picture.



Any help appreciated.

Thanks,
Chuck
Attached Thumbnails Vacuum line connection to what?-img_6038-small2.jpg
a3dcadman is offline
Reply Like
Old 06-26-12, 01:42 AM
  #2
Hai Sai Oji San

iTrader: (4)

zoolook's Avatar

Join Date: Dec 2007
Location: Snohomish, WA
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts

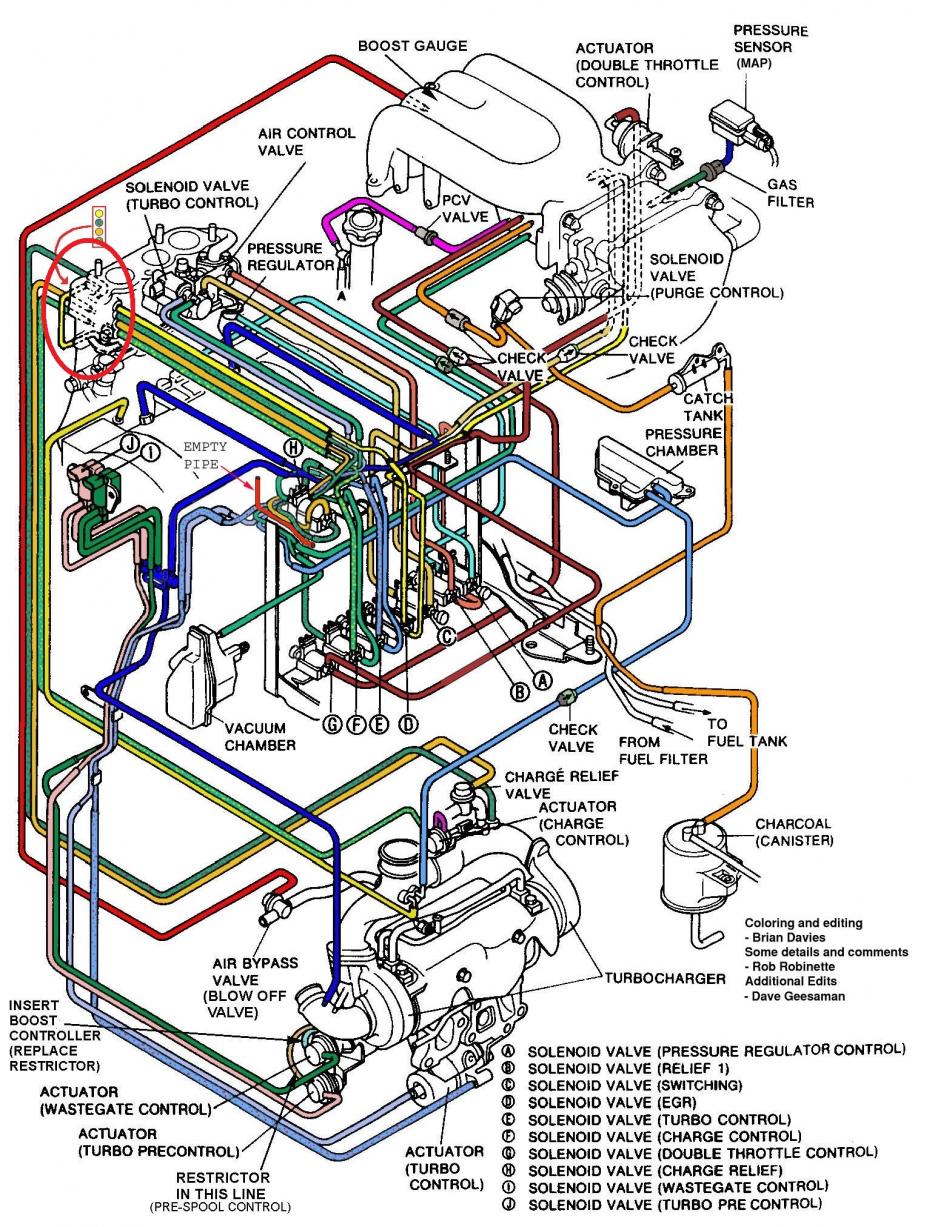

Goes to the EGR valve. Circled in Red on attached diagram.
Attached Thumbnails Vacuum line connection to what?-vachose-turbononsimplified-v2-.jpg
zoolook is offline
Reply Like
Old 06-26-12, 09:28 AM
  #3
Senior Member

Thread Starter
iTrader: (1)

a3dcadman's Avatar

Join Date: Jan 2004
Location: seattle area
Posts: 555
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by zoolook
Goes to the EGR valve. Circled in Red on attached diagram.
I thought that the EGR was the connection but wasnt sure. I took the EGR out.

Problem solved!

Thank you.

Chuck
a3dcadman is offline
Reply Like
Old 06-26-12, 10:13 AM
  #4
RX-7 Bad Ass

iTrader: (55)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 15,399
Received 2,438 Likes on 1,509 Posts
EGR has a vacuum line and, in '93 cali and '94s, also has the blue 2-wire connection. That's the EGR switch that just verifies that the vacuum signal to the EGR made the EGR move like it's supposed to.

Dale
DaleClark is offline
Reply Like
Old 06-27-12, 09:29 AM
  #5
Senior Member

Thread Starter
iTrader: (1)

a3dcadman's Avatar

Join Date: Jan 2004
Location: seattle area
Posts: 555
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by DaleClark
EGR has a vacuum line and, in '93 cali and '94s, also has the blue 2-wire connection. That's the EGR switch that just verifies that the vacuum signal to the EGR made the EGR move like it's supposed to.

Dale
Thanks Dale!
a3dcadman is offline
Reply Like
