vacuum hose: UIM to brake booster

question: is there a check valve in the vacuum hose that's connected to the UIM to metal hose before brake booster?

i can verify the hose thats directly connected to the brake booster has one.

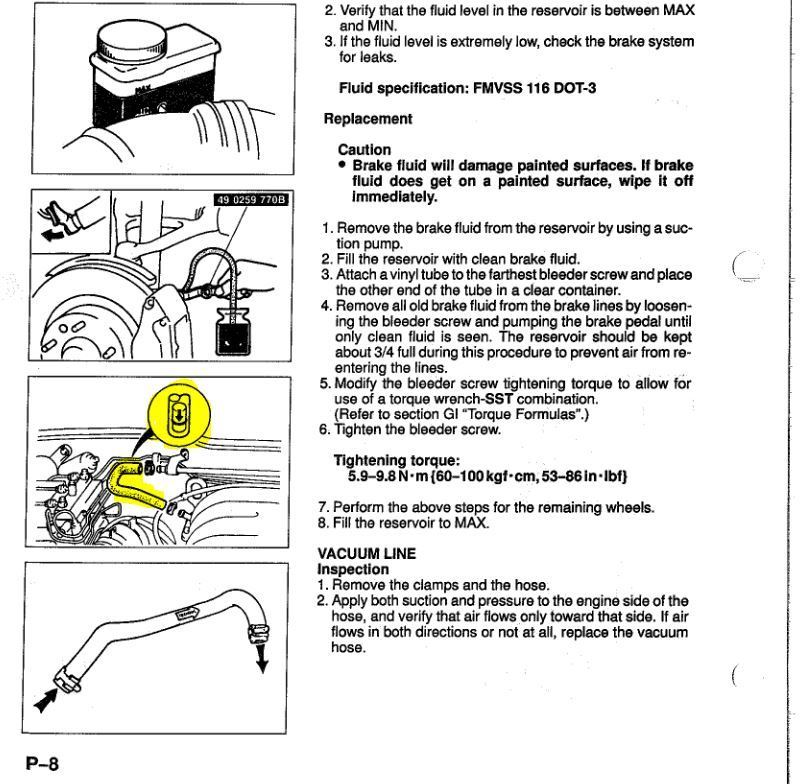

source: shop manual (P) braking systems

Sep 4, 2025 | 03:20 PM

RLaoFD

Brappable not Unflappable

iTrader: (7)

Joined: May 2005

Posts: 1,392

Likes: 8

From: Bay Area

Yes, there was an internal one-way check valve in that hose, but there was a recall due to it failing. The new kit moved the check valve to the hose attached to the brake booster on the other side of the engine bay.
