Vacuum connection picture included

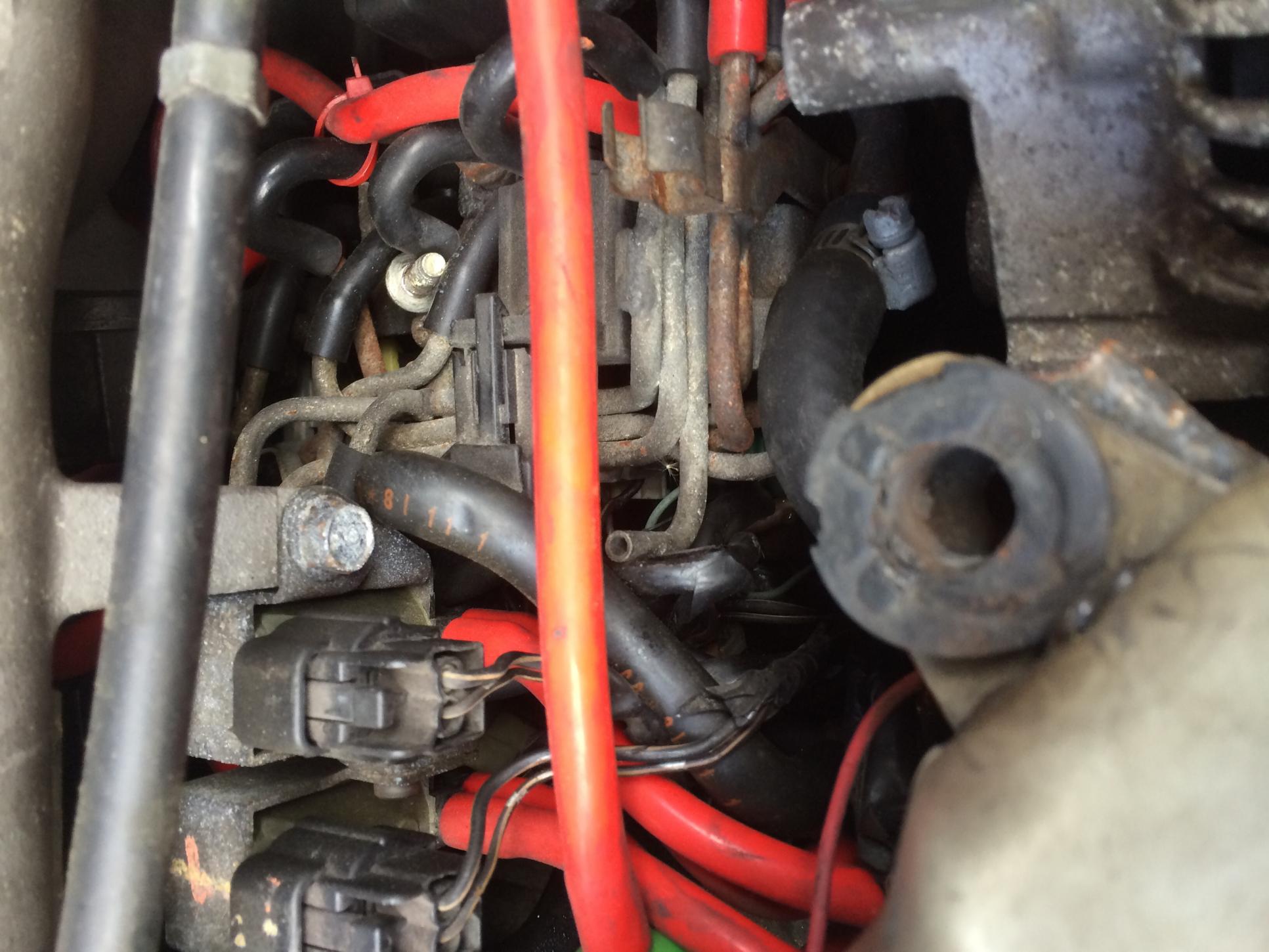

Hey everyone, I was in the process of checking my boost solenoids and I noticed a line not plugged in... I'm looking for some help to identify these items .. First the line pictured and the black box that sits in front of the upper intake manifold ..Thanks again
Attached Thumbnails Vacuum connection picture included-image.jpg
Shaun is offline
Old 03-19-14, 05:38 PM
  #2
Rotary Enthusiast
iTrader: (31)

Spalato's Avatar

Join Date: Jul 2004
Location: US/EU
Posts: 911
Received 27 Likes on 18 Posts
are you talking about this circled in red?

Name:  Vacuum.jpg
Views: 10
Size:  56.6 KB

if so, than I believe you are fine, if you take a look at the stock vacuum hose diagram you will notice there is a empty pipe, I believe mazda put it there because if was maybe supposed to be used for something or maybe they removed something in the pre-production process but just left it there in production...not sure but maybe the gurus here will know why exactly there is an empty pipe there...

Name:  vacuum_hose_diagram2-1.jpg
Views: 6
Size:  144.3 KB
Spalato is offline
Old 03-19-14, 06:09 PM
  #3
Rotary Enthusiast
10 Year Member
iTrader: (5)

tt7hvn's Avatar

Join Date: Nov 2005
Location: New Bern, NC
Posts: 1,320
Likes: 0
Received 0 Likes on 0 Posts
yup, that is an empty, unused pipe that mazda kept there for whatever reason.

also, to answer you're second question, the black box that sits in front of the UIM is the pressure chamber. it's necessary for the sequential system to work. when the secondary turbo comes online, the solenoid for both the vacuum chamber and pressure chamber opens, and applies both vacuum and pressure to the turbo control actuator so it opens quickly and you get that rush when the secondary turbo comes online.
tt7hvn is offline
Old 03-19-14, 07:46 PM
  #4
Full Member
10 Year Member
Thread Starter
iTrader: (1)

Join Date: Jan 2003
Location: South Carolina
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
great thanks guys.... after driving around today and tonight I don't feel the extra rush as describe at 4500... Do you guys happen to have a link to a write up on the UMI removal?
Shaun is offline
Old 03-19-14, 08:04 PM
  #5
Rotary Enthusiast
10 Year Member
iTrader: (5)

tt7hvn's Avatar

Join Date: Nov 2005
Location: New Bern, NC
Posts: 1,320
Likes: 0
Received 0 Likes on 0 Posts
Get a boost gauge first, and just connect it to the unused nipple on the UIM and run it into the cabin through the window or something. We need to see what your actual boost number are. It's much easier to trouble shoot if we know what boost is happening at what rpm.
tt7hvn is offline
Old 03-19-14, 09:14 PM
  #6
Full Member
10 Year Member
Thread Starter
iTrader: (1)

Join Date: Jan 2003
Location: South Carolina
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Ok great ! Will do
Shaun is offline
Old 03-19-14, 09:27 PM
  #7
Rotary Enthusiast
5 Year Member

96fd3s's Avatar

Join Date: Apr 2008
Location: NZ
Posts: 1,092
Likes: 0
Received 0 Likes on 0 Posts
this may help with UIM removal

96fd3s is offline
Old 03-20-14, 06:46 AM
  #8
Senior Member
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 0 Likes on 0 Posts
FYI this is for the second vacuum tank found on the auto tranny FD!
Erix7rew is offline
Old 03-20-14, 07:13 PM
  #9
Full Member
10 Year Member
Thread Starter
iTrader: (1)

Join Date: Jan 2003
Location: South Carolina
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
thanks everyone ! i will get boost gauge and keep everyone updated
Shaun is offline
Old 03-20-14, 07:17 PM
  #10
T3DoW
iTrader: (10)

TpCpLaYa's Avatar

Join Date: Nov 2001
Location: Chicago - NW Burbs
Posts: 3,753
Received 4 Likes on 2 Posts
like mentioned the empty pipe is used on the automatic cars
TpCpLaYa is offline
Old 04-01-14, 07:49 PM
  #11
Full Member
10 Year Member
Thread Starter
iTrader: (1)

Join Date: Jan 2003
Location: South Carolina
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
UPDATE:
just installed boost gauge... my 1st pull I saw 10 psi without crossover to 8 ... Then the rest of the times while driving I only got 2psi. My Vac was constant at 20
