I searched and i couldn't find any pics, so i would like to say sorry first of all.I bought a kit from kg parts because i have also upgraded my turbo.I would like to see if anyone has pics of their set-up when you were installing it without the uim on.I know there was a thread a couple of weeks ago but i couldn't find it.

Thanks,
Tom



Damian started a write up on it

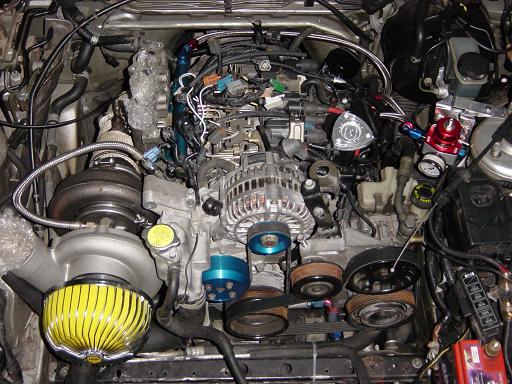

This is the setup I just recently finished for my new single. -6 lines just to get my FD started and be able to drive around untill I get everything setup and go the full -8 line setup. I'm running a greddy t88 kit, walbro fuel pump will be adding another walbro soon, KG secondary fuel rail 850s and 1600s, and aeromotive fuel regulator.. All ran by power FC..



Tom, shoot me an email at my KG address and I should have any pics you would need. What is the problem you are having?
-Keith



I dont know how the 2 steel braided are suppose to go.



Also could i run the injectors without resistors?



what size lines are you running -8 or -6? Well the feed from the pump goes to the secondary fuel rail the side toward the firewall, primary connects to the secondary ful rail then firewall side of the primary runs to one of the sides of the regulator then the bottom line from the regulator goes to the return back to the gas tank..
