Unknown connectors S6 RHD Jspec
#1
Unknown connectors S6 RHD Jspec
Hi guys I've been searching like crazy but could not find an answer for this RHD Question
Does anyone know what are those connectors;
1.Timer Unit GR29
-Located by the right knee of passenger (Jspec)

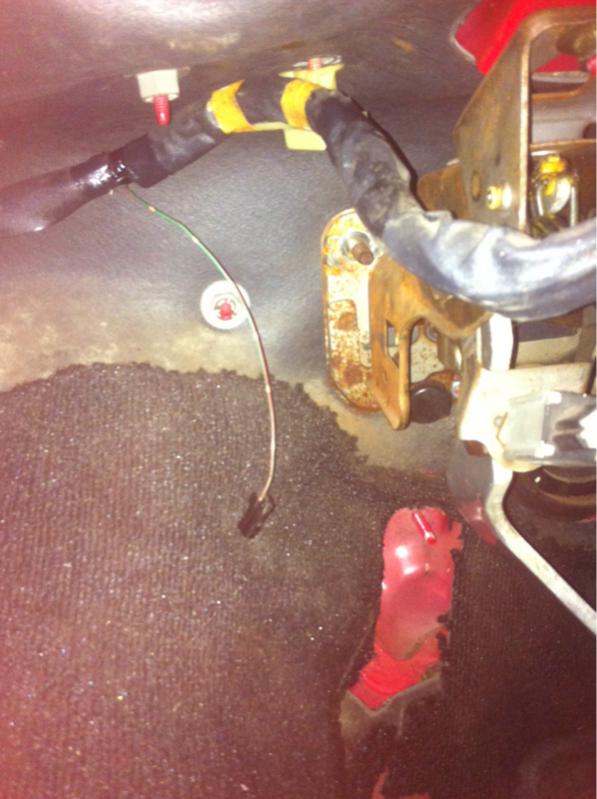

2. ??? Unknown Connector ??
What is this connector? What does it connect to?
-Located left side of clutch switch connector
Thank you very much for helping me.
Does anyone know what are those connectors;
1.Timer Unit GR29
-Located by the right knee of passenger (Jspec)
2. ??? Unknown Connector ??
What is this connector? What does it connect to?
-Located left side of clutch switch connector
Thank you very much for helping me.
#5
Thanks guys,I got little update Soooo I pulled the harness out and I followed the single wire (Green/Red) and
One end goes to the blue connector near X-14 And the other end goes to blue connector X-15 I believe.
I can't read wiring diagram + I have to kinda "convert" Everything to RHD
I took my old Firewall harness out and compared it to it I found that that the same wire (Green/Red) is connected to Q-01(cruise control module) Which is not present in my new harness.
Sooo I think I'll remove it Take the Q-01 from my old harness And install it in my new harness (That way i can install cruise control in the future)
Simply sharing what I found out , hopefully someone will figure this out one day.
-------
I still don't know what -Unit Timer GR29 is door lock ? Alarm ? ...I'm really wondering
One end goes to the blue connector near X-14 And the other end goes to blue connector X-15 I believe.
I can't read wiring diagram + I have to kinda "convert" Everything to RHD
I took my old Firewall harness out and compared it to it I found that that the same wire (Green/Red) is connected to Q-01(cruise control module) Which is not present in my new harness.
Sooo I think I'll remove it Take the Q-01 from my old harness And install it in my new harness (That way i can install cruise control in the future)
Simply sharing what I found out , hopefully someone will figure this out one day.
-------
I still don't know what -Unit Timer GR29 is door lock ? Alarm ? ...I'm really wondering
#6
Unit timer GR29 could be:
Alarm system related
or more likely it may be the cooling fans timer- part of a patch upgrade Mazda made on some cars to allow the cooling fans to run for a period of time after the ignition is turned off. I would have thought this is what it is.
What year/model is it? Mine is RHD too.
Alarm system related
or more likely it may be the cooling fans timer- part of a patch upgrade Mazda made on some cars to allow the cooling fans to run for a period of time after the ignition is turned off. I would have thought this is what it is.
What year/model is it? Mine is RHD too.
Trending Topics
#8
Junior Member
has anybody ever found out what that thing is good for? I'm just cleaning up my messed up interior wiring (somebody installed an alarm and chopped off basically everything) and i found the same thing in my RHD RZ2.

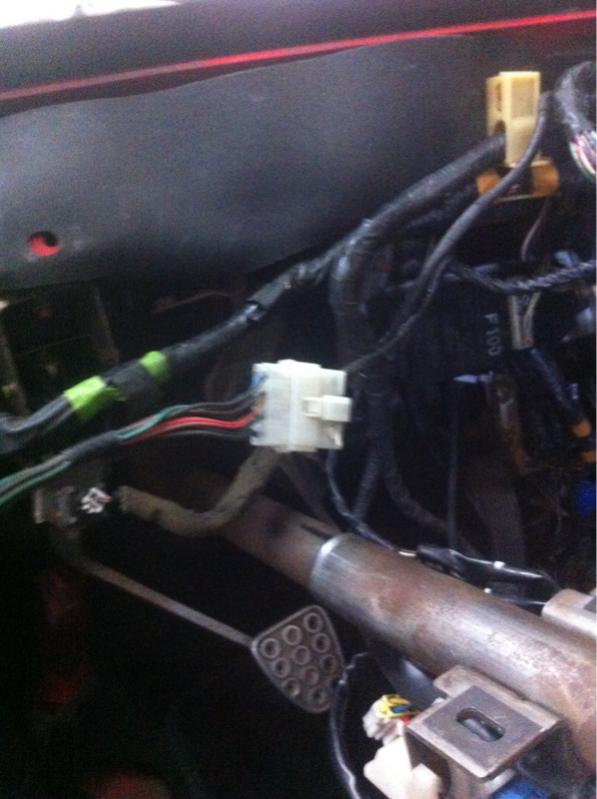

It was plugged in between the F110 CPU and the Main Dash harness via this T-Adapter.

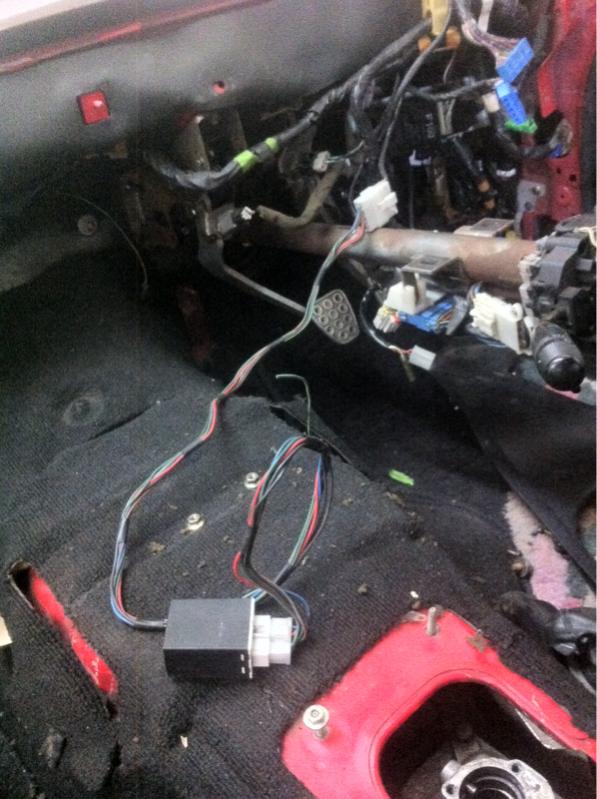

The T-Harness plugs in the F110 and the Dash wiring, some wired route to the strange module on the trans tunnel.

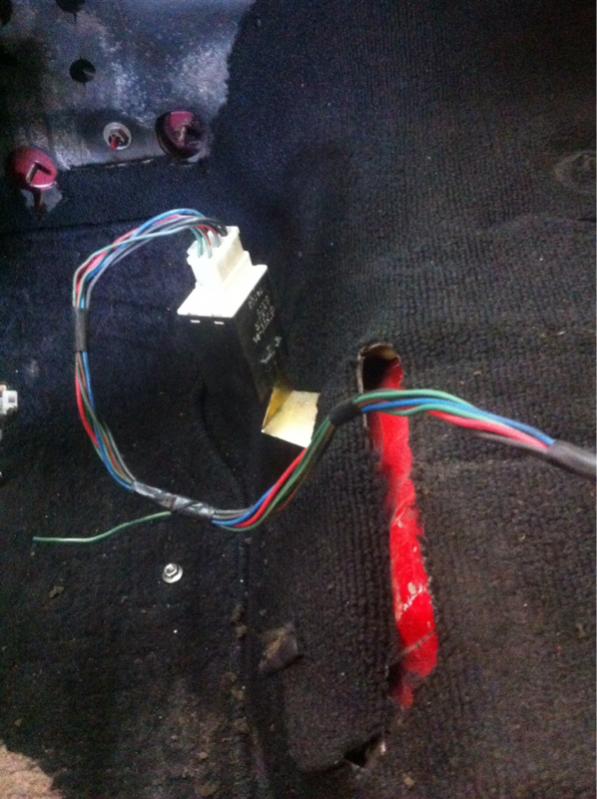

This is the Module in Question on the Trans Tunnel.
Also: what is this?
Thanks
It was plugged in between the F110 CPU and the Main Dash harness via this T-Adapter.
The T-Harness plugs in the F110 and the Dash wiring, some wired route to the strange module on the trans tunnel.
This is the Module in Question on the Trans Tunnel.
Also: what is this?
Thanks
#9
RX-7 Bad Ass
iTrader: (55)
That may be the factory keyless entry system. The wiring "T" is going to CPU #2 which controls the alarm. Makes sense that you would use the keyless entry and the CPU has to know about it that it's an authorized unlock and it won't set off the factory alarm.
There's not much documentation on that keyless entry system, I think it was a dealer add-on. There have been some kits floating around but they are CRAZY expensive.
Dale
There's not much documentation on that keyless entry system, I think it was a dealer add-on. There have been some kits floating around but they are CRAZY expensive.
Dale
