Twin turbo or single turbo set up?

Thread Tools

Search this Thread

Old Dec 5, 2005 | 04:51 AM
  #26
rexhvn's Avatar
Thread Starter
Rotary for life!
Tenured Member 15 Years

Joined: Oct 2005
Posts: 1,155
Likes: 1
From: Somewhere...
First modications

Hello,
I just would like to know what modication would you get for a stock rx7?

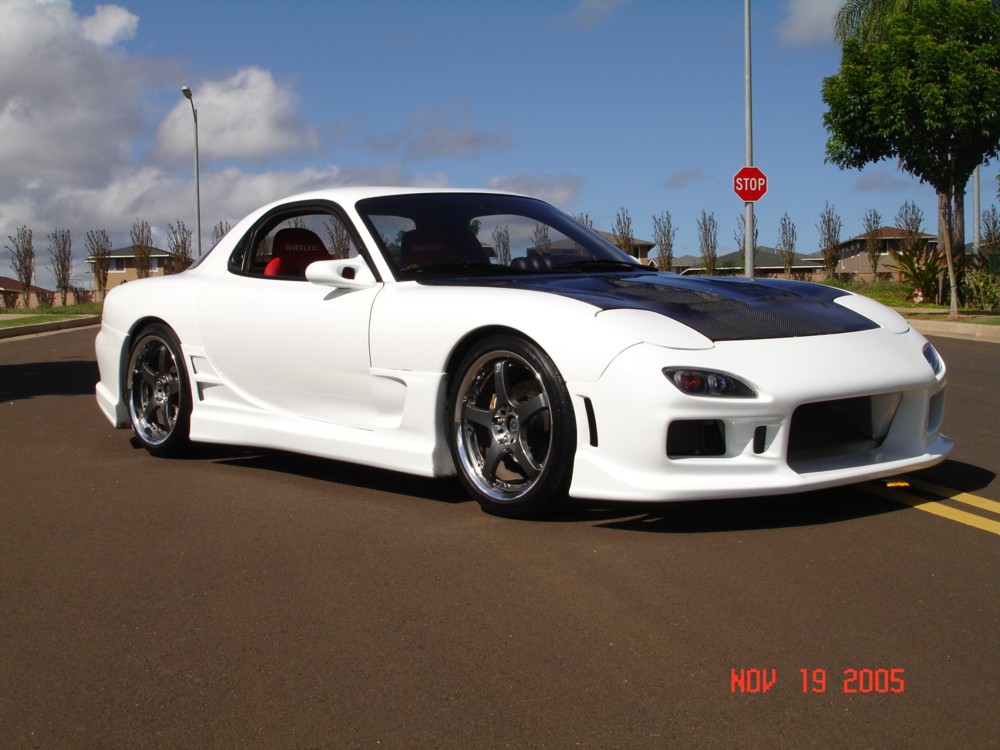

I also would like to know your opinion on the c west bodykit? Here is a picture.
I do want to get rims. Here is Australia everyone has rims from 18" to 20". Do you think 20" inch is far to much?
Attached Thumbnails Twin turbo or single turbo set up?-c-west-kit-rx7.jpg
Reply
Old Dec 5, 2005 | 09:05 AM
  #27
Cgotto6's Avatar
Rotary Freak
Tenured Member: 20 Years
iTrader: (8)

Joined: Nov 2003
Posts: 1,999
Likes: 60
From: Maltby, Washington
Originally Posted by rexhvn
Would seq turbos be better for street drivin cars?
As i am new and not sure about rotarys, what modications would you need in to to get say...running 15 psi?
Thank you.
In my opinion sequential is better for the street! By a long shot. You have loads more power down low. Running 15PSI on the stock turbos isnt the best idea. If you run 14 you wont kill the turbos as fast, and you can keep the stock fuel system. Just look at my mods for what you need to run at 14 psi.
Reply
Old Dec 5, 2005 | 09:08 AM
  #28
Cgotto6's Avatar
Rotary Freak
Tenured Member: 20 Years
iTrader: (8)

Joined: Nov 2003
Posts: 1,999
Likes: 60
From: Maltby, Washington
Originally Posted by rexhvn
Hello,
I just would like to know what modication would you get for a stock rx7?
I also would like to know your opinion on the c west bodykit? Here is a picture.
I do want to get rims. Here is Australia everyone has rims from 18" to 20". Do you think 20" inch is far to much?
Read the newbie and faq threads. They have tons of info in them. They will tell you which mods to do in which order. Becareful modding the car, do the wrong ones and it can reasult in a blown motor real quick.

As far as rims, I think 18" is the biggest Id go. 19" looks way too big, and 20" is a joke. With 18" people dont usually have rubbing issues too. That might be with some suspension work though...
Reply
Old Dec 5, 2005 | 06:02 PM
  #29
rexhvn's Avatar
Thread Starter
Rotary for life!
Tenured Member 15 Years

Joined: Oct 2005
Posts: 1,155
Likes: 1
From: Somewhere...
Cgotto6: When running at 14psi with a stock fuel system, won't I get fuel cut?
Reply
Old Dec 5, 2005 | 06:11 PM
  #30
bacek's Avatar
Senior Member
Tenured Member 05 Years

Joined: Jul 2004
Posts: 664
Likes: 1
From: los angeles
Originally Posted by Cgotto6
Sequential means the Primary (smaller turbo) comes online first and should be at 10 psi on a stock set up. Then at 4500 there is a slight dip in the boost (8 psi), then almost instantly it should come back up to 10 psi again, but with a power increase. That is when the secondary comes on, and both turbos are running at once.

Non-Seq. is just when both turbos get the same amount of exhaust flow the whole time. Its more similar to running a single turbo. There is no transition or anything.

Sequential will reach high boost quicker and will put out the same hp numbers as non seq. Non-seq is what most people do for simplicity, usually because they cant diagnose the stock sequential set up due to its complexity.

umm i am a TII guy but arent the fd turbos the same size?

and from most of the dynos i have seen non sequential seems to produce more peak power but the lengths of power bands (or area underneath the curve of a dyno plot) are essentially the same
Reply
Old Dec 5, 2005 | 06:49 PM
  #31
rynberg's Avatar
Lives on the Forum
Tenured Member: 20 Years

Joined: Dec 2001
Posts: 14,716
Likes: 10
From: San Lorenzo, California
Originally Posted by rexhvn
Cgotto6: When running at 14psi with a stock fuel system, won't I get fuel cut?
The fuel system has nothing to do with fuel cut, that is an ECU controlled function. It would be really nice if you would actually put some EFFORT in and read the links that have been posted. You are asking for a summation of years of learning about these cars in one nice post in your thread, and it ain't going to happen. READ.

Originally Posted by bacek
umm i am a TII guy but arent the fd turbos the same size?

and from most of the dynos i have seen non sequential seems to produce more peak power but the lengths of power bands (or area underneath the curve of a dyno plot) are essentially the same
Yes, the FD twins are both Hitachi HT-12s. Non-sequential supposedly creates a little more power than sequential because some restrictions are removed from the exhaust path. However, no one has actually documented any increase. Non-sequential has a narrower powerband, period. It won't make more power than sequential (not including any benefits gained by going TRUE non-sequential and removing exhaust restrictions).

With non-sequential, you are giving up a 1000 rpm of powerband and quicker spooling to achieve a smoother powerband and increased boost reliability. Anybody not admitting those facts is either ignorant, deluded, or is a liar.
Reply
Old Dec 5, 2005 | 08:27 PM
  #32
Cgotto6's Avatar
Rotary Freak
Tenured Member: 20 Years
iTrader: (8)

Joined: Nov 2003
Posts: 1,999
Likes: 60
From: Maltby, Washington
Originally Posted by rynberg
The fuel system has nothing to do with fuel cut, that is an ECU controlled function. It would be really nice if you would actually put some EFFORT in and read the links that have been posted. You are asking for a summation of years of learning about these cars in one nice post in your thread, and it ain't going to happen. READ.


Yes, the FD twins are both Hitachi HT-12s. Non-sequential supposedly creates a little more power than sequential because some restrictions are removed from the exhaust path. However, no one has actually documented any increase. Non-sequential has a narrower powerband, period. It won't make more power than sequential (not including any benefits gained by going TRUE non-sequential and removing exhaust restrictions).

With non-sequential, you are giving up a 1000 rpm of powerband and quicker spooling to achieve a smoother powerband and increased boost reliability. Anybody not admitting those facts is either ignorant, deluded, or is a liar.
Haha, you scared me for a sec there. It looked like I made that coment about fuel cut. I definetly didnt remember saying that. Haha, its always good to read things a few times.
Reply
Old Dec 5, 2005 | 09:22 PM
  #33
rexhvn's Avatar
Thread Starter
Rotary for life!
Tenured Member 15 Years

Joined: Oct 2005
Posts: 1,155
Likes: 1
From: Somewhere...
Hahahaha, i so don't know what i'm talking about lol.
Reply
Old Dec 7, 2005 | 03:19 AM
  #34
rexhvn's Avatar
Thread Starter
Rotary for life!
Tenured Member 15 Years

Joined: Oct 2005
Posts: 1,155
Likes: 1
From: Somewhere...
Hello everyone, sorry to bother you all. I just want to know when racing someone at a stop, what RPM do you take off at?
At what RPM does the wheels start to spin and lose traction?
Thank you.
